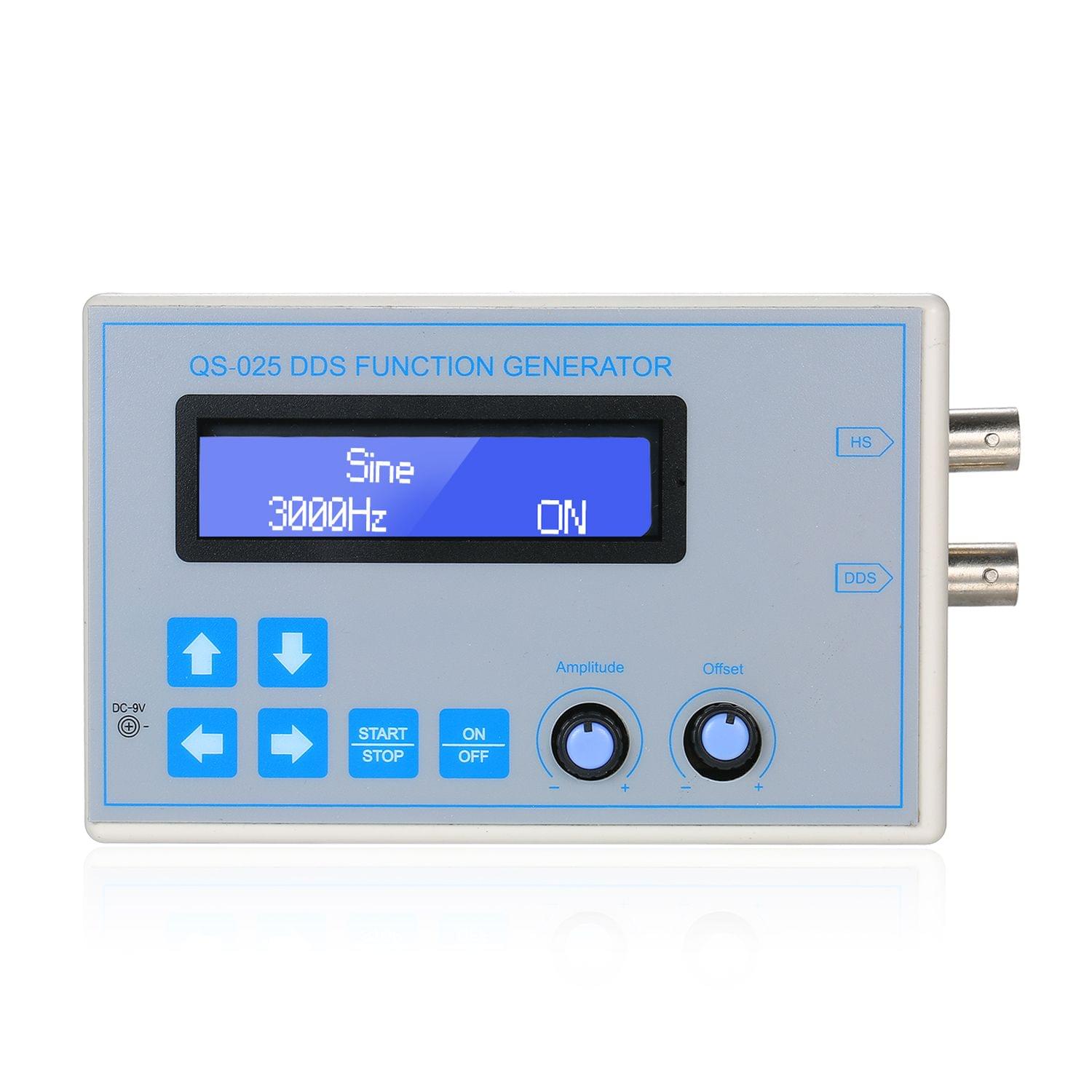

DDS Function Signal Generator Sine Square Triangle Sawtooth

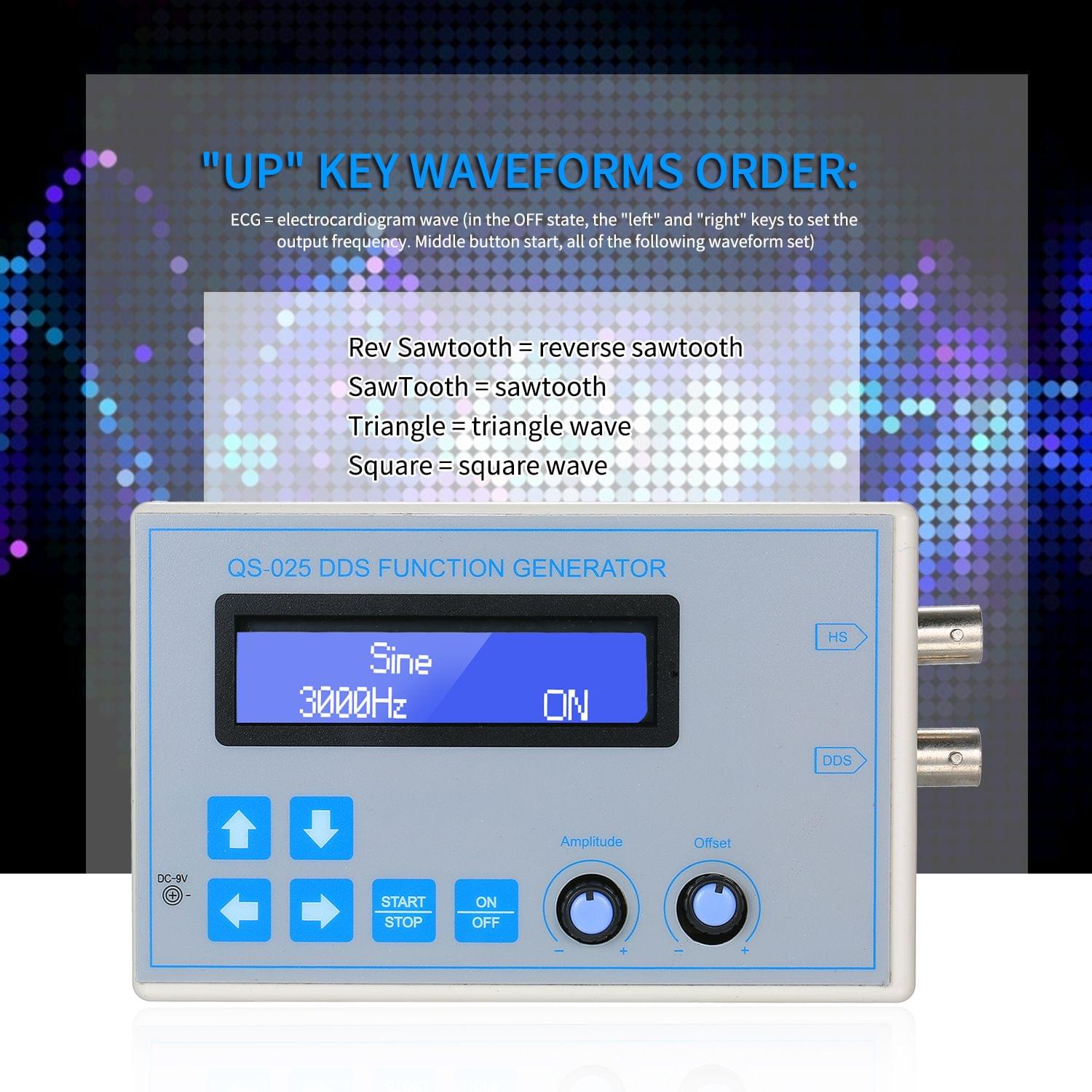

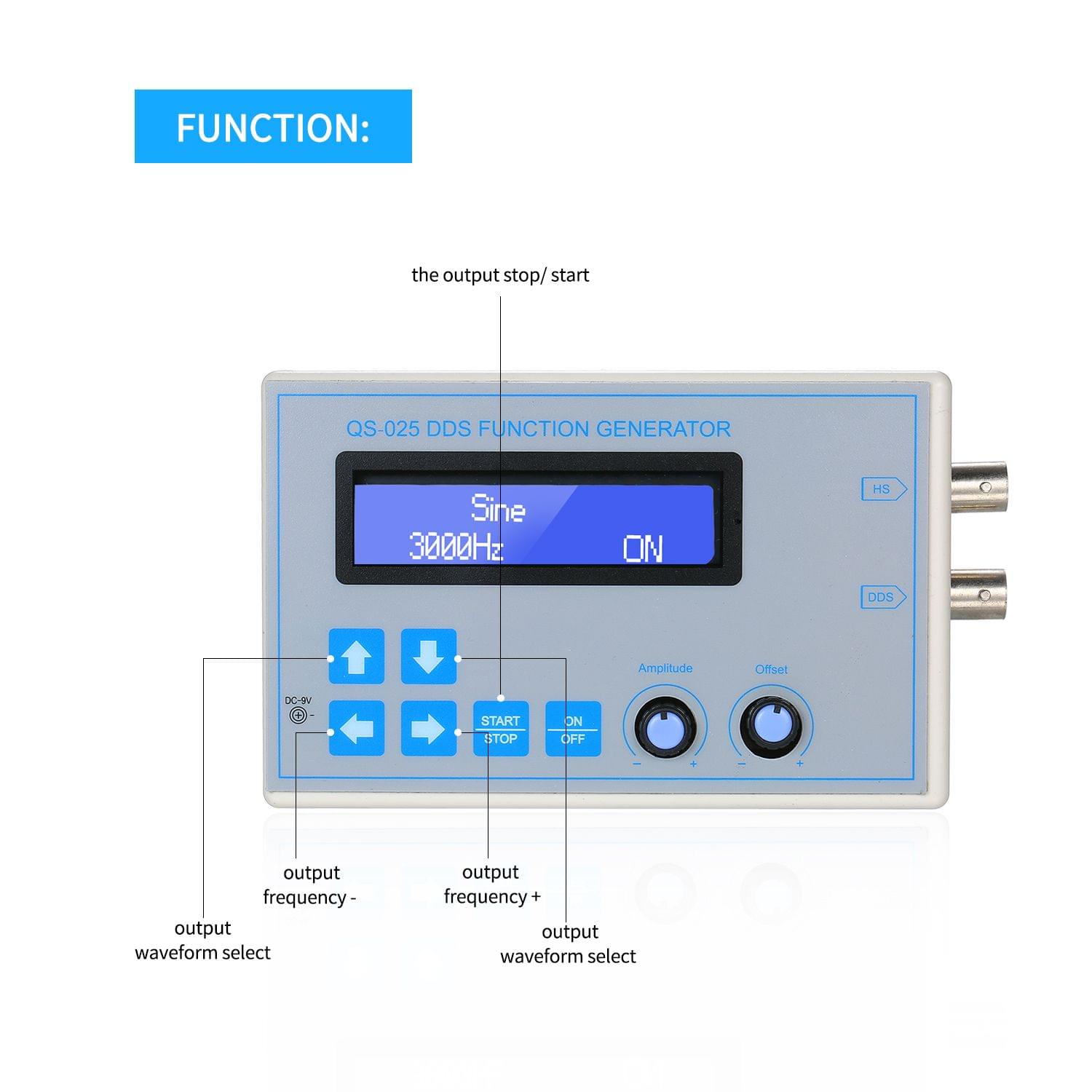

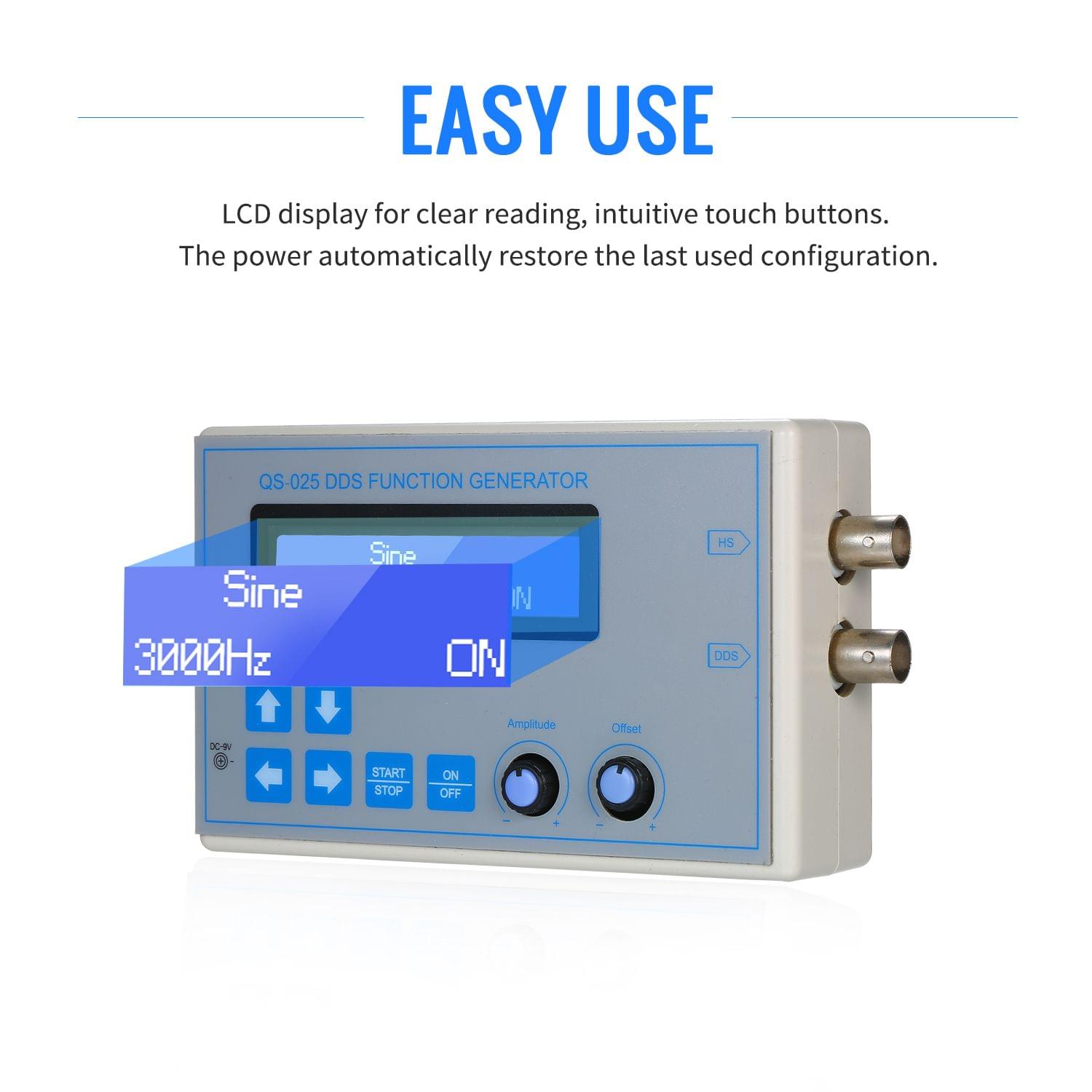

This functional signal generator can test many kinds of wave forms such as: sine wave square wave sawtooth reverse sawtooth triangle wave the ECG wave and noise wave.Features:Portable --- Small size powered by DC 9V easy and portable for use.DDS frequency range --- 1Hz-65534Hz high-speed frequency (HS) output up to 8MHz.Adjustable --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.Wide DDS signals --- sine wave square wave sawtooth reverse sawtooth triangle wave the ECG wave and noise wave.Easy Use --- LCD display for clear reading intuitive touch buttons. The power automatically restore the last used configuration.Function:UP output waveform selectDOWN output waveform selectLEFT output frequency -RIGHT output frequency +STOP / START the output stop / startUP key waveforms order:ECG = electrocardiogram wave (in the OFF state the left and right keys to set the output frequency. Middle button start all of the following waveform set)Rev Sawtooth = reverse sawtoothSawTooth = sawtoothTriangle = triangle waveSquare = square waveSpecifications:Material: ABSDisplay: 1602 LCDOperating Voltage: DC 9VDDS Frequency Range: 1Hz-65534HzFrequency(HS) Output: up to 8MHzSection into the Value: 1 10 100 1000 10000 HzOffset: 0.5pp-5VppAmplitude Amount: 0.5Vpp-14VppPower Cable Length: Approx. 70cm / 27.56inItem Size: 135*80*32mm / 5.3*3.15*1.26inItem Weight: 198g / 6.98ozPackage Weight: 203g / 7.16ozPackage Size: 135*80*32mm / 5.3*3.15*1.26inPackage List:1 * DDS Function Signal Generator1 * Power Cable
