Desktop Digital Oscilloscope 7 inch 800*480 Display for Product Development

Description:

Full-touch 7-inch large screen, fully fitted with high-definition LCD with 7-inch 800 * 480 resolution.

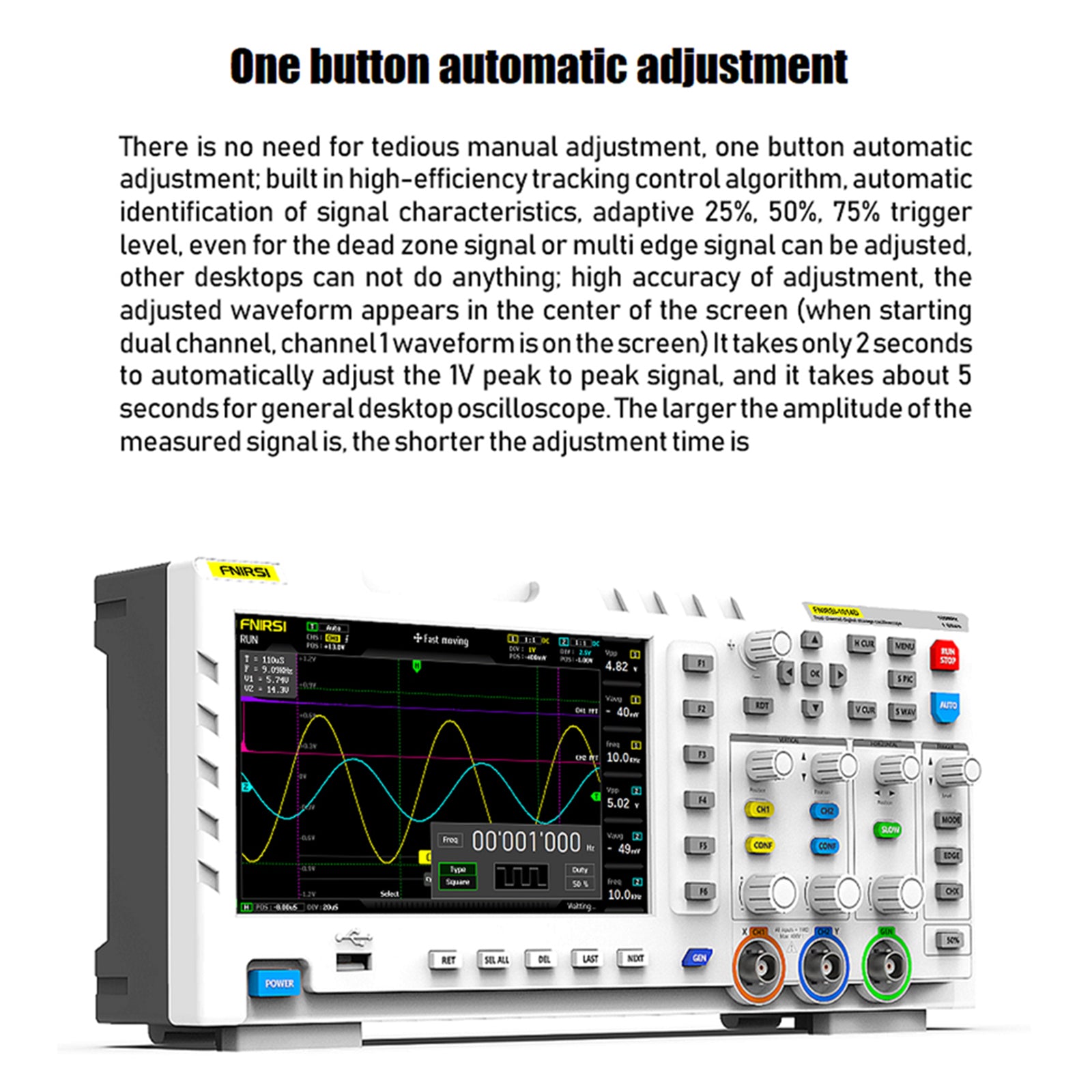

The oscilloscope has a real-time sampling rate of 1GSa / s and 100MHz* 2 analog bandwidth; complete function (single time / normal / automatic), both for periodic analog signal and aperiodic digital signal can be used freely; built in DDS function signal generator and the industry's chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal
Equipped with USB interface, which can be connected with the computer to realize the sharing of its own screen capture pictures and the computer.
Powerful waveform image manager, support thumbnail browsing, view, view details The functions of page turning, deleting and waveform enlarging, reducing and moving are convenient for secondary analysis.
Suitable for electronic production, home appliance repair, automobile repair, equipment debugging, scientific research and education, product development.

Specification:

Analog band width: 100MHz * 2

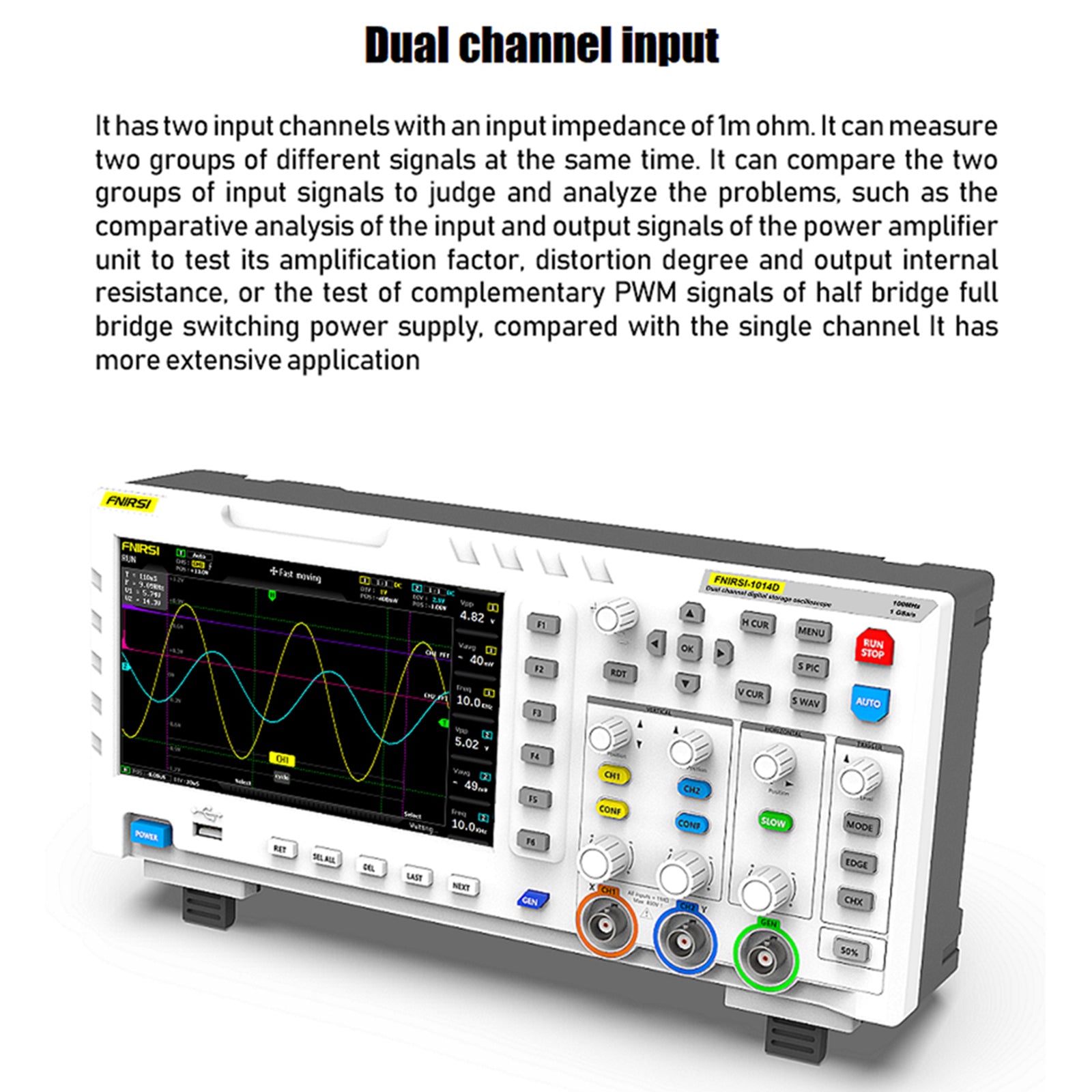

Number of channels: 2 channels
Max real time sampling rate: 1GSa/s
Vertical sensitivity: 50 mV/div ~ 500 V/div
Horizontal time base range: 50S/div ~ 10nS/div

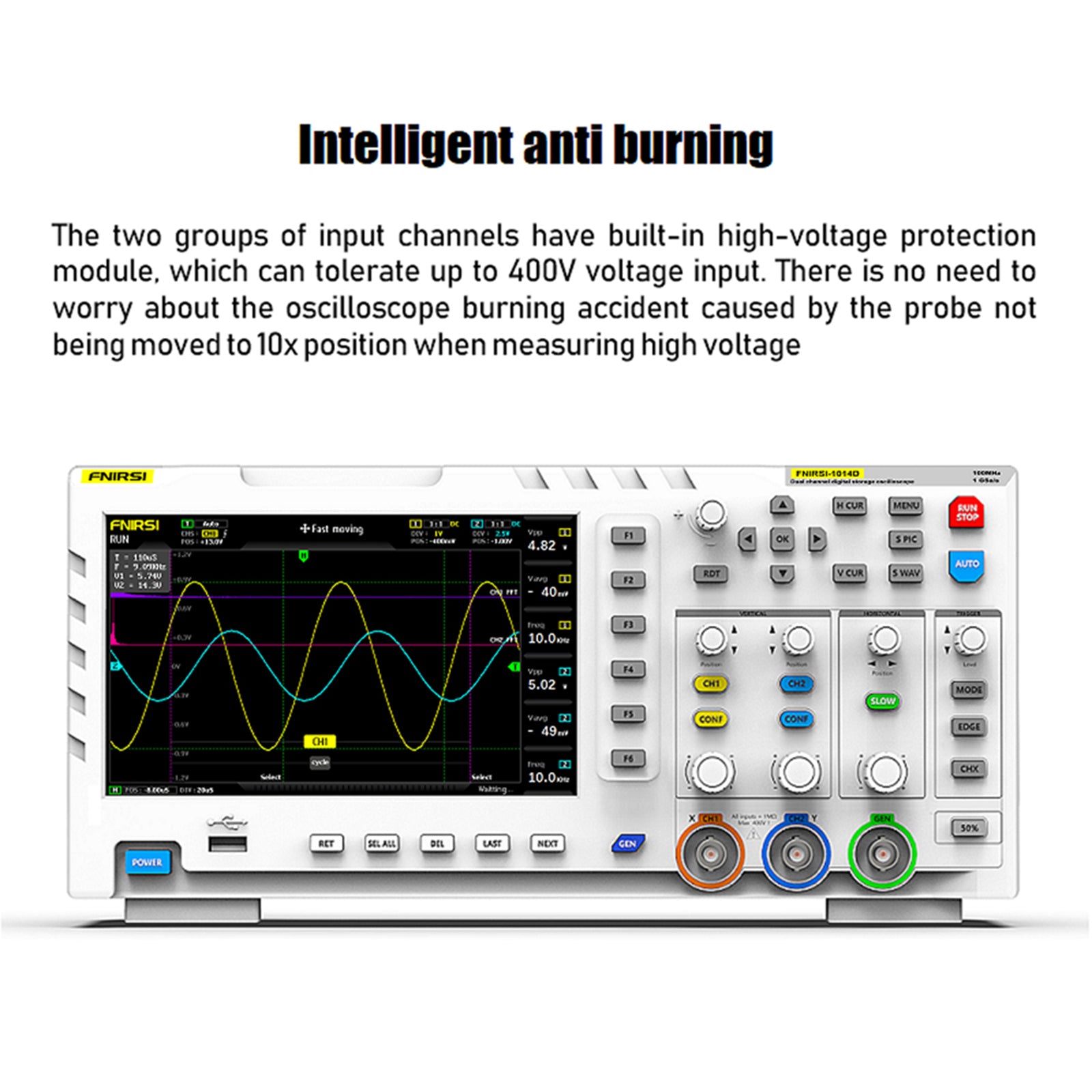

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
Storage depth: 240Kbit
Input resistance: 1MΩ
ADC precision: 8bits
Coupling mode: AC/DC

Size Chart:

340x140x70mm/13.39x5.51x2.76inch

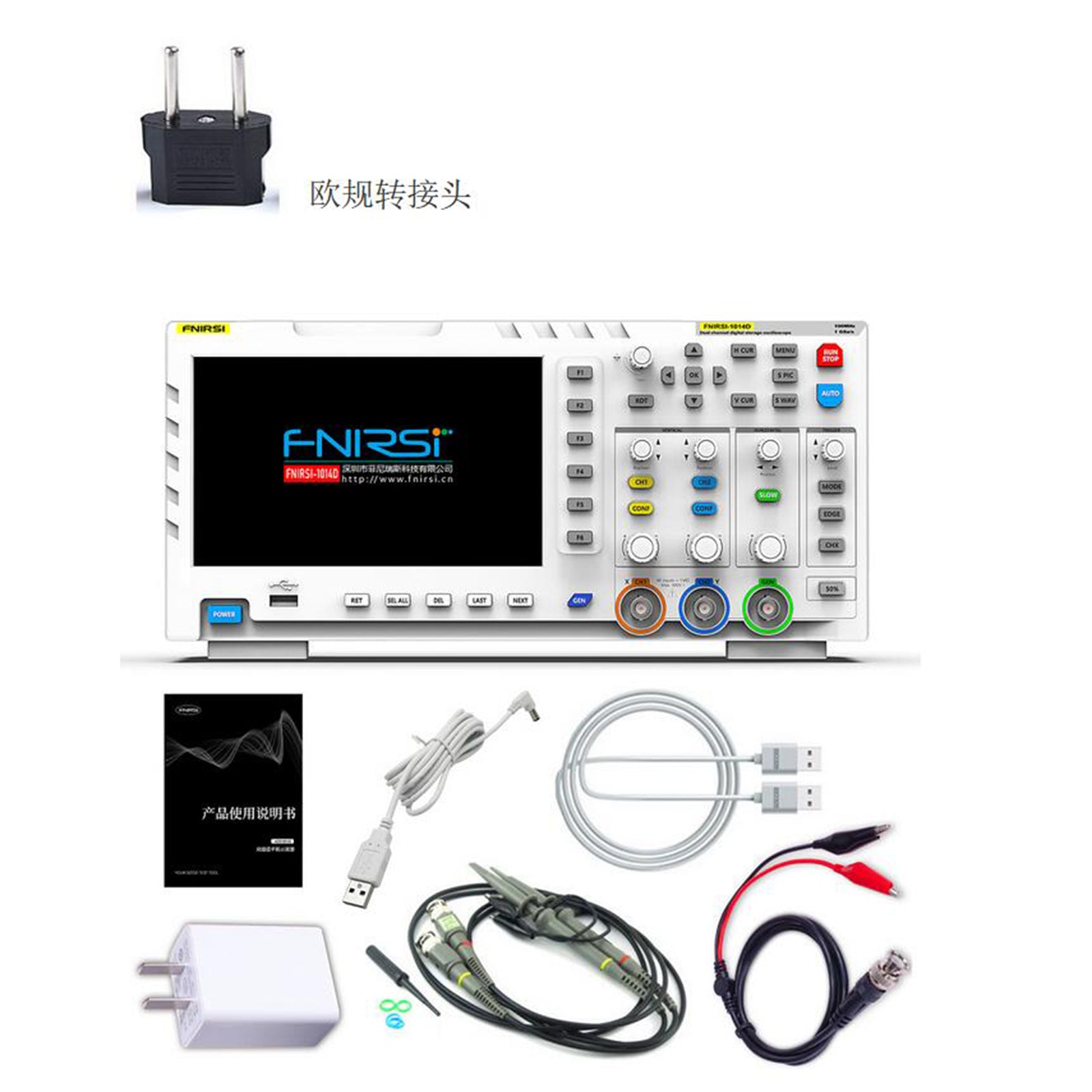

Package Includes:

1 x 1014D oscilloscope host
2 x Matching 100MHz probe(1X and 10X)
1 x Crocodile clip
1 x 5V2A Power Adapter(US Adapter)
1 x EU Conversion Adapter
1 x USB Cable
1 x User manual (English)

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
