Digital Amplifier Board DIY Sturdy Compact 100W×2+200W Amp Board 2.1 Channel

Description:

【High Power Digital Amplifier Board】: Experience exceptional audio quality with our digital power amplifier board, designed for high current, low  loss, and minimal heat generation. The use of  copper wire enhances audio
【 Amplifier Module with Double TPA3221 Chips】: This amplifier module supports a 2.1 channel compatible digital amplifier with an impressive output of 100W+100W+200W, ensuring powerful and clear audio to meet all your entertainment needs

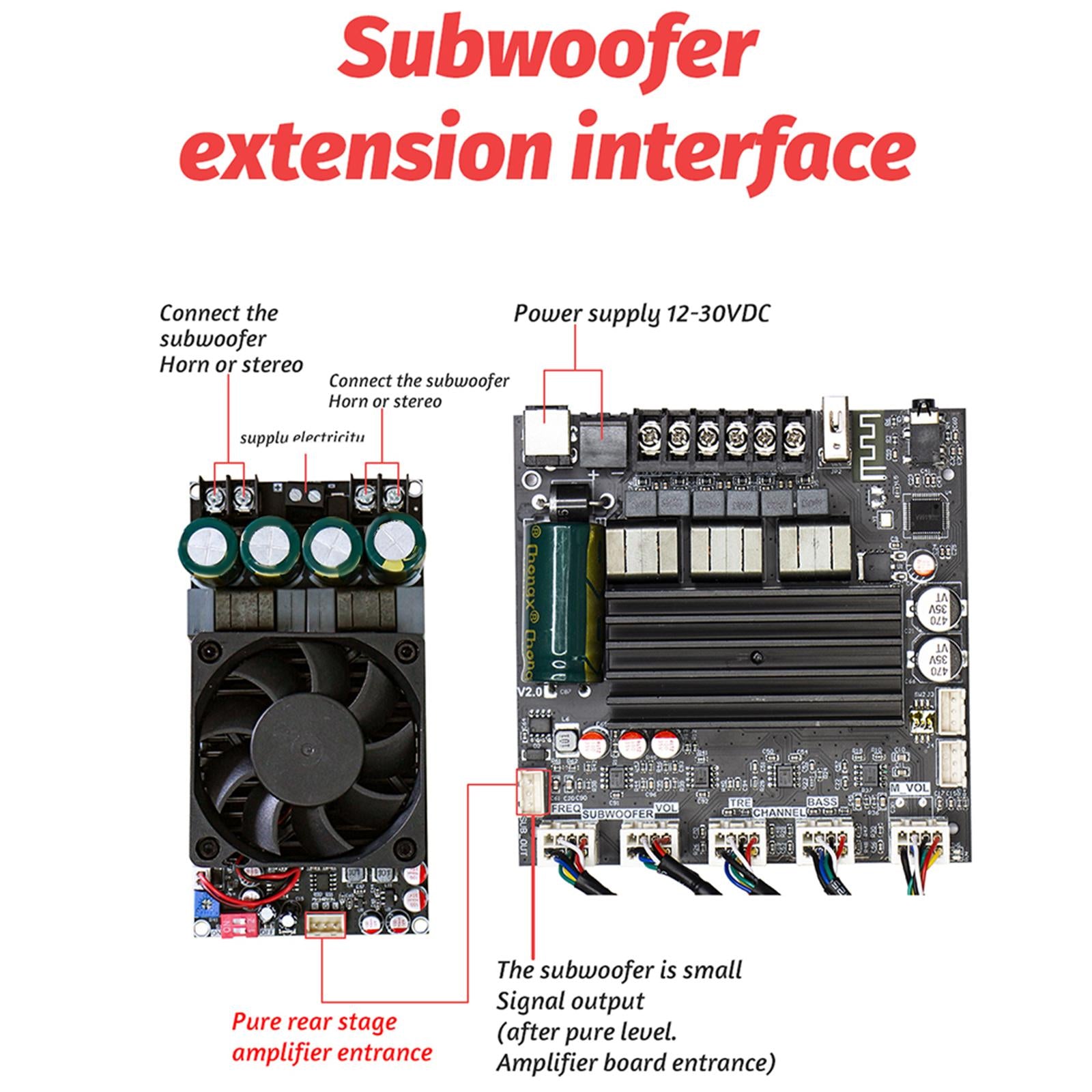

【Versatile Digital Power Subwoofer Amplifier】: Our digital power subwoofer amplifier includes a subwoofer expansion port compatible 1602 and 3002 installations, providing flexibility and enhanced bass performance for your audio setup
【Design】: Featuring multiple expansion ports, this digital amplifier board easily connect to mic preamplifier boards for reverb input or output, making it suitable for various audio applications
【Comprehensive Protection with MP Board】: The MP board is equipped with  protection mechanisms including input undervoltage, polarity protection, overheating prevent, overcurrent protection, and short circuit protection to ensure reliable operate

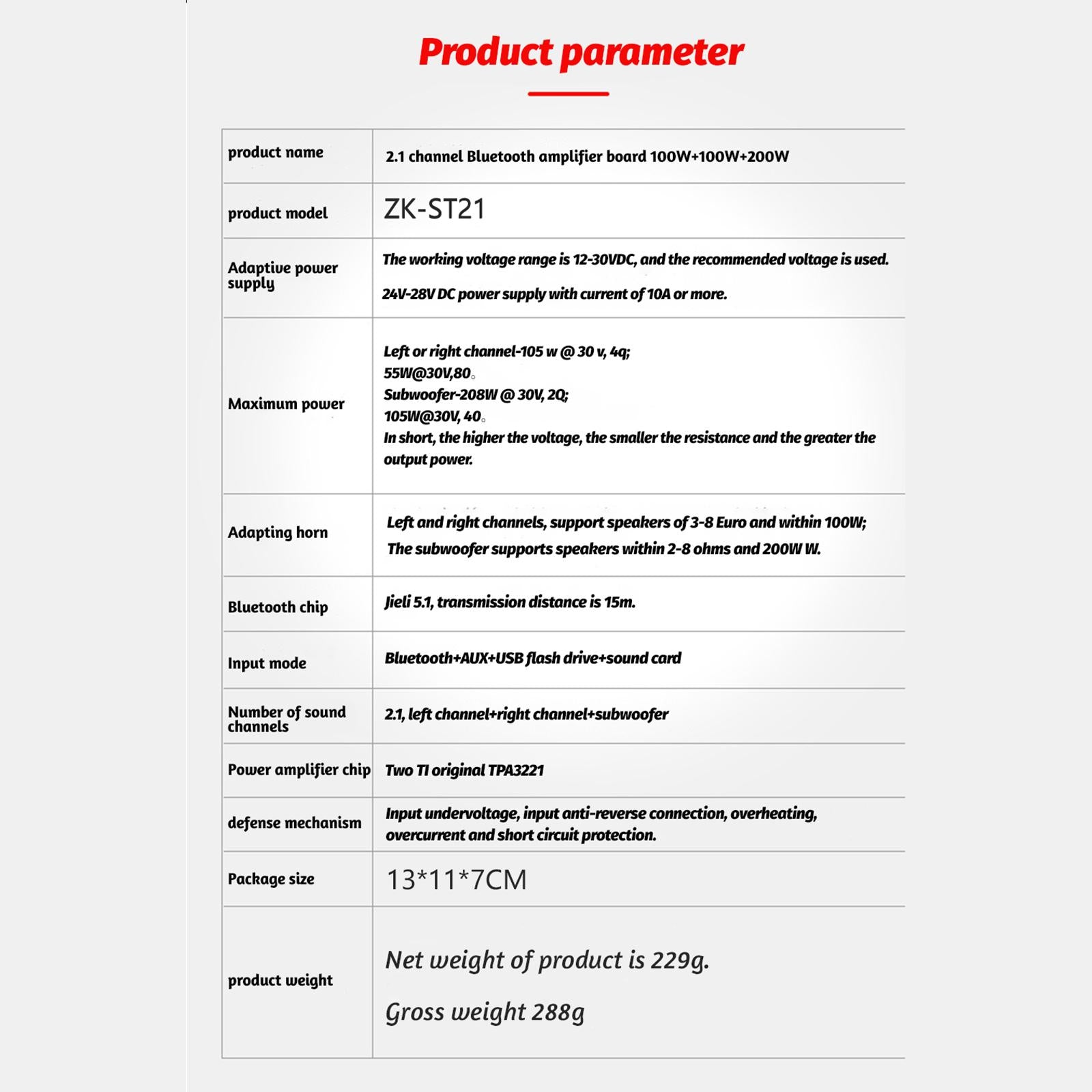

Specification:

Material: Metal
product : 2.1 channel amplifier board 100W+100W+200W
Adaptive power supply: The working voltage range is DC 12-30V , and the recommended voltage is used DC 24V-28V   power supply with current of 10 A or more

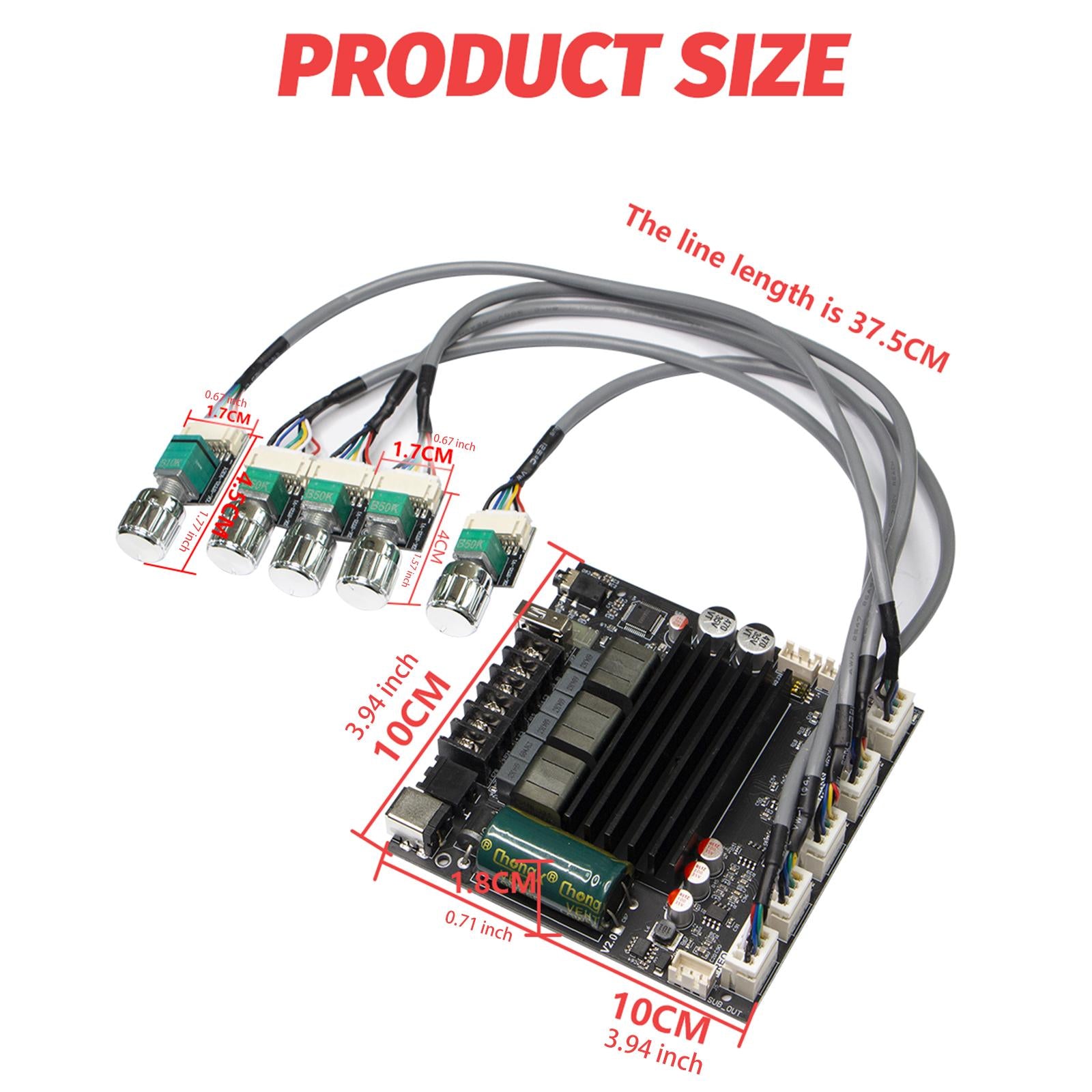

Size Chart:

Package 11cmx13cmx7cm/4.33inchx5.12inchx2.76inch

Package Includes:

1 x Digital Amplifier Board

Note:

Please allow slightly errors due to manual measurement and different monitors.
