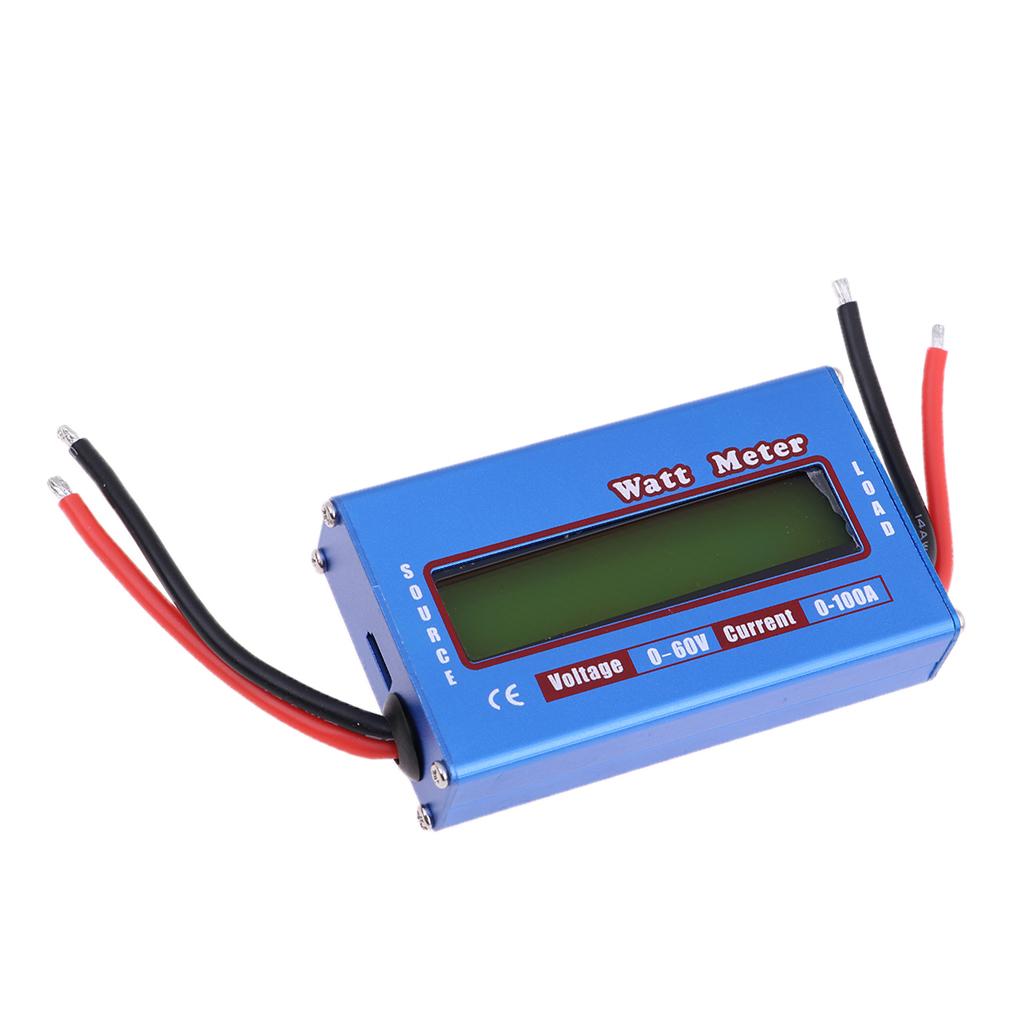

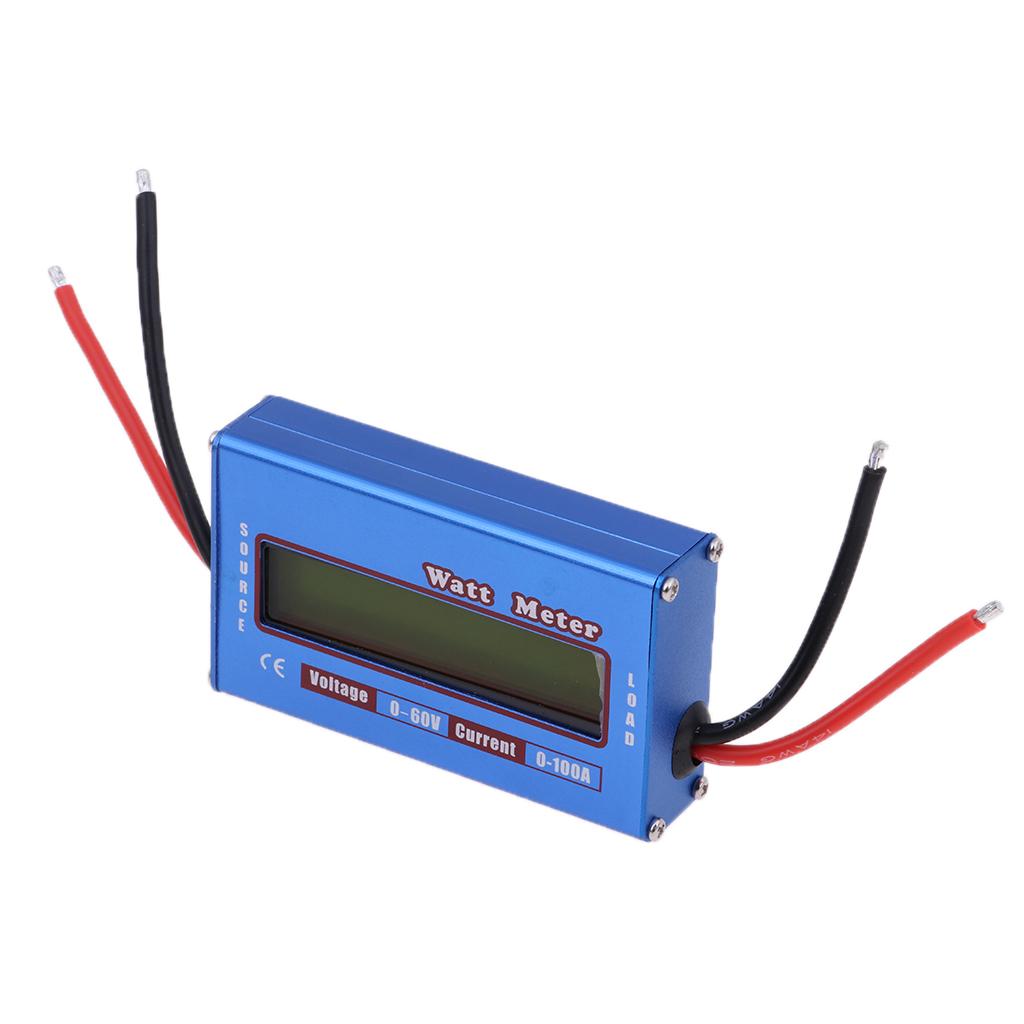

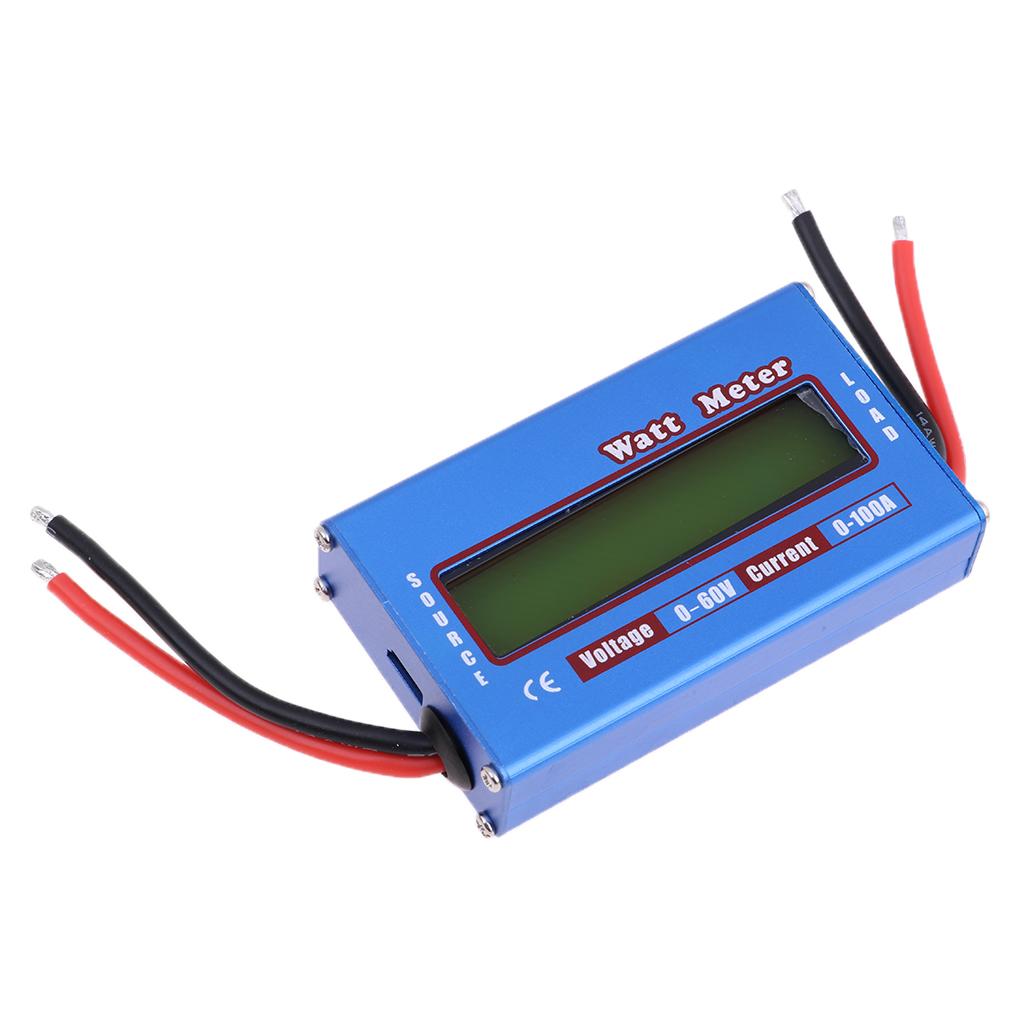

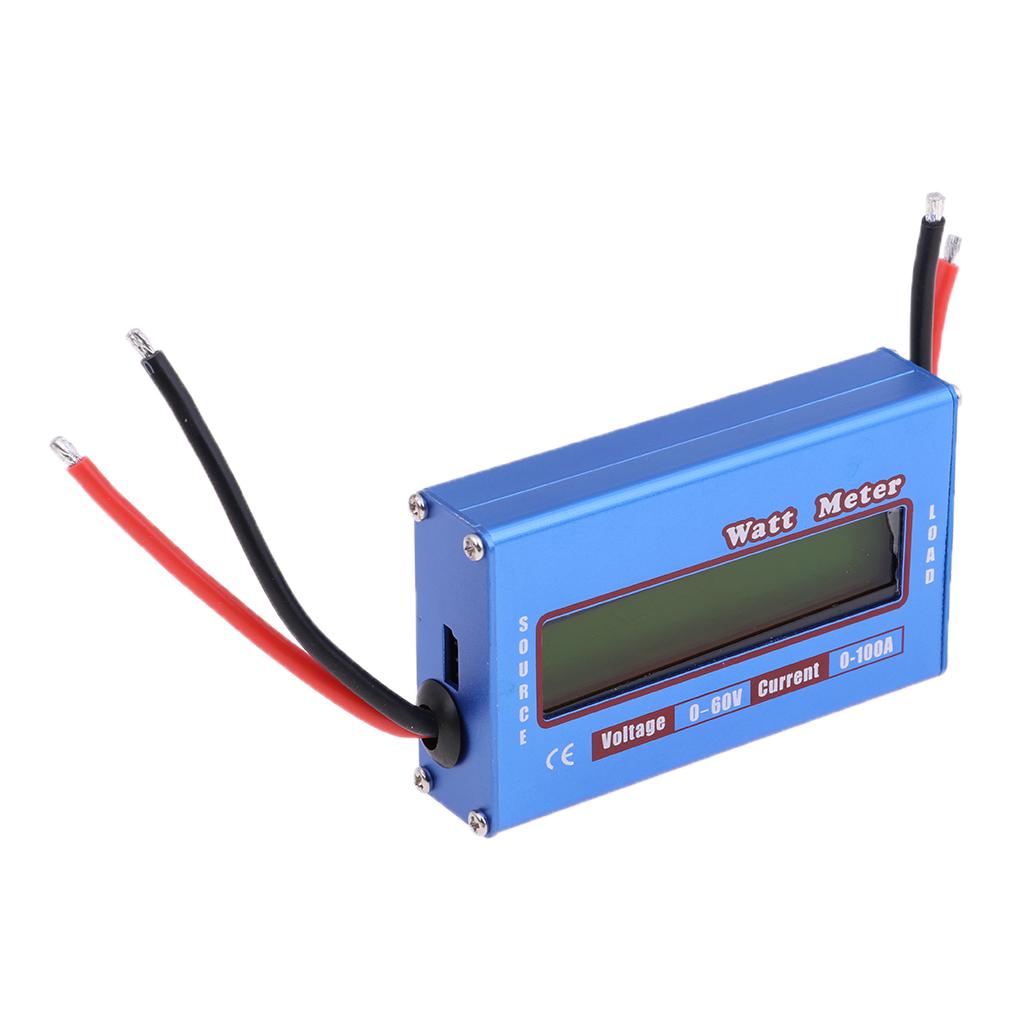

Digital LCD Battery 60V/100A Watt Meter Voltage Amp Monitor Power Analyzer

Description:

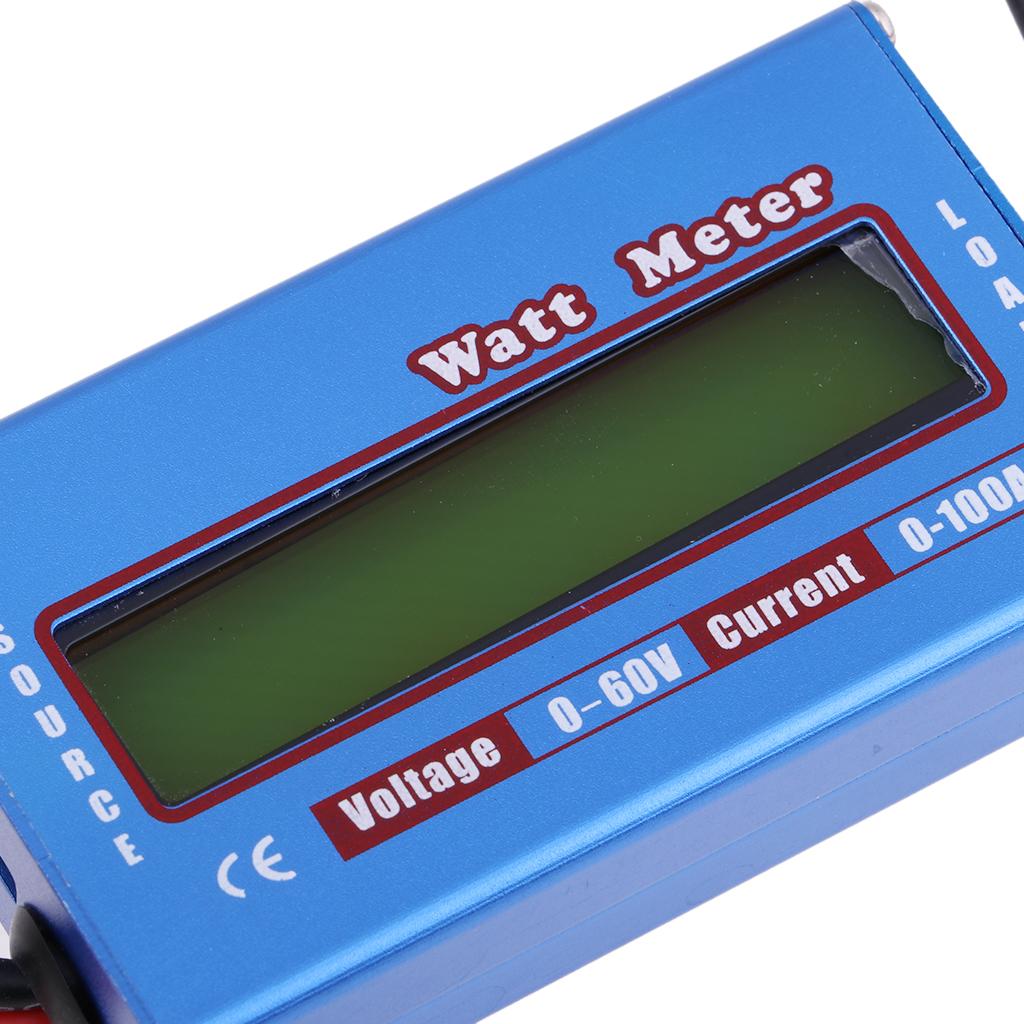

Digital LCD screen gives clear crisp number readings.

60V 100A Digital LCD Display Voltage Current Power Battery Analyze.

Handles up to 100 amps intermittently and 50 amps continuous duty.

Connecting load end to the battery provides real-time battery charging reading.

Handles 0 to 60 volts. Works on 12, 24, 36, and 48 volt battery bank systems.

Extremely low power consumption of 7 mA. More efficient than any LED meter.

Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).

Accurate & precise 0.01 A current and 0.01 V voltage resolutions.

Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).

Rugged- handles 50A continuous and 100 A peak at 60V.

USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.

Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7mA.

Specification:

Color : Blue

Current : 0-100 A peak 0.01A (Resolution)

Voltage : (0)V-4V-60V 0.01V (Resolution)

Power : 0-6554 W 0.1W (Resolution)

Charge : 0-65 Ah 0.001Ah (Resolution)

Energy : 0-6554 wh 0.1 Wh (Resolution)

Measurement Update period : 400mS

Signal Sampling Rate : sample/s

Data Queue Sequence time : 2 seconds

In Circuit Resistance : 0.001 Ohms

Operation Current : 7 mA

Auxiliary Power Voltage : 4.0V ~ 60V

Size : 8.3 x 4.7 x 2cm / 3.27 x 1.85 x 0.79inch

Package Includes:

1 x Digital LCD Battery Analyze

1 x User Manual

Note:

Please note:There will be interference when measuring the solar panel.
