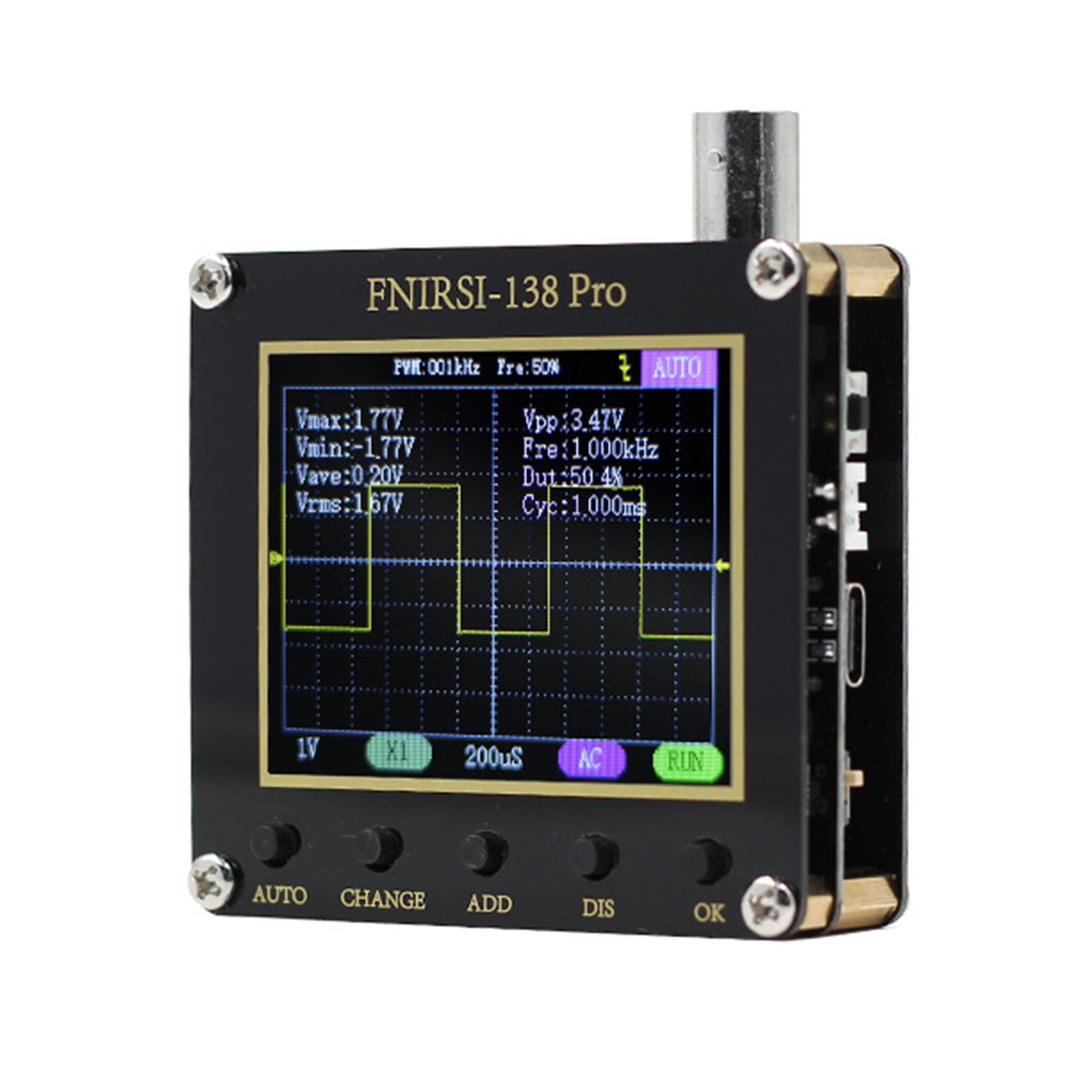

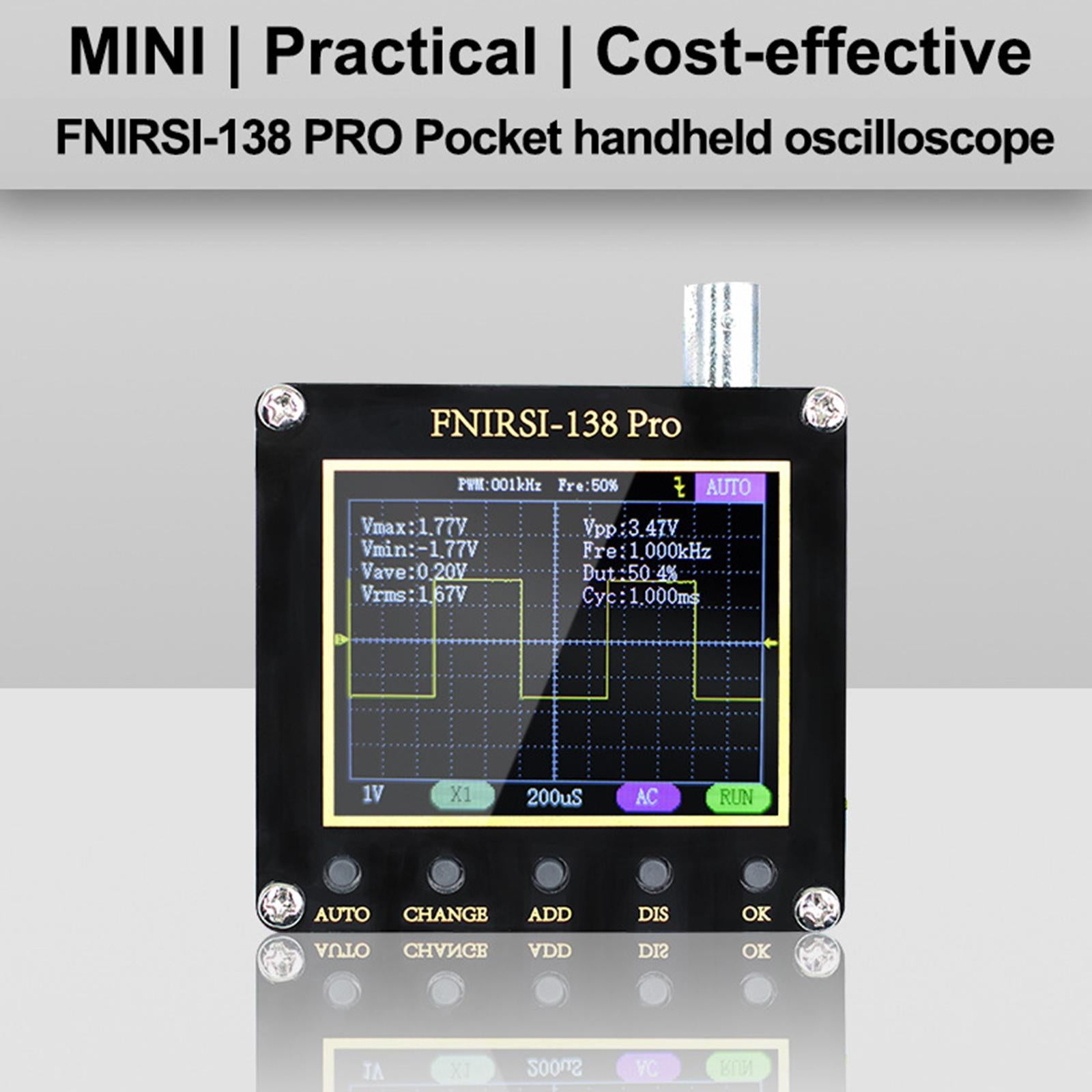

Digital Oscilloscope Bandwidth 200KHz Multimeter for DIY Research Education 1 battery 1 probe

Description:

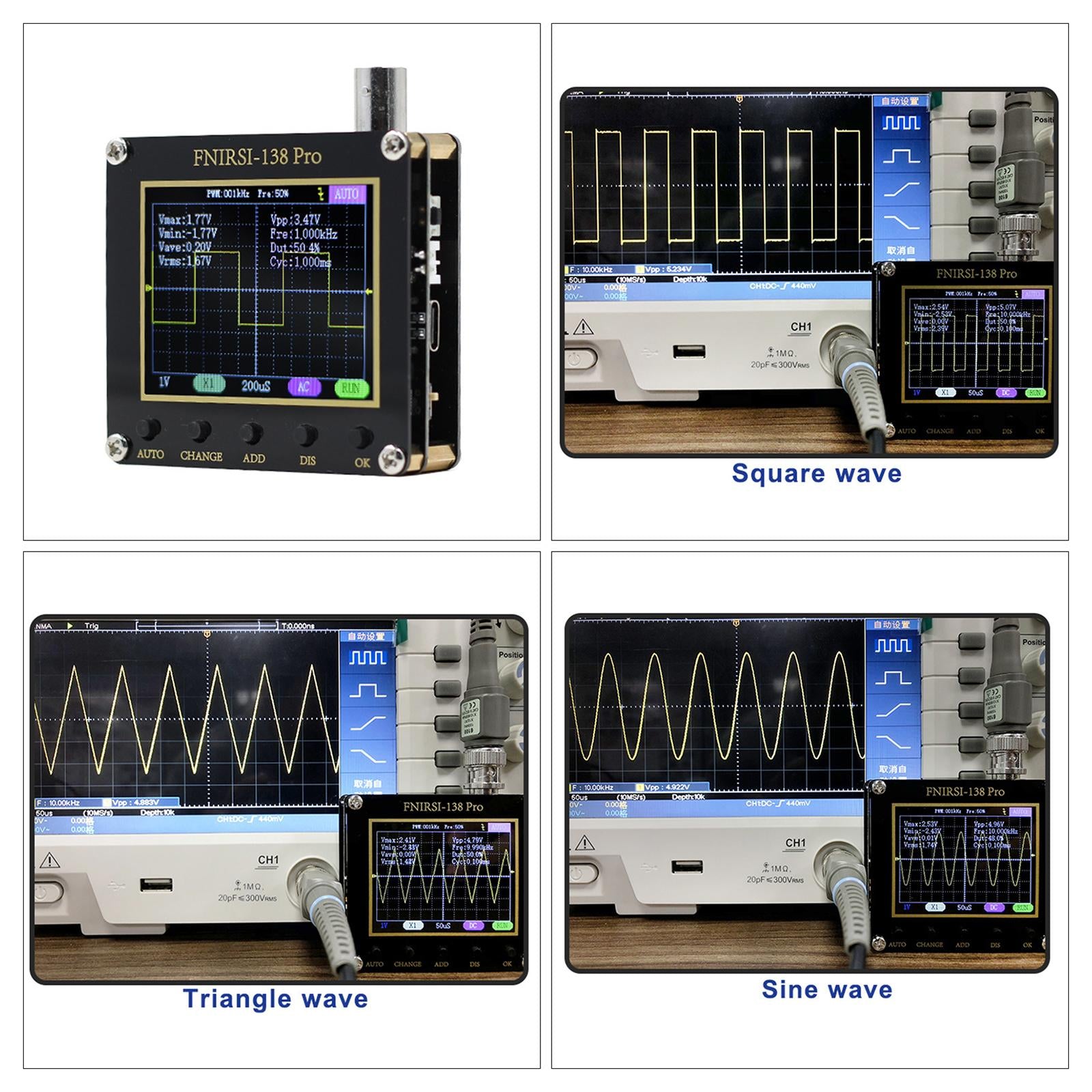

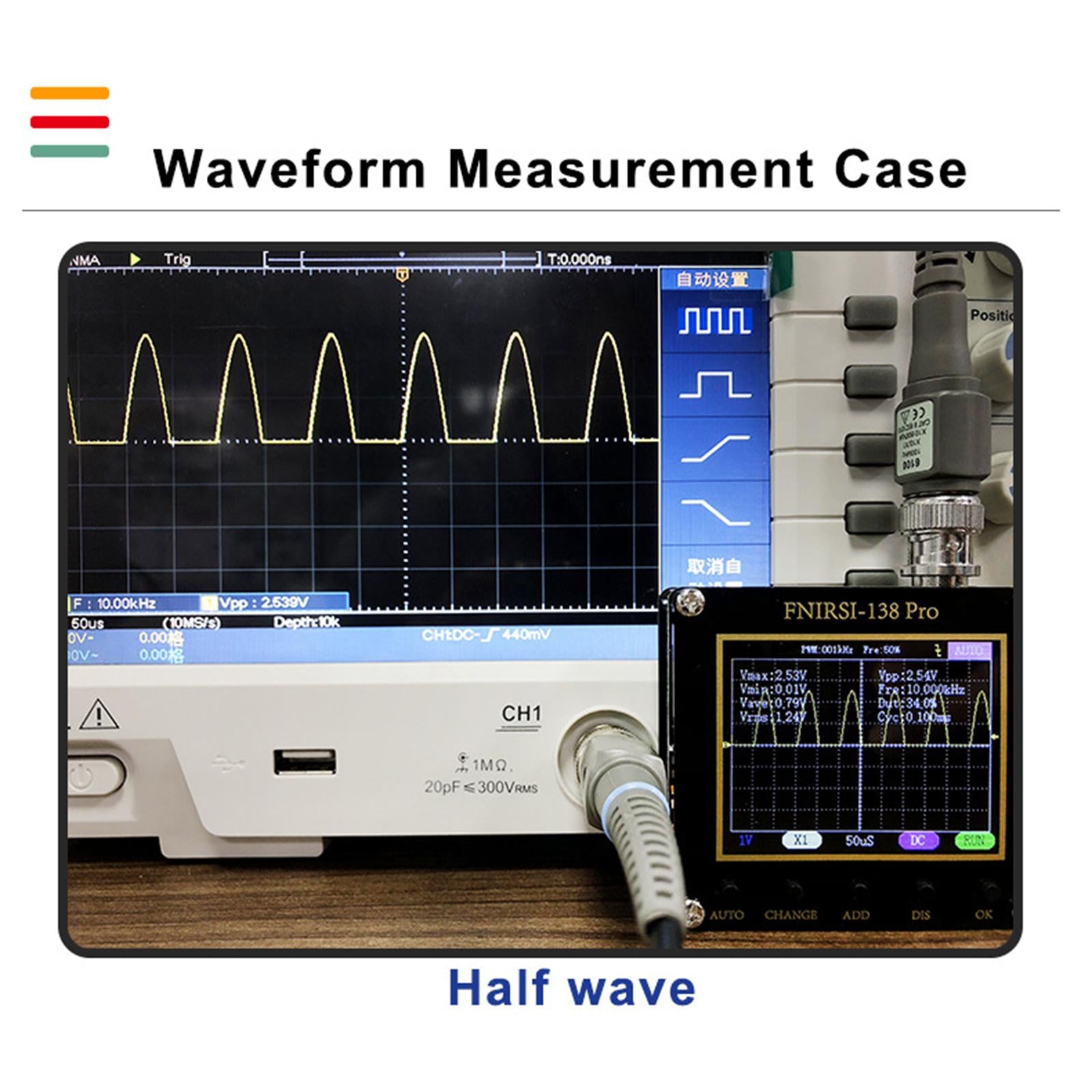

The oscilloscope has a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth. works perfectly for both periodic analog signals and aperiodic digital signals.

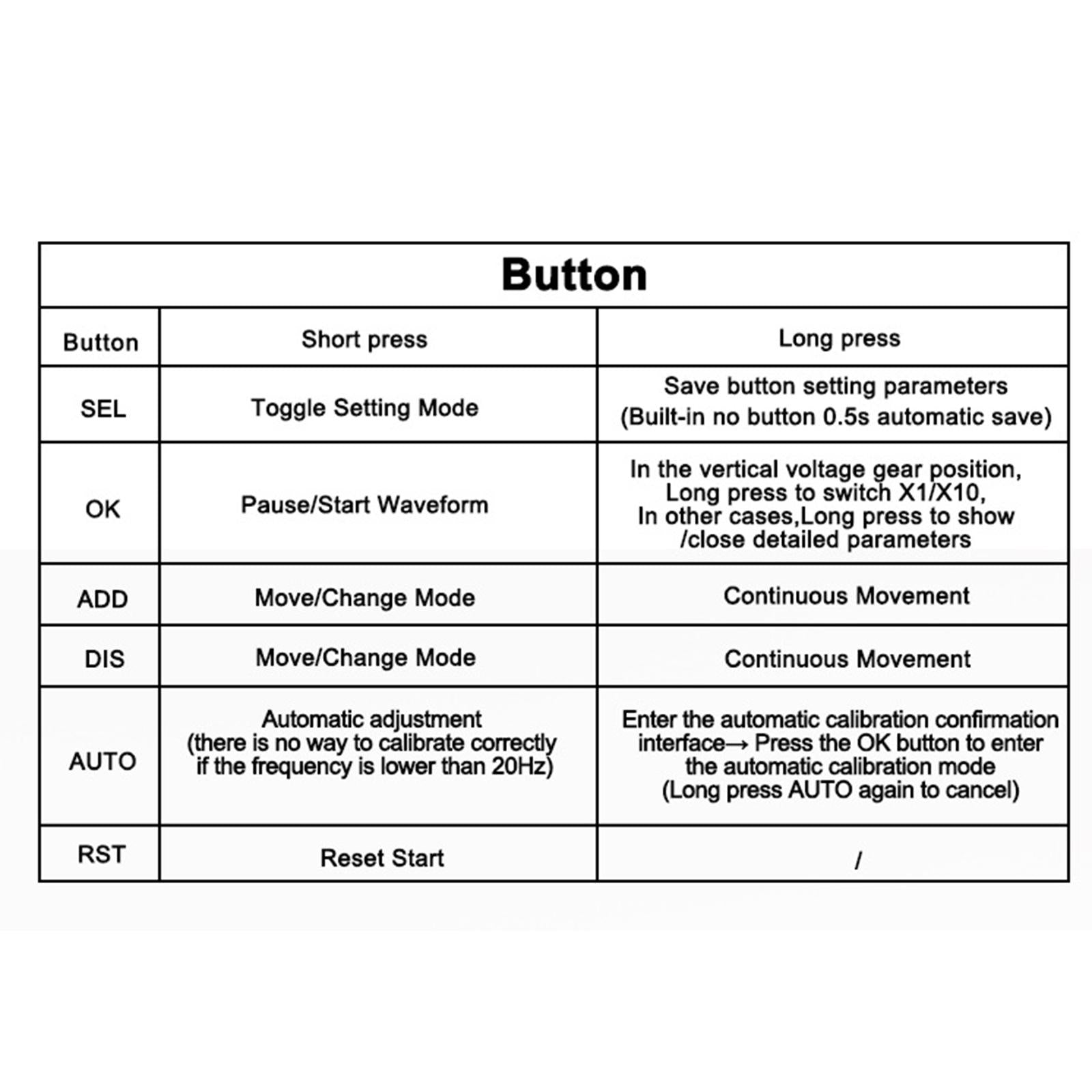

Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.
The display is equipped with a 2.4-inch high-definition LCD screen with a resolution of 320*240.

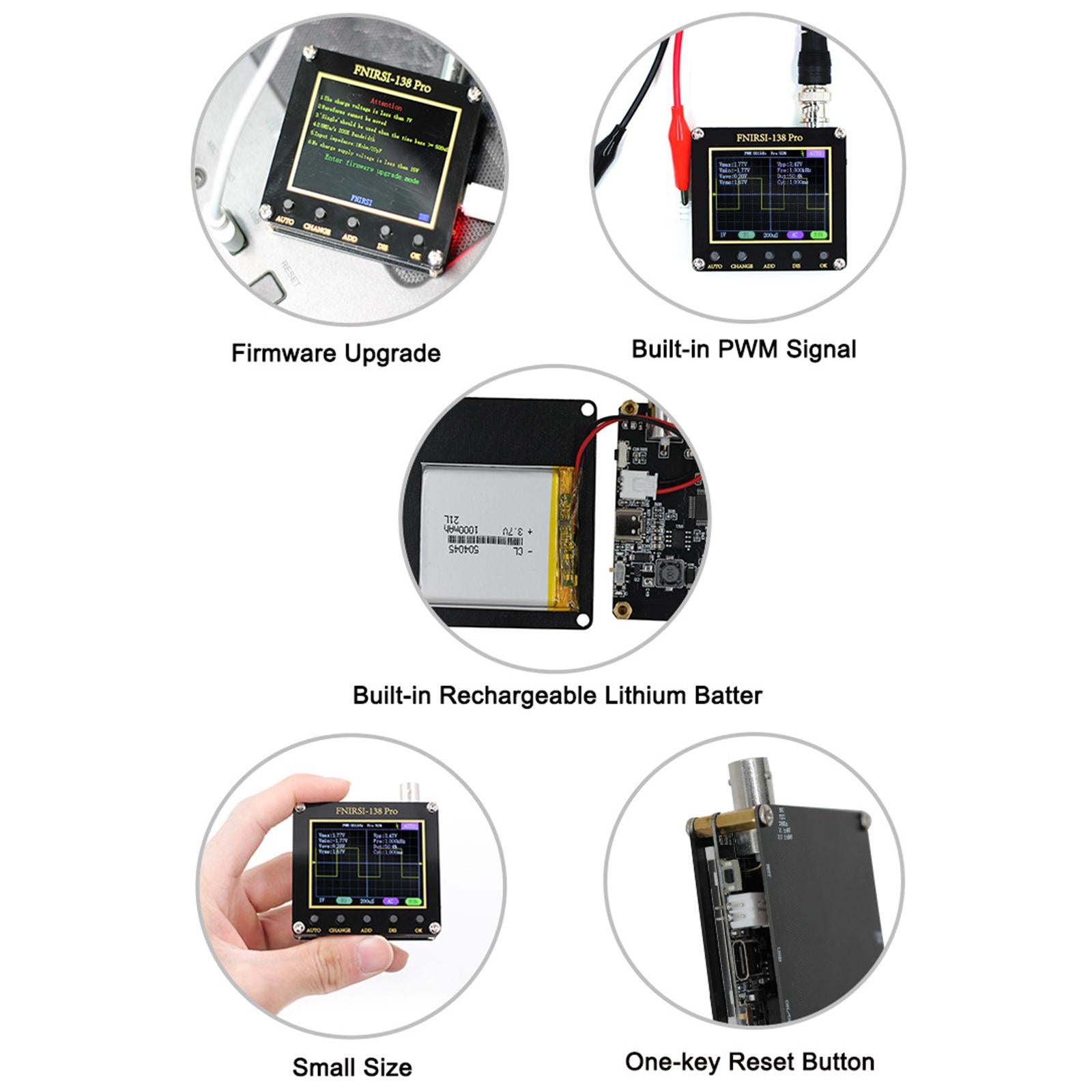

Voltages up to ±400V can be measured. built-in 1250mah high-quality lithium battery, a full charge can be used continuously for about 5 hours.
Widely used in auto repair, home appliance repair, DIY, experimental teaching, etc.

Specification:

Material: Plastic
Model: FNIRSI 138 Pro
sampling rate 2.5MS/s
bandwidth: 200KHz
LCD size: 2.4" 320x240
PWM output: 3.3V
Battery Capacity: 1250mah(rechargeable)
Probe Type: 10X P6100 probe

Size Chart:

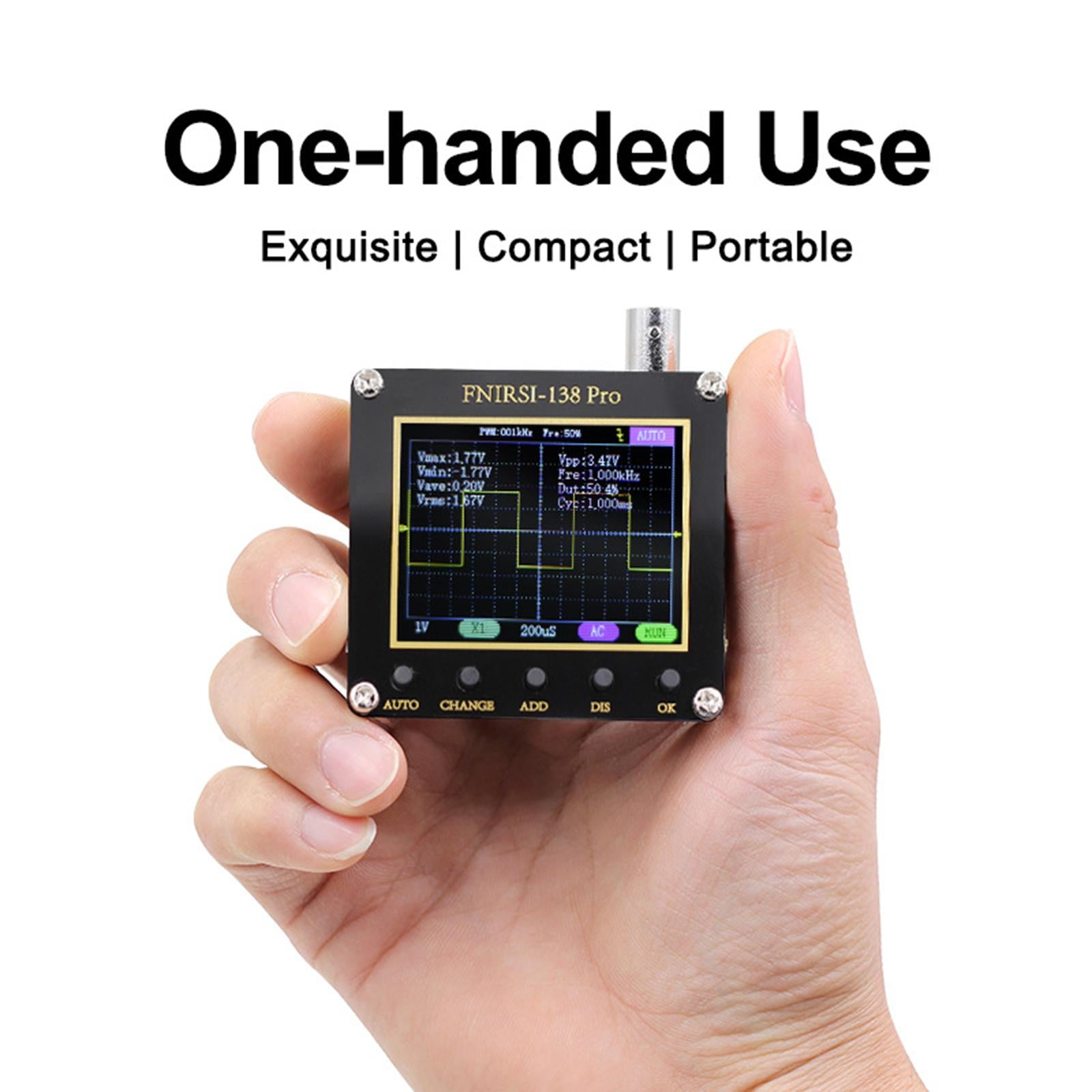

65x60x18mm/2.56x2.36x0.71inch

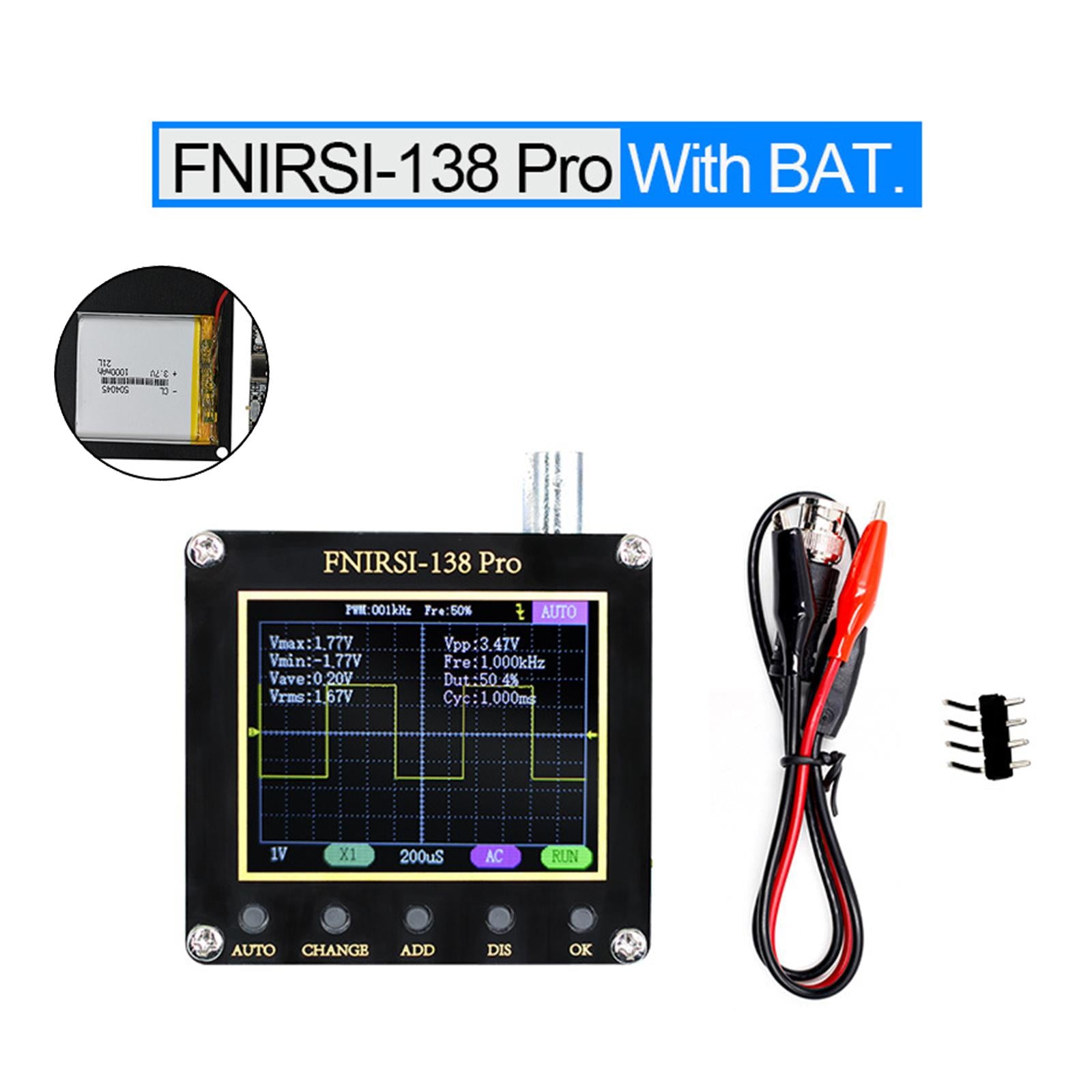

Package Includes:

1 Piece Digital Oscilloscope(accessories as you choose)

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
