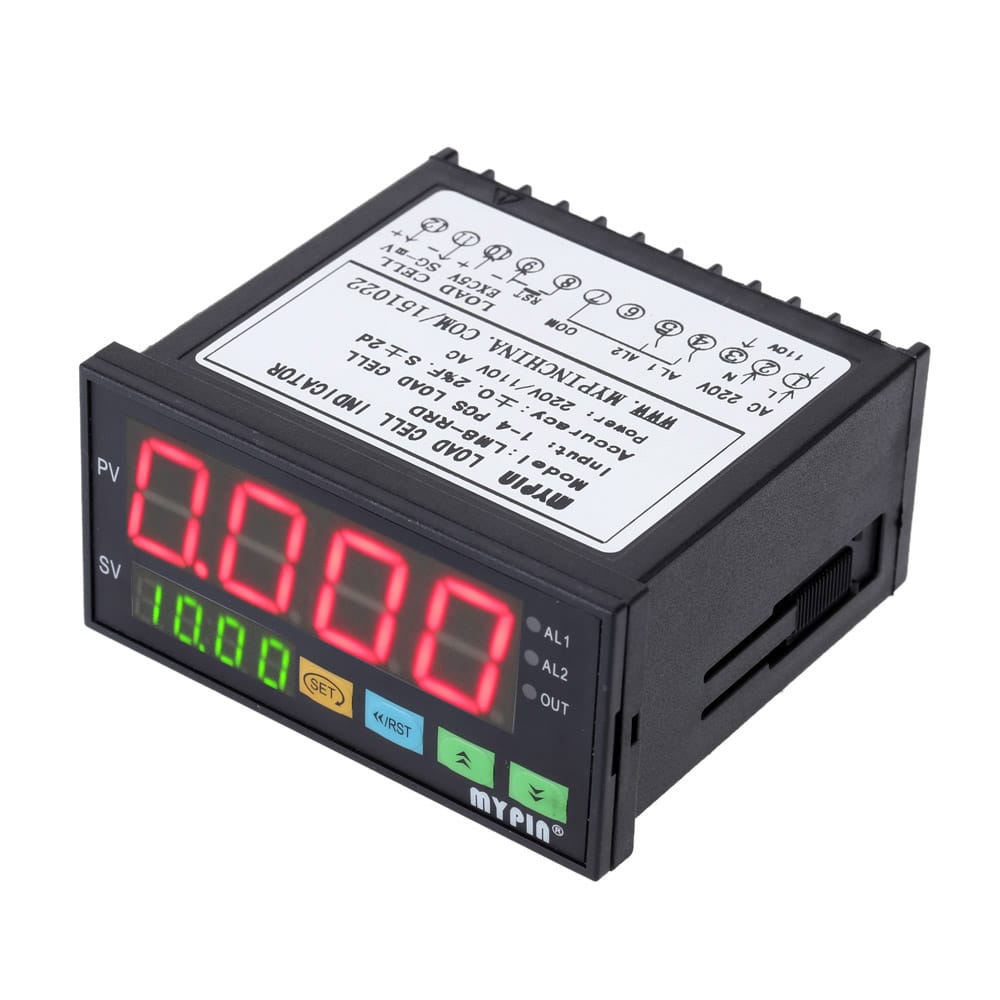

Digital Weighing Controller Load-cells Indicator 1-4 Load - 2

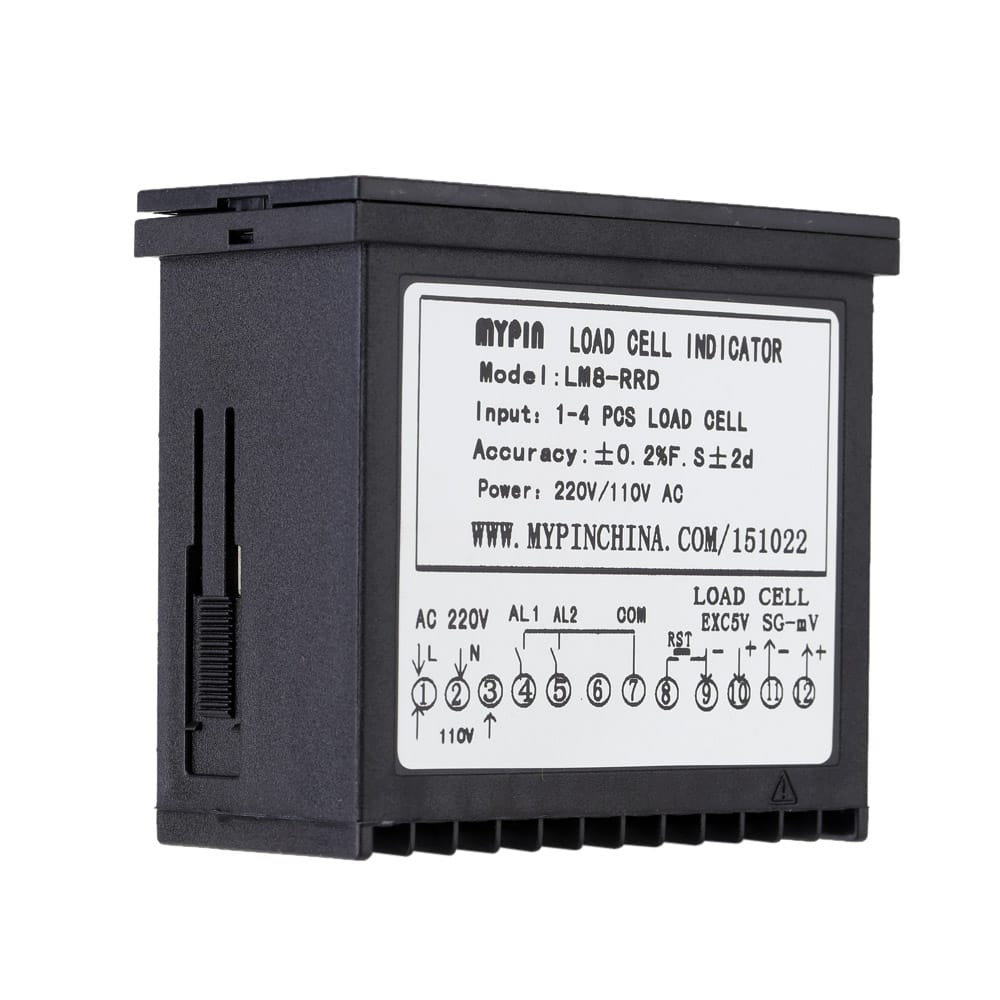

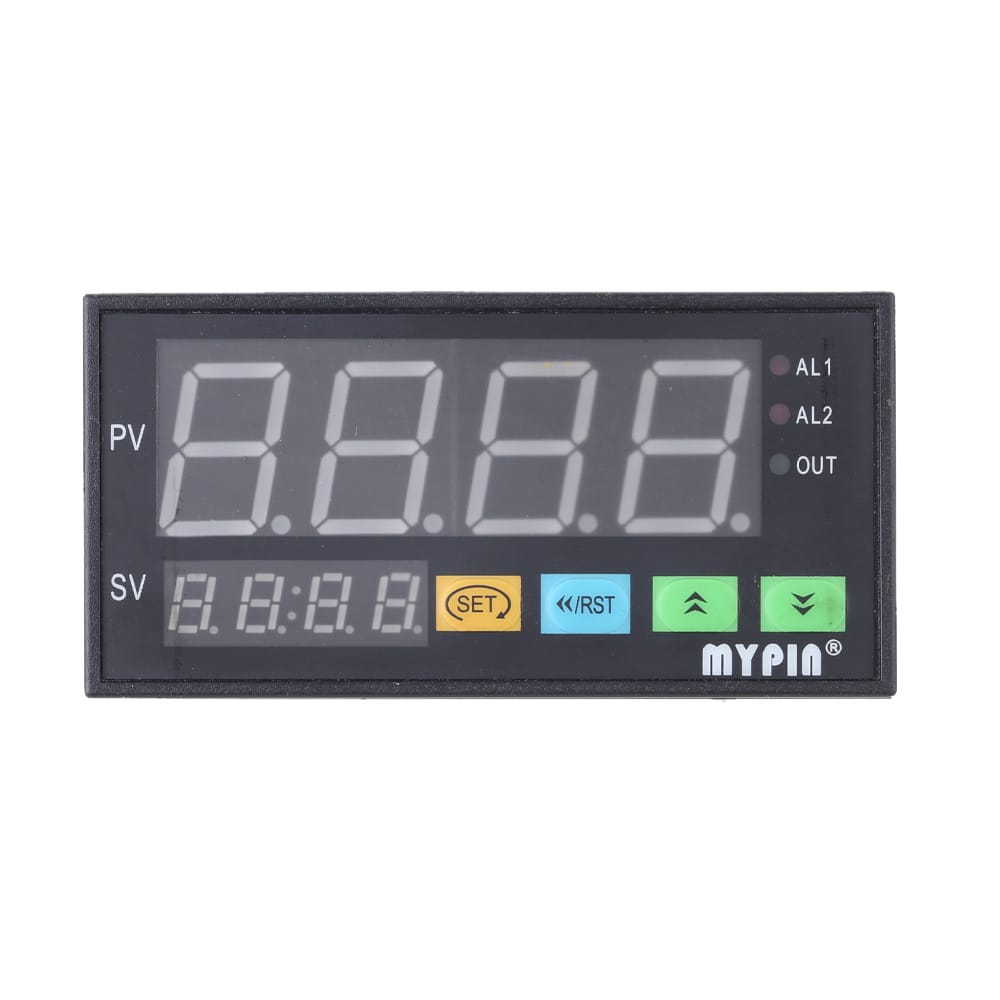

The instrument provides isolated auxiliary power(regularly 5V/80mA) which allows 1-4 loadcells connection directly. Up to 6 outputs control are available for group ingredients weighing or fast/slow weighing; Data/Peak value holding function for choice.Features:High precision steady performance and easy operation.Dual LED nixie tube digits for display clear for reading.1-4 load cell signals input and 2 RELAY output alarms.The instrument has functions of clearing zero PV modification.Work with various pressure sensor and weight sensor.Suitable for for weight control auto accumulation/mean for up/down batch control etc.Specifications:Model: LM8-RRD(4 Digits) / LH86-RRD(6 Digits) (Optional)Display: LED DisplayPower Supply: LM8-RRD: 220V/110V AC; LH86-RRD: 90-260V AC/DCAccuracy: LM8-RRD: 0.2%F.S2dgt; LH86-RRD: 0.1%F.S2dgtPower Consumption: 5VASampling Rate: LM8-RRD: 16 times/second; LH86-RRD: 16-128 times/secondInput: Regular: mV(Load Cell) 1-4 pcs Load CellOutput: 2 RELAYRelay: Open Contract 250V AC 3A or 30V DC 3A COS?=1Auxiliary Power: DC 5VItem Size: 95 * 85 * 46mm / 3.74 * 3.35 * 1.81inItem Weight: LM8-RRD: 258g / 9.12oz; LH86-RRD: 188g / 6.63ozPackage Size: 11 * 10 * 5.5cm / 4.33 * 3.94 * 2.16inPackage Weight: LM8-RRD: 294g / 10.4oz; LH86-RRD: 224g / 7.91ozPackage List:1 * Weighing Controller2 * Bracket1 * User Manual (English)
