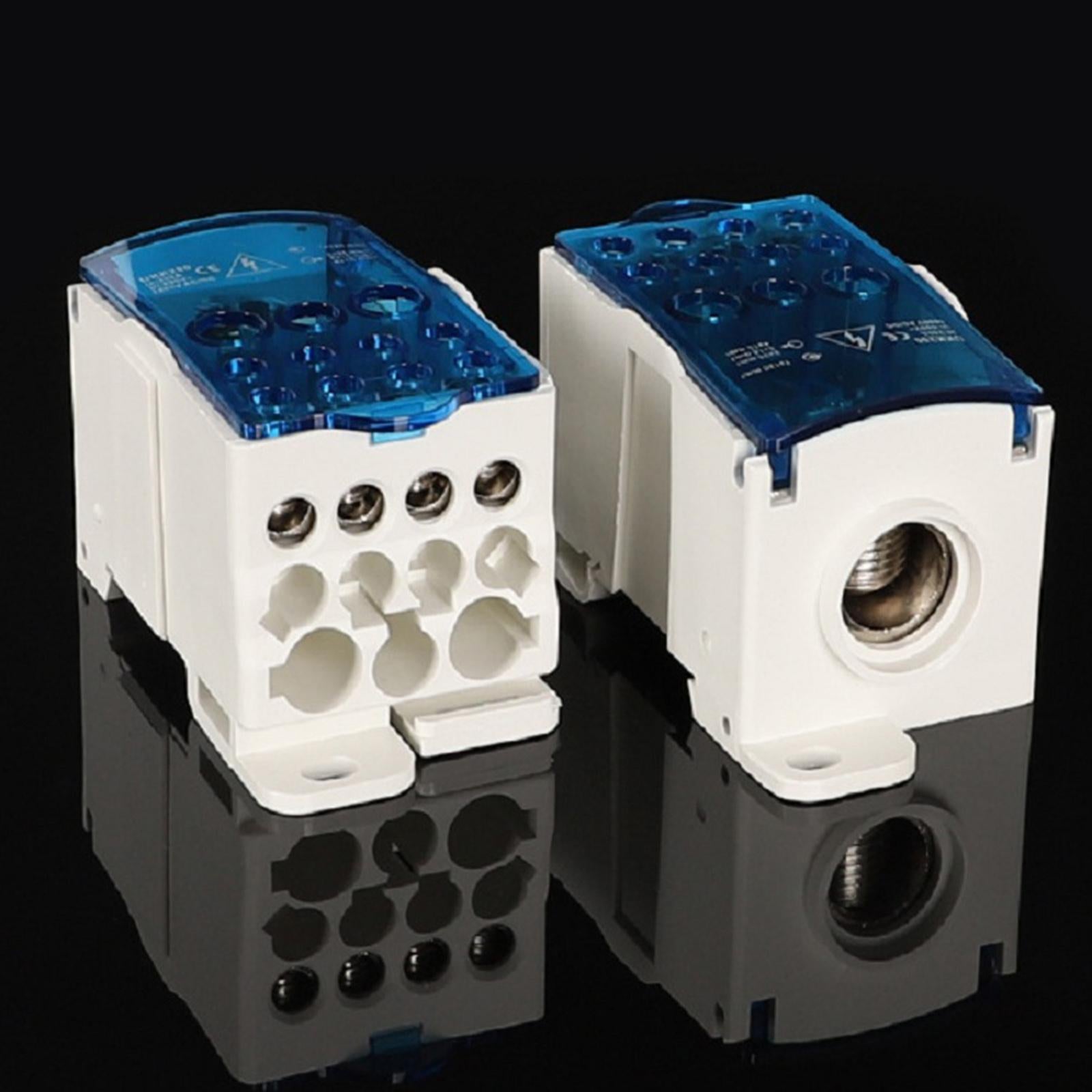

Distribution Box Electrical Universal Power Junction Box 11 output 250A

Description:

Material: Made of plastic, eco-friendly and durable.
Easy to install on the rail.
Can be used in power distribution cabinets, distribution boxes, and various high voltage cabinets.

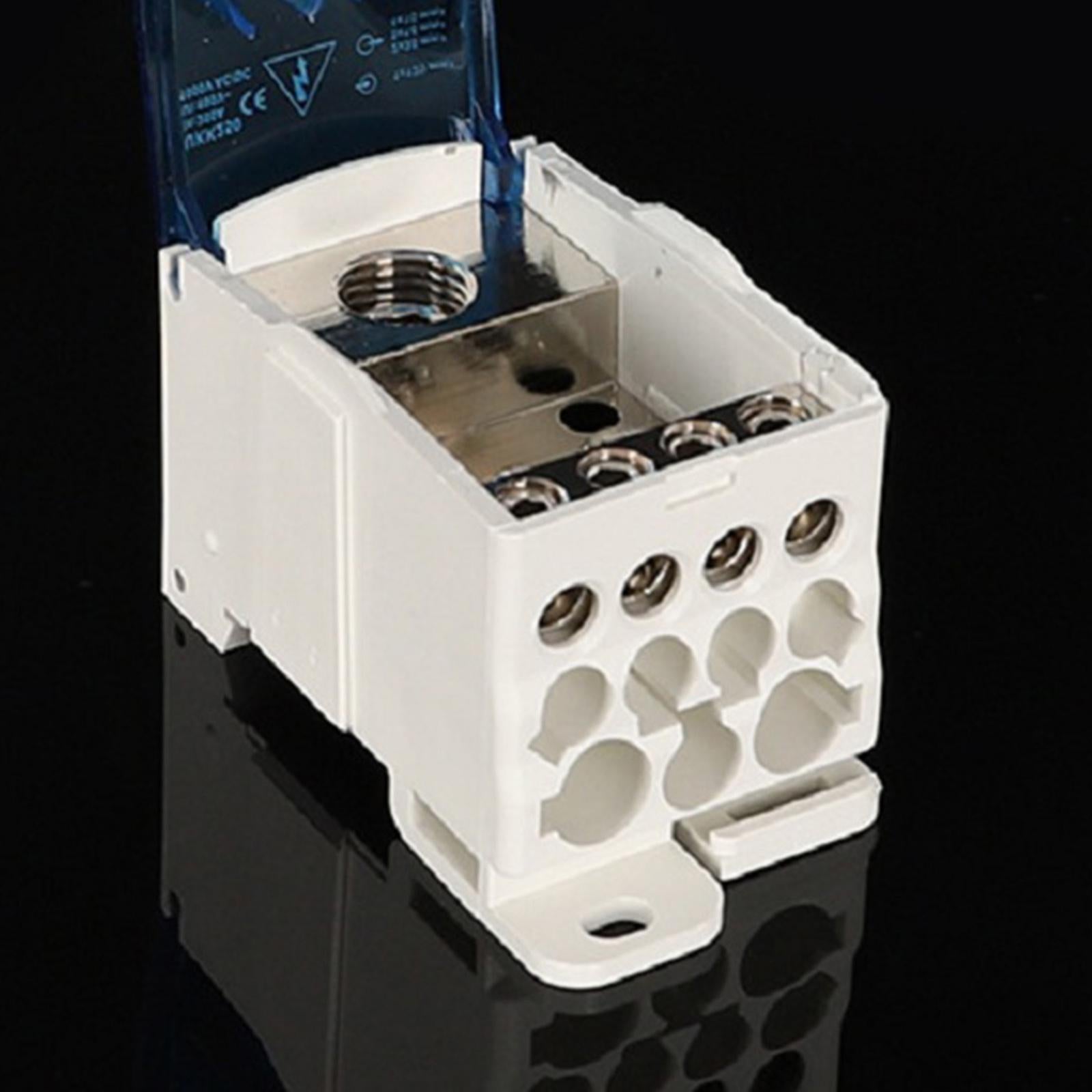

Check if the cable is connected reliably via the transparent cover.
It has fine insulation performance and durability for using.

Specification:

80A Style:
690V/80A
1 input 6 output
L65/H47/W29.5 mm
Input: 1 x 16mm²
Output: 4 x 6mm² 2 x 16mm²
Size: approx. 49x69mm / 1.93x2.71 inch
125A Style:
690V/125A
1 input 6 output
L74/H47/W29.4 mm
Input: 1 x 16mm² 1 x 35mm²
Output: 6 x 16mm²
Size: approx. 46x77mm / 1.81x3.03 inch
160A Style:
690V/160A
1 input 6 output
L74/H47/W29.4 mm
Input: 1 x 70mm² 1 x 16mm²
Output: 6 x 16mm²
Size: approx. 46x77mm / 1.81x3.03 inch
500A Style:
690V/500A
1 input 11 output
L96/H50/W47.8 mm
Input: 3 x 15mm² 8 x 24mm²
Output: 2 x 35mm² 4 x 10mm² 5 x 16mm²
Size: approx. 50x96mm / 1.97x3.78 inch

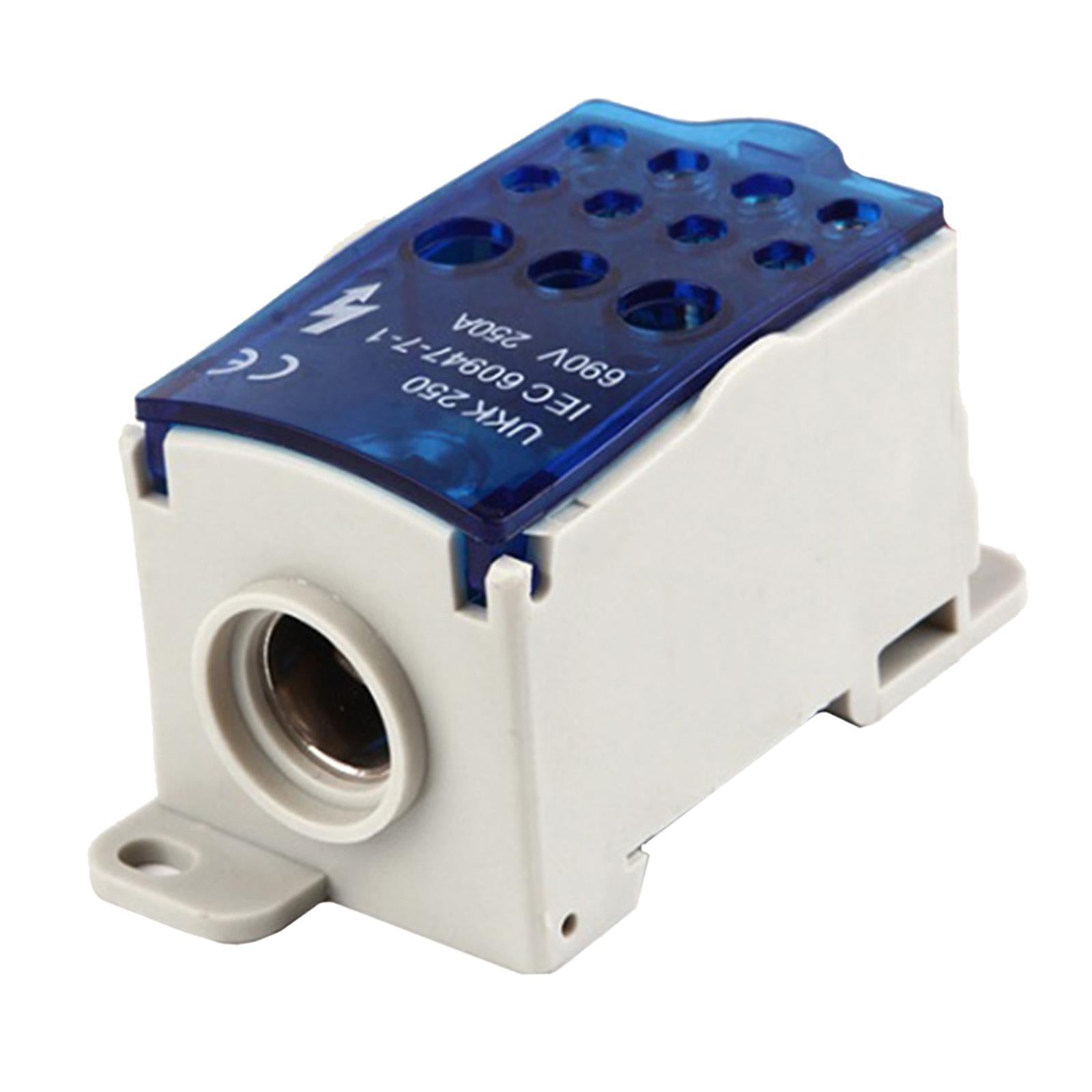

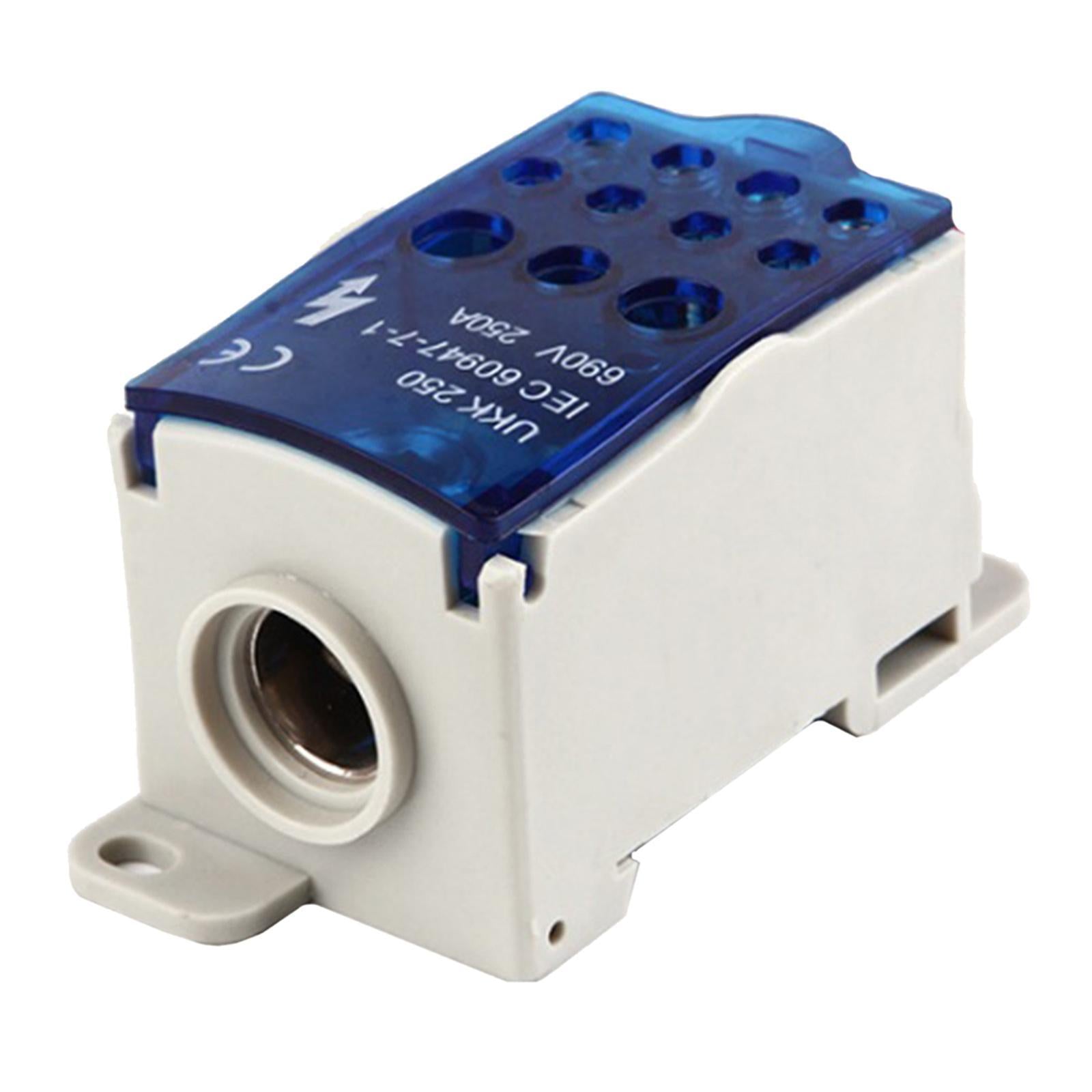

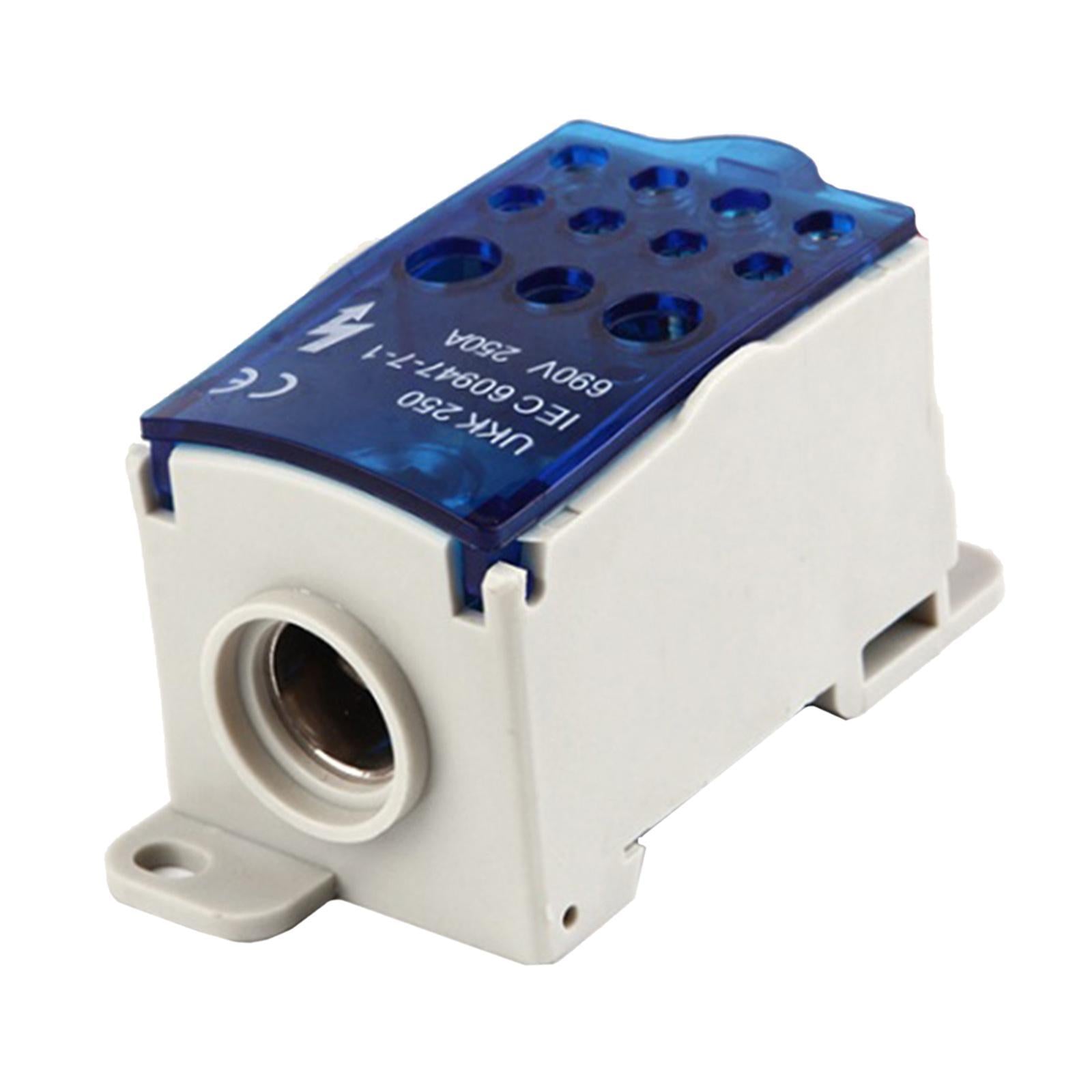

250A Style:
690V/250A
1 input 11 output
L96/H50/W47.8 mm
Input: 1 x 120mm²
Output: 2 x 35mm² 5 x 16mm² 4 x 10mm²
Size: approx. 46x77mm / 1.81x3.03 inch

Package Includes:

1 Piece Power Junction Distribution Box
