DIY 3D8 LED mini Cube 8*8*8 CUBE 8 Kits/Junior Gift support

Description:

DIY 3D8 LED mini Cube 8x8x8 CUBE 8 Kits
User should weld and install it.requires a certain electronic basis and welding ability.
CUBE 8 Light Cube has 8 layers. One layer consists of 8*8=64 LEDs, all 512 LEDs. These 512 LEDs need to be built by yourself.
Our control board is industrial board PCB.
It Has much effect

Specification:

Supply voltage: 4.5-5.5V
PCB board size: 11.1CM*12.7CM
Kit weight: 240 grams

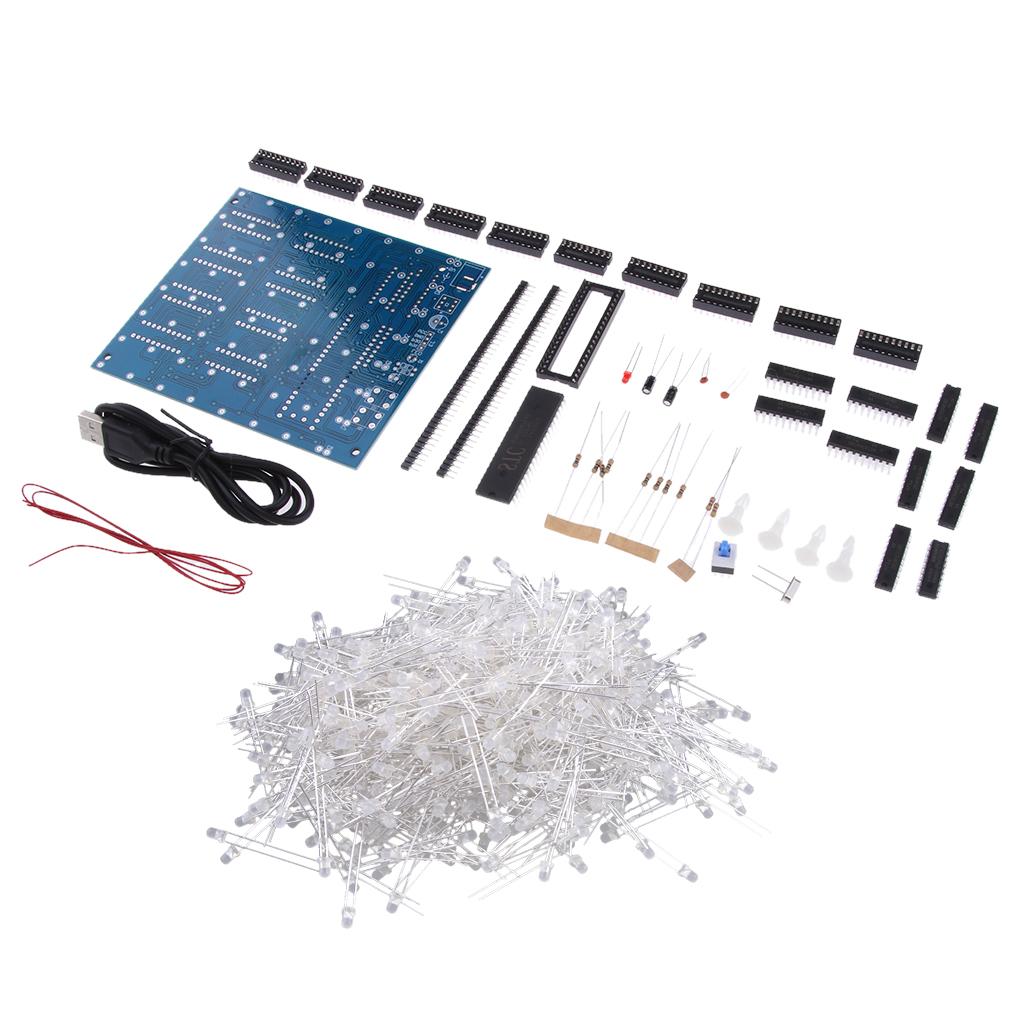

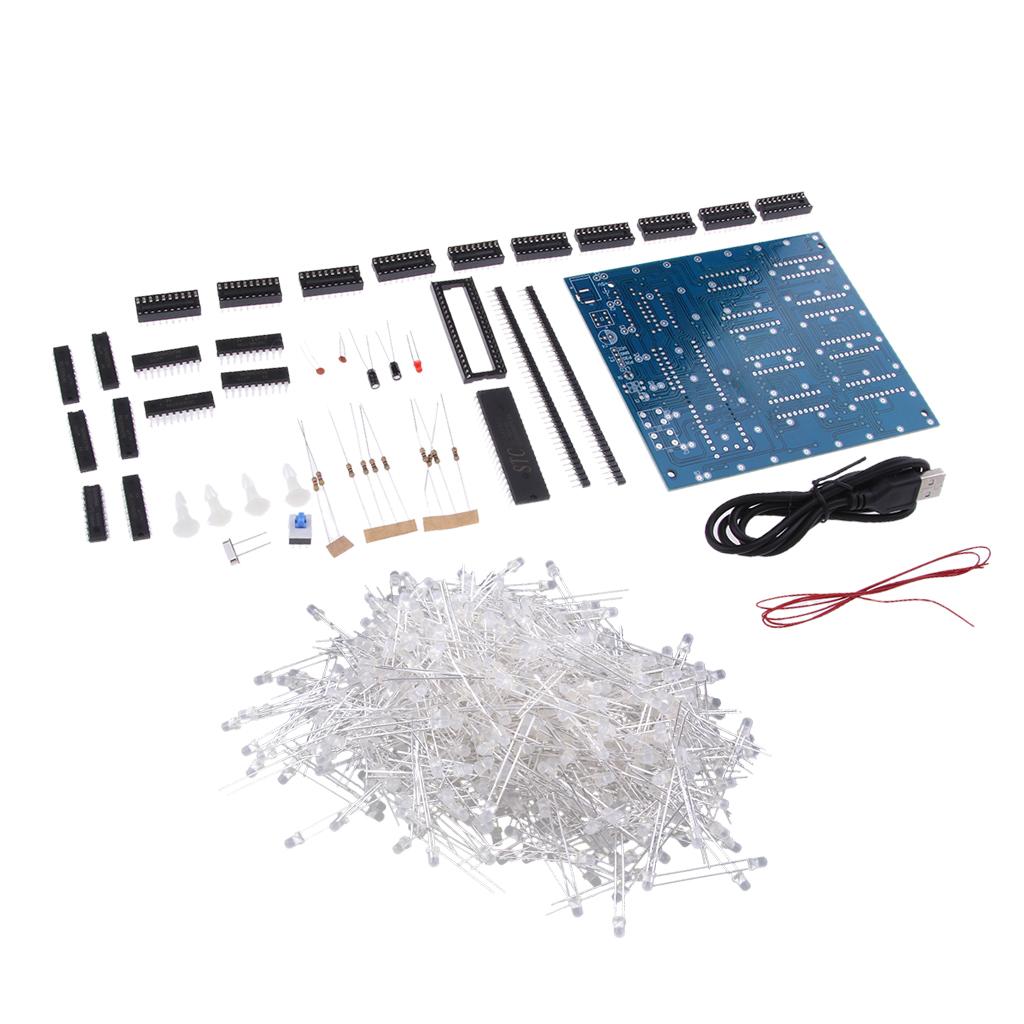

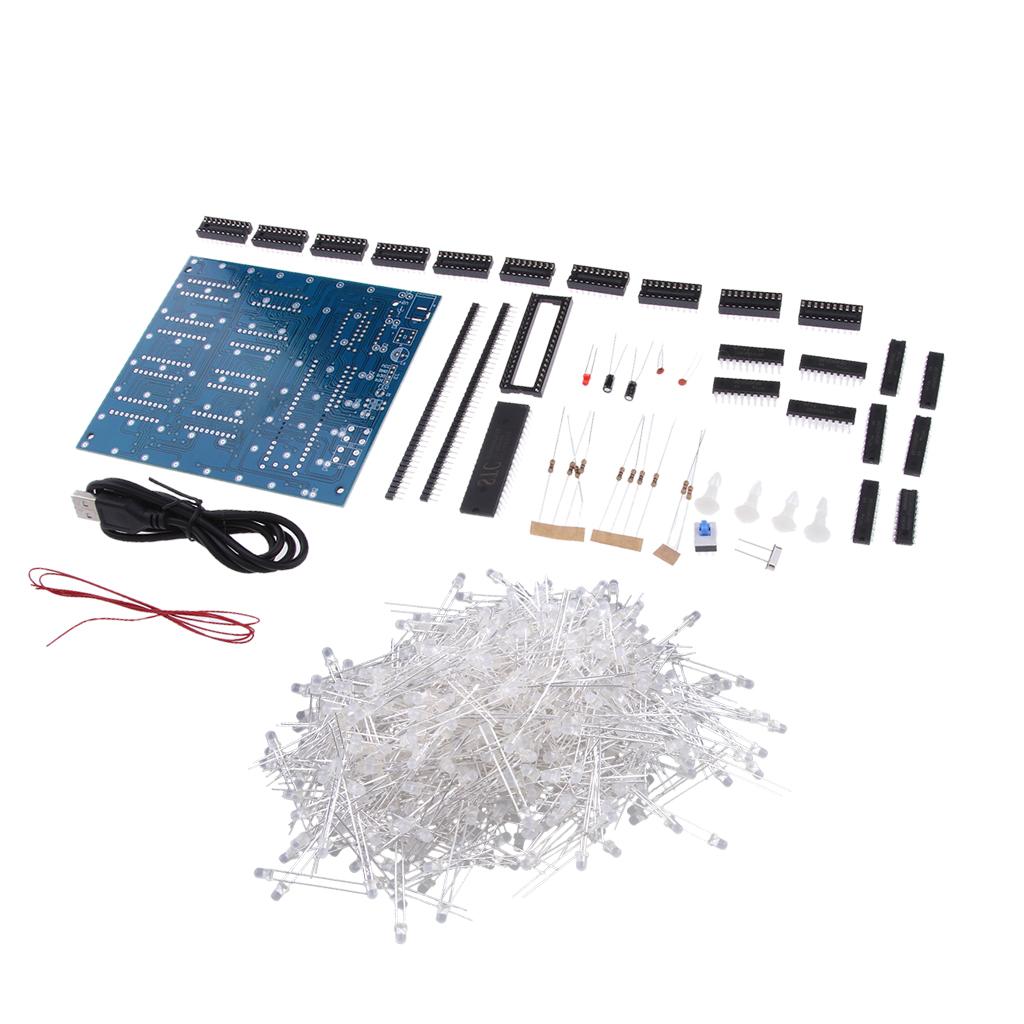

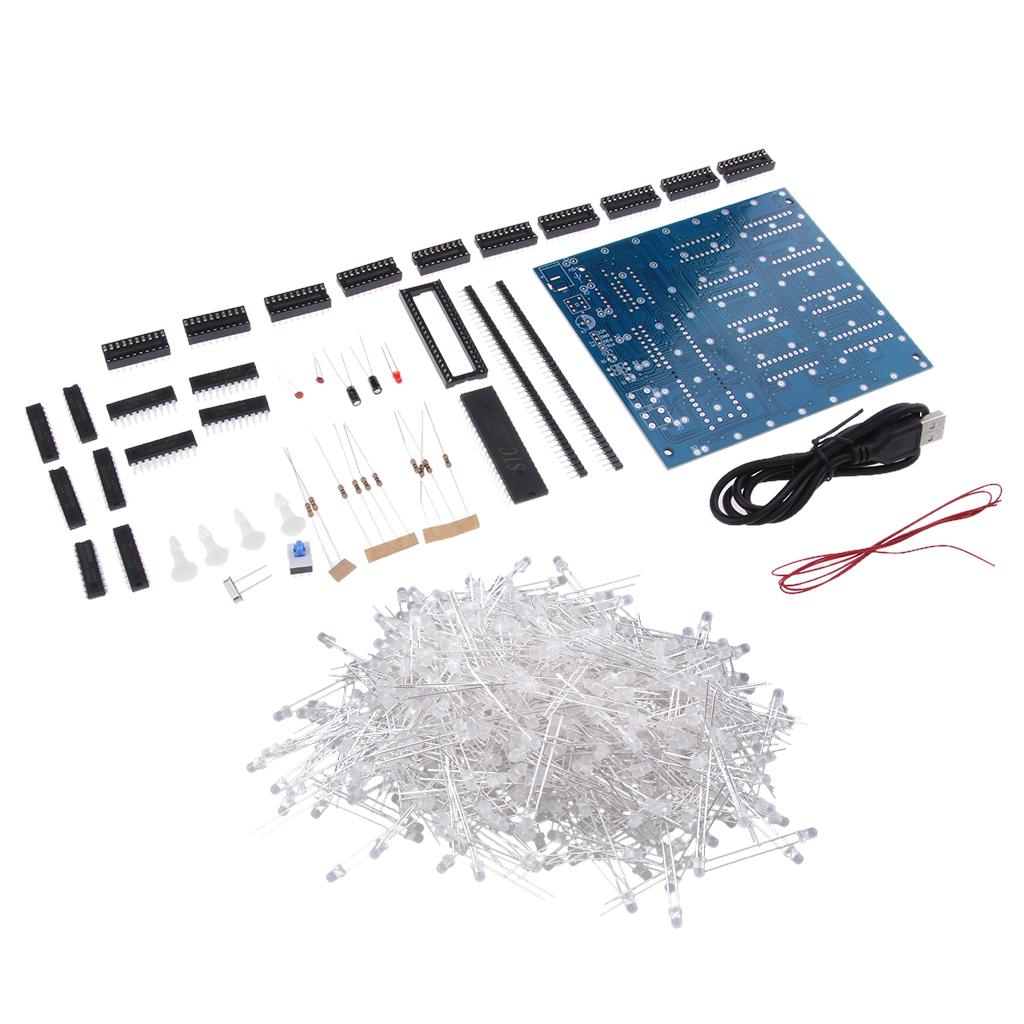

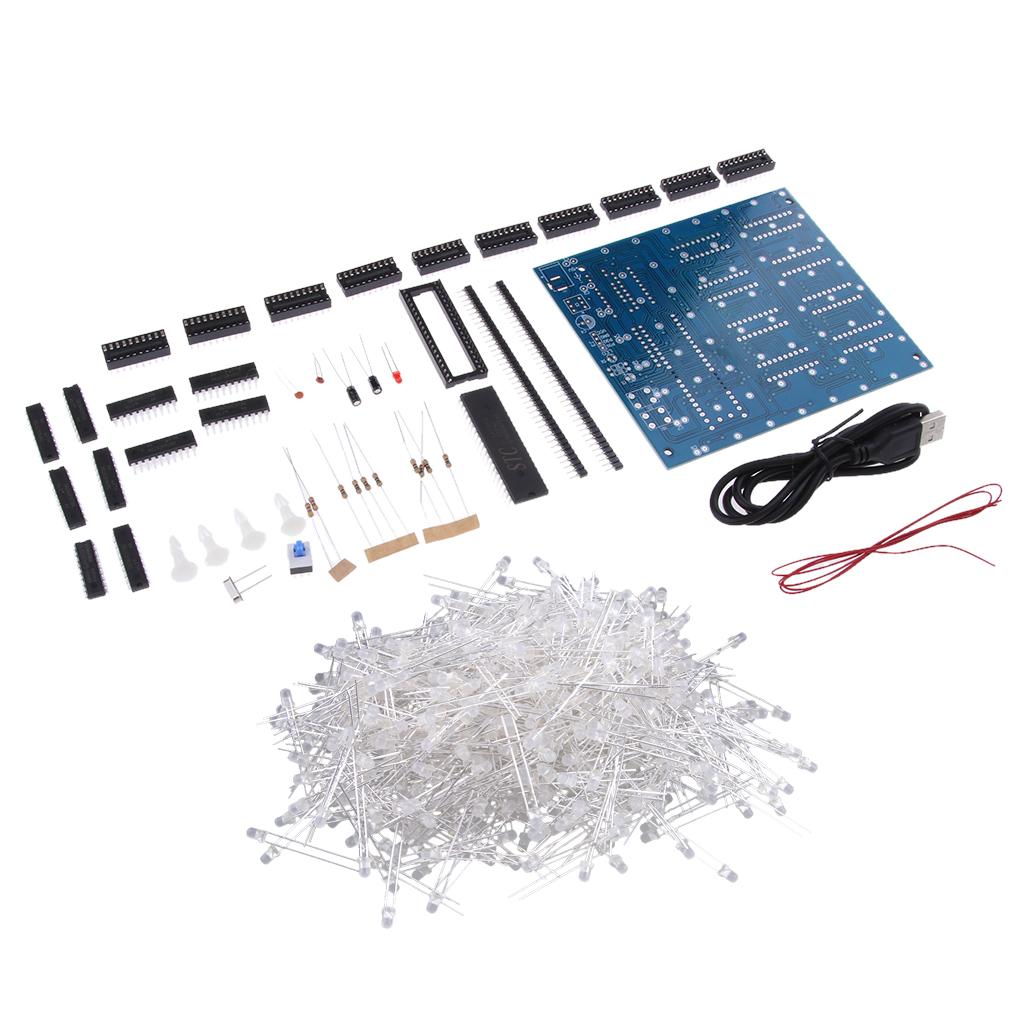

3D8 Light Cube shipment list: (parts of electronic components are allocated between 1 and 2).
PCB board x1

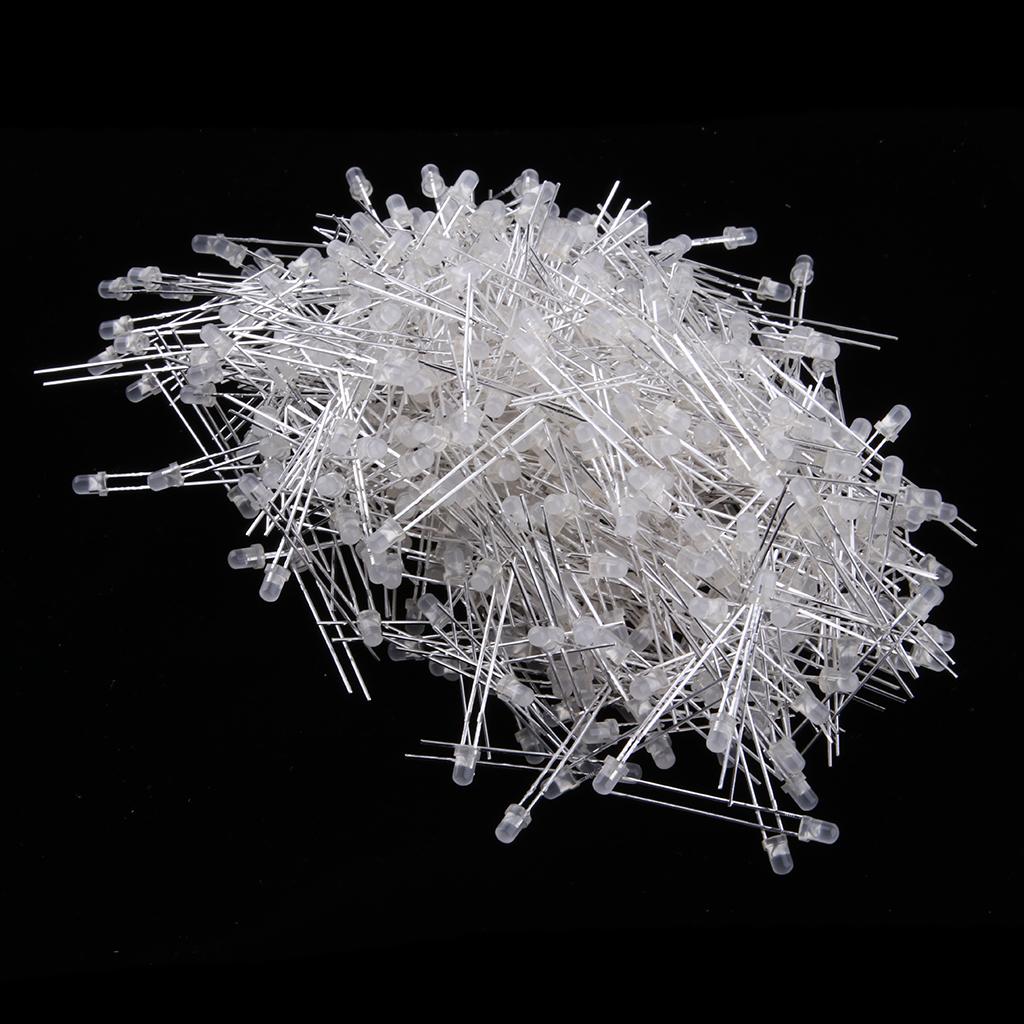

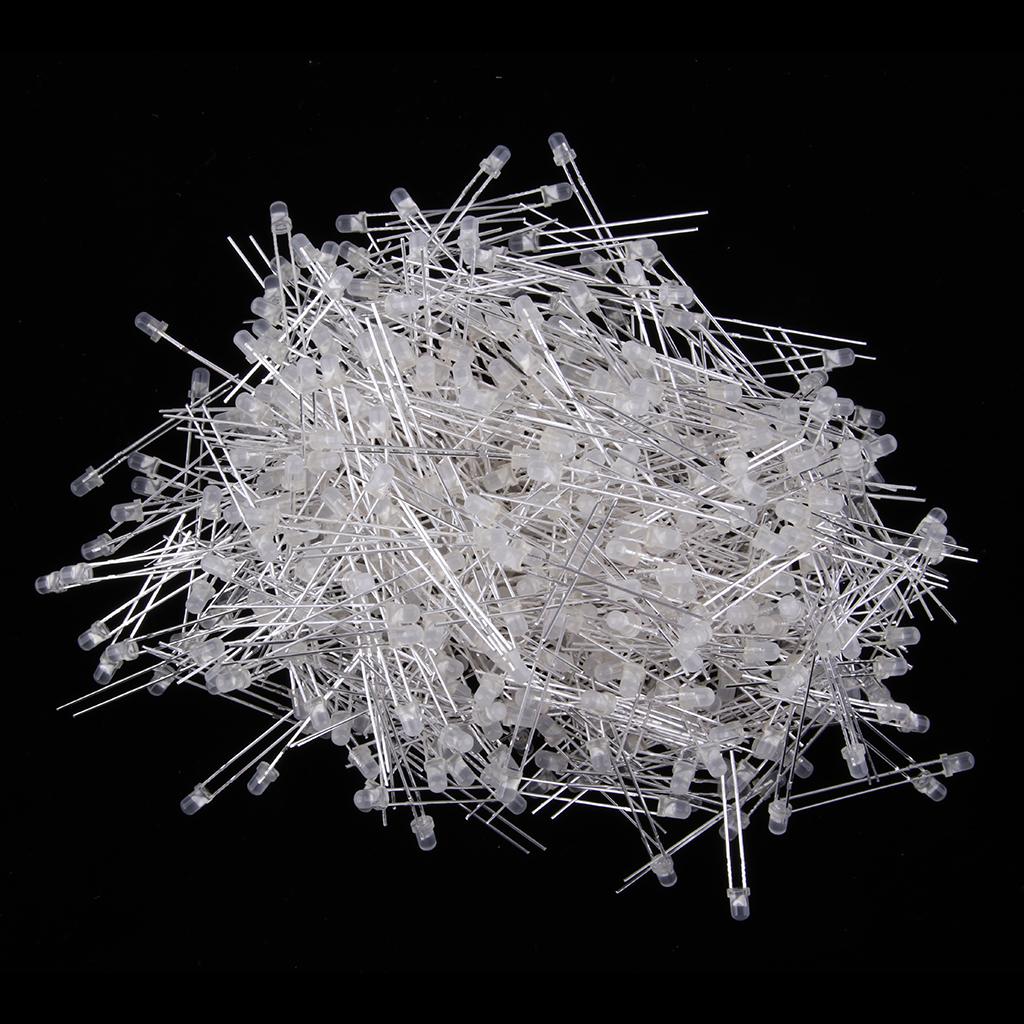

3MM white haired blue super bright LED is about 550 (actually needs 512).
40P circular row Female x2
20P IC Socket x9
74HC573 chip directly into Plug x9
USB to DC005 line x1
DC005 Socket x1
18P IC Socket x1
ULN2803 chip x1
40P IC seat x1
STC12C5A60S2 (write program) x1
A09-103 exclusion x1
8*8 self lock switch x1
10UF/25V electrolytic capacitor x2
12M crystal oscillator x1
22P porcelain capacitor 2
470 European resistor direct insertion x8
4.7K resistor direct insertion x2
LED 3MM x1
0.8 single core conductor x1

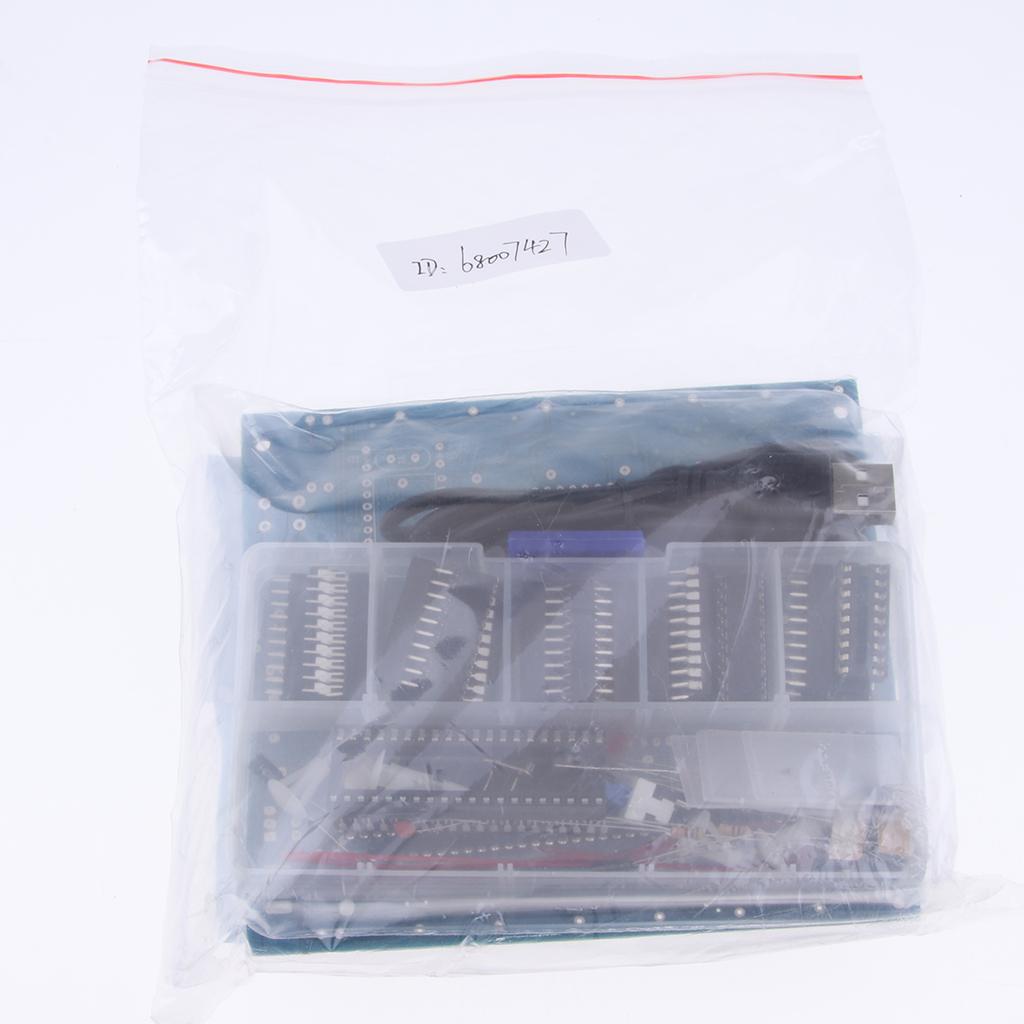

Package Includes:

1 Piece DIY 3D8 LED mini Cube 8x8x8 CUBE 8 Kits
