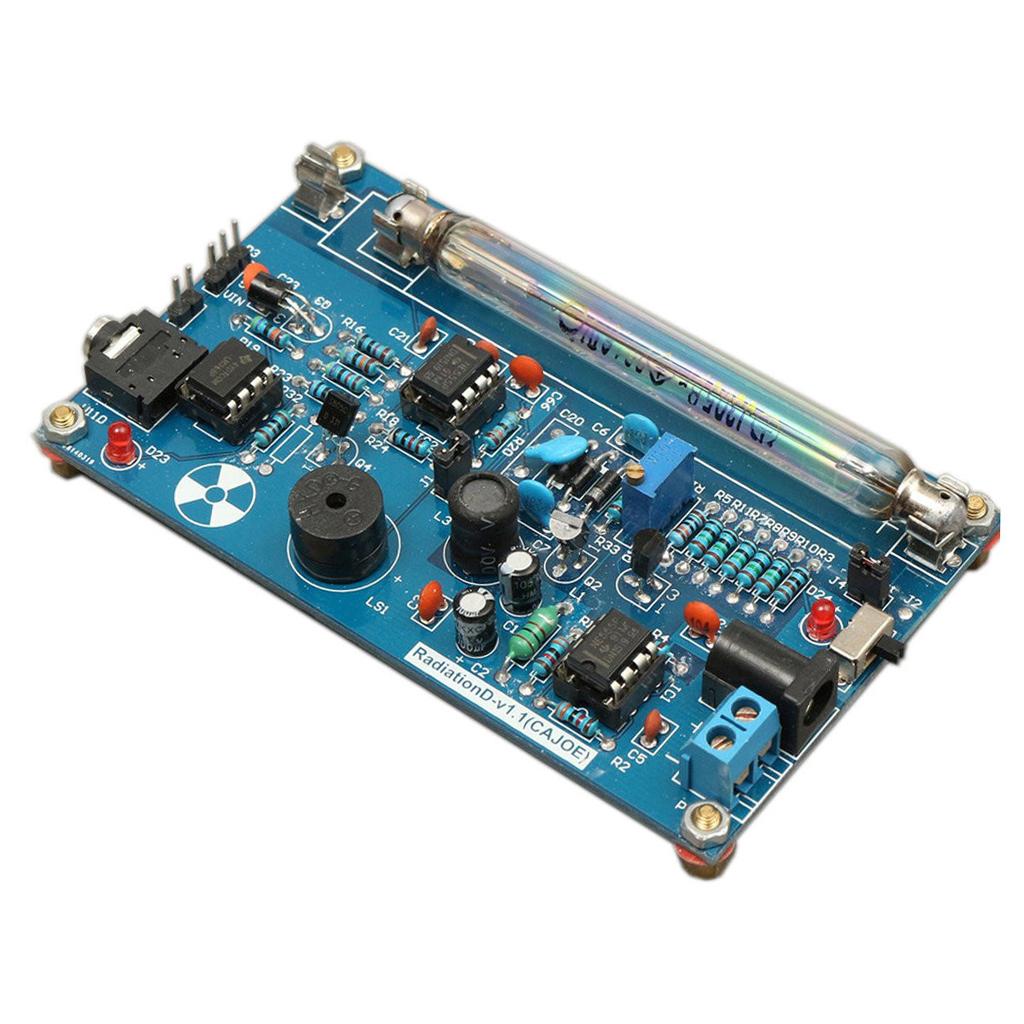

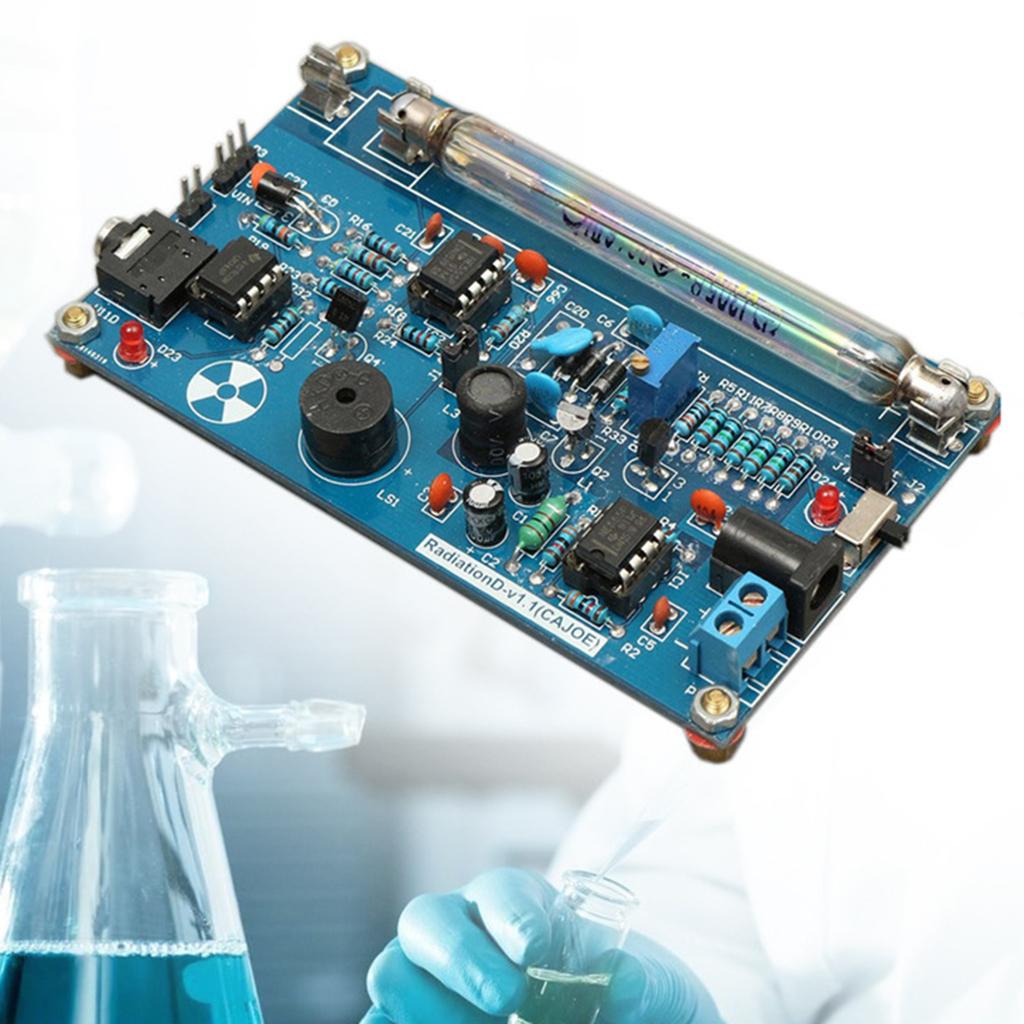

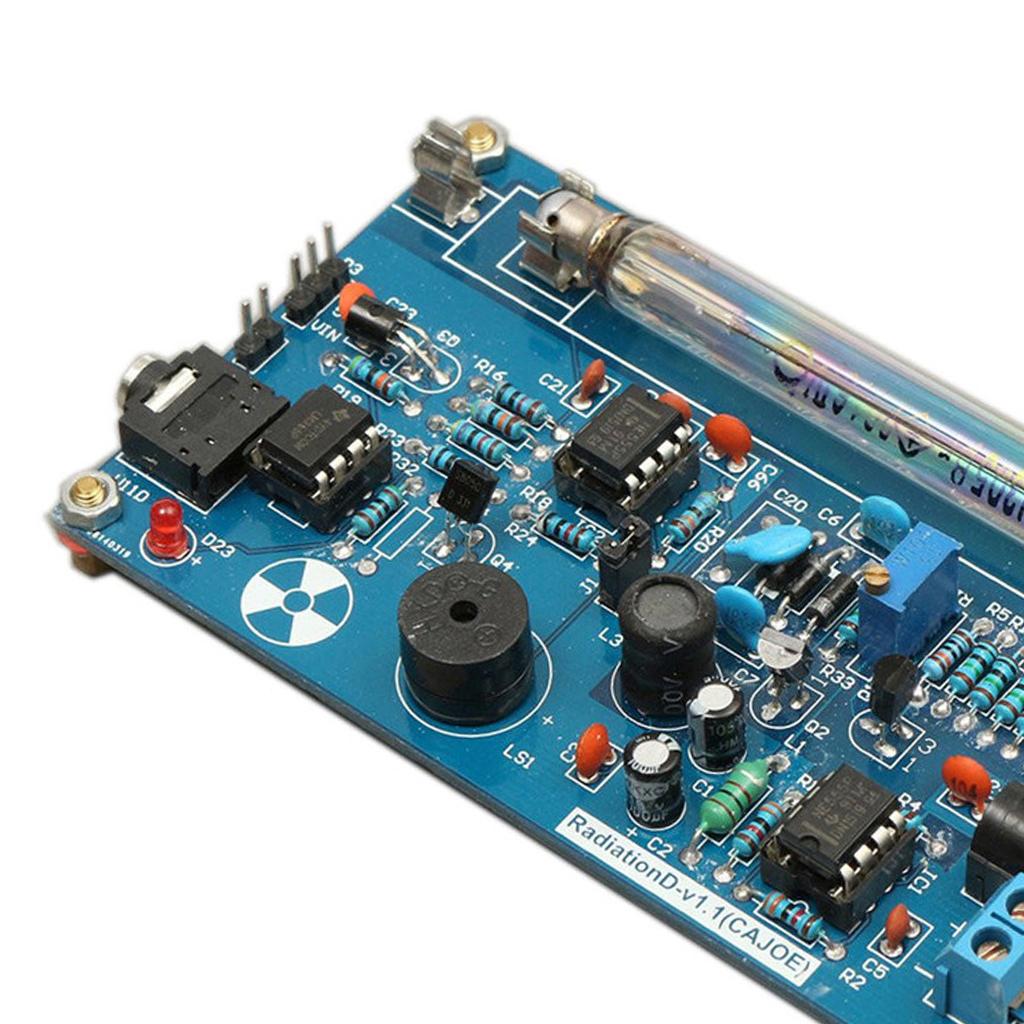

DIY Geiger Counter Kit Nuclear Radiation Detector Audio Alarm for Stone

Description:

5V power supply, or 3 * 1.5V battery; 4 * 1.2V battery, current: 30mA - 120mA.

For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray.

Equipped with sound and light alarm. Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed .

SUPPORT most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330-600V operating voltage of the Geiger tube can be supported).

Support the computer (PC) data acquisition, Matlab analysis and processing.This product needs to be assembled by yourself.

Specification:

This is a set of fine quality nuclear radiation detect module unassembled parts set, plug it and you can directly measured nuclear radiation. For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray. You can have a try.

Detection of nuclear radiation work (copy the following link to the browser to watch):
Http://v.youku.com/v_show/id_XNzI3MTU2NzQ0.html

Compatible with:
(recommended UNOR3, or any other arbitrary with 5V and external interrupt INT)
Internet can be downloaded: SPI example for Radiation Logger
Logger Radiation can be used as the host computer software to build radiation monitoring station.

Model: GC-1602-NANO
Material: electronic component
Geiger tube parameters:
Technical parameters diameter: Φ10±0.5mm
Total length: 90±2mm
Starting voltage: < 350V
Recommended operating voltage: 380V
Minimum plateau length: 80V
Maximum plateau slope: 10%/80V
Extreme operating voltage: 550V
The maximum count rate: 25 times / min
Life: > 1*10^9 pulse
Medium temperature: -40 to 55°C
Item size: 108*63*20mm / 4.25*2.48*0.79in

Package Includes:

1*Unassembled Radiation Detector Module Set
