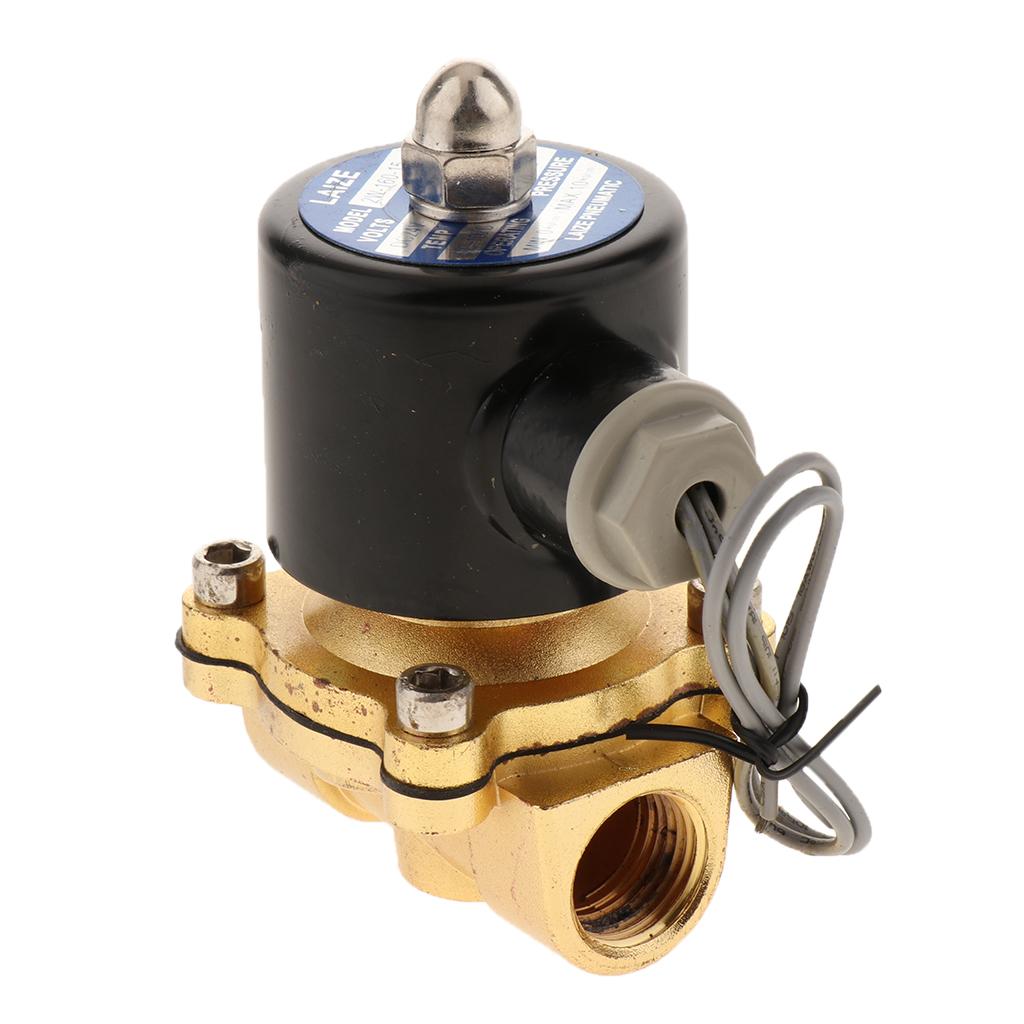

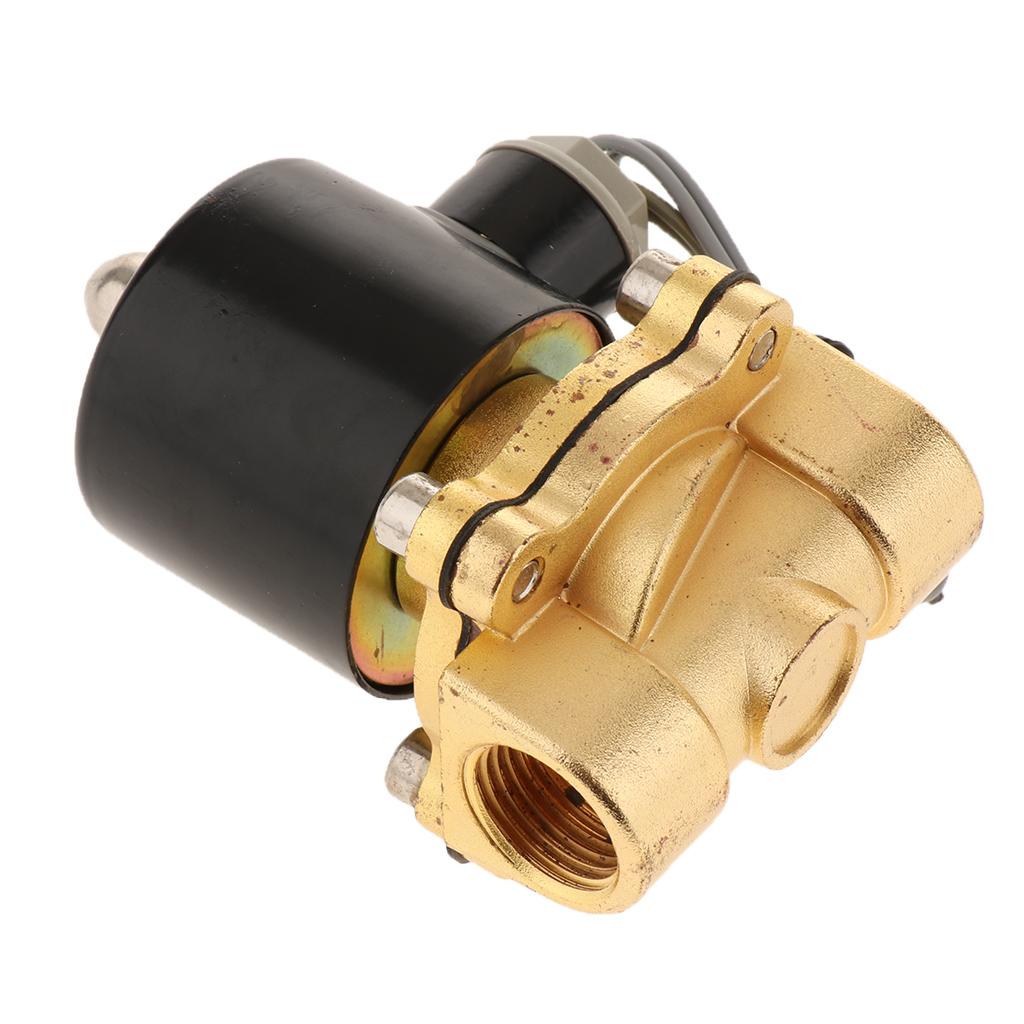

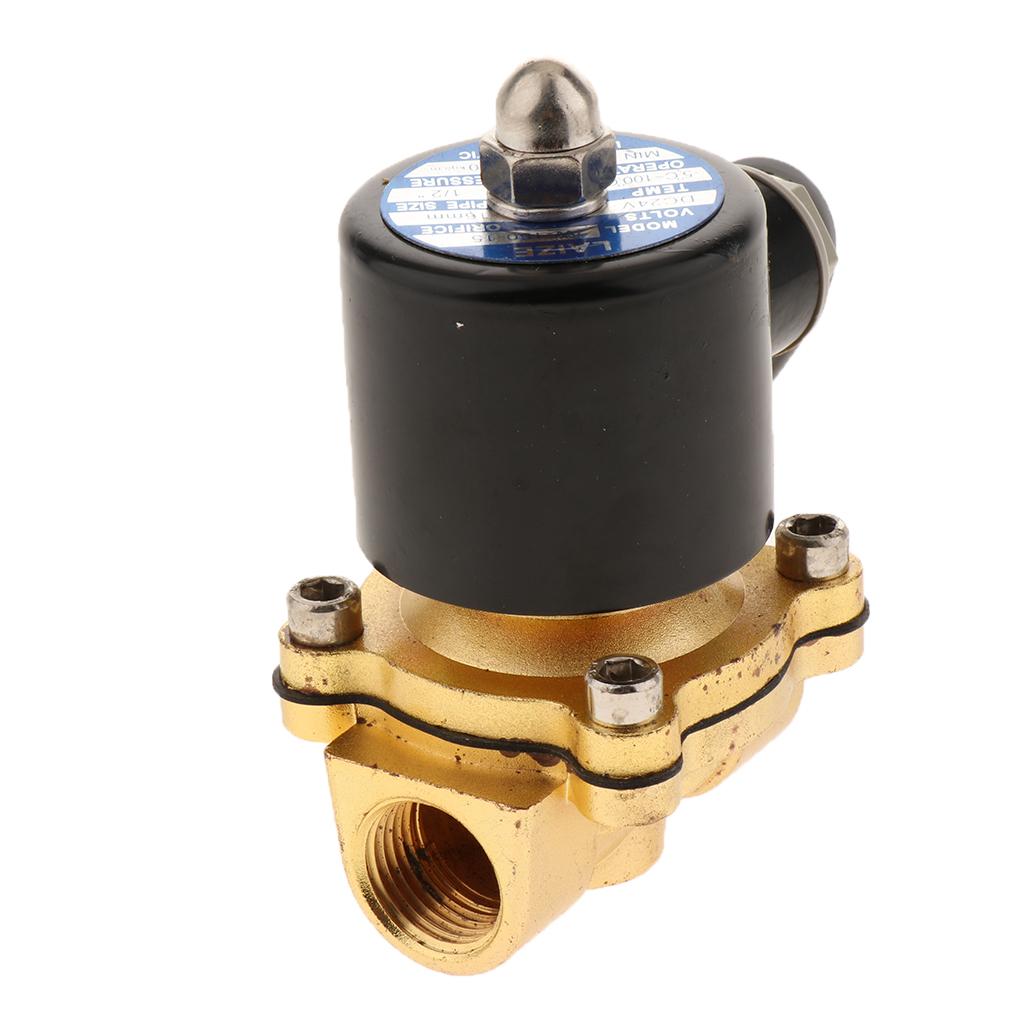

DN15 1/2 Normally Closed Electric Solenoid Valve for Water Air Oil DC 24V"

Description:

- High quality replacement part for use with pipelines in water, and diesel applications
- Medium: , Water, Oil
- Operating Type: Directly Driven
- State: Normally Closed
- Supply Voltage: DC 12V / DC 24V
- Supply Current: 0.12A
- Withstand voltage: 1.0Mpa
- Working Temperature: -5℃ ~ 80℃
- Pressure Range: 0~0.7Mpa; Water 0~0.5Mpa; Oil 0~0.5Mpa
- Fluid Viscosity: Under 20CST

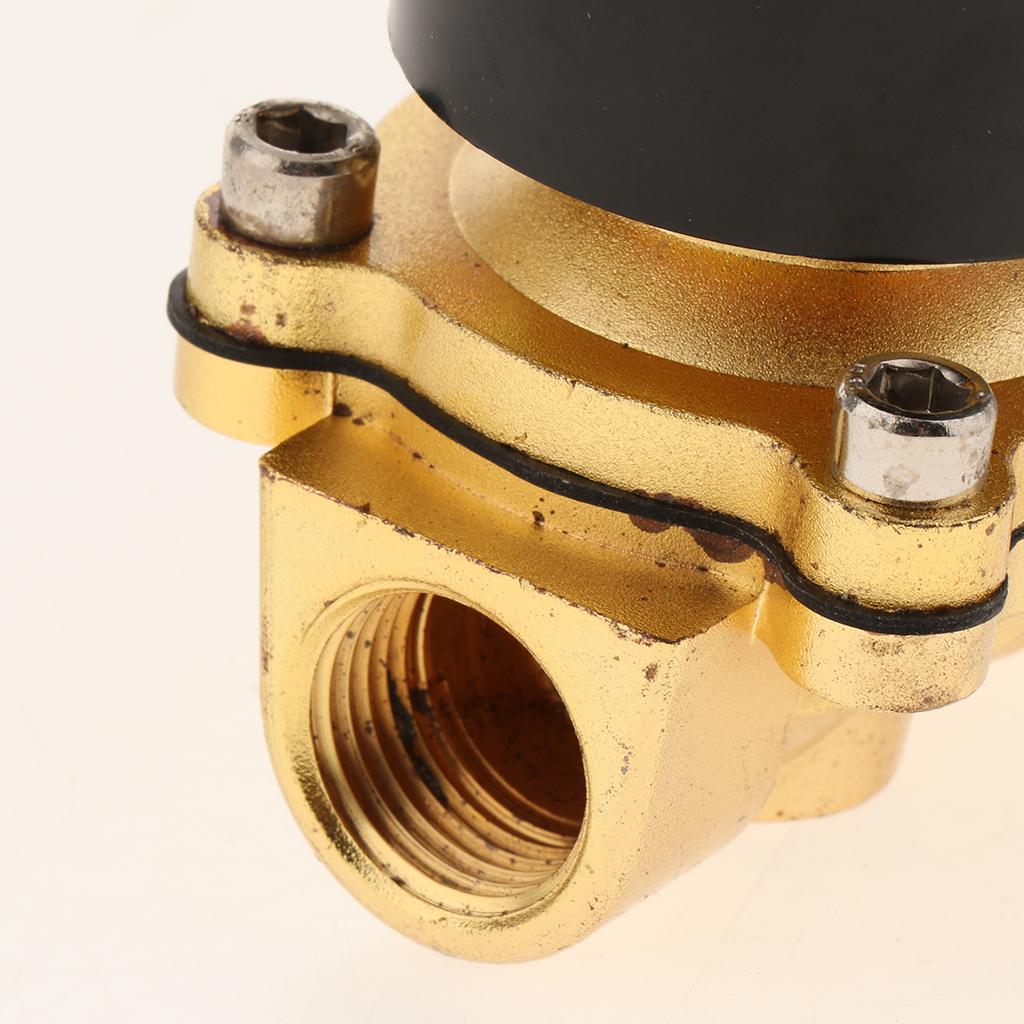

- Installation: the direction of the water flow is indicated on the valve body
- Valve Body: Zinc Alloy, Full Copper Coil
- Oil Seal Material: NBR
- Pipe Size: 1/2", DN15
- Flow Diameter: 16mm
- Dimension: 118x85x65mm/4.65x3.35x2.56 inch

Package Includes:

1 Piece Electric Solenoid Valve
