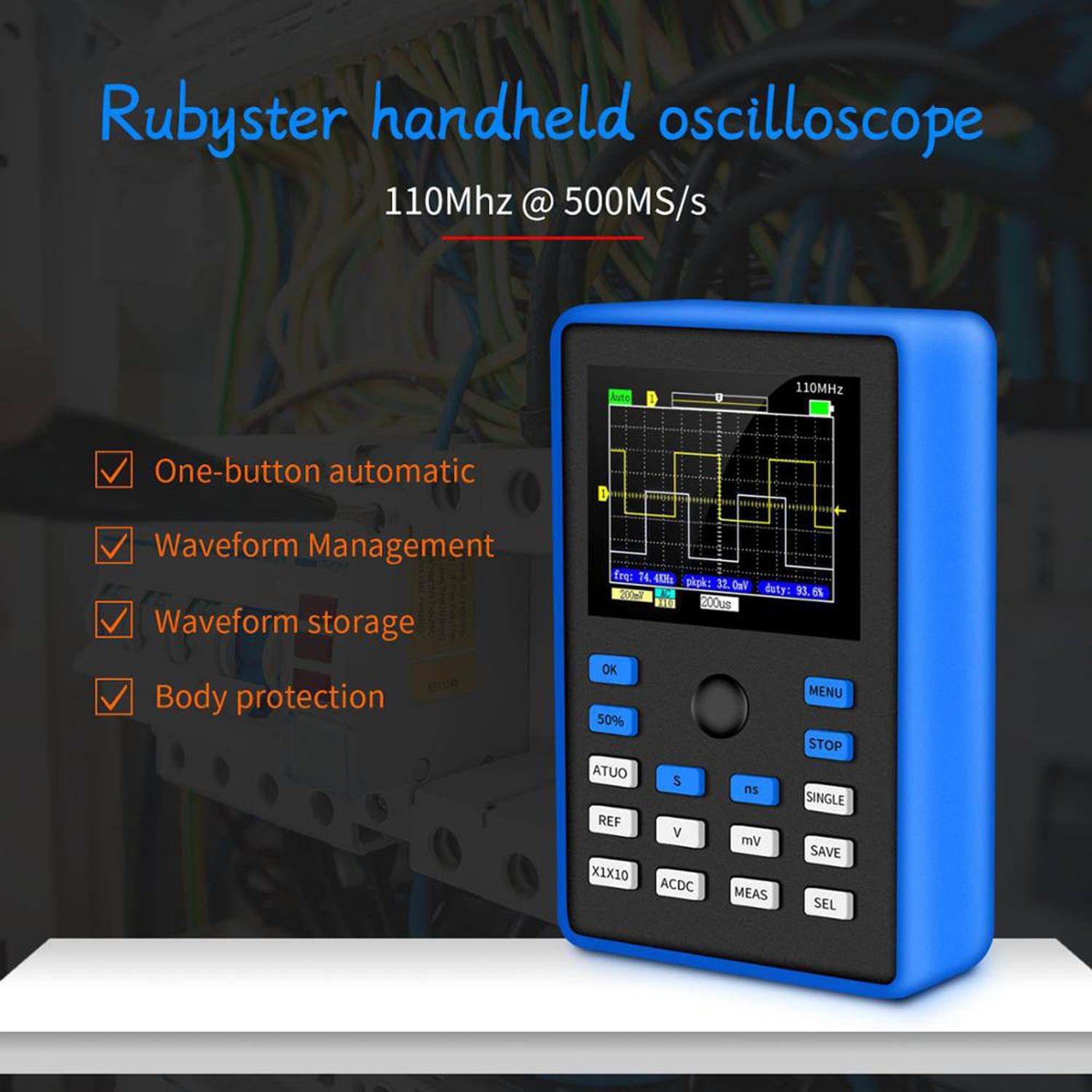

DSO1C15 Professional Digital Oscilloscope 500MS/s Sampling

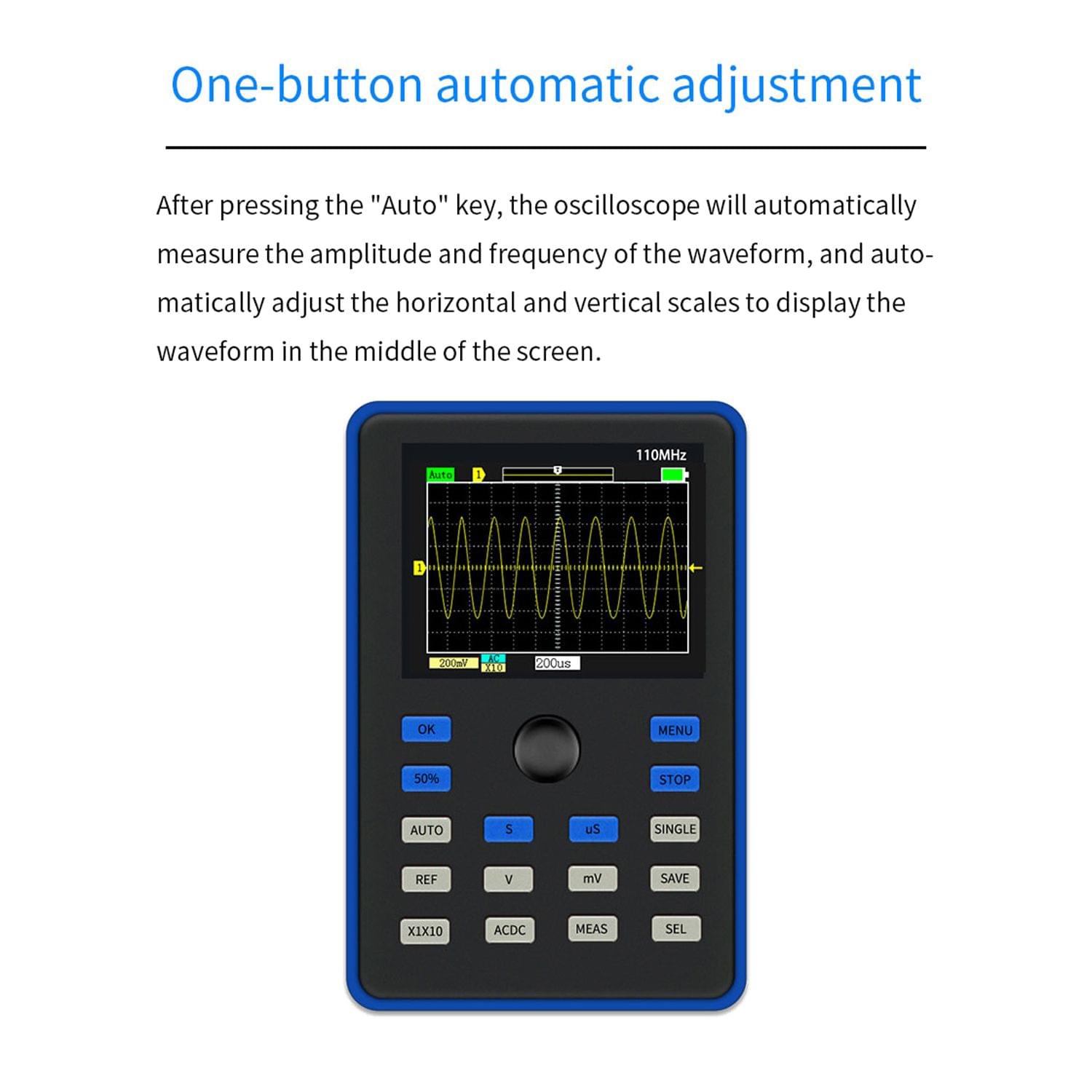

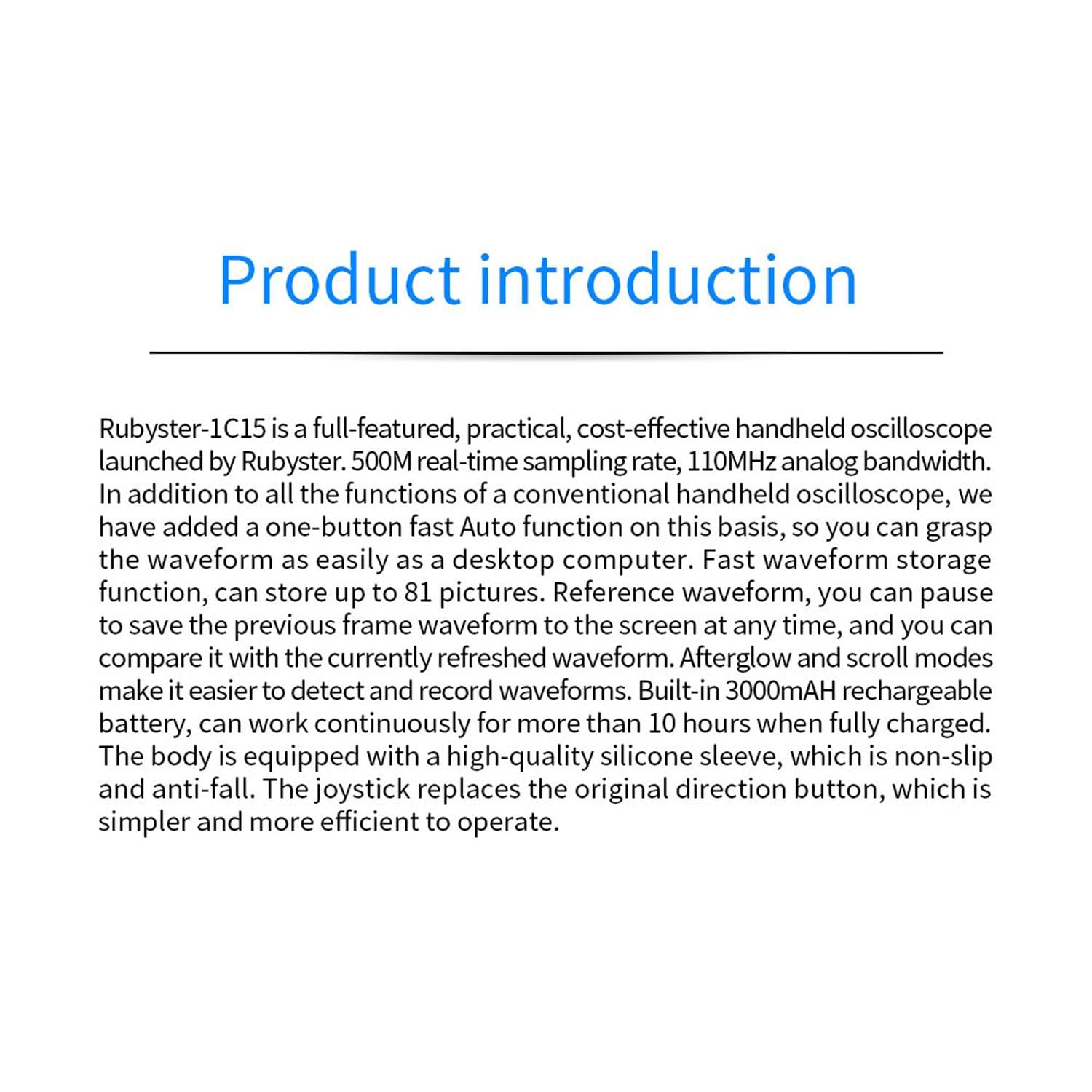

Made of fine quality material practical easy to operate and use wide application range has a long service life.Features:It is a full-featured practical cost-effective handheld oscilloscope.500M real-time sampling rate 110MHz analog bandwidth.In addition to all the functions of a conventional handheld oscilloscope it has added a one-button fast auto function on this basis so you can grasp the waveform as easily as a desktop computer.Fast waveform storage function can store up to 81 pictures.Reference waveform you can pause to save the previous frame waveform to the screen at any time and you can compare it with the currently refreshed waveform.Afterglow and scroll modes make it easier to detect and record waveforms.Built-in 3000mAh rechargeable battery can work continuously for more than 10 hours when fully charged.The body is equipped with a fine quality silicone sleeve which is non-slip and anti-fall.The joystick replaces the previous direction button which is simpler and more efficient to operate.The oscilloscope provides powerful waveform file management capabilities. It supports thumbnail file browsing viewing viewing of measurement parameters page turning and deletion. It is just like the picture browser on a mobile phone. File management provides a very convenient platform and its flexibility is much higher than that of ordinary desktop oscilloscopes.After pressing the Auto key the oscilloscope will automatically measure the amplitude and frequency of the waveform and automatically adjust the horizontal and vertical scales to display the waveform in the middle of the screen.Measurement options: frequency peak-to-peak positive duty cycle amplitude positive amplitude negative amplitude maximum minimum period root mean square average positive pulse width negative pulse width negative duty cycle.Specifications:Main material: ABSColor: black+blueBattery: 1 * lithium battery 3000mAh (included)Number of channels: 1Screen size: 2.4 inchesScreen resolution: 320*240Analog bandwidth: 110MSampling rate: 500MRise time: 3nsStorage depth: 240KBTime base range: 5ns-10sVertical sensitivity: 10mv/div-10v/divTrigger mode: auto / normalTrigger type: rising / fallingDisplay mode: YT / scrollAfterglow time: none / 1s / Charging method: 5V / 800mAVoltage measurement range: 40V (x1 file);400V (x10 file)Channel coupling: AC / DCOne-button automatic: stand byWaveform measurement: 14 typesMeasurement accuracy: 2%Reference waveform: stand byWaveform save: stand byFrequency accuracy: 0.01%Input resistance: 1M?Single trigger: stand by50% (back to middle): stand byOperation method: button + joystickWaveform analysis: support drag / expand after stoppingItem size: 114 * 74 * 33mm / 4.5 * 2.9 * 1.3inItem weight: 300g / 10.6ouncePackage size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2inPackage weight: 400g / 0.9lbPacking List:1 * Oscilloscope Host1 * Matching 100MHz Probe (1X and 10X)1 * Micro USB Data Line1 * User Manual
