EXP Gdc Independent Video Card Dock Pci-E x16 Extended 12V DC for Notebook Expresscard

Description:

Support interface: PCI-E X16 Expansion support: PCI-E X16 DMI 5 GT/s
Power: maximum 220W (8Pin interface) / maximum 150W (DC interface)
USB: 1.0/1.1/2.0
Compatible systems: for Windows XP/7/10, for MAC OS, for Linux
PCI-E interface: Connect PCI-E interface devices, including graphics cards, sound cards, array cards, capture cards, etc.

Specification:

6P power output: provide 6PIN+8PIN interface output
8P power interface: device power supply interface, notebook control power switch. 1) Use a dedicated 220W power supply 2) Use an ATX desktop power supply with an ATX adapter cable.
DC power interface: 12V DC power supply, 5.5x2.1mm DC socket, maximum power 150W.
USB interface: (Note: M.2 M key, PCI-E X4 version this interface is a data line interface, the physical interface type isHDMI), this interface only provides 500MA voltage output, and does not have any other functions.

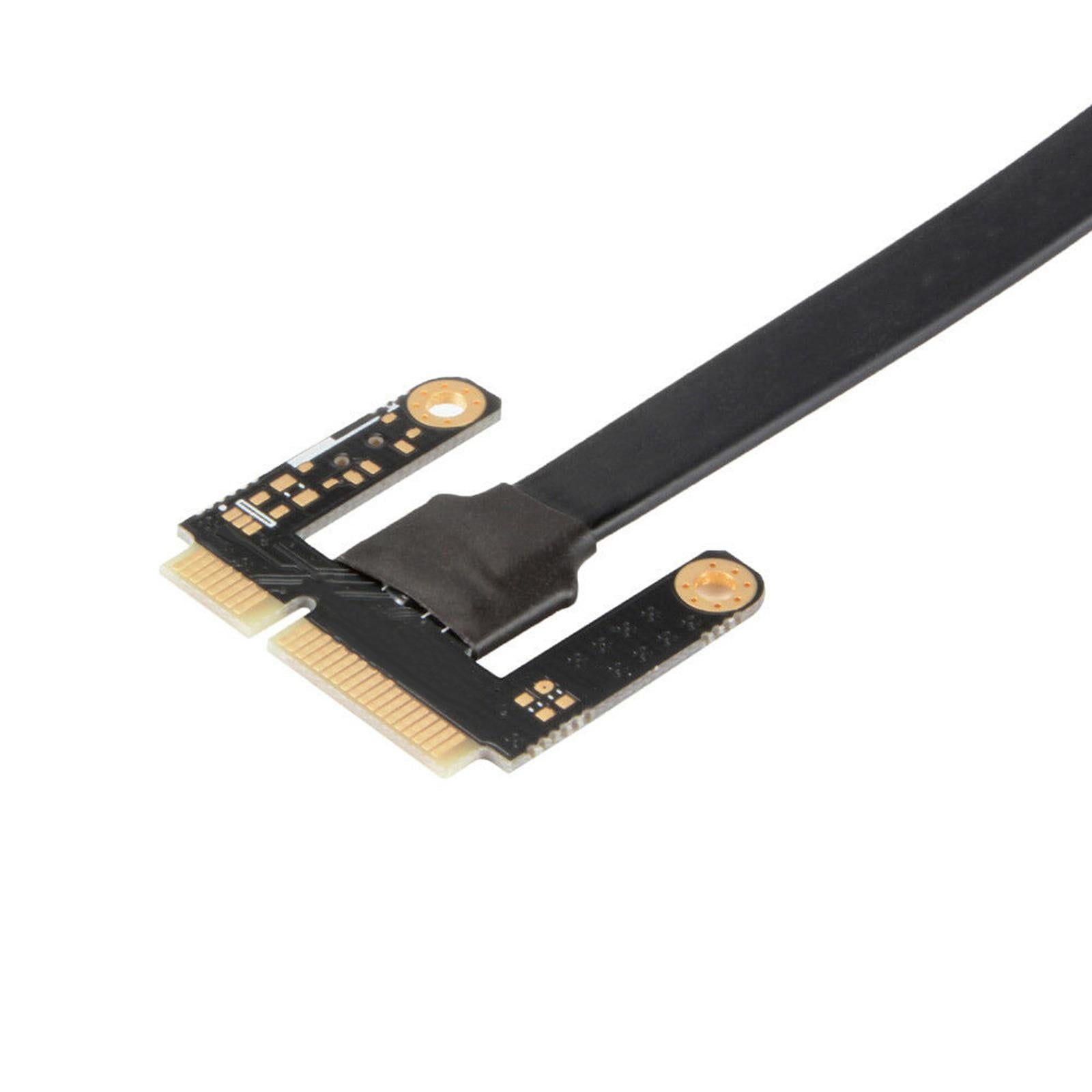

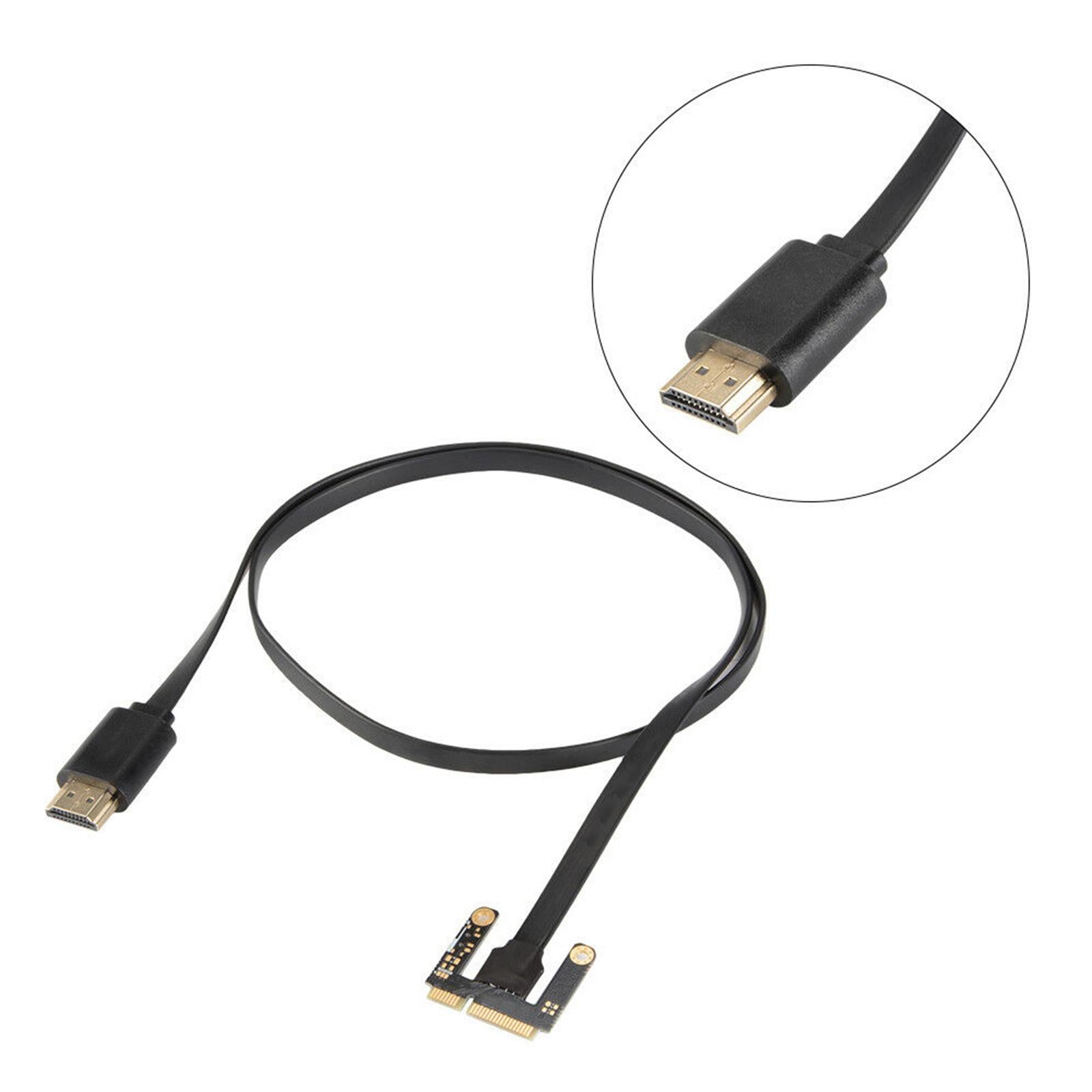

Data cable interface: Connect to Mini PCI-E, Expresscard, NGFF (M.2) A/E Key or M Key, PCI-E x4 adapter cable. Non-standardHDMI interface, damage caused by connecting other devices should be borne by yourself.
ATX PW, PTD switch: The switch is in the OFF state by default, do not toggle it.

Package Includes:

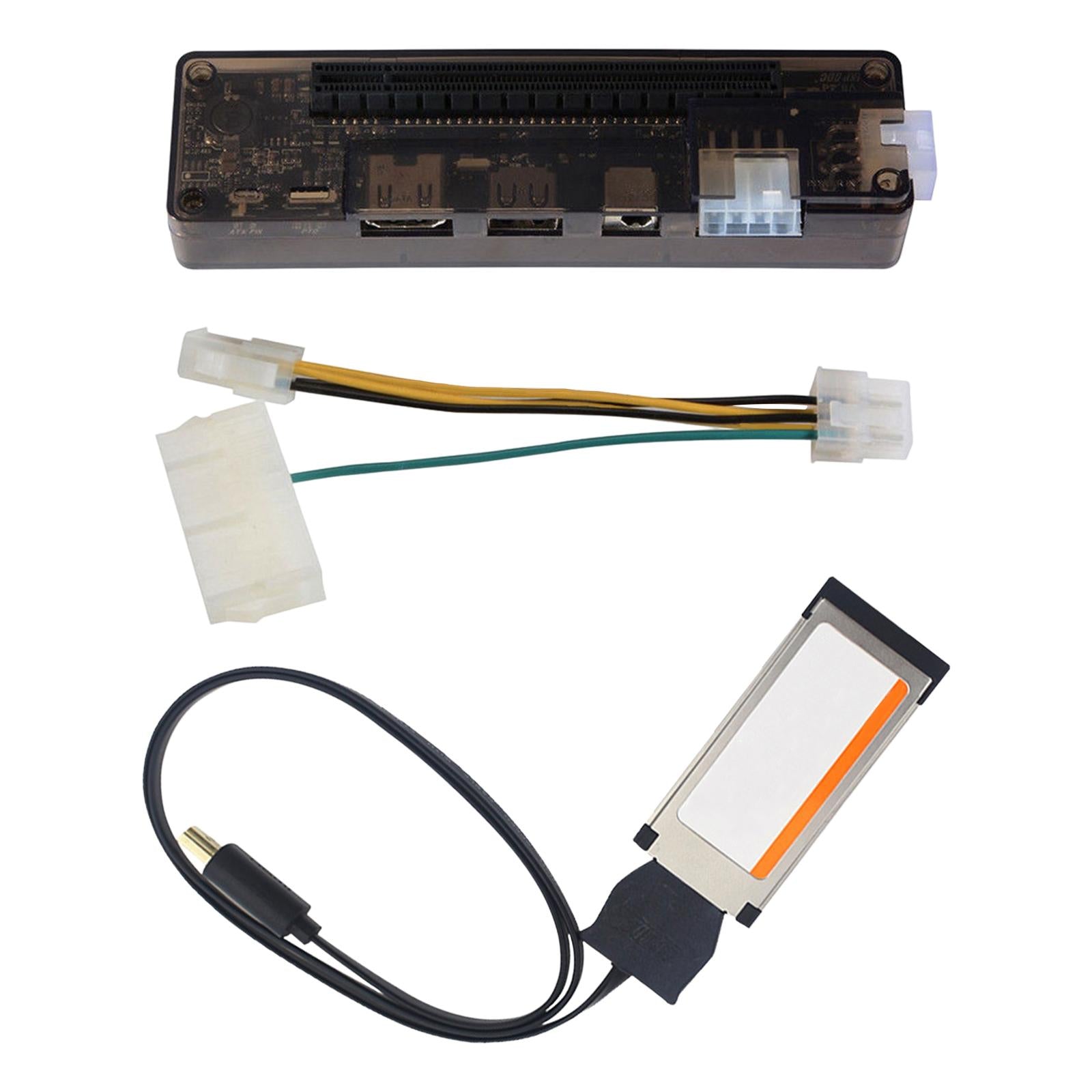

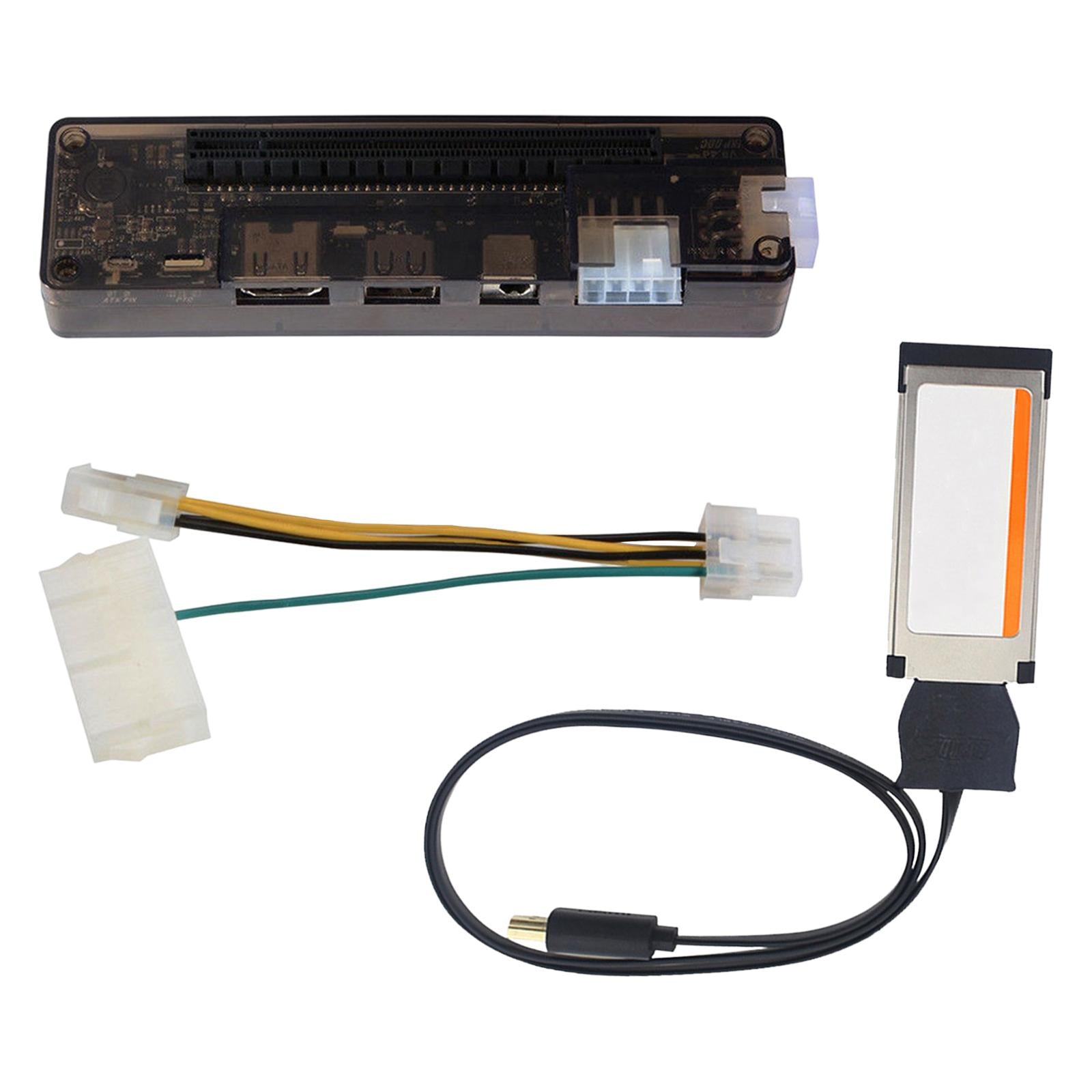

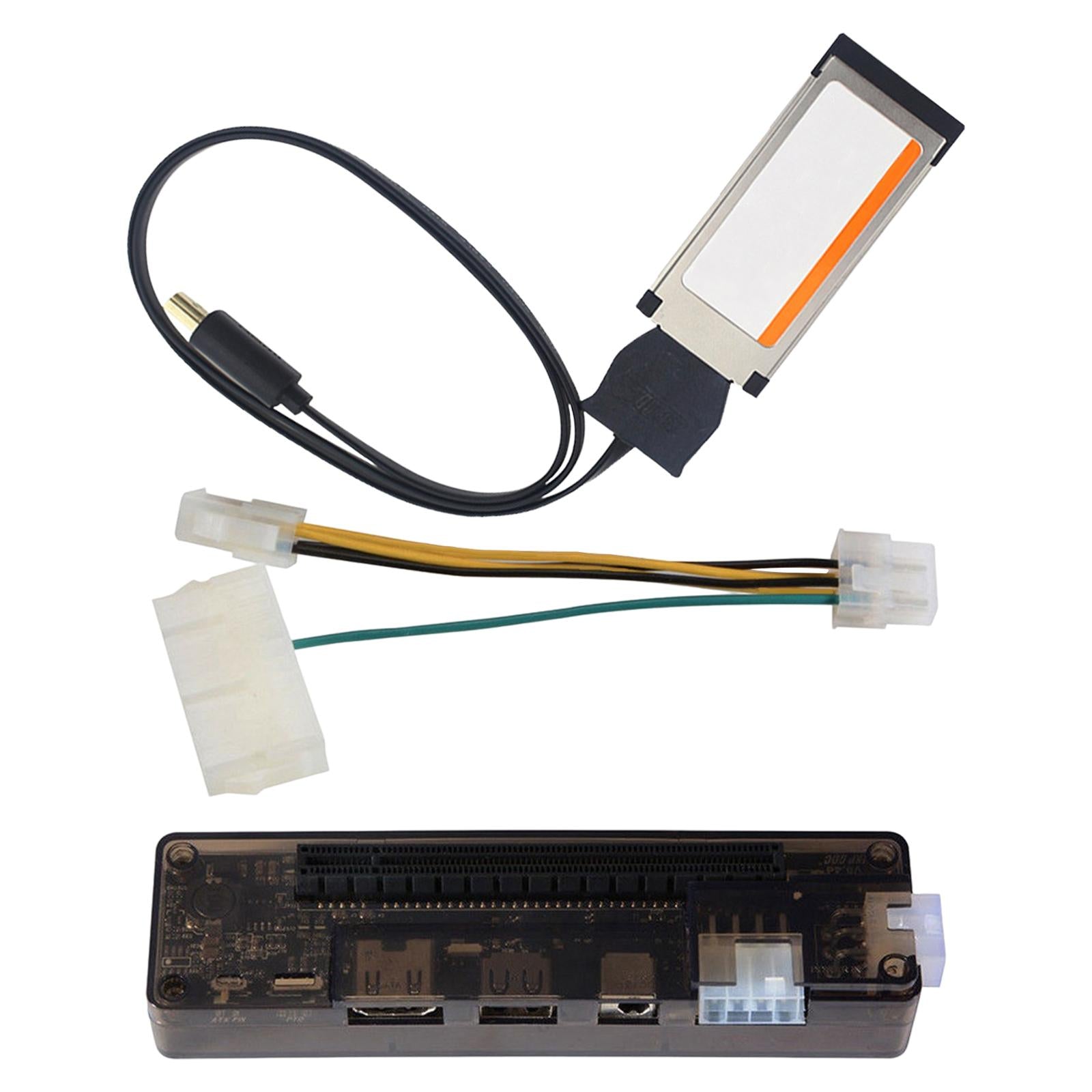

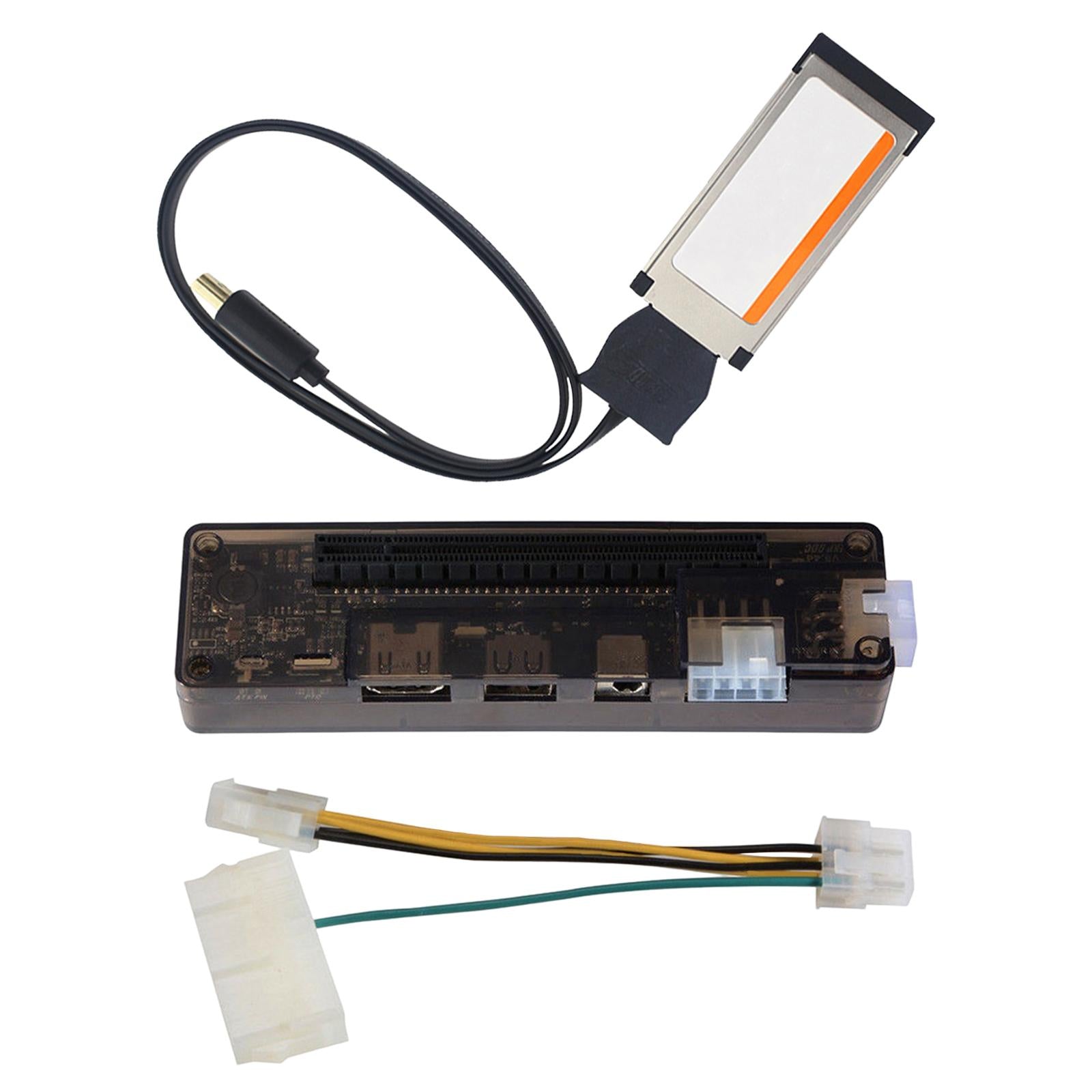

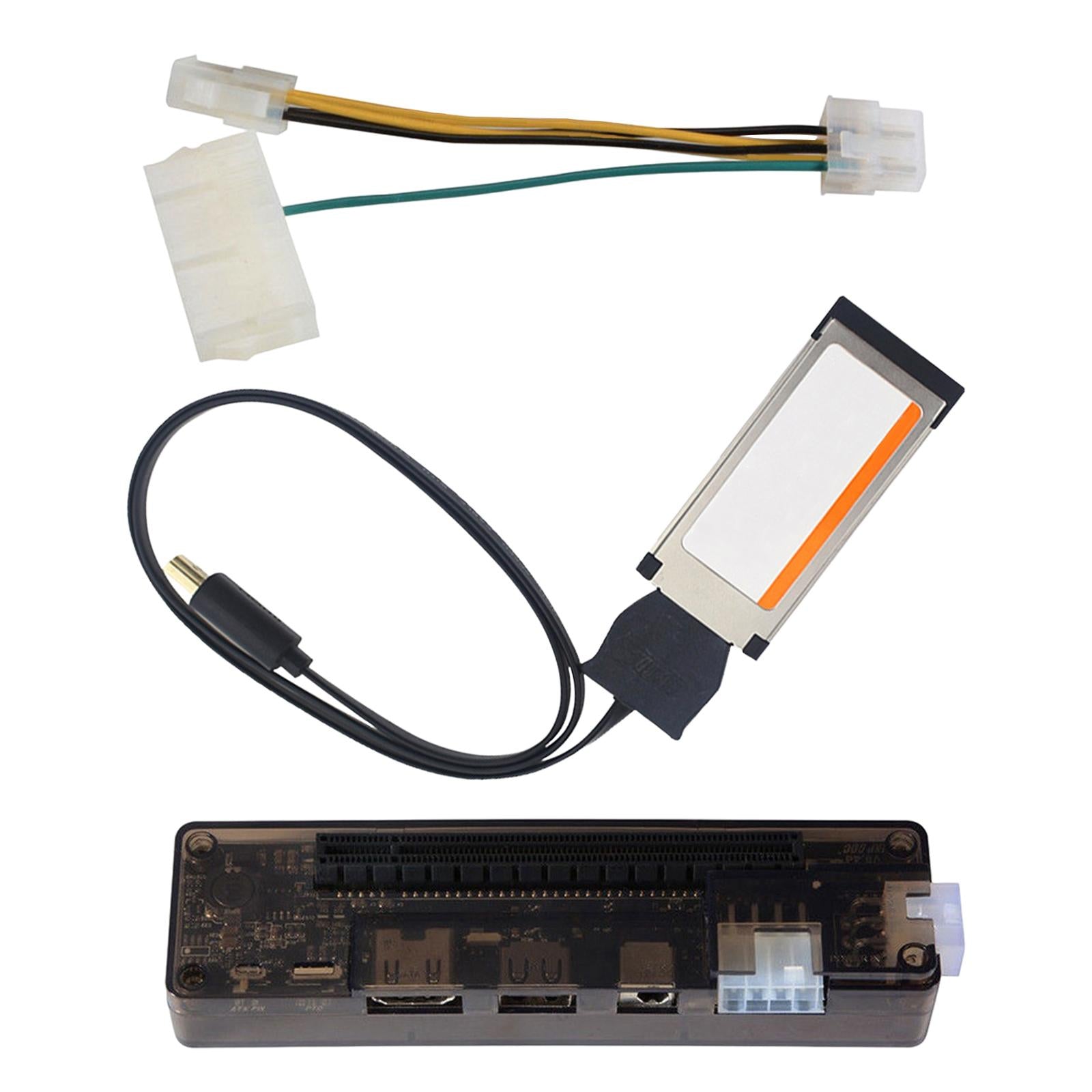

1 Set EXP GDC External Independent Video Card Dock
