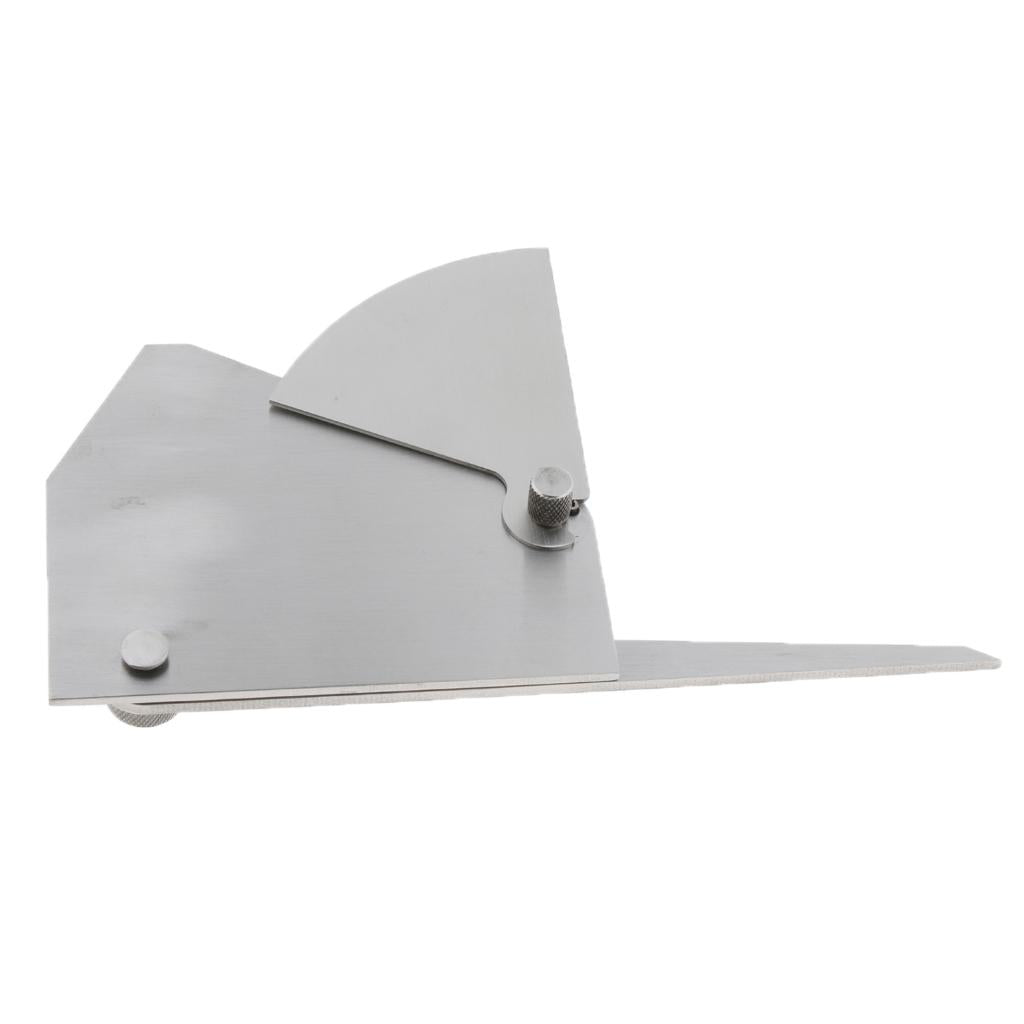

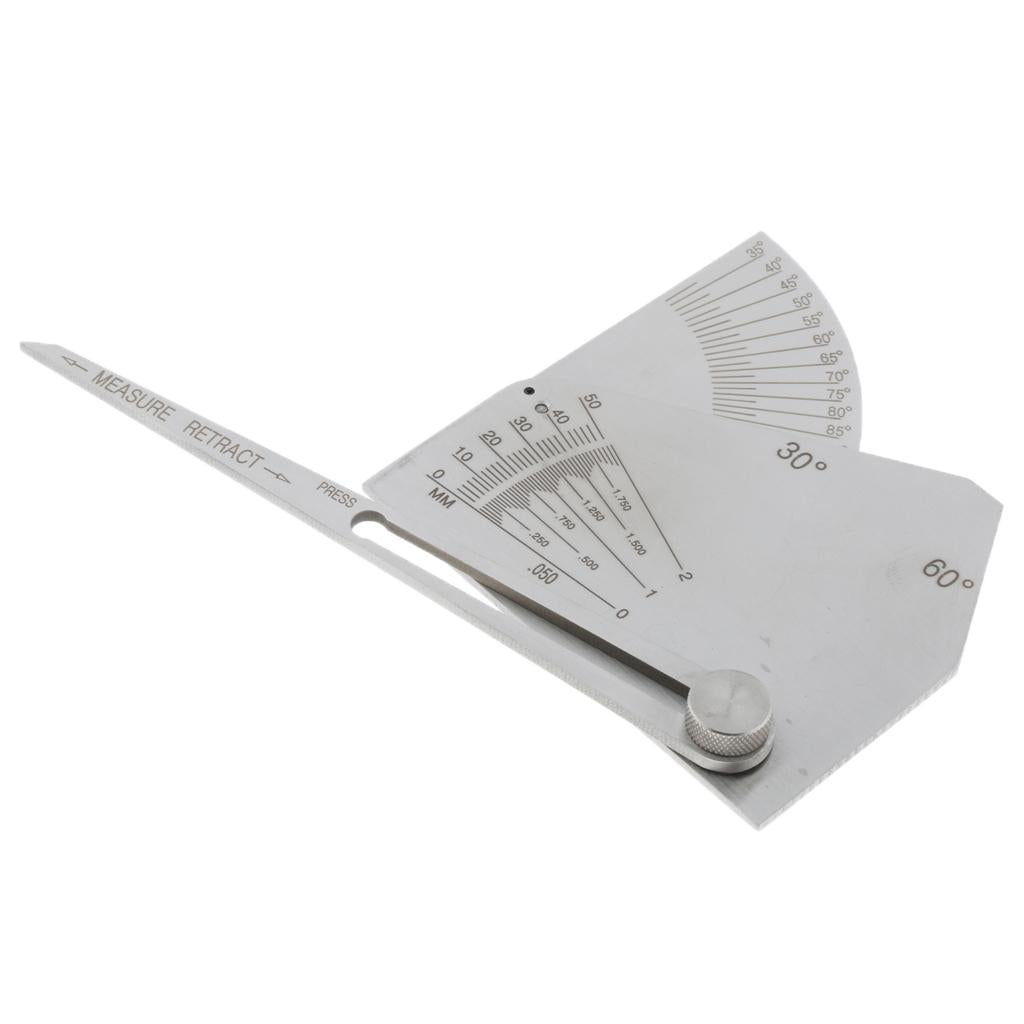

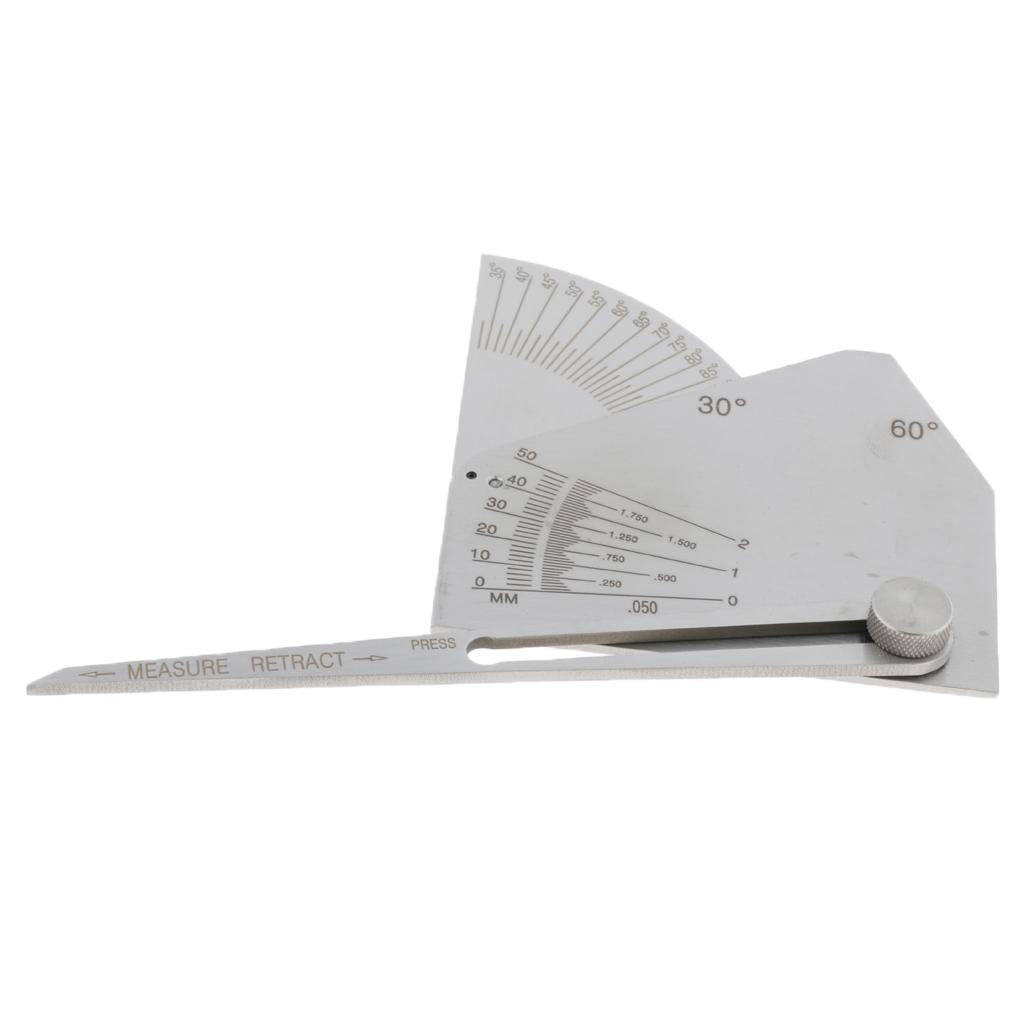

Fillet Weld Gauge Welding Angel Inspection Gage 30-90 Degree

Description:

Weld Gauge Welding Angel Inspection Gage Ulnar Test Ruler

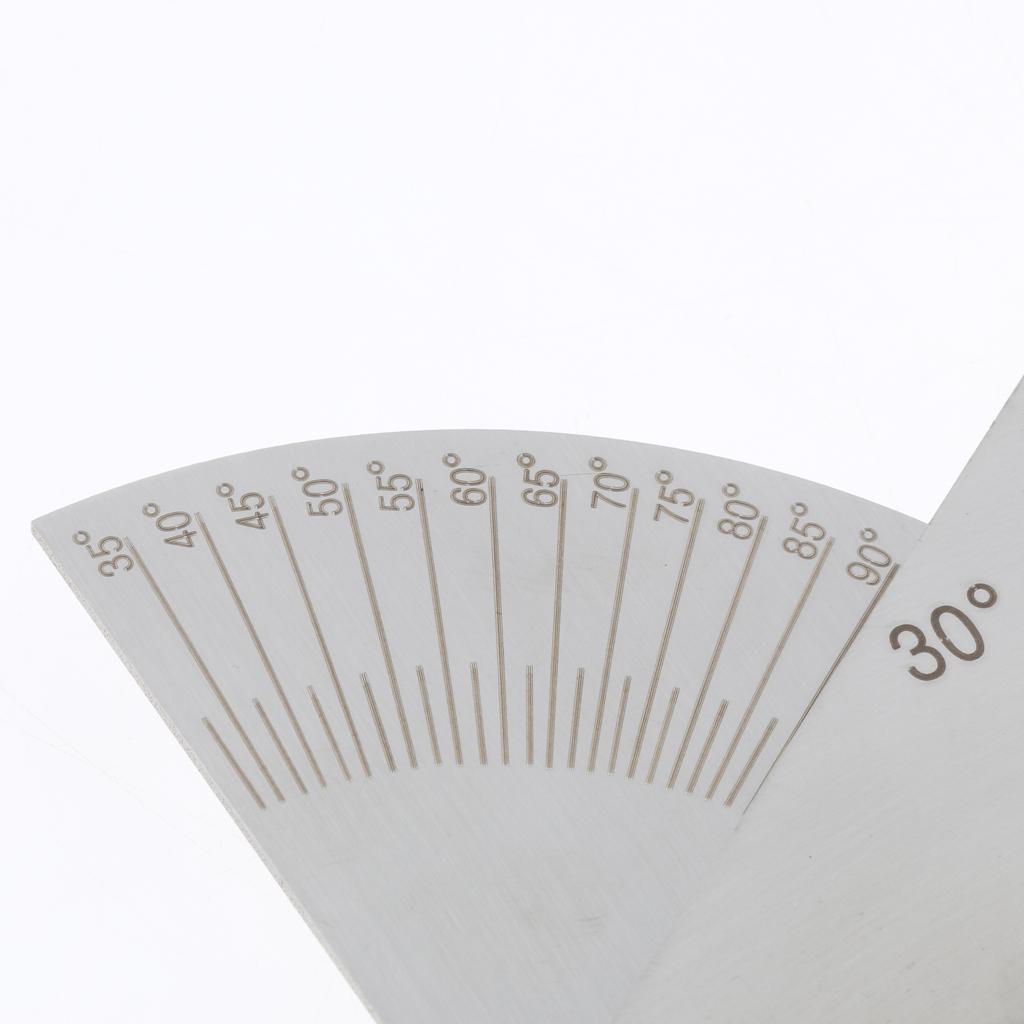

The gauge inspect angle of the skewed member: 30-90 Degree

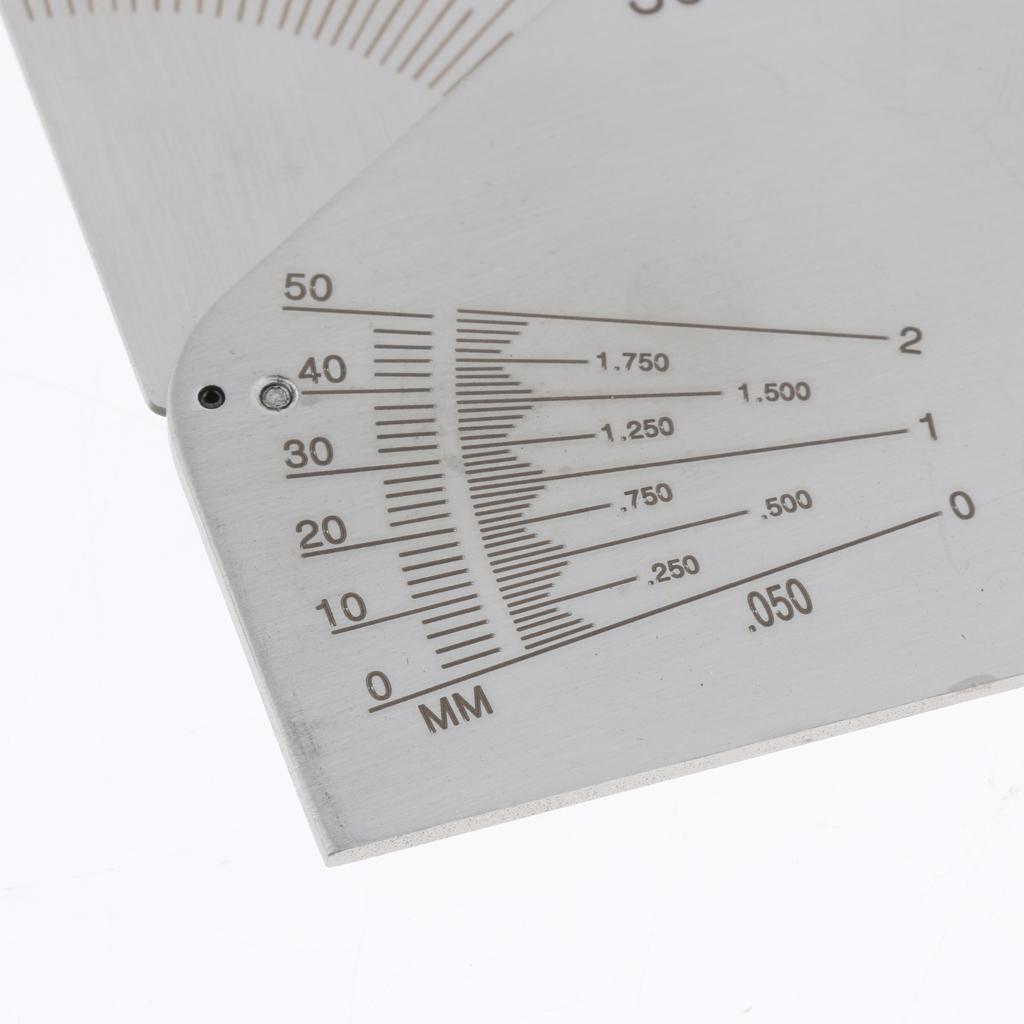

Laser engraving,accurate figures and increments are etched into surface

Fillet Welding Gauge is Metric reading

Made of stainless steel, not easy to rust, not easy to bend

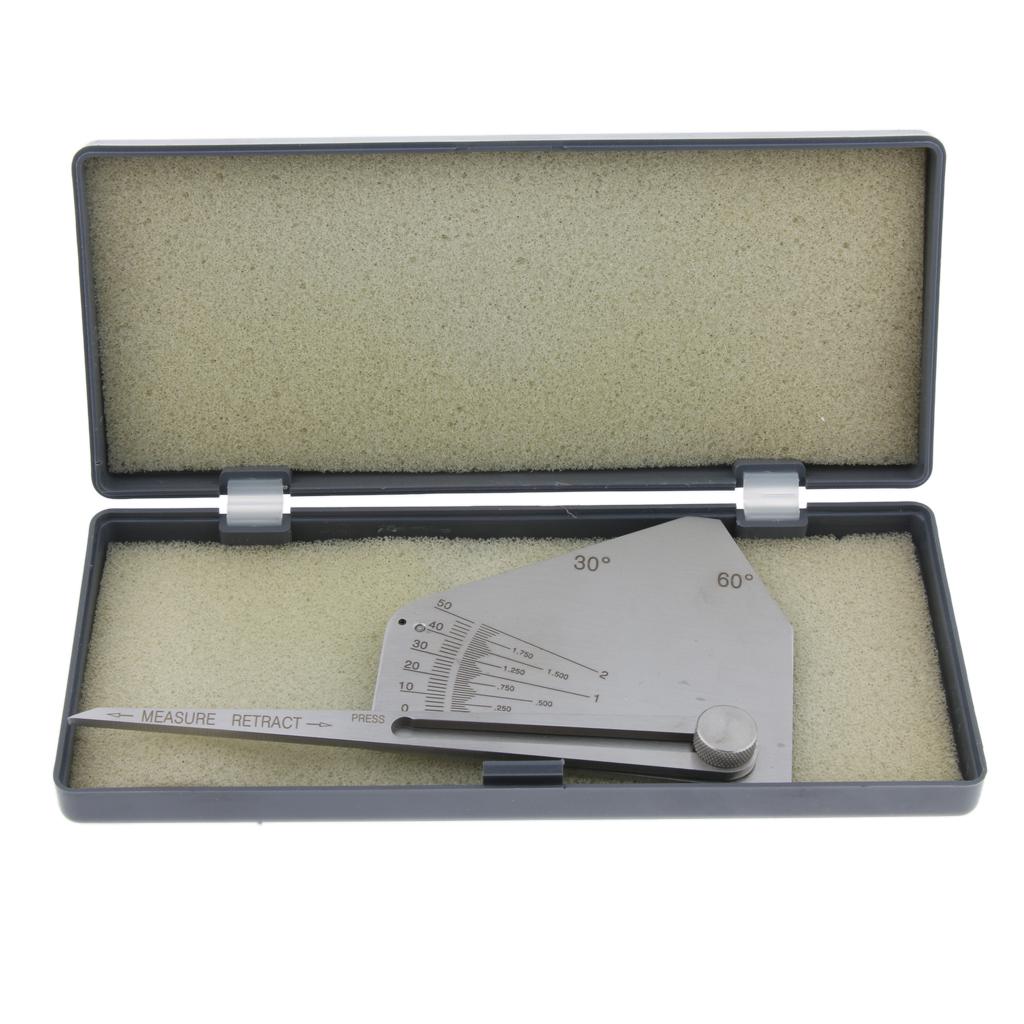

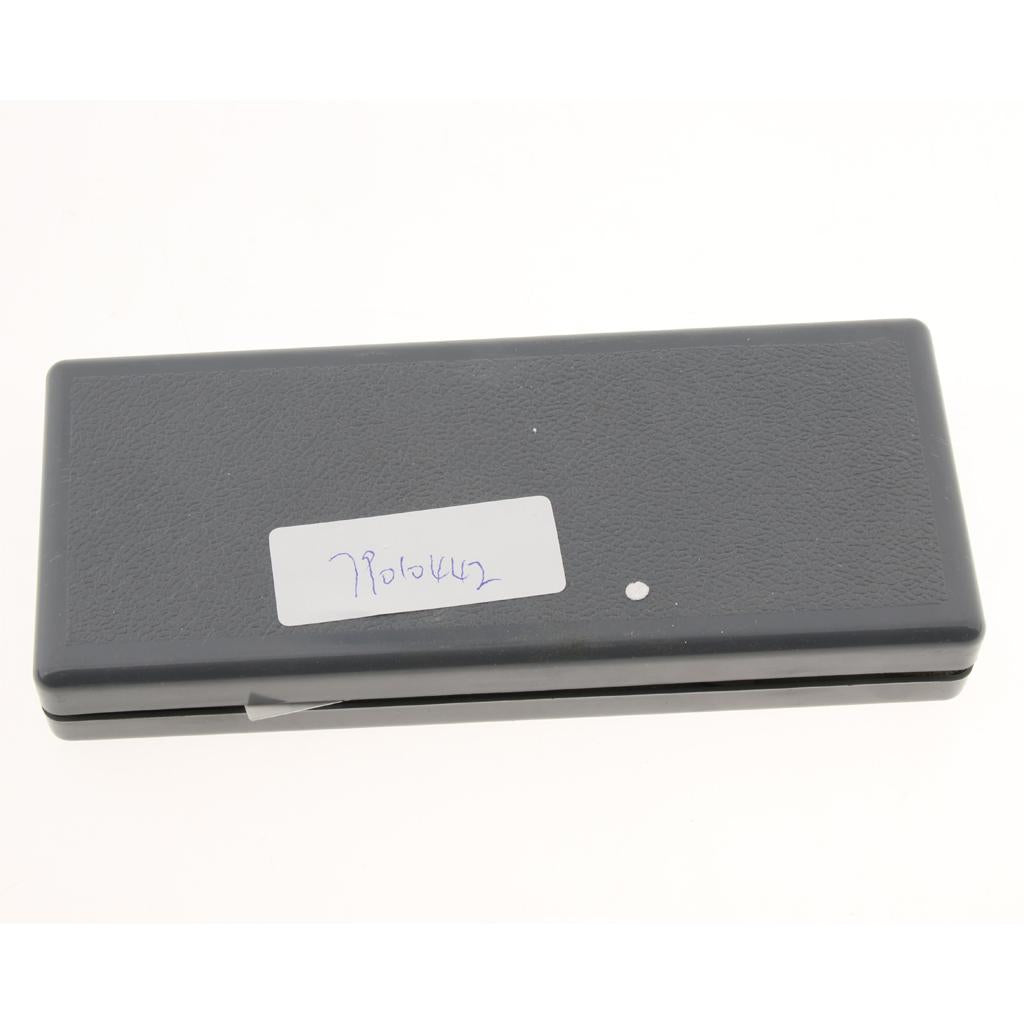

Packed in plastic box with instruction for use

Specification:

Material: Stainless Steel

Color: Silver

Size(LxW): Approx. 13x6.5 cm / 4.72 x 2.56 inch

Metric

1.Angle of the skewed member: 30-90°

2. Theoretical Throat (in Inch): 0-1.2''

3. Leg Size of Fillet (in Inch): 0-1.6''

4. Inspection Dimension (in Inch): 0-1.6''

Inch

1.Angle of the skewed member: 30-90°

2. Theoretical Throat (in Metric): 0-30mm

3. Leg Size of Fillet (in Metric): 0-40mm

4. Inspection Dimension (in Metric): 0-40mm

Package Includes:

1 Piece SKEW-T Fillet Weld Gauge

Note:

1. Do not stack the welding inspection rule together with other tools to avoid scratches caused by deformation, blurred lines and damaged accuracy.

2. Do not scrub the calibration with amyl acetate.

3. Do not use the gap indicator on the multipurpose gauge as a tool.
