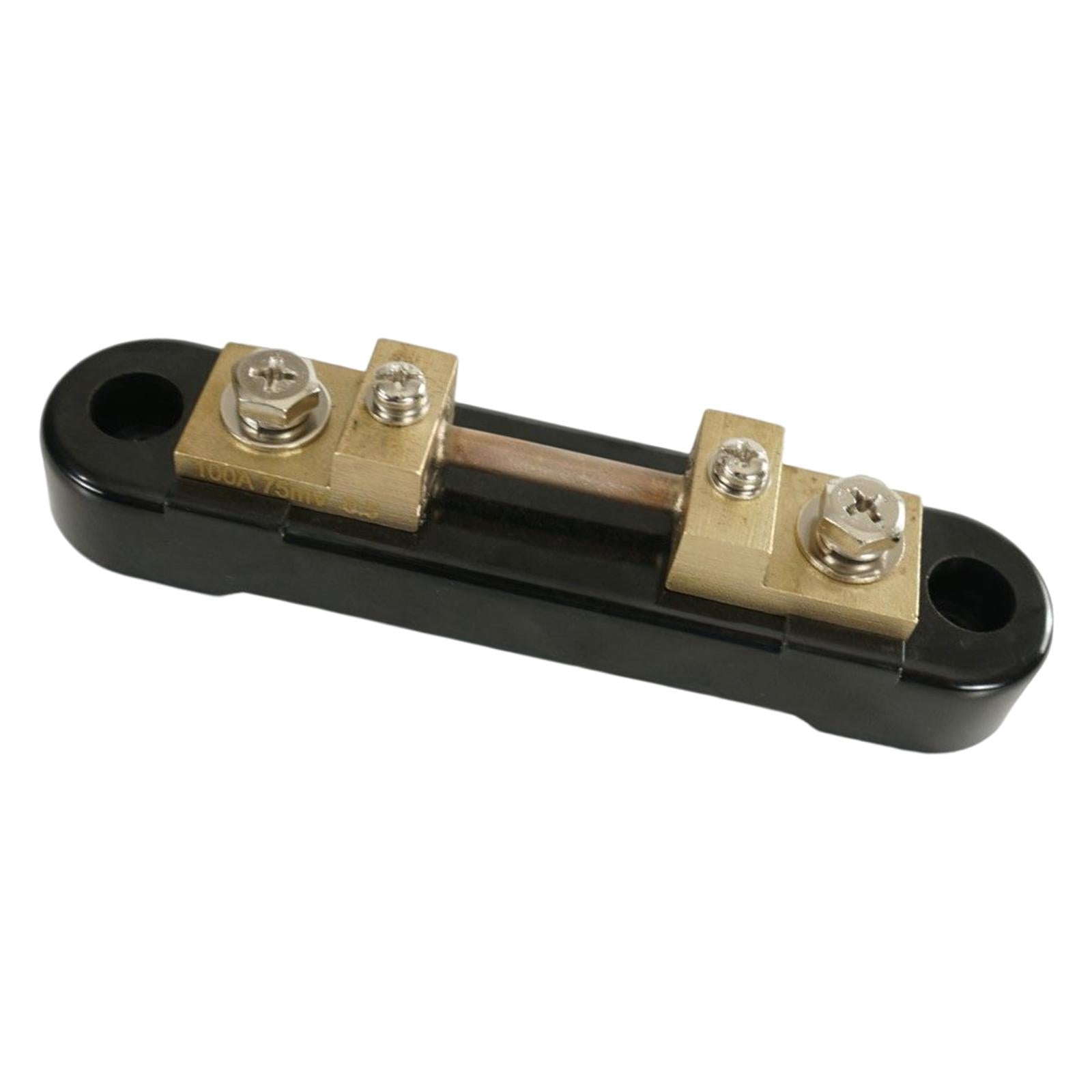

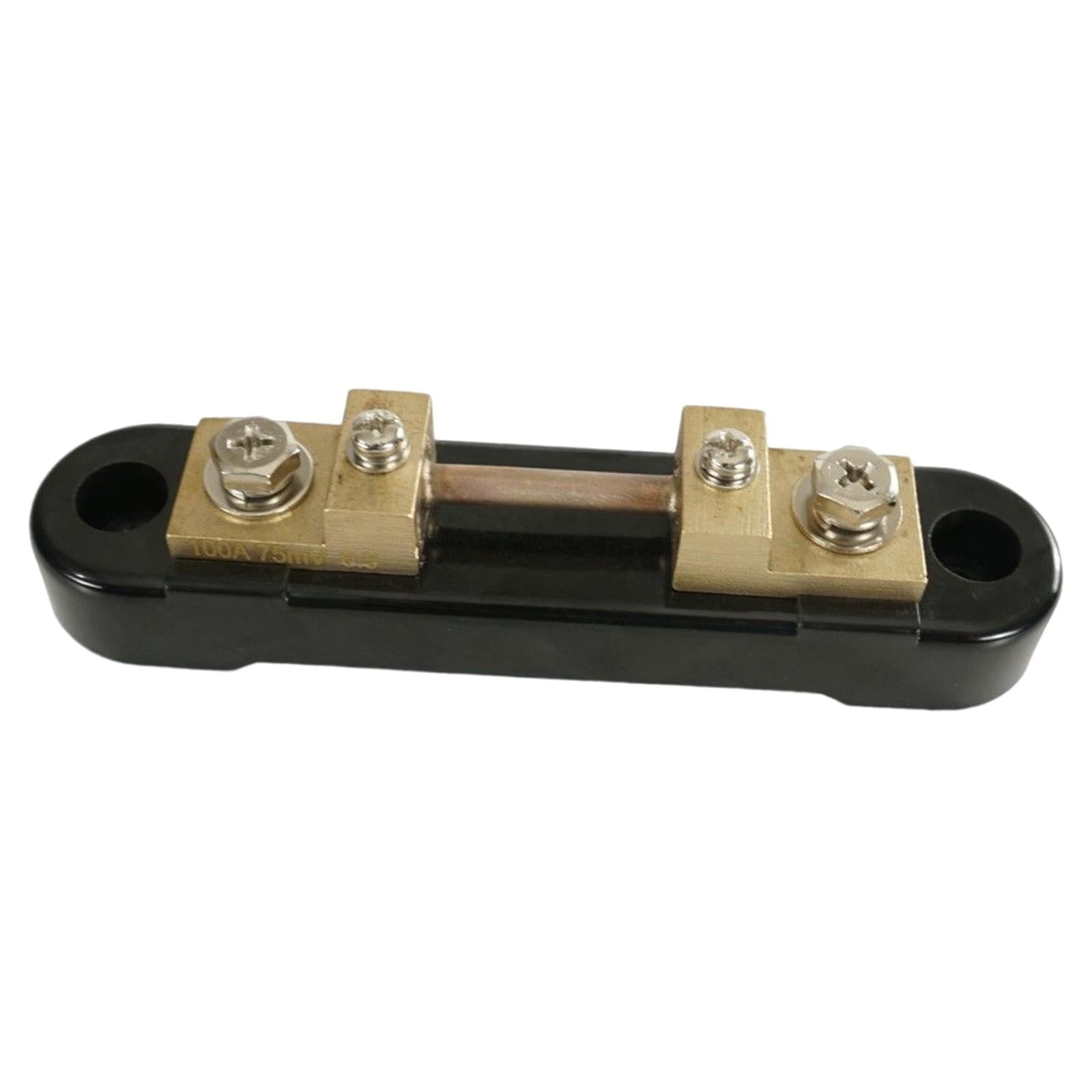

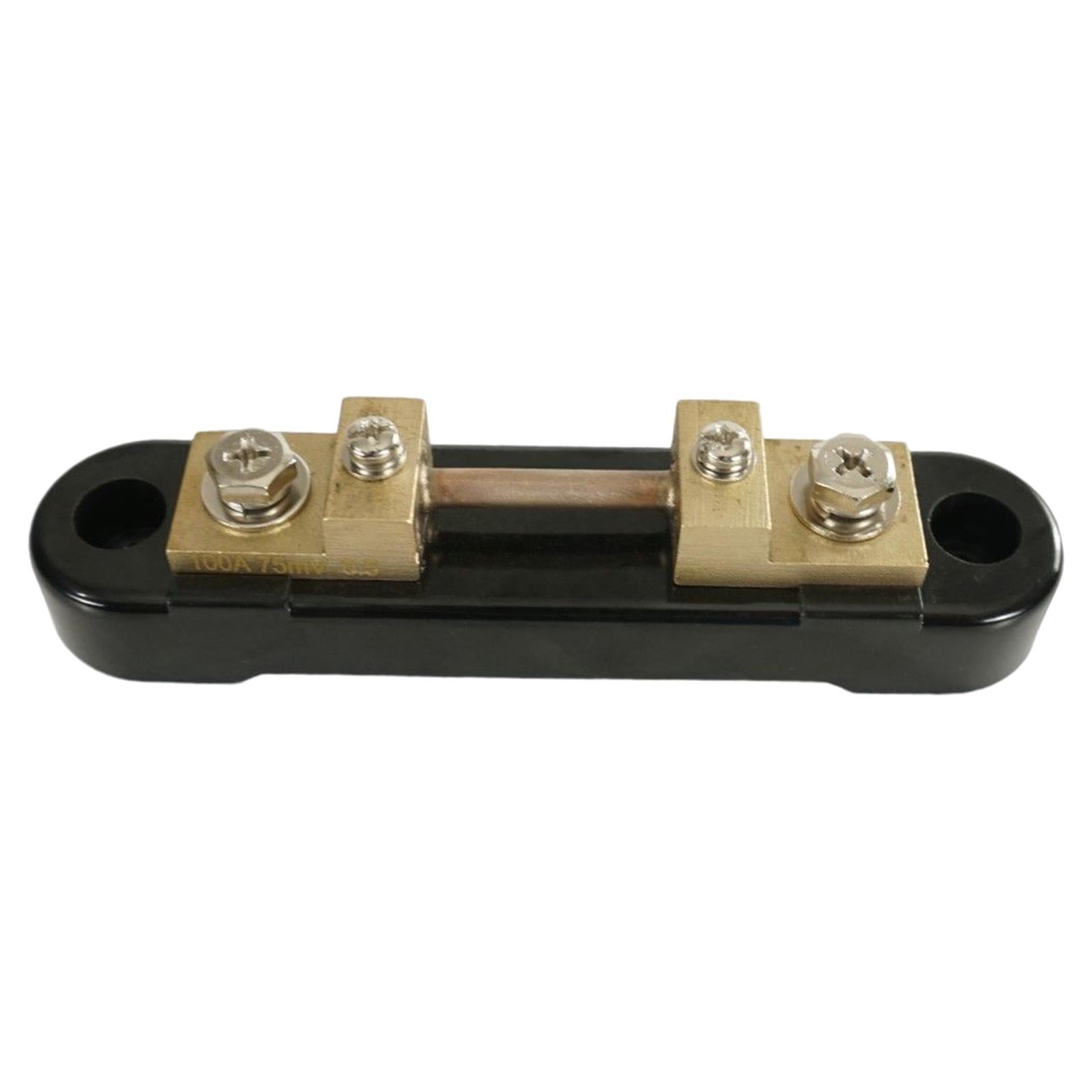

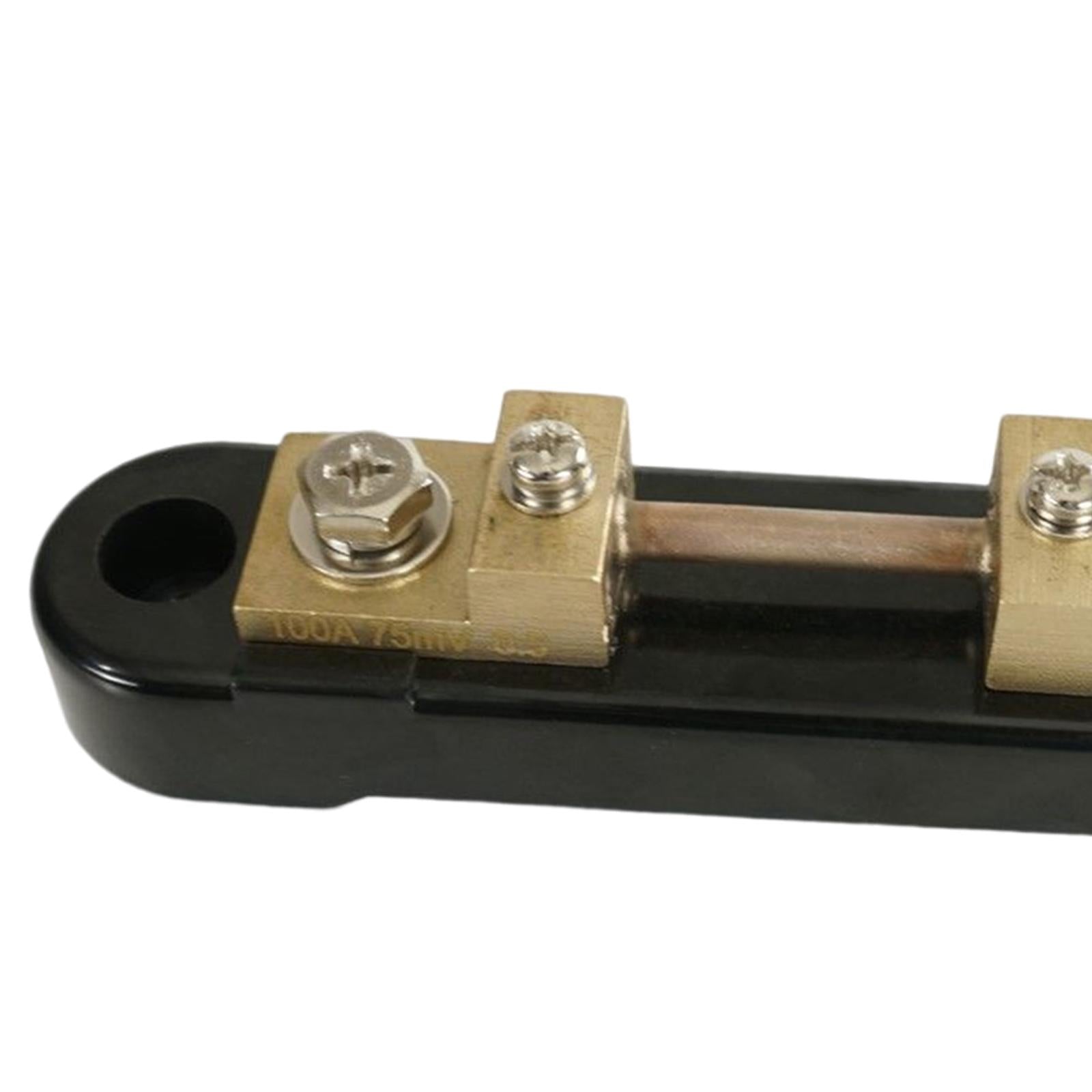

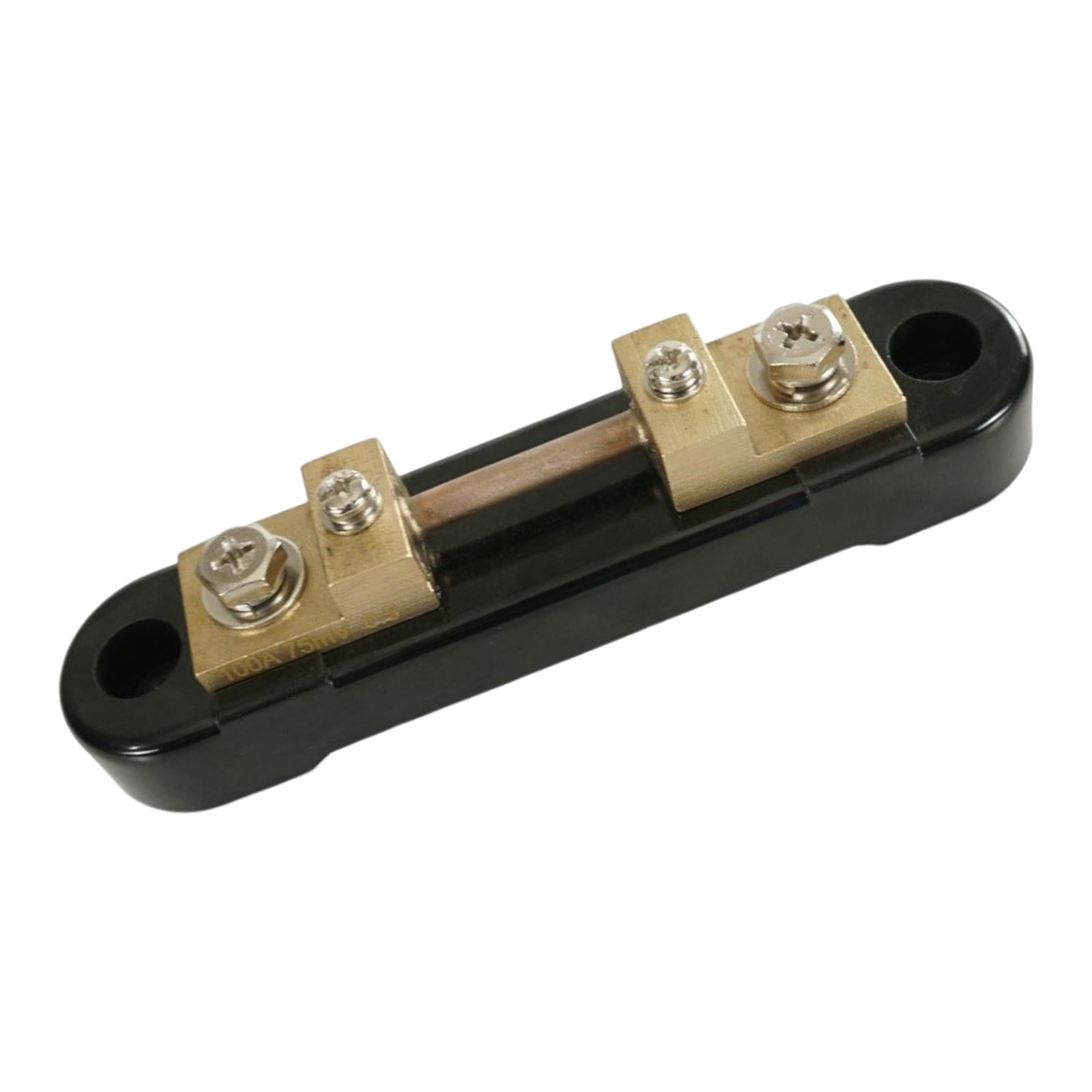

FL-2 100A/75mV Amp Meter Ammeter Shunt With Base for Current Measure Alloy

Description:

The shunt is mainly composed of manganese copper sheets and copper joints. There are two sets of terminal knobs on the joints at both ends of the shunt.
Outer is a potential end button for connection With the power line, and the inner side is a potential end button for measurement and measurement. Instrument connection.
Accuracy of the FL-2 series shunt is: 0.5, the specification range is: 1A-15000A, secondary voltage: 20mV, 30mV, 50mV, 60mV, 75mV, 100mV, 150mV, etc., the conventional is 75mV.
High Quality Metal Material: ammeter shunt is made of high quality metal material and is painted to avoid corrosion, tough and can be used for a long time
It is thicker than the shunts sold by other sellers. It meets the international standard 11mm.

Specification:

Material: Alloy
Product detailed size: with base shunt size: length 13.5cm / 5.31inch
Width : 3cm / 1.18inch
Height : 2.5cm / 0.98inch

Accuracy level: 2-4000A; 0.5 level; 5000~10000A; Level 1
Environmental conditions: -40~+60°C, relative temperature ≤95% (35°C)
Mechanical resistance: It can withstand acceleration and shock for seconds and shock frequency of 80~120 times per minute for 6 hours.
Overload performance: rated current 120%, 2 hours.
Voltage drop: 50mV 75mV 100mV
Heating under load: After the temperature rise changes to stabilize, the rated current is less than 80 °C below 50A; the rated current is not more than 120 °C above 50A.

Package Includes:

1 Piece Shunt
