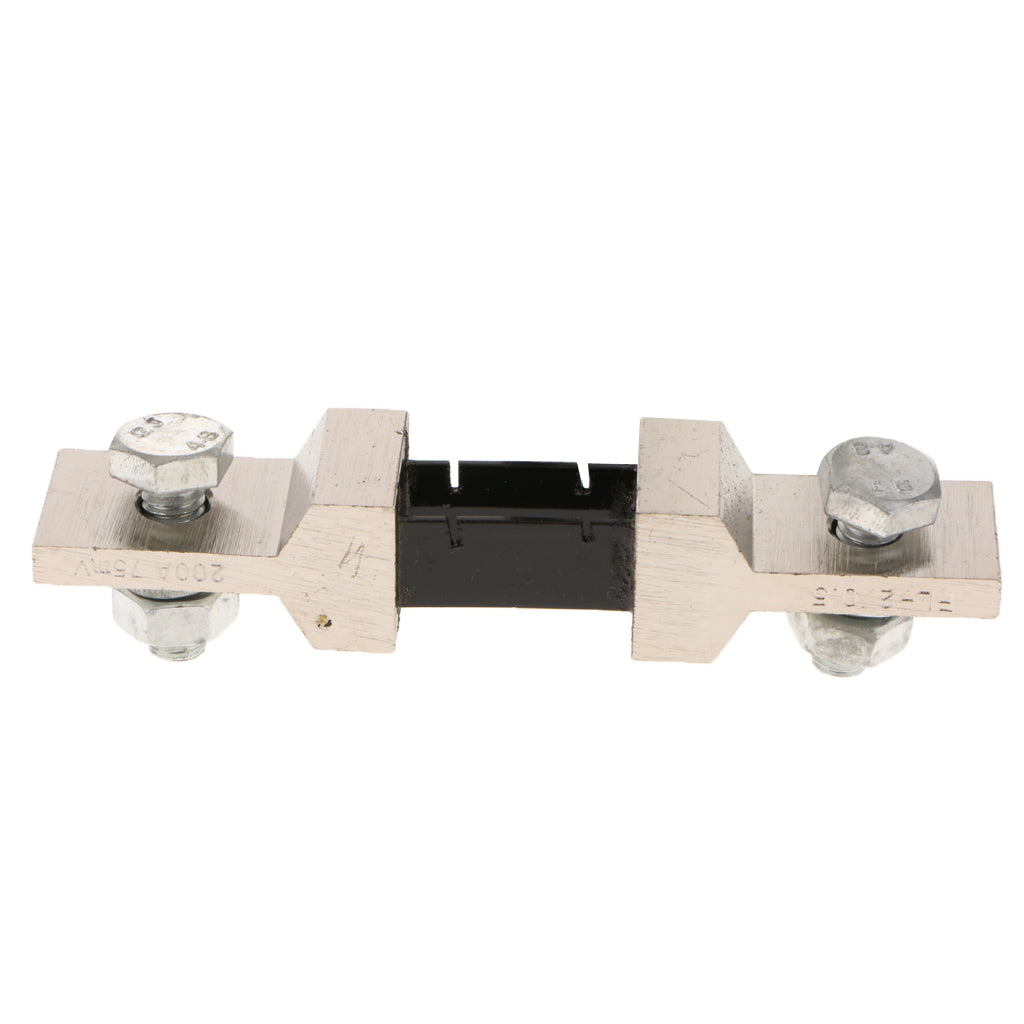

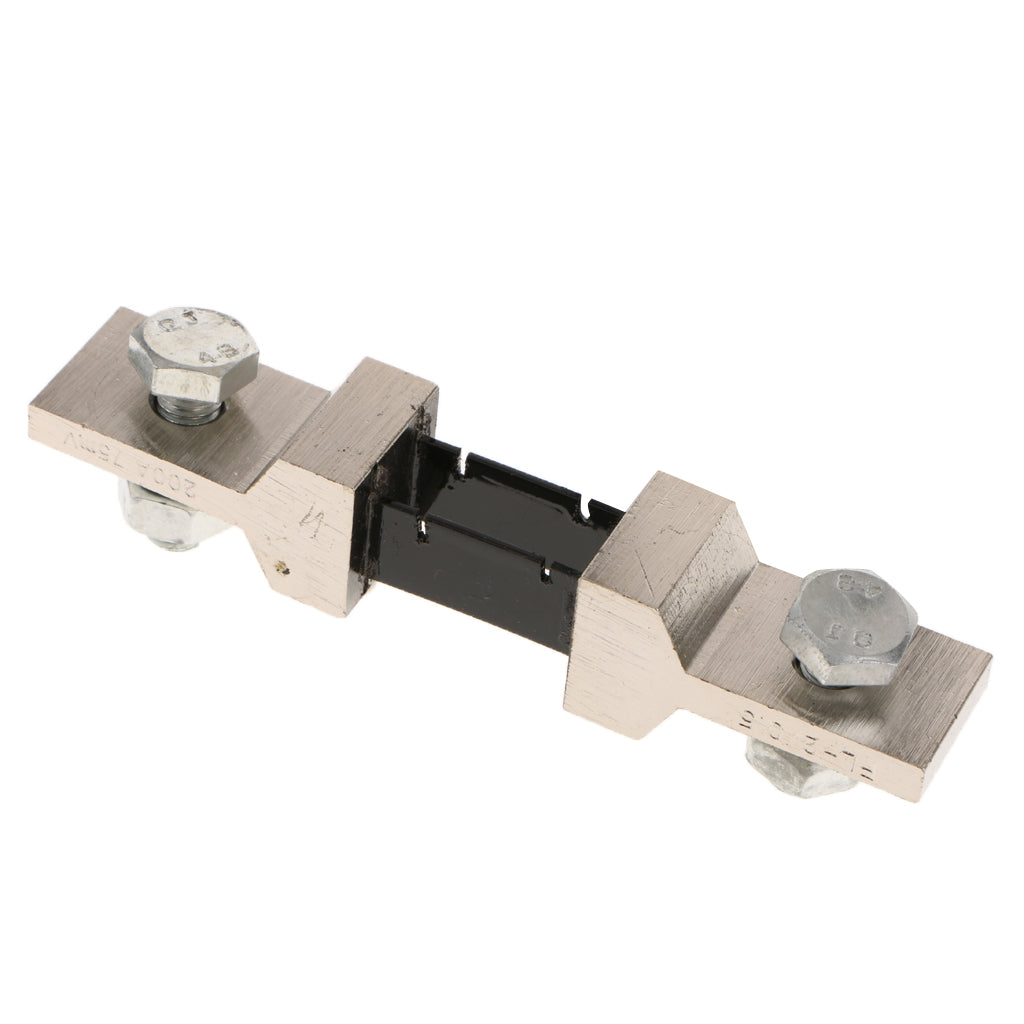

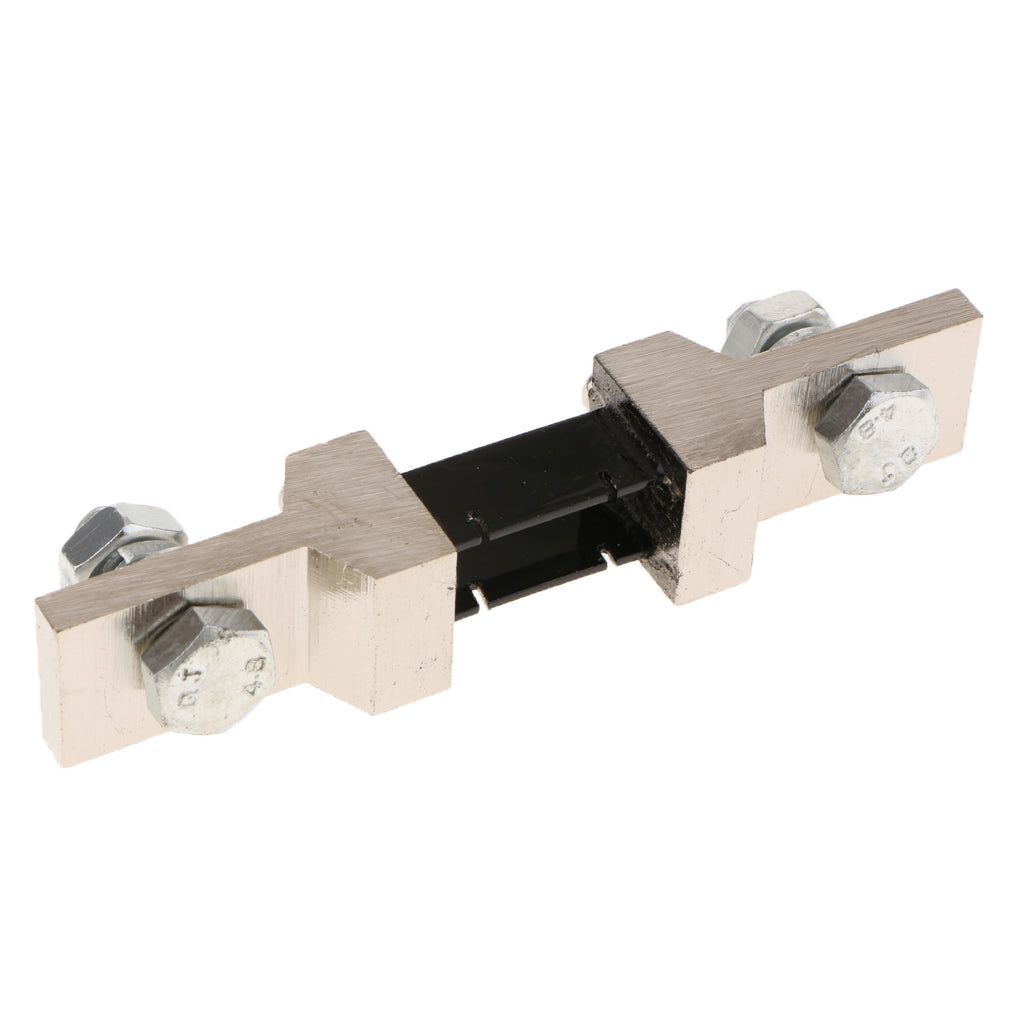

FL-2 200A/75mV Amp Meter Ammeter Shunt With Base for Current Measure

Description:

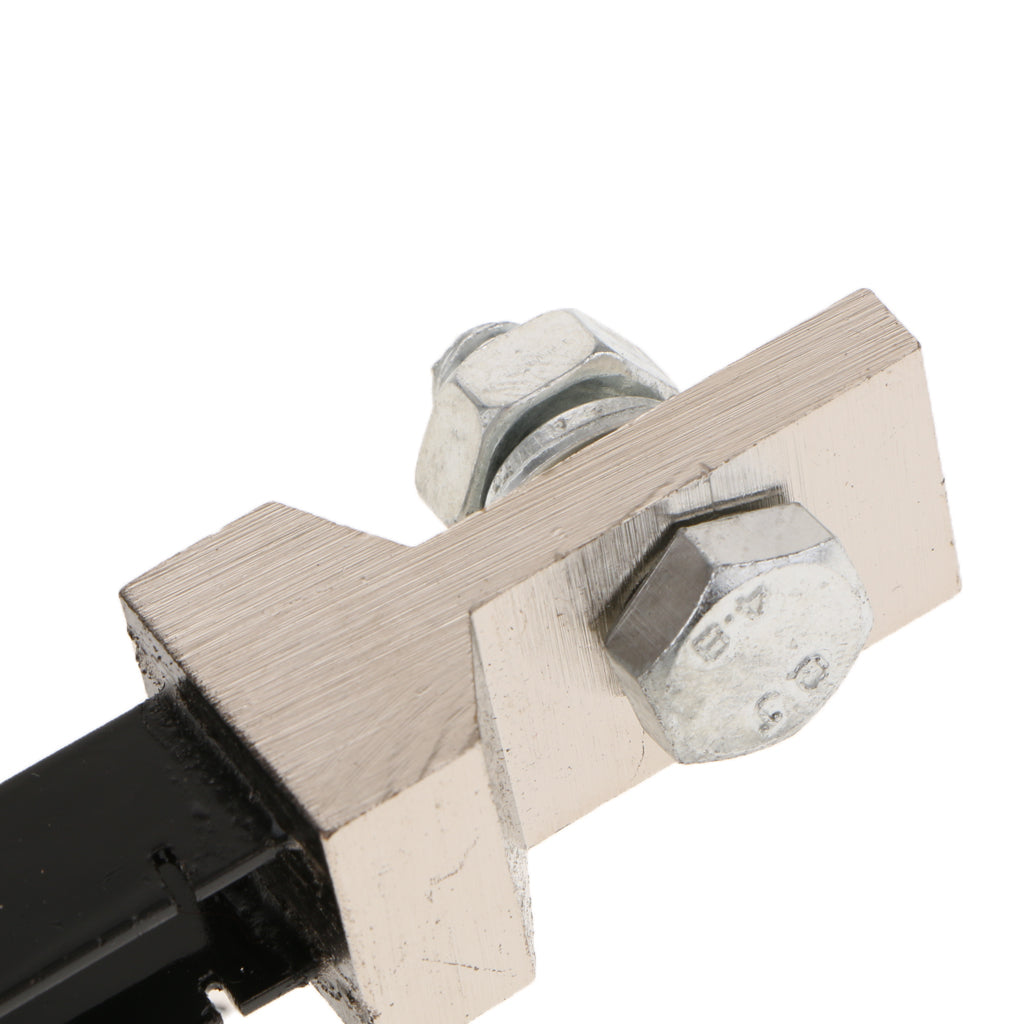

The shunt is mainly composed of manganese copper sheets and copper joints. There are two sets of terminal knobs on the joints at both ends of the shunt.
Outer one is a potential end button for connection With the power line, and the inner side is a potential end button for measurement and measurement. Instrument connection.
Accuracy of the FL-2 series shunt is: 0.5, the specification range is: 1A-15000A, secondary voltage: 20mV, 30mV, 50mV, 60mV, 75mV, 100mV, 150mV, etc., the conventional is 75mV.
High Quality Metal Material: ammeter shunt is made of high quality metal material and is painted to avoid corrosion, tough and can be used for a long time
It is thicker than the shunts sold by other sellers. It meets the international standard 11mm.

Specification:

Material: Alloy
Product detailed size: with base shunt size: length 11.5cm / 4.53inch
Width : 2.4cm / 0.94inch
Height : 3cm / 1.18inch

Accuracy level: 2-4000A; 0.5 level; 5000~10000A; Level 1
Environmental conditions: -40~+60°C, relative temperature ≤95% (35°C)
Mechanical resistance: It can withstand acceleration and shock for seconds and shock frequency of 80~120 times per minute for 6 hours.
Overload performance: rated current 120%, 2 hours.
Voltage drop: 50mV 75mV 100mV
Heating under load: After the temperature rise changes to stabilize, the rated current is less than 80 °C below 50A; the rated current is not more than 120 °C above 50A.

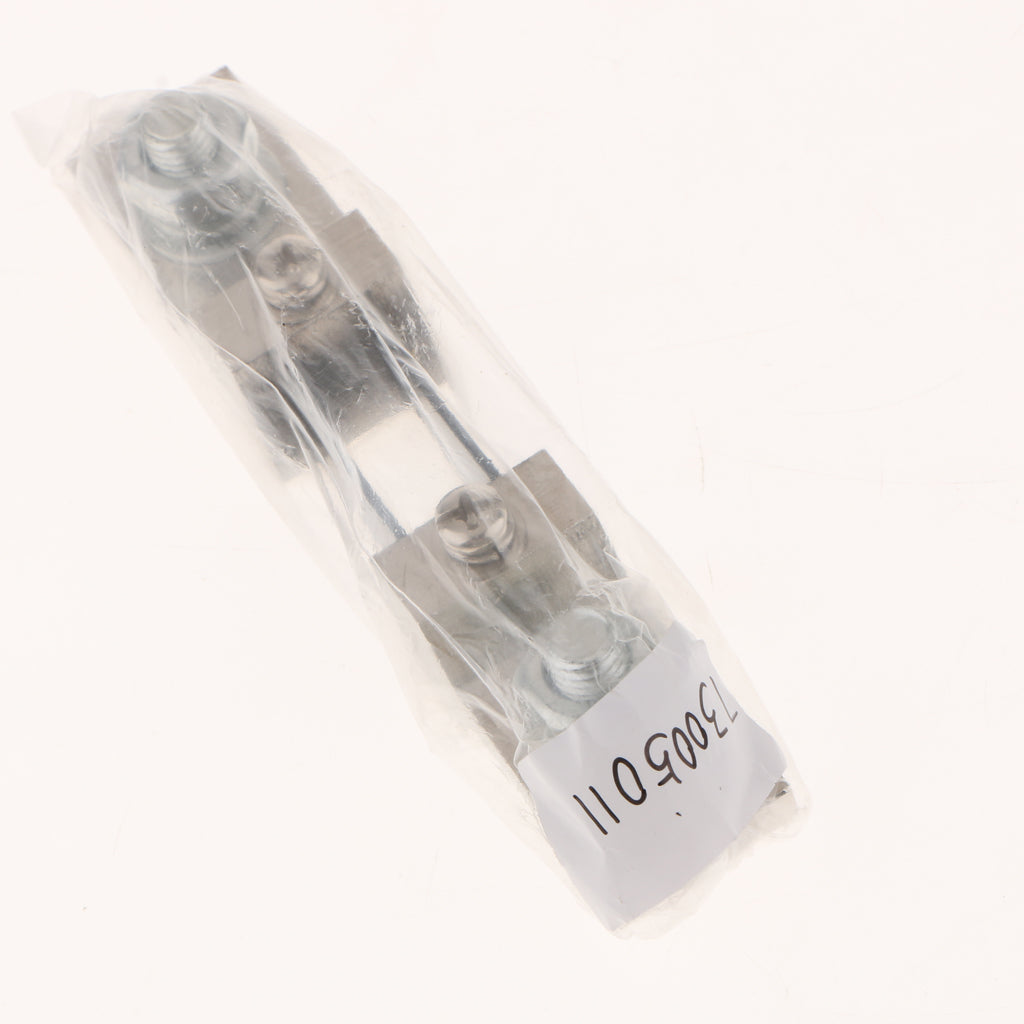

Package Includes:

1 Piece Shunt
