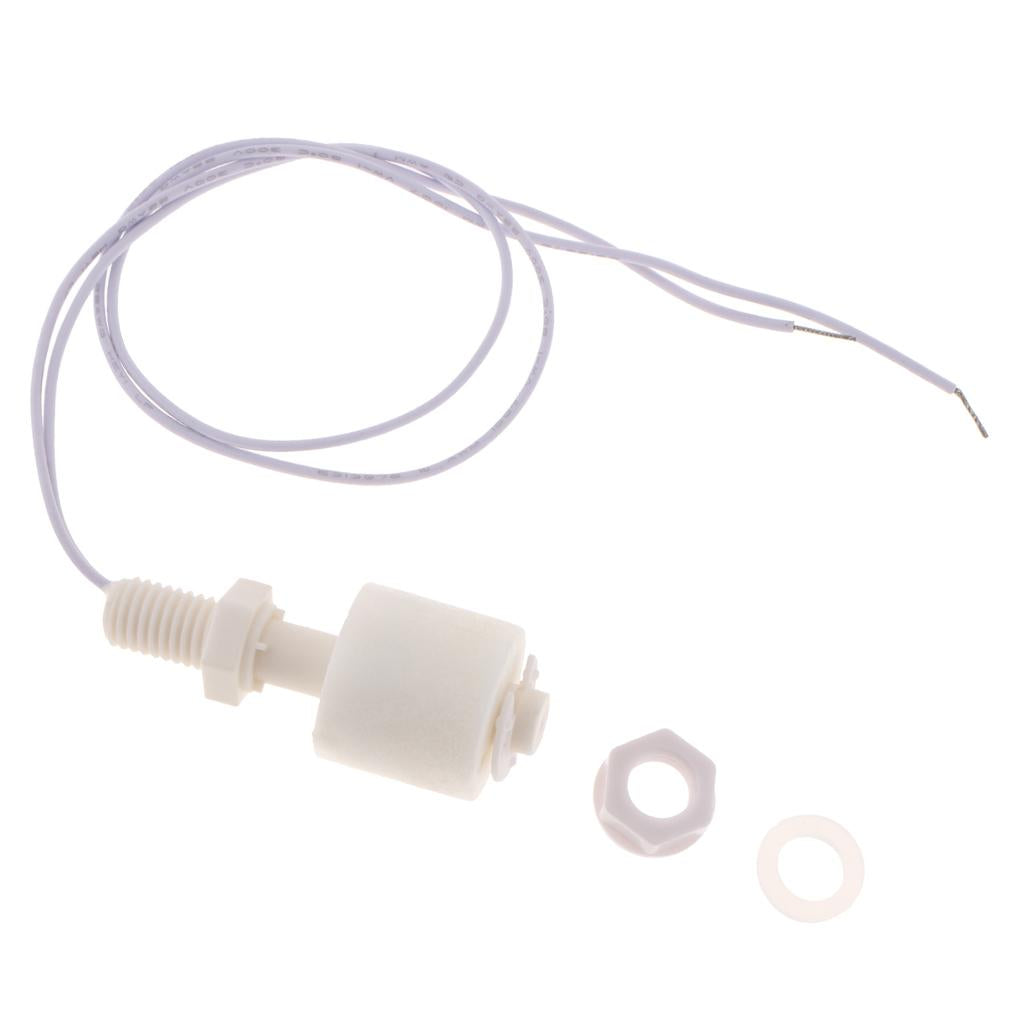

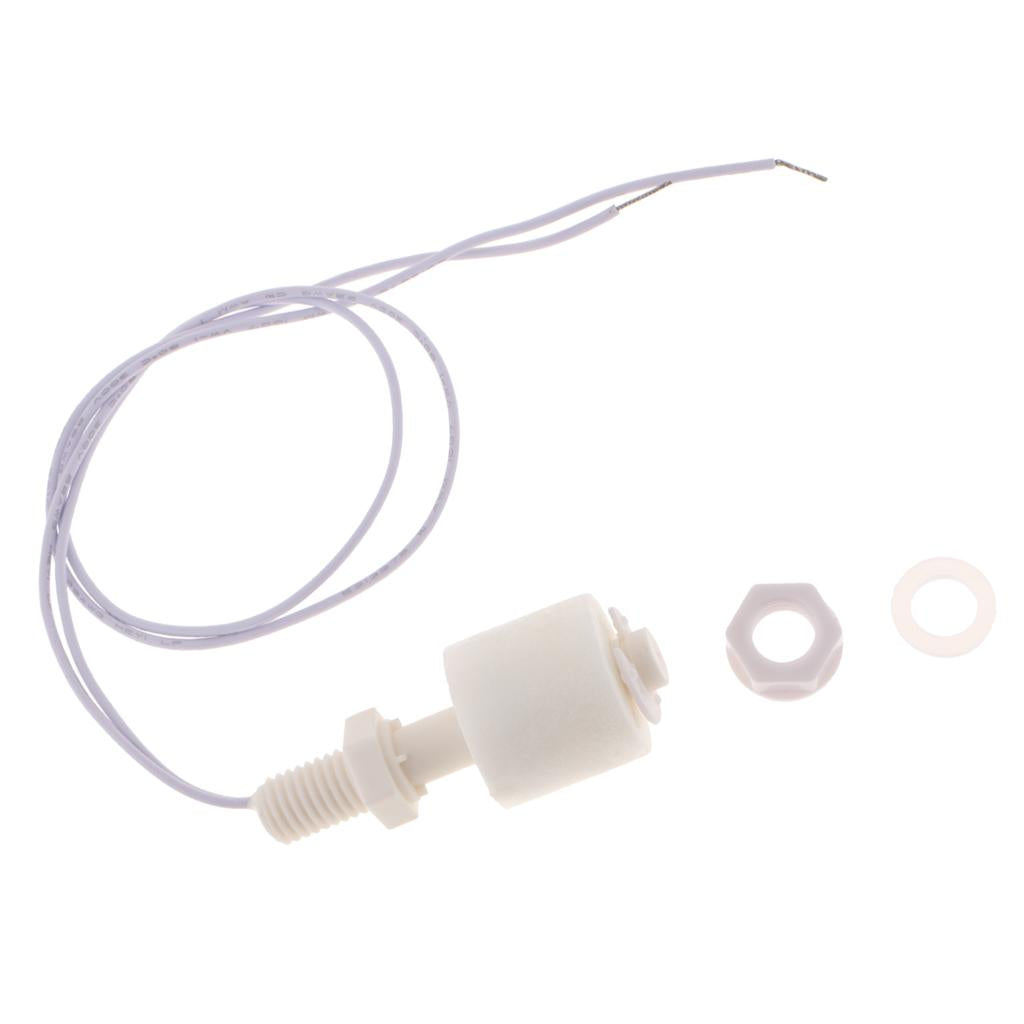

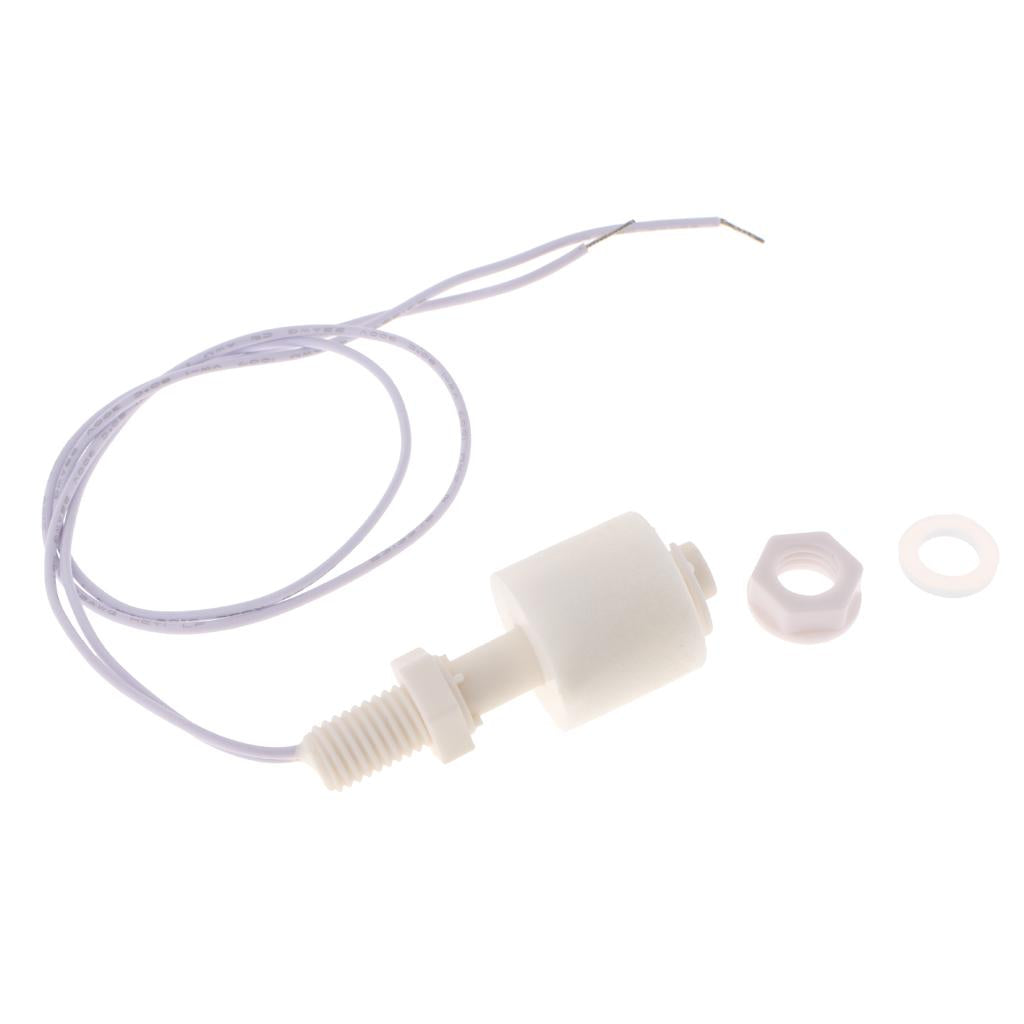

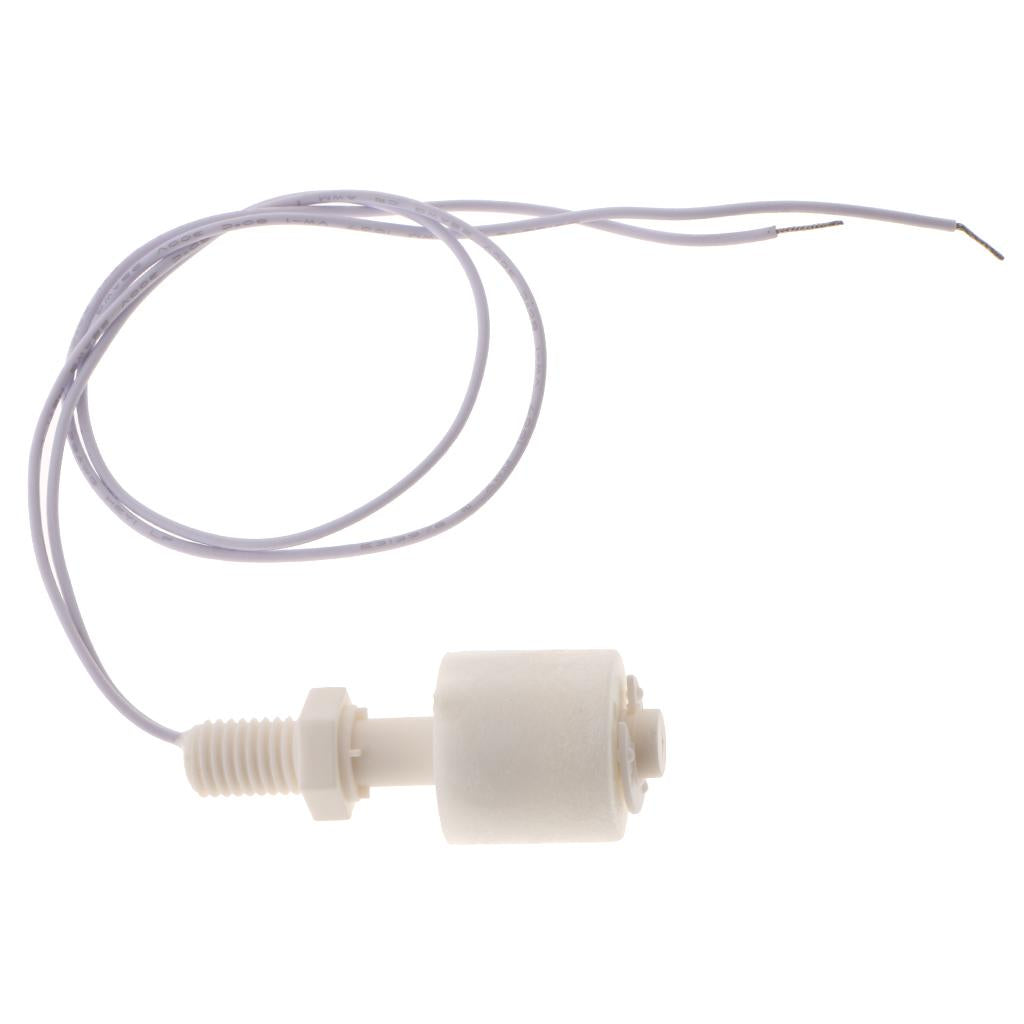

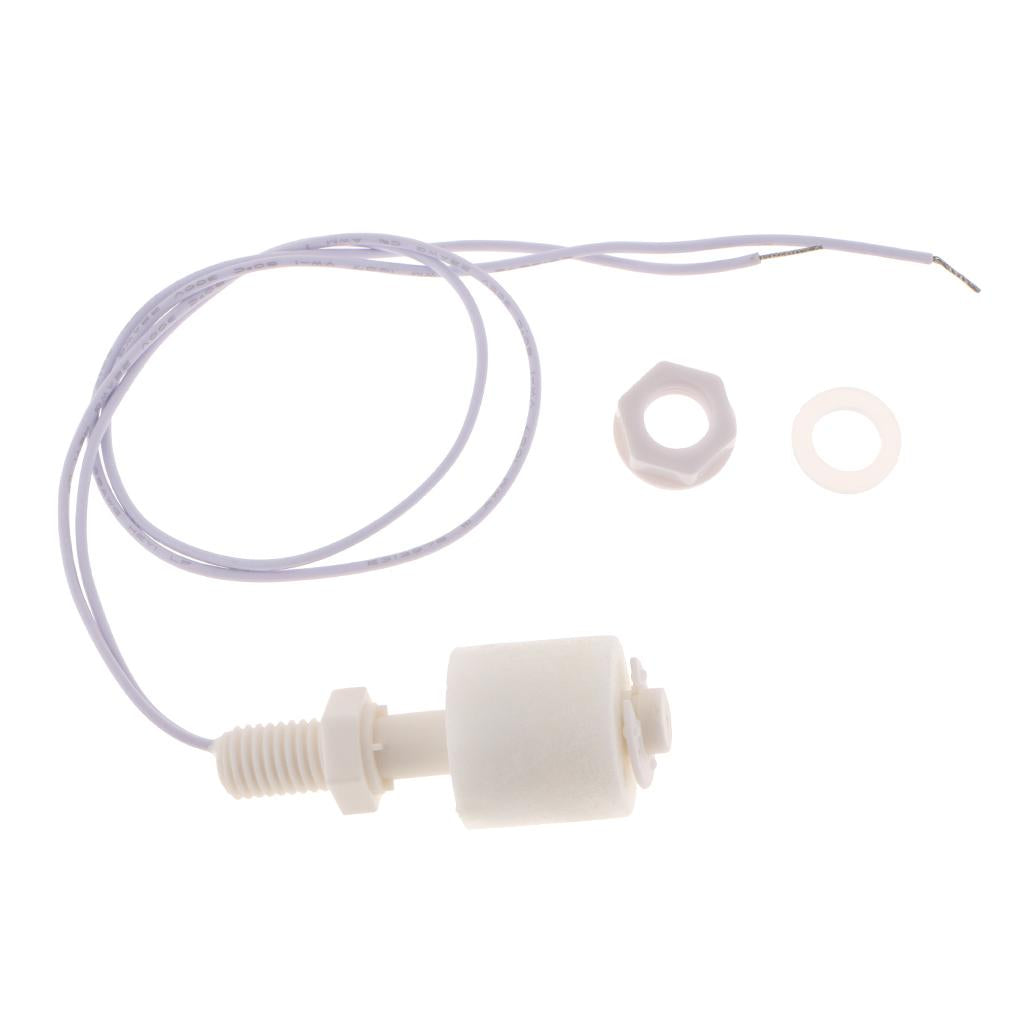

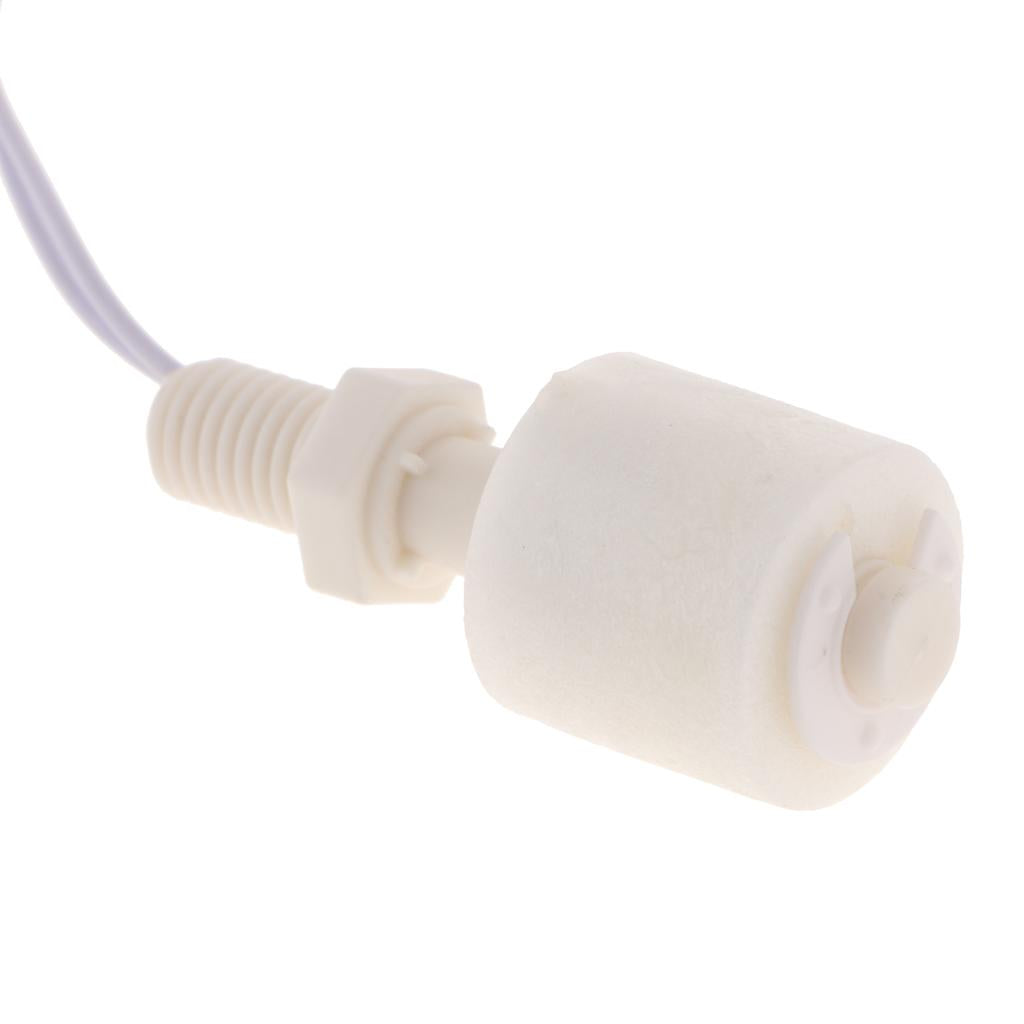

Float Switch Tank Pool Water Level Liquid Small Sensor Plastic DC 110V 0.5A

Description:

Model: SEN-PPI40; Working voltage: 110 (V); Working current: 0.5 (A)
Feature: stable and reliable performance, easy to install, has a non-toxic, corrosion-resistant material.
Widely used in water supply, drainage and corrosive liquid level automatic control with a variety of pump supporting.
Installation method: Upright installation, the float ball floats up and down between the buckle and the fixing screw to output the corresponding switch signal.
Electrical life: 300,000 times, mechanical life: 10 million times

Specification:

Material: Plastic
Size: 60x25x20 mm
Line length: about .360mm
Front diameter: 7MM
Model: SEN-PPI40
Working voltage: 110 (V)
Working current: 0.5 (A)
Maximum temperature resistance: 80 (°C)
Maximum withstand voltage: 0.8 (Mpa)
Wiring method: 2-wire output

Package Includes:

1 Piece Float Level Switch

Note:

Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
