Fuel Diesel Oil Delivery Fuel Transfer Meter Tool J Type Anti-drip

Description:

--The metering is a combination of a horizontal screw-wing flow meter and a fueling .
--Single fill amount display, total fill memory.
--LCD display, 1 section 3V battery powered.
--1/2 inch swivel joint, Anti-drip nozzle,accurate measurement, simple operation.
--Real-time error coefficient calibration, easy to operate.
--Provide Liters, Gallons, Pints, Quarts, Kg and other low-voltage warnings.
--Used to measure the volumetric flow through a pipe of liquid (gasoline, diesel, oil, hydraulic oil, etc.).
--It is an ideal fueling equipment for factories, gas stations and other institutions

Specification:

Oil delivery speed: 1-35 L/min
Maximum working pressure: 1500 psi (100 bar)
Working temperature: -10 °C - +50 °C
Exact value: ±0.3%
Import and export connector: 1/2inch BSP
Applicable oil viscosity: 8-5000 mPas
1/2inch swivel joint Anti-drip nozzle

Package Includes:

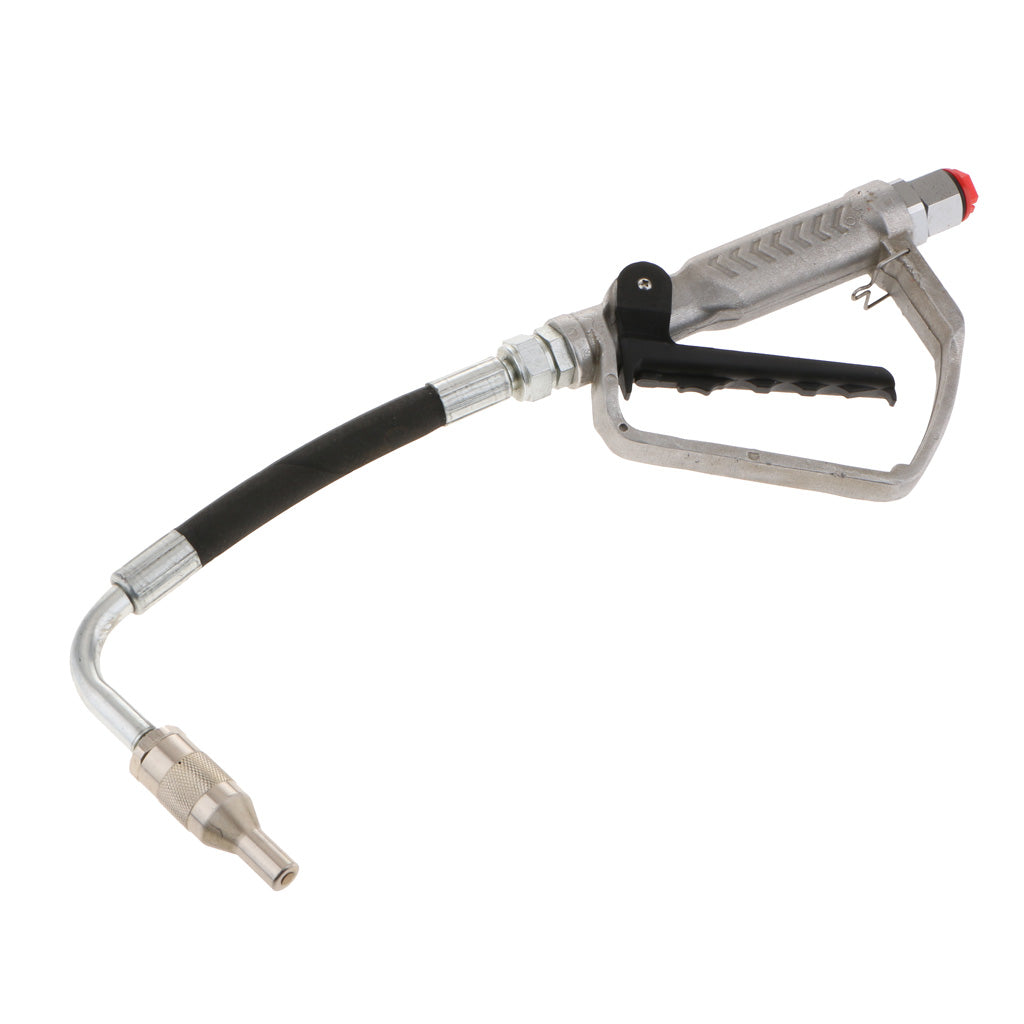

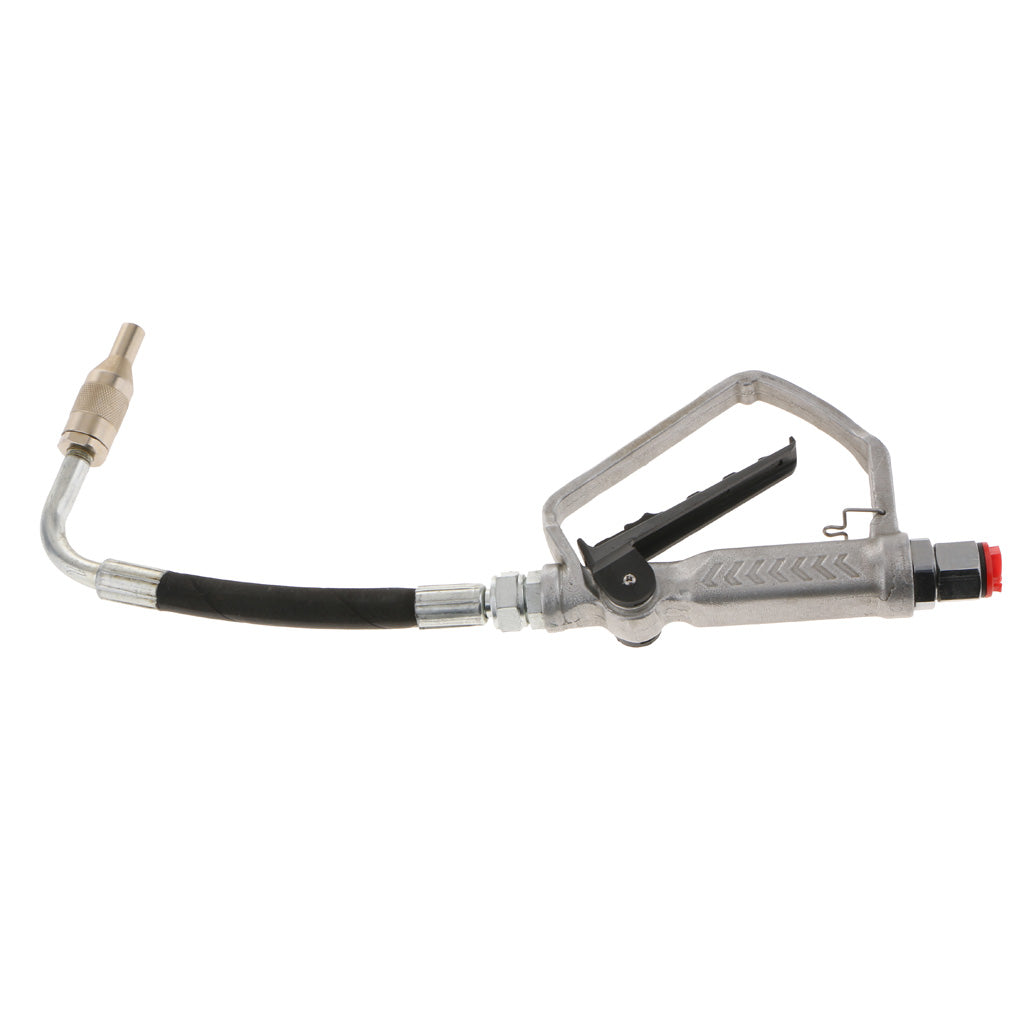

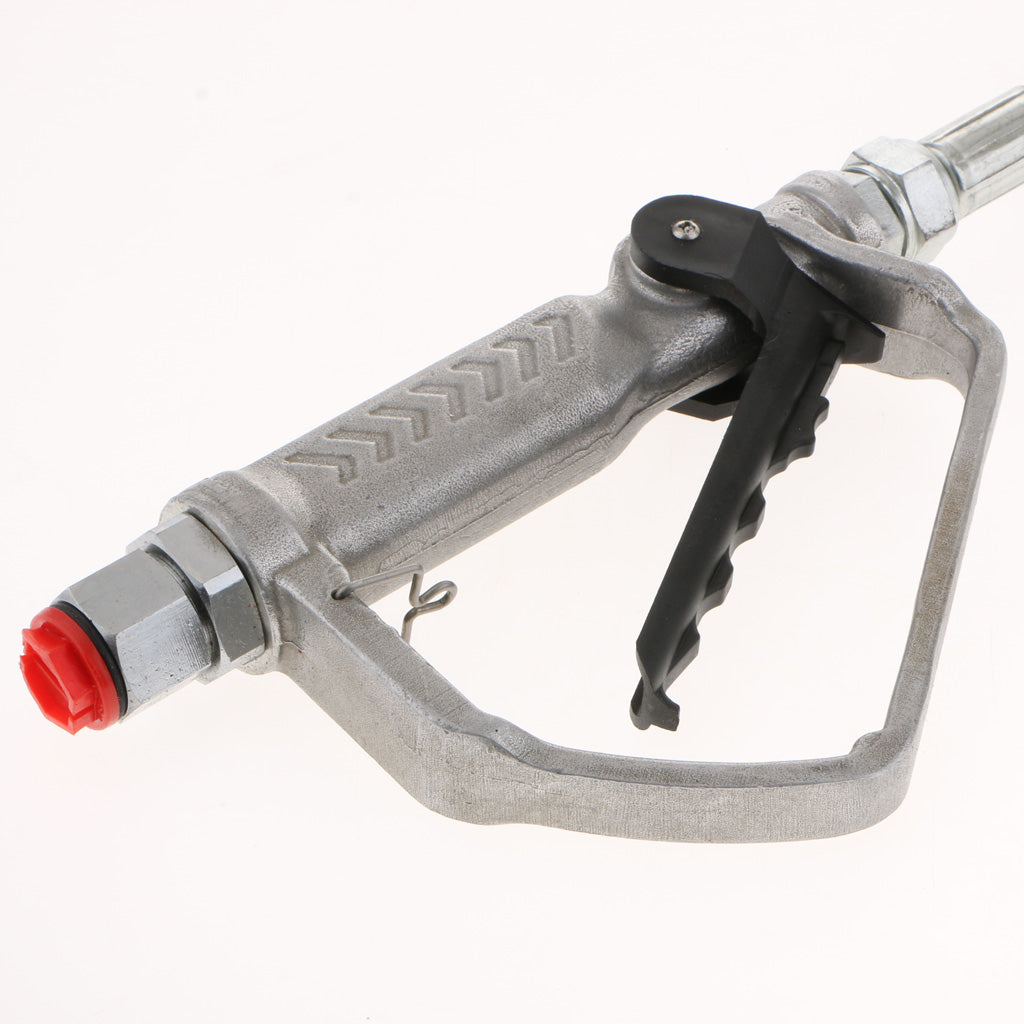

1 Piece Metering Fuel Dispensing Nozzle
