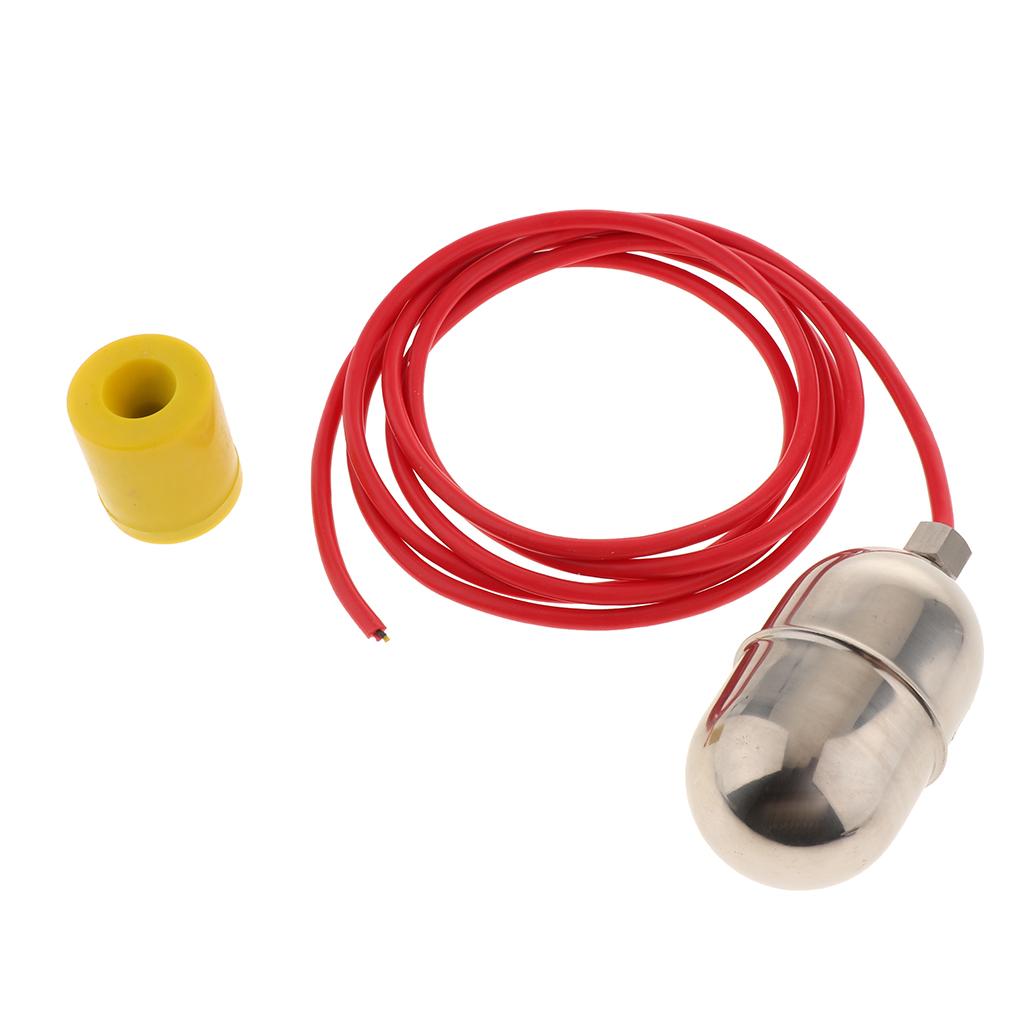

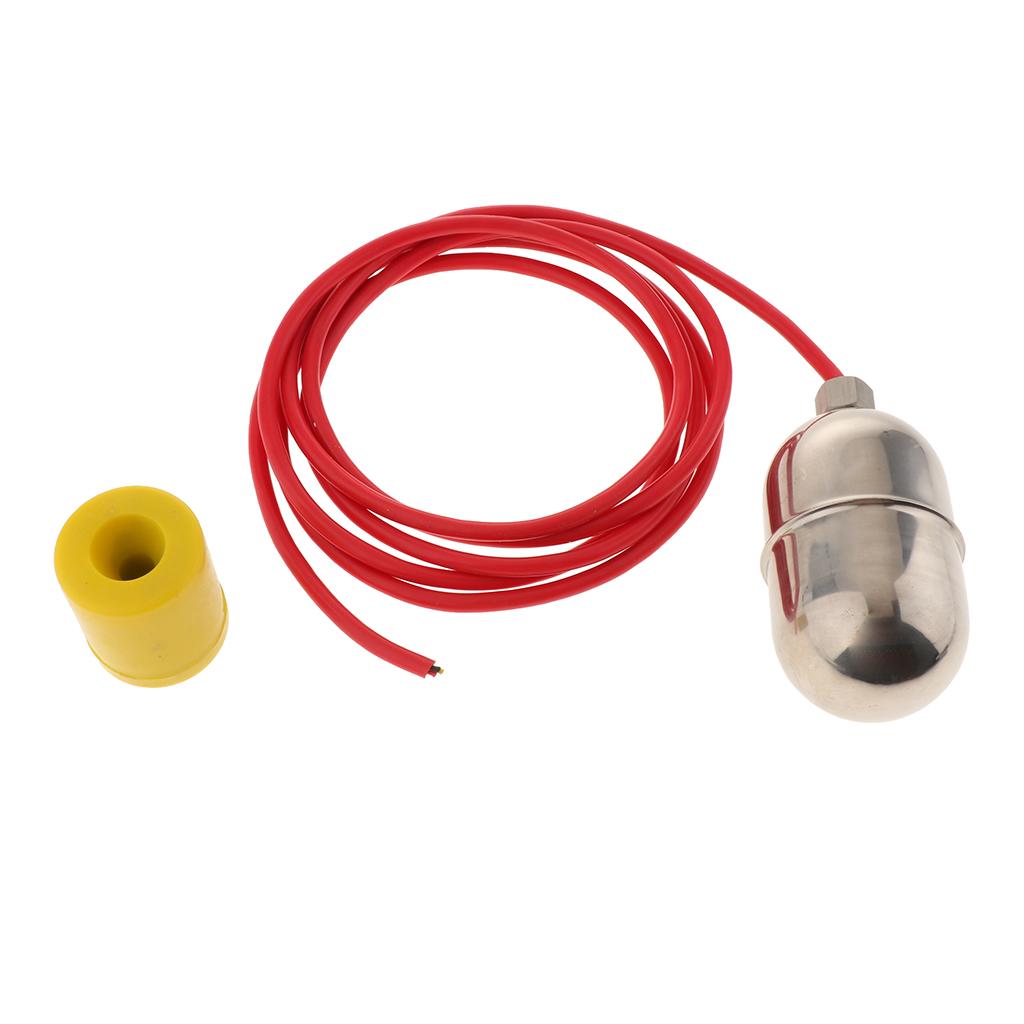

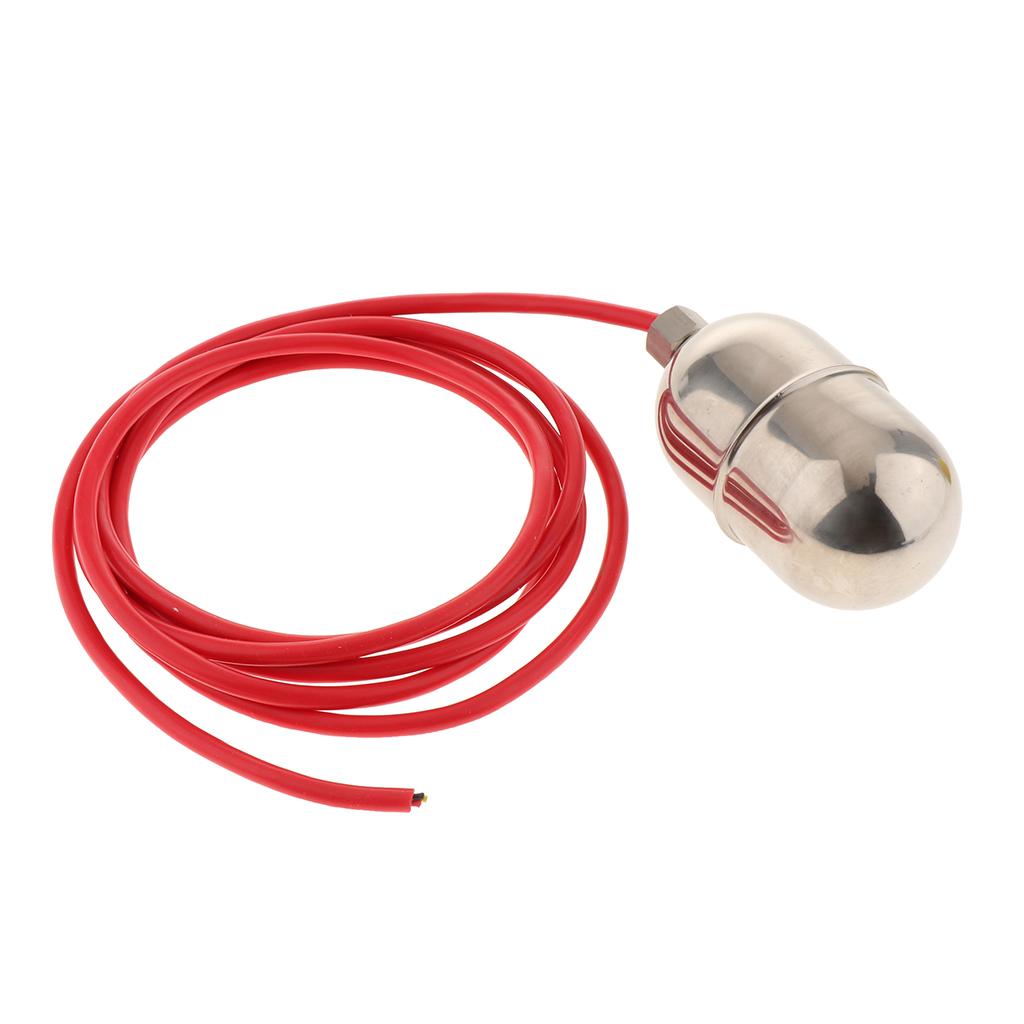

FYKG Tank Pool Level Liquid Sensor Water Float Switch Stainless Steel 3M

Description:

FYKG high temperature type is stainless steel sphere, and the cable is made of high flexible silicone rubber cable, which is durable. Reed switch contact, ordinary high quality CCC rubber cable
For use in corrosive media (oil, industrial sewage, liquids below medium concentration), PVC cables can achieve the best anti-corrosion effect, ensuring long-term safe and stable use.
When the cable float is raised by a certain angle with the weight as the origin (usually the angle of the reed or micro switch is 28°±2°, the angle of the switch is 10°±2°), the switch will be ON or OFF. Signal output.
The structure is firm and tight, the performance is stable and reliable, the installation is convenient, the price is low, and the control effect of long-distance multi-point control, submerged water pump, fluctuating liquid or liquid with impurities is good.

Specification:

Material: Stainless steel
Line length 1: 3 meters Ball diameter: 65mm/2.56 inch Ball height: 110mm/4.33 inch
Line length 2: 4 meters Ball diameter: 65mm/2.56 inch Ball height: 110mm/4.33 inch
Line length 3: 5 meters Ball diameter: 65mm/2.56 inch Ball height: 110mm/4.33 inch
Rated power: 1KW;
Working temperature: -10 ° C -170 ° C;
Control accuracy: ±0.05m
Working pressure: 1 atmosphere;
Applicable medium: water, sewage, oil and acid-base liquid below medium concentration.
Cable length: standard delivery length is 1 m 2 m 3 m 4 m 5 m 6 m. . . Any special length can be ordered.

Package Includes:

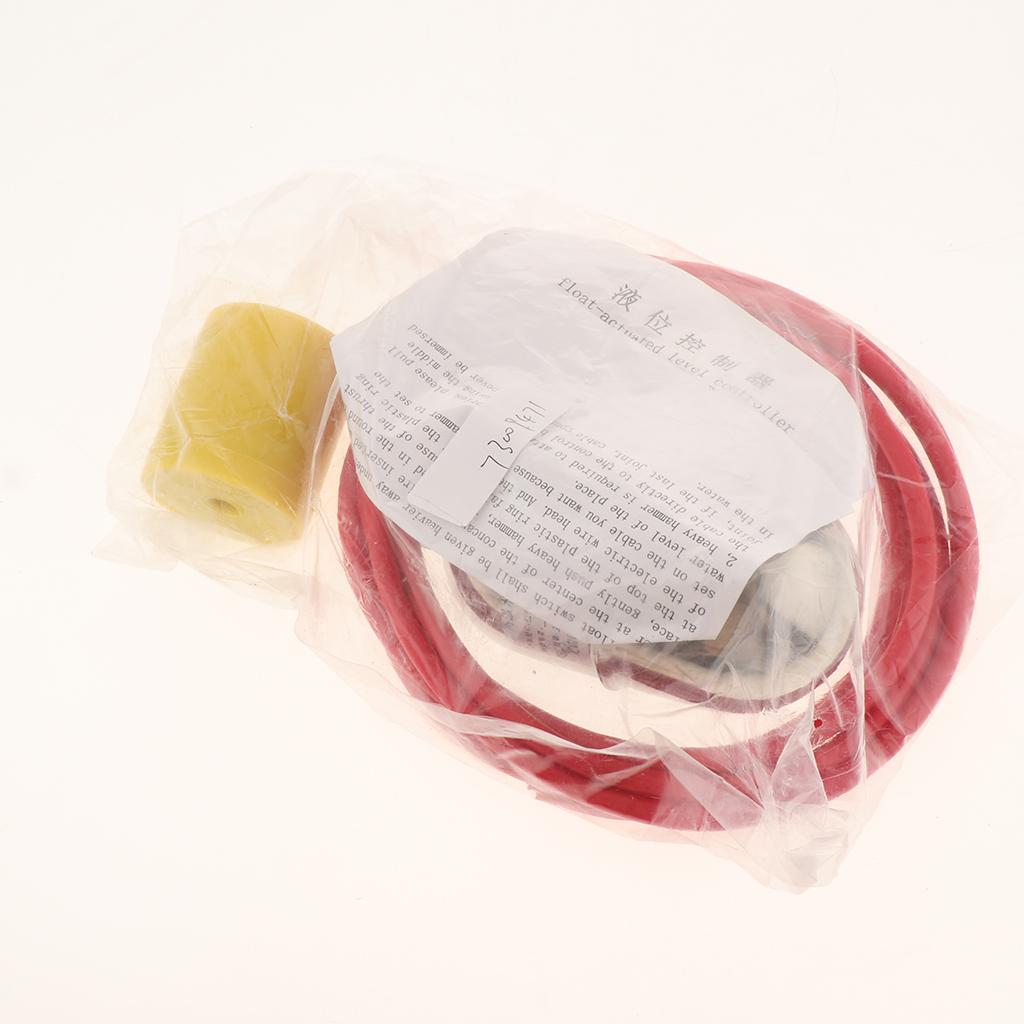

1 Piece Water Level Sensor Switch Float switch
