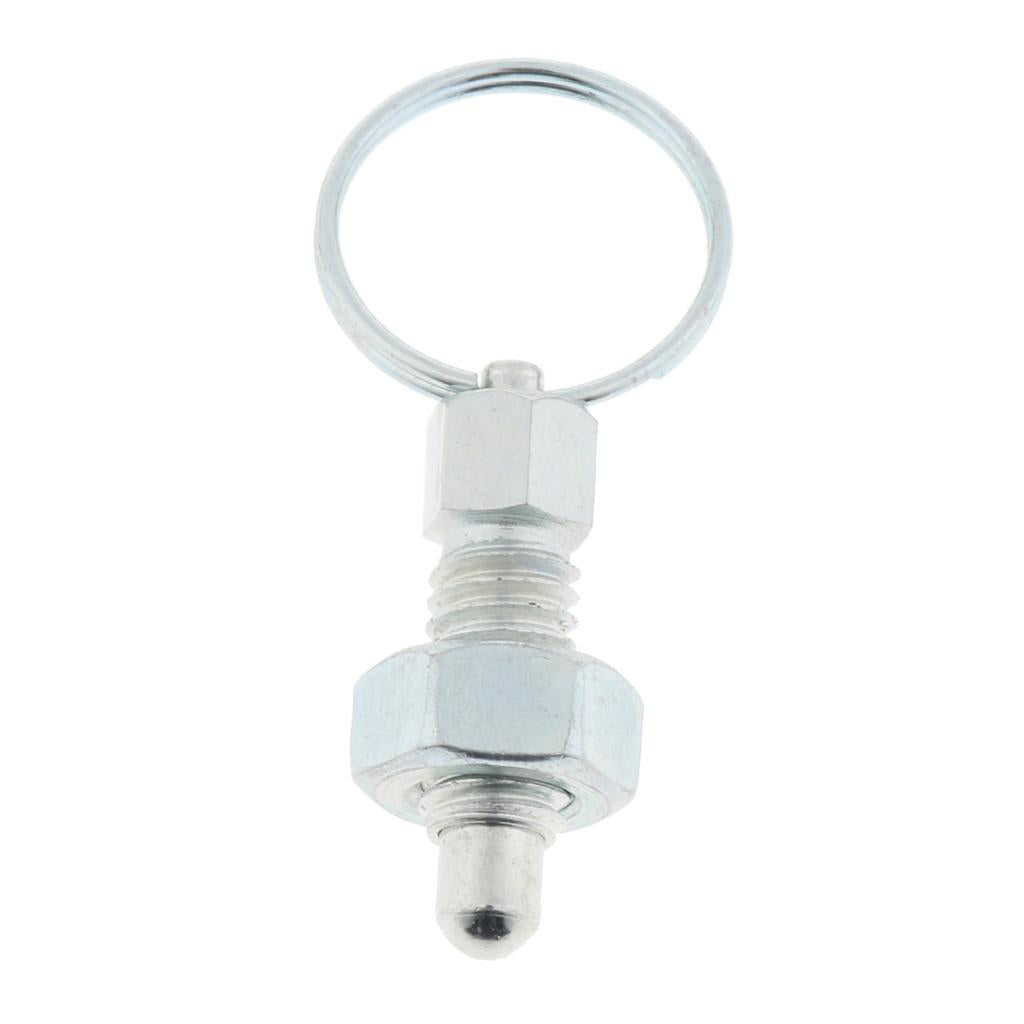

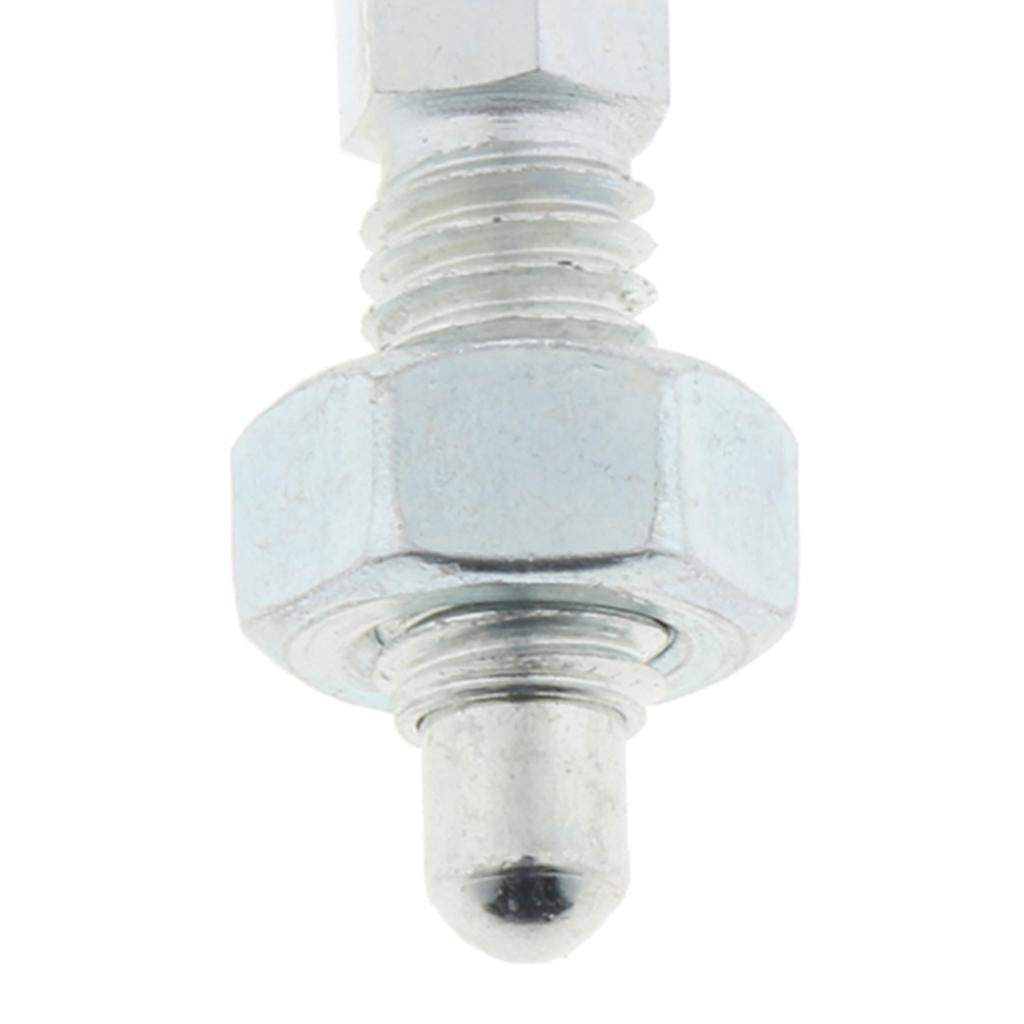

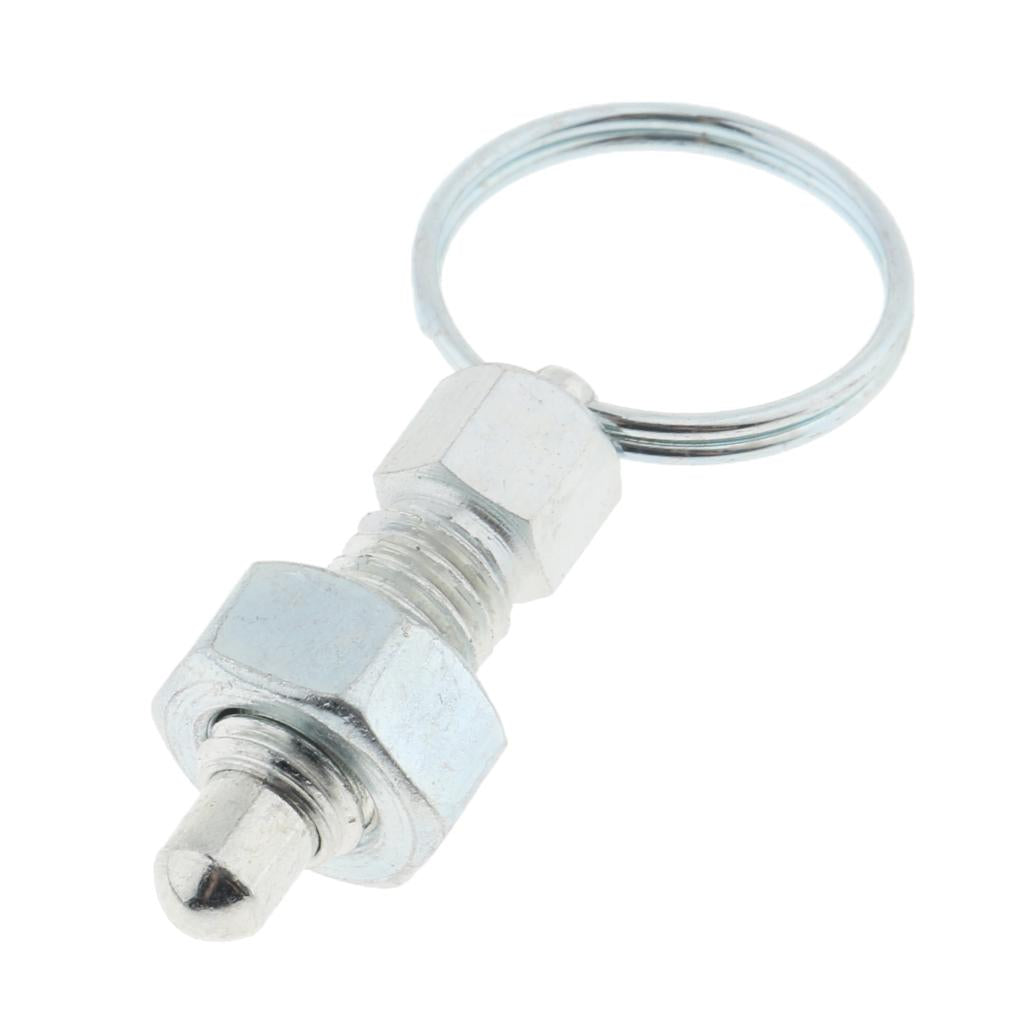

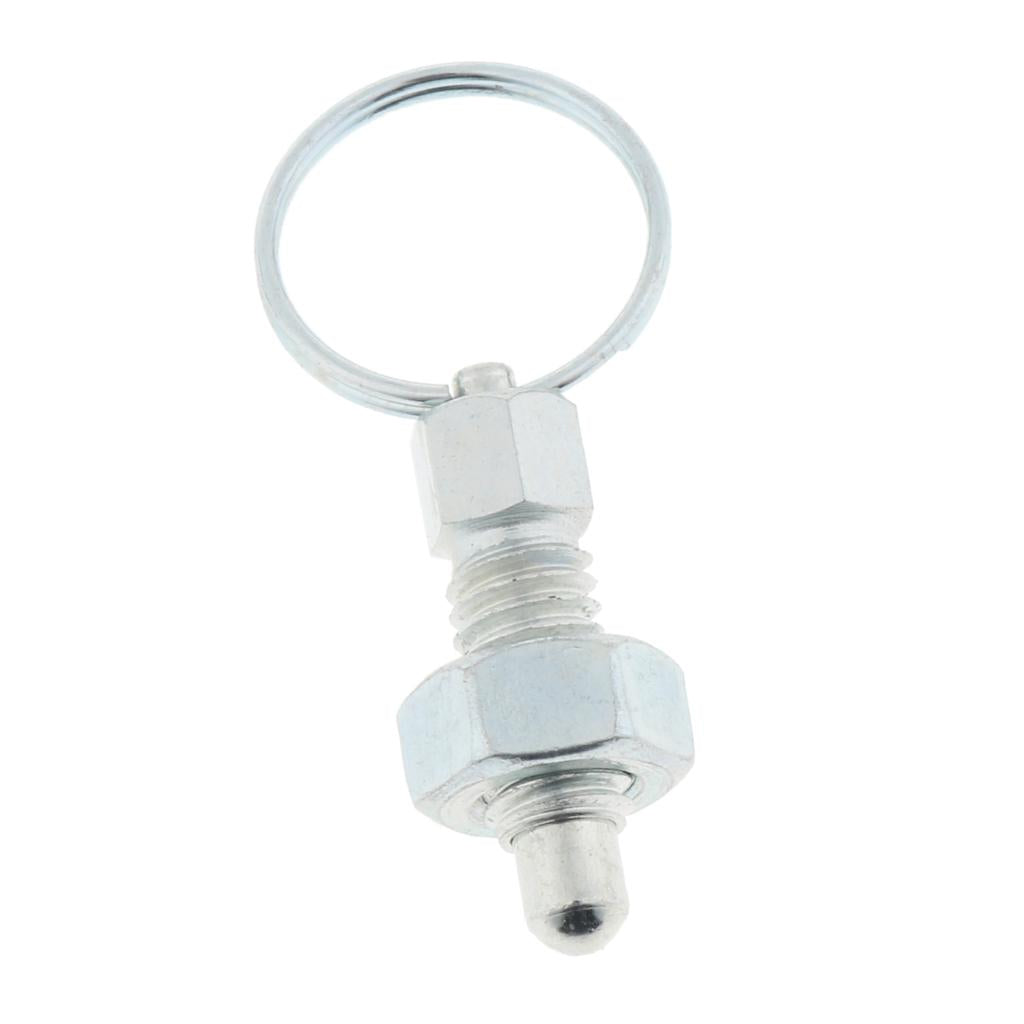

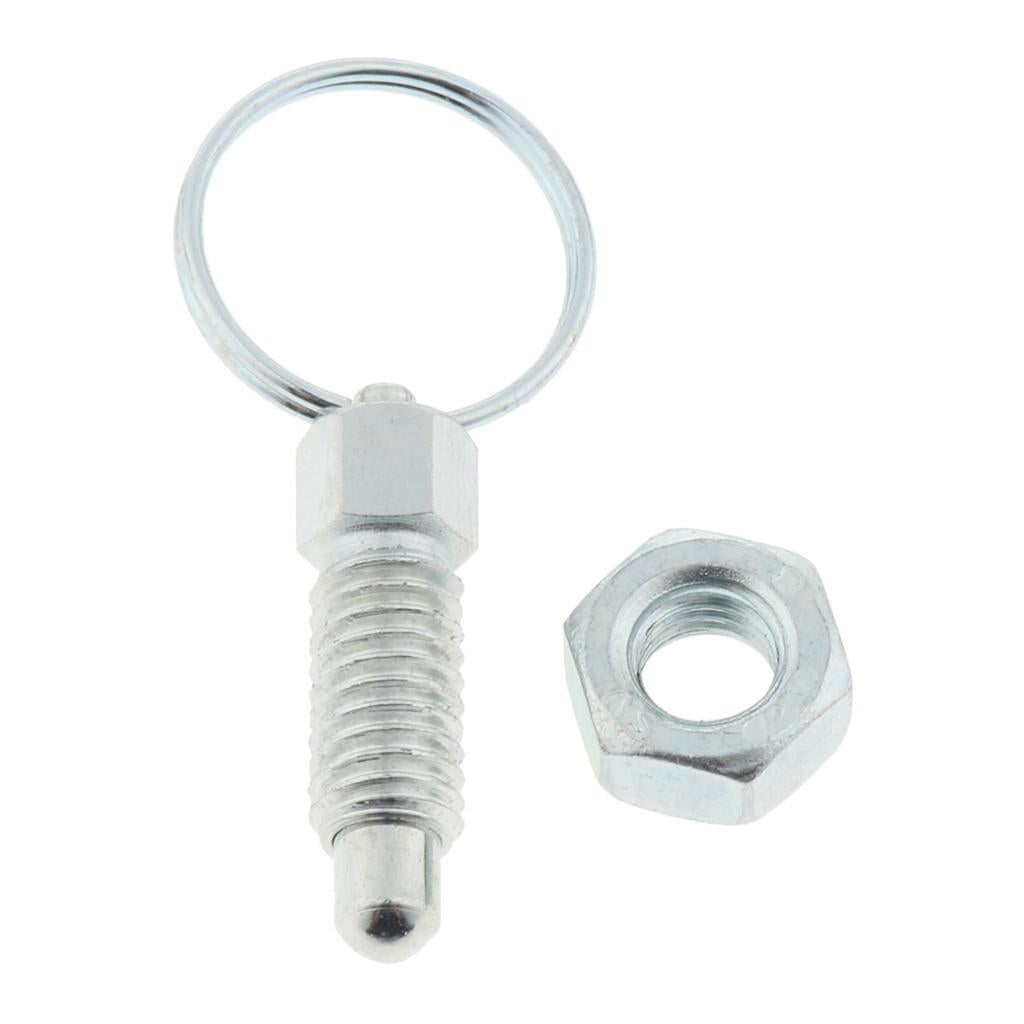

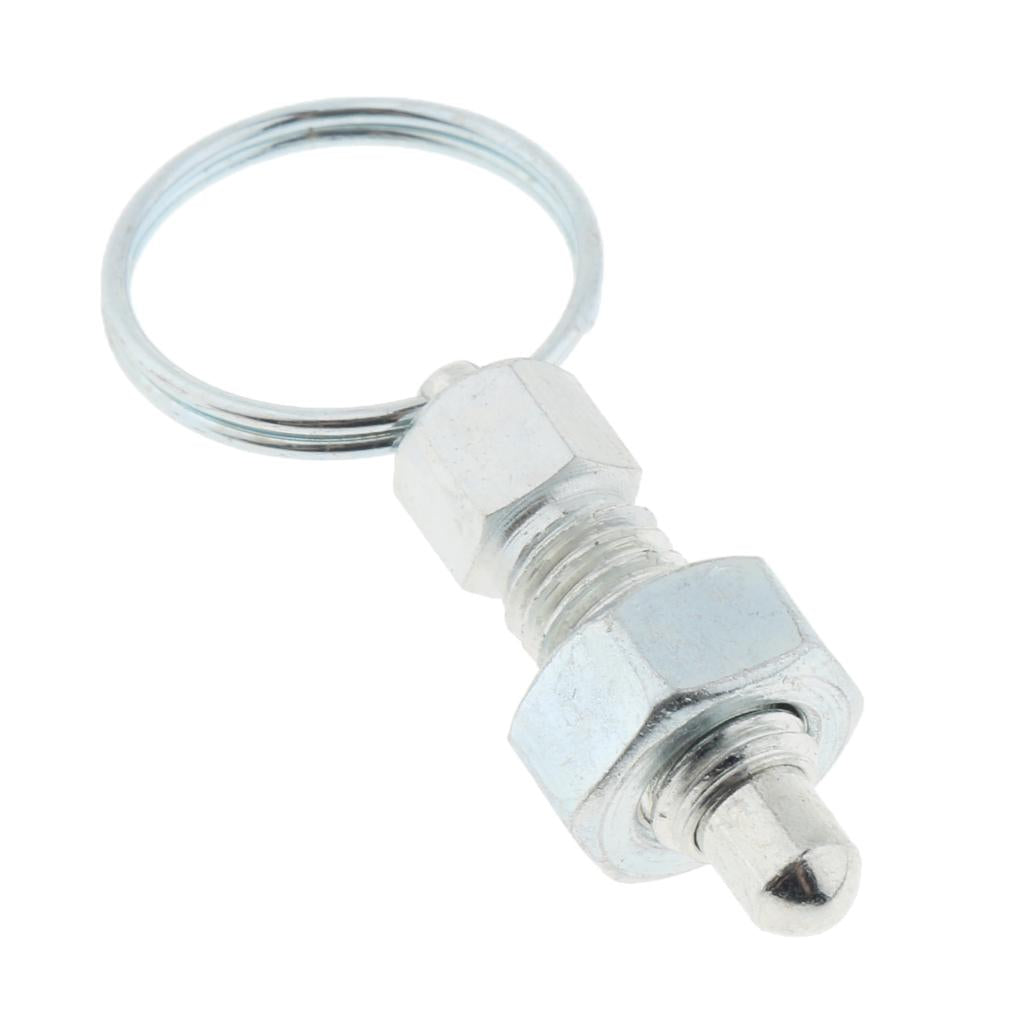

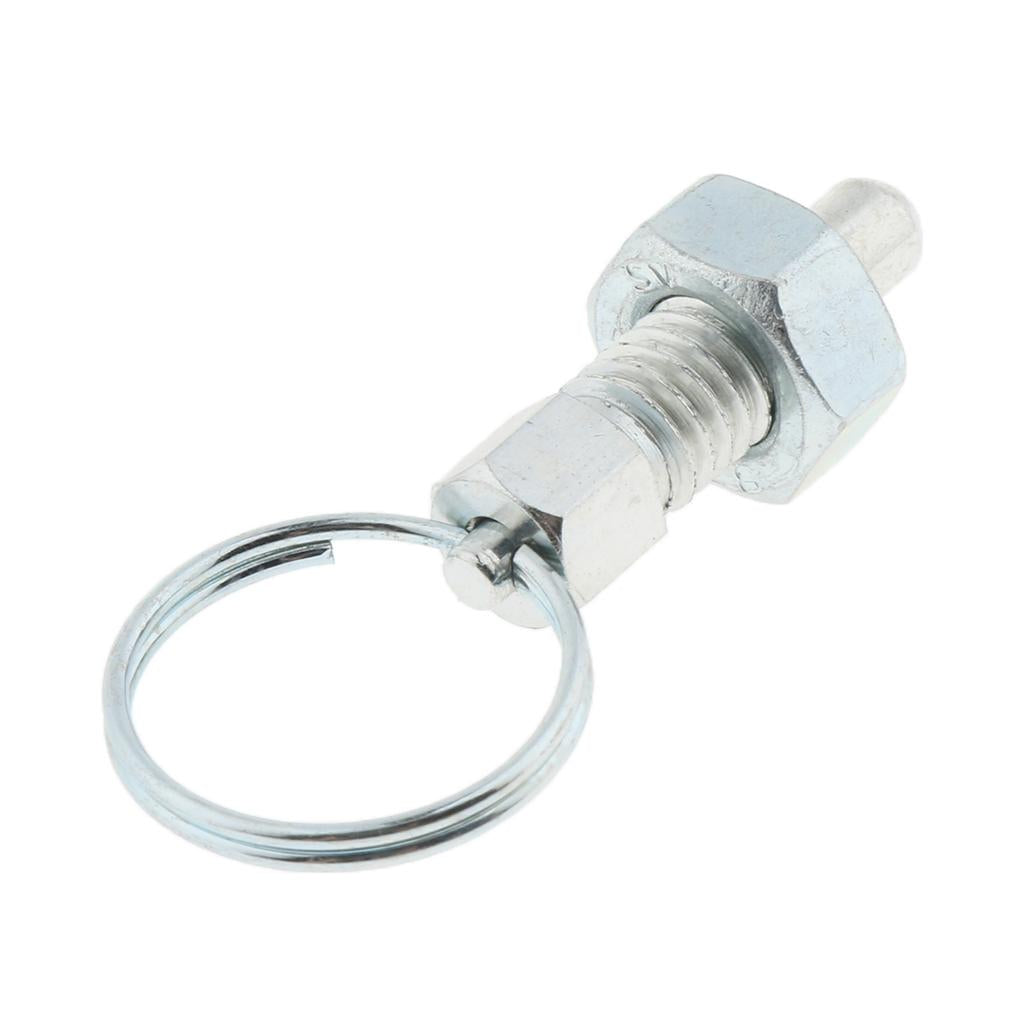

Galvanised Carbon Steel Non Lock-Out Indexing Plunger M10 8mm Round

Description:

Case Carbon steel, zinc plated finish plunger pin.

Carbon steel plunger body with pin and pull ring, metric coarse thread.

Suit for applications with limited space.

Locking patch available upon request.

Plunger does not lock in fully retracted position.

Specification:

Material: Galvanised Carbon Steel

Color: Silver

Size Chart:

M6 4mm Flat--37x16mm/1.46x0.63inch; Pull Ring Diameter: 16mm/0.63inch; Thread: M6; Plunger Diameter: 4mm/0.16inch;

M10 10mm Flat--68x25mm/2.68x0.98inch; Pull Ring Diameter: 25mm/0.98inch; Thread: M10; Plunger Diameter: 10mm/0.39inch;

M10 8mm Round--68x25mm/2.68x0.98inch; Pull Ring Diameter: 25mm/0.98inch; Thread: M10; Plunger Diameter: 8mm/0.31inch;

M10 10mm Round--68x25mm/2.68x0.98inch; Pull Ring Diameter: 25mm/0.98inch; Thread: M10; Plunger Diameter: 10mm/0.39inch;

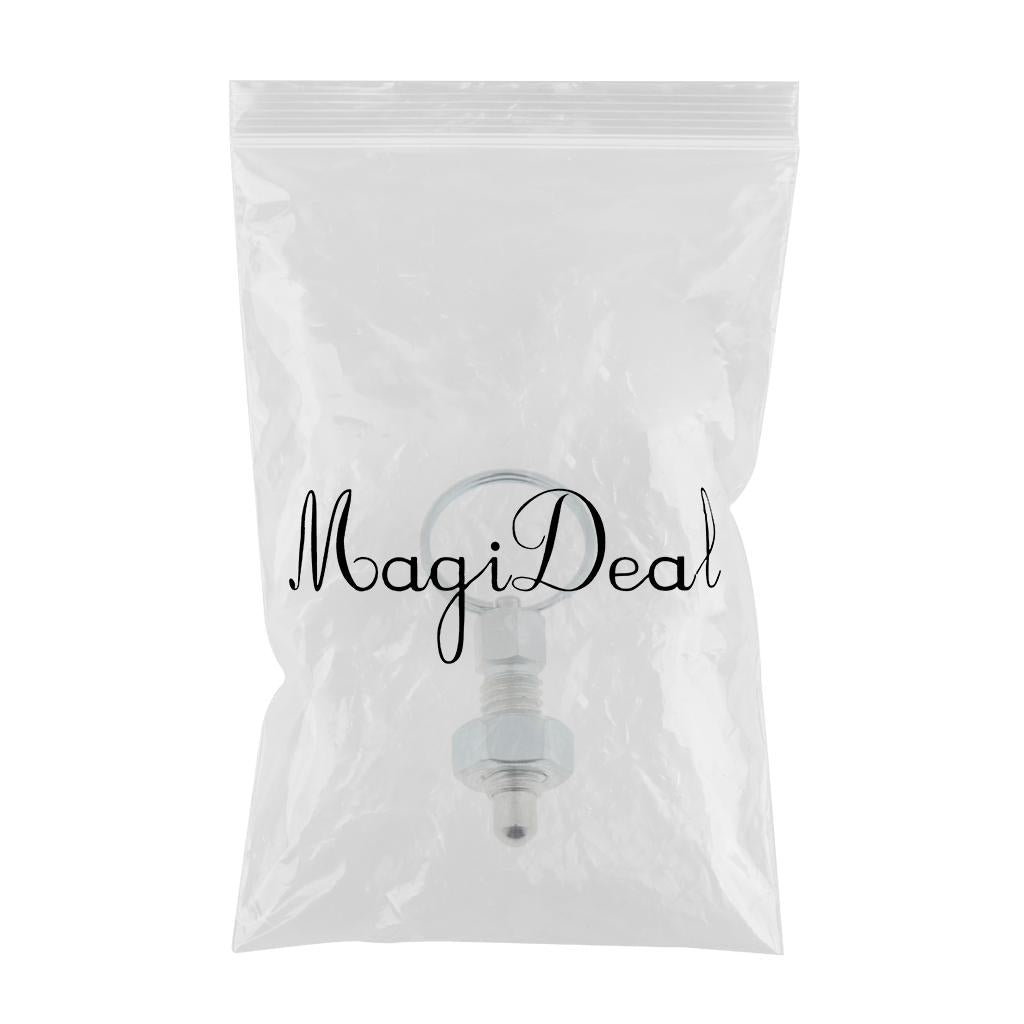

Package Includes:

1 Piece Indexing Plunger

Note:

1. Color might be slightly different due to the color calibration of each individual monitor.

2. Please allow the tinny measuring deviation due to manual measurement.
