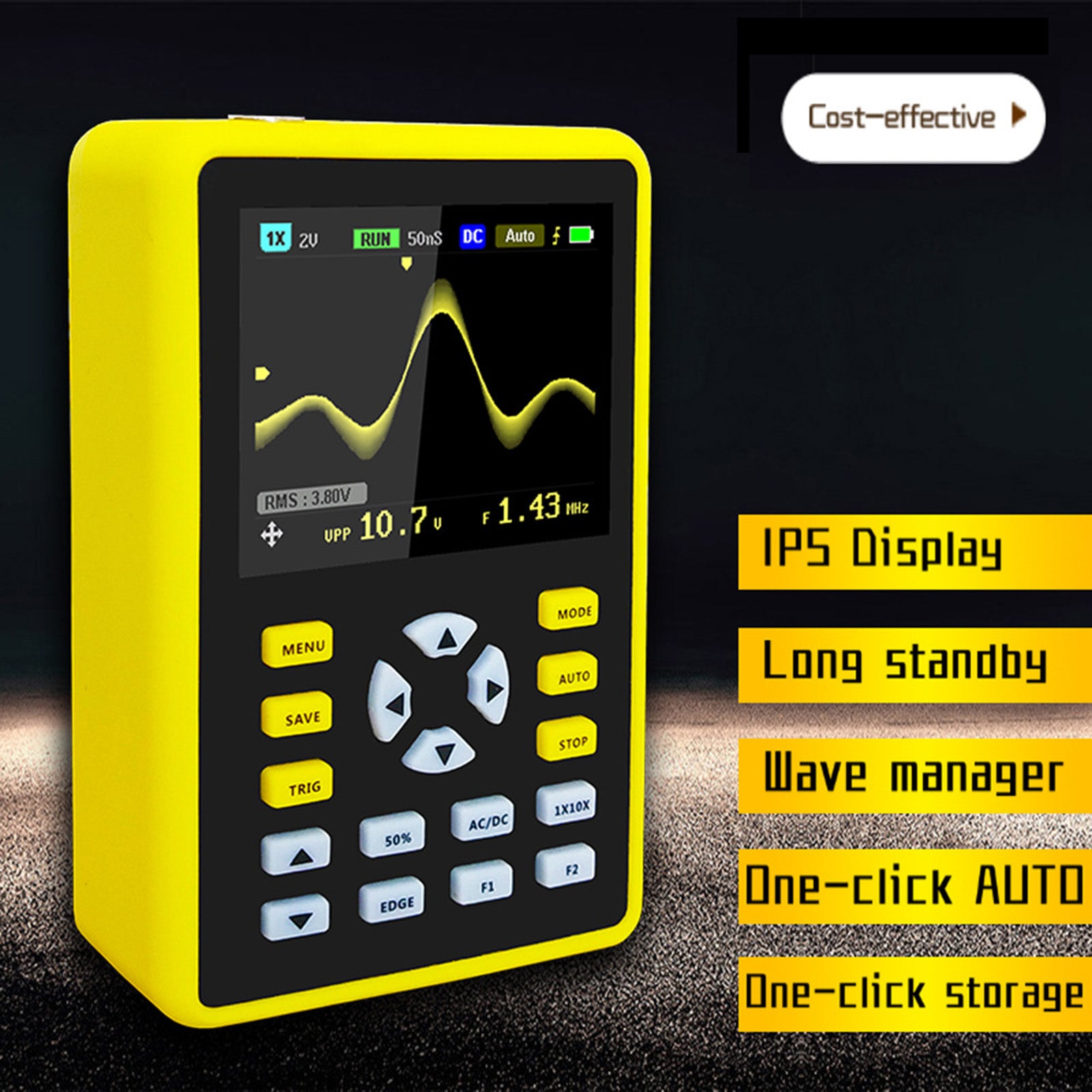

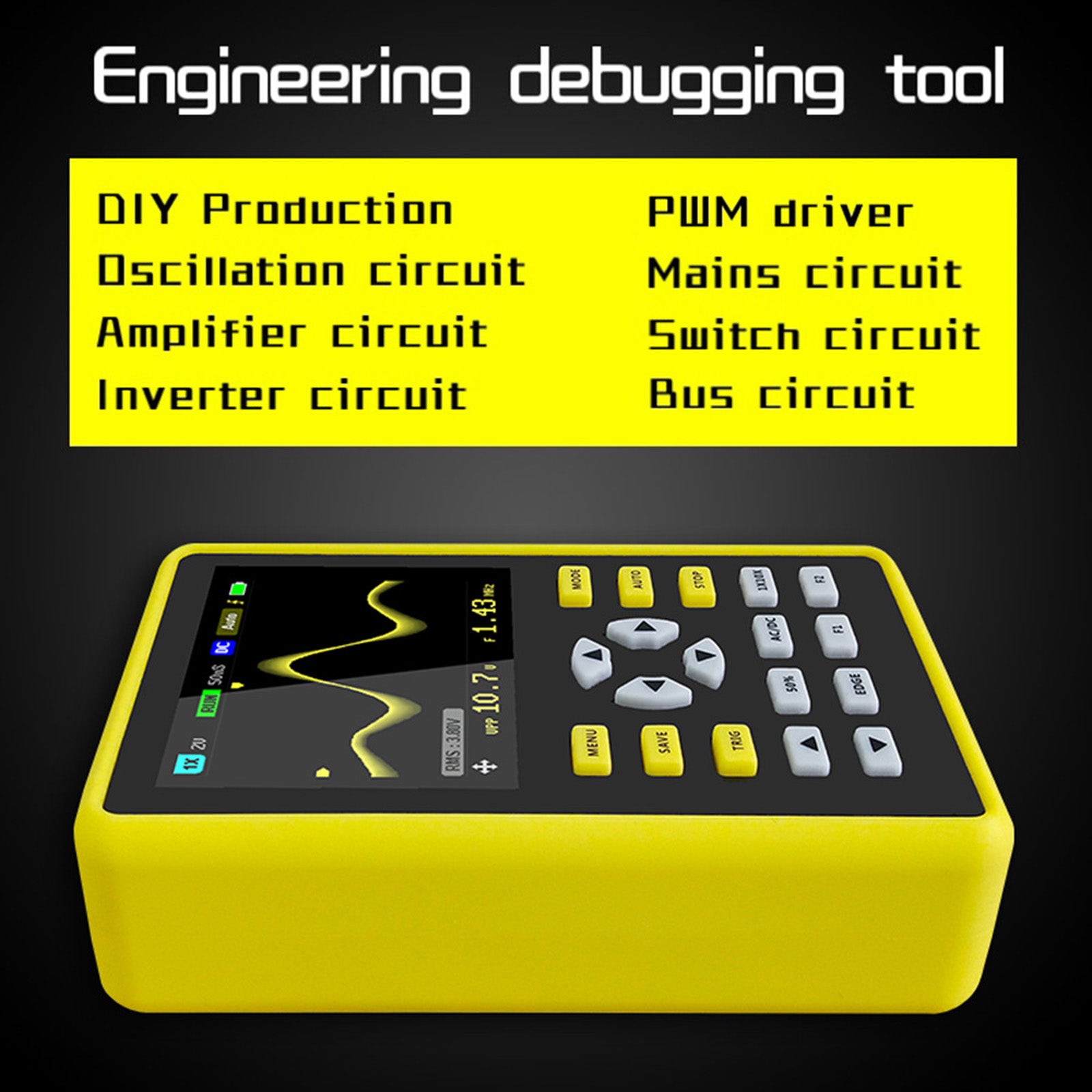

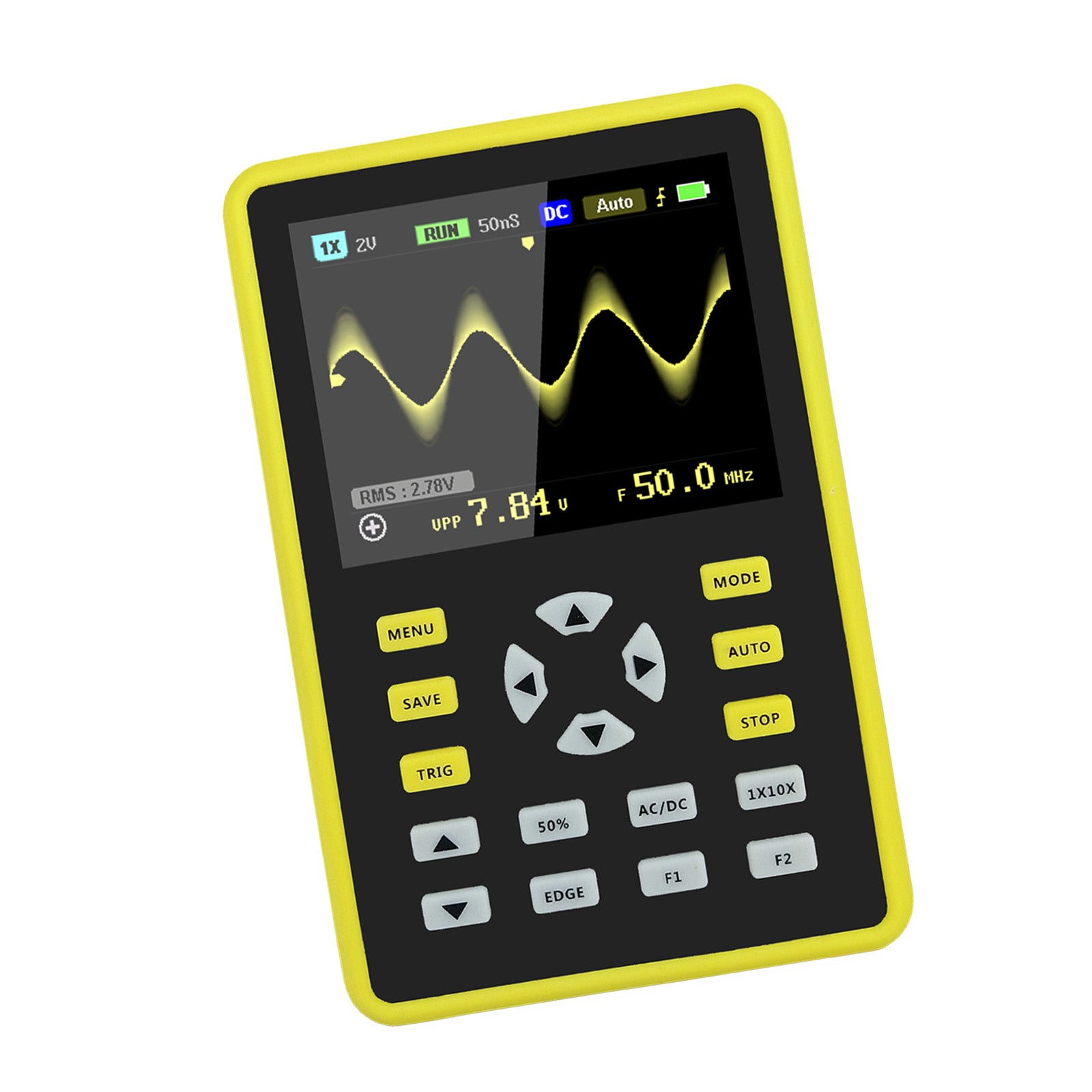

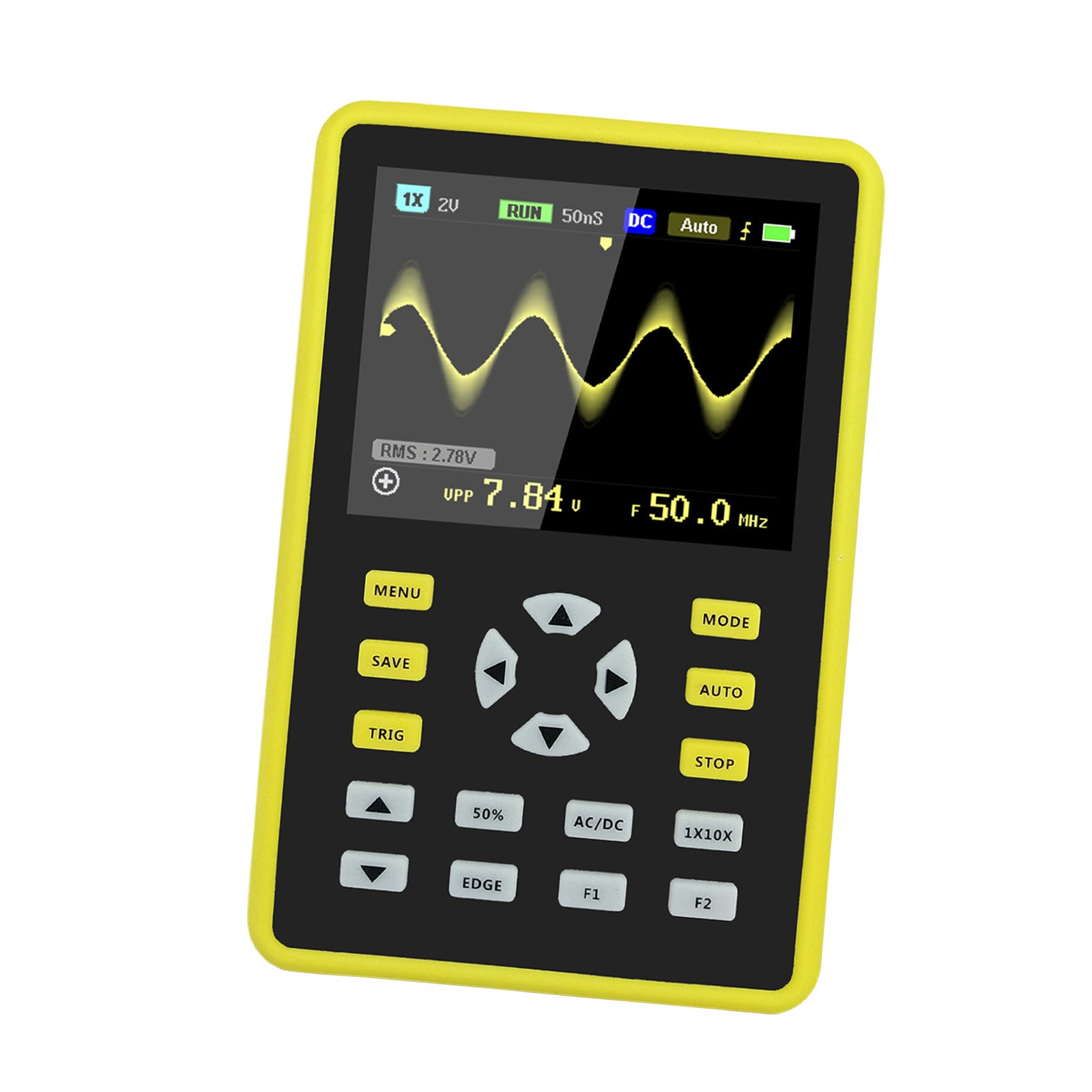

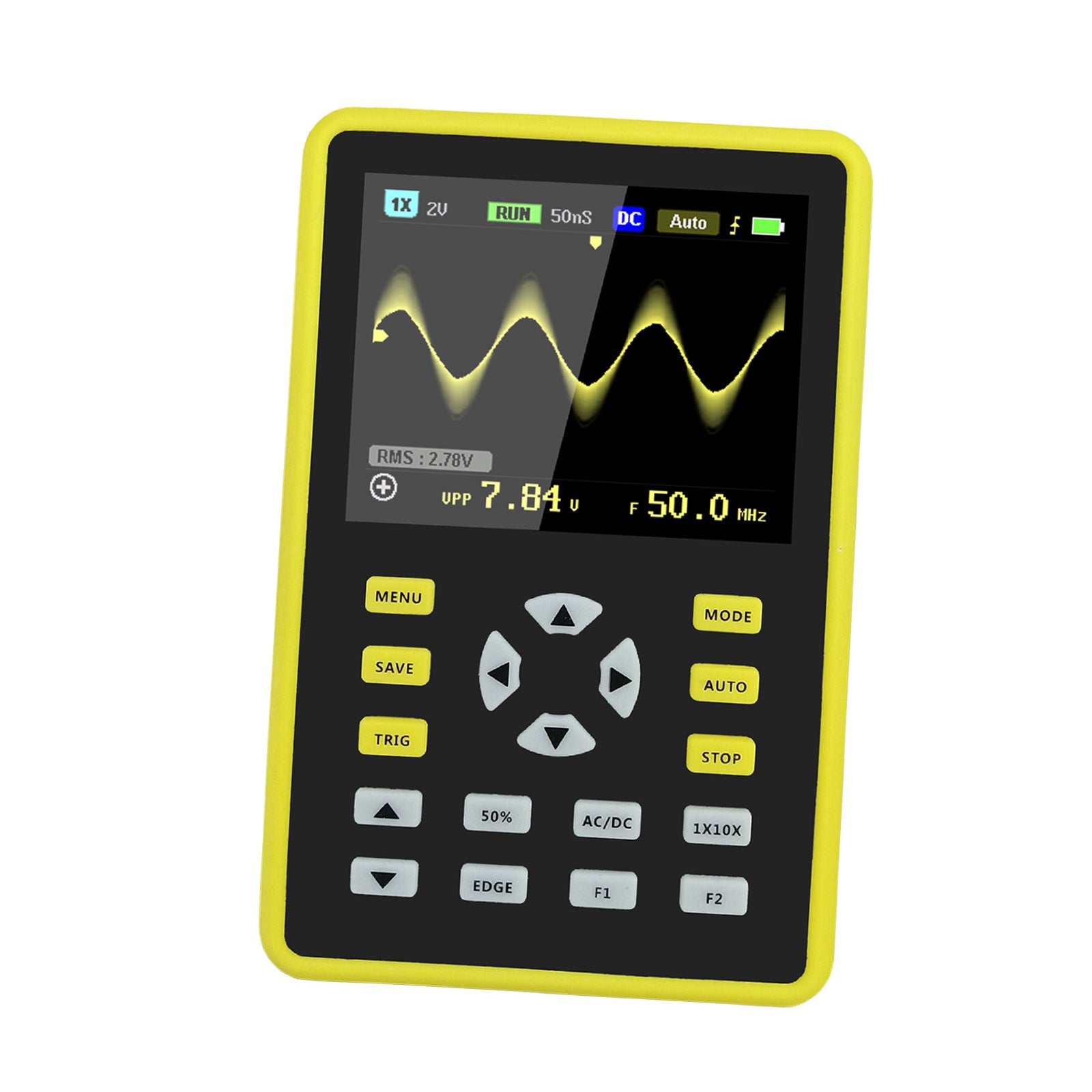

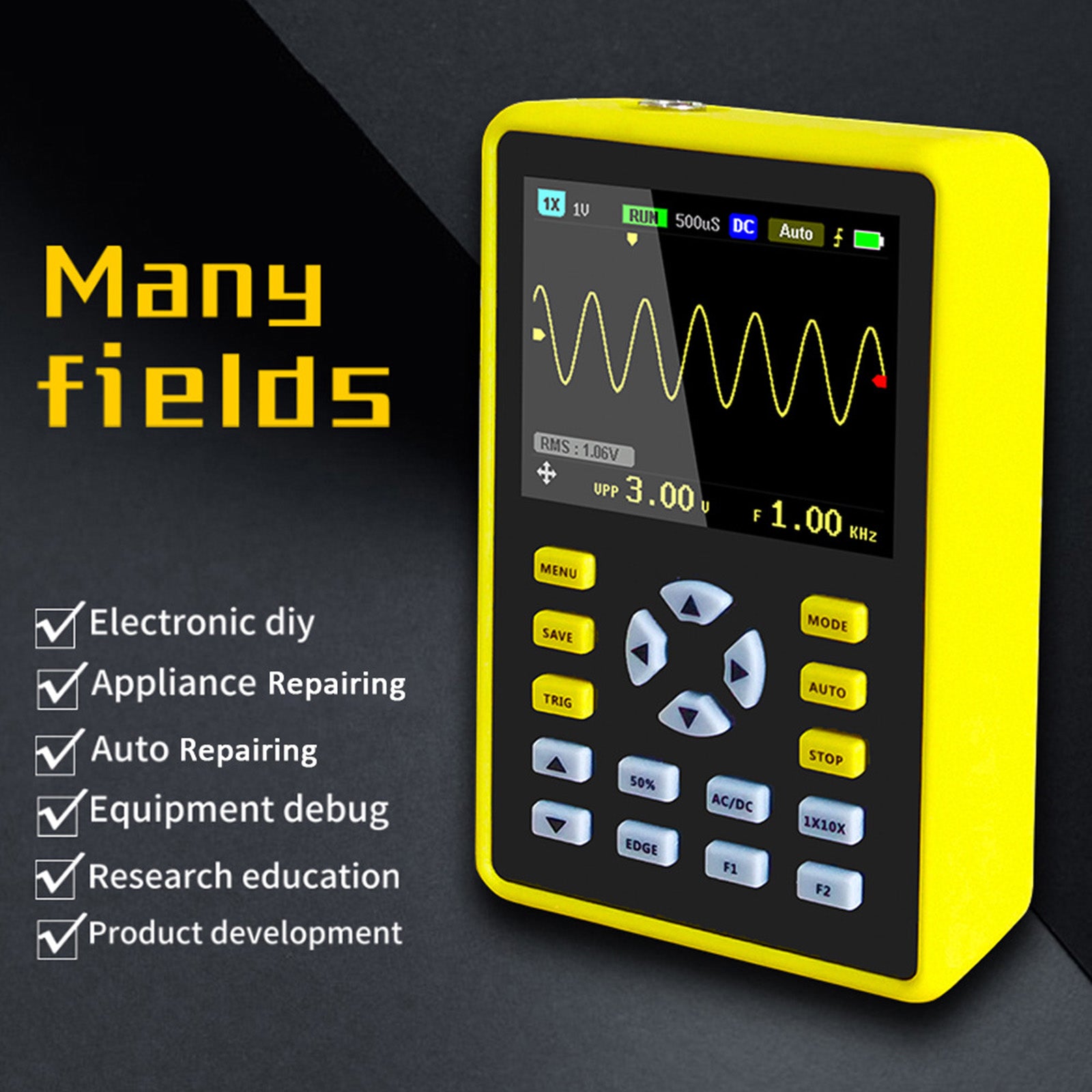

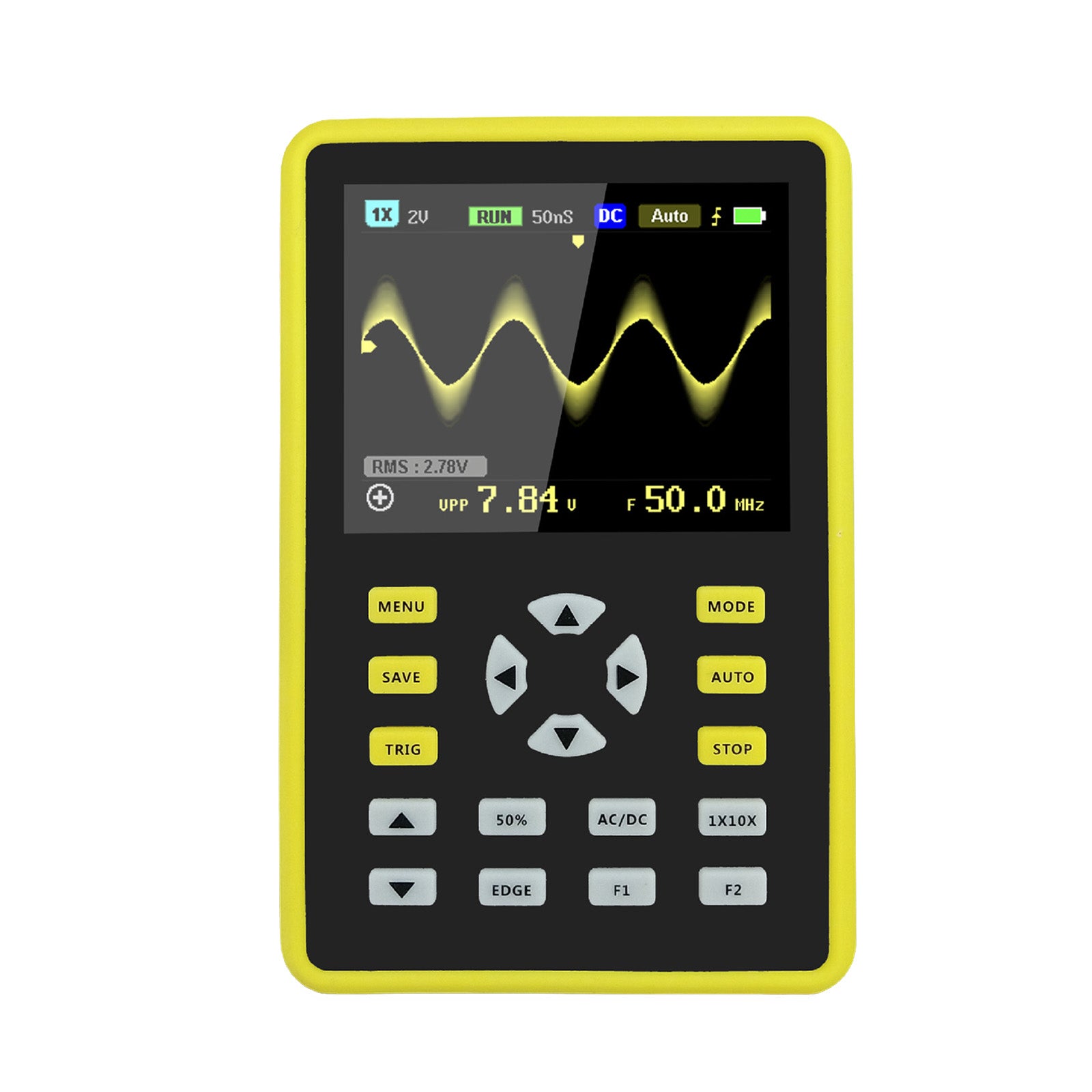

Handheld Digital Oscilloscope 500MS/S Sampling Rate for Appliance Repairing

Description:

Real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth. with full triggers function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. fit for the maintenance business and the R&D business.
The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage.

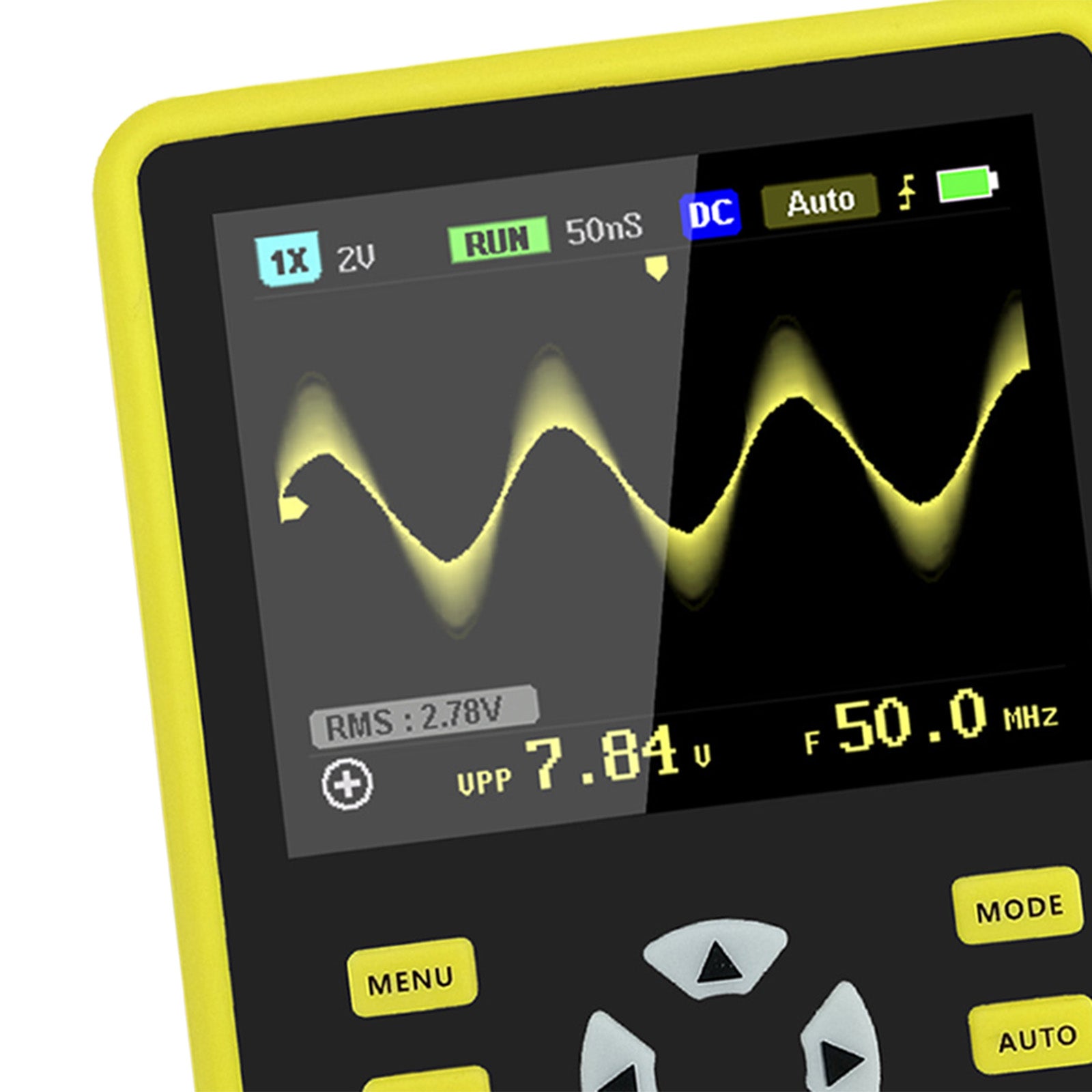

Display high-definition LCD screen with 2.4-inch 320*240 resolution IPS full-viewing technology, the visual effect is very good
Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices.
Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 5000mah high-quality lithium battery, can be used continuously for 12 hours when fully charged.
Equipped with quality silicone protective cover, non-toxic and environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.

Specification:

Display: 2.4 inch color display screen

Size Chart:

114x74x33mm/4.49x2.91x1.3in

Package Includes:

1x ADS5012H Oscilloscope
1x Matching 100MHz Probe
1x Micro USB Cable
1x User Manual
