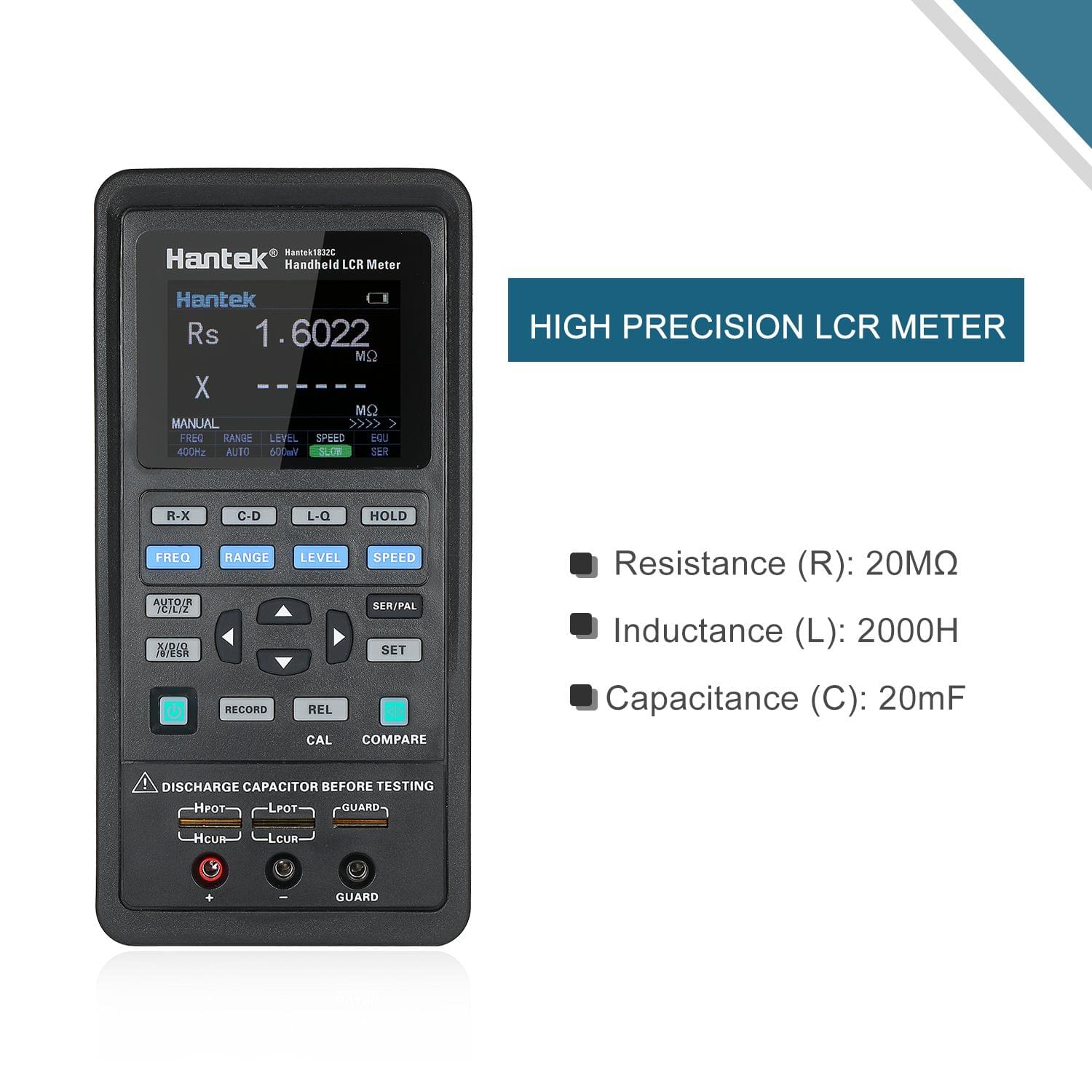

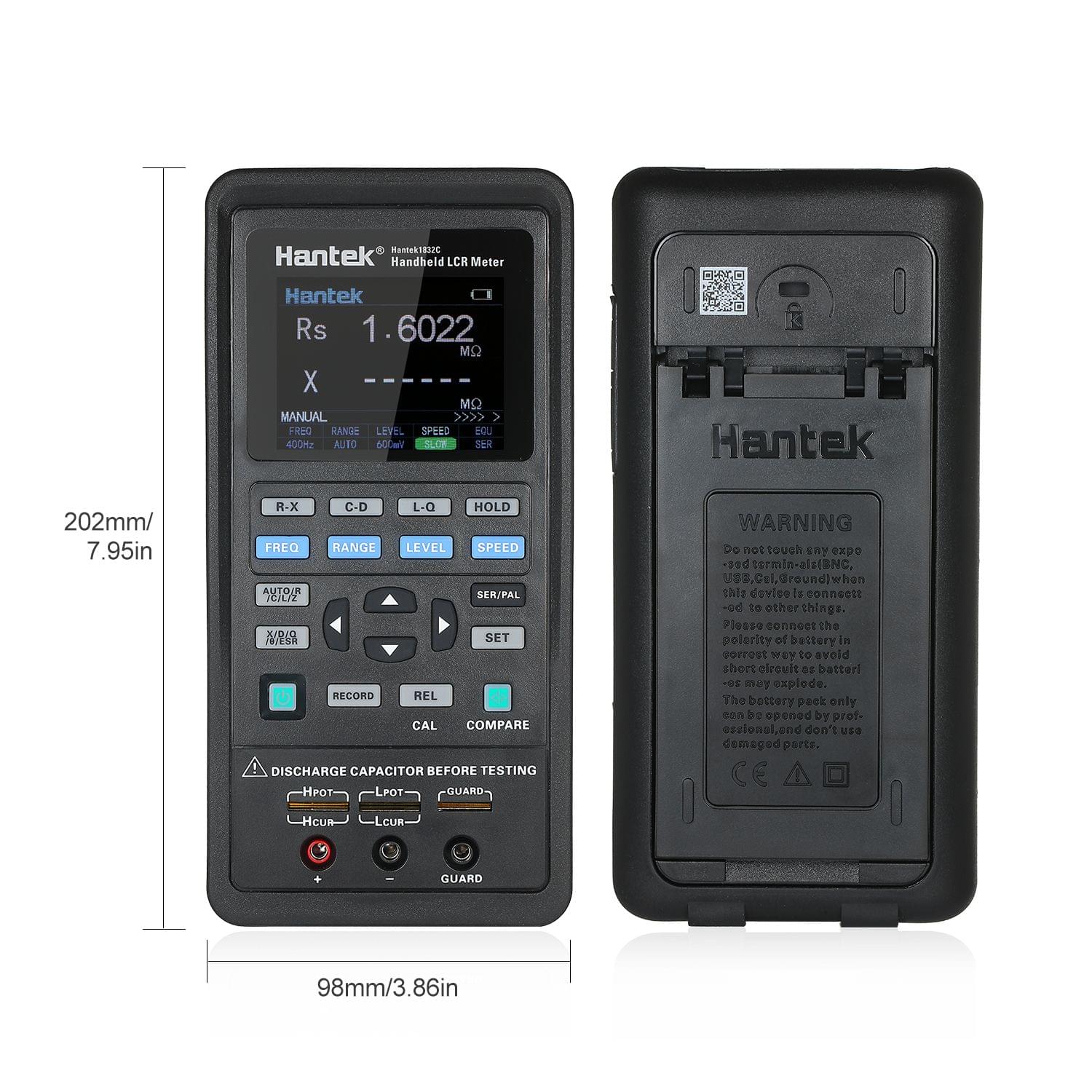

Hantek 1832C Handheld LCR Meter LCR High Precision Tester - EU Plug

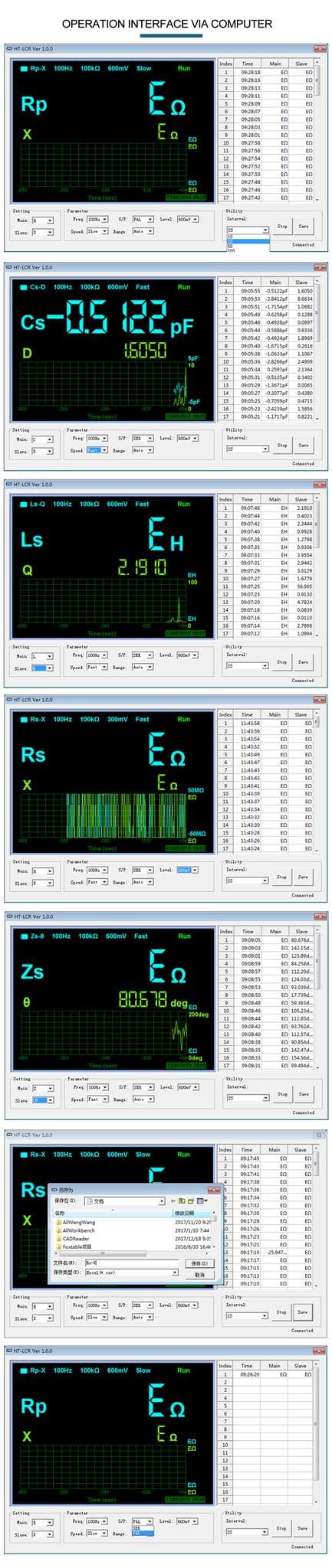

The LCR is a portable handheld measuring instrument used to measure inductance capacitance resistance and other component parameters. With compact size and powered by 5V lithium batteries it can be used in desktop applications as well as mobile and handheld measurement applications.Features:General Function: the handheld LCR meter is used for measuring resistance capacitance inductance impedance.Remote Communication Function: the LCR meter can be connected to PC via the type-C USB cable for remote control and data acquisition.Correction Function: open circuit and short circuit correction function can effectively reduce the error of distributed parameters caused by the test line and improve the accuracy of measurement.Measurement Parameters: main parameter includes resistance capacitance inductance and impedance ) secondary parameter includes reactance dissipation factor quality factor phase angle and equivalent series resistance. It provides a resolution of four thousands digits for main parameters and a resolution of 0.0001 for secondary parameter.Measurement Frequency: the highest measurement frequency is 100kHz and can measure the level of 0.6Vrms 0.3Vrms.Practical: with simple and intuitive operation this small size LCR meter combines the convenience of a handheld instrument and good performance of a table-type one.Configuration Menu: practical for setting buzzer automatic shutdown language and other operations.Data Recording Function: it records the maximum value minimum value of the main parameter and the average value of the last ten tests.Specifications:Plug Type: EU / US (Optional)Material: ABSMeasurement Parameters: L/C/R/Z(main parameter) X/D/Q/?/ESR(secondary parameter)Equivalent Mode: Series parallelMode of Range: Manual automaticMeasurement Speed: Fast(4 times/s) medium(2 times/s) slow(1 times/s)Configuration of the Test Terminal: 3-terminal 5-terminalCorrection Function: Short circuit open circuitCommunication Interface: Type C (virtual serial port)Test Signal Frequency: 100Hz 120Hz 400Hz 1kHz 4kHz 10kHz 40kHzTest Signal Level: 0.6VrmsOutput Impedance: 100?Highest Accuracy: 0.25%(resistance) 0.4%(capacitance)Measurement Range: L: 0~2000H C: 0~20mF R: 0~20M?Working Temperature: 0~40?Storage Temperature: 5~40?Relative Humidity: 75%RHStorage Humidity: 85%RHPower Supply: 7.4V lithium batteryItem Size: 202 * 98 * 40mm / 7.95 * 3.86 * 1.57inItem Weight: 571g / 1.2lbPackage Weight: 1065g / 2.35lbPackage Size: 24.8 * 19 * 10.5cm / 9.76 * 7.48 * 4.13inPacking List:1 * LCR Meter1 * Type-C USB Communication Cable1 * AC Power Adapter1 * Short Circuit Plate2 * Alligator Clip Cable1 * Pouch
