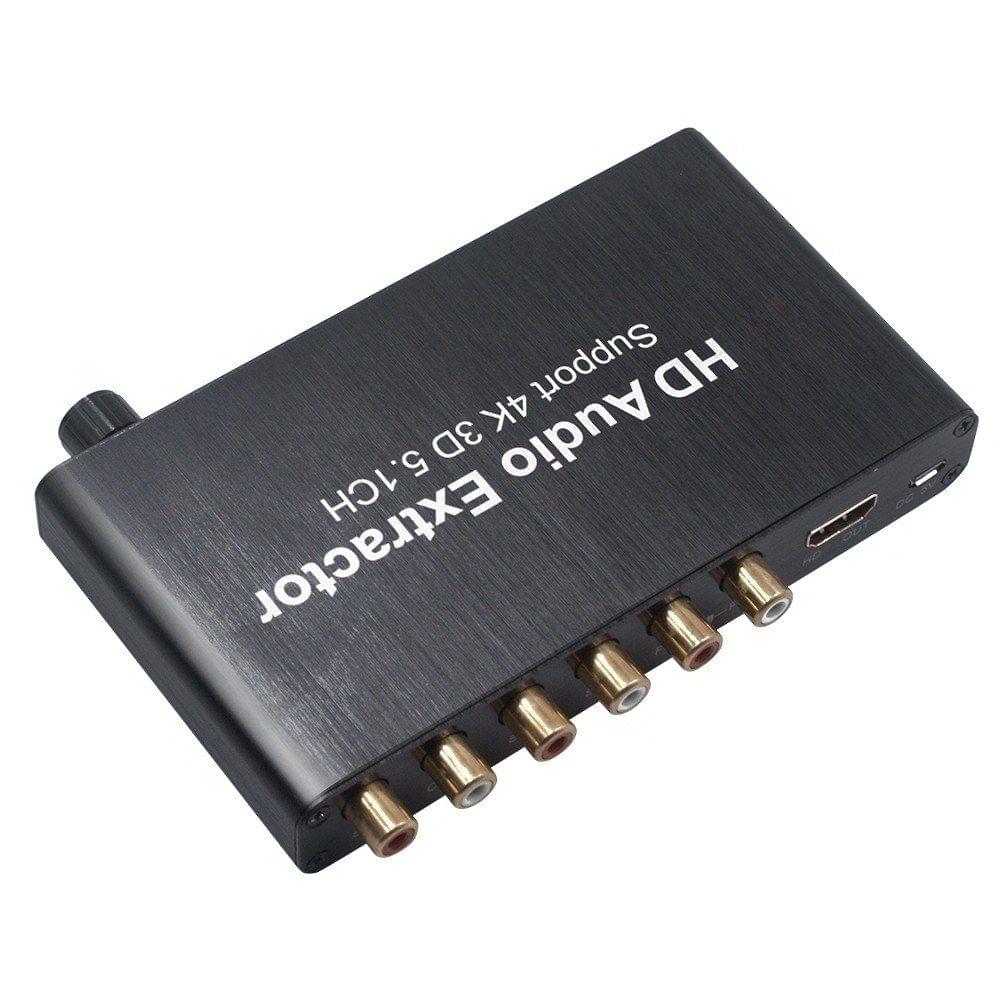

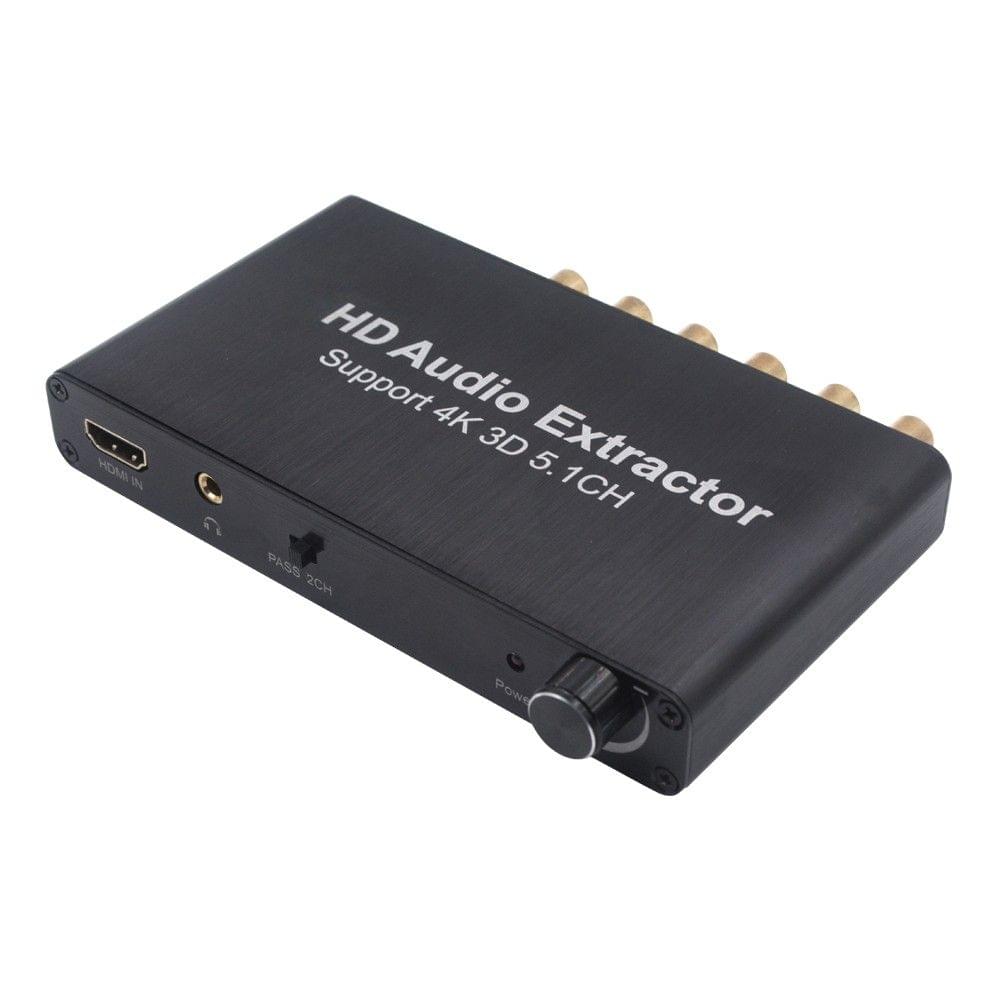

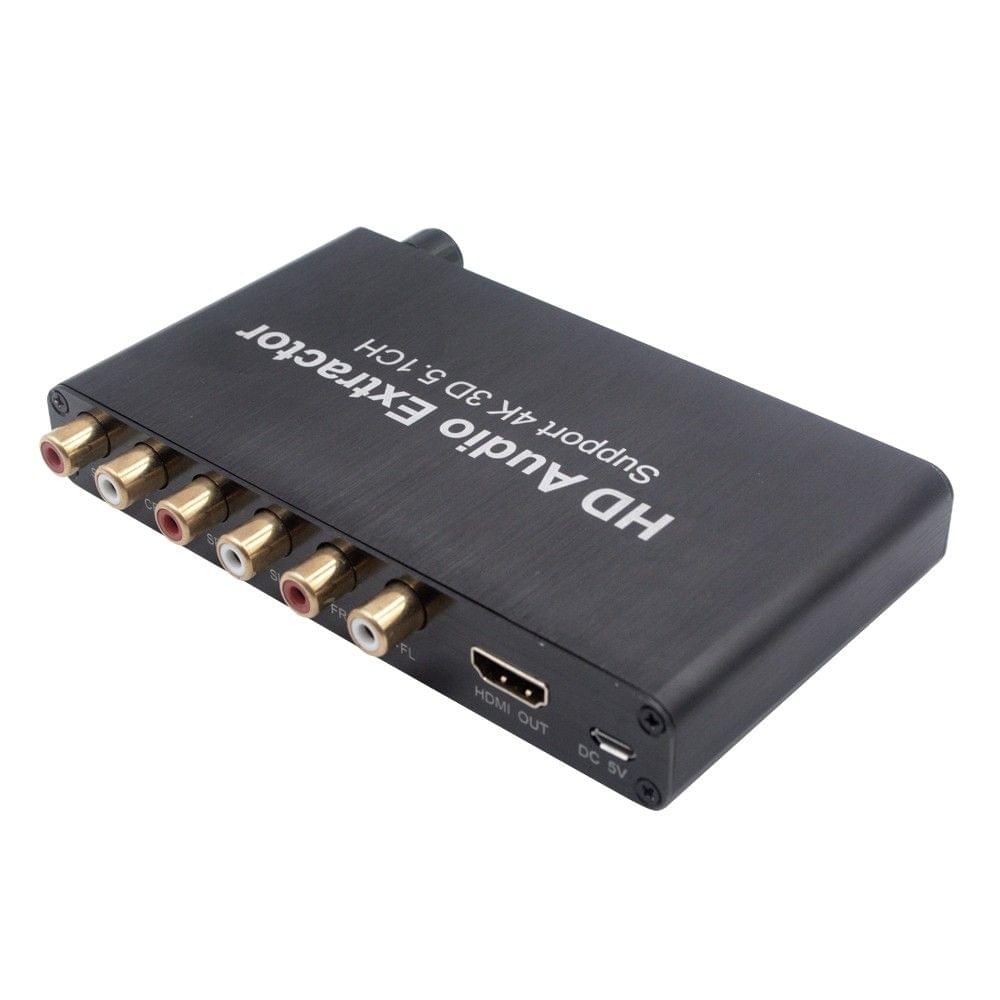

HD Audio Converter SPDIF w/ 3.5mm Stereo HD Audio Adapter HD Extractor Support 3D 4K

This audio decoder can auto convert HD input to 5.1 channel analog audio output, and support decoding Dolby AC-3/DTS(include 5.1 RAW digital audio streaming). So it is widely used in families, schools, squares, concert halls, cinemas and other public places to enjoy the shock effect of DTS or Dolby.
Features:
[Advanced Technology]
Build-in high performance RTOS operating system and audio decoder chip, it supports DTS/AC-3.
[Super fast Reaction]
Starts within 3 seconds, achieves the synchronization of audio signal decode. There are PASS/2.0CH/5.1CH three kinds of audio mode options, auto decode AC-3/ DTS (LPCM/ PCM/ RAW) input signal without any action.
[High Compatibility]
Supports network player, Blue-ray DVD, DVD, etc.
[Exquisite Appearance]
Small Size and metal case, it’s anti-interference.
[Convenient Operation]
Adopts 6CH RCA /3.5mm headphone port output, it’s convenient and efficient in use, supports 6CH volume synchronous adjustment.
Note：
Please use the machine as the instruction listed to keep the long lifetime of it.
1. Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Please do not touch the power adapter plug with wet hands.
4. Please hold the plug when unplugging. Do not pull the power cable directly.
5. Please turn the unit off when it is not in use for a long period of time.
6. Please do not open the cover and do not touch the inside parts.
7. Please use the original factory power adapter.
Specifications:
Model Number: AY83
HDCP Version: HDCP1.4
HD Version: HD1.4b
HD Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.
HD Resolution: 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support Video Color Format: 24bits/deep color 30bit, 36bit
Audio Output: 2CH/5.1CH Analog Audio
Max Bandwidth: 340MHz
Max Baud Rate: 10.2Gbps
Input: HD

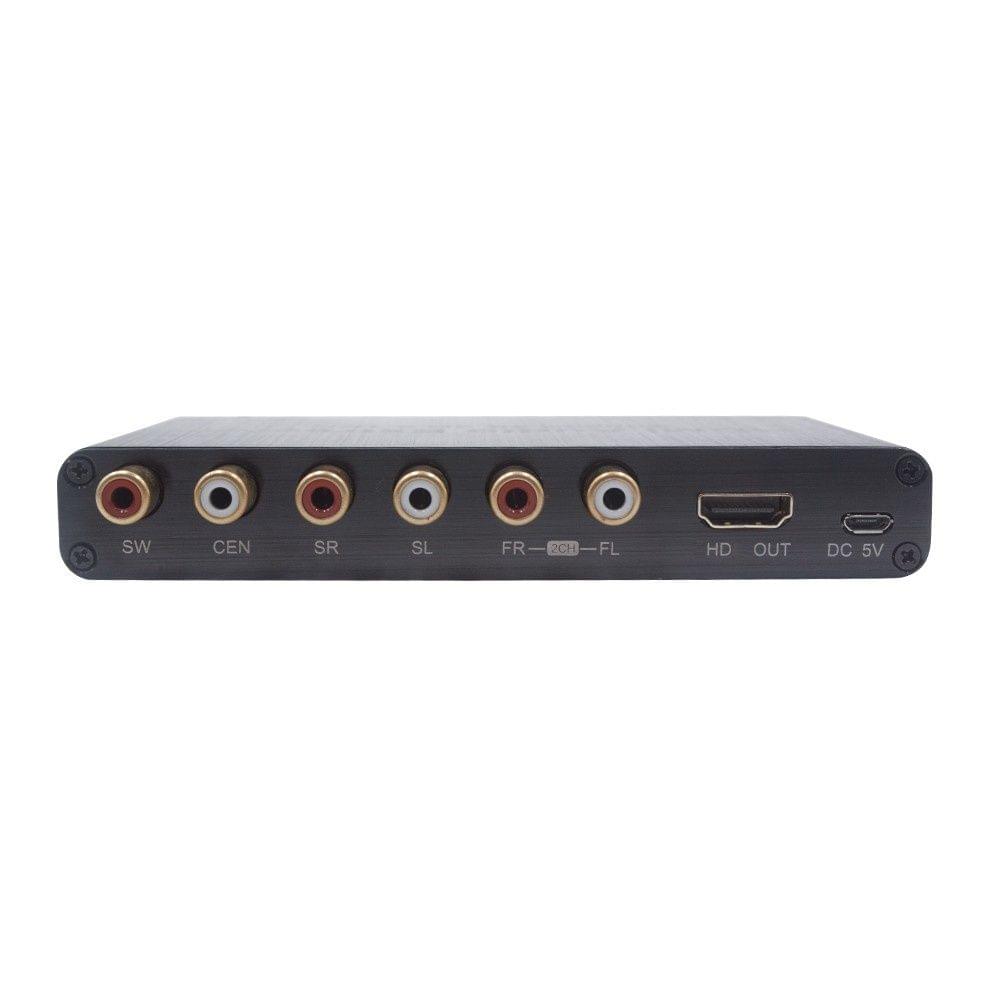

Output: HD; SW, CEN, SR, SL, FR, FL; 3.5mm Headphone Port
Input/ Output TMDS signal: 0.5-1.5Volts p-p (TTL)
Input/ Output DDC signal: 5Volts p-p (TTL)
Input Cable Distance: <=7m AWG26 standard cable HD
Output Cable Distance: <=8m AWG26 standard cable HD
Support Audio Format: MP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A
Signal Noise Ratio: 120db
Stereo Isolation: 80db（1KHZ）
Channel Unbalance: 0db
Sampling Rate: 32~192 KHz
Bit Rate: 16~24 Bit
Response Frequency: 20Hz~20 KHz+/-0.7db
THD: 20Hz~20 KHz 0.25-0.065%
THD+N: 1 KHz 0.15%
Max Power Current: 420mA
Power adapter format: input: AC (50/60Hz) 100V-240V; Output: DC5V/2A
Working Temperature: 0-70℃
Working Humidity: 10%-80%RH (non-condensing)
Storage Temperature: -10-80℃
Storage Humidity: 5% -90% RH (non-condensing)
Color: Black
Item Size: Approx. 13.8 * 9.6 * 2 cm / 5.4 * 3.8 * 0.79 in
Item weight: Approx. 185g / 6.53oz
Package Size: Approx. 19 * 15.7 * 5.8 cm / 7.48 * 6.18 * 2.28 in
Package Weight: Approx. 526g / 18.55oz
Package List:
1 * Decoder
1 * User Manual
1 * 5V/1A Power Adapter
