HD to HD and Optical Spdif + RCA L/R Audio Converter HD Audio Extractor Splitter(HD In HD + Digital / Analog Audio Out)

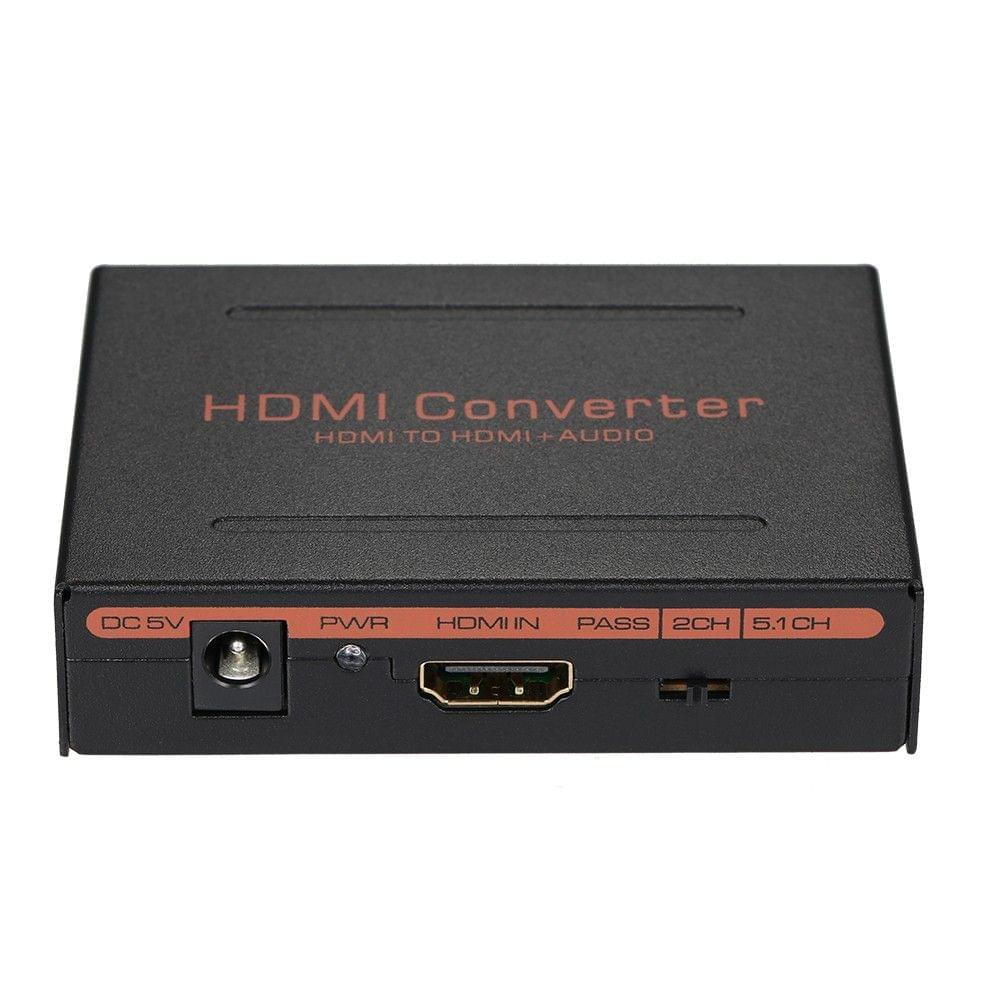

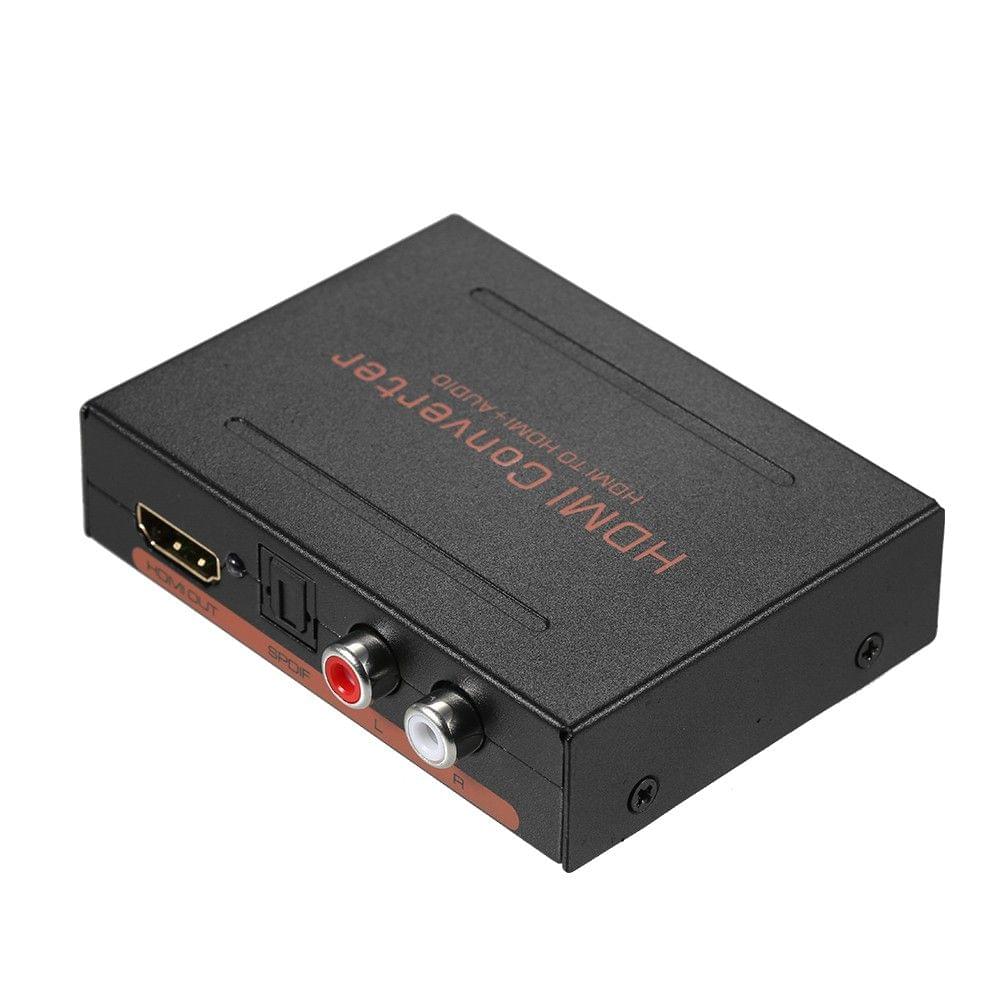

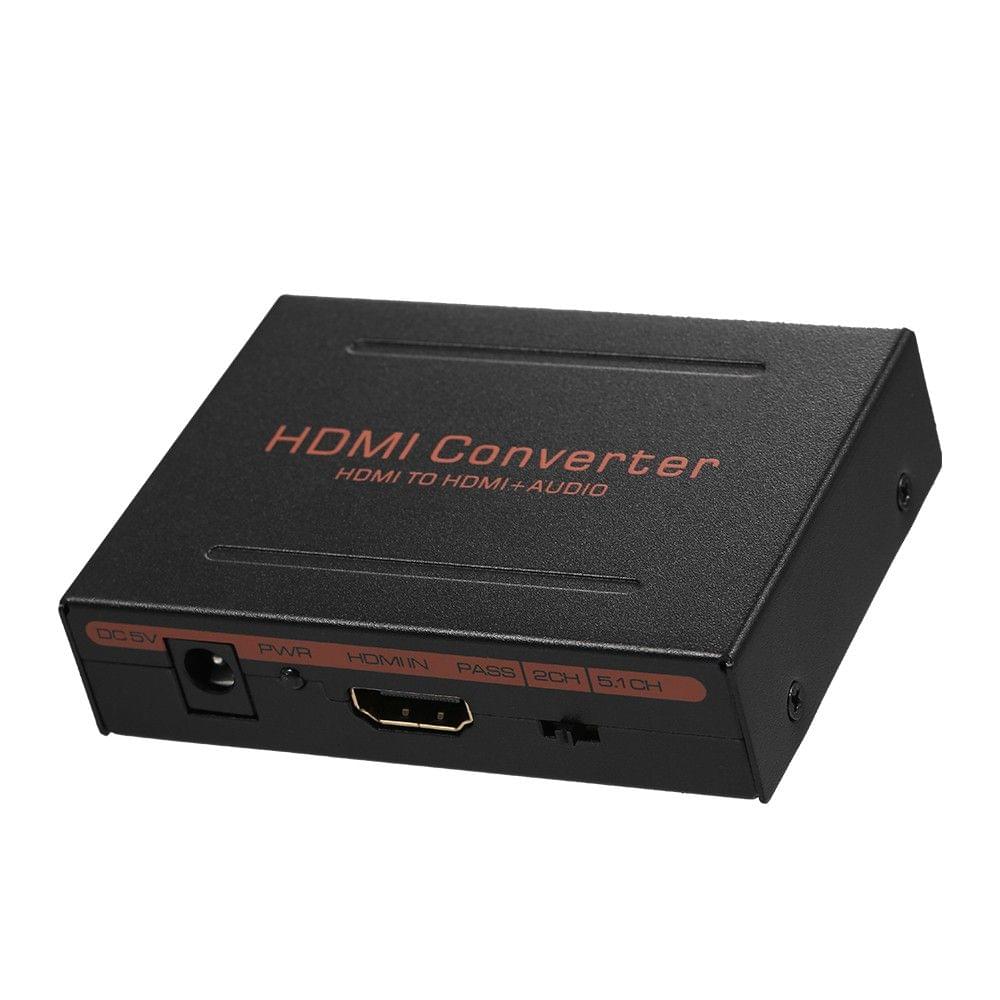

description":"This HD extractor has one HD input, one HD output, one SPDIF output and RCA L / R stereo audio output. The converter allows the HD source connected to single HD display and adds extra one L+R and SPDIF audio output.  Features One HD In to One HD Out, plus SPDIF (Optical) and Analog RCA Audio Outputs, designed for extract the 5.1CH/2CH audio embedded in HD source like Blu-ray player, cable box, Apple TV, etc.  HD supports full HD 1080P. Three audio EDID settings: Pass, 2CH and 5.1CH for better flexibility.  SPDIF output support incoming 2CH PCM, 5.1CH Dolby Digital, DTS Audio, Analog RCA output support incoming 2CH PCM stereo audio. Plug and play. High quality metal enclosure for excellent heat dissipation and longivity.  Specification HD Resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Support Video Color Format: 24bit/ deep color 30bit, 36bit Audio Output: L/R + SPDIF Max Bandwidth: 225MHz Max Baud Rate: 6.75Gbps Input/Output TMDS Signal: 0.5~1.5Volts p-p （TTL） Input/Output DDC Signal: 5Volts p-p （TTL） Max Working Current: 500mA Operating Temperature Range: -15 to 55℃ Operating Humidity Range: 5 to 90% RH Item Weight: 128.2g / 4.52oz Item Size: 8.4 * 6 * 2cm / 3.31 * 2.36 * 0.79in Package Weight: 297.7g / 10.50oz Package Size: 19 * 15 * 6.5cm / 7.48 * 5.91 * 2.56in   Package list 1 * HD Converter 1 * Power Adapter 1 * User Manual
