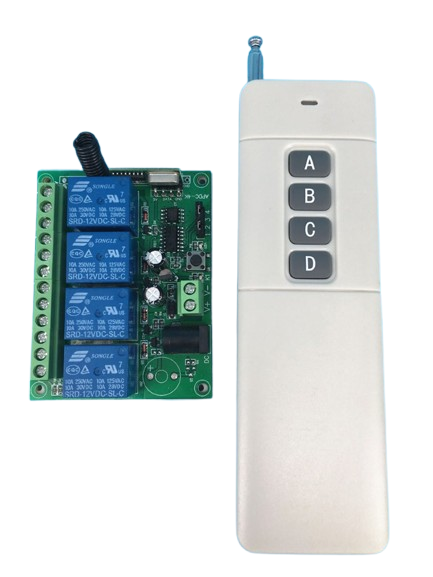

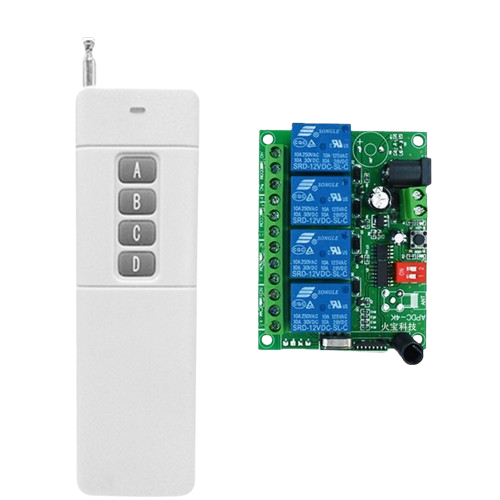

High Power 4-Button Remote Control Industrial Shell Learning Type DC12V Four-Way Lamp Gate Lifting Motor Controller (DC12V)

Description:

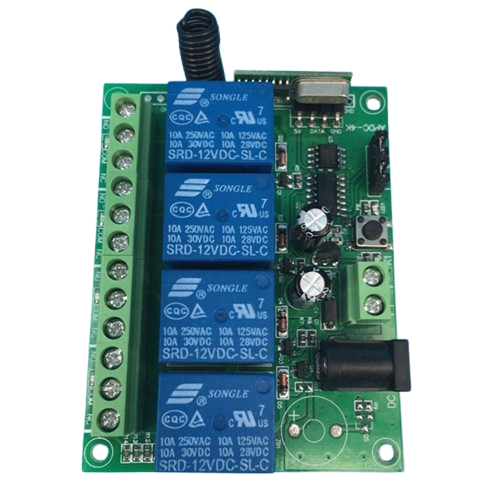

Multifunctional four-way wireless receiving controller
Model: APDC-4K
New four-way multifunctional learning wireless controller, with newly added LED working indicator light, the working status is clear at a glance, the chip is compatible with fixed code and learning code remote controllers, and the new shell is adopted. Wiring does not need to be disassembled, and the operation is simple.
1: Technical parameters
1 Working voltage: default DC12V (other voltages can be customized)
2 Working current: ≤180mA
3 Static current: ≤10mA
4 Working temperature: -10~+70 degrees
5 Receiving sensitivity: -109dBm
6 Working frequency: default 315MHz (433MHz and other special frequencies can be customized)
7 Controller size: 75.0mmX57.8.mmX20.0m

2. Output mode
APDC-4K has four output modes: signal self-locking, signal non-locking, signal interlocking, signal non-locking and self-locking coexist.
1. Signal self-locking: In the function selection (turn the 1 2 of the dip switch to the ON position) press the remote control A button, the relay corresponding to the A button is attracted and held, and then press the A button, the A relay is disconnected; press the remote control B button, the B button corresponding relay is attracted and held, and then press the B button, the B relay is disconnected, and the C and D buttons work in this cycle.
2. Signal non-locking: In the function selection (keep the 1 2 of the dip switch in the 1 2 position) press the remote control A button, the relay corresponding to the A button is attracted, and the relay is disconnected after releasing; press the B button, the relay corresponding to the B button is attracted, and the relay is disconnected after releasing, and the C and D buttons work in this cycle.
3. Signal interlock: In function selection (turn the 1 of the DIP switch to the ON position), press the A button of the remote control, and the corresponding A relay will be attracted and held; press the B button, the A relay will be disconnected, and the relay corresponding to the B button will be attracted and held. The C and D buttons will work in this cycle.
4. Signal self-locking + non-locking: In function selection (turn the 2 of the DIP switch to the ON position), the four relays corresponding to the remote control, of which 1 and 2 are self-locking, and 3 and 4 are non-locking.

5. Learning method: After the receiver is powered on, press the pairing button and let go when the pairing light comes on to enter the learning state. Press any button on the remote control to transmit a signal. After the receiver receives the signal, the indicator light flashes about once, indicating that the learning is successful.

6. Code clearing method: After the receiver is powered on, press and hold the pairing button for about 10 seconds until the pairing indicator light goes out, indicating that the code clearing is successful.

I: Technical parameters
1 Working voltage: DC12V/24V/AC220V optional (other voltages can be customized)
2 Working current: ≤180mA
3 Quiescent current: ≤10mA
4 Working temperature: -10~+70 degrees
5 Receiving sensitivity: -109dBm
6 Working frequency: default 315MHz (433MHz and other special frequencies can be customized)
7 Controller size: 75.0mmX57.8.mmX20.0m
II: Output mode APDC-4K has four output modes: signal self-locking, signal non-locking, signal interlocking,
signal non-locking and self-locking coexistence.
1. Signal self-locking: In the function selection (turn the 1 2 of the DIP switch to the ON position)
, press the A button on the remote control, the relay corresponding to the A button is attracted and held, and then press the A button to disconnect the A relay; press
the B button on the remote control, the relay corresponding to the B button is attracted and held, and then press the B button to disconnect the B relay, and the C and D buttons
work in this cycle.
2. Signal non-locking: In the function selection (keep the 1 2 of the DIP switch at the 1 2 position),
press the A button on the remote control, the relay corresponding to the A button is attracted, and the relay is disconnected after releasing; press the B button,
the relay corresponding to the B button is attracted, and the relay is disconnected after releasing, and the C and D buttons work in this cycle.
3. Signal interlocking: In the function selection (turn the 1 of the DIP switch to the ON position),
press the A button on the remote control, the corresponding A relay is attracted and held; press the B button, the A relay is disconnected, and
the relay corresponding to the B button is attracted and held. The C and D buttons work in this cycle.
4. Signal self-locking + non-locking: In the function selection (turn the 2 of the dip switch to the ON position),
the four relays corresponding to the remote control, of which 1 and 2 are self-locking, and 3 and 4 are non-locking. Learning method:
After the receiver is powered on, press the pairing key and let go when the pairing light turns on to enter the learning state. Press any key on the remote control to transmit a signal. After the receiver receives
the signal, the indicator light flashes about once, indicating that the learning is successful.
Clearing method: After the receiver is powered on, press and hold the pairing key for about 10 seconds until the pairing indicator light turns off, indicating that the clearing is successful.

Package Include:

1Set Remote controller
