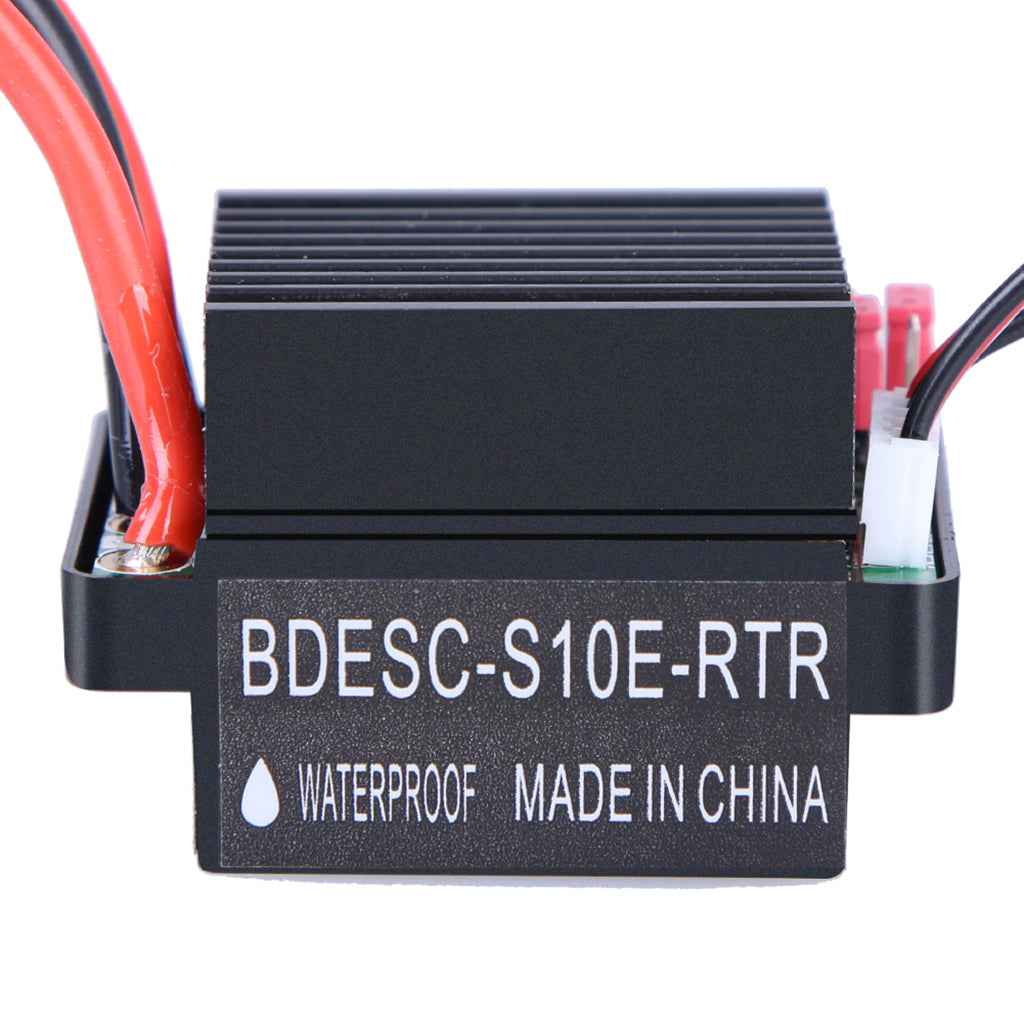

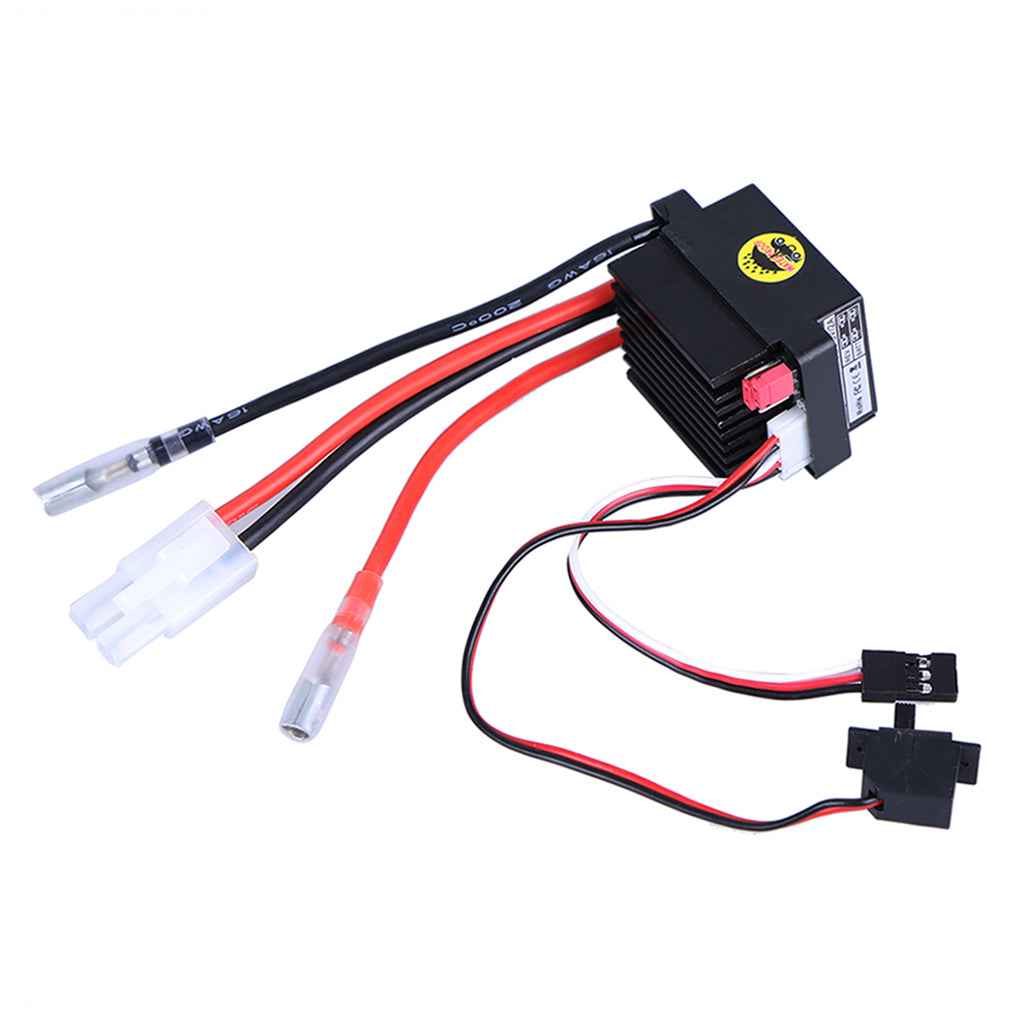

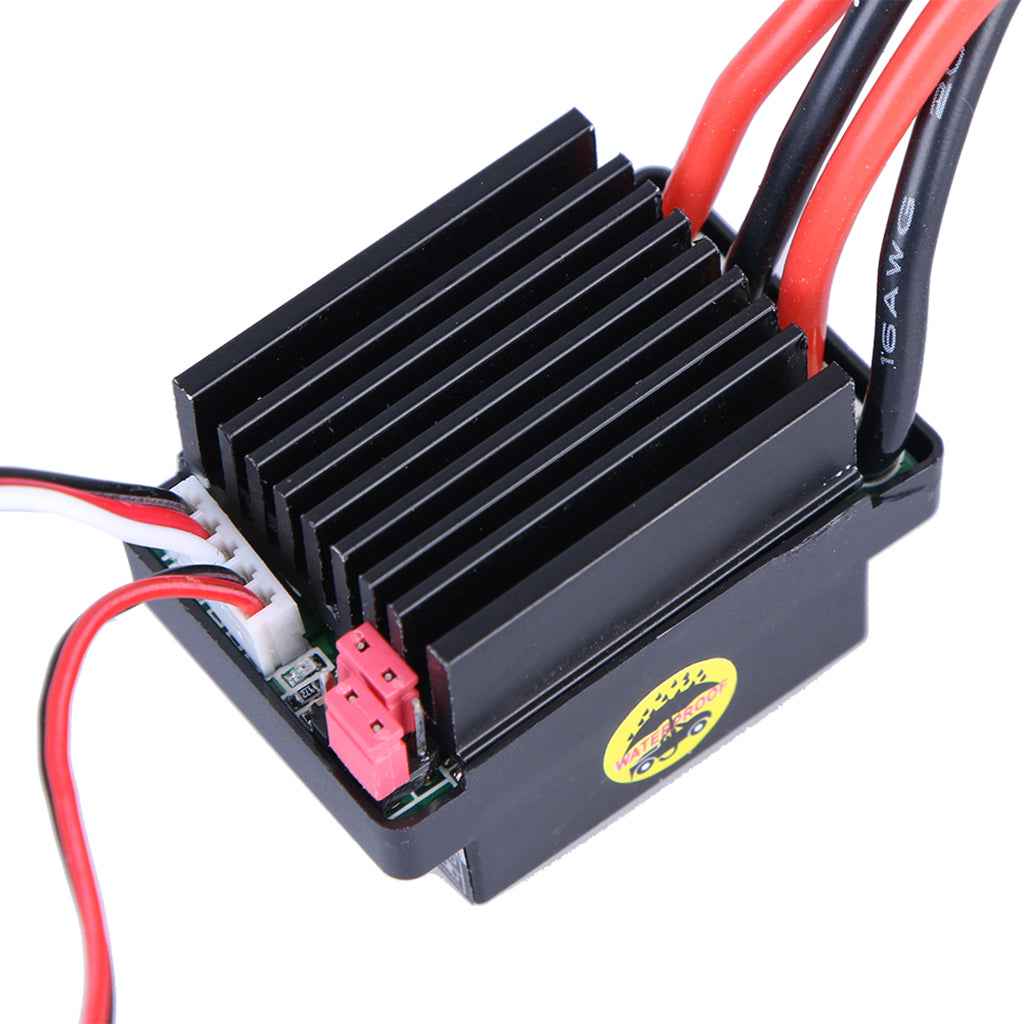

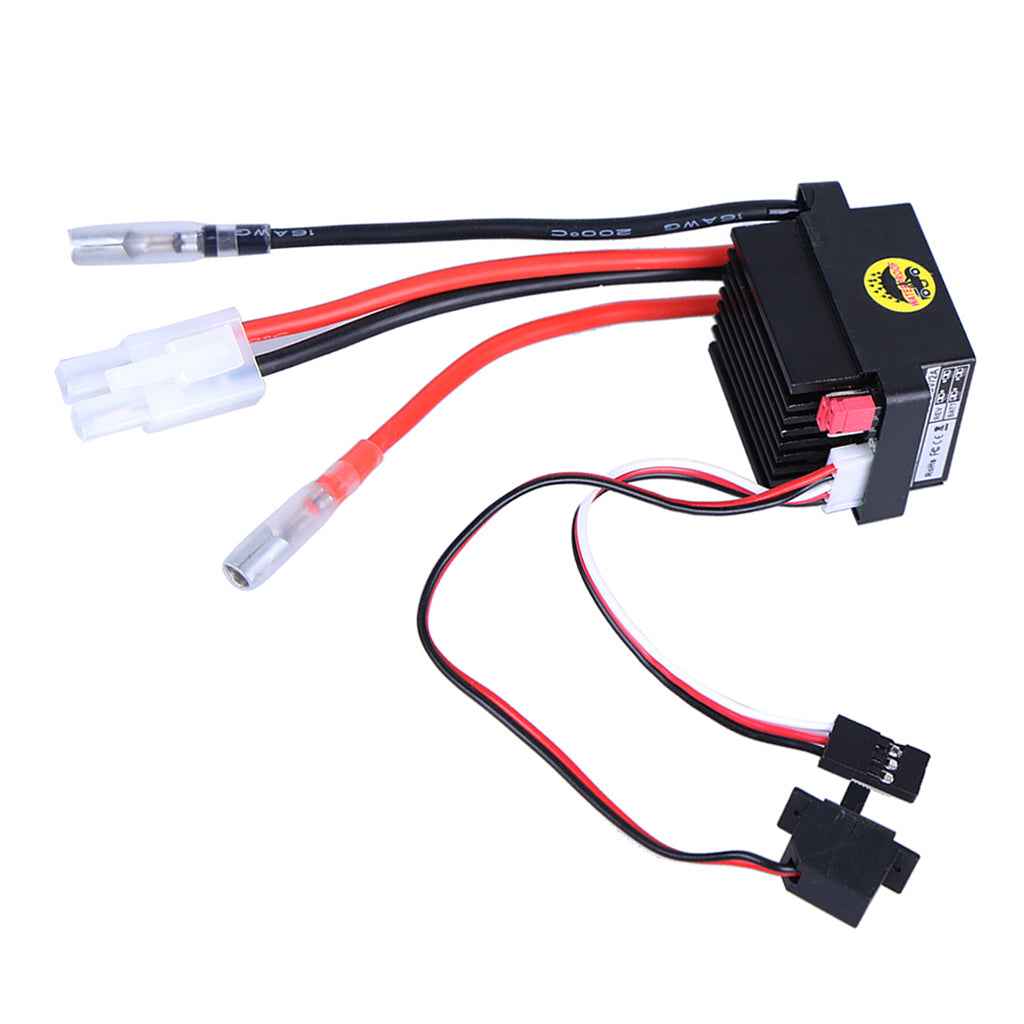

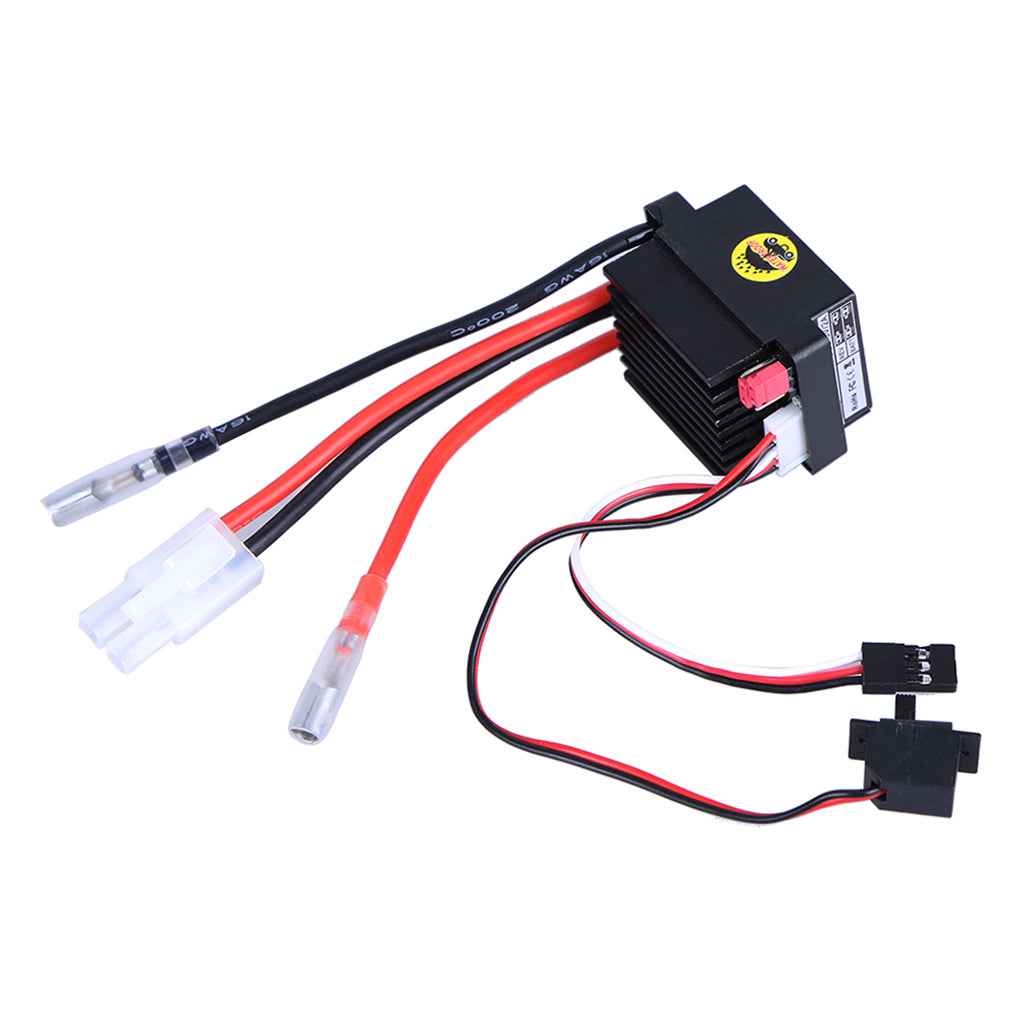

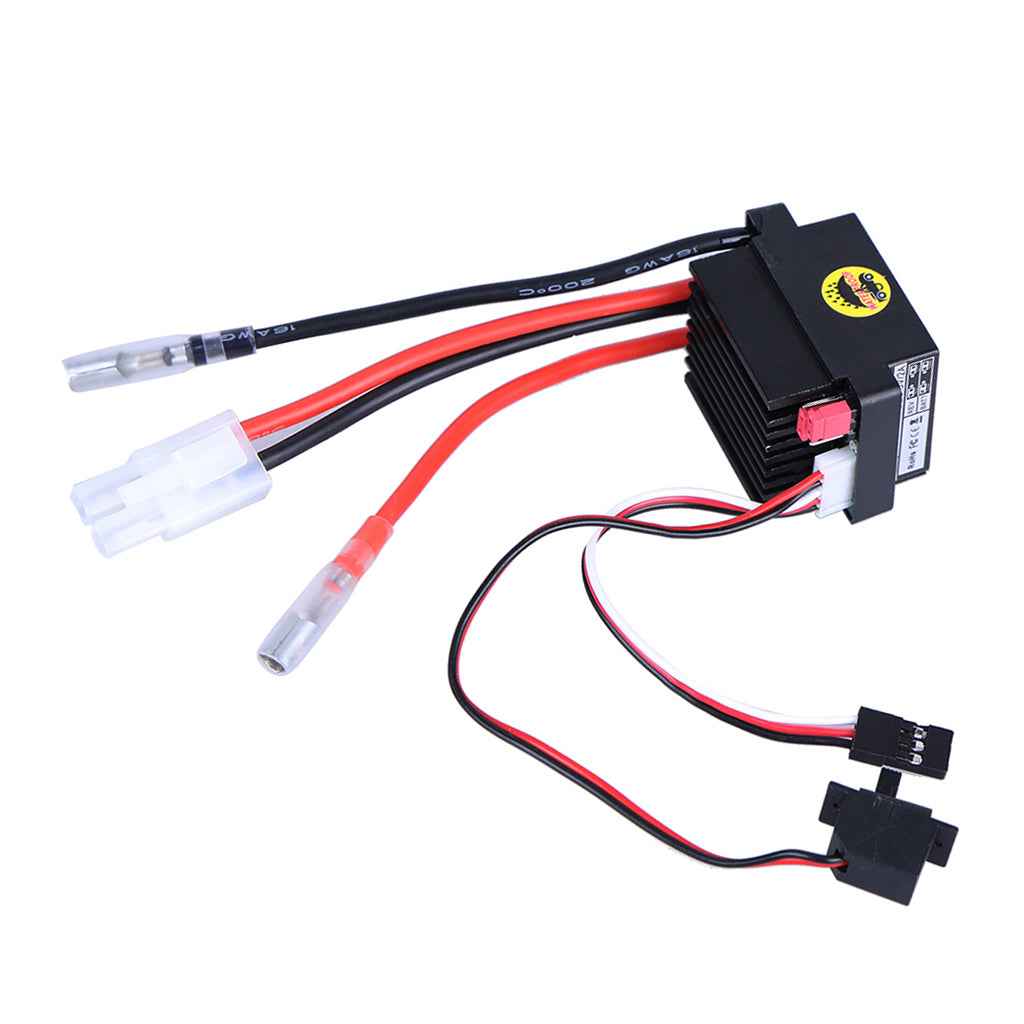

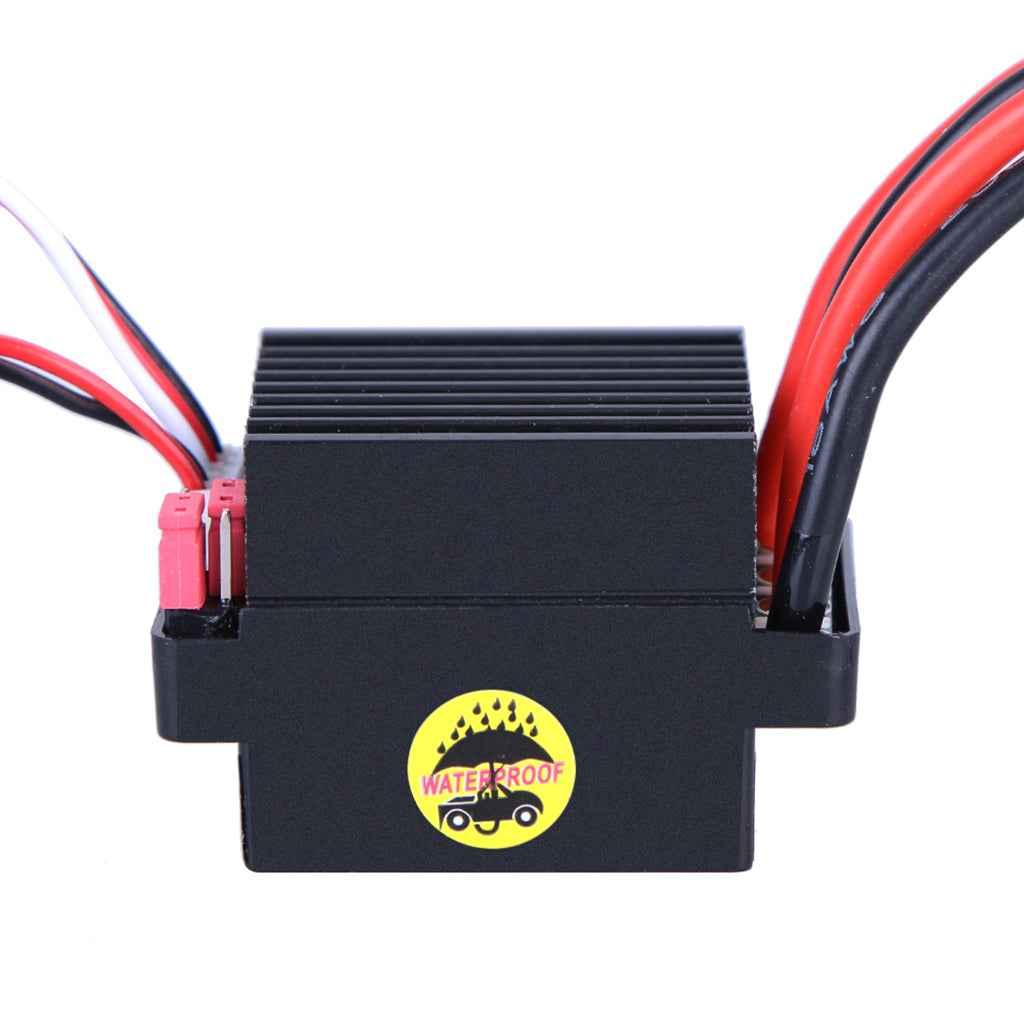

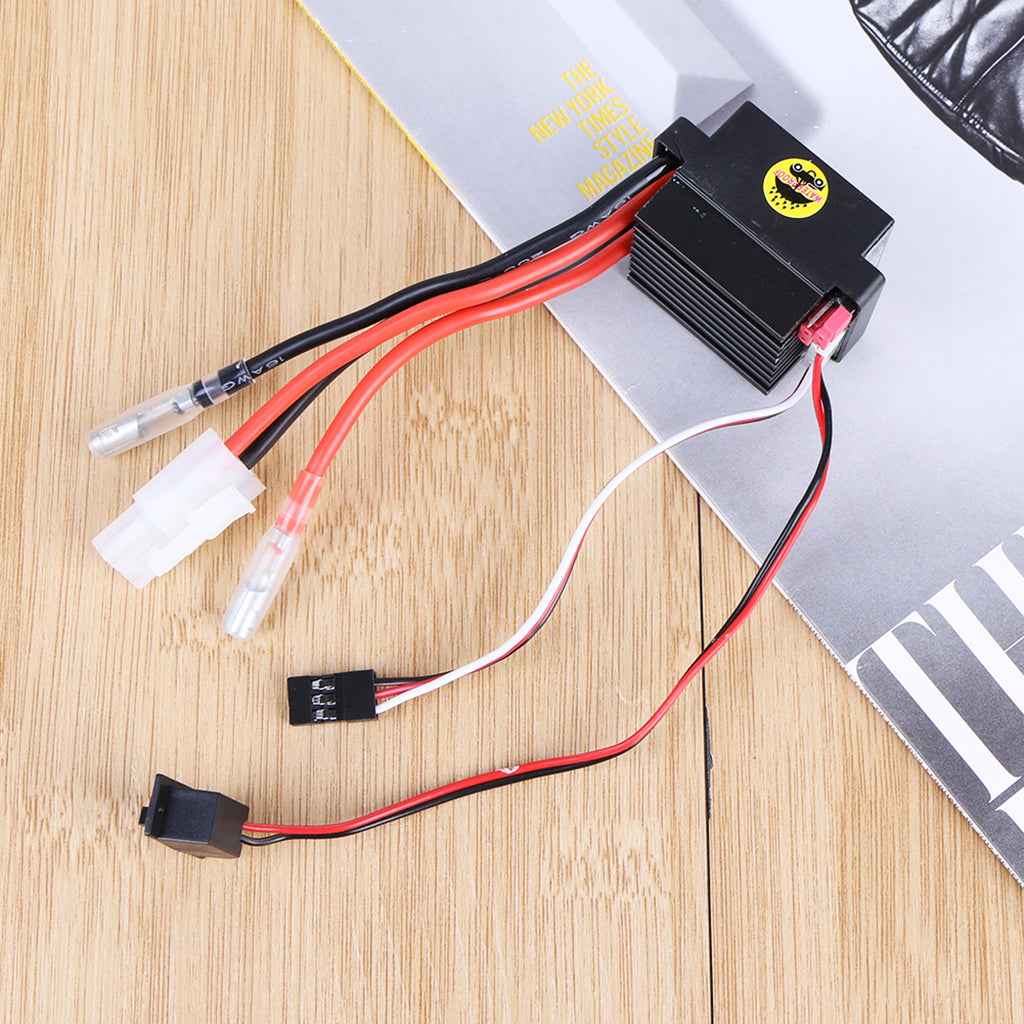

High Voltage 320A Brushed ESC with Brake for HSP 1:10 1:12 RC Car Truck Boat

Description:

High quality motor speed controller 320A high pressure two-way brush ESC with brake waterproof.
Perfect speed controller for HSP 1/10 1/12 rc car/ truck/ boat spare parts.
Low battery protection, overheat protection, startup throttle protection, signal loss protection, and abnormal voltage protection.
It is capable of supplying up to 320 Amps (forward) or 160Amps (backward) of continuous motor current.support 3S lithium battery.
It is small and powerful, which can be used for different types of ship or car When connected with motor.

Specification:

320A two-way brush speed controller:
Material: Plastic.
Forward: 320A
Backward: 160A
Brake: 270A
BEC Output Voltage: 5.6V, Current:2A
Lithium batteries recommend: Ni-mh, Ni-Cd 4-6S(4.8V-7.2V),Lithium battery 3S(7.4V-11.1V)
Weight: 40g
Size:43x29x27mm/1.69x1.14x1.06inch.

Package Includes:

1 Piece Brush ESC 320A

Note:

The motor support 3S(12V), less than 380 motor, support 2S(8.4V) less than 540 motor.
