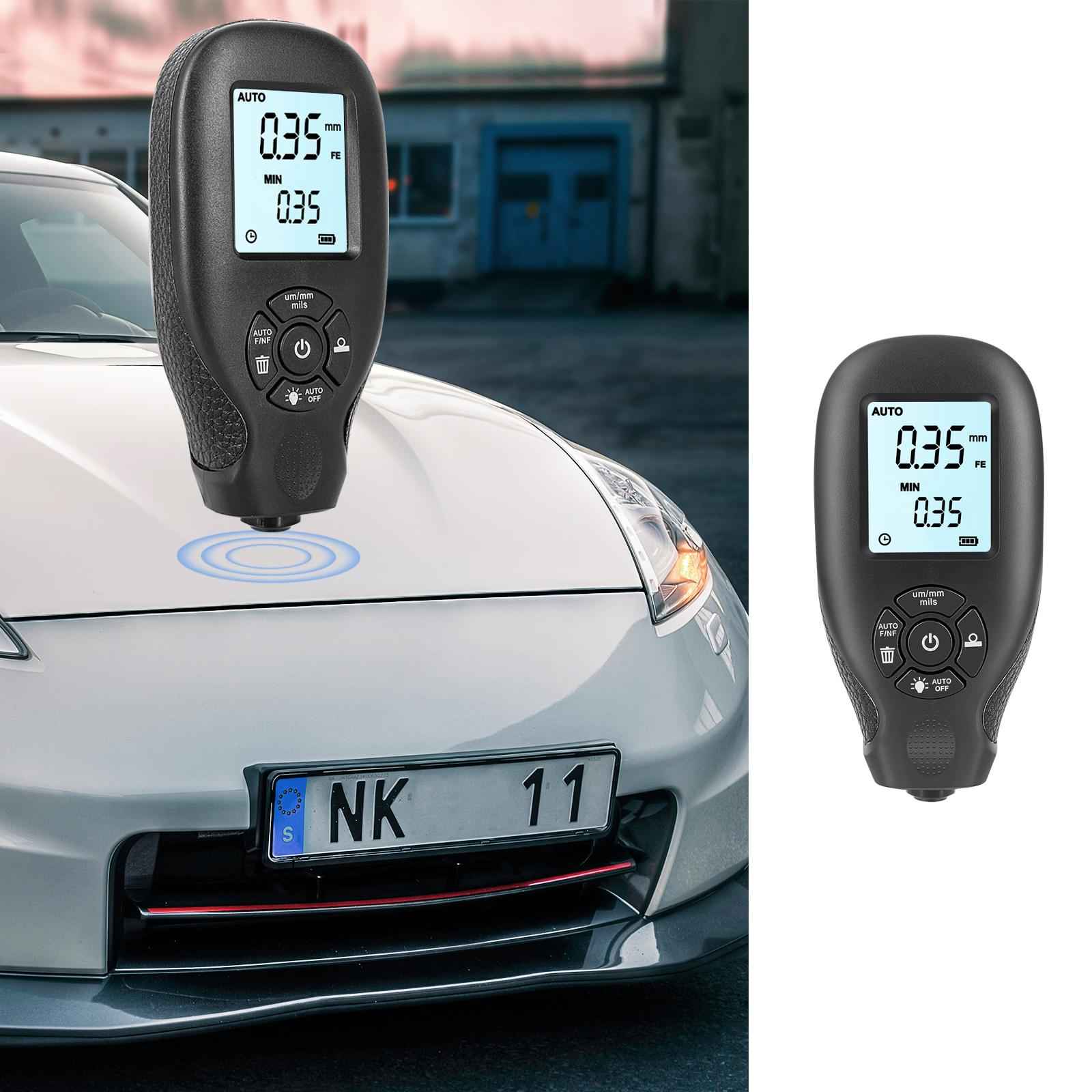

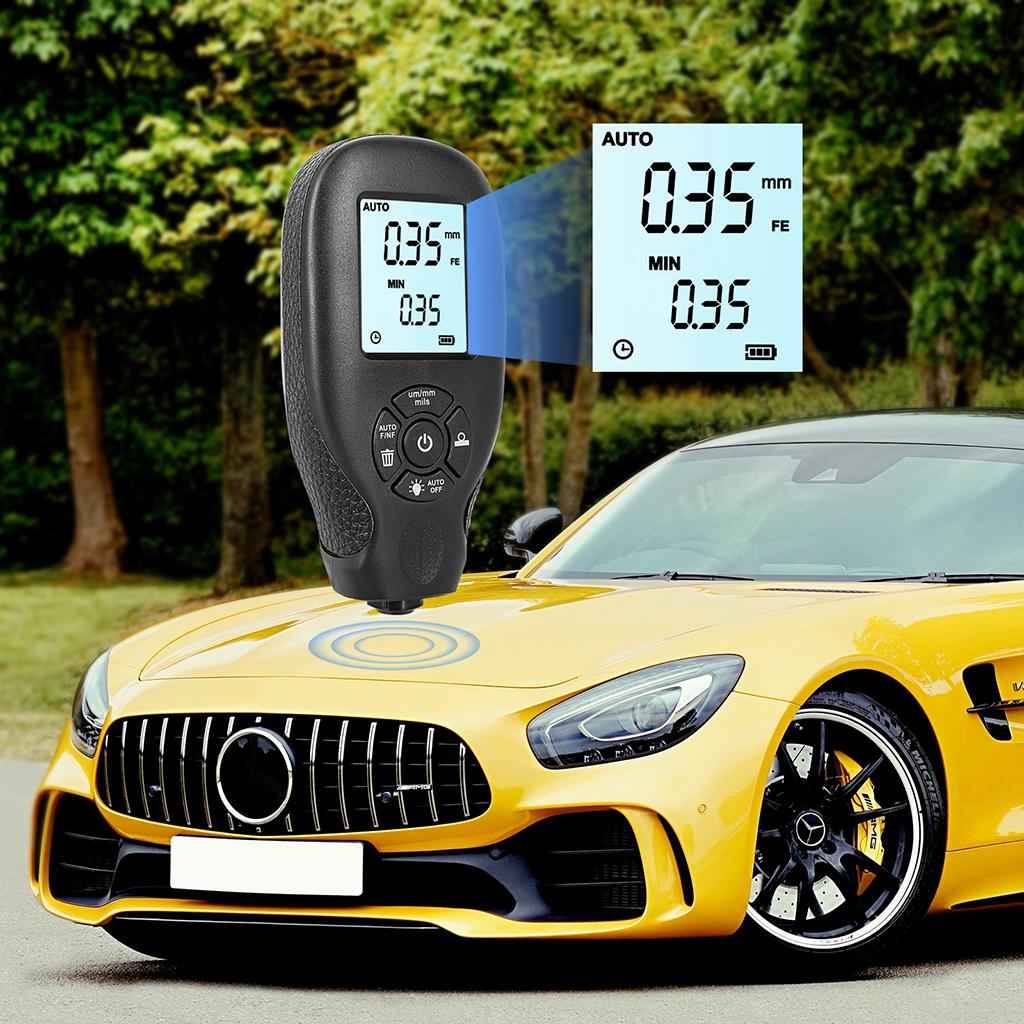

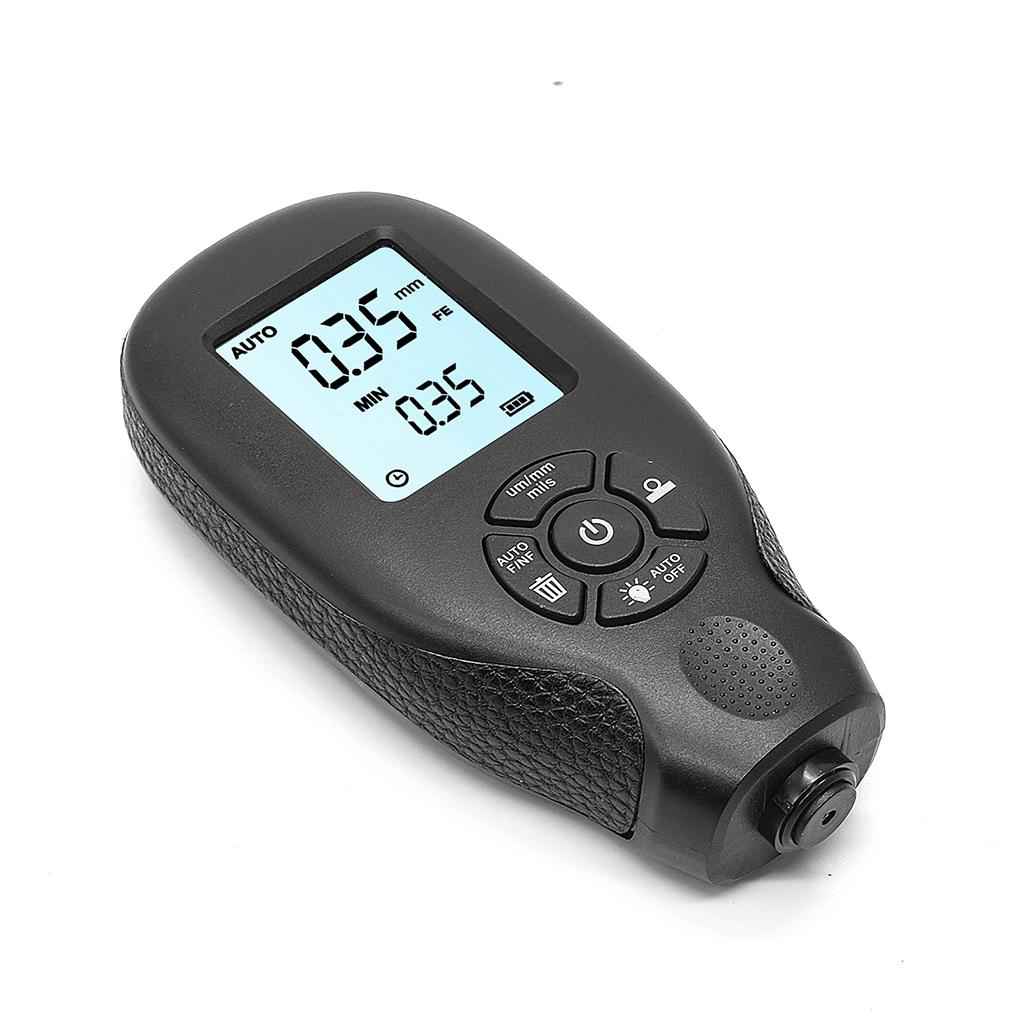

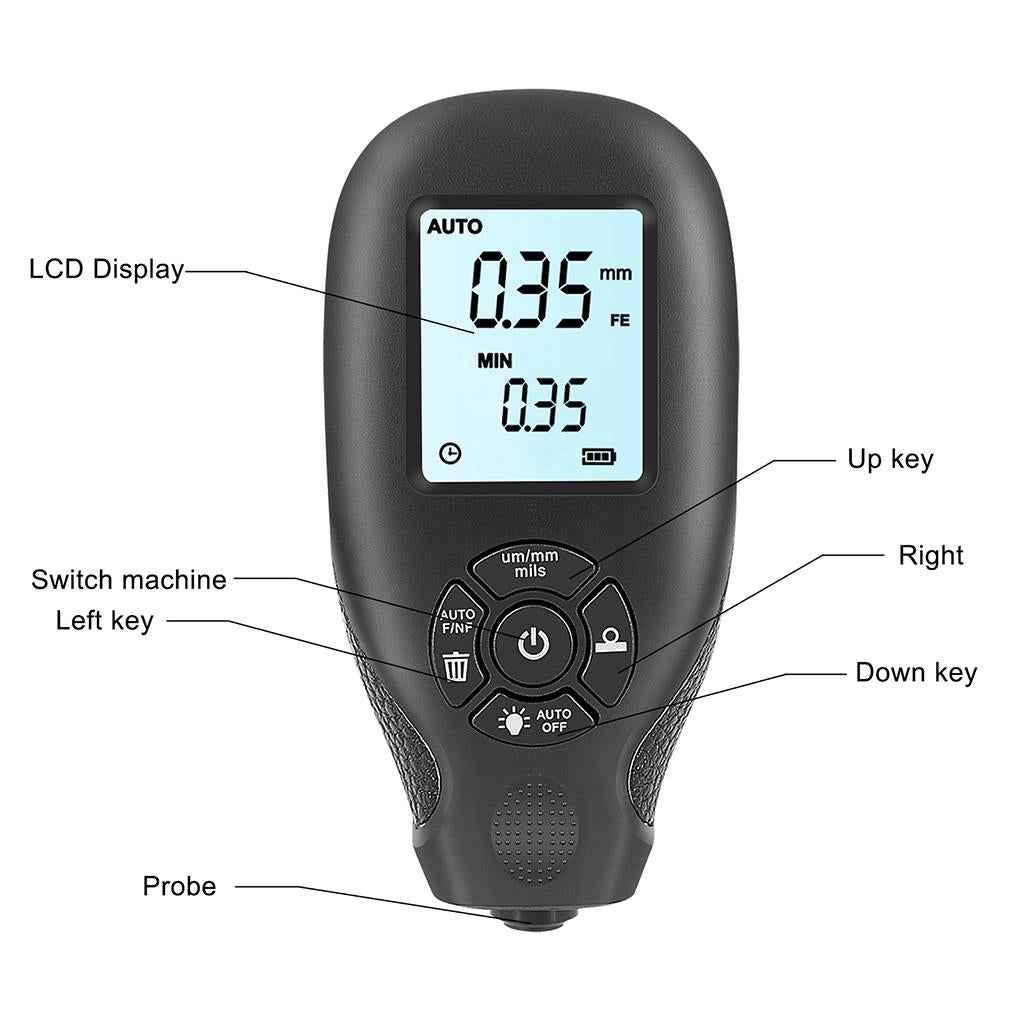

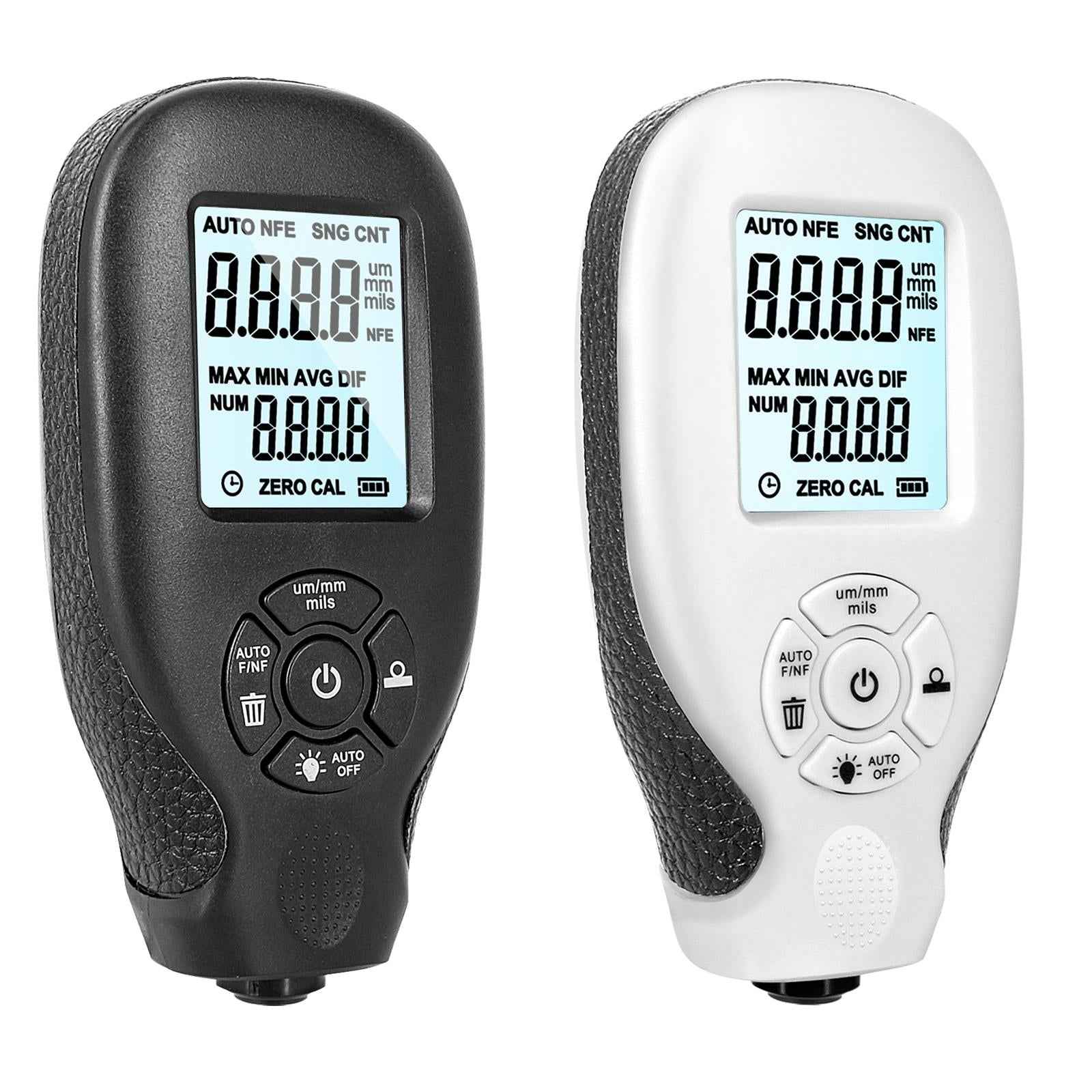

HW-300 Coating Thickness Gauge for Car Digital Paint Meter Black Accessories

Description:

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper.
The measuring range is 0-2000UM.
The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.

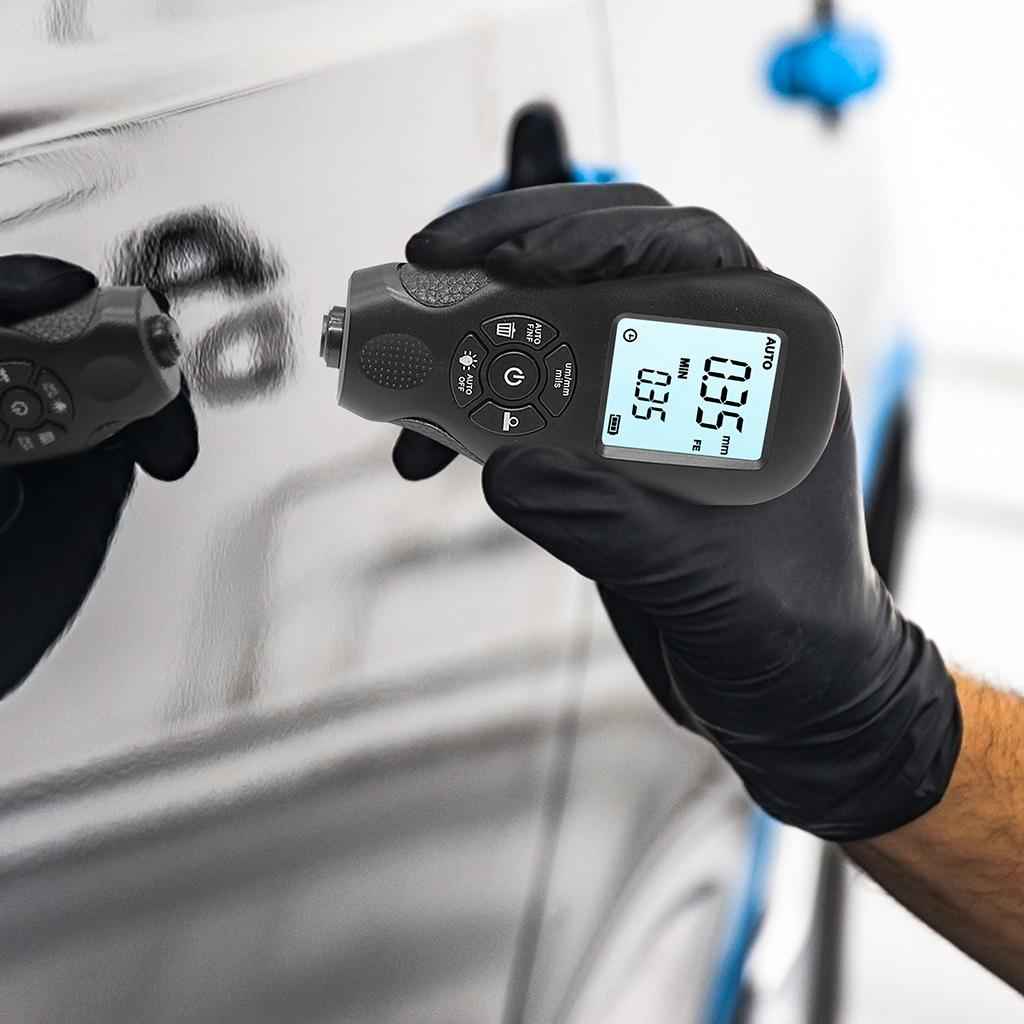

The Gauge is designed for non-destructively measuring the thickness of coating and painting.
It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemic industry, commodity inspection area

Specification:

Product name: HW-300 coating thickness gauge
Size: 110x52x25mm/4.3x2x1 inch
Material: ABS
Resolution: 0.01mm/1mil
Measuring range: 0-2000UM
Measurement accuracy: ±(3%+1UM)

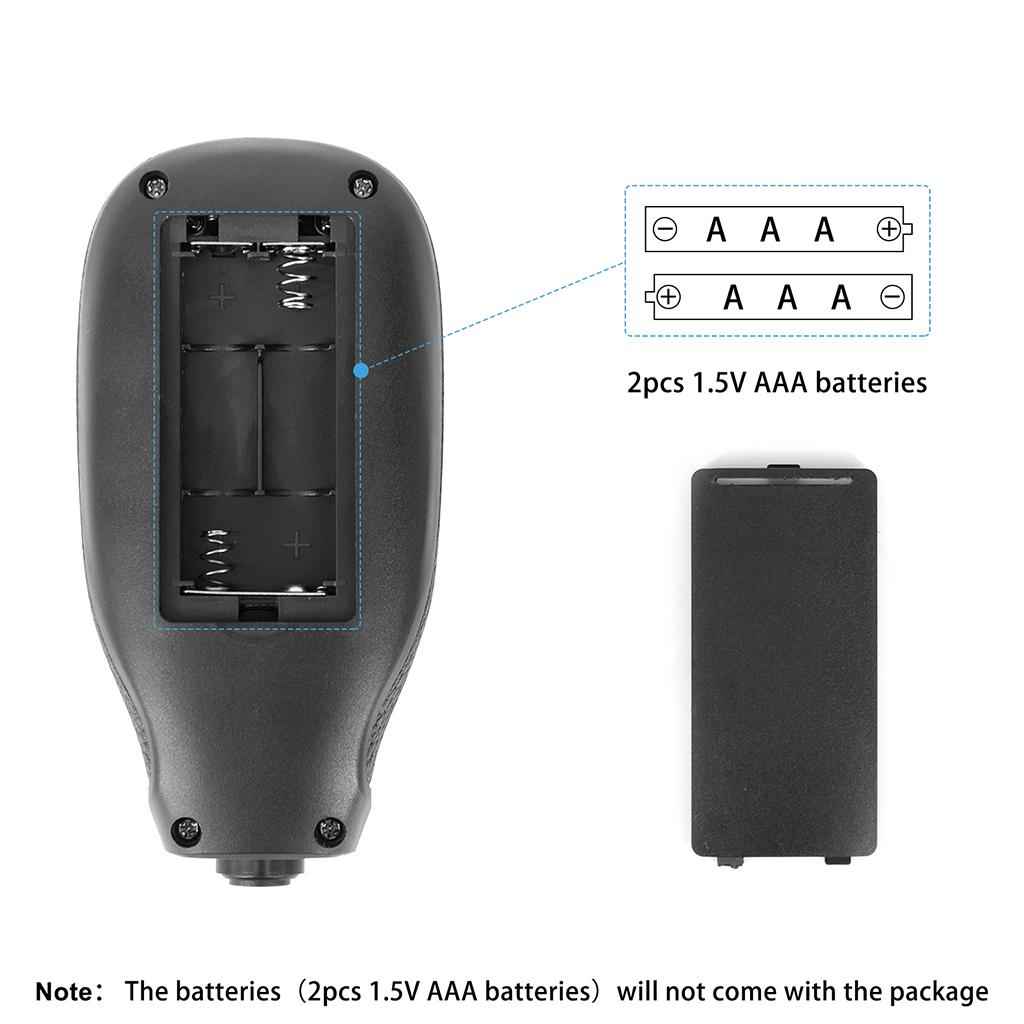

Power supply: 2 1.5V AAA batteries (not included)
Operating temperature: -10 degrees Celsius 50 degrees Celsius

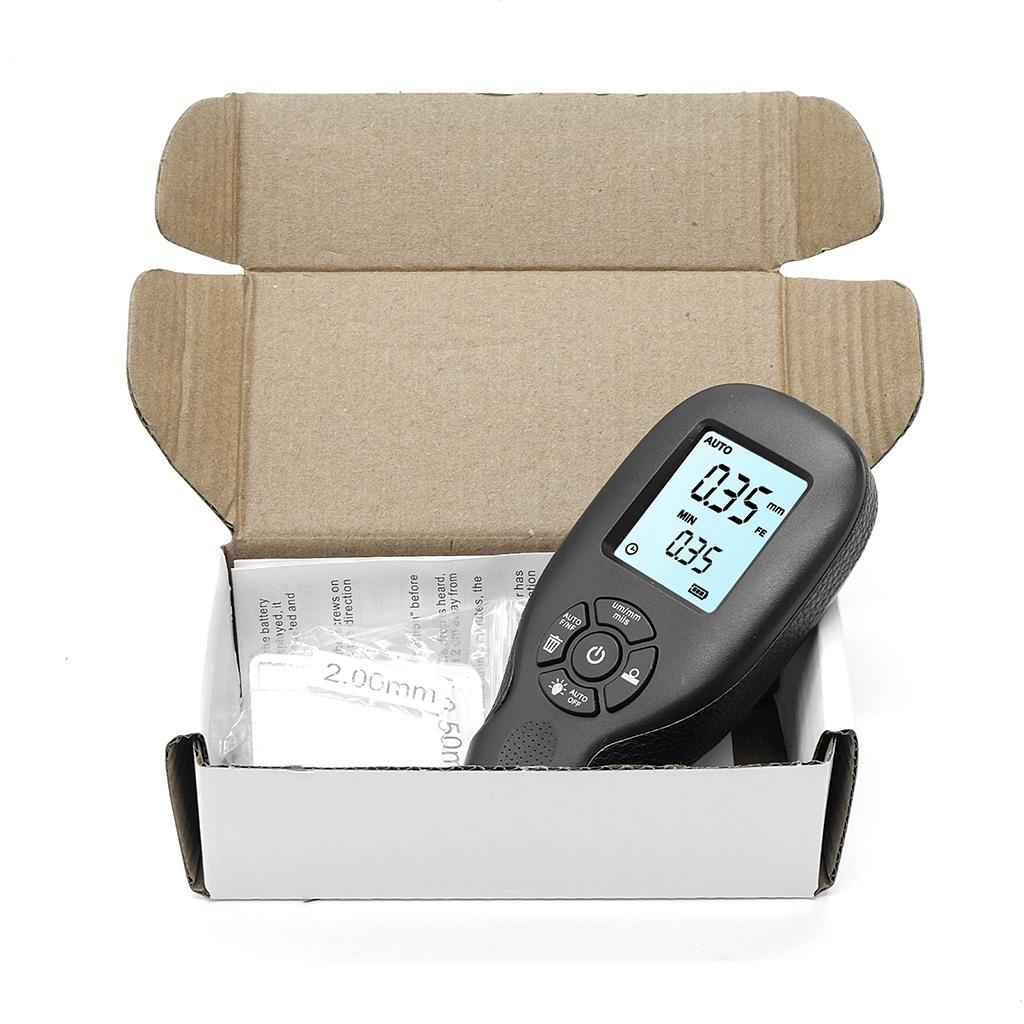

Package Includes:

1 x Thickness gauge
1 x Manual
1 x Calibration sheet
