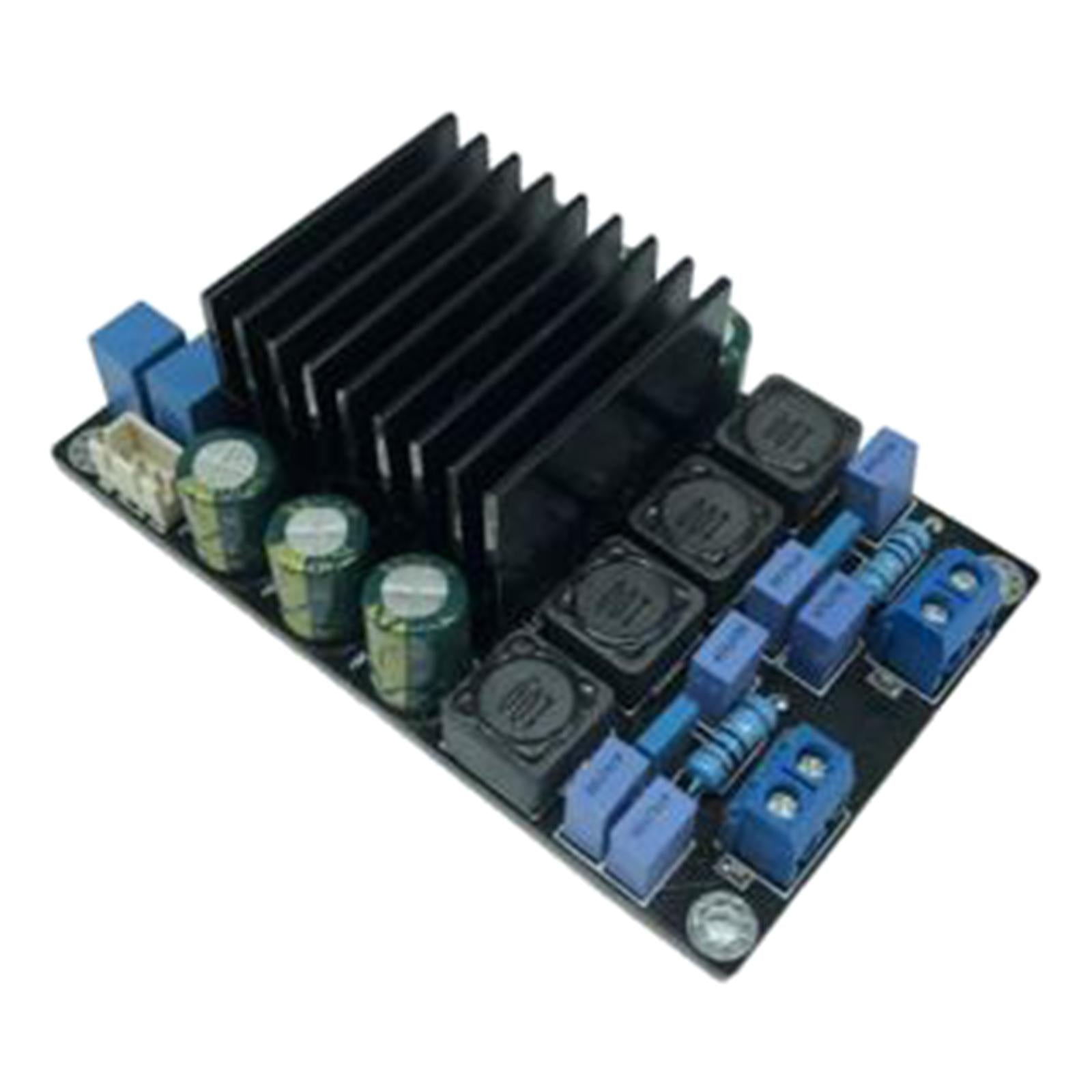

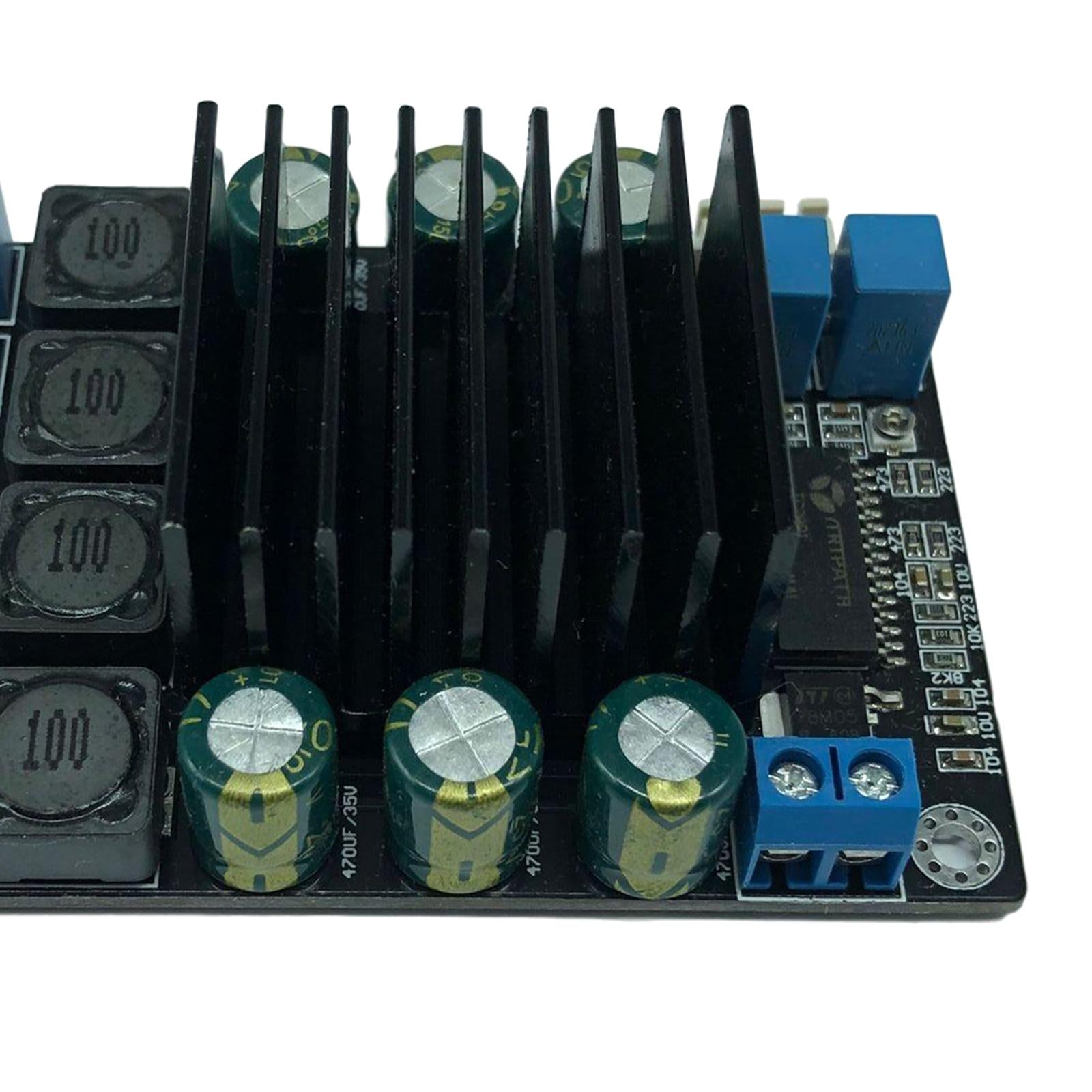

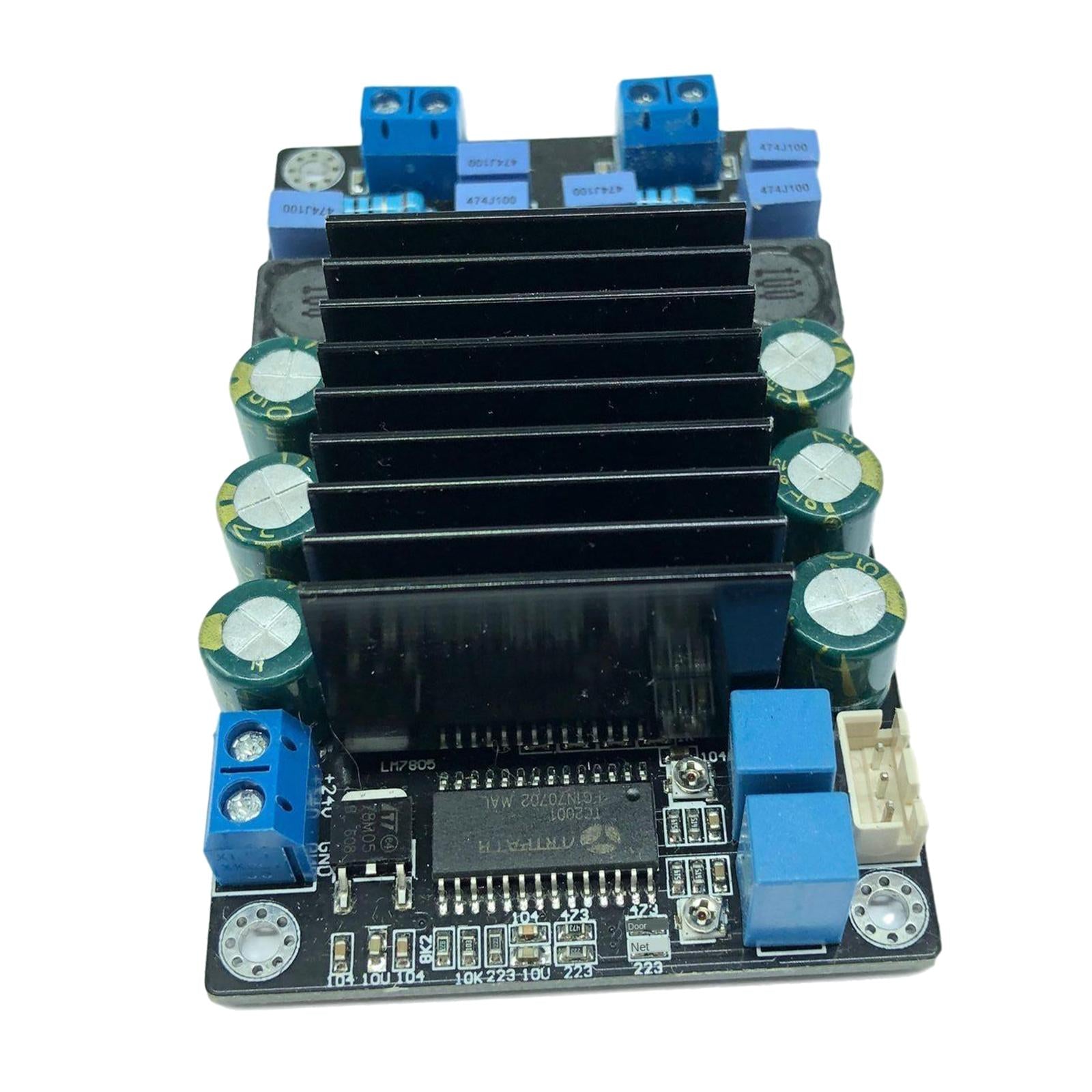

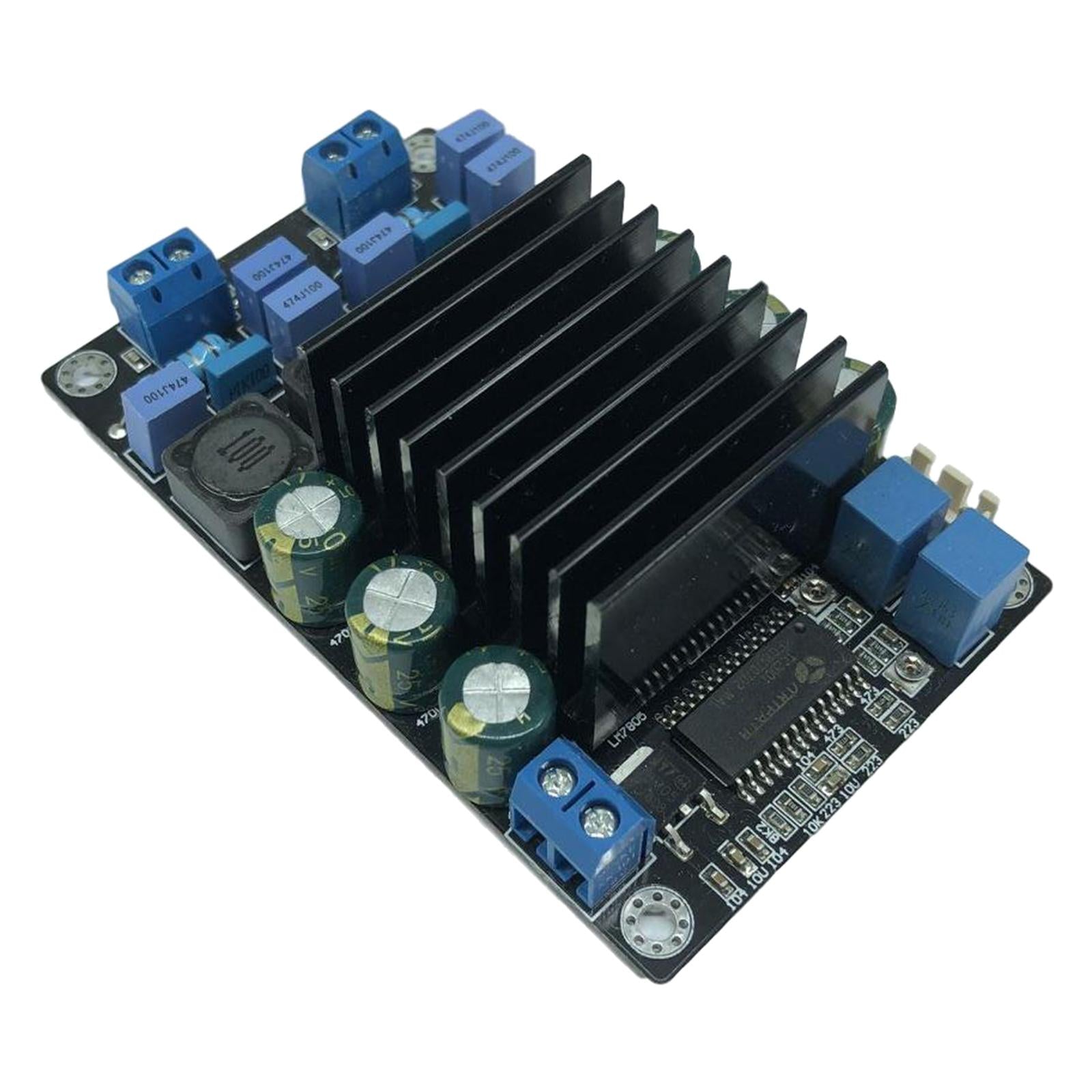

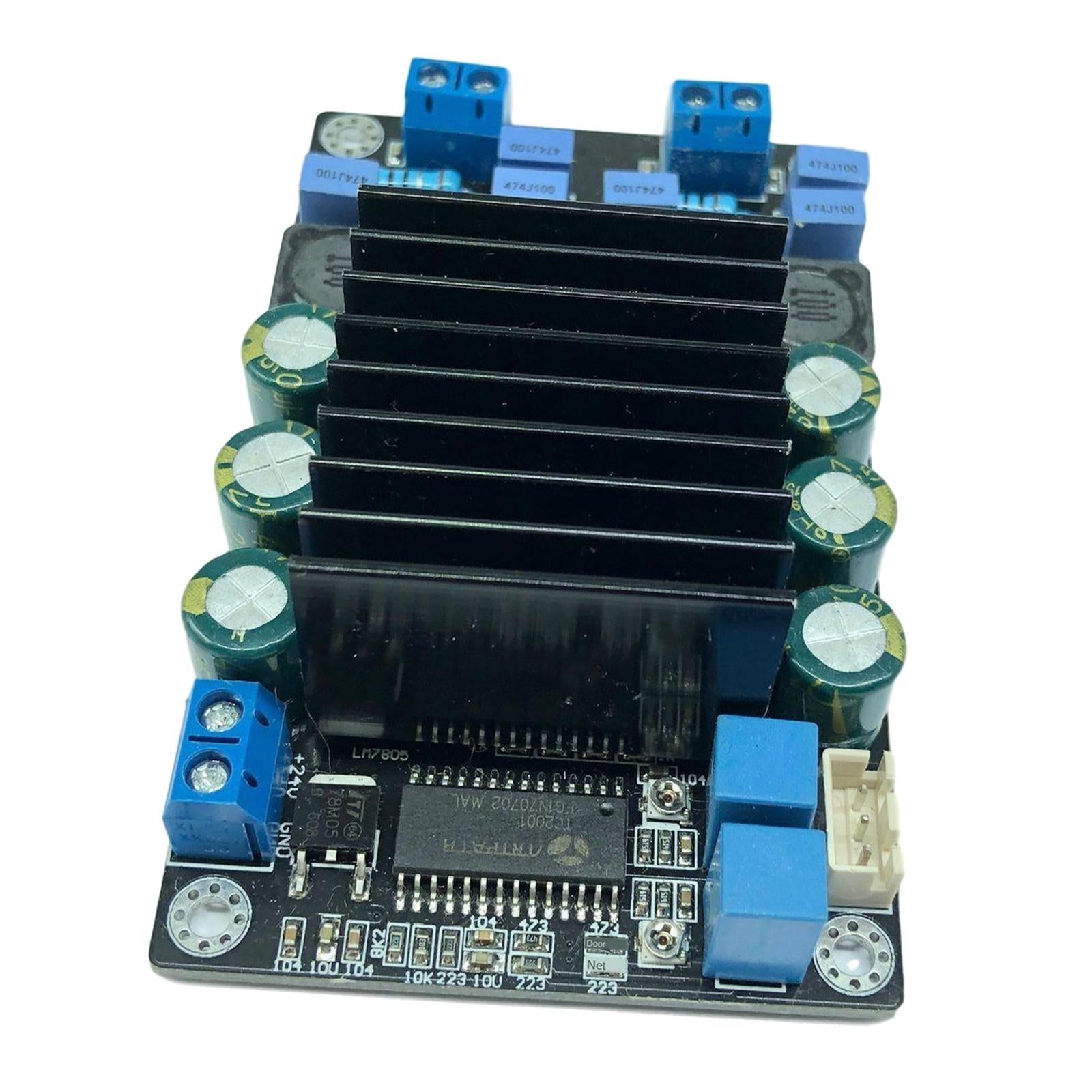

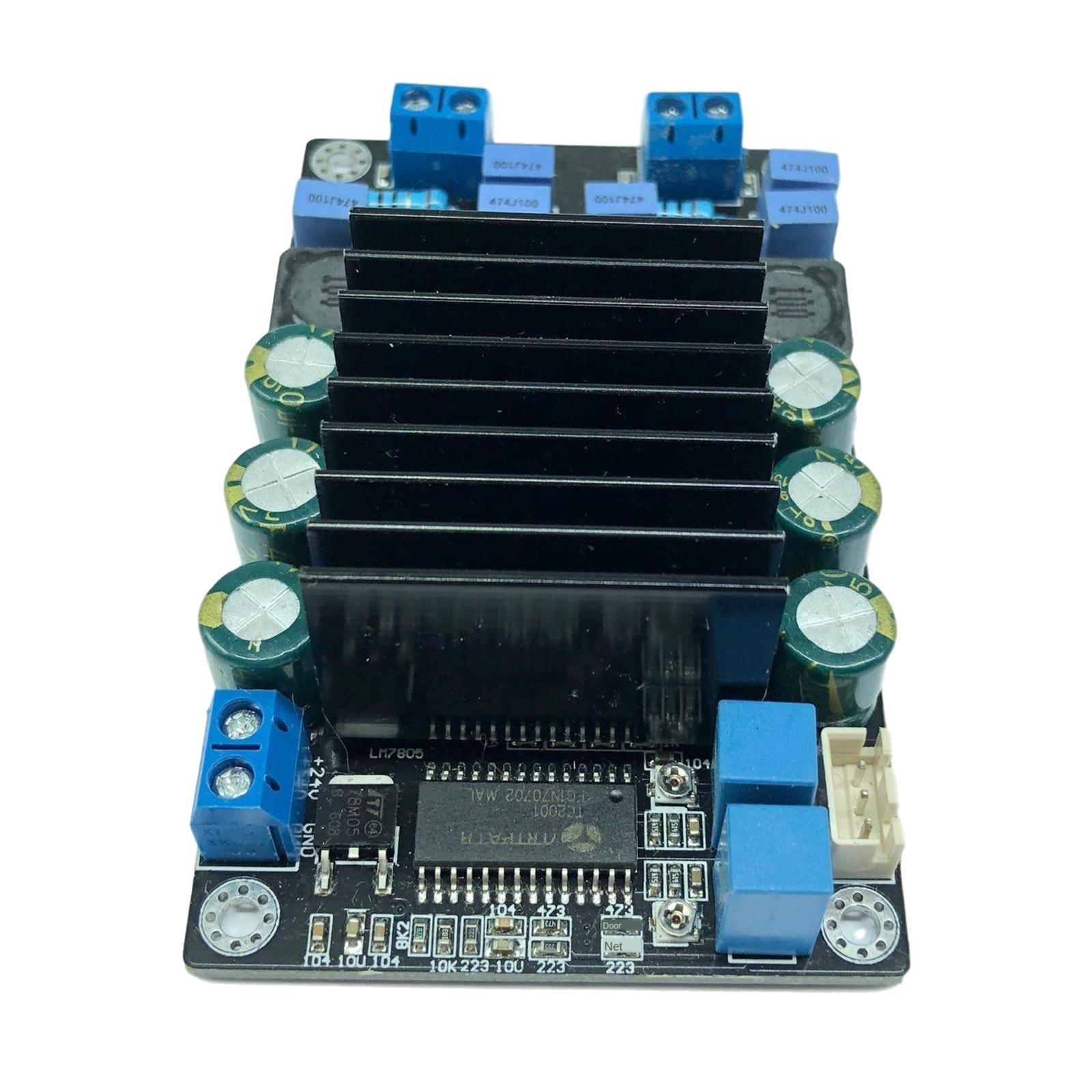

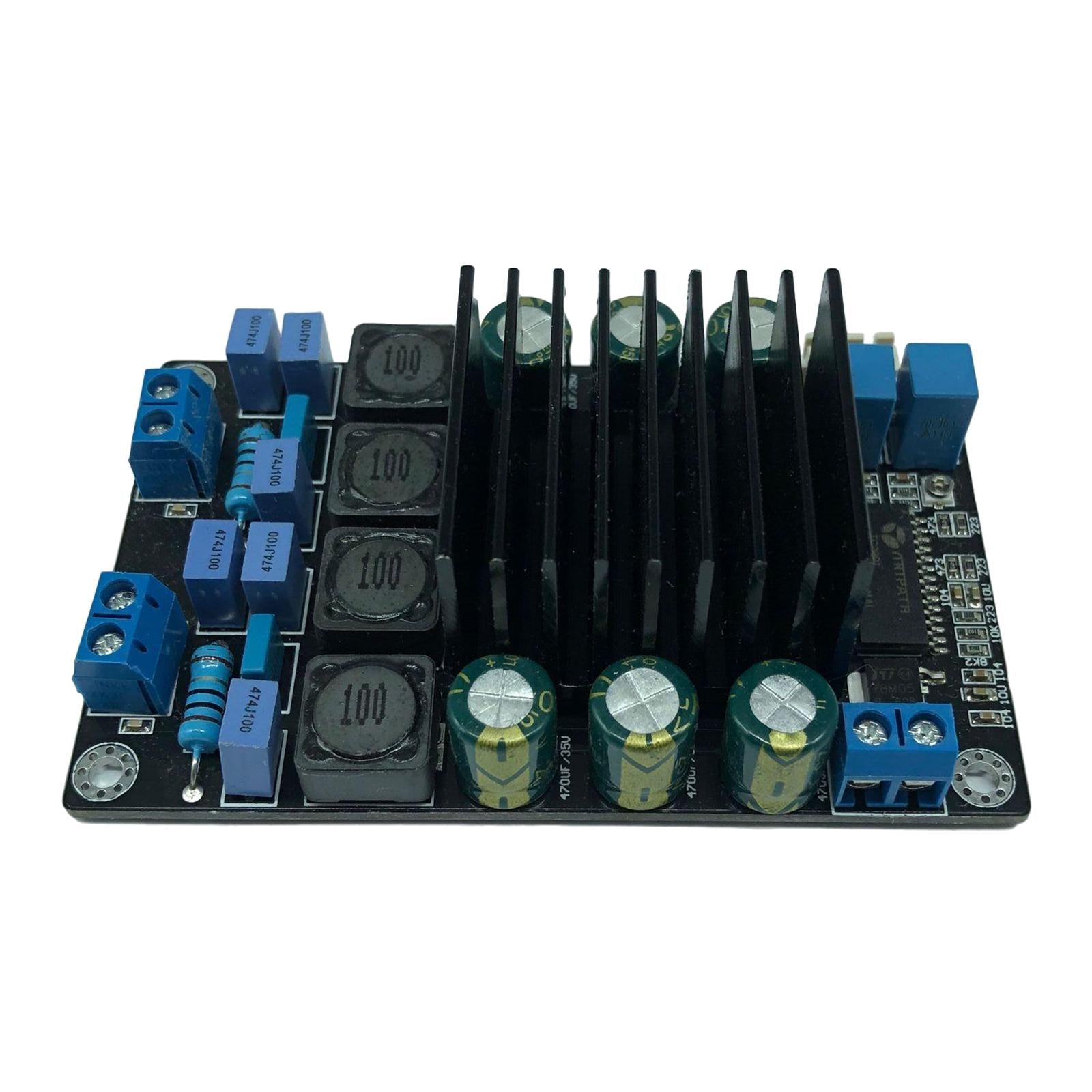

IRS2092 Audio Power Amplifier Board Small Size Assembled Board 20Hz-20KHz

Description:

Using original IRS2092, IRFI4019, small size, big power
Electrolytic capacitor signal main circuit using international brands, the main filter capacitor using a capacity 330UF/100V * 2, to ensure strong support for a steady stream of power
Resistance selection 08,050,603 high precision chip resistors, ensure the machine a good signal to noise ratio
1.6mm thick sheet using double-sided PCB, 2.0 oz copper thickness, HASL whole process to ensure that the size of the current through the good performance. PCB-class quality
Using 20A high current shielded inductor, ensuring crisp and powerful sound

Specification:

Work: Class D
Quiescent Current: 20mA
Efficiency: 90%
Rated Output Power: 200W
Frequency Response: 20Hz to 20KHz
Operating Voltage: +-30V to +-60V
Recommended Supply Voltage: +-50V
Maximum Output Current: 8A

Size Chart:

PCB Size: 87x58mm / 3.43x2.28inch

Package Includes:

1 Piece Amplifier Board

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
