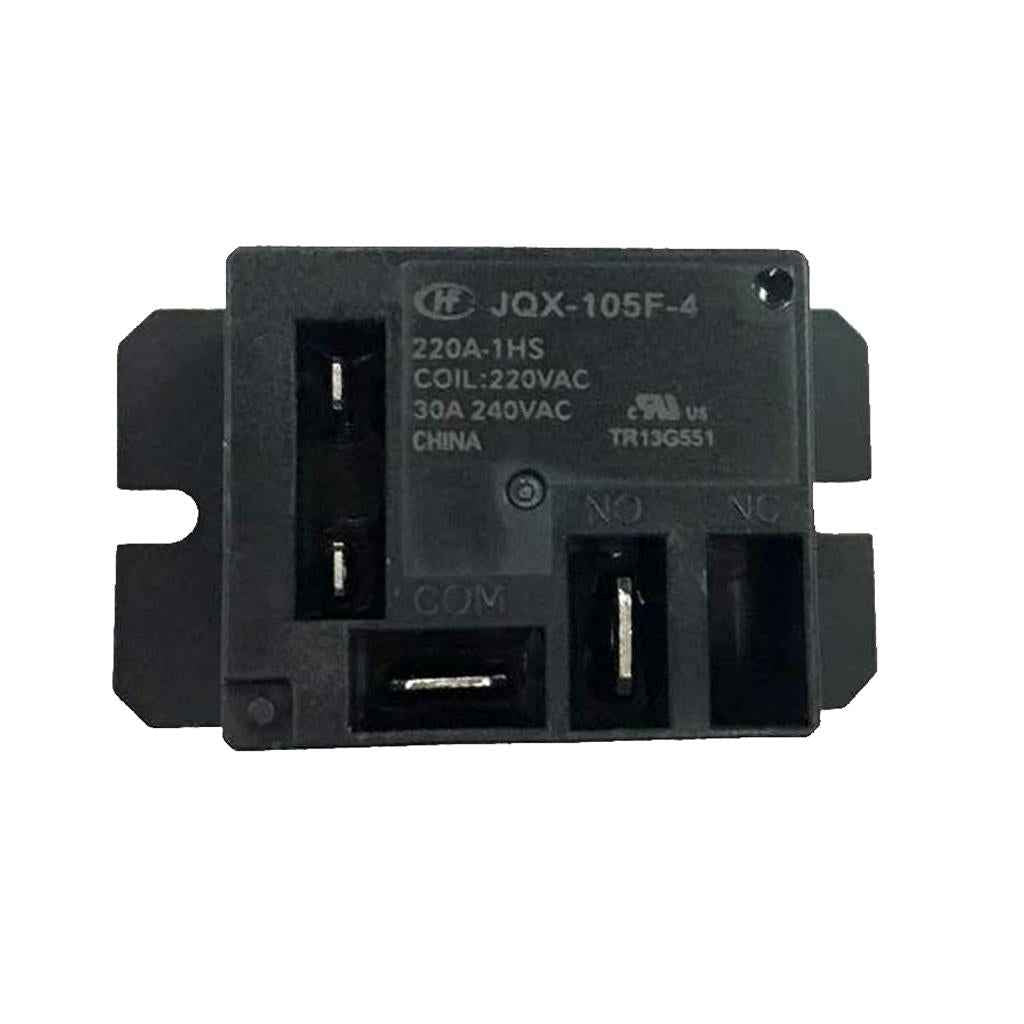

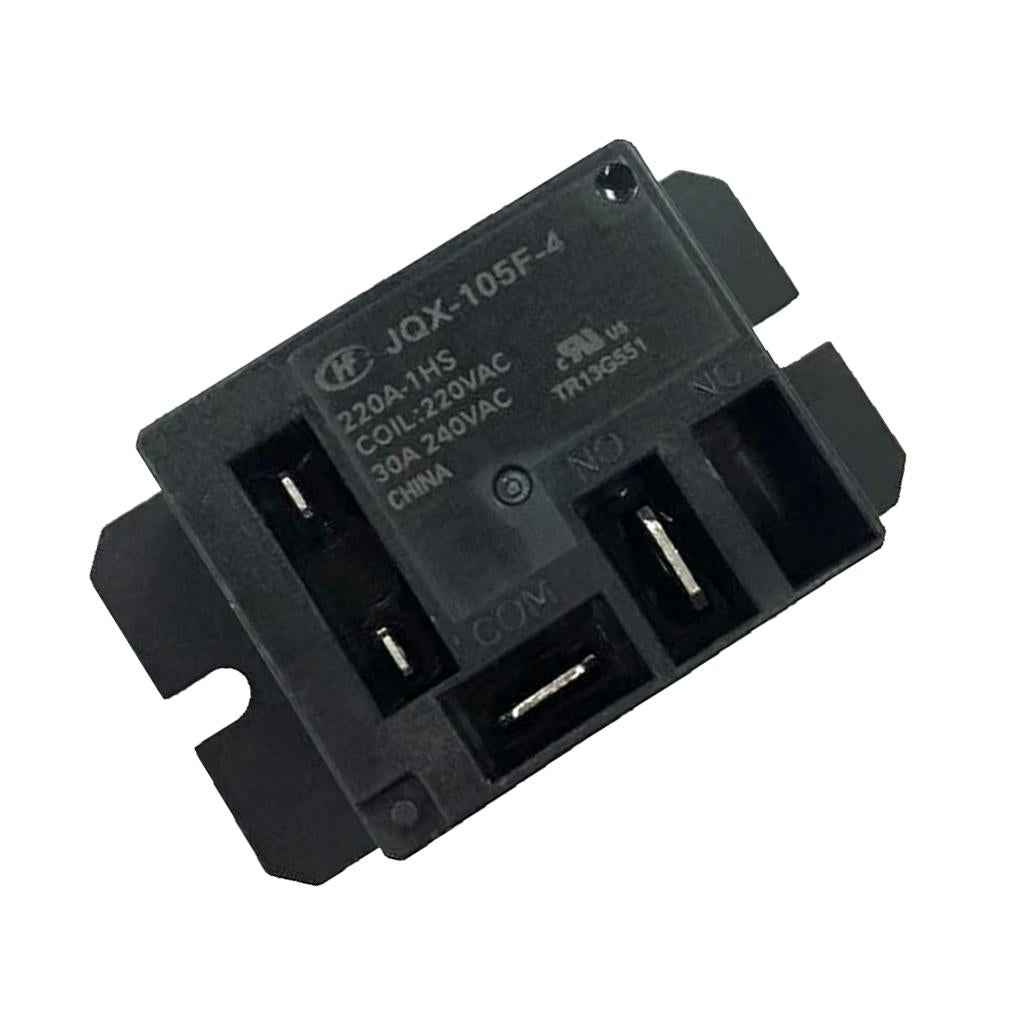

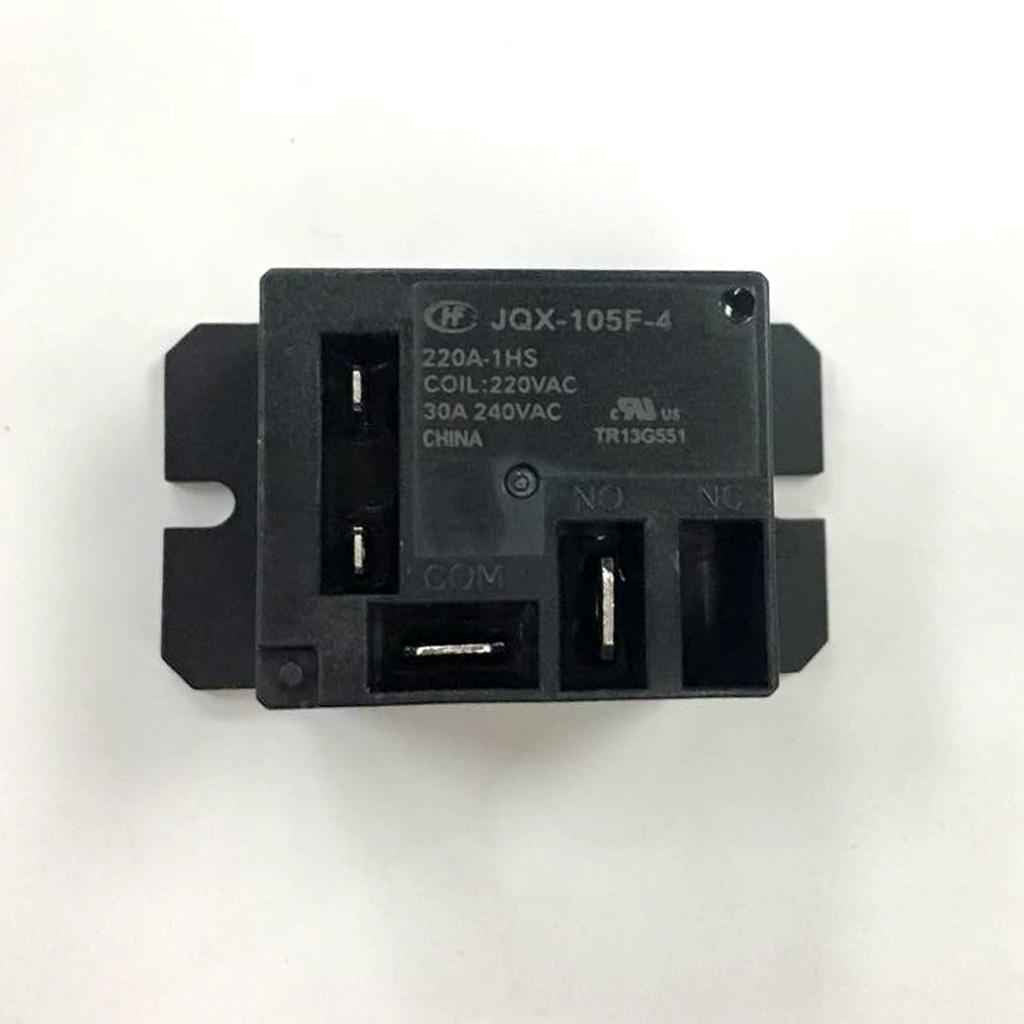

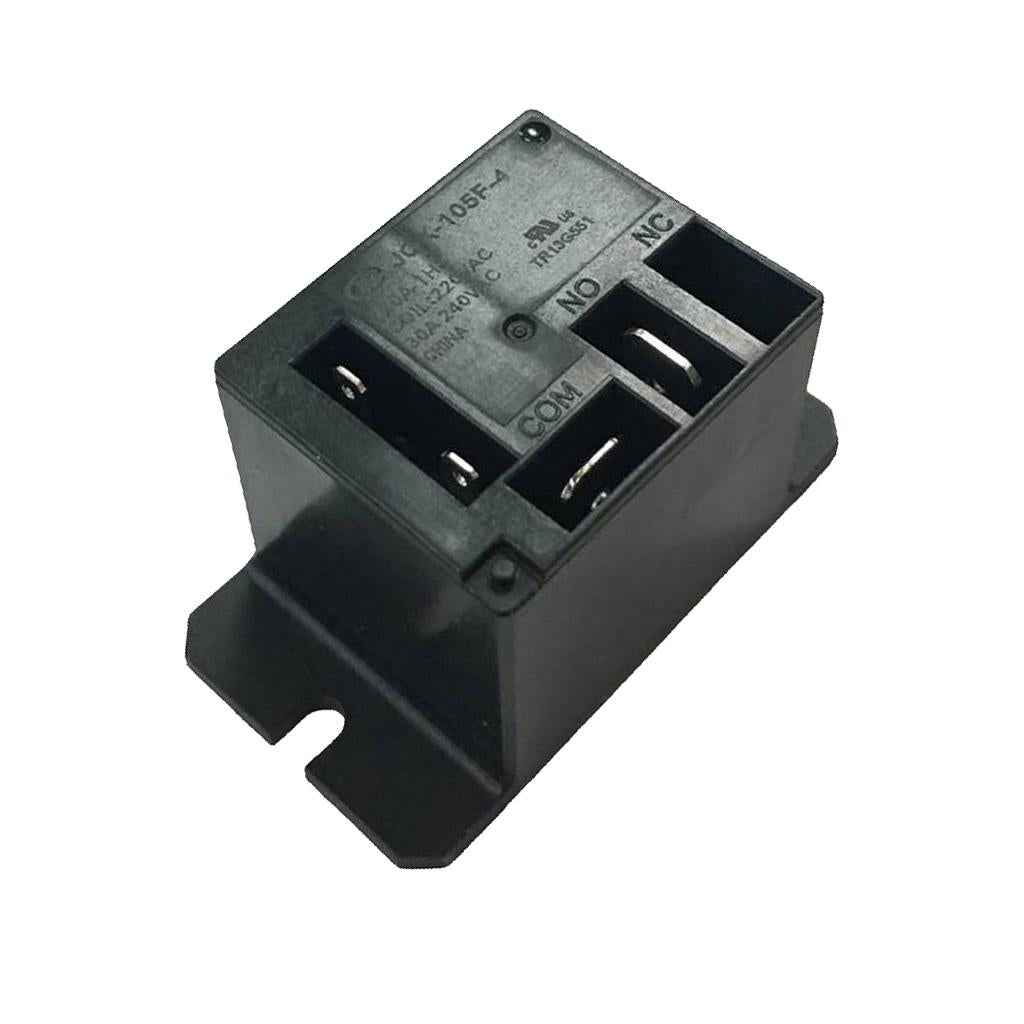

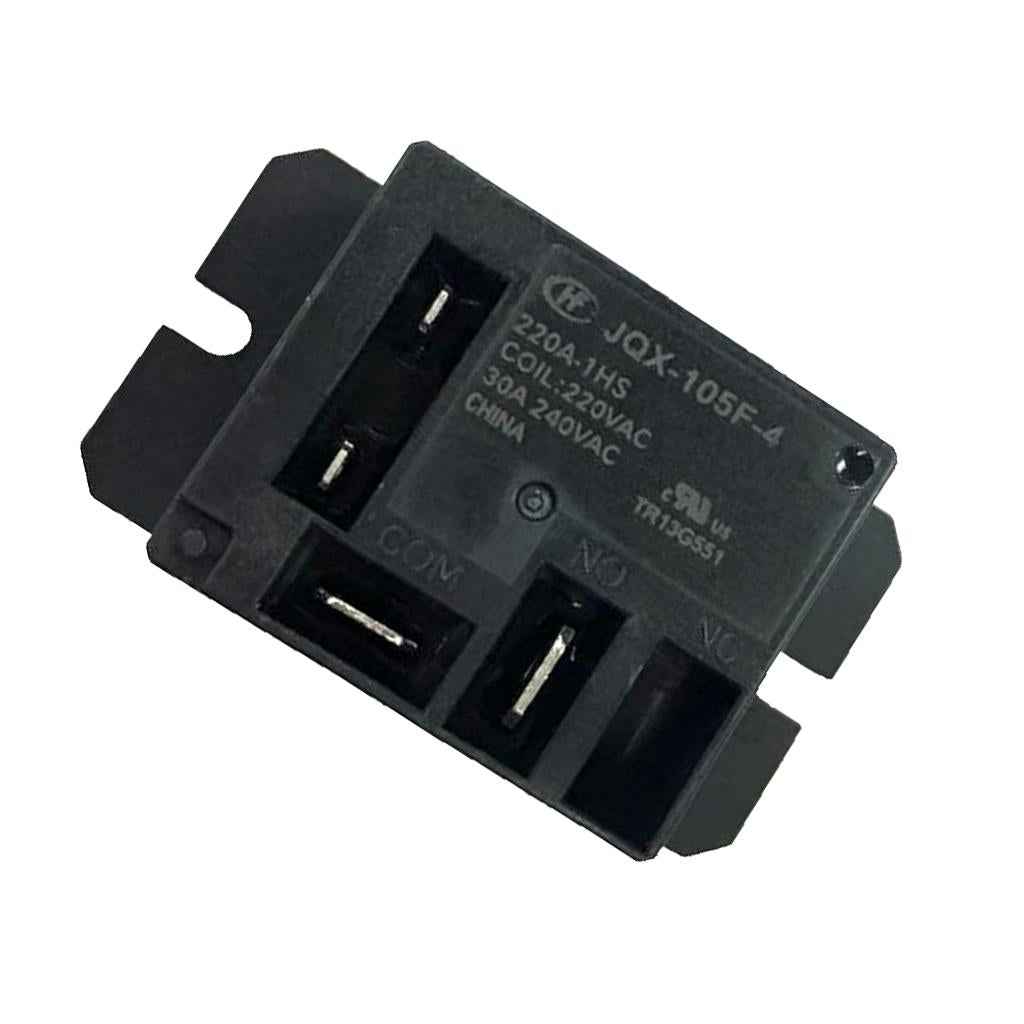

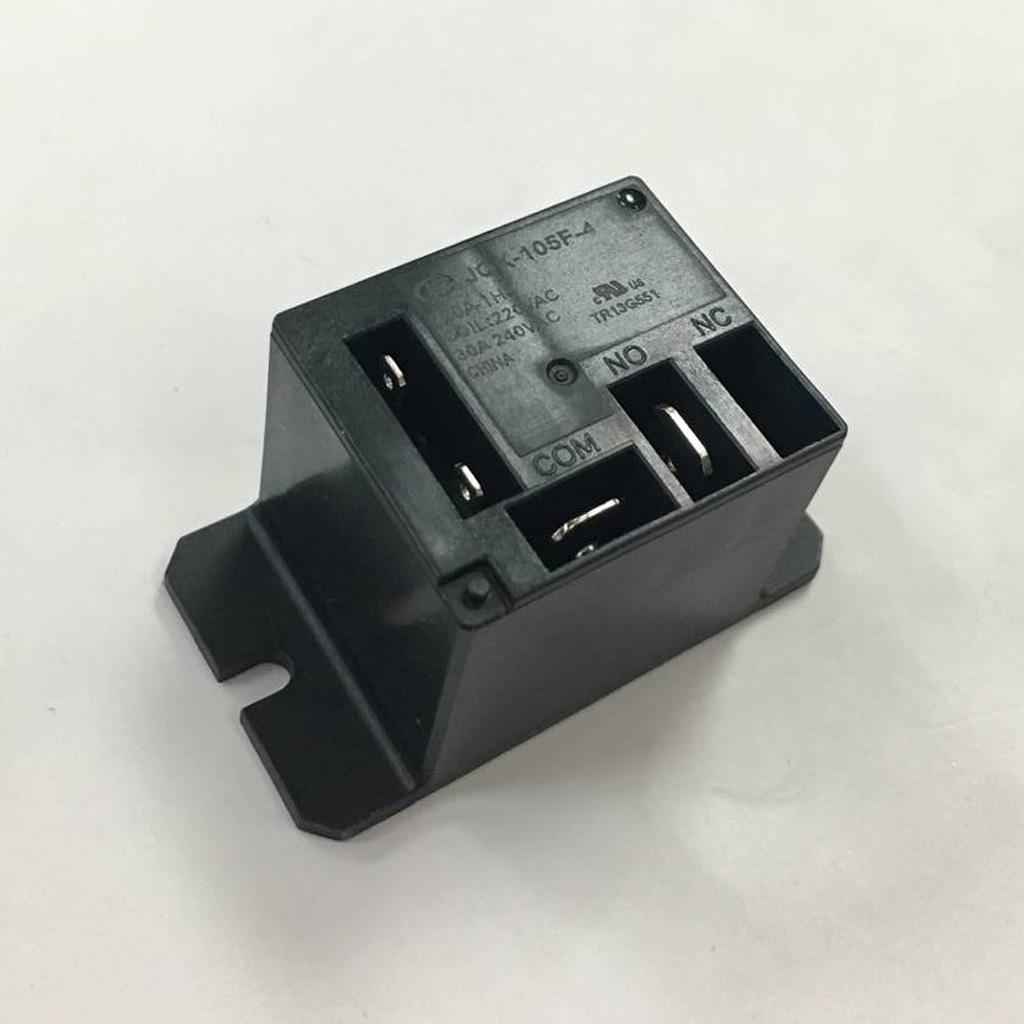

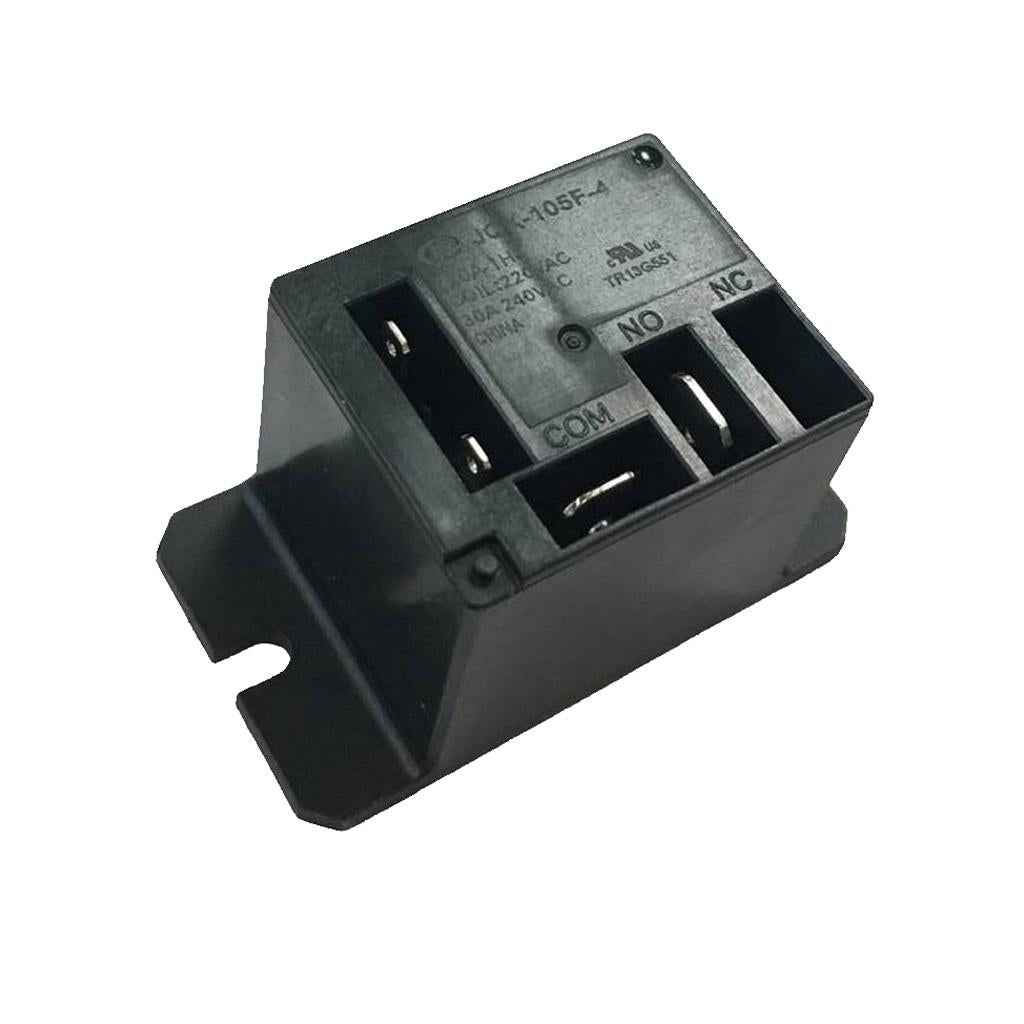

JQX-105F-4 220A-1HS Relay High Power Relay 30A Contact Switching Capability

Description:

30A contact switching capability
Withstand voltage between the contacts and the coil is 2.5kV
Printed board terminals, coils and contacts for fast connection
Environmental-friendly (RoHS certificated), Class F coil insulation
Size: 50.2 x 27.5 x 27.8 mm

Specification:

Insulation Resistance: 1000MΩ (500VDC)
Withstand Voltage: between coil and contacts 2500VAC 1min
between disconnect contacts 1500VAC 1min
Movement Time: ≤15ms
Release Time: ≤10ms
Impact: Stability 100m/s²(10g)
Intensity 1000m/s² (100g)
Vibration: 10Hz~55Hz 1.5mm Double-amplitude
Weight: About 36g

Package Includes:

1 Piece Mini Power Relay
