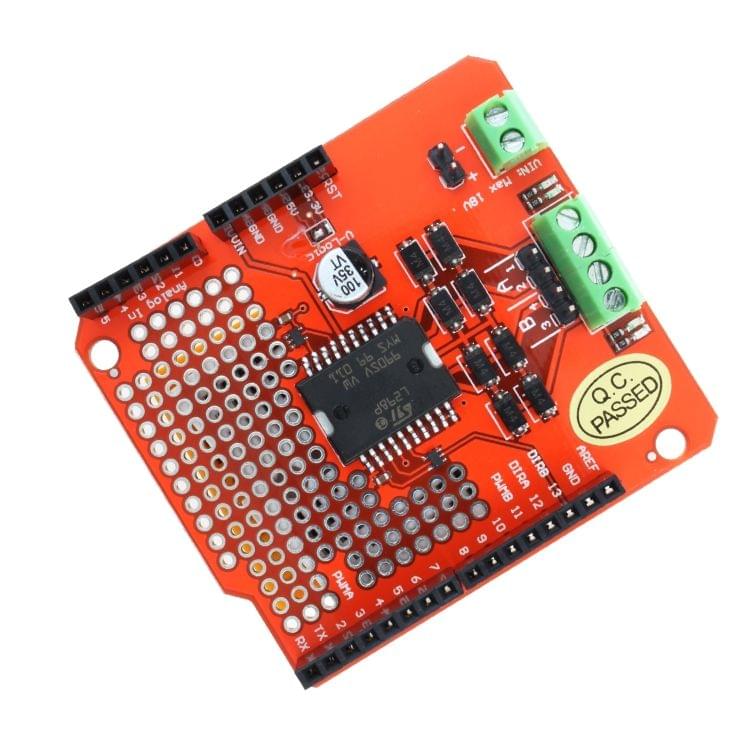

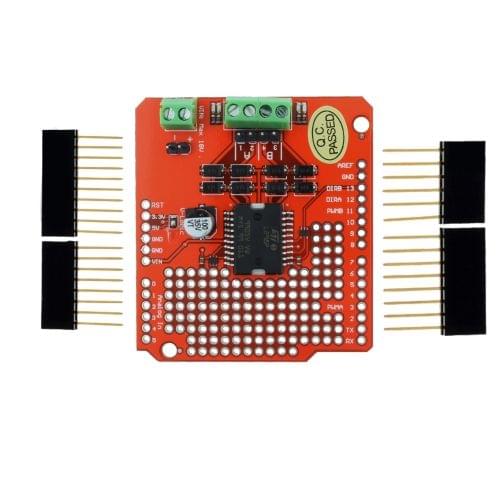

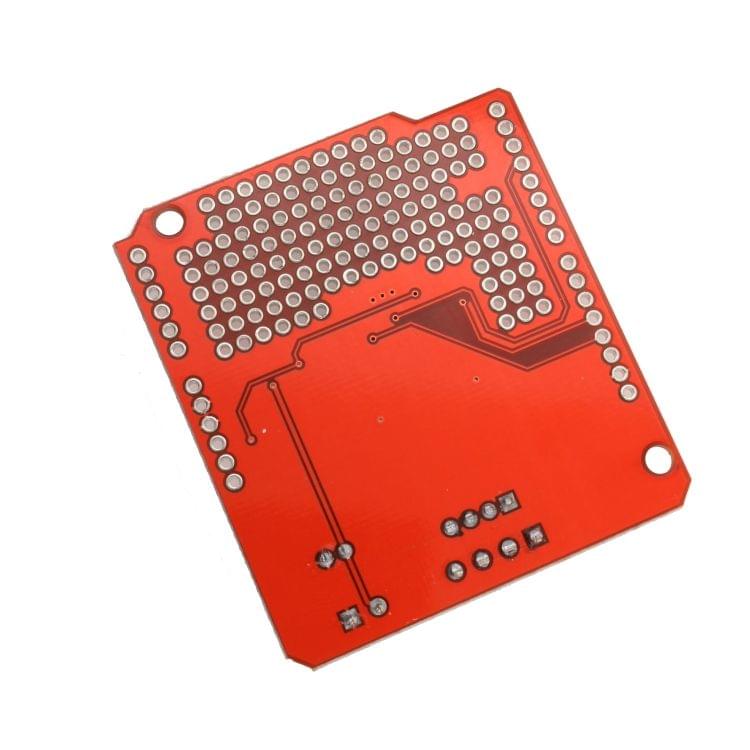

About L298P 1. L298P Shield DC motor driver adopts the L298P driver chip wich is exclusively made for large-power motor. It can drive 2 DC motors directly with a drive current reaching 2A. The motor output is equipped with eight high-speed schottky diode as protection. This driver carries neat circuit layout and bonded components, in addition, the multi-layer design enables it to be plugged to Arduino directly. 2. L298P Shield DC motor driver carries PWM and PLL modes and the mode is switchable by jumpers. The motor can be powered via Arduino VIN input or terminal input on the driver, which are switchable by jumper.
Specification 1. Logic part input voltage VD: 5V 2. Driving part input voltage VS: VIN input 6.5~12V, PWRIN input 4.8~24V 3. Logic part working current Iss: =<36mA 4. Driving part working current Io: =< 2A 5. Maximum dissipation power: 25W (T=75degree C) 6. Control signal input level: High level: 2.3V =< Vin =< 5V Low level: -0.3V =< Vin =< 1.5V 7. Working temperature: -25 degree C??130 degree C 8. Driver form: Dual power H bridge driving 9. Brand: Landa tianrui 10. Model: LDTR-WG0213 11. Quantity: 1 piece 12. Color: Red 13. Material: PCB 14. Dimensions: 6 cm x 5.3 cm x 2.3 cm 15. Weight: 33g 16. Package List: - 1 x L298P Expansion Board - 1 x Female pin header
