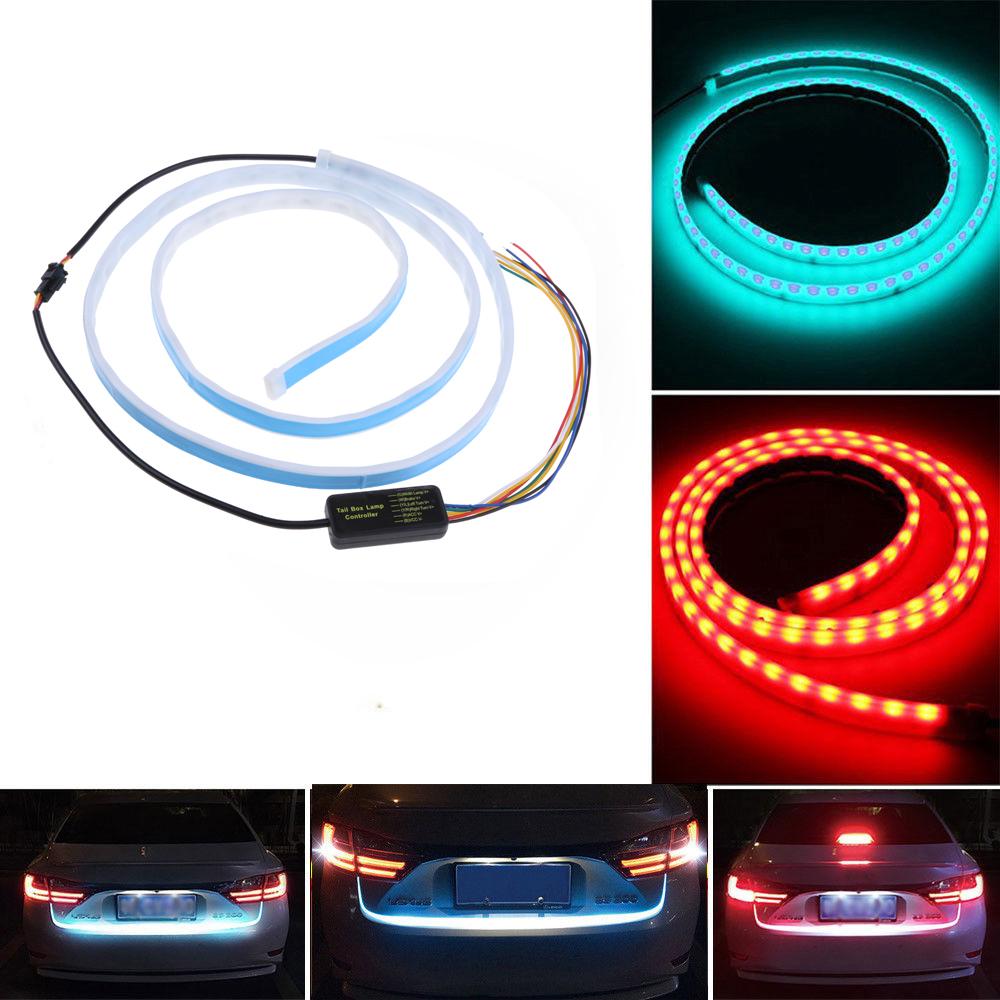

LED Car Trunk Lighting Neon Strip Car Flexible Decorative Light Lamp 47inch

Description:

This LED tailgate lighting bar you can mount them along the tailgate as taillights, left/right turn signal lights, brake lights, and backup reverse lights.

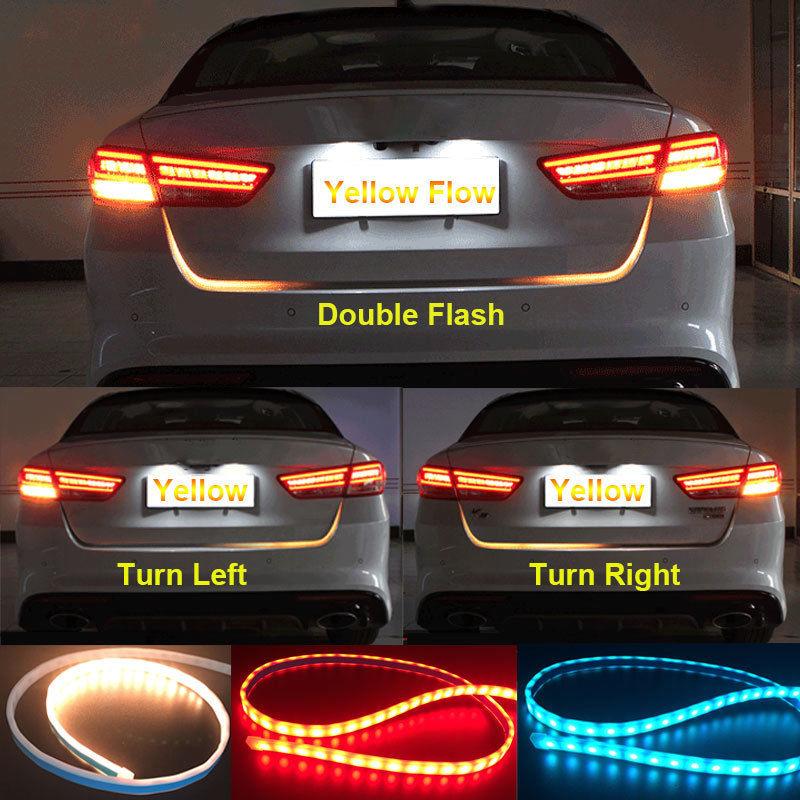

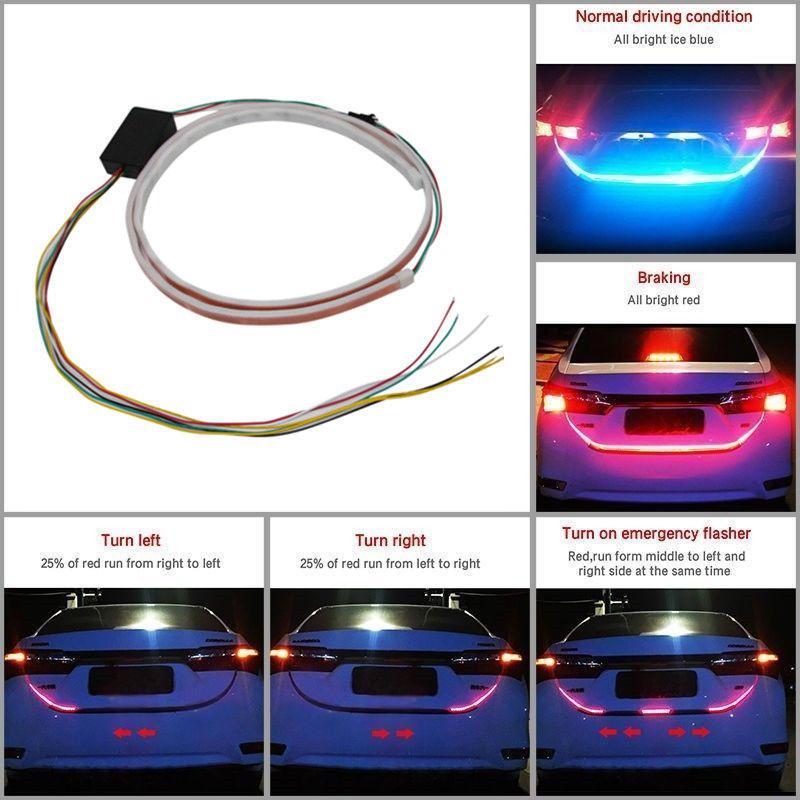

A Fashion Backup light,Running: Keep RGB light, Brake: Flowing Red light, Turn left: Flowing left direction red light, Turn right: Flowing right direction red light, Double flash: Flowing double direction Yellow light; Reversing: White Light.
Plug and play connectivity with flat 3-pin trailer connection harness for tail/brake/signal.
With sticker, easy to use, professional installation is highly recommended,Overload protection, short circuit protection and over temperature protection,Waterproof, universal fit for most car.
Note: Red wire and Black Wire are power wire,90degree bend crush, Can not !!!

Specification:

Material: Silica gel, plastic

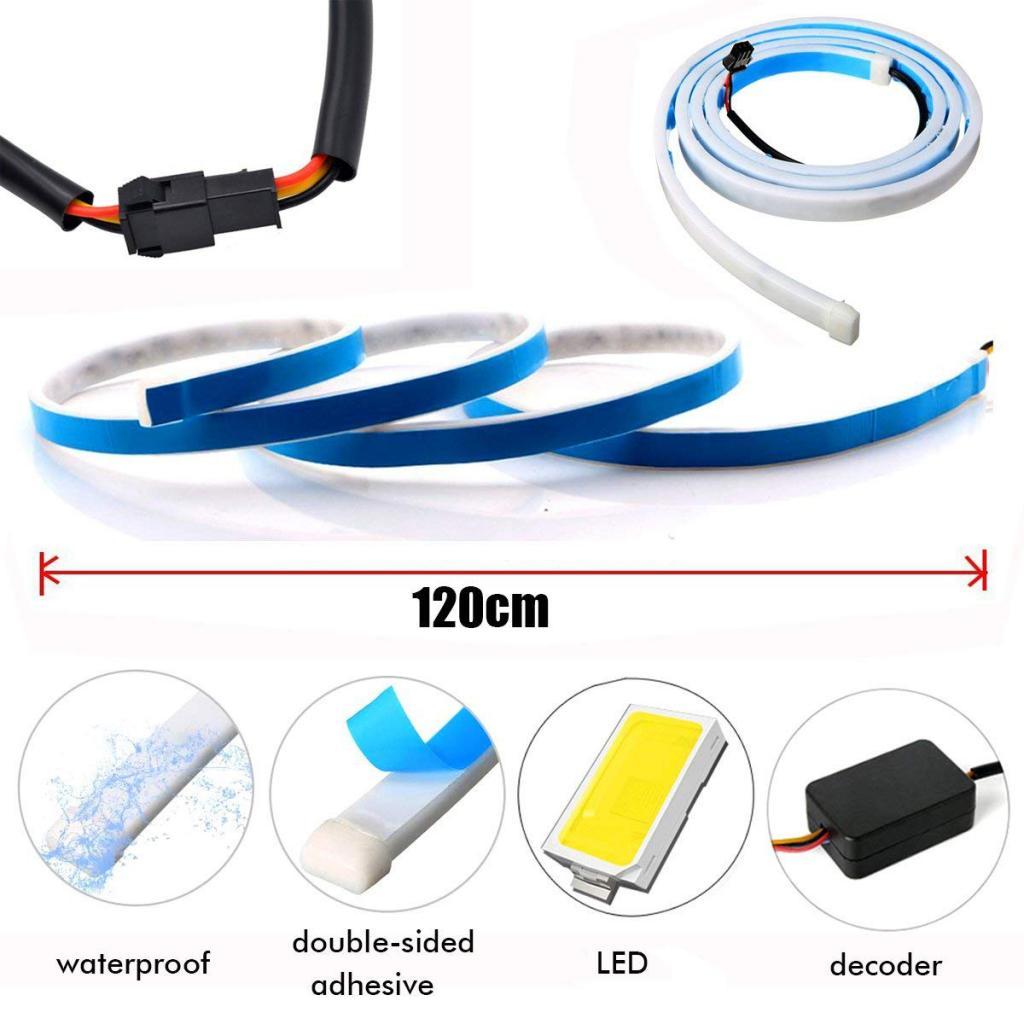

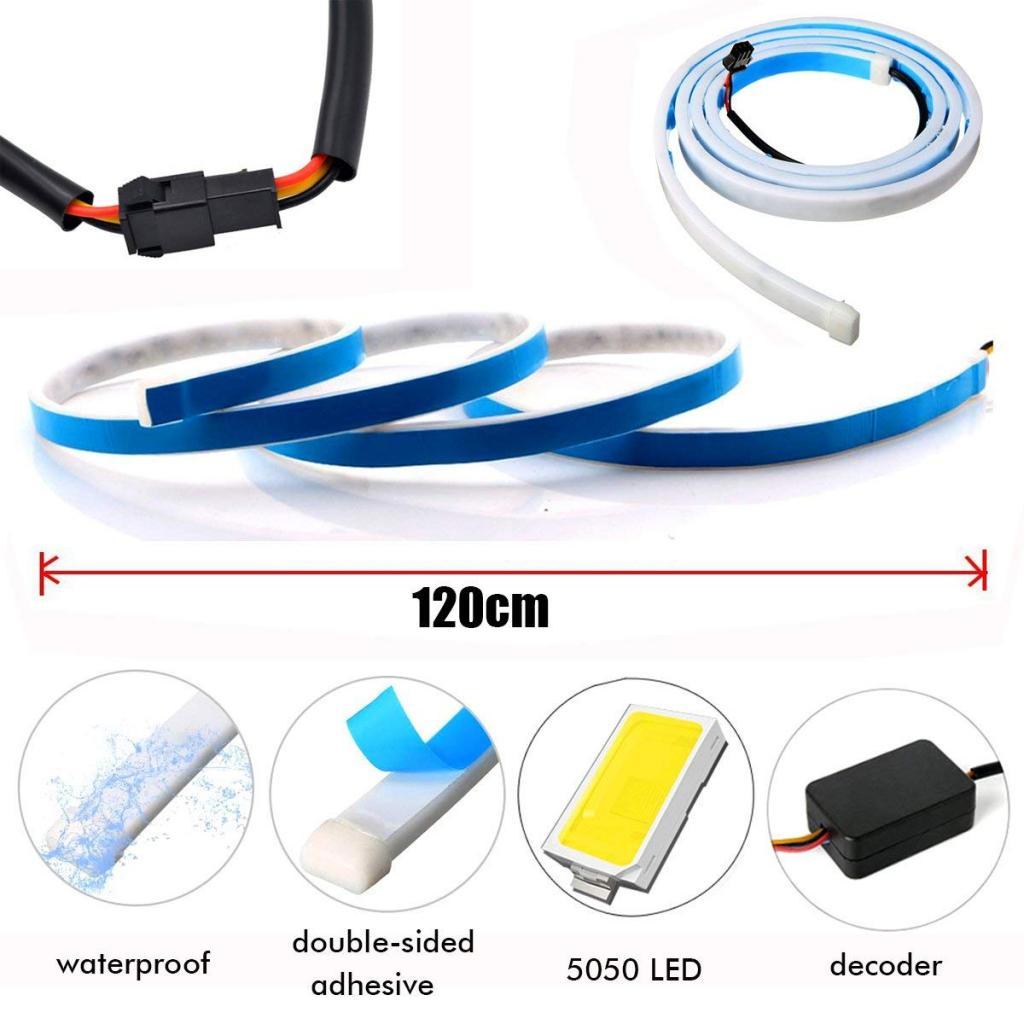

Light Length : Approx. 1.2m/47inch
Voltage: DC 12V
Power: 22W

Package Includes:

1 Piece LED Car Trunk Neon Strip

Note:

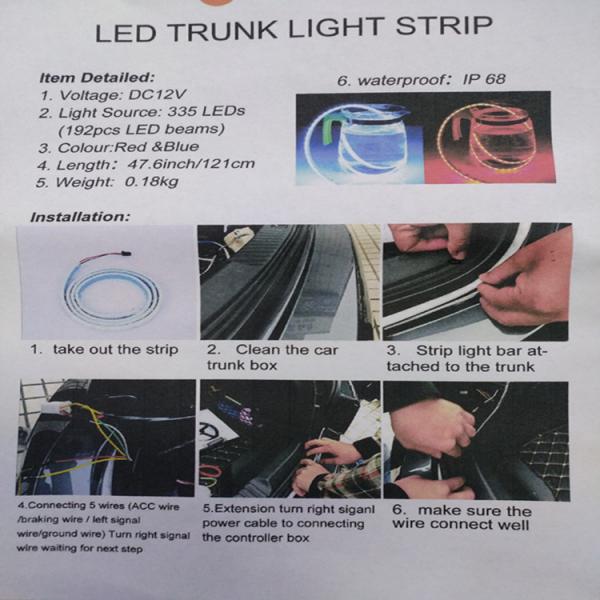

1.take out the strip,Clean the car trunk box,Strip light bar attached to the trunk.
2.Connecting 5 wiros (ACC wire/braking wire/left signal wire/ground wire)Turn right signal wire waiting for next step.
3.Extension turn right siganl power cable to connecting the controller box.
4.Make sure the wire connect well.
Wiring Method:
1,Red wire:Connocting to ACC Posotive (+),Black wire: Connecting to Ground Wire(-).2, Yellow Wire 2pcs,Mark (L) Turn Left Signal Posotive (+),Mark (R) Turn Right Signal Posotive (+). 3,White Wire: Braking Signal(+). 4, Green Wire: Connoction Taillight (+),When turn on and turn off operation.
