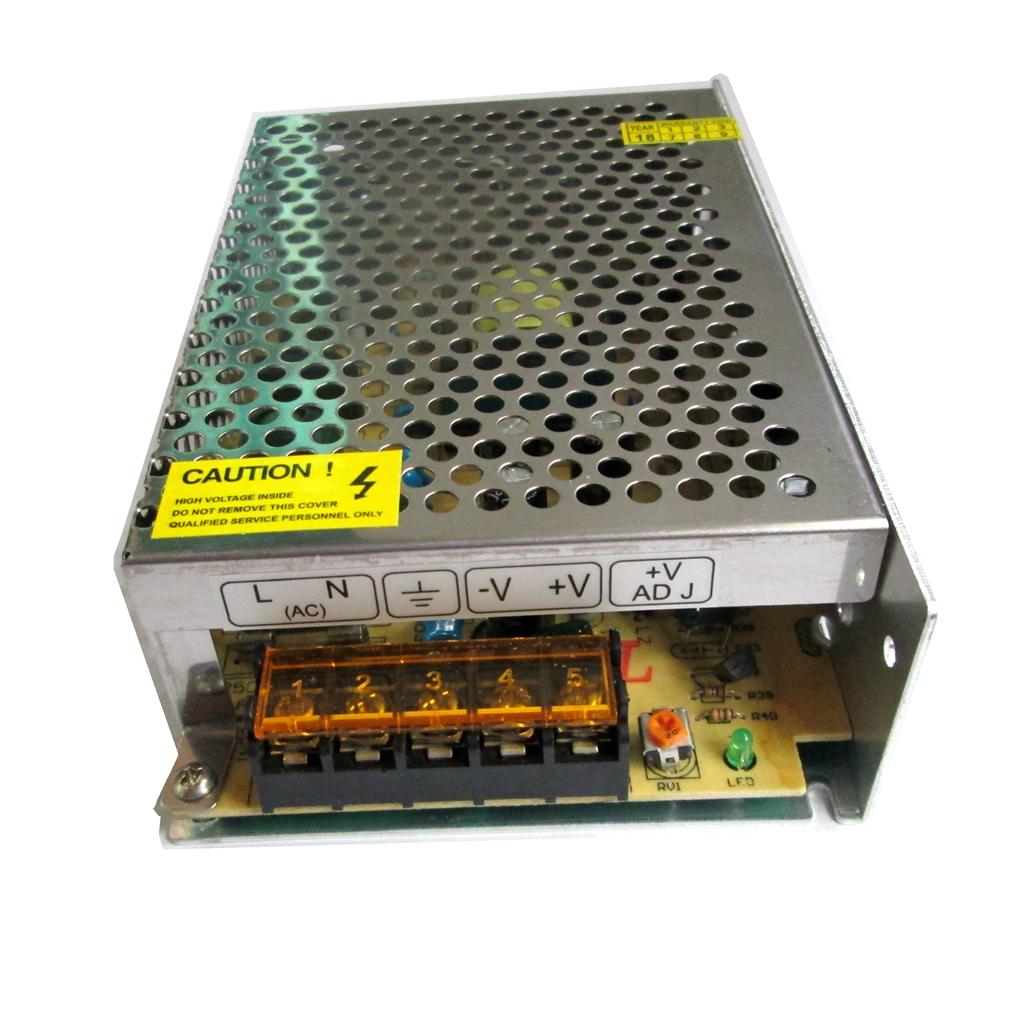

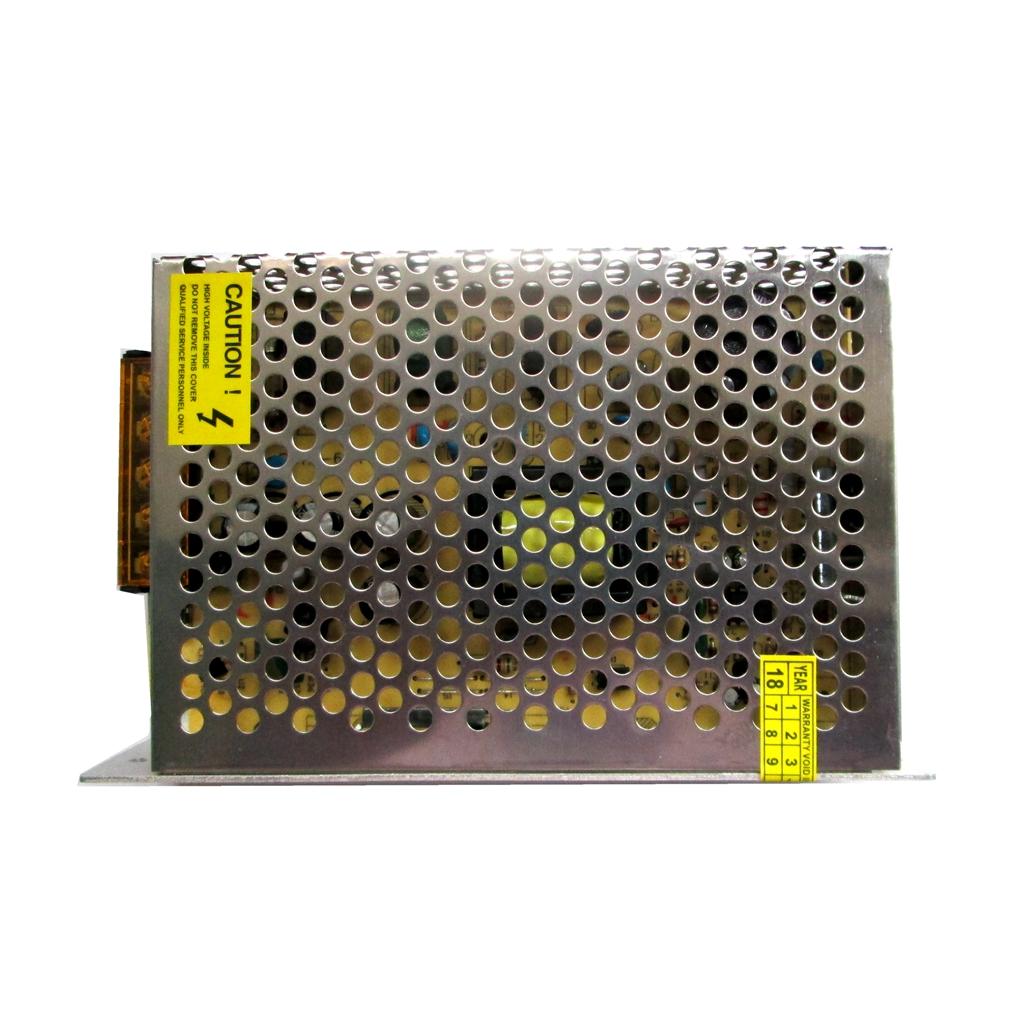

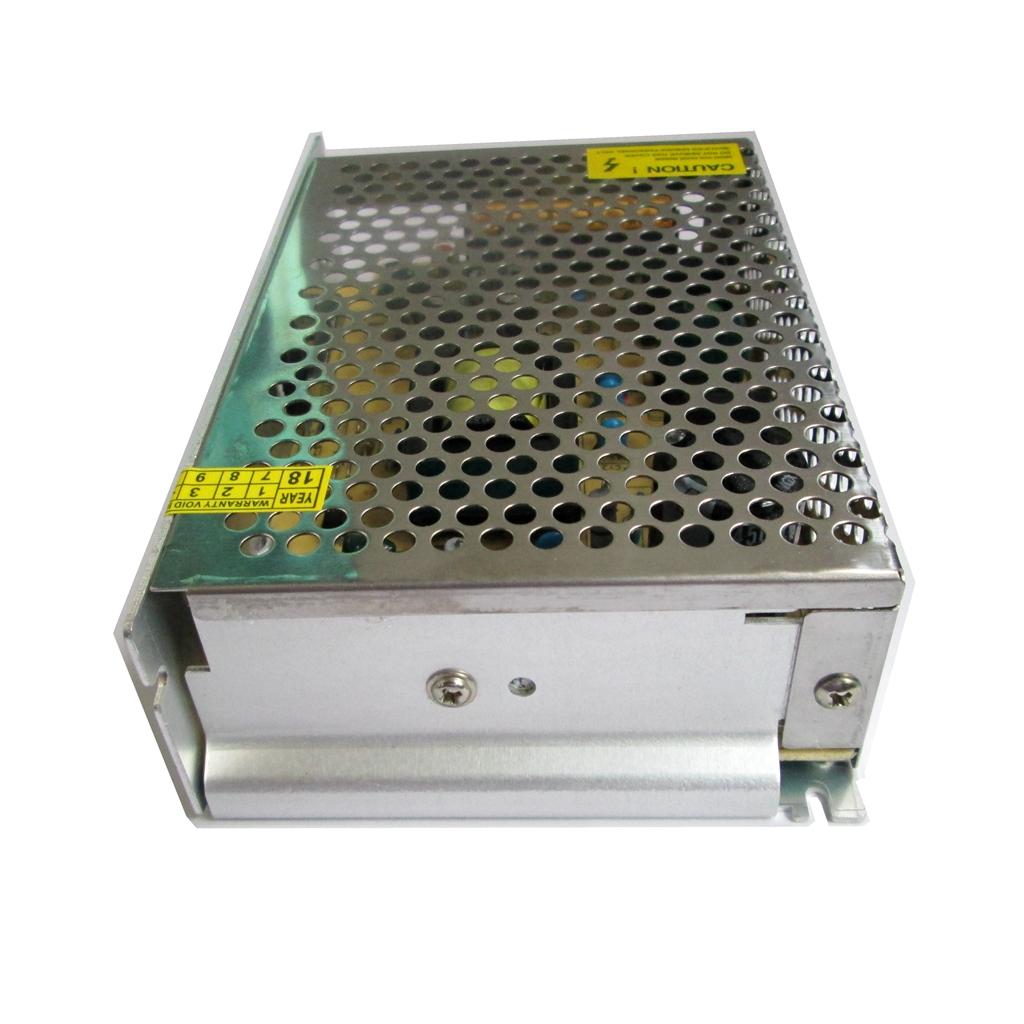

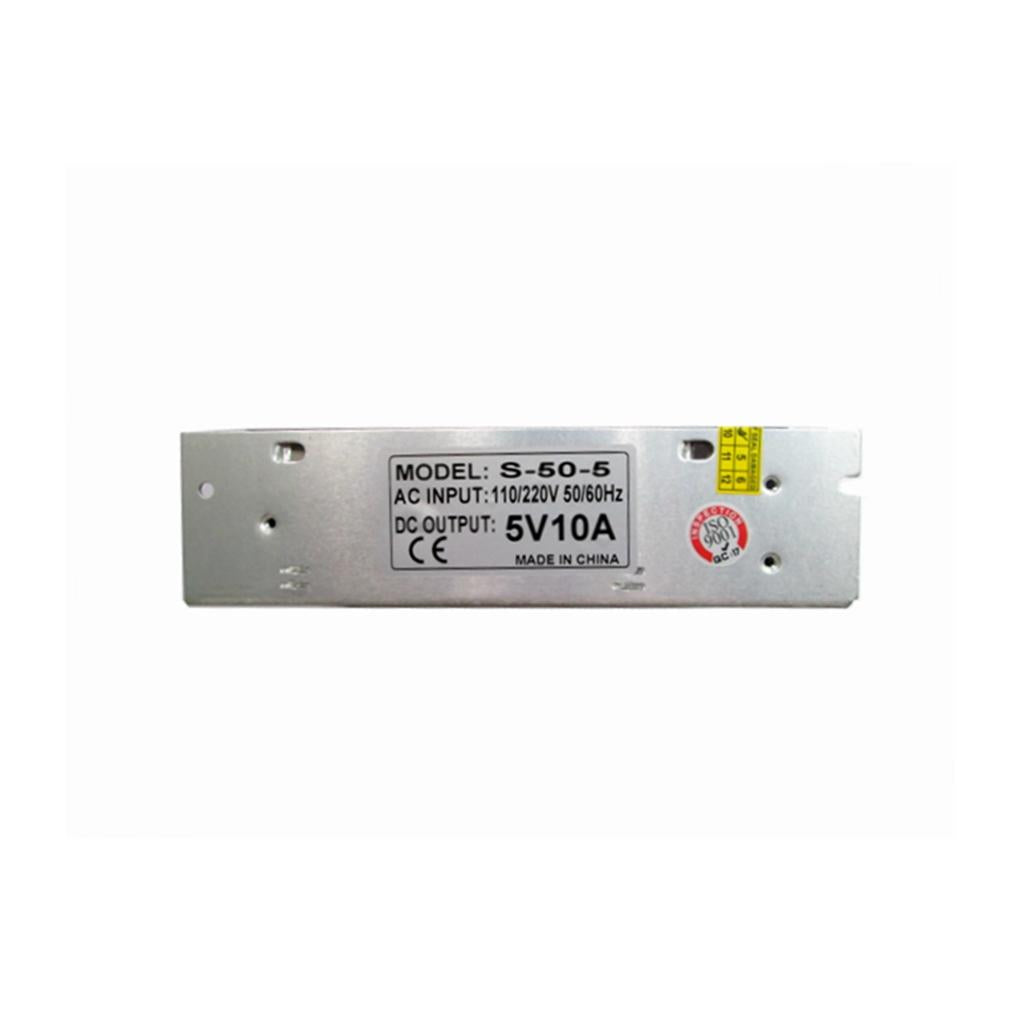

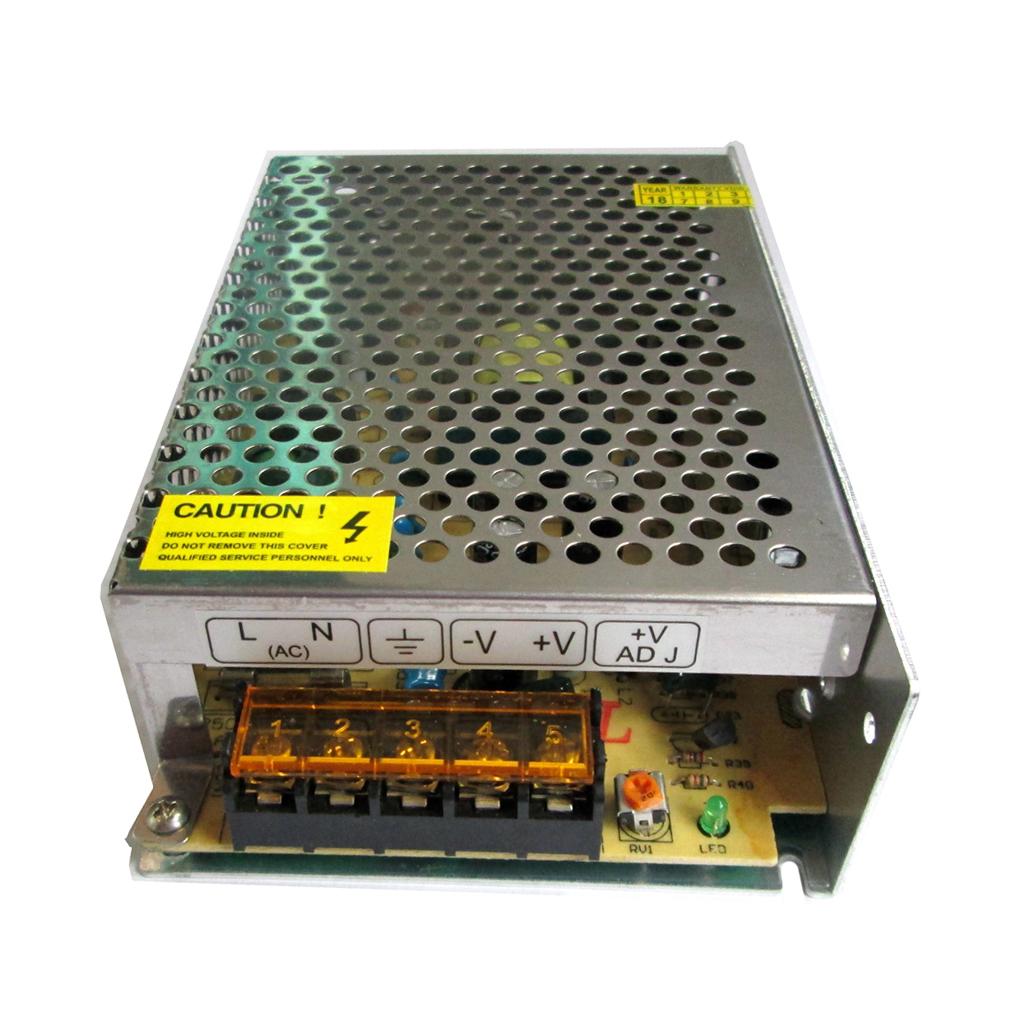

LED Switching Power Supply 5V 10A 50W Led Driver Adapter

Description:

Good anti-interference performance
Small DC ripple, high work efficiency
Low working temperature, long service life
Wide range of input voltage, good insulation performance
With short circuit, overload and overvoltage protection
Application: LED switching power supply, monitor power supply, industrial equipment power supply, etc

Specification:

Output Parameter:
DC Voltage: 5V
Rated Current: 1A
Rated Power: 50W
Ripple and Noise: ≤1%mVp-p
Load Regulation: ±1%
Input Parameter:
Voltage Range: AC110V/220V (100-265V)
Frequency Range: 50/60HZ
Efficiency: >85%
Protection Function: short circuit protection
Overload: 130%-150%; Overpressure: 115%-135%
Environment Parameter:
Working Temperature: -20~50℃
Working Humidity：20%-90% RH
Pressure Resistance: IP/OP 3KVAC IP/FG1.5KVAC OP/FG0.5KVAC
Insulation resistance: IP/OP 100m ohms
Type: External Switching Power Supply
Size: 160mm*100mm*42mm
Weight: 310g

Package Includes:

1 Piece LED Switching Power Supply
