Linear Motion Bearing Slide Bushing for RepRap 3D Printer CNC Router 20mm dia

Description:

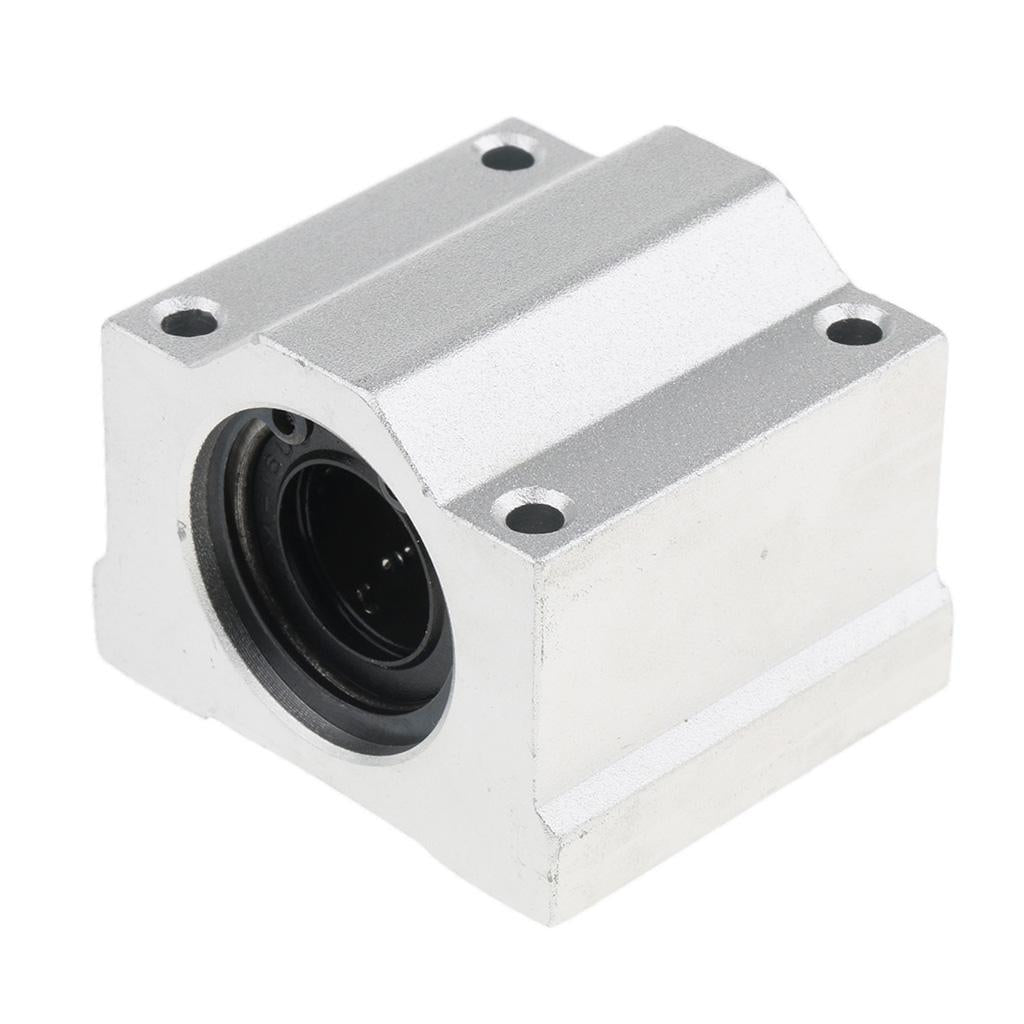

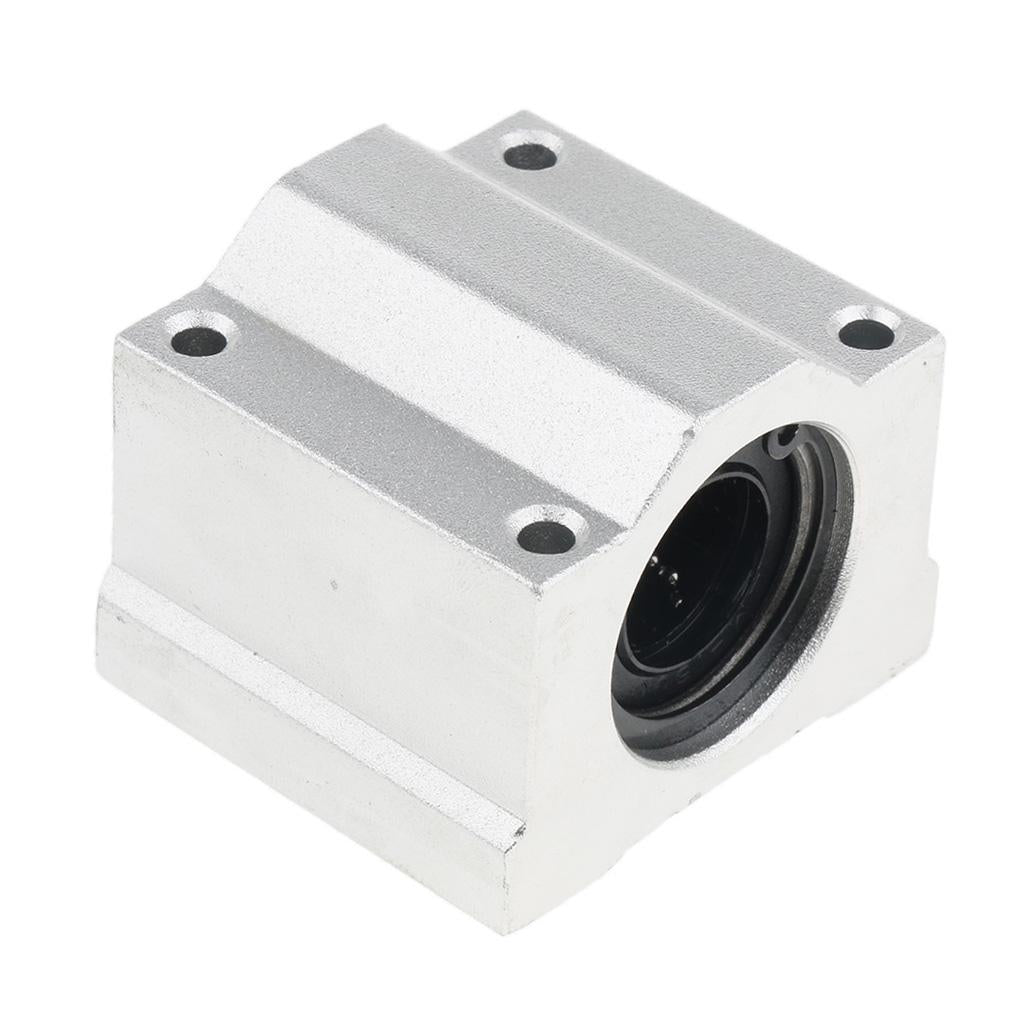

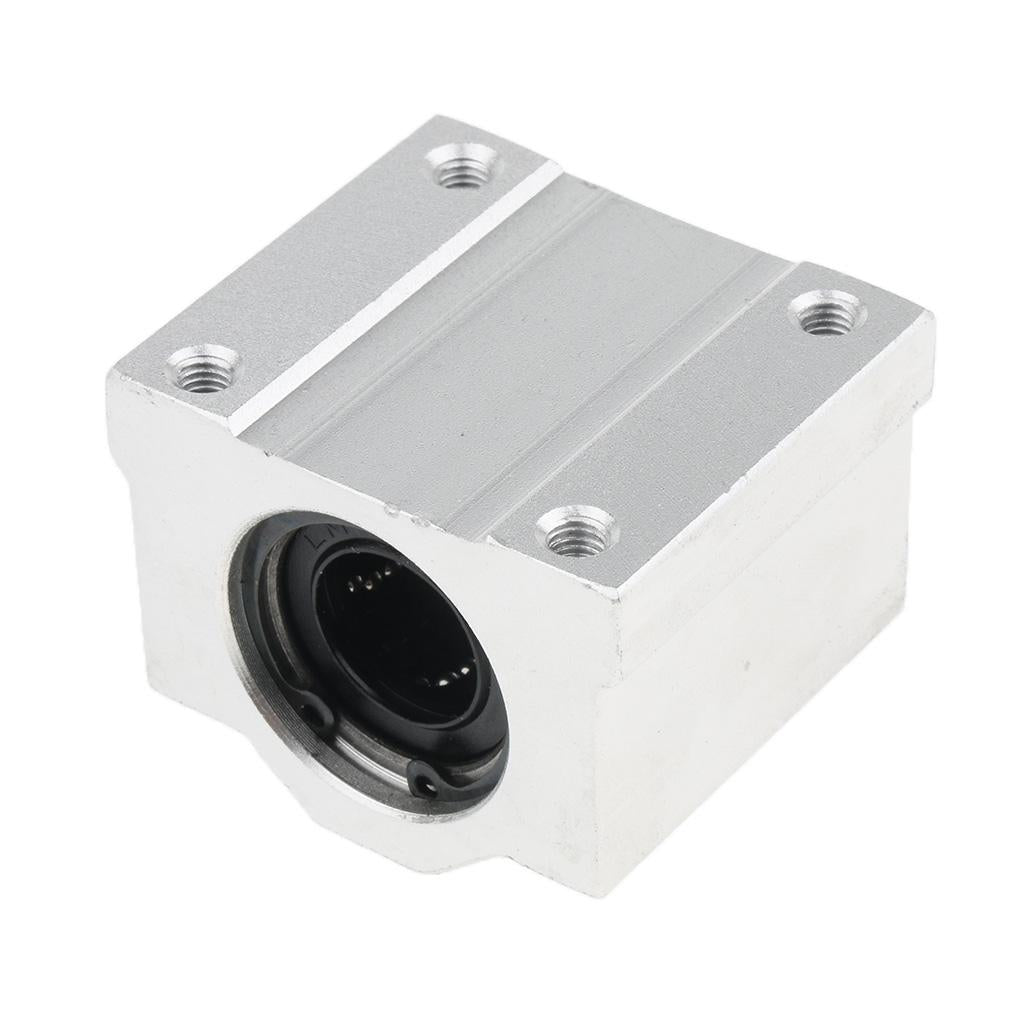

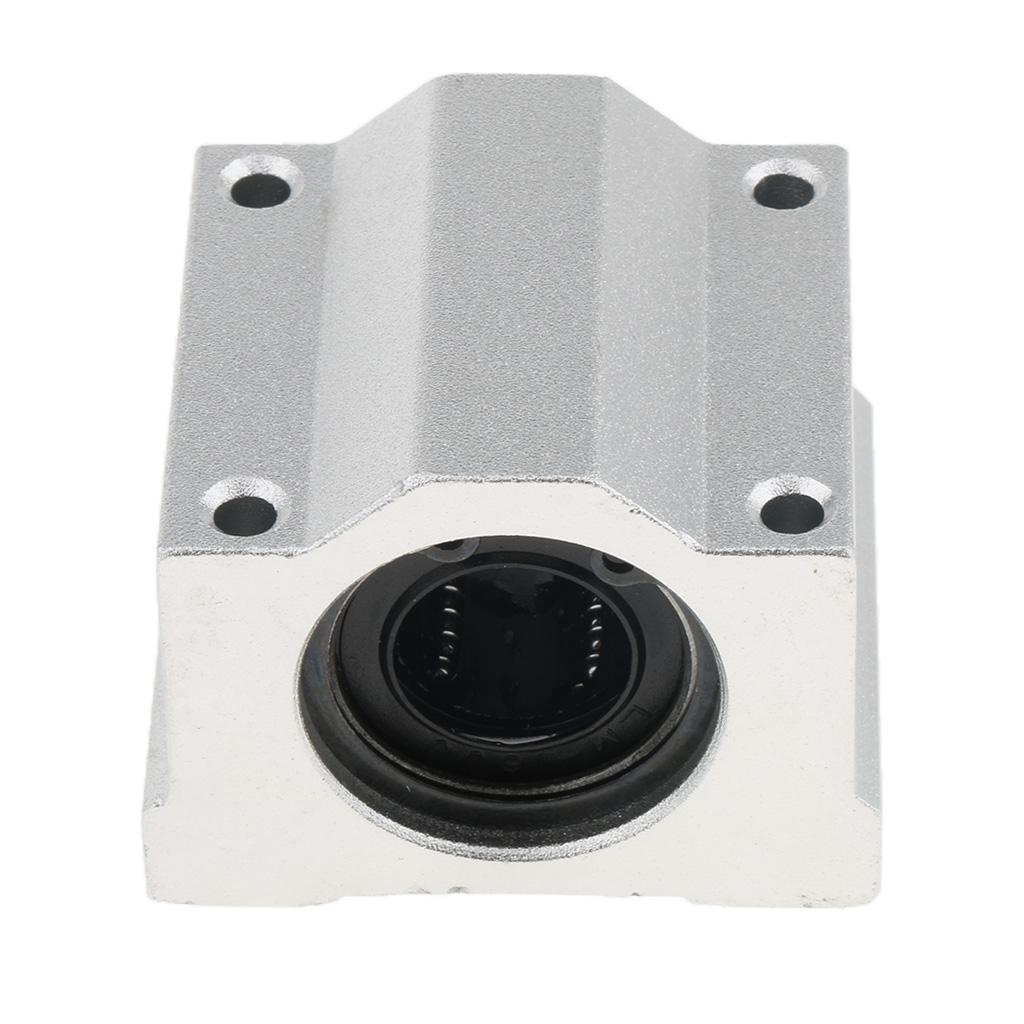

Linear bearing slider
Diameter: 18mm/0.71"; 28mm/1''; 25mm/0.98''; 23mm/0.9''; 15mm/0.6''; 18mm/ 0.7''; 14mm/0.55''
Material: bearing steel
Application: 3D printer, mechanical lathes and others
Size:Approx 52mm*50mm*49mm/2.04" *1.97" *1.9 "

Specification:

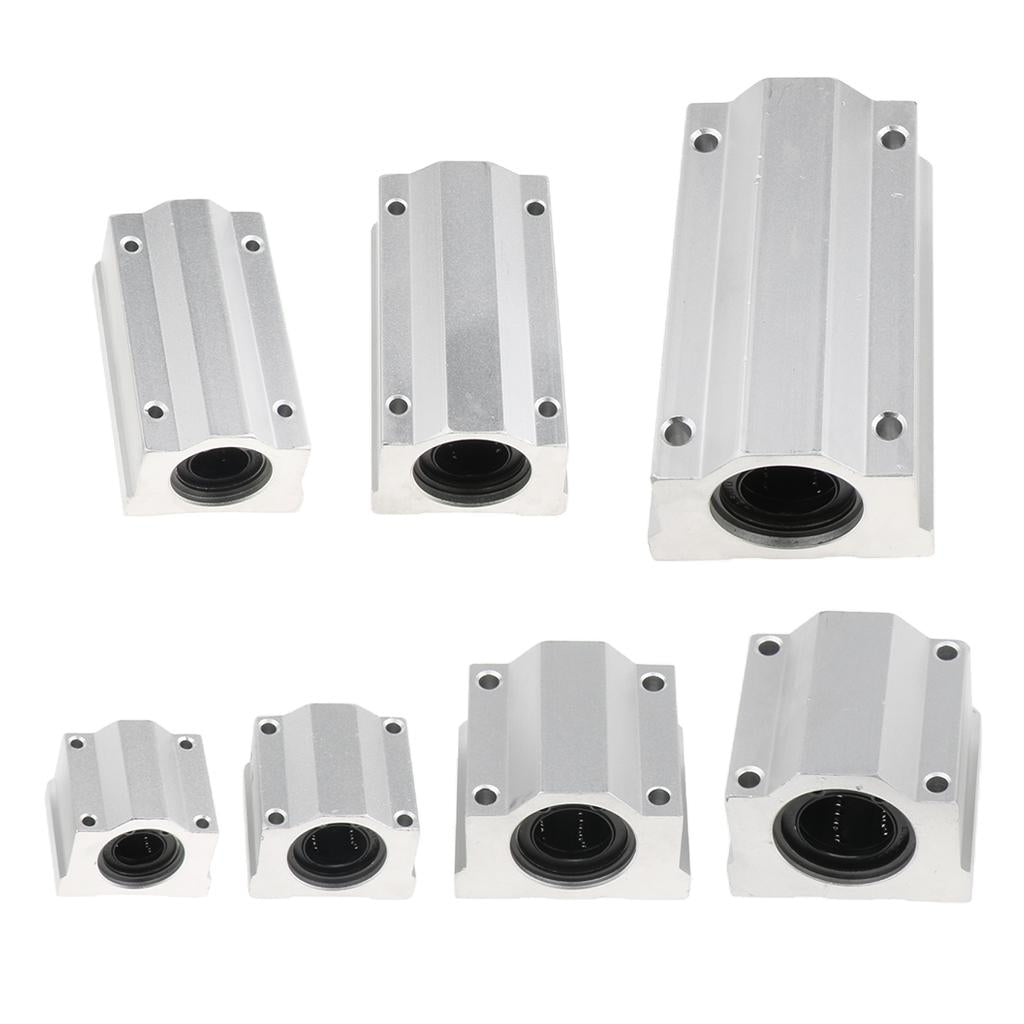

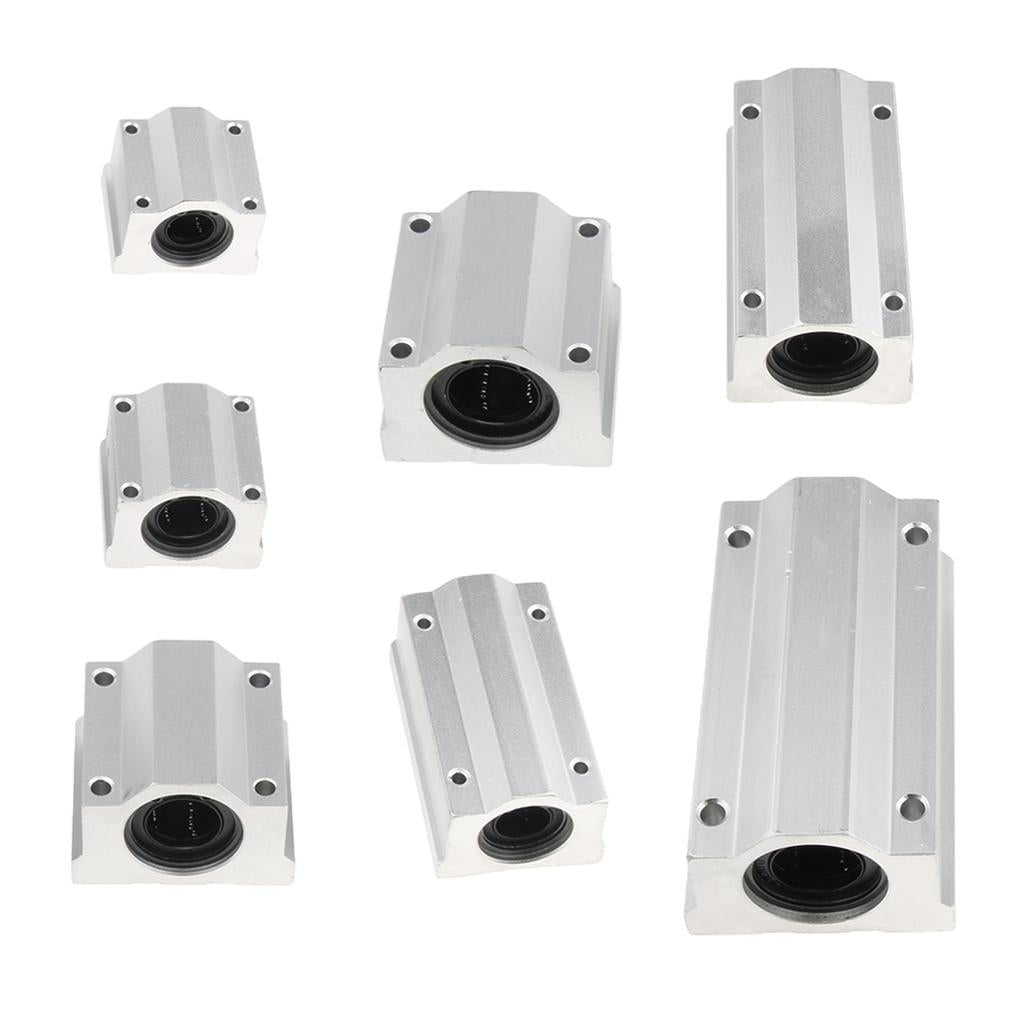

Size:

#1(SC20UU): Diameter: 20mm/0.79inch; L×W×H: approx. 52×50×49mm/ 2.05×1.97×1.9inch

#2(SC30UU): Diameter: 28mm/1.1inch; L×W×H: approx. 77×71×59mm/3.03×2.79×2.32inch

#3(SC25LUU): Diameter: 25mm/0.98inch; L×W×H: approx. 130×50×51mm/5.12×1.97×2inch

#4(SC25UU): Diameter: 23mm/0.9inch; L×W×H: approx. 75×66×56mm/2.95×2.6×2.2inch

#5(SC20LUU): Diameter: 15mm/0.59inch; L×W×H: approx. 85×50×36mm/3.3×1.97×1.4inch

#6(SC16UU): Diameter: 18mm/0.71inch; L×W×H: approx. 95×51×38mm/3.7×2×1.5inch

#7(SC16LUU): Diameter: 14mm/0.55inch; L×W×H: approx. 44×50×37mm/1.7×1.97×1.46inch

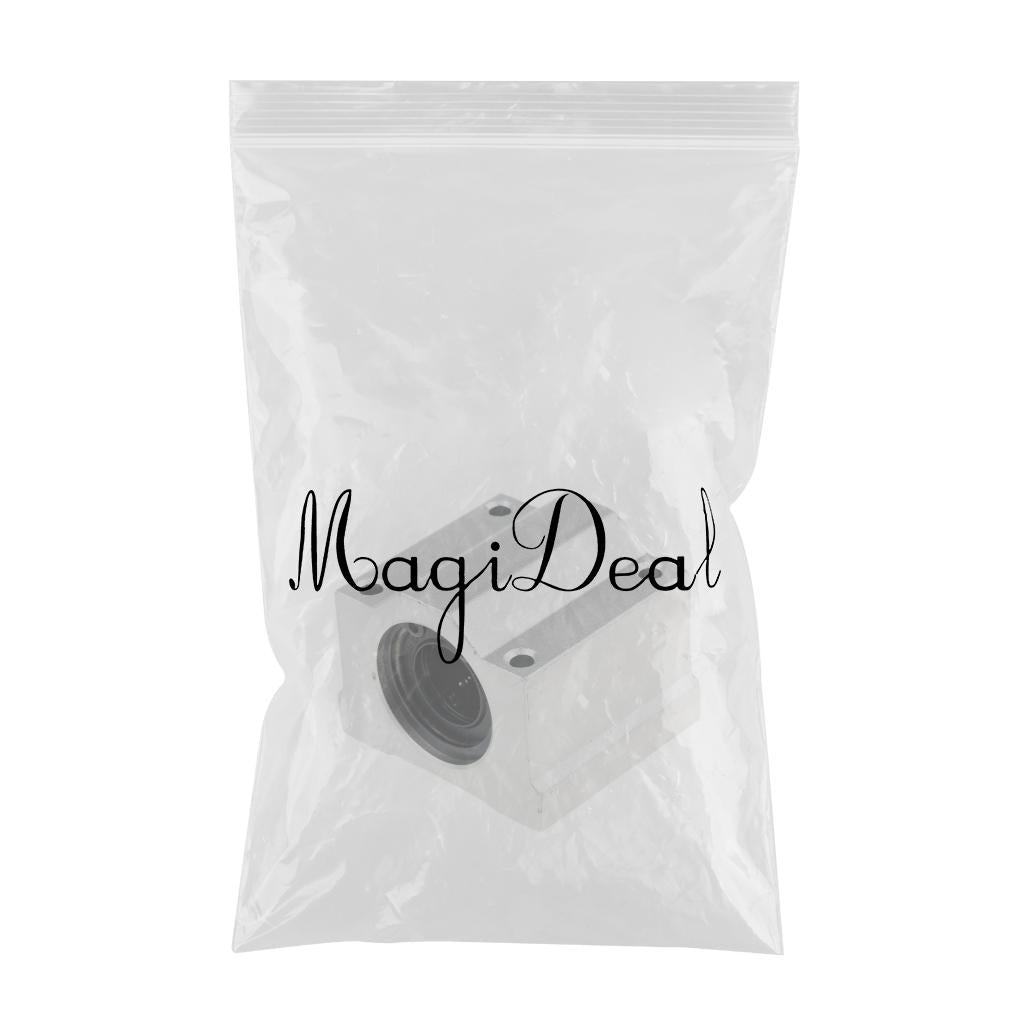

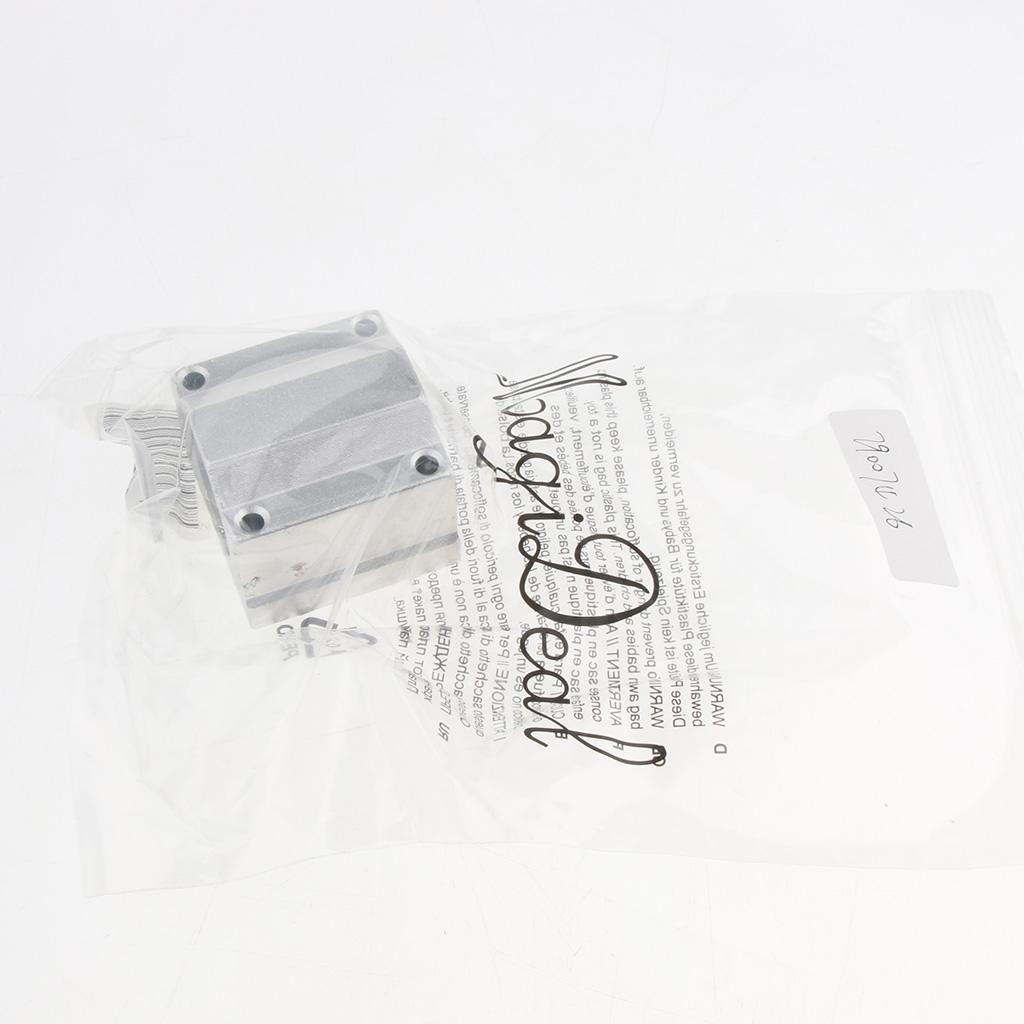

Package Includes:

1 Piece Linear Ball Bearing
