Manipulator Mechanical Metal Arm Paw Gripper Clamp Kit - Robot Accessories

Description:

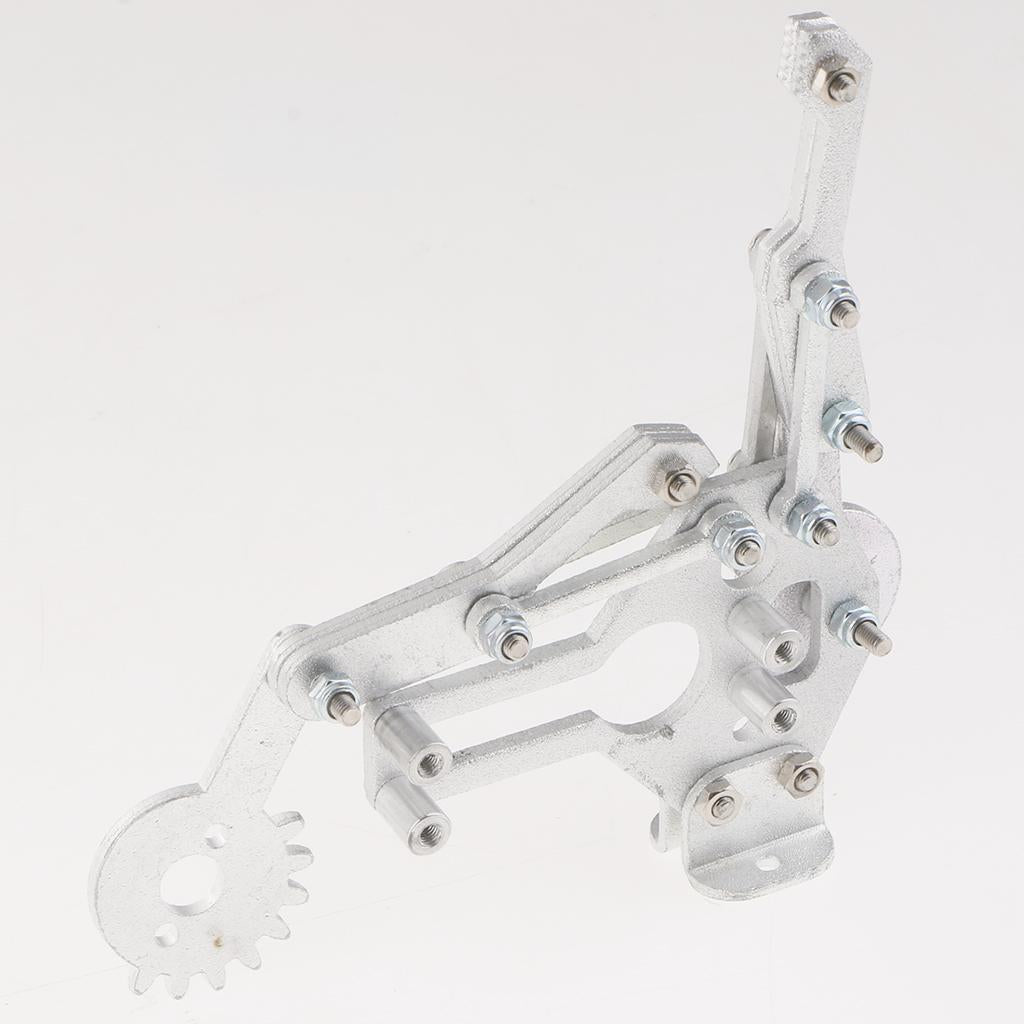

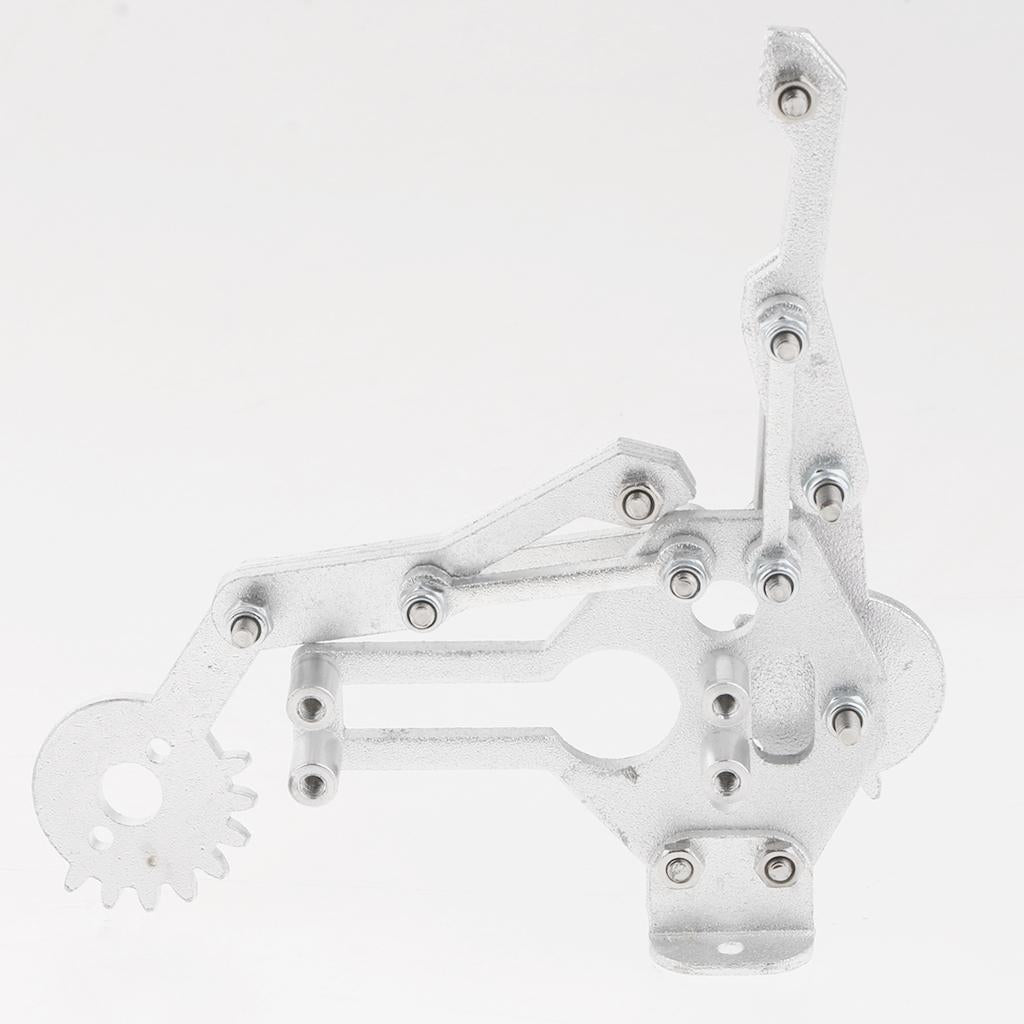

This 2-DOF robotic arm can be opened and closed and can swing left and right. It is ideal for placing on a trolley, or on a 4-foot, 6-foot, humanoid robot to grab items.
This robotic claw arm is great for all your gripping needs.
Made from Aluminum material, pretty heavy-duty.
The claw opens to about 2" and depending on the servo motor used, it can pick up some relatively heavy objects.
Because the arms move parallel to each other, you get a better grip.

Specification:

Material: aluminum alloy
Product detailed size: Maximum distance of claws: 55mm / 2.17inch
Overall length of claws: 108mm / 4.25inch(the longest overall length when the claws are closed) Overall width of the claws: 98mm (maximum overall width when the claws are opened)
U-shaped bracket:length : 65mm / 2.56inch width : 55mm / 2.17inch height : 25mm / 0.98inch
Mountain frame: length 6mm / 0.24inch width : 37mm / 1.46inch height : 25mm / 0.98inch
Small bracket: length : 35mm / 1.38inch width : 25mm / 0.98inch height : 28mm / 1.10inch
Product pull: 9.4kg/cm (4.8V), 11kg/cm (6V)
Reaction rate: 0.17sec/60degree(4.8v) 0.14sec/60degree(6v)
Working voltage: 4.8-7.2V
Working temperature: 0°C-55°C
Gear form: metal gear
Working dead zone: 5us (microseconds).

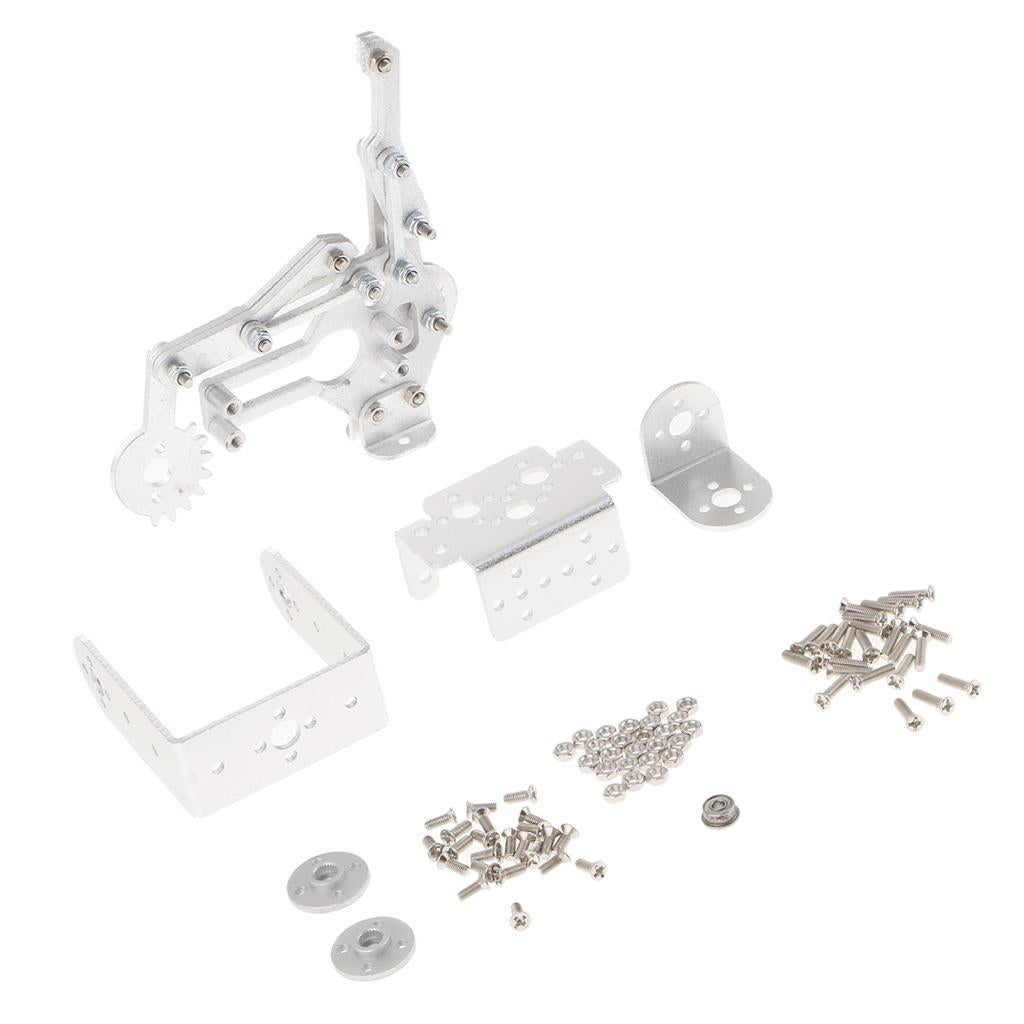

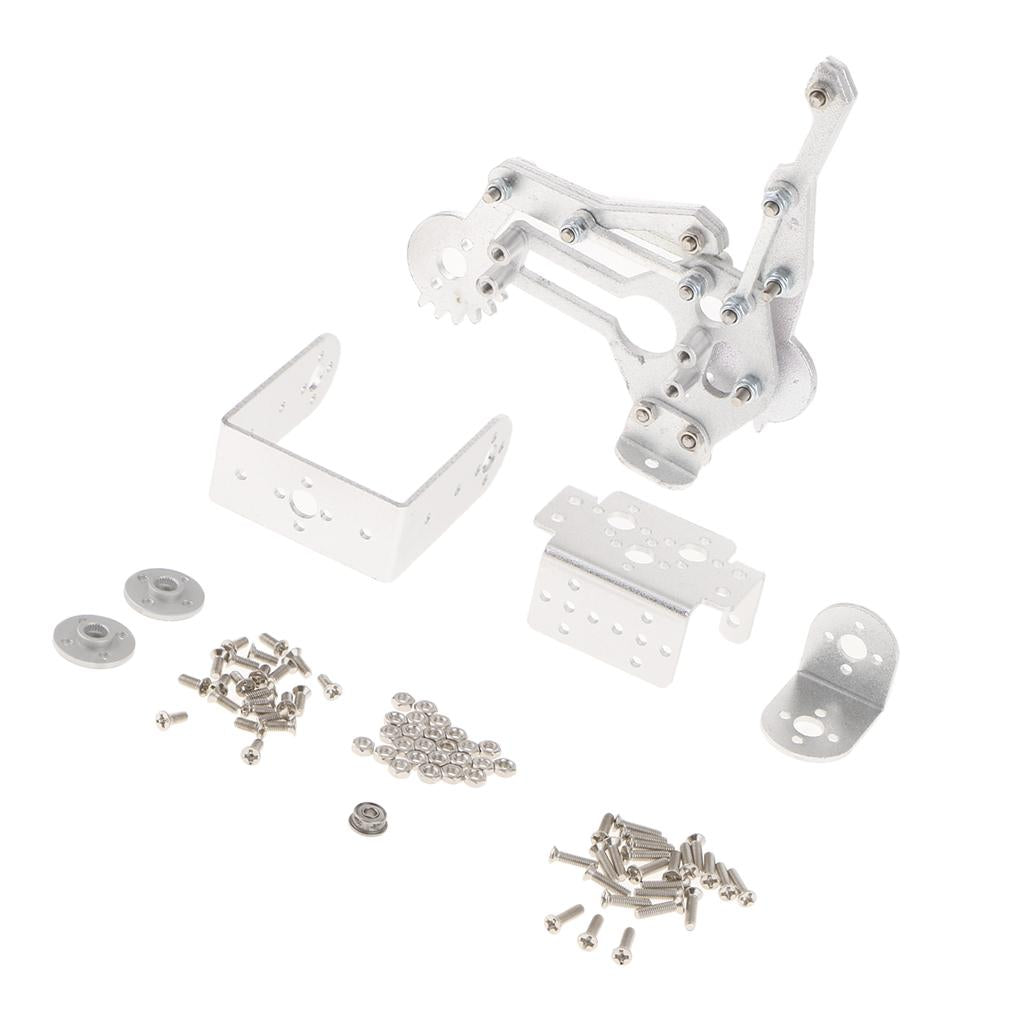

Package Includes:

1 Piece Mechanical paws
1 Piece Metal steering wheel
9 Piece M3*8 cross flat head screws
10 Piece M3*10
5 Piece M3 nut
1 Piece Steering gear bracket
