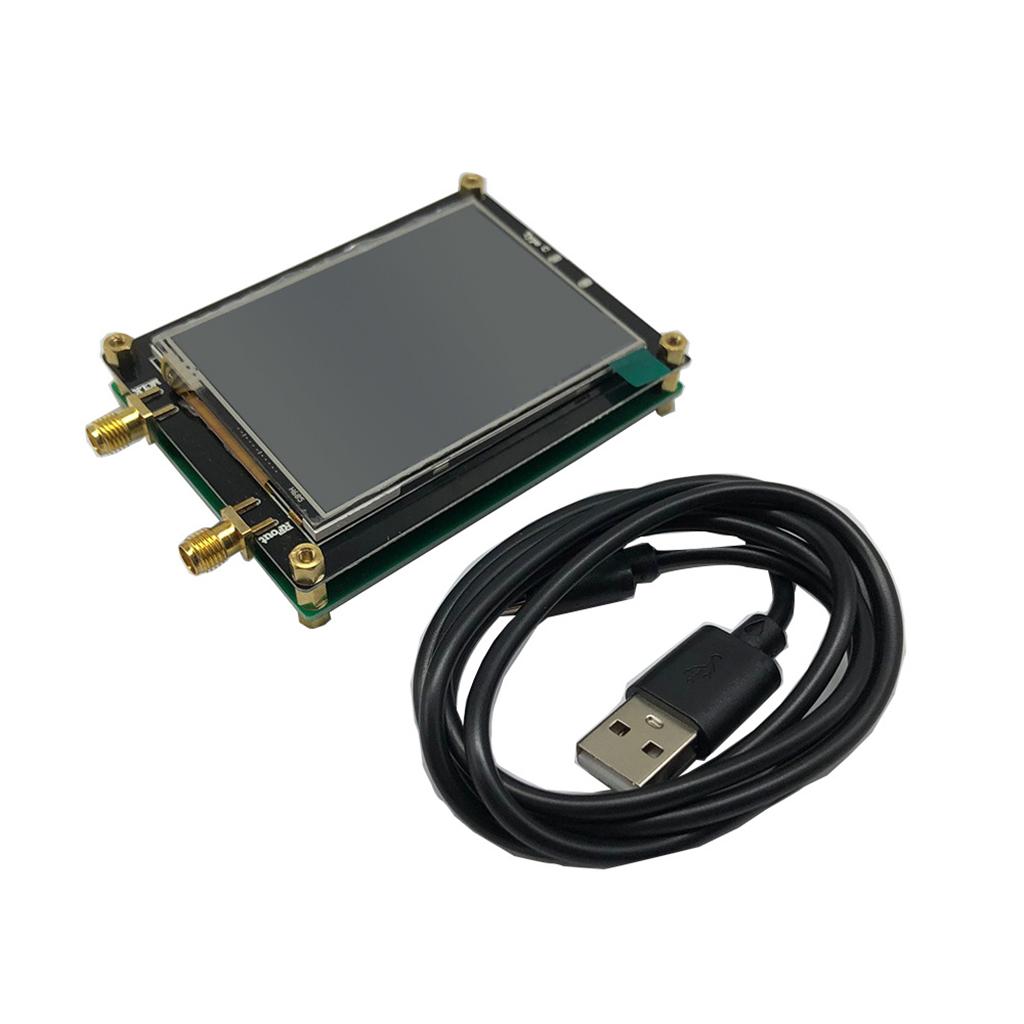

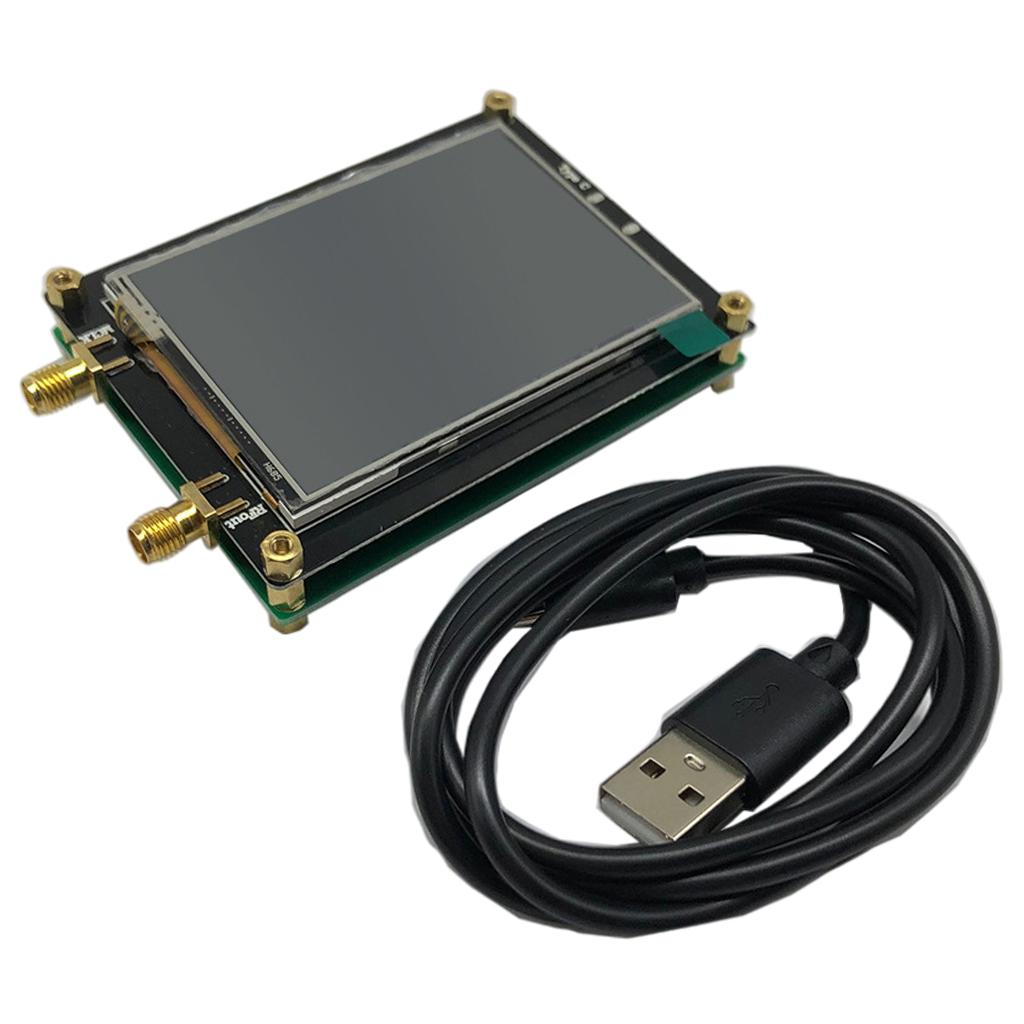

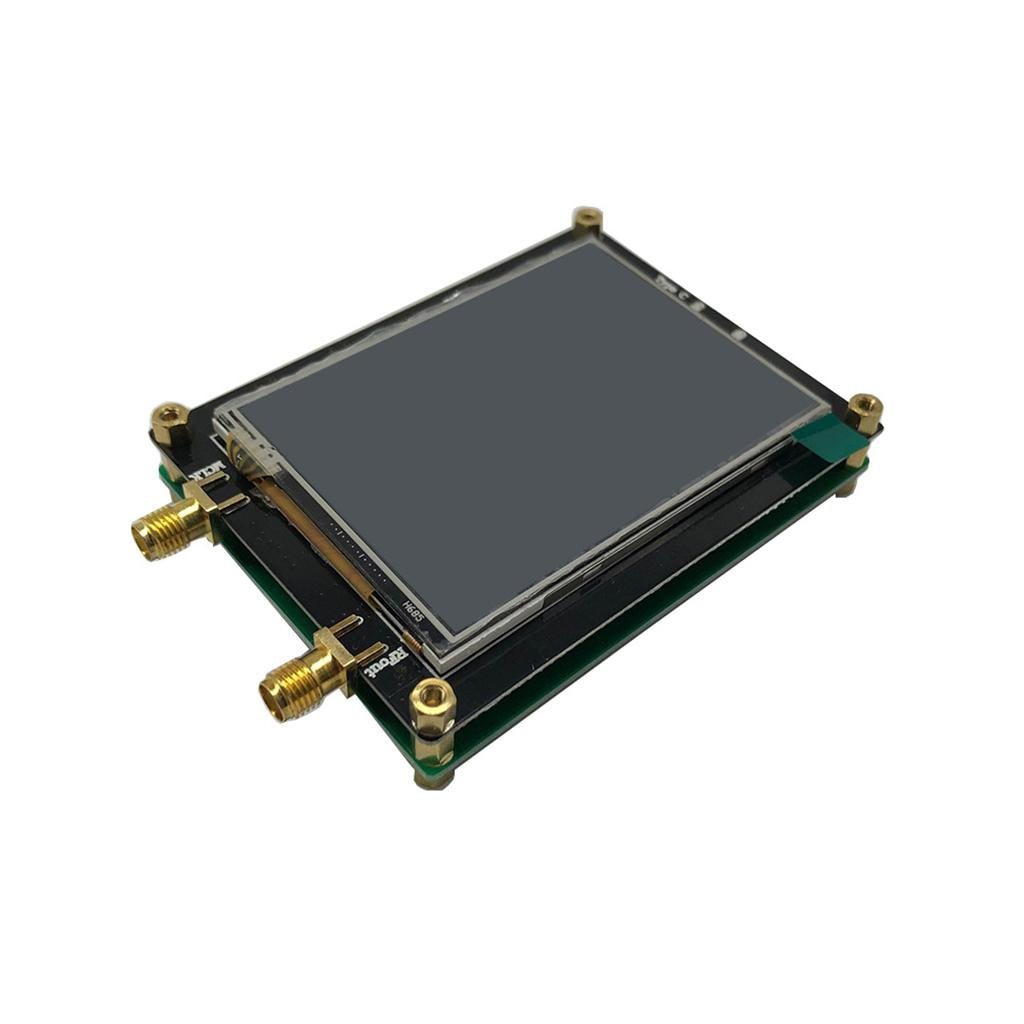

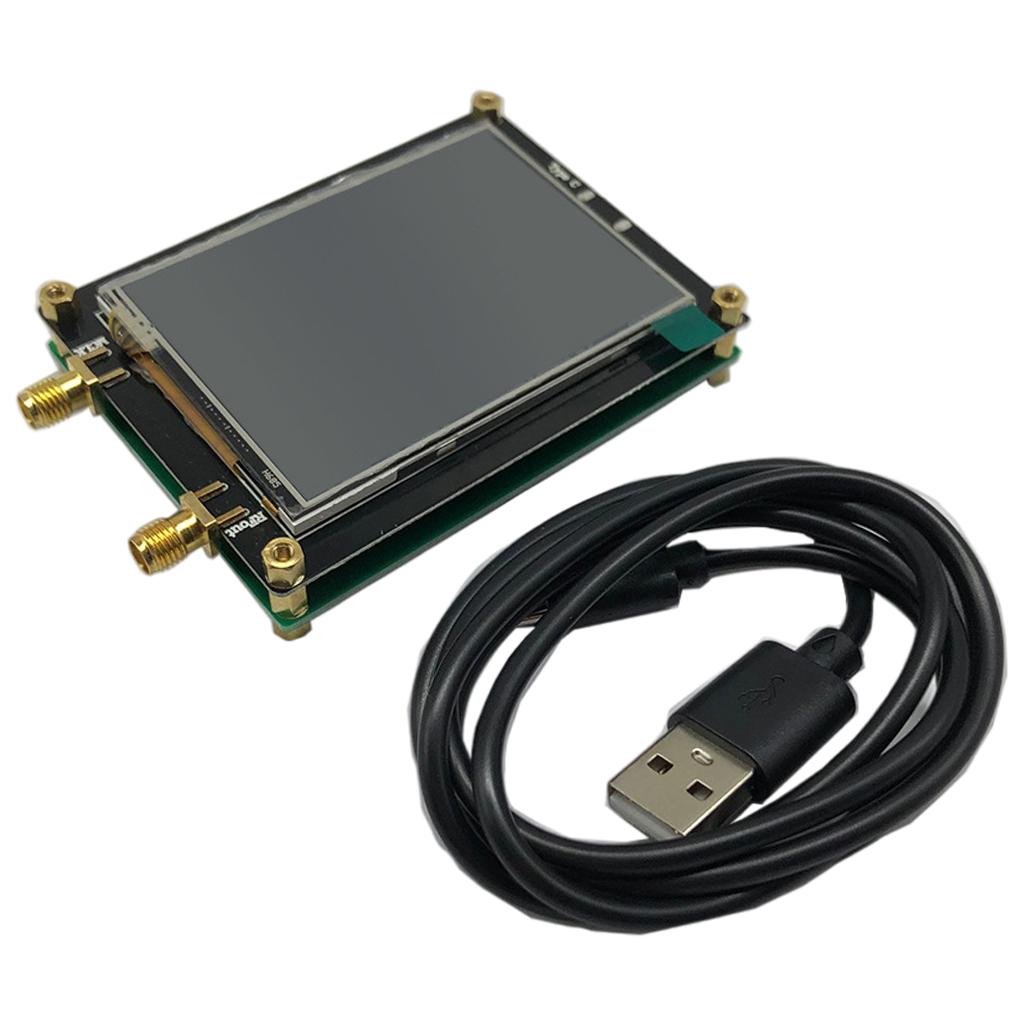

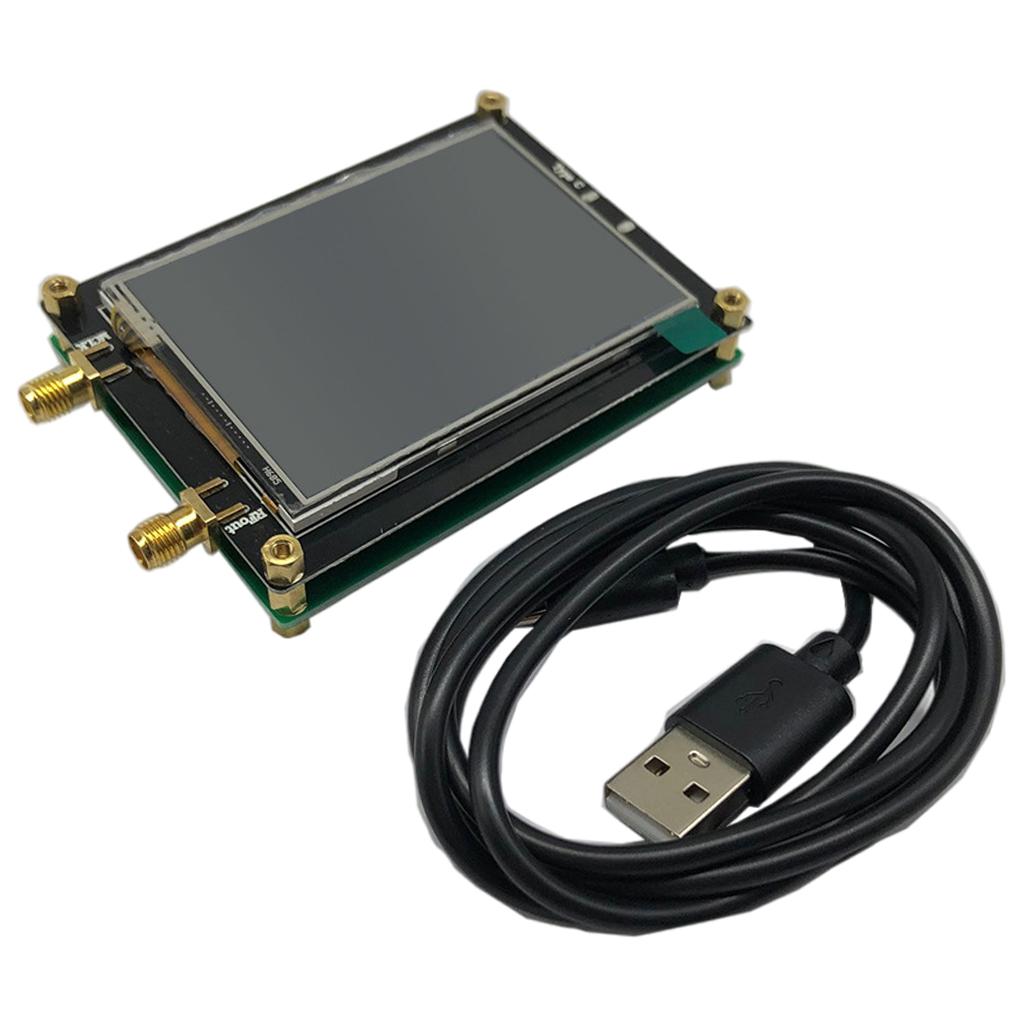

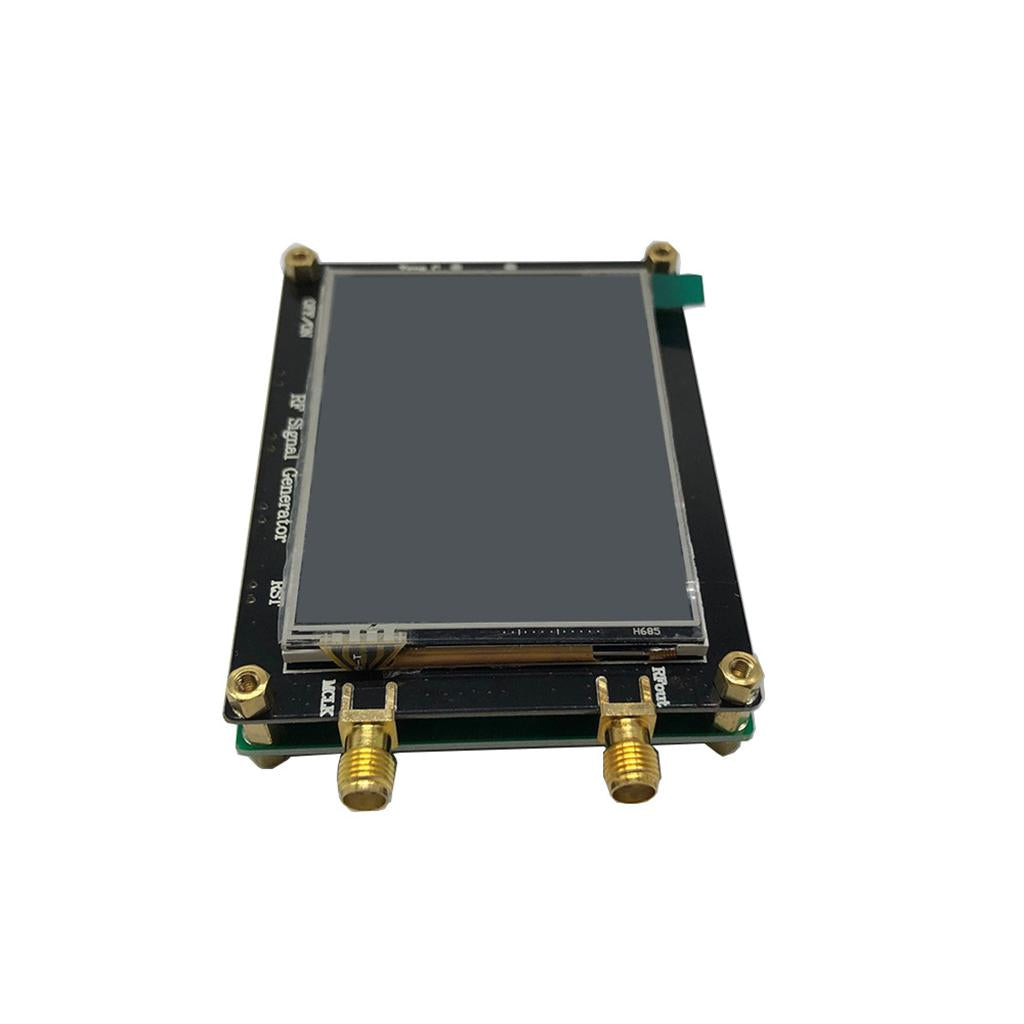

Max2870 RF Signal Source Frequency Generator Module Type-C PC Controlled

Description:

Our RF signal module full touch screen frequency input. Output frequency mode is point frequency and sweep frequency is optional.
Internal coverage 3000MHz to 6000MHz Multiple integration of rangeVCOas well as1-128The output divider is used to realize the clock output of wide frequency range.
MAX2870It is an wideband PLL(PLL), Integrated voltage controlled oscillator(VCO), Able to work in integers and fractionsNCrossover Mode.
The device provides dual channel differential output driver, can be set and provided separately.
MAX2870 from 3 Line serial port control, compatible with1.8V control.

Specification:

Module type:MAX2870
Power supply:+5V 0.2A Type-C
Communication protocol:SPI
Output amplitude:-4- 5dBm
Output Frequency Range:23.5MHz- 6000MHz
input channel:1CH
Working Temperature:-40°C - + 85C
Output interface:SMA

Size Chart:

Approx. 81.5x62.85x8.26mm/3.21x2.47x0.33inch

Package Includes:

1 Piece RF Signal Source
1 Piece Type-C Cable
1 Piece Package Box
1 Piece User Manual

Note:

Please allow slight dimension difference due to different manual measurement.
