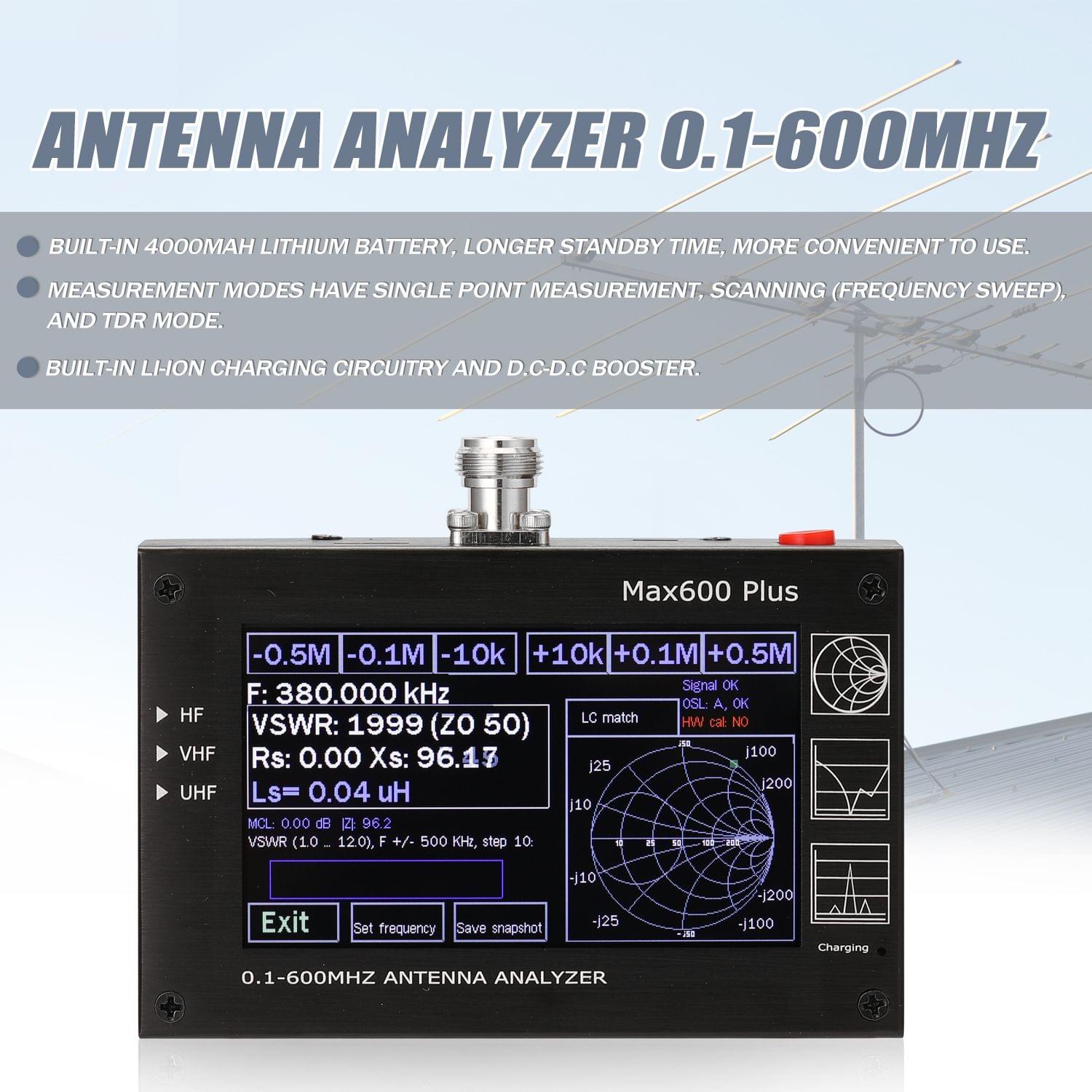

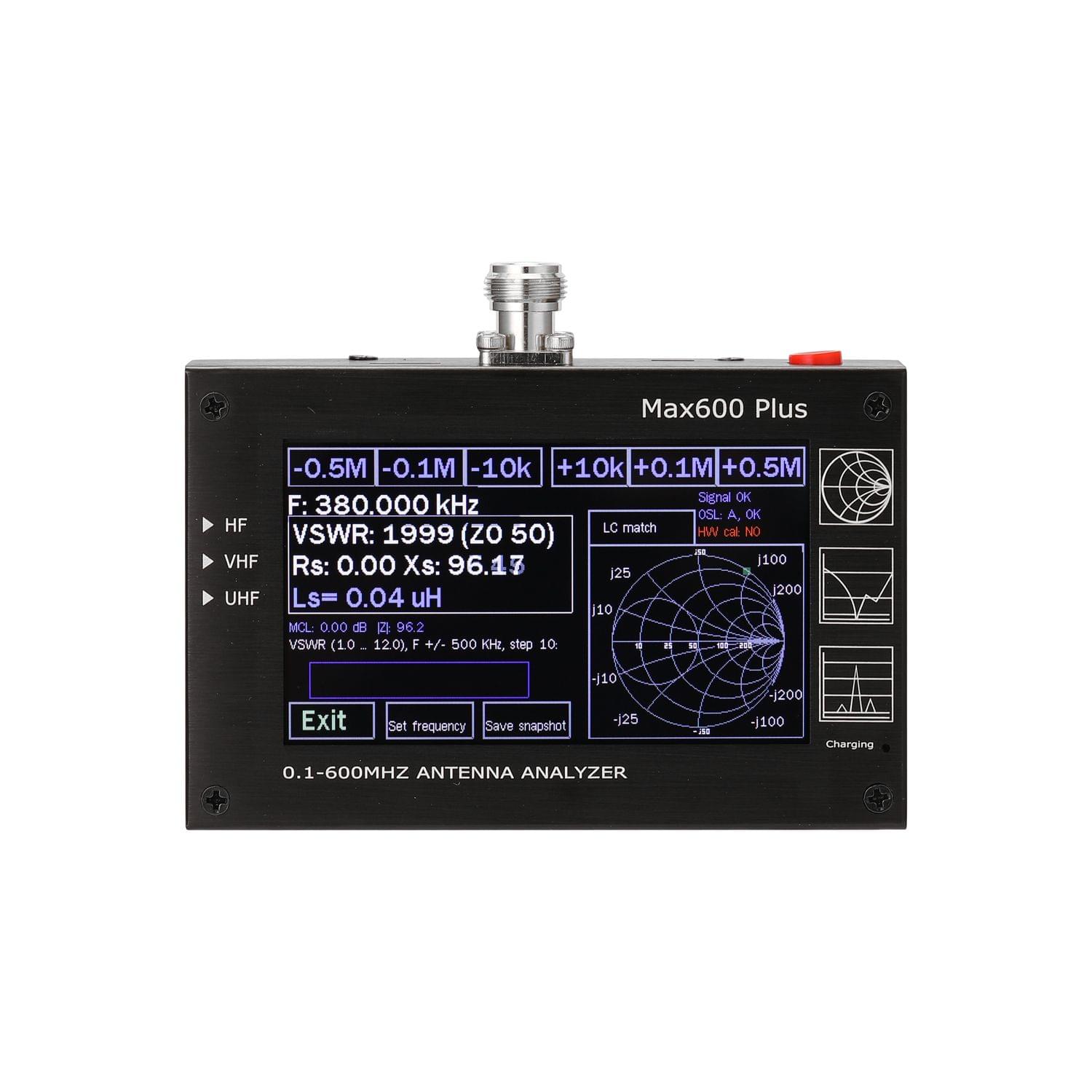

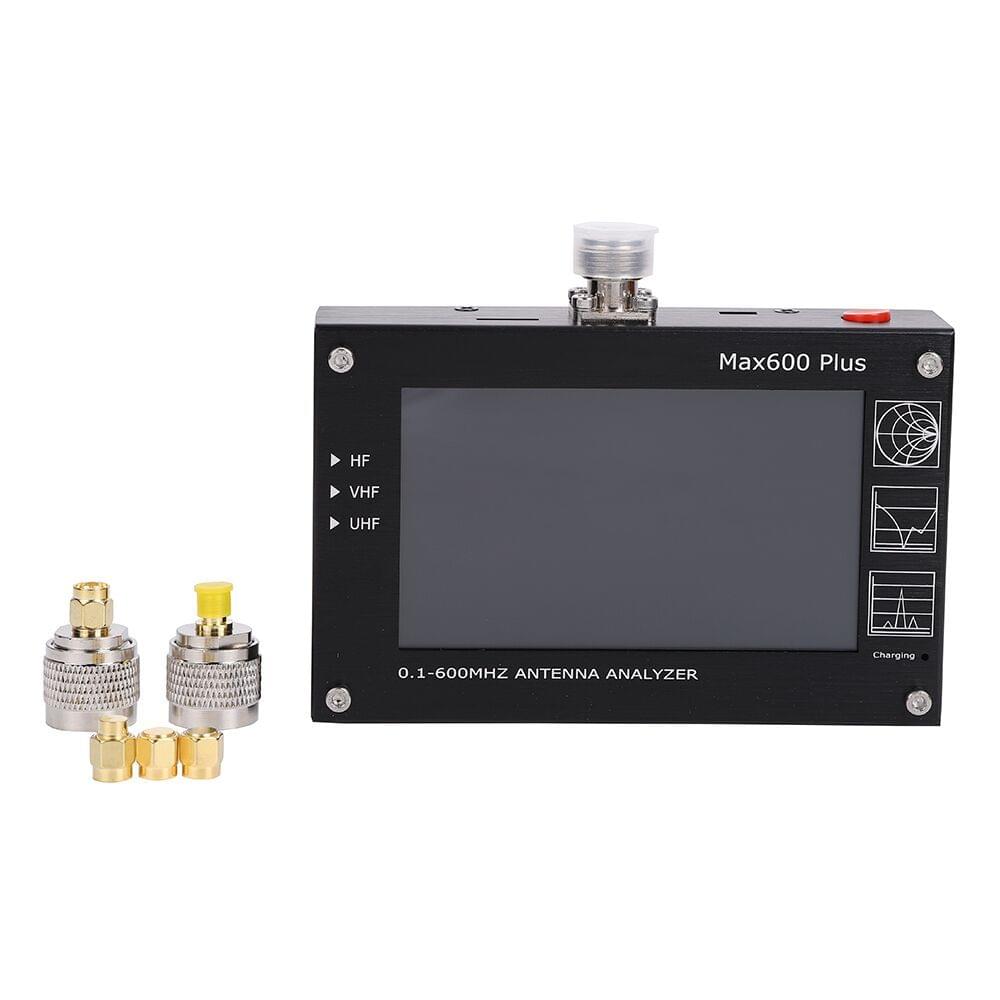

Max600 Plus HF VHF UHF Antenna Analyzer 0.1-600MHz with 4.3"

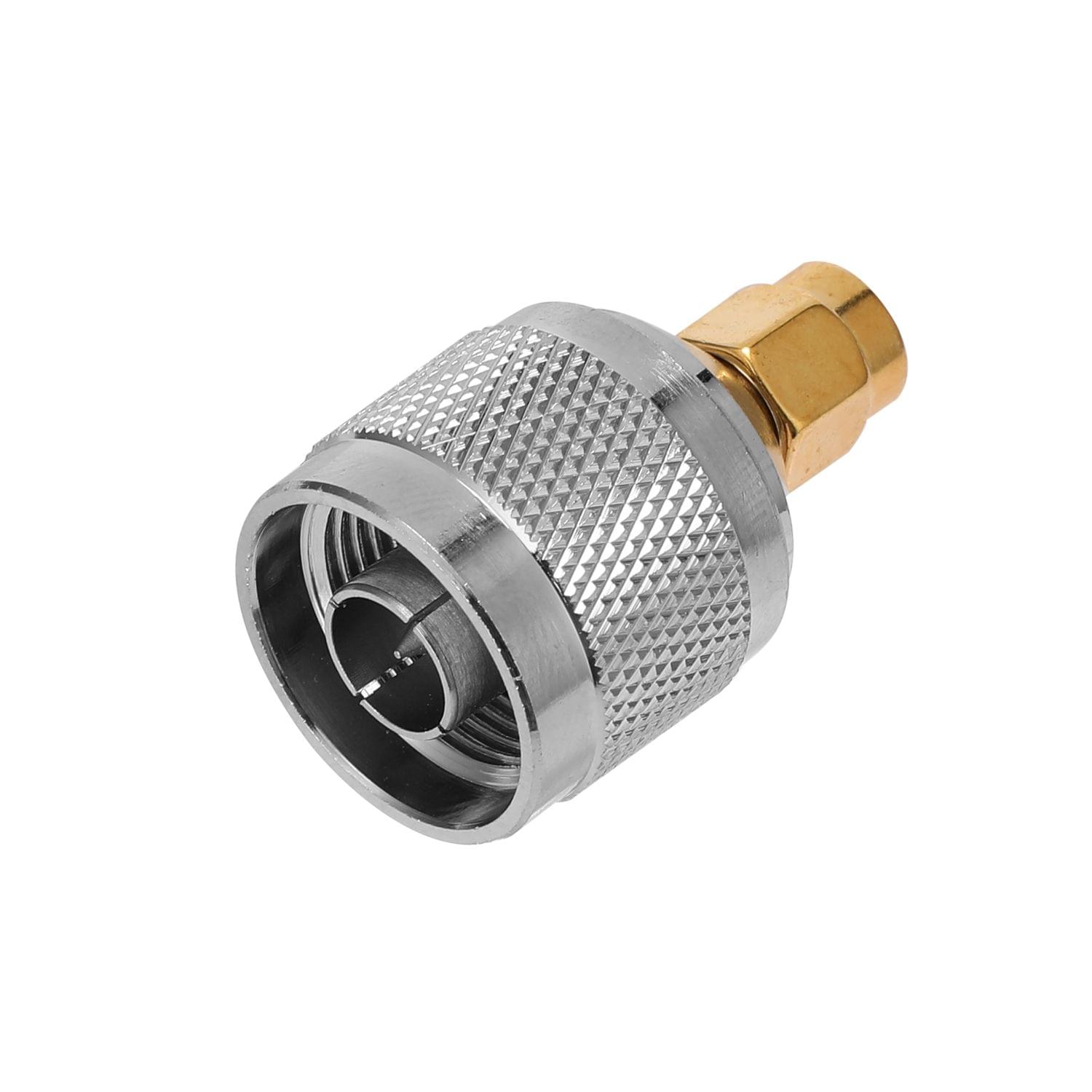

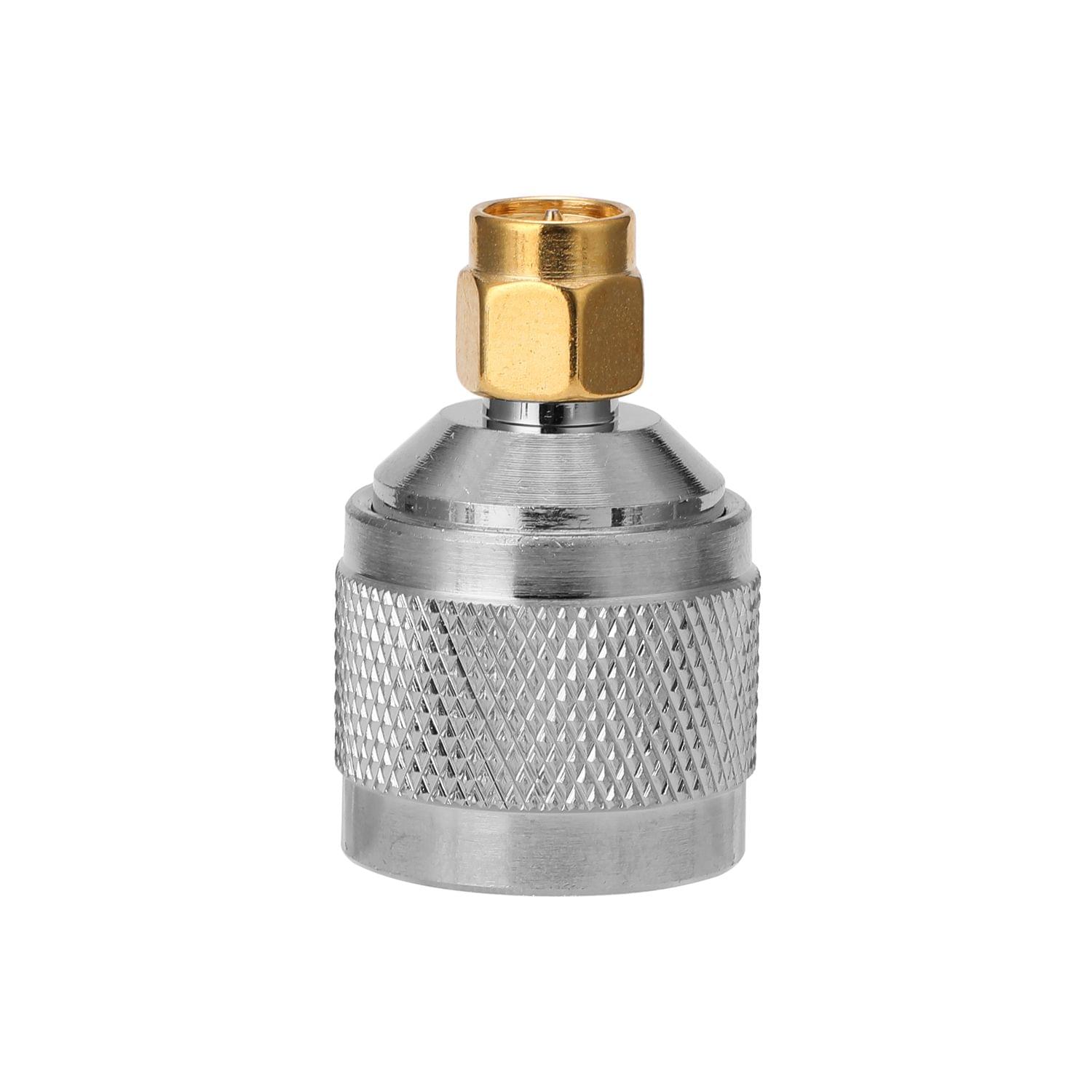

Made of fine quality material practical easy to operate and use wide application range has a long service life.Features:4.3 inch large-screen LCD touching screen display.Built-in 4000mAh lithium battery longer standby time more convenient to use.Frequency range is 0.1-600MHz HF VHF UHF continuous coverage.Measurement modes have single point measurement scanning (frequency sweep) and TDR mode.Built-in Li-ion charging circuitry and D.C-D.C booster.Portable and compact easy to operate and carry.Specifications:Main material: metalColor: blackFrequency range: 0.1-600MHzIn / Out impedance: 50 ohmsMeasurement parameters: SWR R +Jx -Jx |Z| ReturnlossMeasurement mode: single point measurement scanning (frequency sweep) and TDR modeSWR measurement range: 1.0-1999?single point mode) 1.0-20.0 (scan mode)Display modes: numerical display curve display simith chartConnector type: UHF N-type connectorSMA OPEN-SHORT-LOAD calibration kit x 1LCD size: 480x272 4.3 TFT LCD displayTouching screen type: capacitiveAll capacitive touching screen on the display no buttons are needed.Power source: USB or internal Li-ion batteryBattery: 1 * lithium battery 4000mAh (included)Maximum charging current: 5V/1.5AExternal storage method: TF cardItem size: 135 * 85 * 30mm / 5.3 * 3.3 * 1.2in (does not contain prominent ports)Item weight: 346g / 12.2ouncePackage size: 205 * 142 * 40mm / 8.1 * 5.6 * 1.6inPackage weight: 446g / 1.0lbPackage list:1 * Max600 Plus Antenna Analyzer1 * Bag of Accessories
