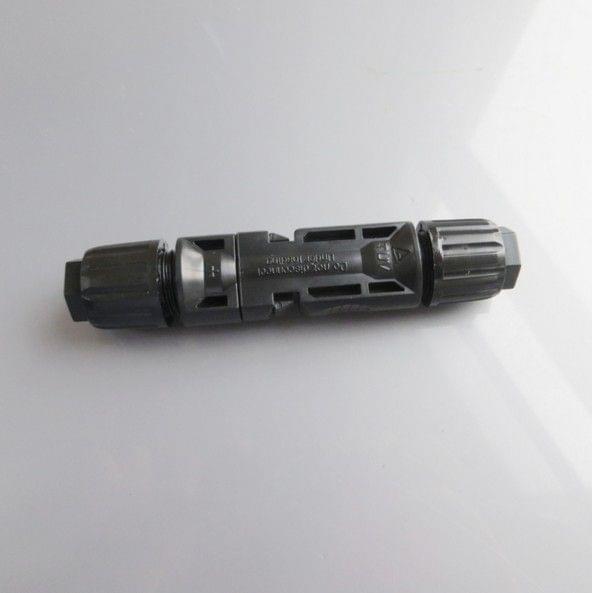

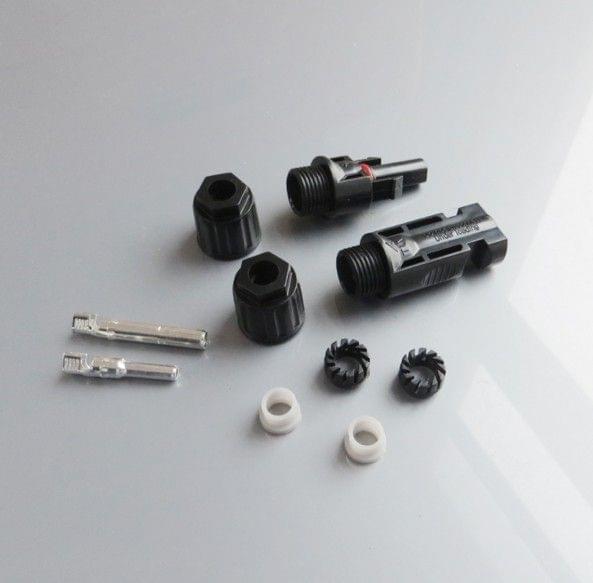

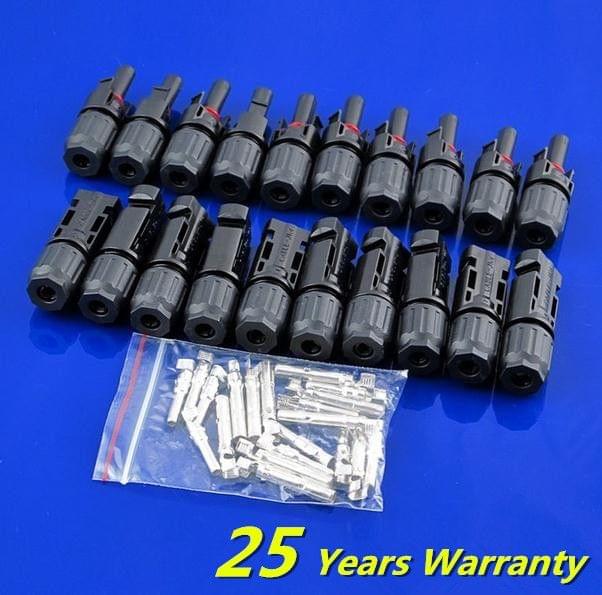

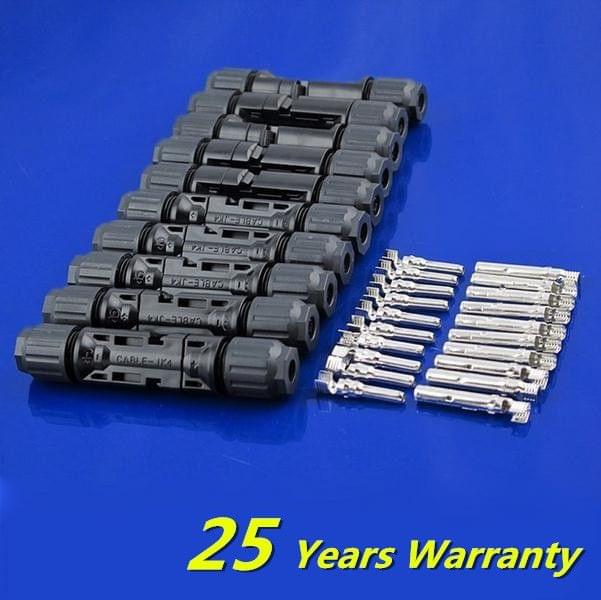

MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2
UNIQBUY

MC4 Connector male female 30A 1000V Solar Panel Branch Series for PV Cable 2.5/4/6mm2

Product SKU: UM-A14542
Available:
Only 5 items in stock
5 items in stock
In stock
Out of stock
Back in stock
Wishlist Compare
₹ 508.00
₹ 762.00
Notify me When Available
You will receive an email when the product is available.
Delivery by Tuesday, 18 March
  • Description
  • Model Number:EU
  • Connection:Plug In
  • Output Type:DC
  • Brand Name:ZOORUI
  • Usage:Electric Tool
  • Output voltage:DC1000V
  • Usage:solar
Specification
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0
