MH10 Megohmmeter Meter DC 100/250/500/1000V AC750V for Electrical Appliances blue

Description:

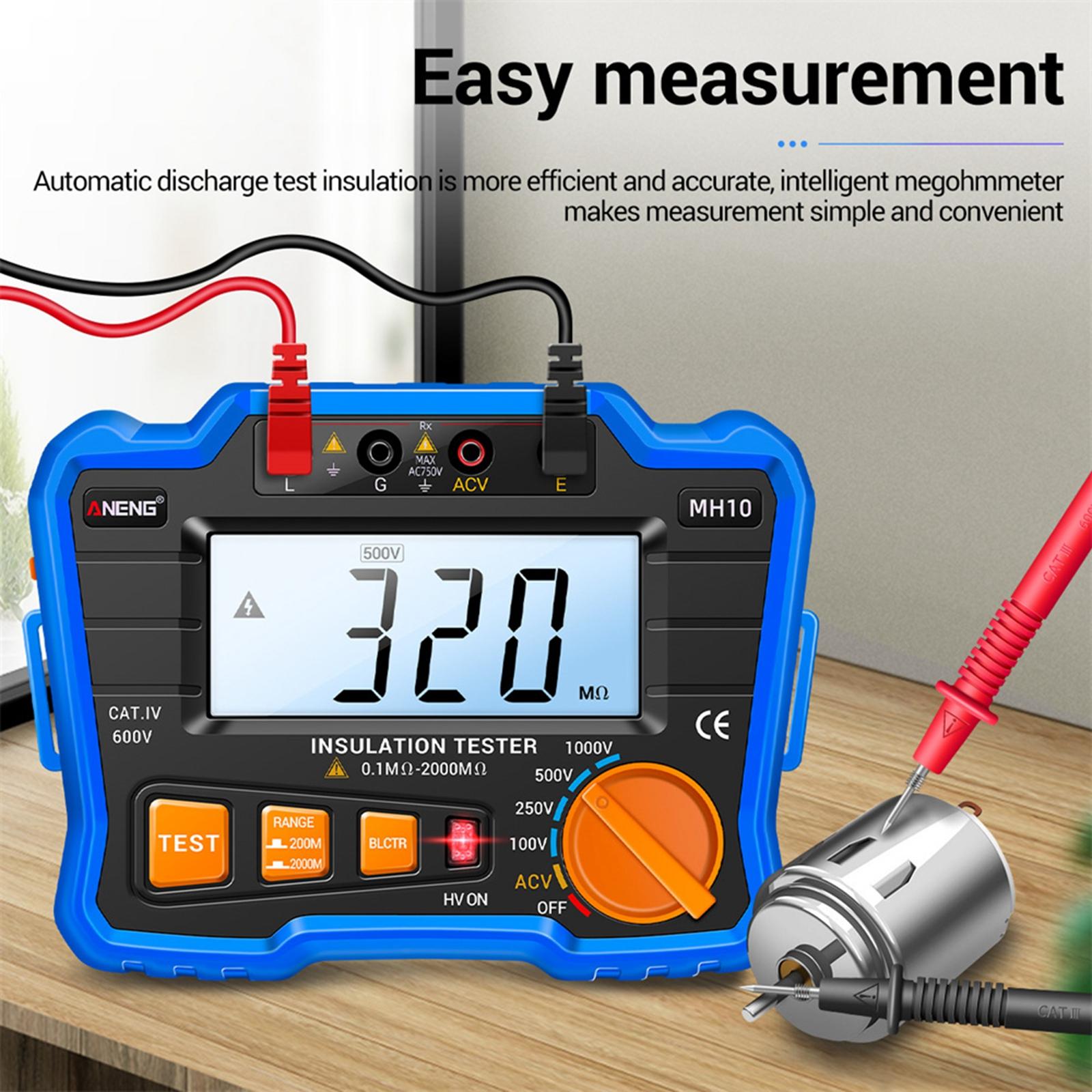

MH10 is an electronically controlled miniature instrument, in which the high-voltage insulation resistance test has 4 rated test voltages to measure the insulation resistance.
Suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as motors, cables, switches, electrical appliances, etc. and for maintenance, repair, test and verification of various electrical equipment.
The rated output voltage can use the function knob, MH10 is at 100V, 250V, 500V, 1000V.
High pressure indication: The LED lamp (HV ON) and the "HV" on the left of the display indicate the high pressure output in the instrument and the danger of shock. The operator should pay special attention to safety.
Measuring range MH10 is 0.1-1999MΩ, and the range is changed manually. AC voltage range 1~750V, AC voltage frequency 40~70Hz.

Specification:

Material: Plastic+Silicone

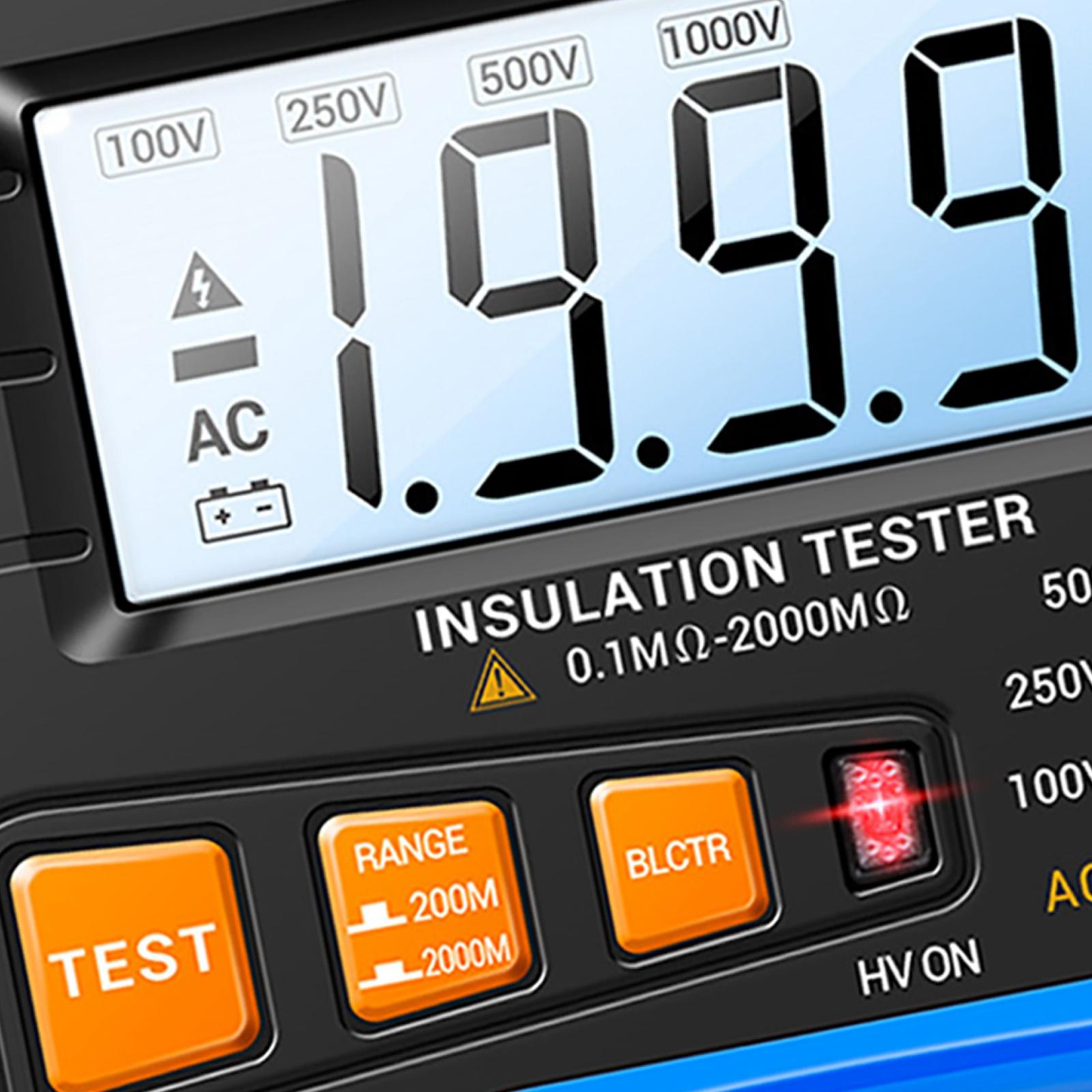

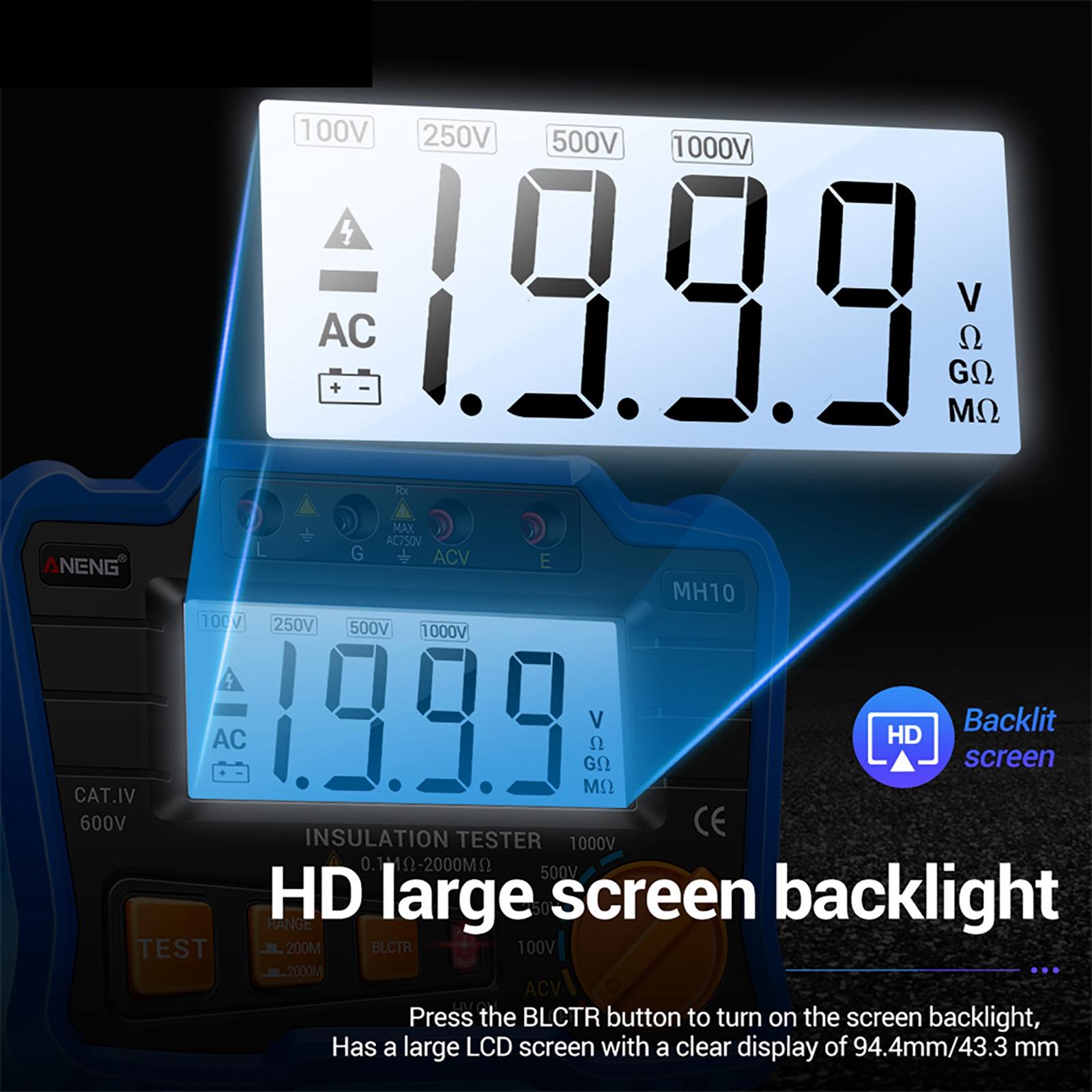

Screen: LCD
Test Pen Wire Length: 91.5cm
Test condition: test temperature/humidity 23 ± 5°C/45~75%RH
Output voltage: 90%~110% (output load of ≥1000 MΩ)
Short-circuit current: ≥ 1.0mA
Insulation resistance:≥ 500 MΩ (1,000 V)
Pressure resistance: AC 2KV 50Hz 1minute
Working temperature and humidity: 0~40°C, relative humidity 85% or less

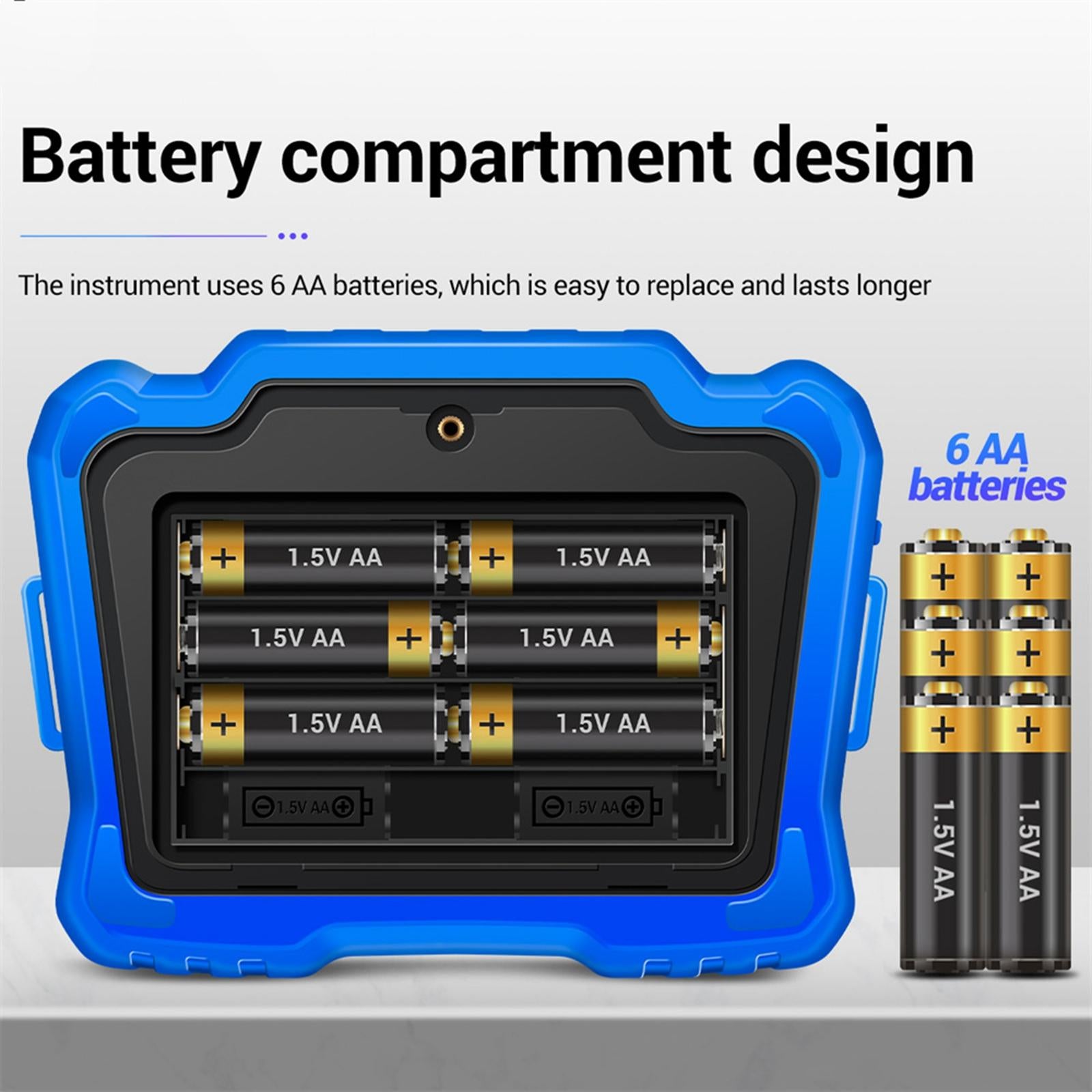

Power Supply: 6 AA Battery(not include)

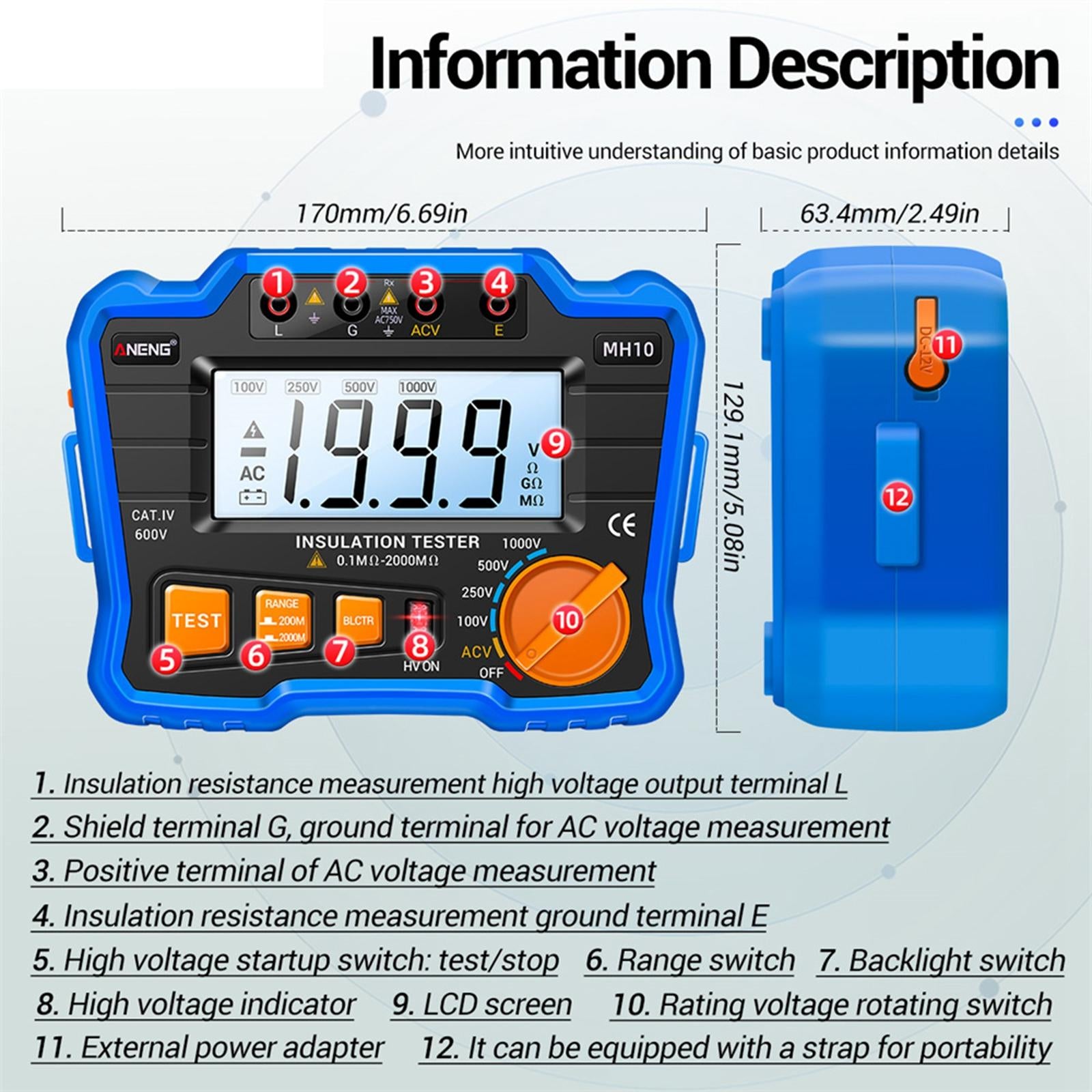

Size Chart:

170x129.1x63.4mm/6.69x5.08x2.50inch

Package Includes:

1x Digital Megohmmeter Meter

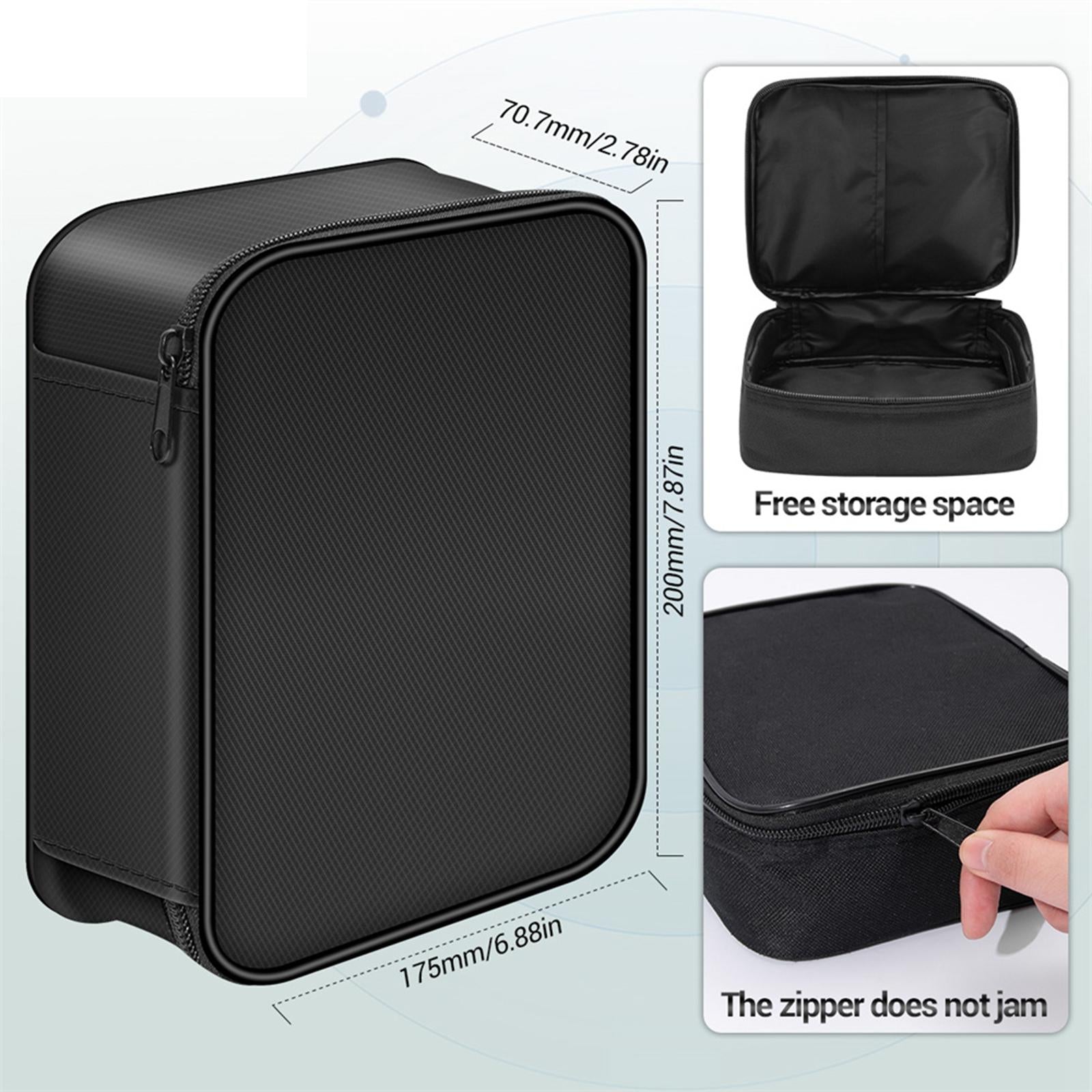

1x Storage Case

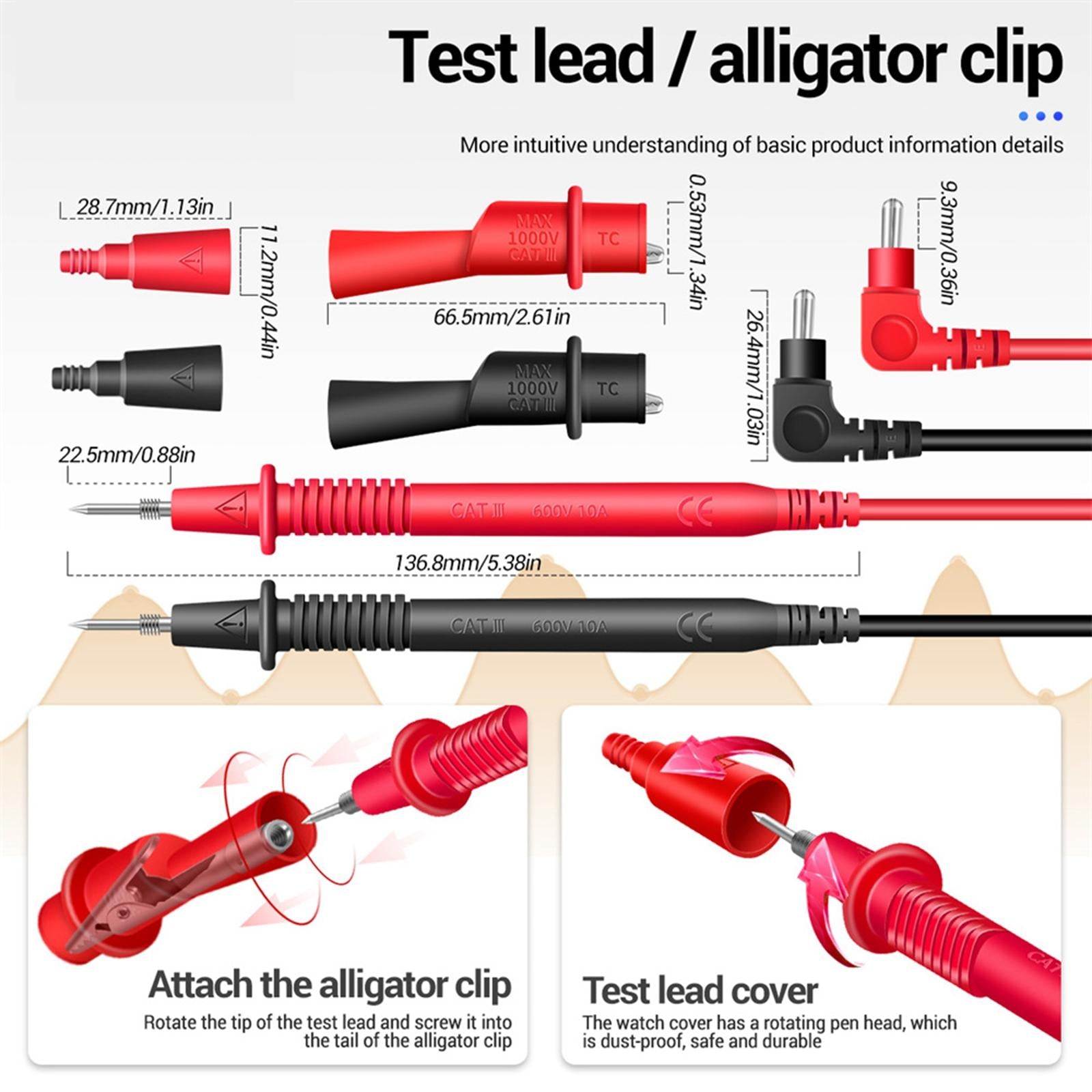

2x Alligator Clip
2x Test Pen
1x Manual

Note:

1. Please allow slightly error due to manual measurement.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Wish you a wonderful on-line shopping!
