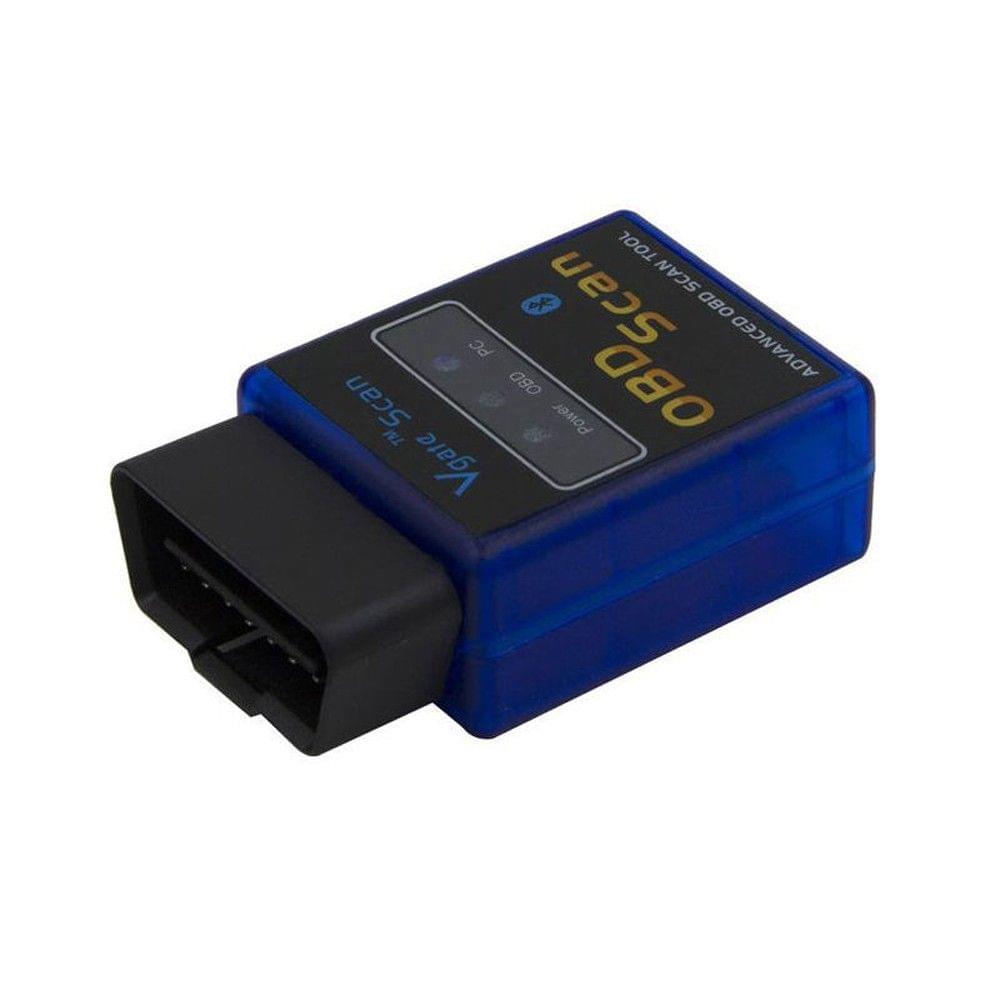

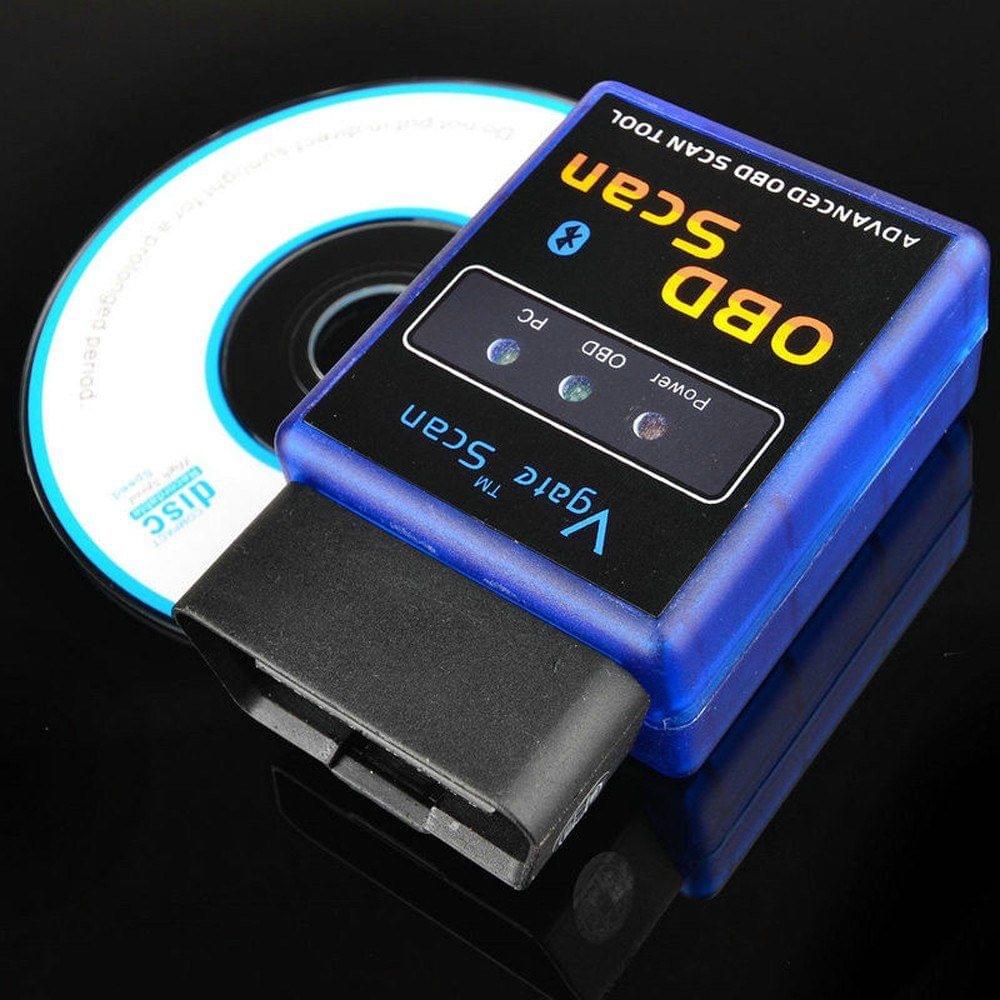

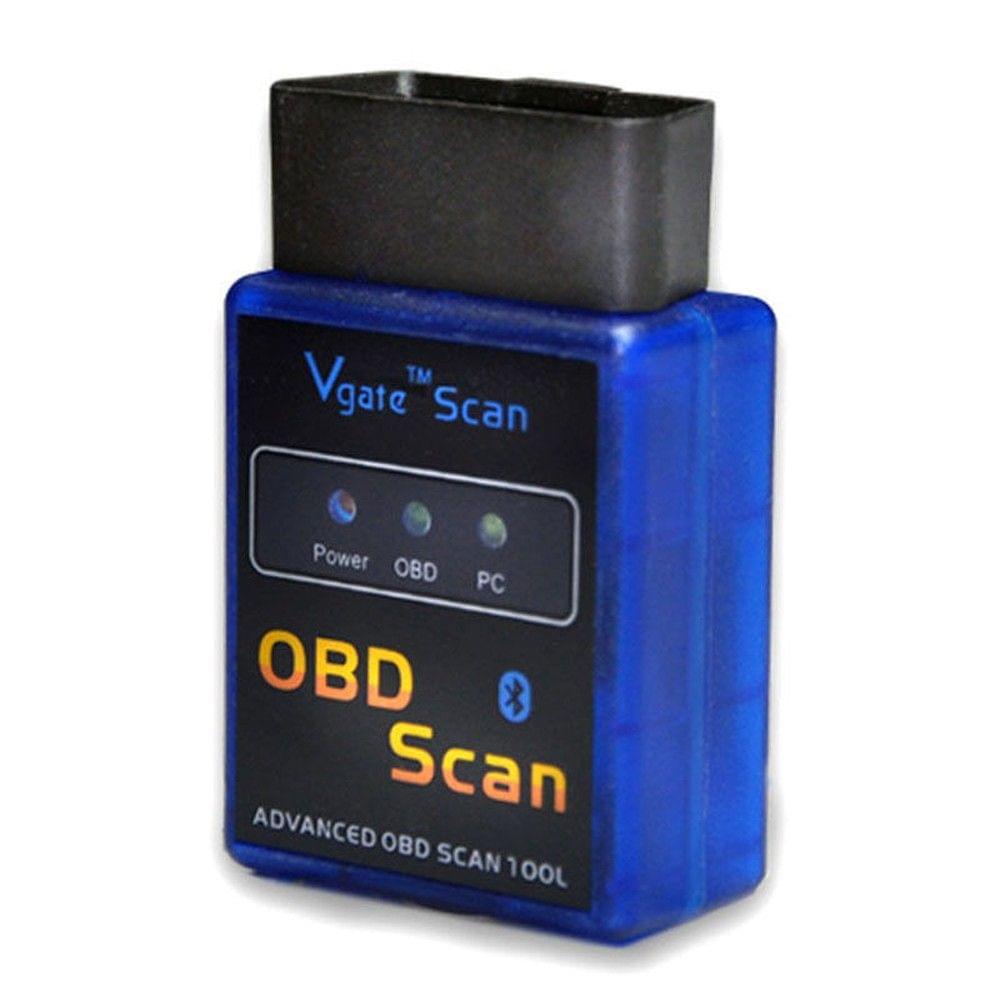

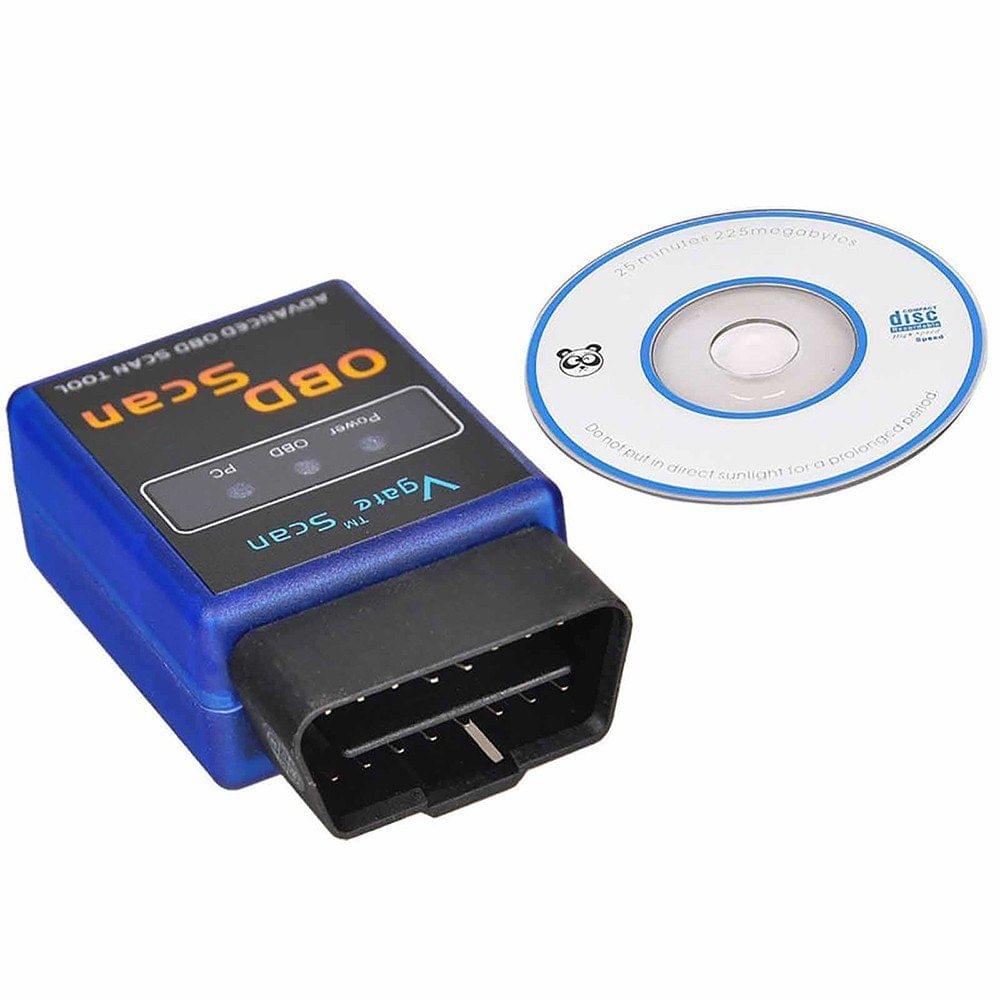

Mini OBD Diagnostic Tool BT Engine Fault Diagnosis Instrument

Easygoing for Android device into a powerful diagnostic scan tool, giving the technician full access to Engine, Transmission, ABS (Brakes), SRS (Seatbelts and Airbag) systems and more.

A highly intuitive menu guides technicians through step-by-step procedures for viewing and clearing trouble codes, along with the ability to view enhanced live data.

Features: Intuitive interface and easy to use.

Hardware: V1.5, software : V2.1.

High compatibility, support app. Connection type: by BT. Reads and clears codes on all vehicle systems. Paired password: 0000 or 1234.

Supported System: for Android, for Windows.

Supported Protocol: ISO9141-2(5 baud init,10.4Kbaud) ISO14230-4 KWP (5 baud init, 10.4 Kbaud) ISO14230-4 KWP (fast init, 10.4 Kbaud) ISO15765-4 CAN (11bit ID, 500 Kbaud) ISO15765-4 CAN (29bit ID, 500 Kbaud) ISO15765-4 CAN (11bit ID, 250 Kbaud) ISO15765-4 CAN (29bit ID, 250 Kbaud) SAE J1939 CAN (29bit ID, 250*Kbaud) USER1 CAN (11*bit ID, 125*Kbaud) USER2 CAN (11*bit ID, 50*kbaud)

Compatible software:

For Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;

For Android version: Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD; Symbian version: OBDScope.

Functions:

1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2) Clear trouble codes and turn off the MIL (\"Check Engine\" light)

3) Display current sensor data, including:

4) Engine RPM

5) Calculated Load Value

6) Coolant Temperature

7) Fuel System Status

8) Vehicle Speed

9) Short Term Fuel Trim

10) Long Term Fuel Trim

11) Intake Manifold Pressure

12) Timing Advance

13) Intake Air Temperature

14) Air Flow Rate

15) Absolute Throttle Position

16) Oxygen sensor voltages/associated short term fuel trims

17) Fuel System status

18) Fuel Pressure

Specifications:

Operating Voltage: 9V-16V

Working current: 35mA

Operating temperature: -40-85℃

Product size: 65 * 45 * 25mm / 2.6 * 1.8 * 1.0in

Package size: 100 * 65 * 25mm / 3.9 * 2.6 * 1in

Package weight: 50g / 1.8ounce

Package List:

1 * Diagnostic Scanner
