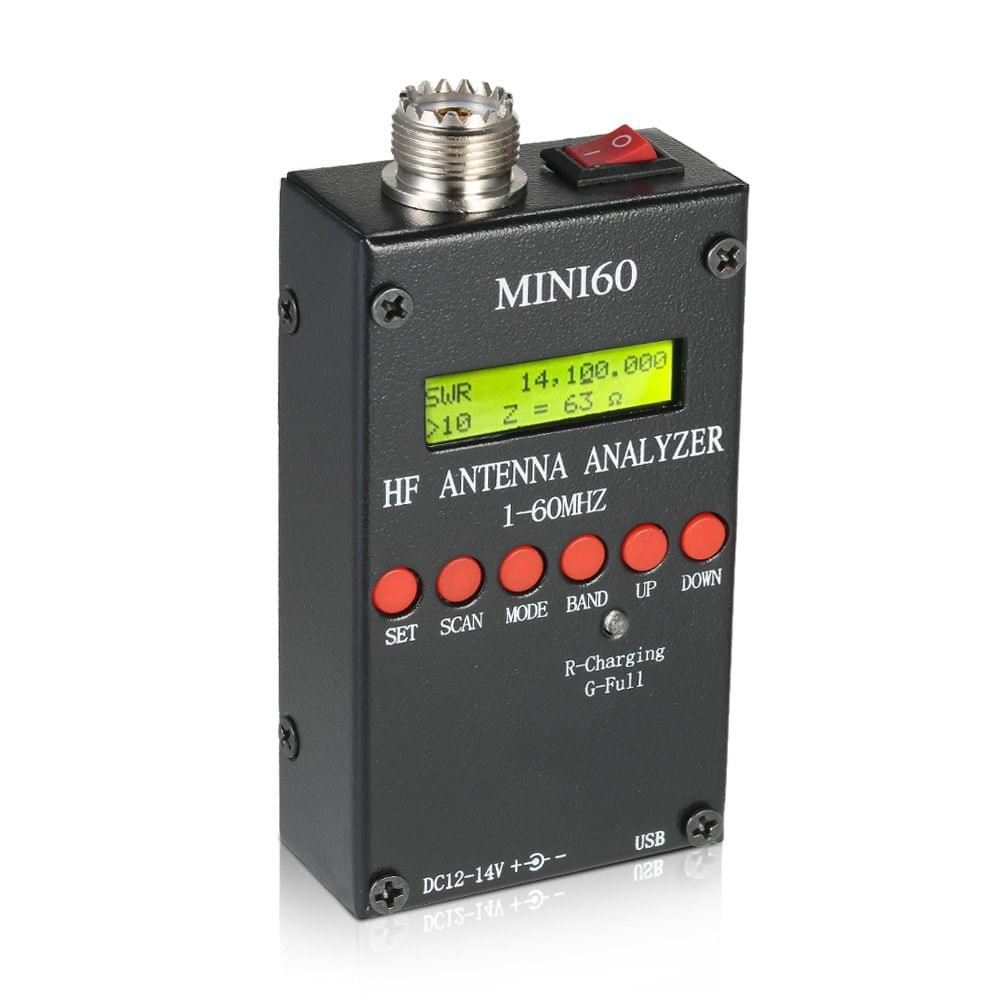

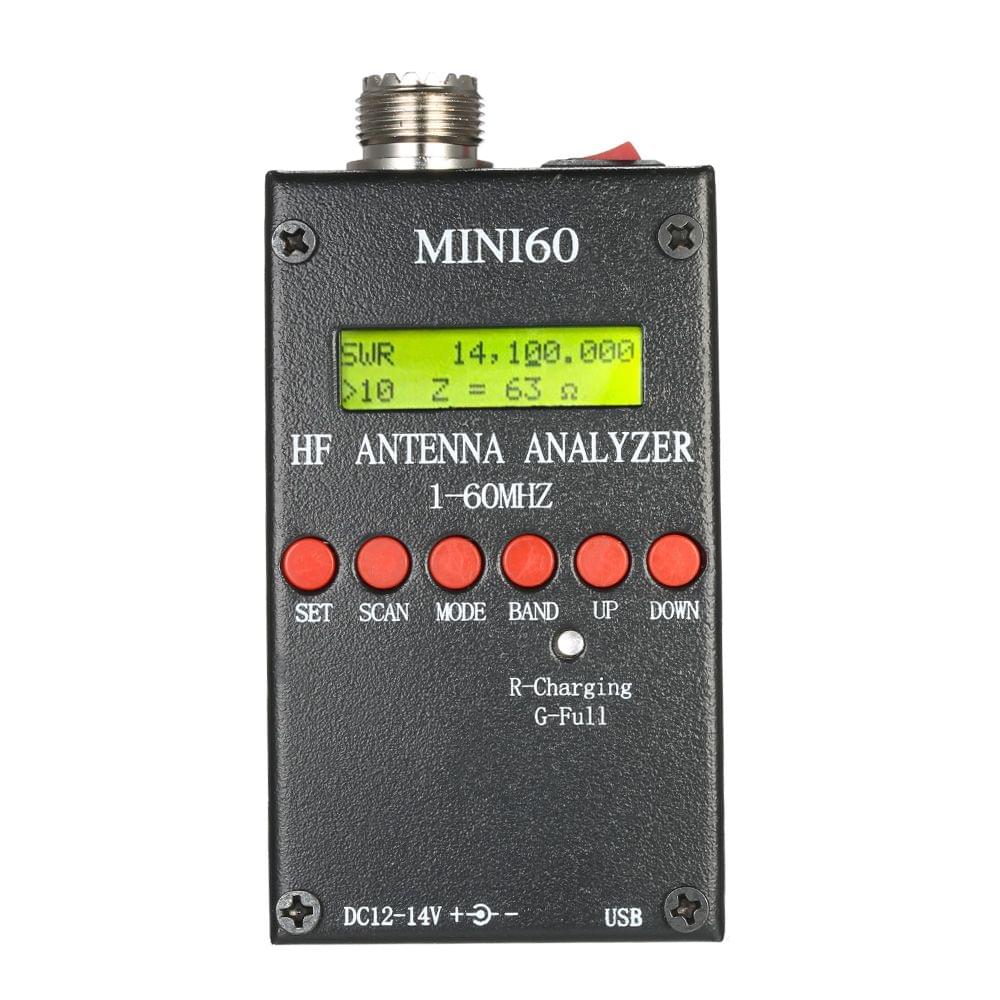

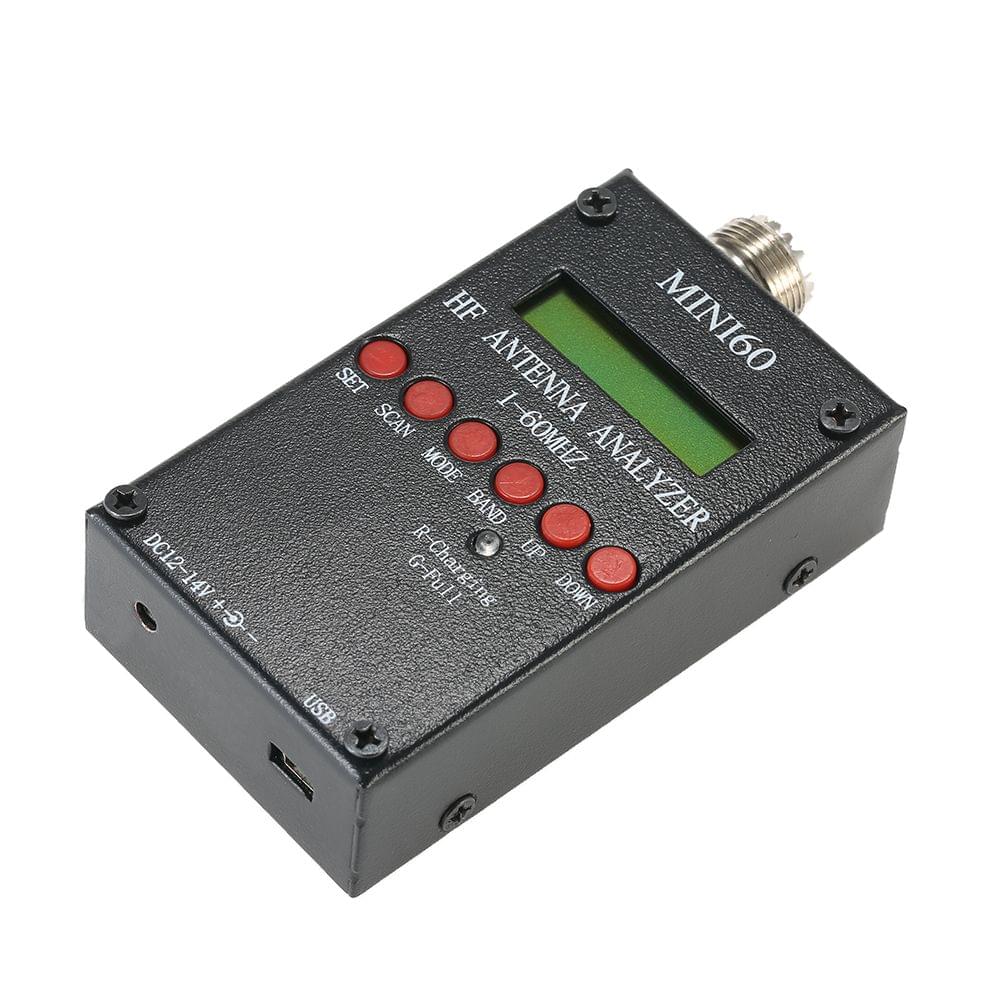

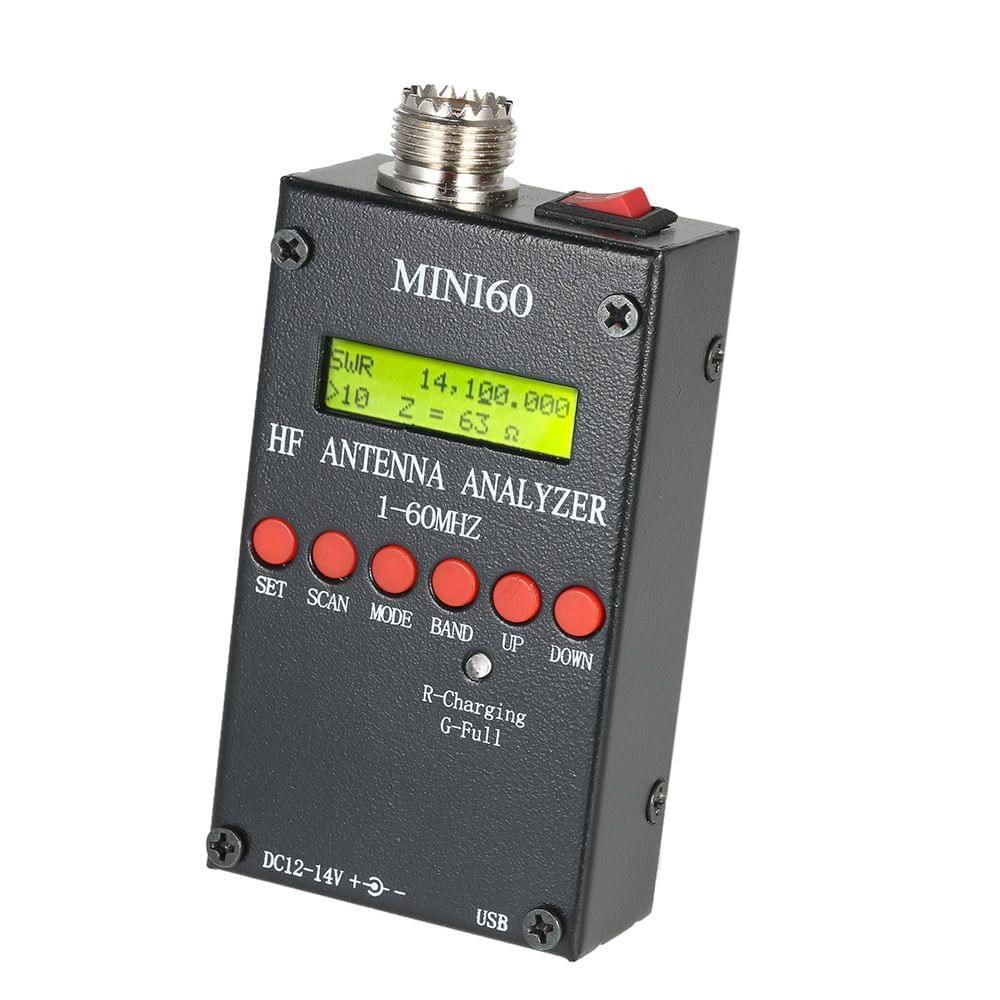

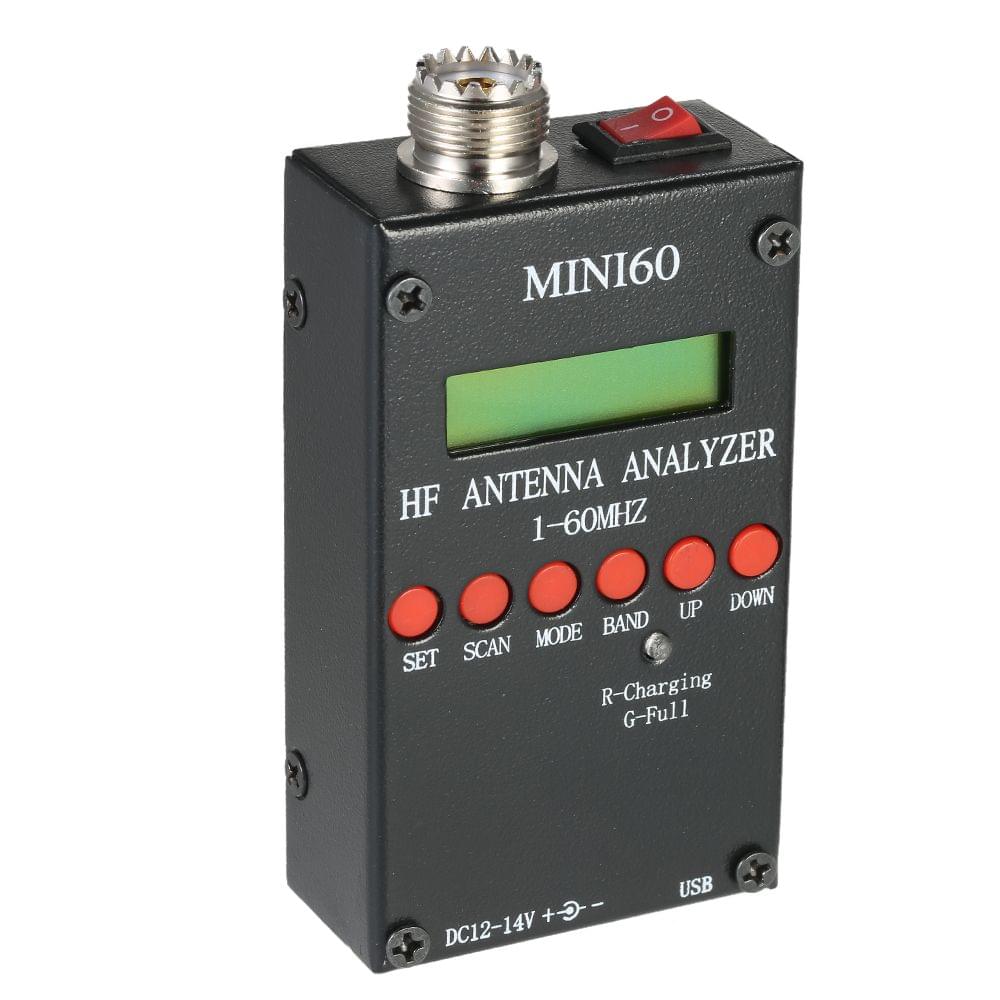

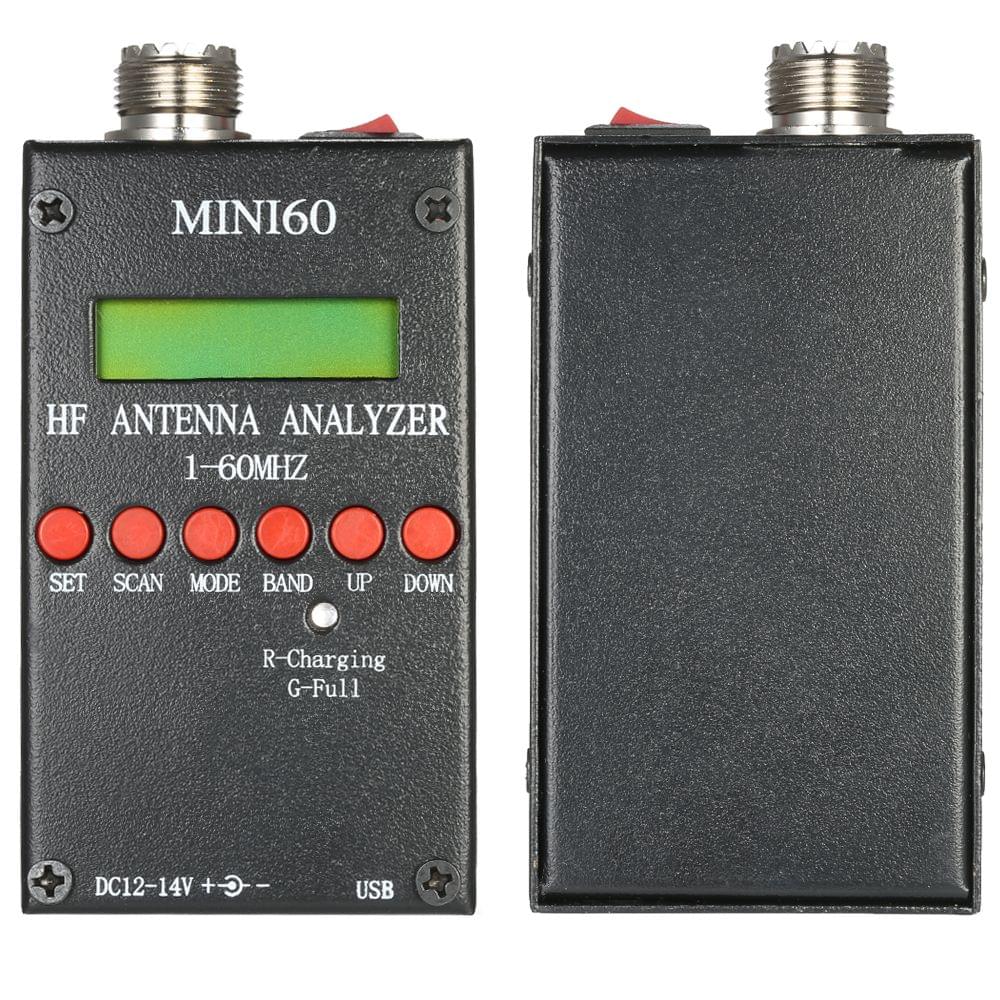

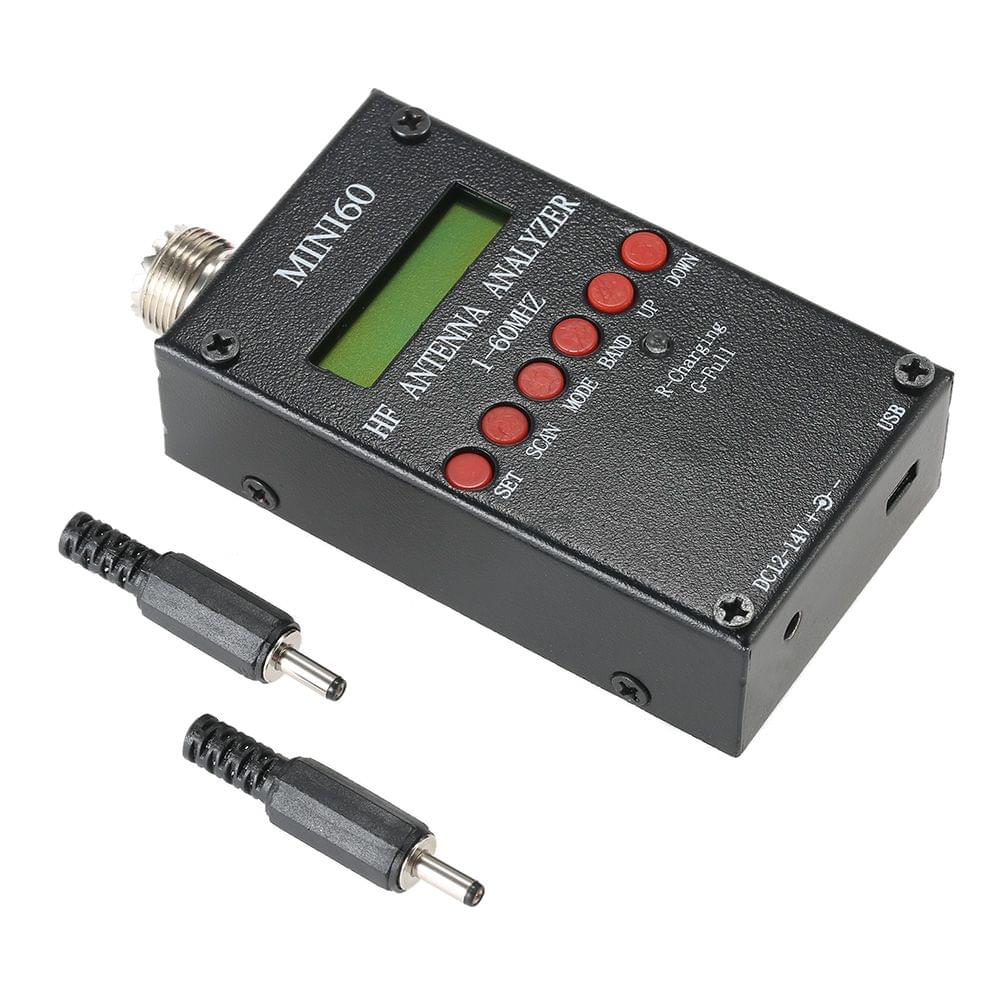

Mini60 Antenna Analyzer Meter 1-60MHz SARK100 AD9851 HF ANT - BT Version & Antenna Analyzer

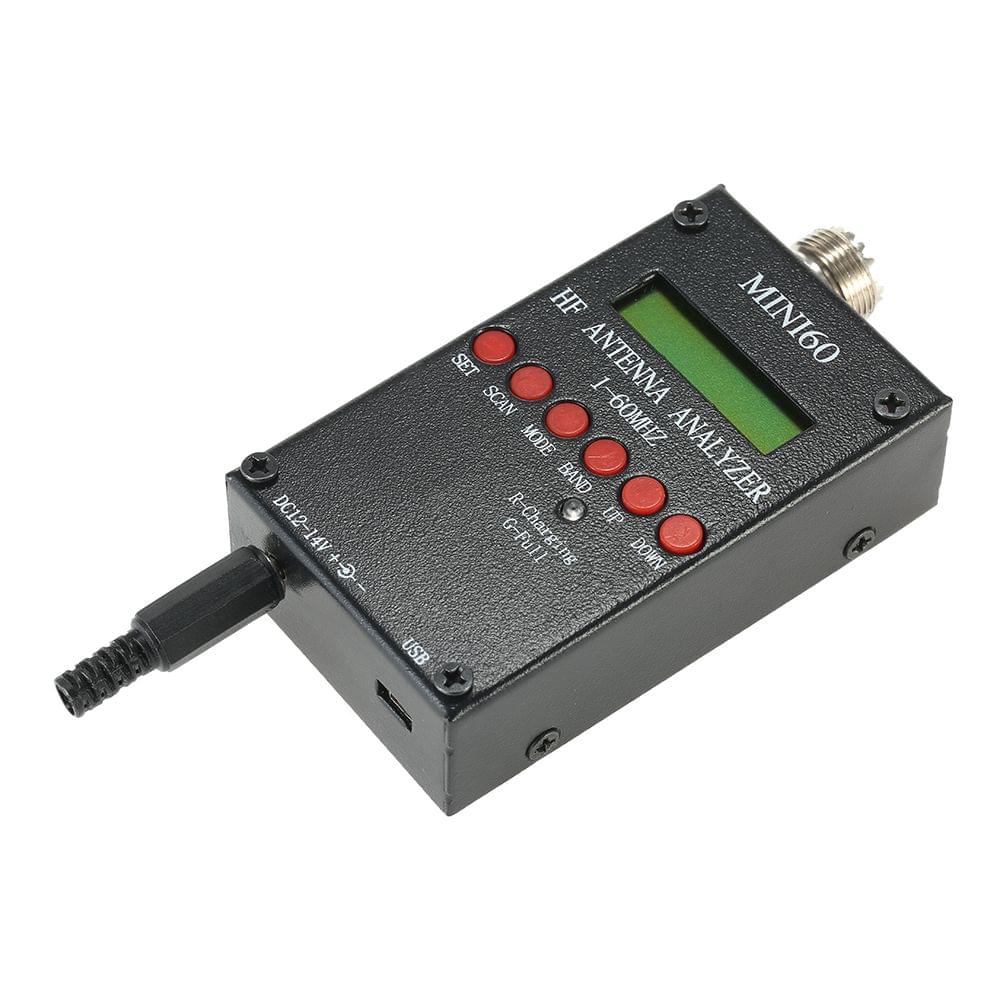

This is an antenna analyzer for ham radio hobbyists. It can measure 50 ohms source impedance. It is also a meter for magnetic loop resonance standing wave ratio impedance...Features:Frequency generation control: 1-60MHz.External power supply: 2.1mm power jack(center pin positive).6 operation buttons easy and convenient to operate.Installed black metal case just connect the power(not included) and then work.Step size: user configurable increments of 100Hz 1KHz 10KHz and 100KHz.Support measuring data waveform analysis via connecting computer with USB cable(not included).Operation:Manual control option displays SWR and complex impedance at selected frequencies Automatic scanning results displayed as frequencies of lowest SWR and complex impedance Battery operated for field use or use external 13.8V wall adapter Power saving modes Multi-point calibration for better accuracy Instrument Capabilities:Measure antenna electrical parameters: SWR impedance(resistance+reactance) capacitance inductance;Measure feed point impedance;Measure ground loss;Adjust antenna tuners and determine loss;Measure inductors and capacitors;Measure coax transmission line(SWR length velocity factor approximate Q and loss resonant frequency and impedance);Measure and determine optimum settings for tuning stubs: SWR approximate Q resonant frequency bandwidth impedance;Determine characteristic impedance of transmission line;Determine length of ¼ and ½ wave phasing lines;Coaxial Cable Loss;Determine antenna tuner loss; Measure balun loss;Measure inductor Q;Estimate quartz crystal parameters;Measure magnetic loop resonance and SWR;Specifications:Version Type: Ordinary Version / BT Version(Optional)Frequency Generation Control: 1-60MHzSource Impedance: 50 ohmsStability: (+/-) 100 ppmSpectral Purity: Harmonics Down - TBD dB beyond 60MHzStep Size: User configurable increments of 100Hz 1KHz 10KHz and 100KHzUsable Measurement Range: SWR: 1.0 to 9.99Impedance: Approx. 5 to 2000 ohmsRF Output: Adjustable: 2.0 Volts pp (typ) RF Out: BNCConnectors: RFPower Supply(3.7V Li-on Battery NOT Included): Powered by External: DC 12-14V 500mAExternal Power: 2.1mm Power Jack(center pin positive)USB Interface: Mini USB ReceptacleItem Size: 10 * 5.2 * 2.8cm / 3.94 * 2.05 * 1.1inItem Weight: 200g / 7.05ozPackage Size: Ordinary Version: 11.5 * 7 * 7cm; BT Version: 12 * 9 * 7cmPackage Weight: 240-252g / 8.47-8.92ozNote:The item is without the Battery!BT Version supports for Android 2.2-4.0 or new version; supports 3-10 inch mobile phone and tablet; supports windows via software.Package List:1 * Antenna Analyzer2 * Adapter
