Motion Sensor Type Control PIR Safety Home Outdoor Surveillance System

Description:

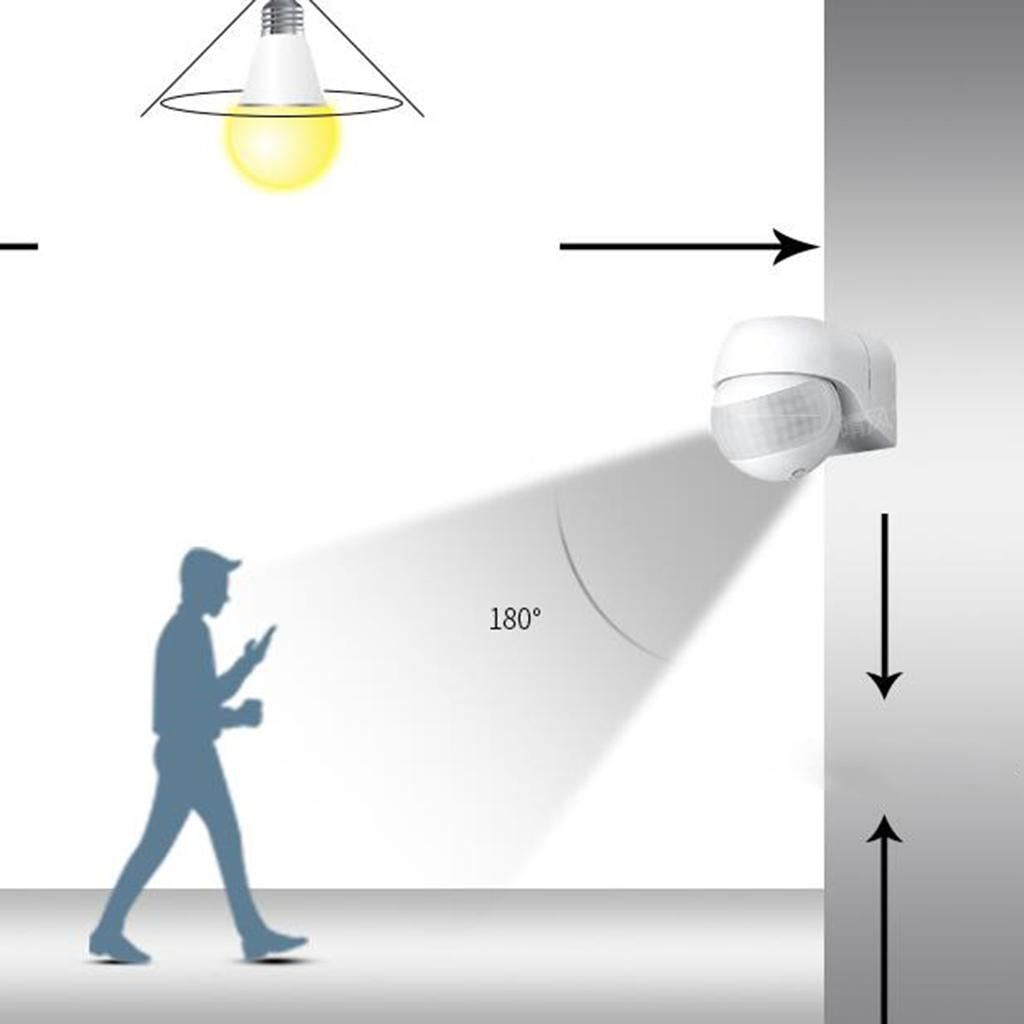

Energy saving and environmental protection, easy installation, detection direction can be adjusted 180° rotation.
Focusing on a moving object generates a pyrolytic infrared signal at its temperature.
Can effectively prevent fire hazards, no deformation, not easy oxidation.
Sensors are suitable for household lamps, indoor and outdoor lamps.
The inductive probe to the change of the human body infrared spectrum, switch automatically on the load, people to the light, people off the light, convenient, secure and energy saving.

Specification:

Materials:FR-ABS
Non-transformer,Induction type control switch.
Wiring instructions:
N-blue (neutral line), L-brown (live line) output,red (sensor output line)
blue and brown input power supply,blue and red load (lamp)
Rated load:
800W Tungsten lamp
200W Energy saving lamp
Working frequency:50/60Hz
Operating humidity:< 93%RH
Operating temperature:-20°C~+40°C
Delay time:8 seconds - 7 minutes(adjustable)
Ambient light:3- 2000LUX(adjustable)

Size Chart:

Size:82x56x66mm/3.22x2.20x2.59inch

Package Includes:

1 Piece Motion Detector
1 Piece Instruction Book

Note:

Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
