1. BLE TPMS product which is designed for smart cellphones and supports cellphone with Bluetooth 4.0 or above 2. One BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP 3. During travel, tire pressure and temperature displayed in real time and send alert when statistics abnormal

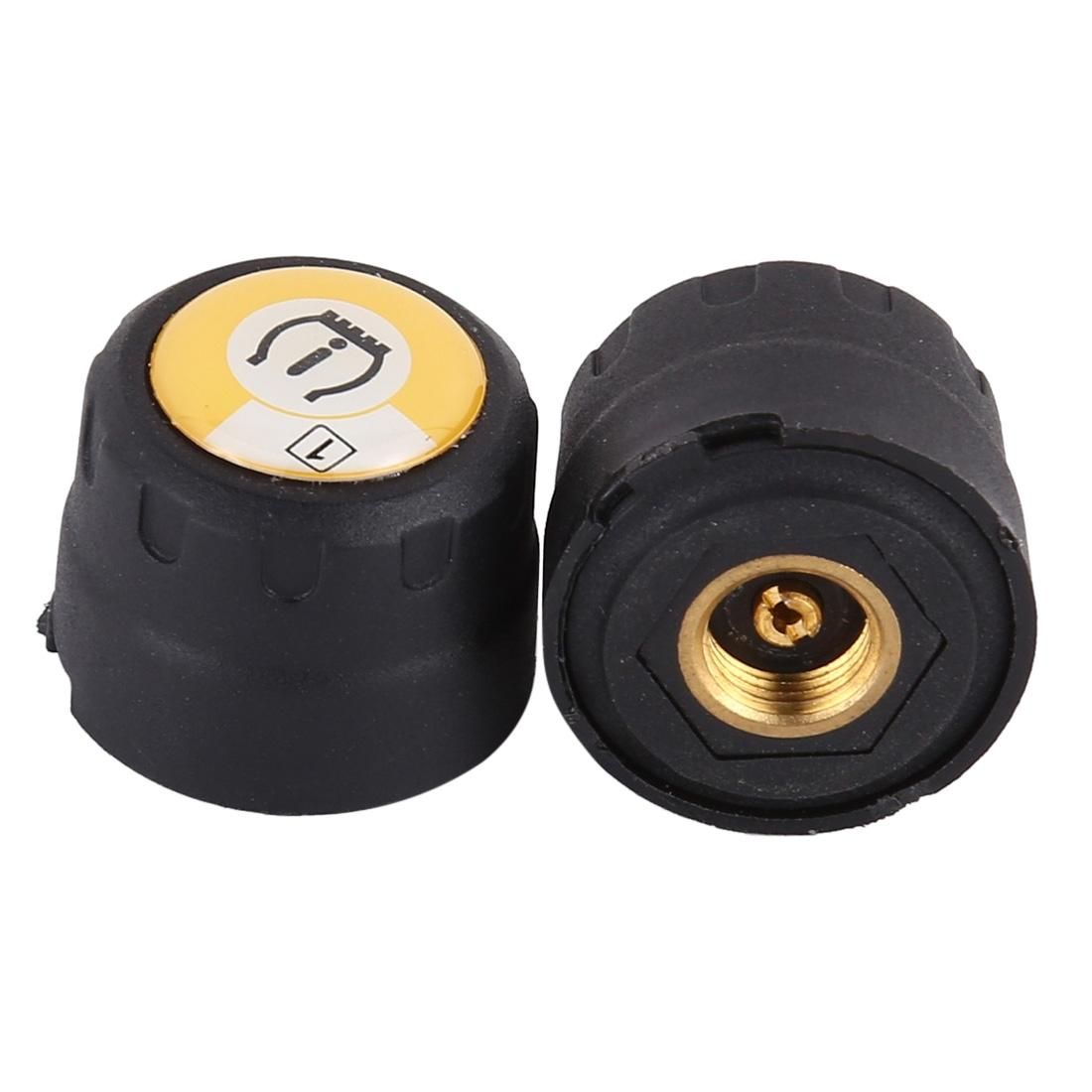

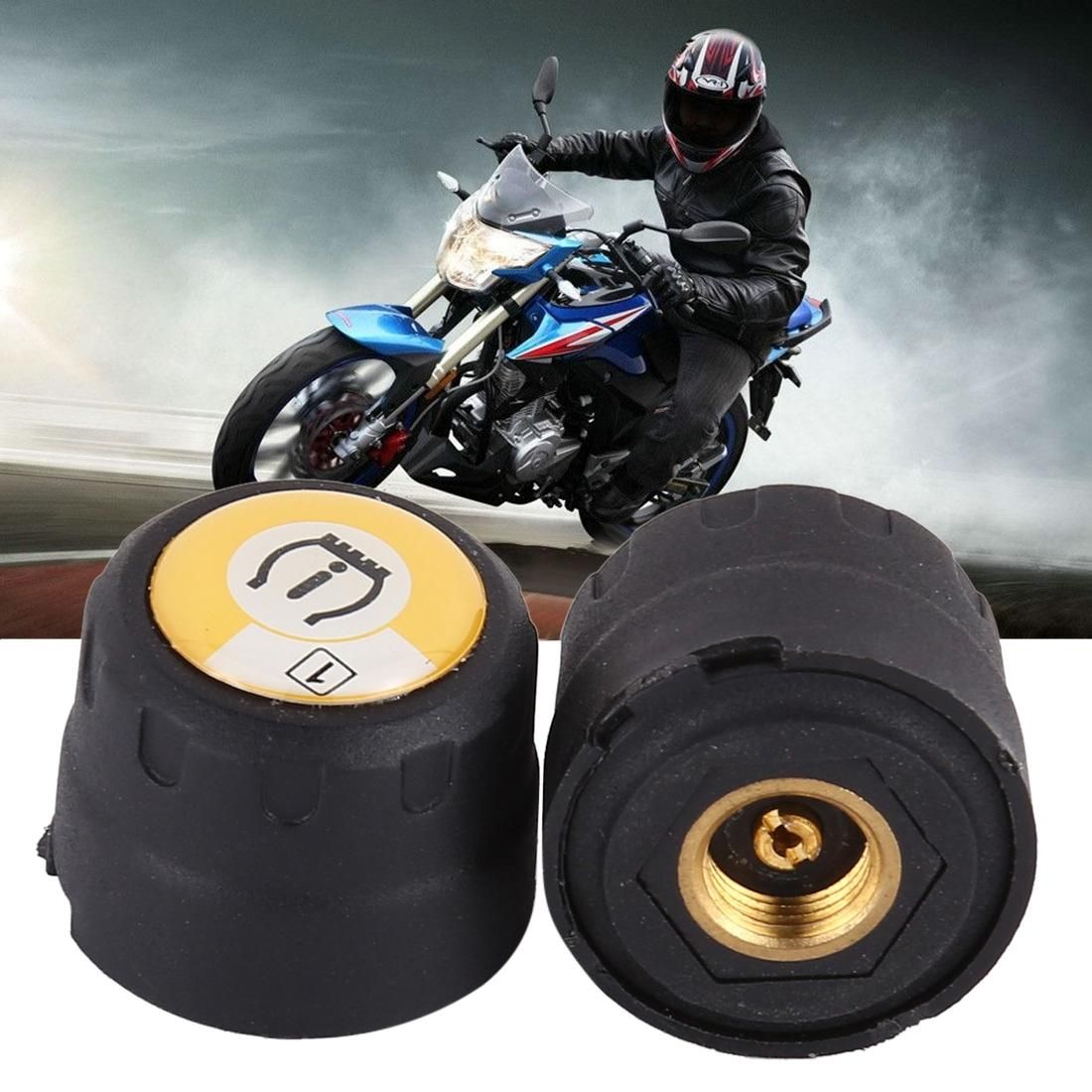

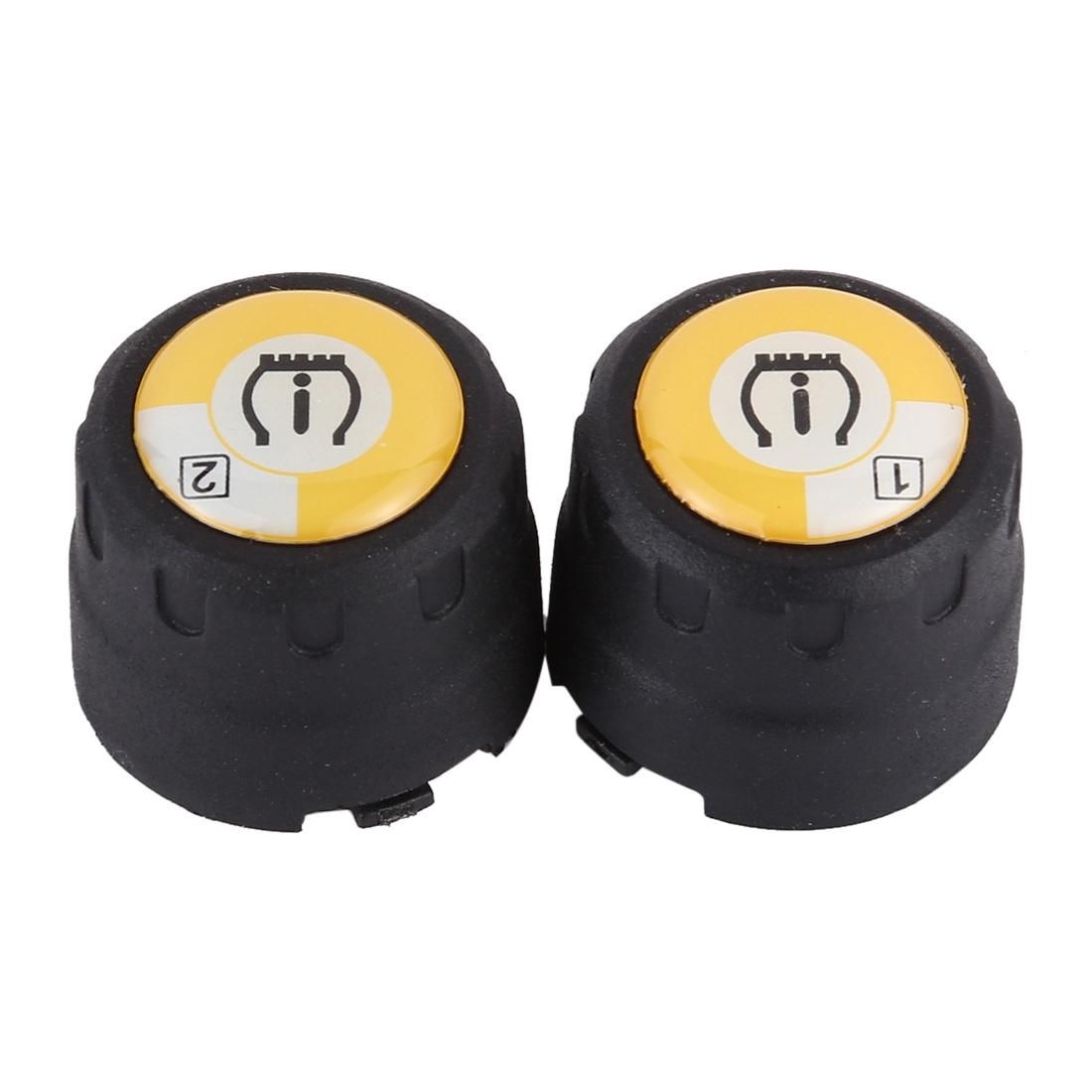

Sensor parameters: 1. Processor: ARM M0 2. Working humidity: 95% max 3. Working voltage: 3V 4. Tire pressure detection range: 100-1300kPa 5. Working current: 100uA 6. Tire pressure detection accuracy: +-10kPa 7. Tire temperature detection accuracy: +-3 Degrees Celsius 8. Standby current: <=2.2uA 9. Bluetooth working frequency: 2.4GHz 10. Bluetooth transmitting power: 0dBm max 11. Working temperature: -30-+80 Degrees Celsius 12. Storage temperature: -30-+85 Degrees Celsius 13. Wait time: <=5s 14. Battery capacity: 140mAh 15. Display: phone APP 16. Battery life: 3-5 years 17. Waterproof standard: IP67
