Motorcycles Racing Carburetor for PHBL 22AS R2707 22mm 2T(A) 50-250cc 1x

Description:

Piston-type throttle valve Indipendent starting circuit
Idling system with jet and mixture adjusting screw
Main circuit with mechanical mixture adjustment by conical needle
Versions of mixture adjusting screw on the right and/or on the left,Versions with mechanically-operated diaphragm acceleration pump

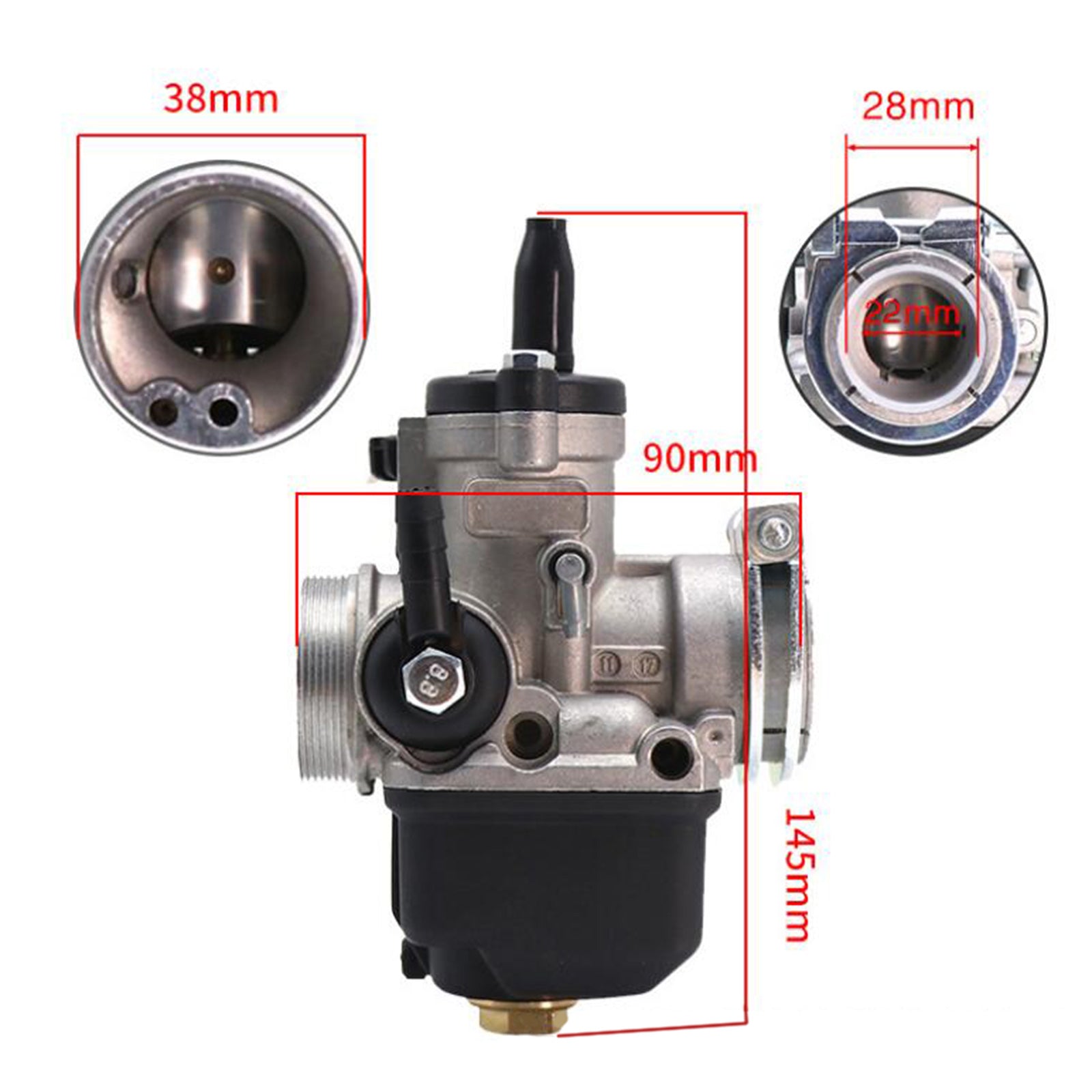

Sleeve connection with insulating reducing socket from Ø 31.75 to Ø 28.57 and Ø 31 elastic fitting connection,Air intake connection Ø 38 or Ø M38 x 1.25 for trumpet or joint assembly

Specification:

Model: for PHBL 22AS 2T(A) R2707
Engine: 50-250cc, 2 stroke
Application: Motorcycles
Venturi diam.:22mm
Material:Die-cast body
Weight: 655g

Package Includes:

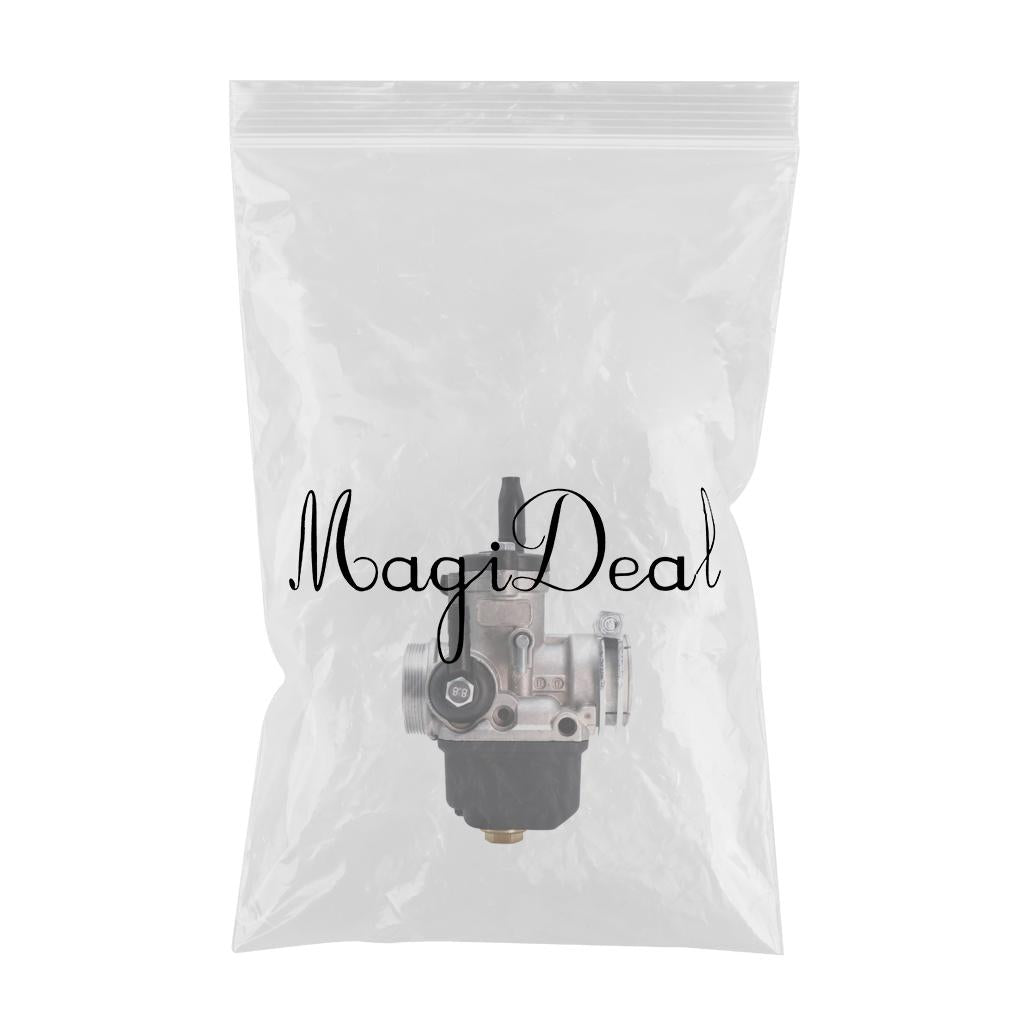

1 x Carburetor
