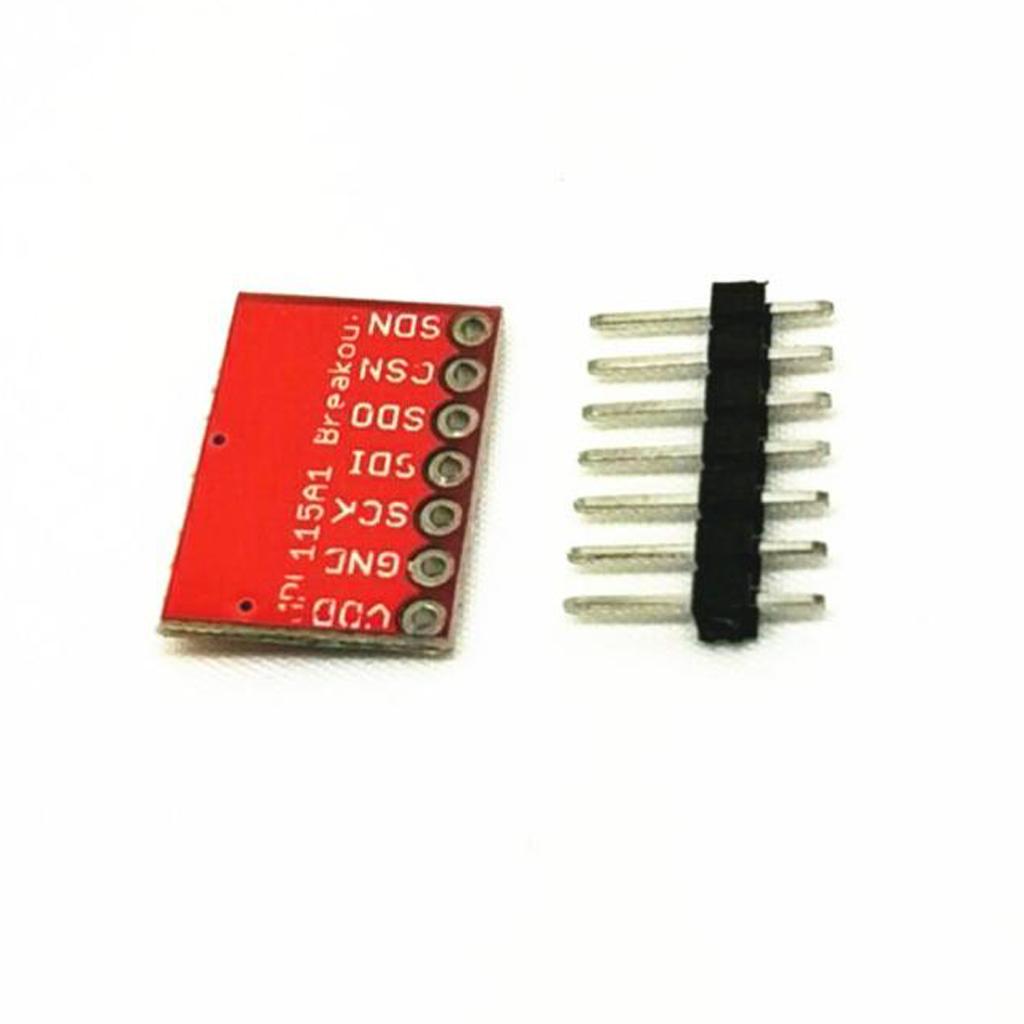

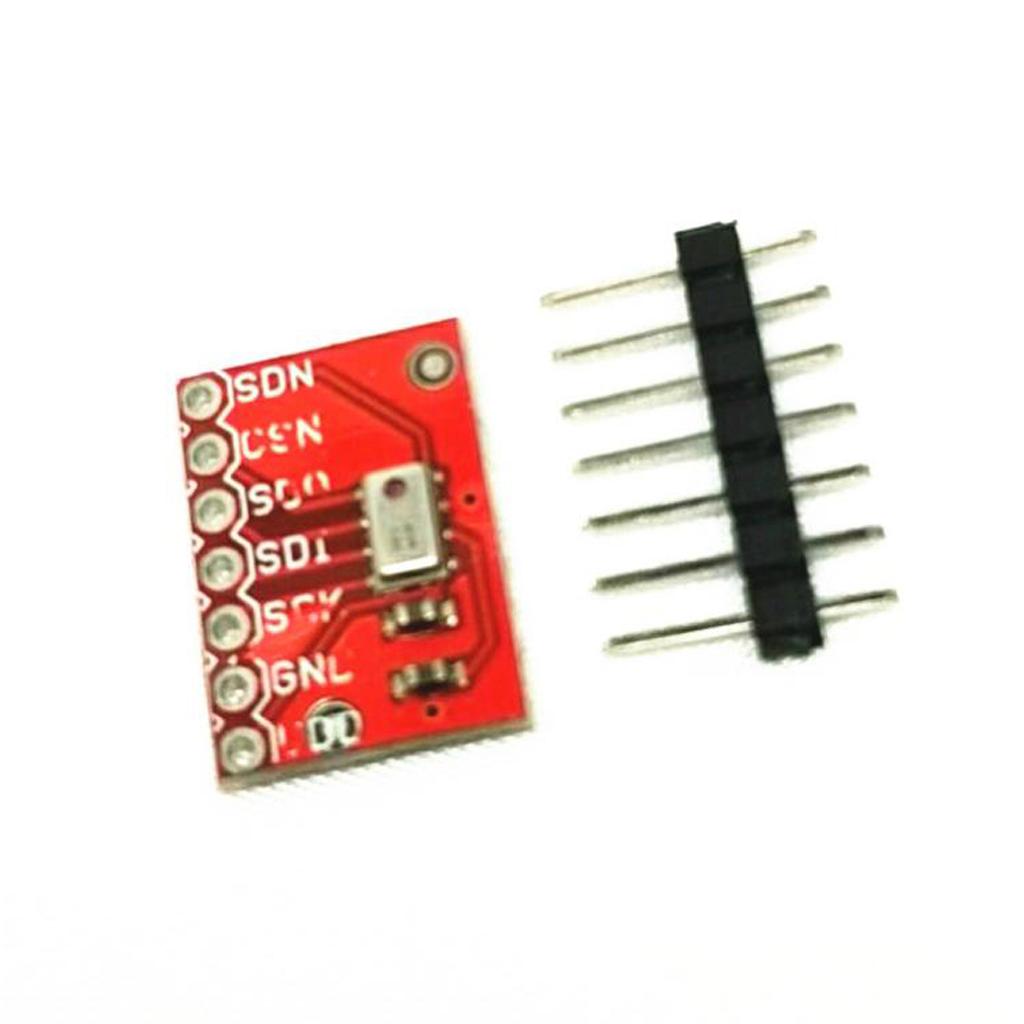

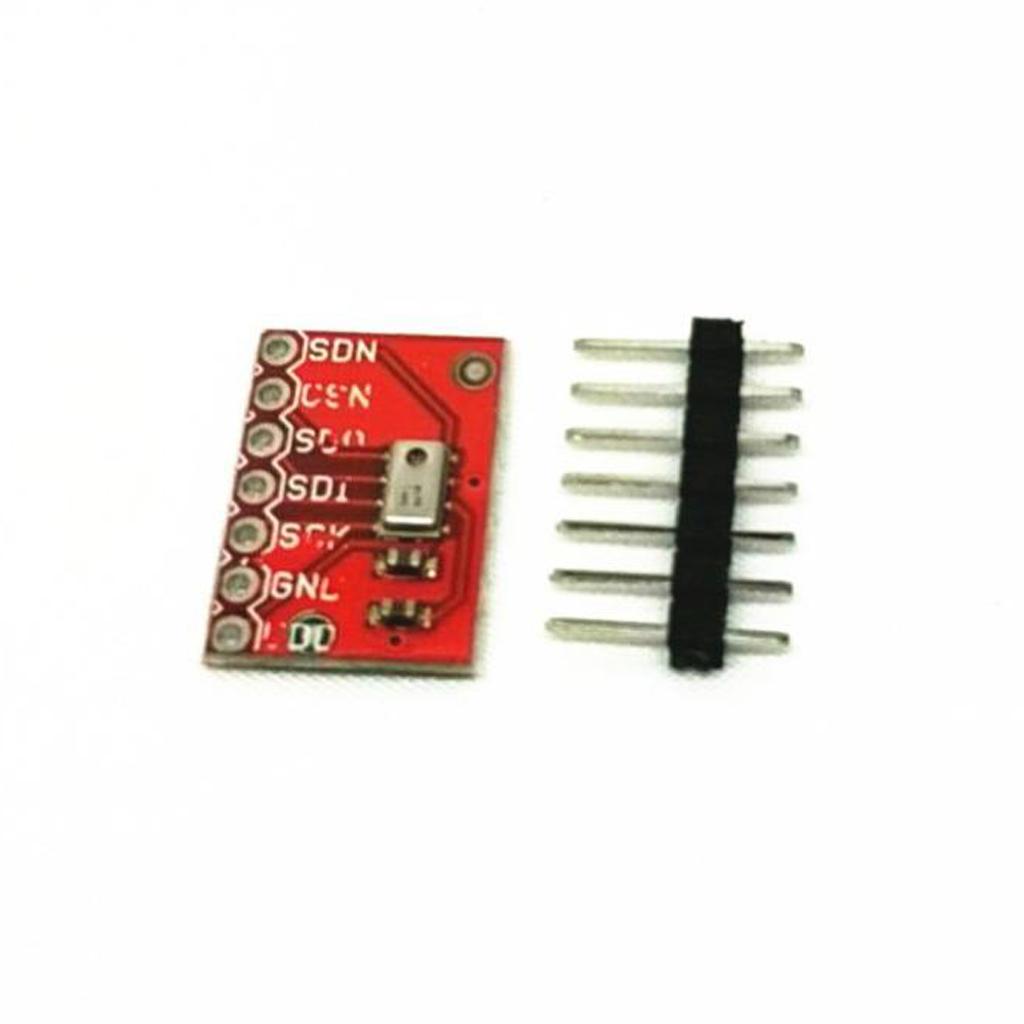

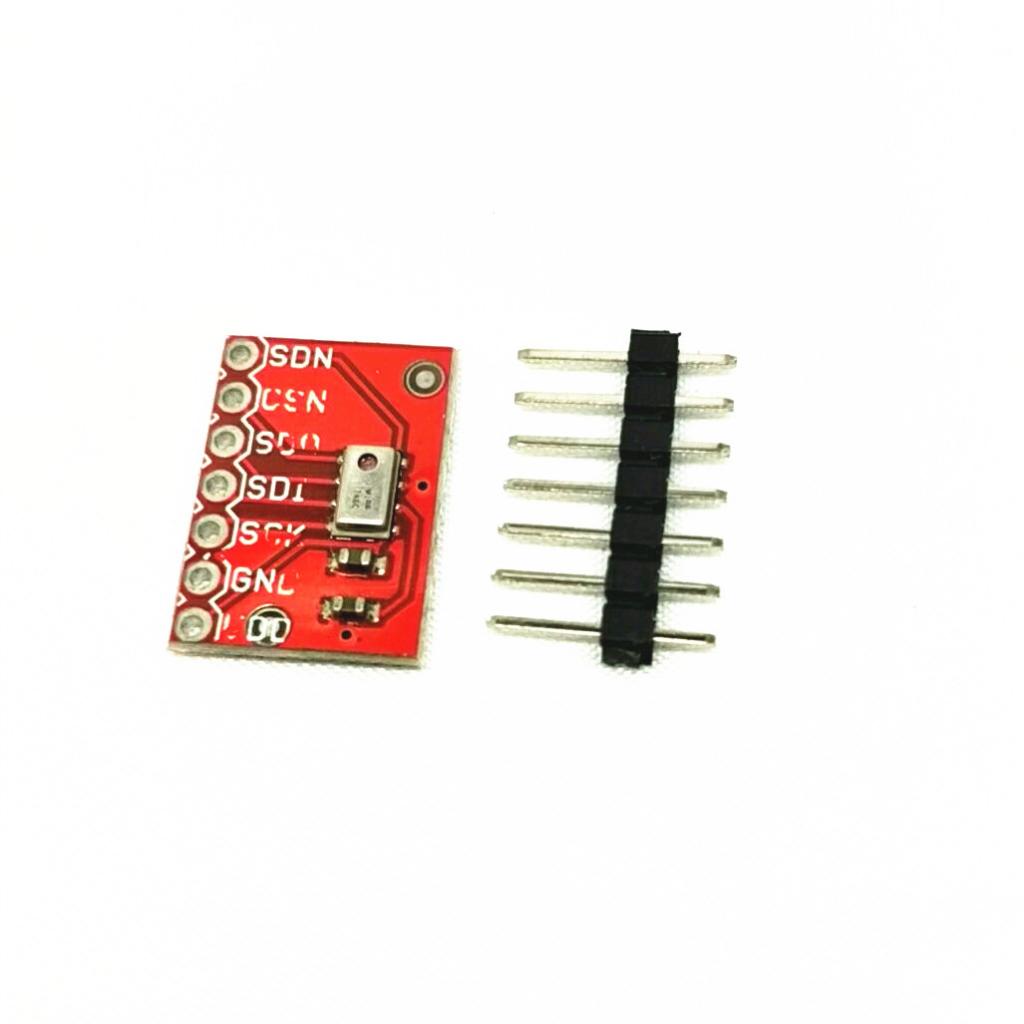

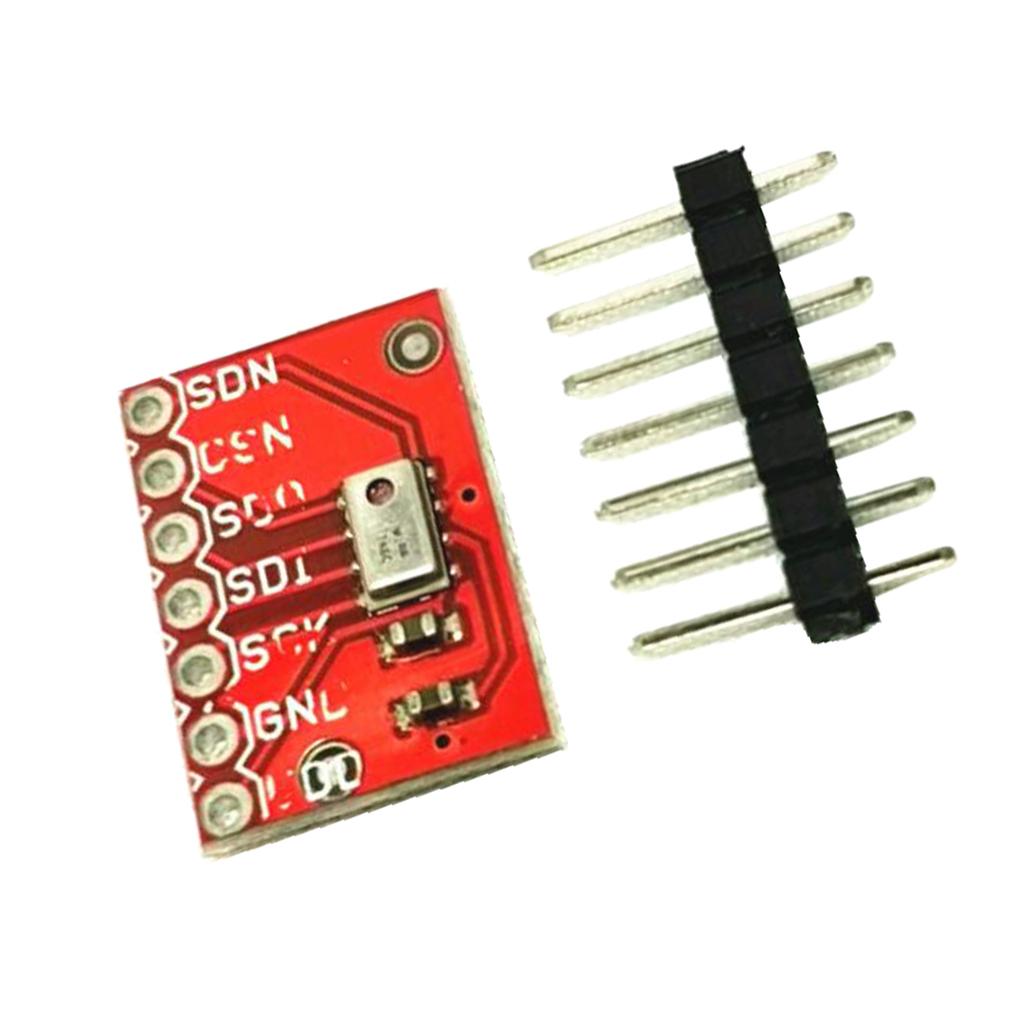

MPL3115A1 Replace BMP085 Digital Barometric Pressure Sensor Board Module

Description:

GPS precision navigation (dead reckoning, up and down the bridge detection, etc.)
Indoor and outdoor navigation
Leisure, sports and medical health
Weather forecast
Vertical speed indicator (rising / sinking speed)
Fan power control

Specification:

Resolution below 1 foot / 0.3 m
Pressure range: 20–110 kPa
20-position pressure measurement (Pascal)
20-bit height measurement (m)
12-bit temperature measurement
Flexible sampling rate up to 128 Hz
Specifications: Absolute pressure measurement range: 20 to 110 kPa
Relative measurement accuracy: ±0.05 kPa
Effective resolution: 1.5Pa / 0.3m
Operating temperature range: -40 to 85 °C
Supply voltage: 2.5 to 5.0 V
Logic IO port: 2.5 to 5.0 V
I/O supply voltage: 1.62 to 3.6 V
Standby mode: 2μA
Low power mode: 8.5μA, 1Hz sampling
20-bit pressure data, output unit Pascal
20-bit height data, output unit meter
12-bit temperature data, output unit degree C
I2C digital output interface
2 programmable interrupt pins
Built-in 32-sample FIFO bufferMaterial: plastic + electronic components
Product detailed size: 18mmx12.5mm/0.71x0.49inch

Package Includes:

1 Piece MPL3115A air pressure sensor module
