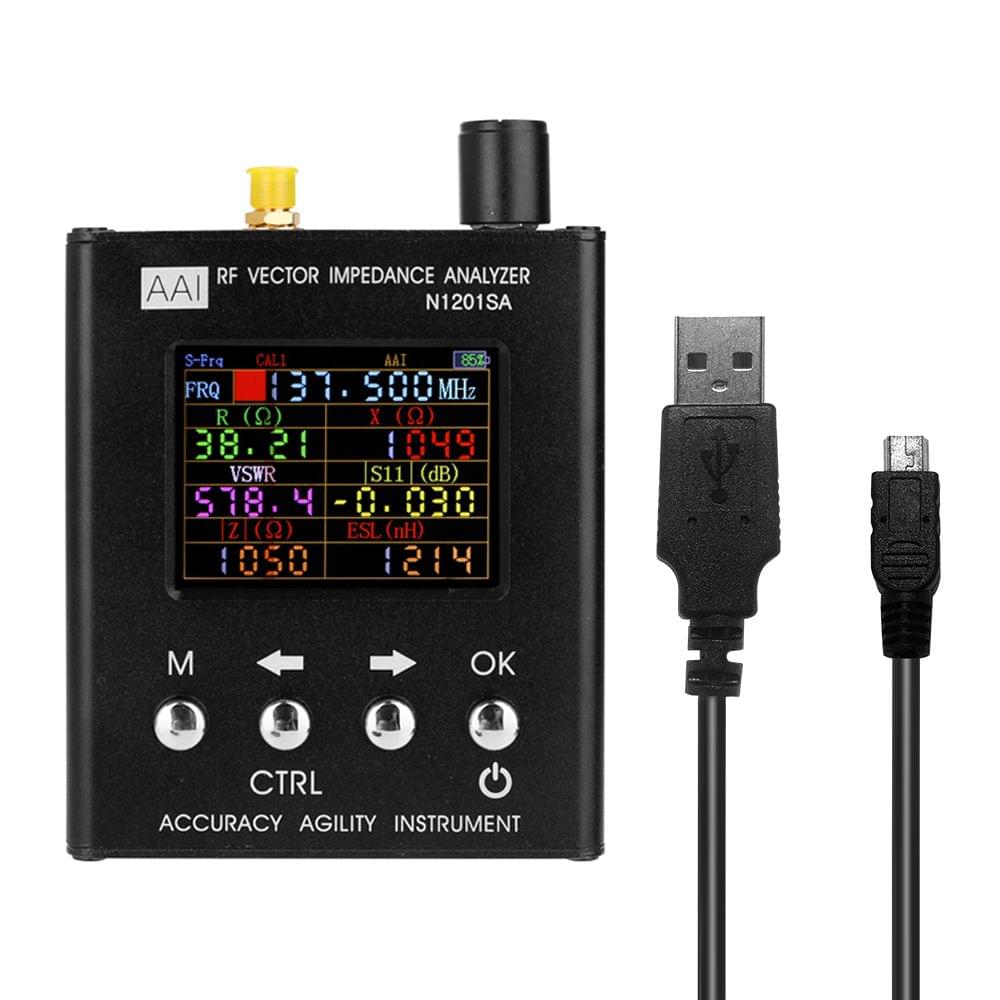

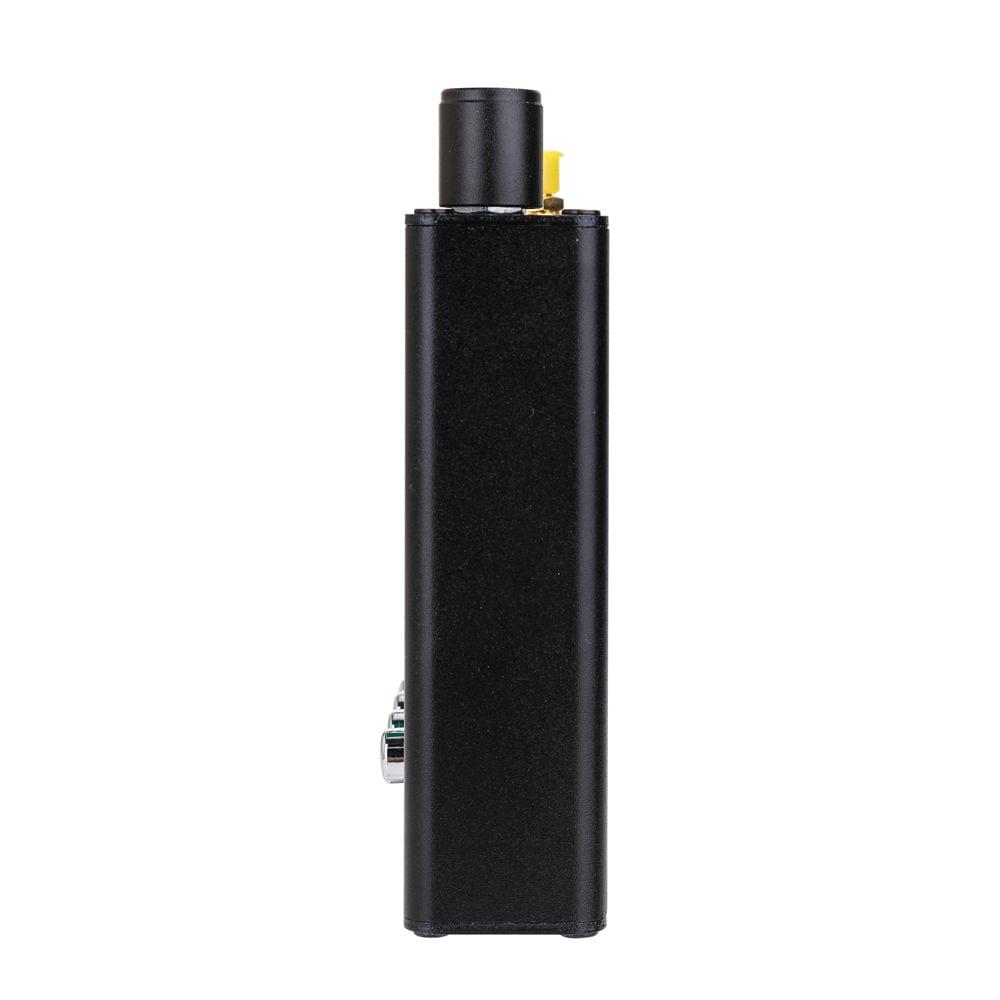

N1201SA RF Vector Impedance Analyzer ANT SWR Antenna Meter

This product is a portable antenna tester RF device impedance and board impendance. Compact size and easy to carry perfect for outdoor and high-altitude special operations. With single point measurement scan function system information corrrection and calibration function. High resolution with calibration function accurate measurement and with cost effective. You can have a try.Features:This instrument has 4 basic operational interface: single point measurement scan function system information corrrection and calibration.The default boot into single-point measurement interface.High resolution with calibration function accurate measurement and with cost effective.N1201SA series is the handheld radio frequency vector impedance measurement analysis instrument easy to use simple operation.Built-in high capacity 4.2V 2000mAh polymer lithium cell for mobile and outdoor use provices continuous working time more than 4 hours.Shutdown automatically save settings parameter without human intervention after starting up interface settings completely the same as the power off before use very convenient.Can be used to test the antenna the imppedance of the radio frequency devices.As RF impedance measuring need calibration so you need to purchae separately calibration.Startup and shutdown:Hold down the CTRL key off press the power switch button to turn on.The boot state long press (2S above) the switch button after the release the instrument will shut down.Specifications:Name: N1201SAFrequency: 137.5MHz to 2700MHzSpacing: 1kHzDisplay: 2.4inch TFT Pixel 320 * 240(QVGA)Battery: 1 * polymer lithium cell 4.2V 2000mAH 7.4Wh (included)Power dissipation: 1.5WCharging current: 400mACharging port: Mini USB; Micro USB (Two interface only act as charge port)Auto Power Off: Settable (Normally on 5mins to 60min optional)Measure facts: resistance/reactance/VSWR/s11Resolution ratio: 4bits effective digitsFrequency accuracy: 10ppmRF Connector: SMA-KScan Points: 280RF Output level: -18dBmWorking temperature: 5?-40?Atmospheric pressure: 860hPa-1060hPaMeasuring range:Impedance:Measuring range; measured value: frequency1.3Ghz; 1?-1000?(Absolute value of impedance)frequency1.3Ghz; 1?-300?(Absolute value of impedance)VSWR:frequency1.3Ghz: 1-65frequency1.3Ghz: 1-10S11(dB): 0dB to -50dBError (single point measurement):Impedance(test conditions; error):Z200ohm frequency1.3GHz the absolute value of the impedance * 5%0.1?Z200ohm frequency1.3GHz the absolute value of the impedance * 25%1?S11 (dB/): 0.5dB/5(0dB to -10dB); 1dB/10(-10dB to -20dB); 5dB/20(-20dB to -40dB)VSWR: 2 0.15; 2VSWR10 effective reading * 10% 0.1Directivity(After calibration): 137.5MHz-2GHz35dB; 2GHz-2.7GHz25dBItem size: 120 * 85 * 28mm / 4.72 * 3.35 * 1.10inItem weight: 307g / 10.69ouncePackage size: 200 * 130 * 50mm / 7.87 * 5.12 * 1.97inPackage weight: 315g / 11.11ouncePacking List:1 * N1201SA Antenna analyzer1 * USB Cable1 * English Manual
