NanoVNA Testboard Kit VNA Vector Network Analysis Test Demo

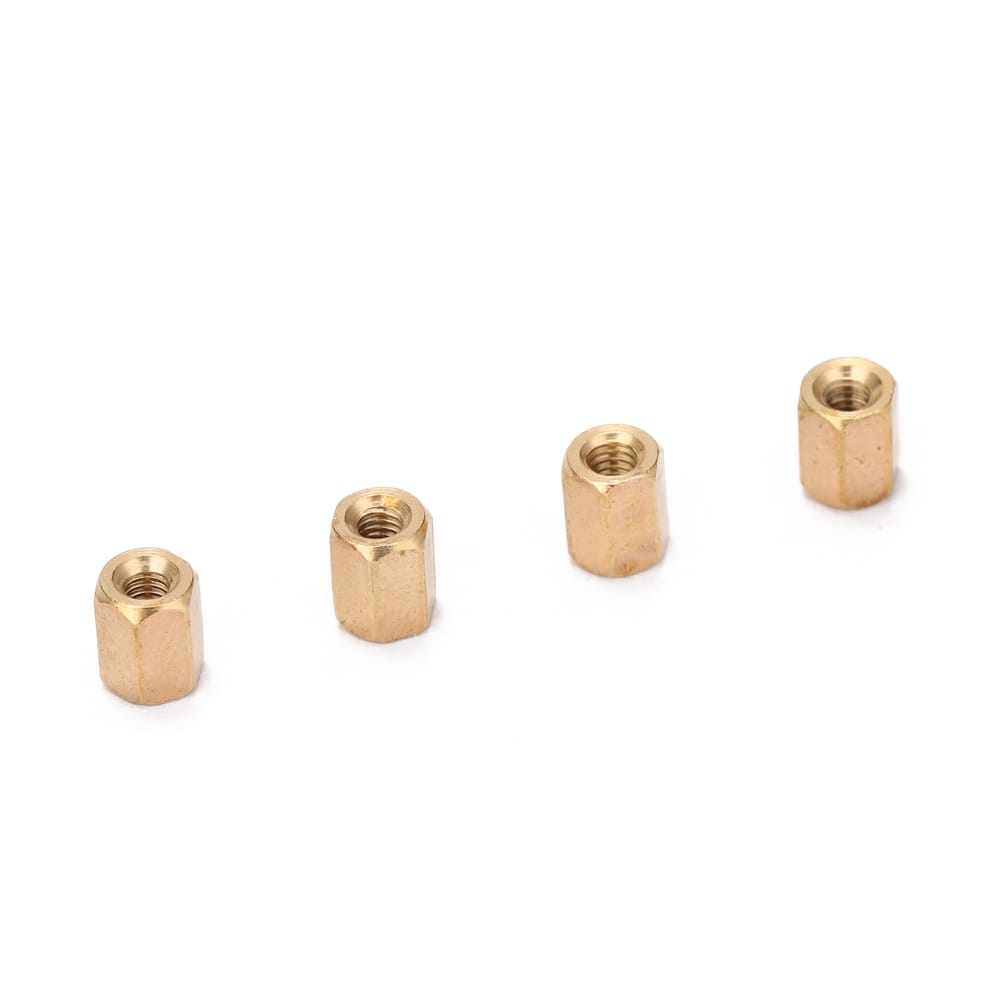

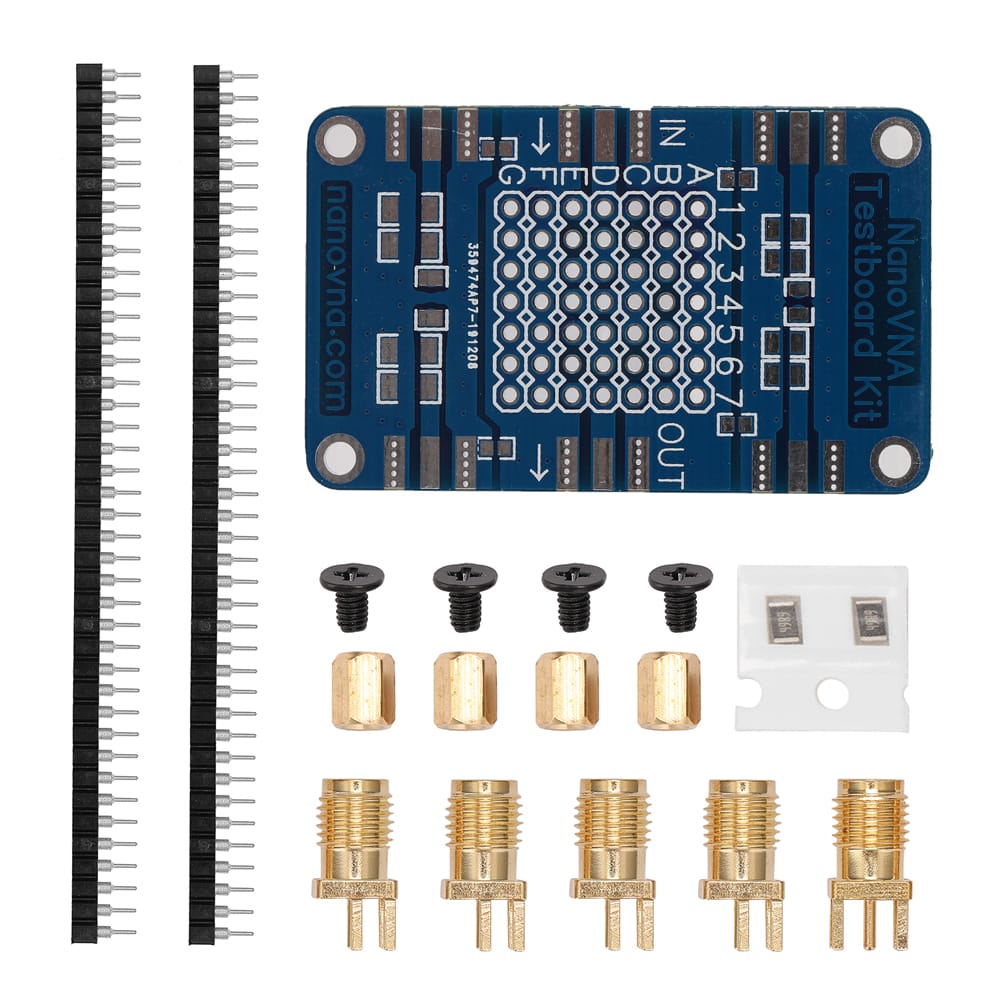

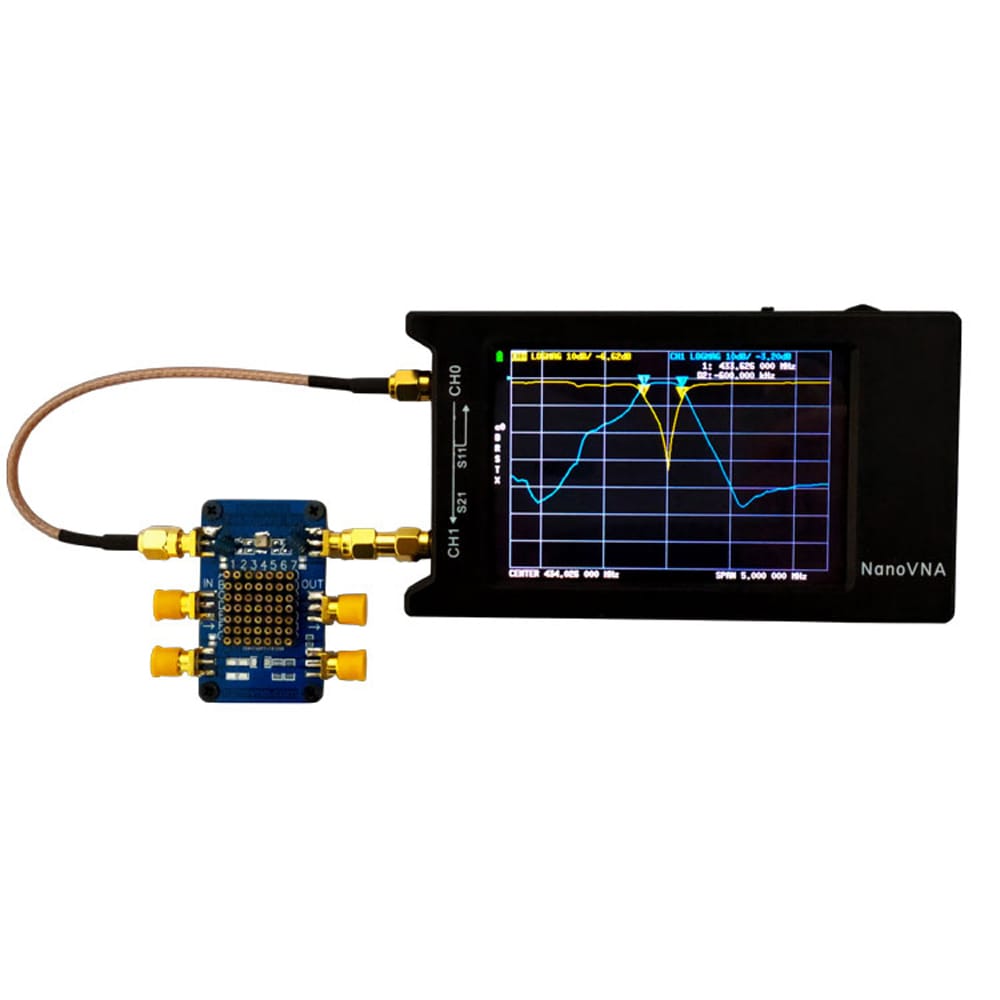

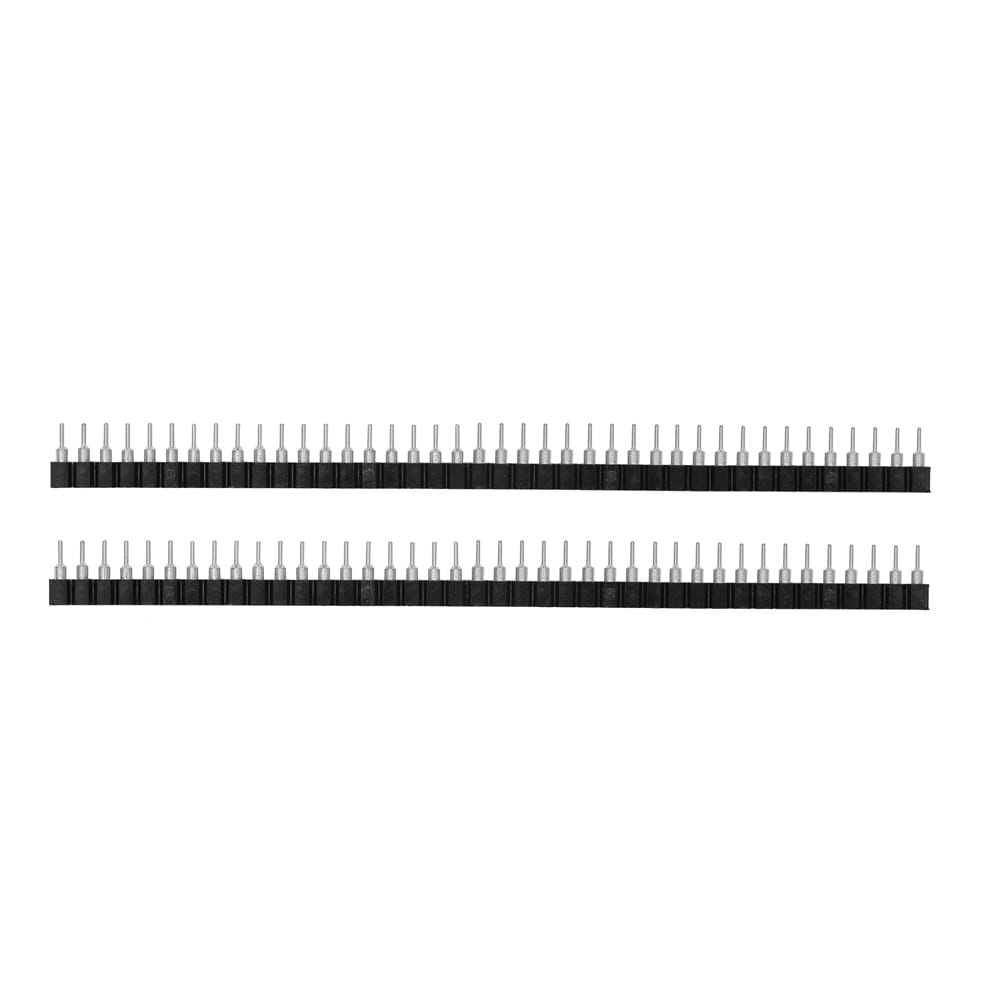

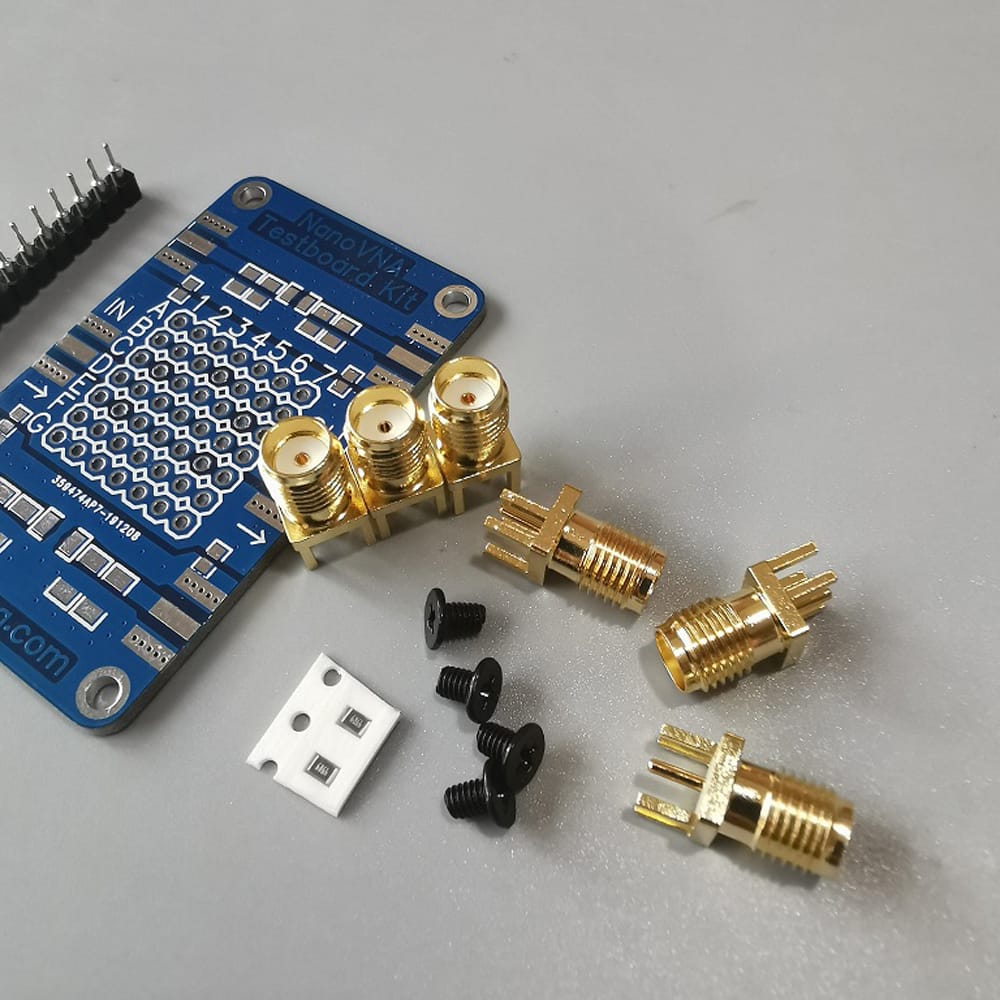

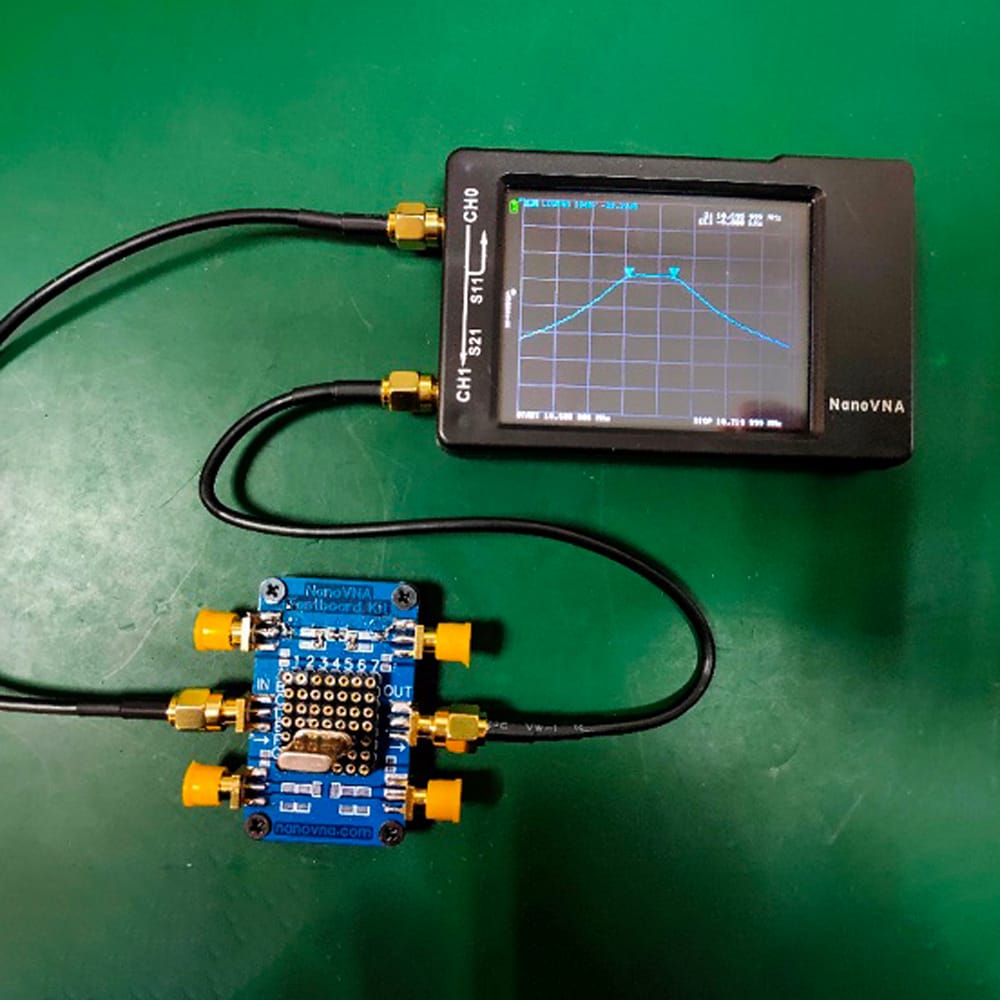

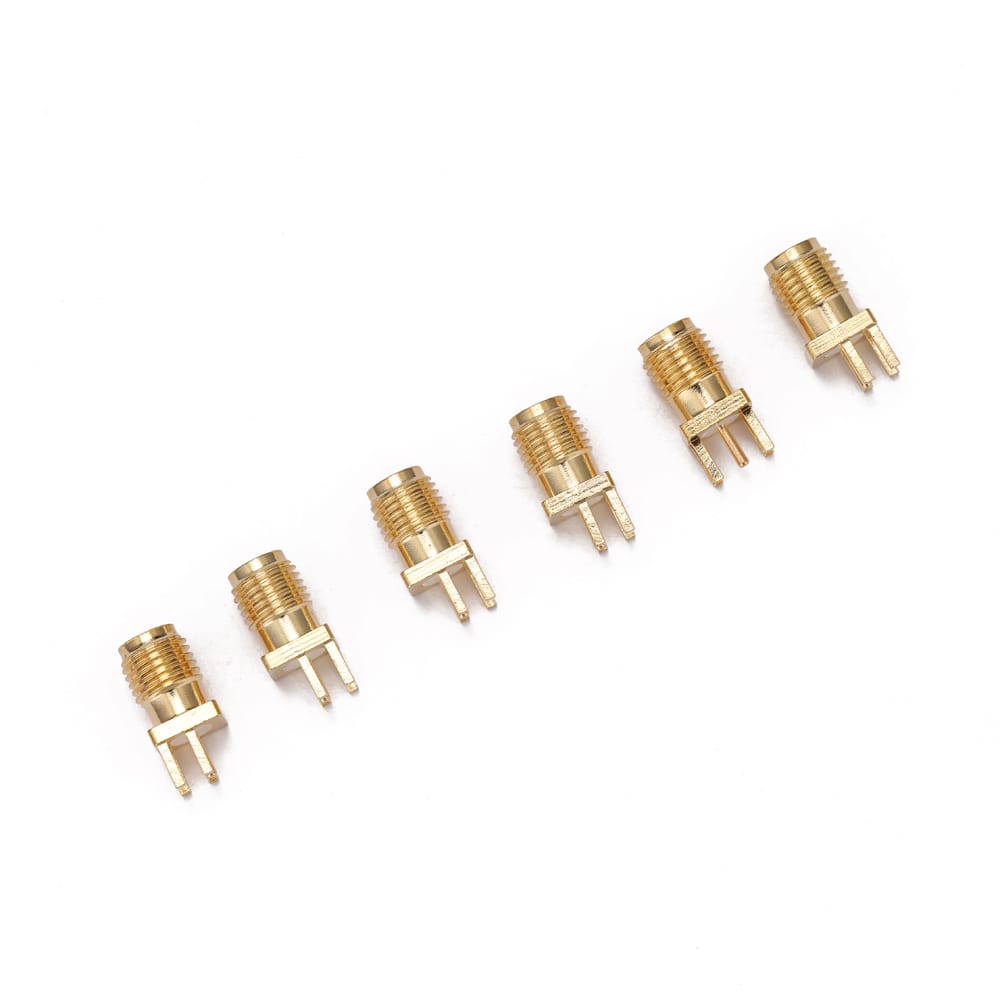

Made of fine quality material practical easy to operate and use has a long service life.Features:Made of fine quality material has a long service life.Stable performance high accuracy high sensitivity.This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement DIP and SMT devices.This test board contains a DIP test circuit compatible with VNWA Testboard and a set of 0805 and 1206 patch test circuits are added.Specifications:Material: PCBColor: bluePackage size: 100 * 100 * 20mm / 3.9 * 3.9 * 0.8inPackage weight: 48g / 1.7ounceNote:1. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over. Please ensure that you have enough hands-on ability.2. The circuit board is not soldered before delivery please bring your own welding tools please build a test circuit according to your test needs.Packing List:1 * Testboard Main Board6 * SMA Female Head4 * 6mm Copper Stud4 * M2.5 Screw2 * 40pin Round Row Seat2 * 0805 49R9 Calibration Resistance
