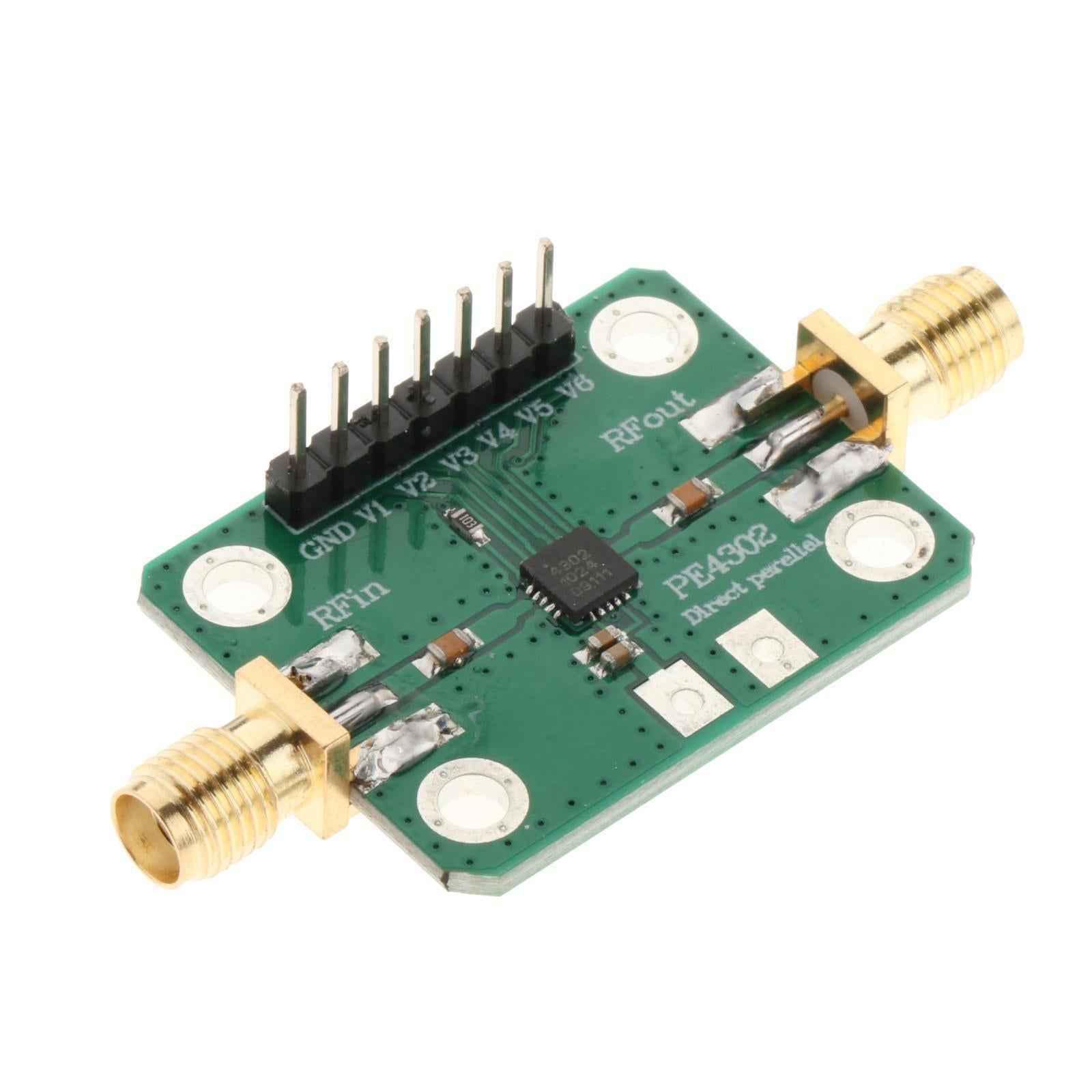

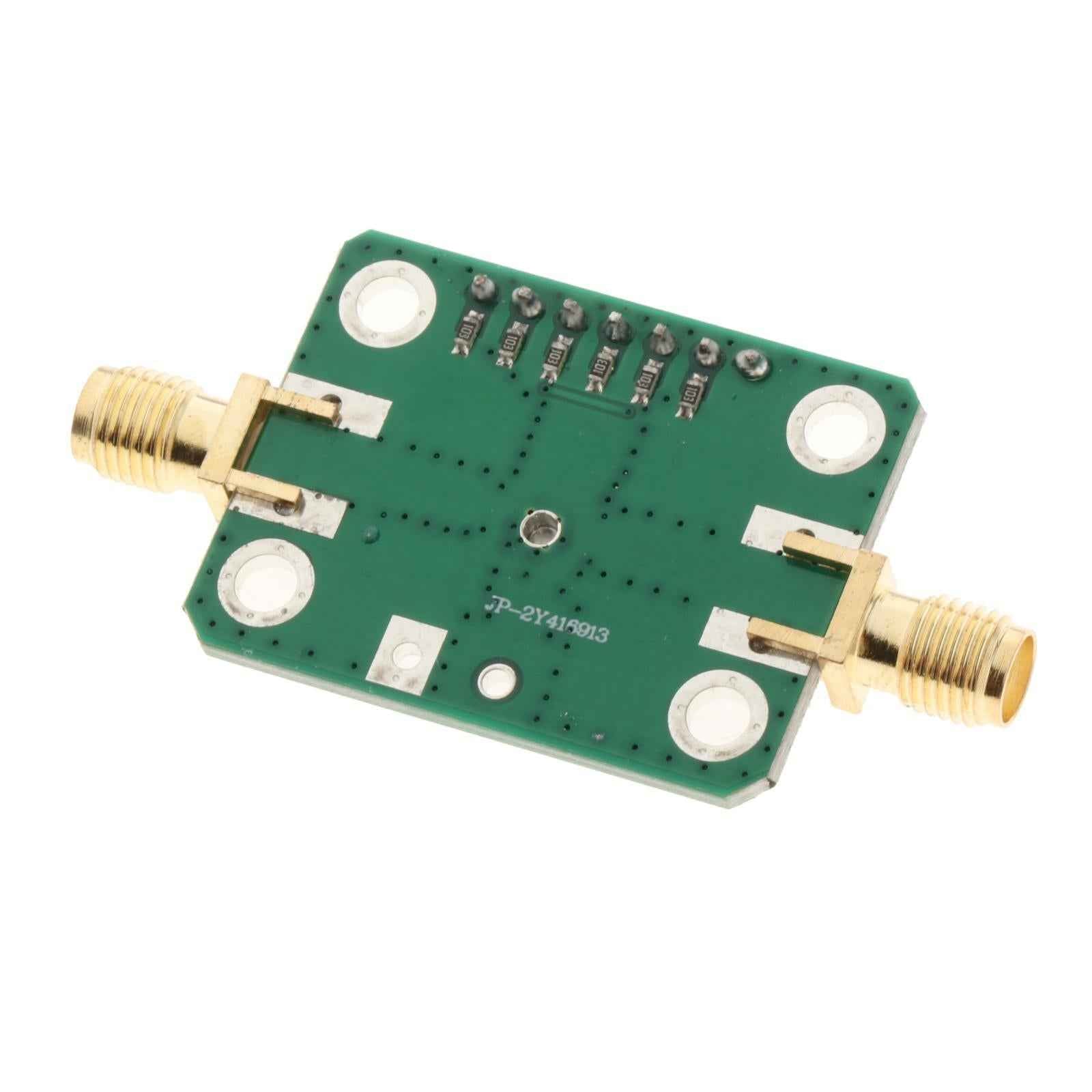

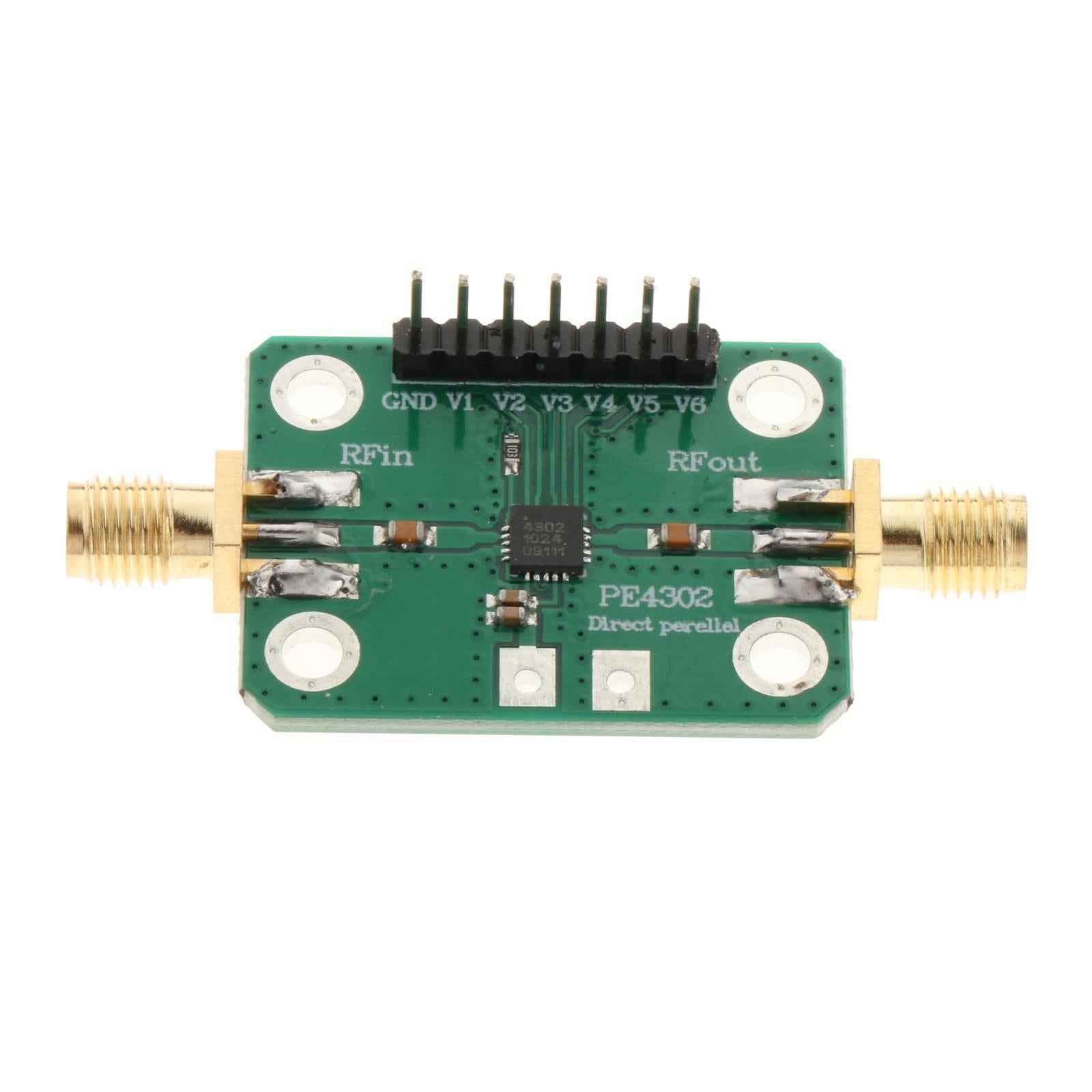

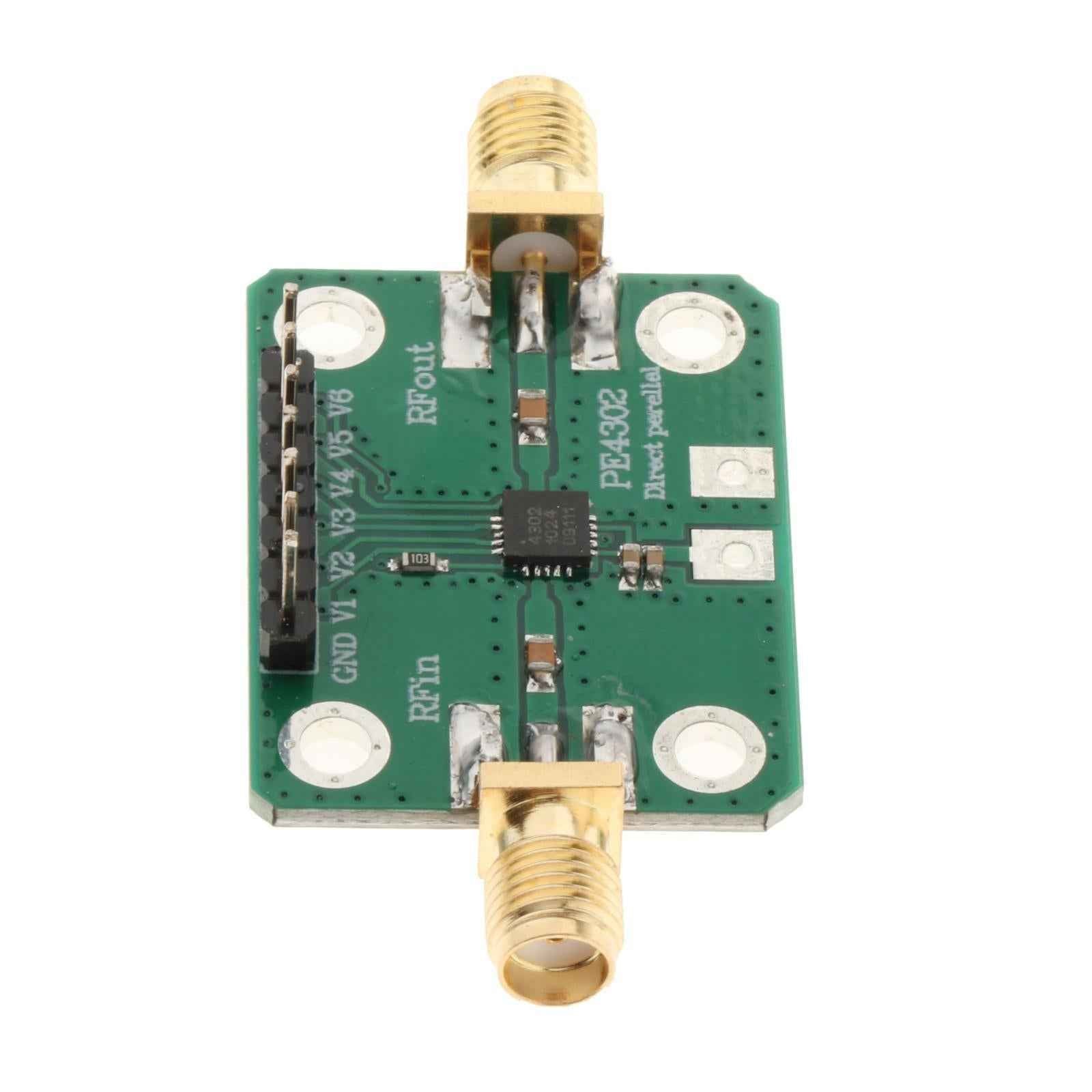

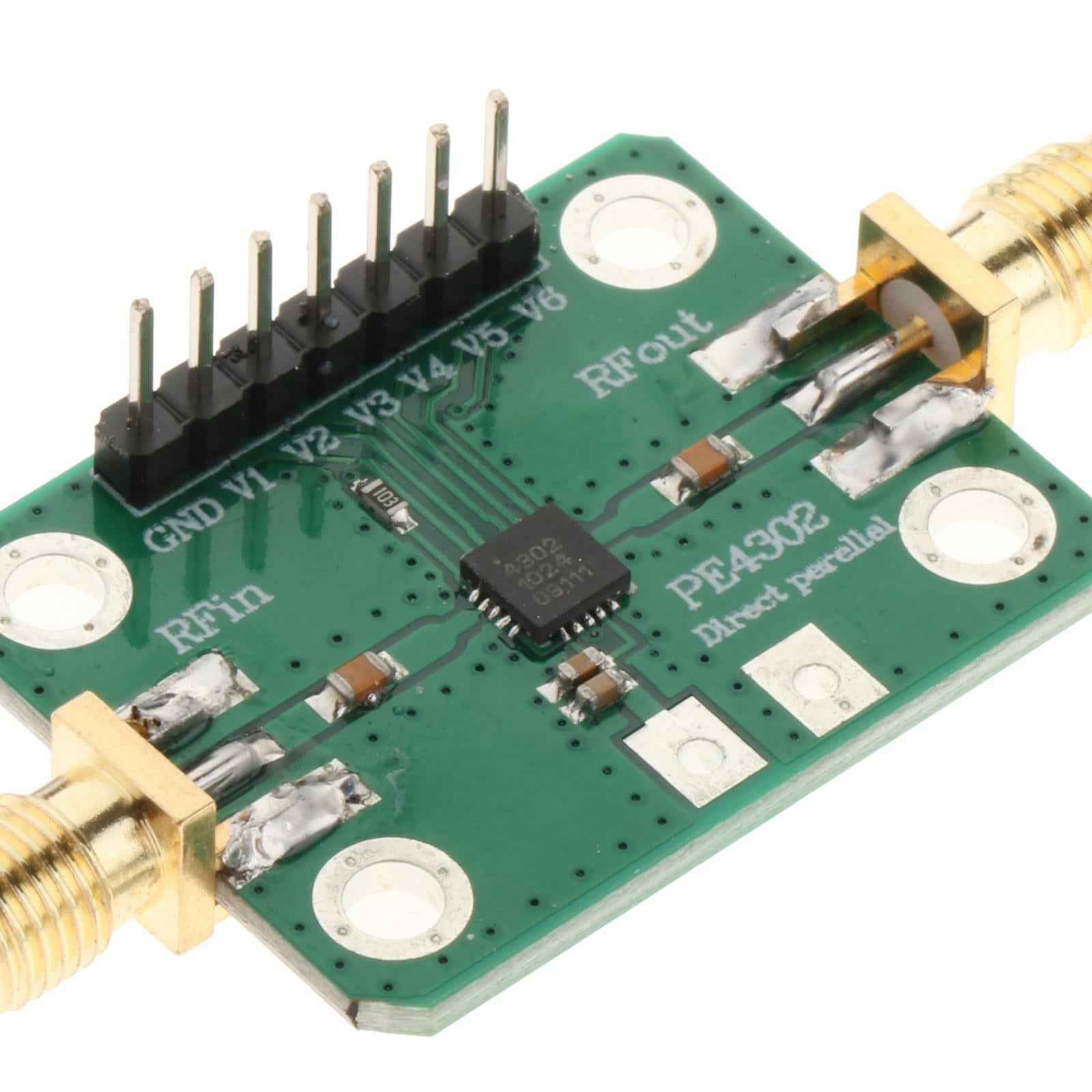

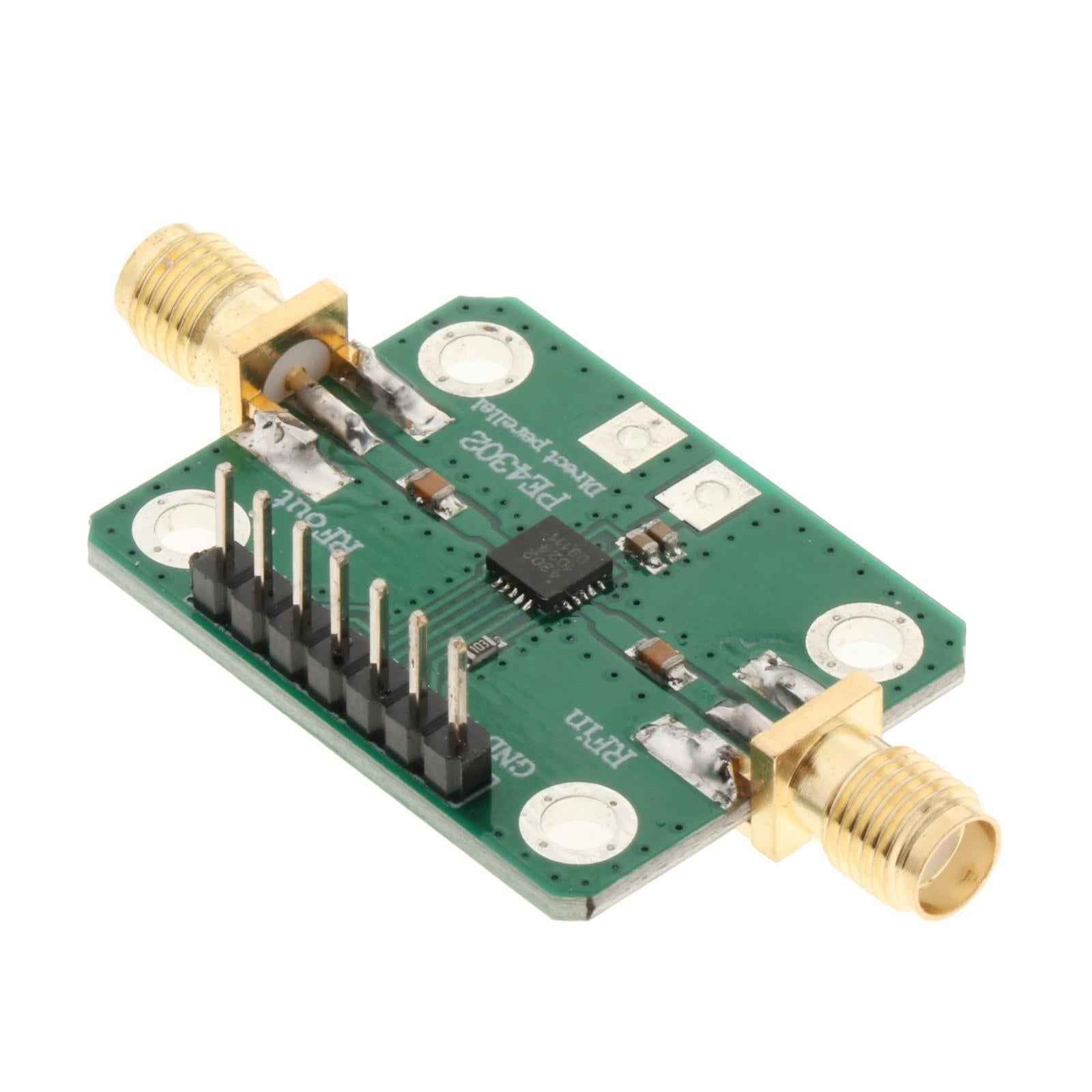

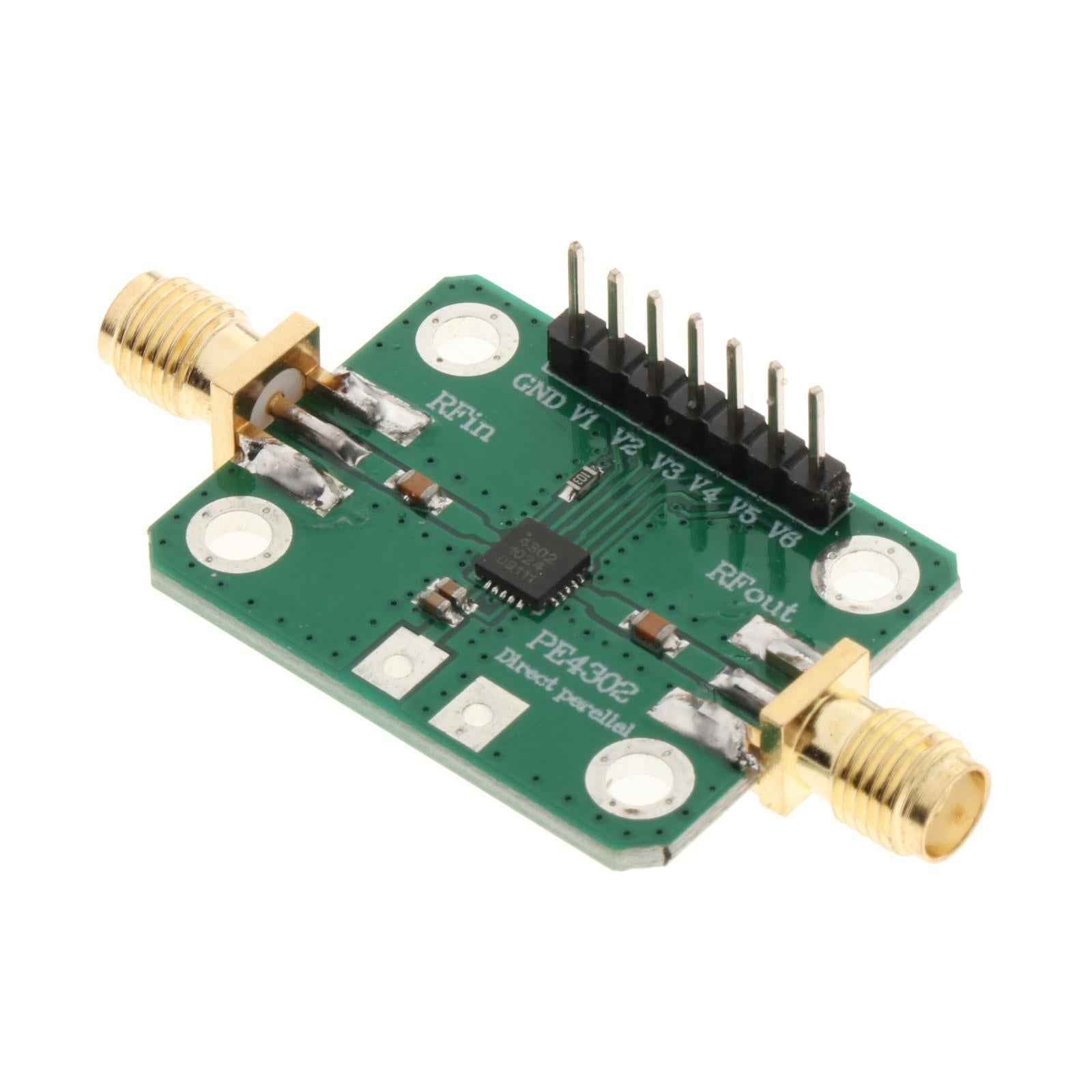

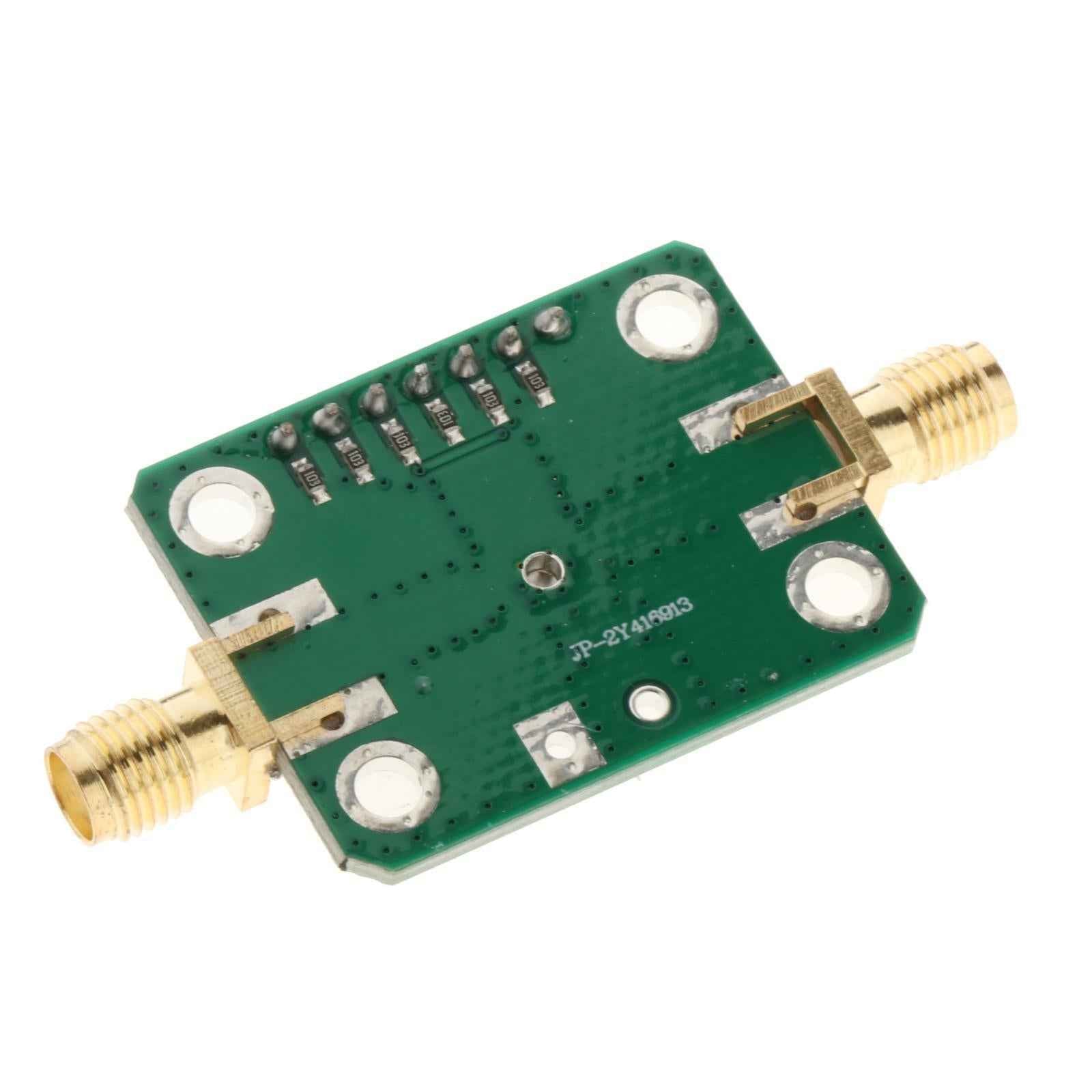

NC Attenuator PE4302 Parallel Immediate Mode Simple 0.5dB for Industrial

Description:

This is a NC attenuator module, PE4302 parallel mode immediately.
The parallel immediate mode is simple and easy to use.
The radio frequency numerical control attenuator has a step of 0.5dB, and a total of 6 bits can be controlled in a range of 0--31.5dB.
It is used to control the signal strength and can also be used to modulate the signal.
The module support parallel port and serial port mode as well as power on state selection function.

Specification:

Material: PCB Circuit Board
Power Supply Voltage: 5.0v
Control Bits: 6bit
Control Step: 0.5db
Control Range: 0----31.5db
Insertion Loss: 2db (typical Value)
Ascent Speed: 0.2us
Decline Speed: 0.2us
Large Input: 20dbm (100mw)

Size Chart:

15x25mm/0.59x0.98inch

Package Includes:

1 x NC Attenuator PE4302 Parallel Immediate Mode
