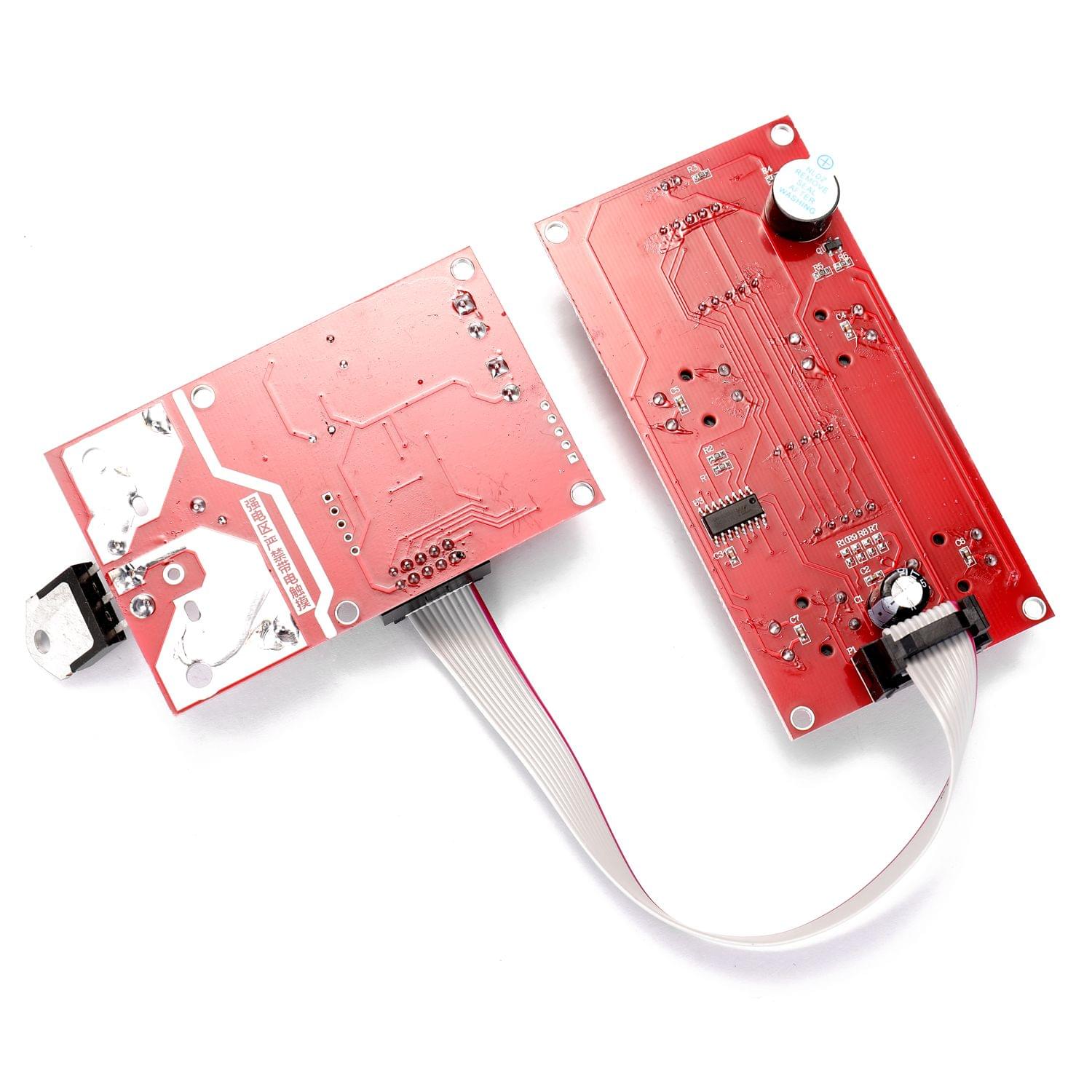

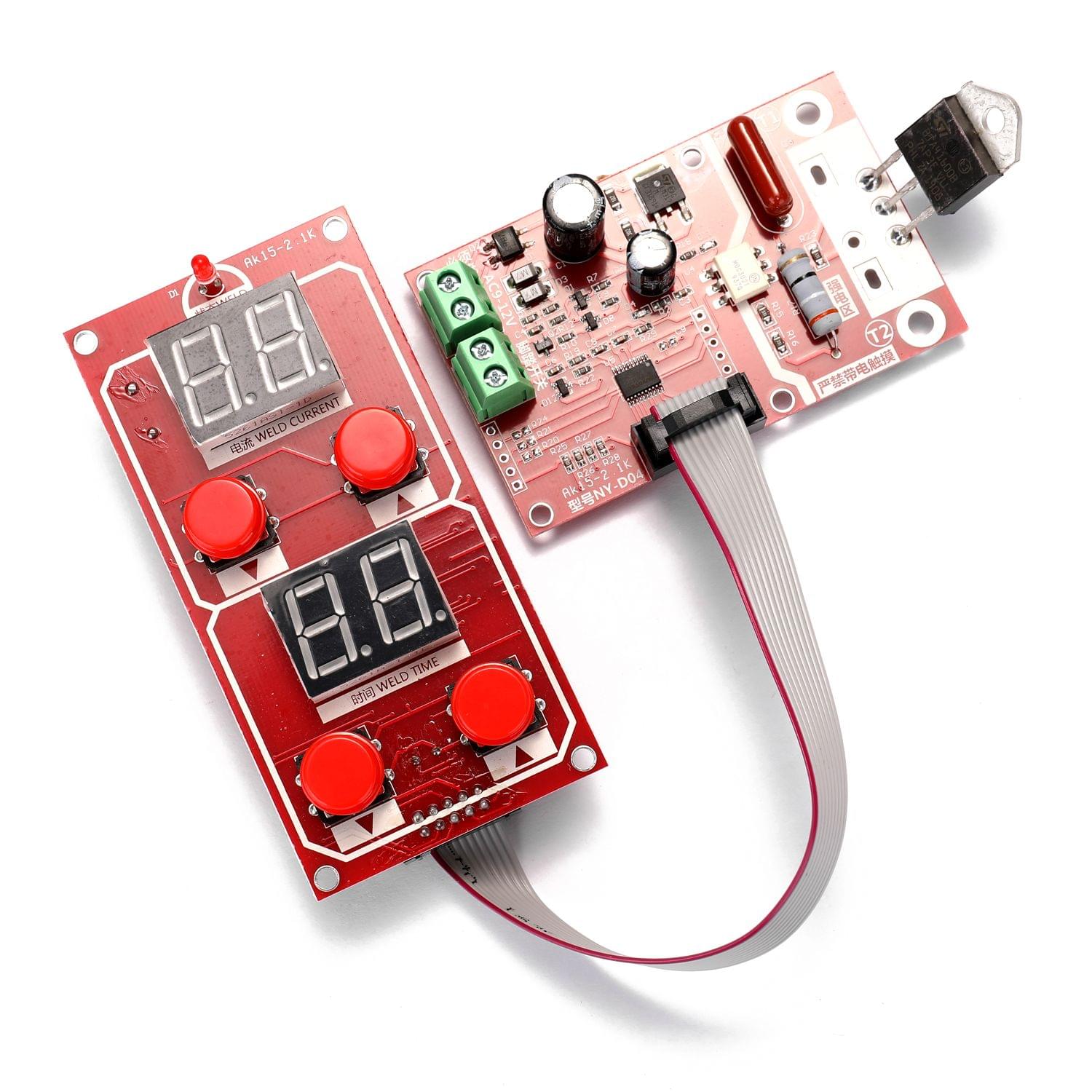

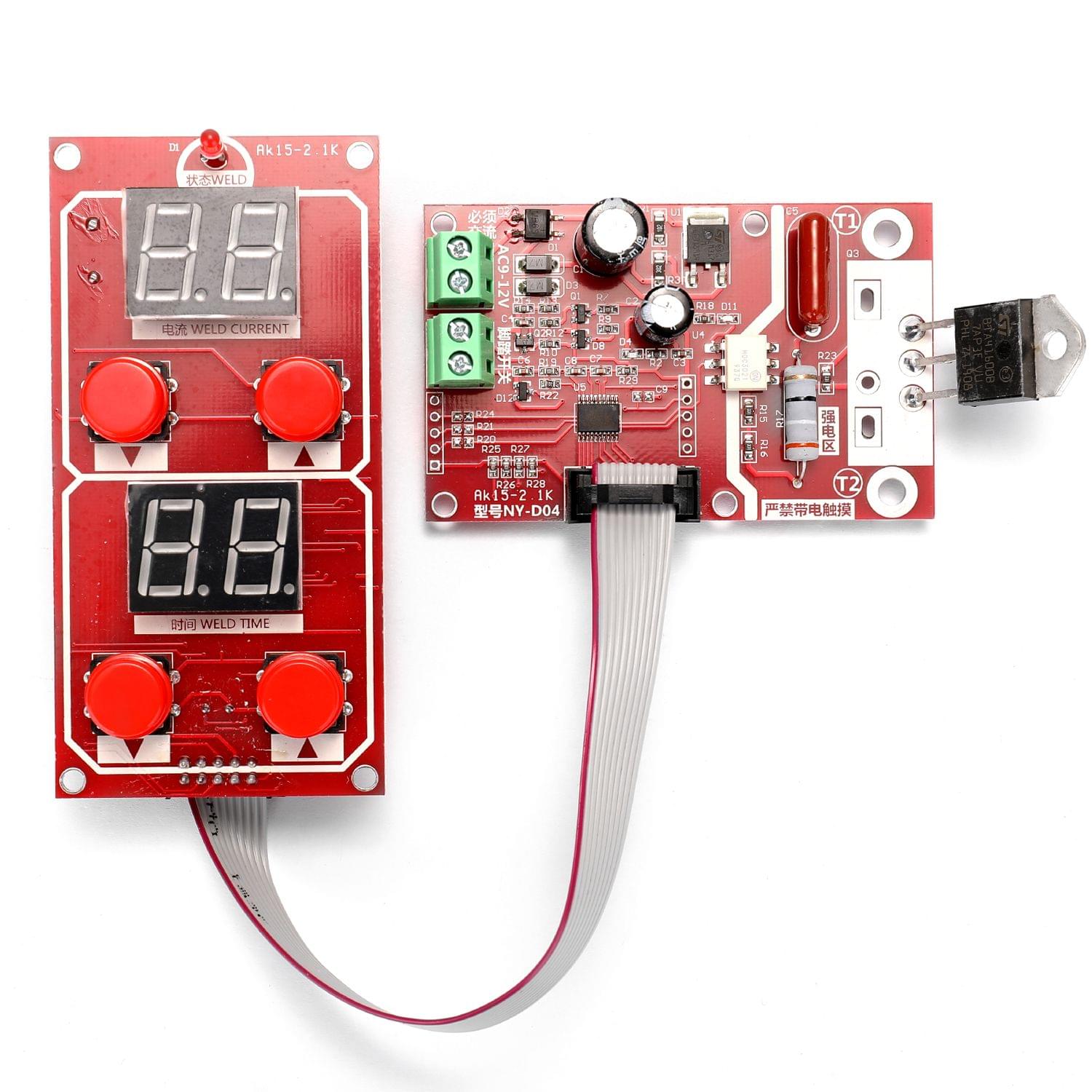

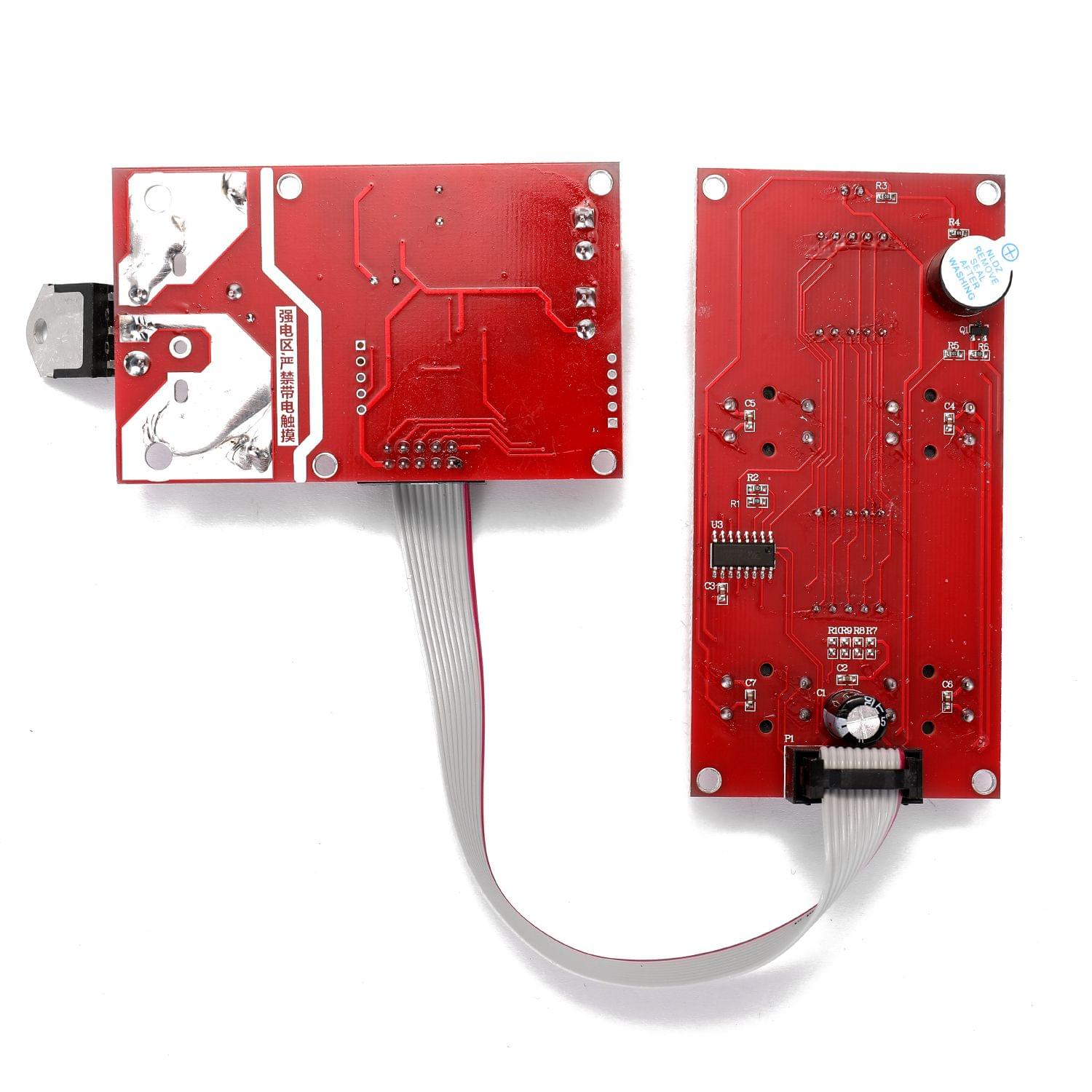

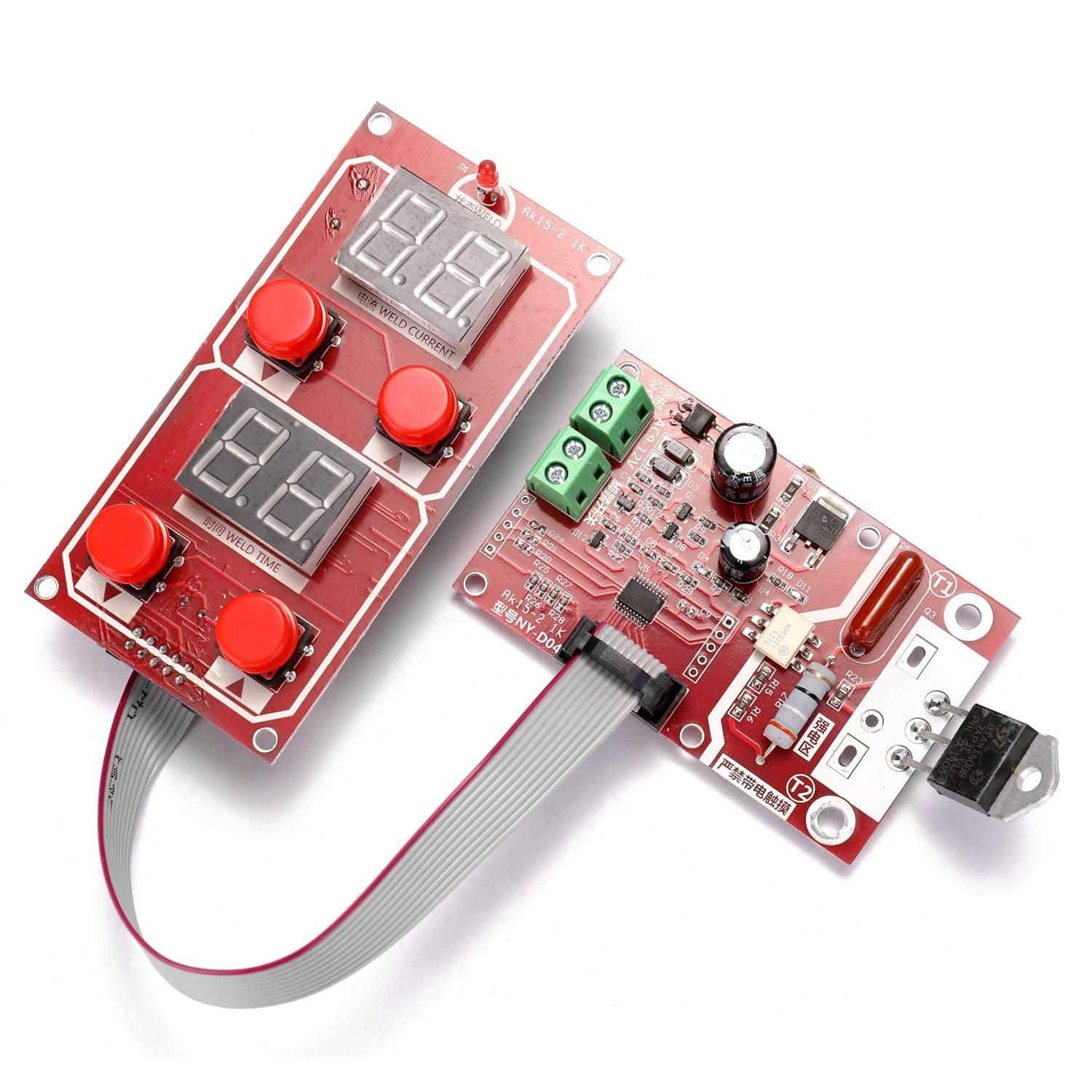

NY-D04 Dual Displays Spot Welding Machine Transformer - 100A

This control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding. Compatible with 50Hz and 60Hz power supplies the controller automatically judges. Current regulationrange 30%-99% time controlrange 1-99 cycles (1 cycle = 20ms). You can have a try.Features:All-digital circuit new zero-crossing detection circuit accurate current and time control.Compatible with 50Hz and 60Hz power supplies the controller automatically judges.Current regulationrange 30%-99% time controlrange 1-99 cycles (1 cycle = 20ms).2pcs 0.56inch high brightness digital tube display.Press the button to adjust the parameters the operation is more convenient.Display panel contains status light and buzzer instructions are more intuitive.Easy to install convenient for customers to install and produce spot welders.Notice:The two LED display both red color.Specifications:Name: Spot Welding Machine ControllerType: 40A 100A (optional)Item weight:40A: 71g / 2.50ounce100A: 81g / 2.86ouncePackage size: 131 * 83 * 45mm / 5.16 * 3.27 * 1.77inPackage weight:40A: 94g / 3.32ounce100A: 104g / 3.67ouncePacking List:1 * NY-D04 Spot Welding Machine Controller
