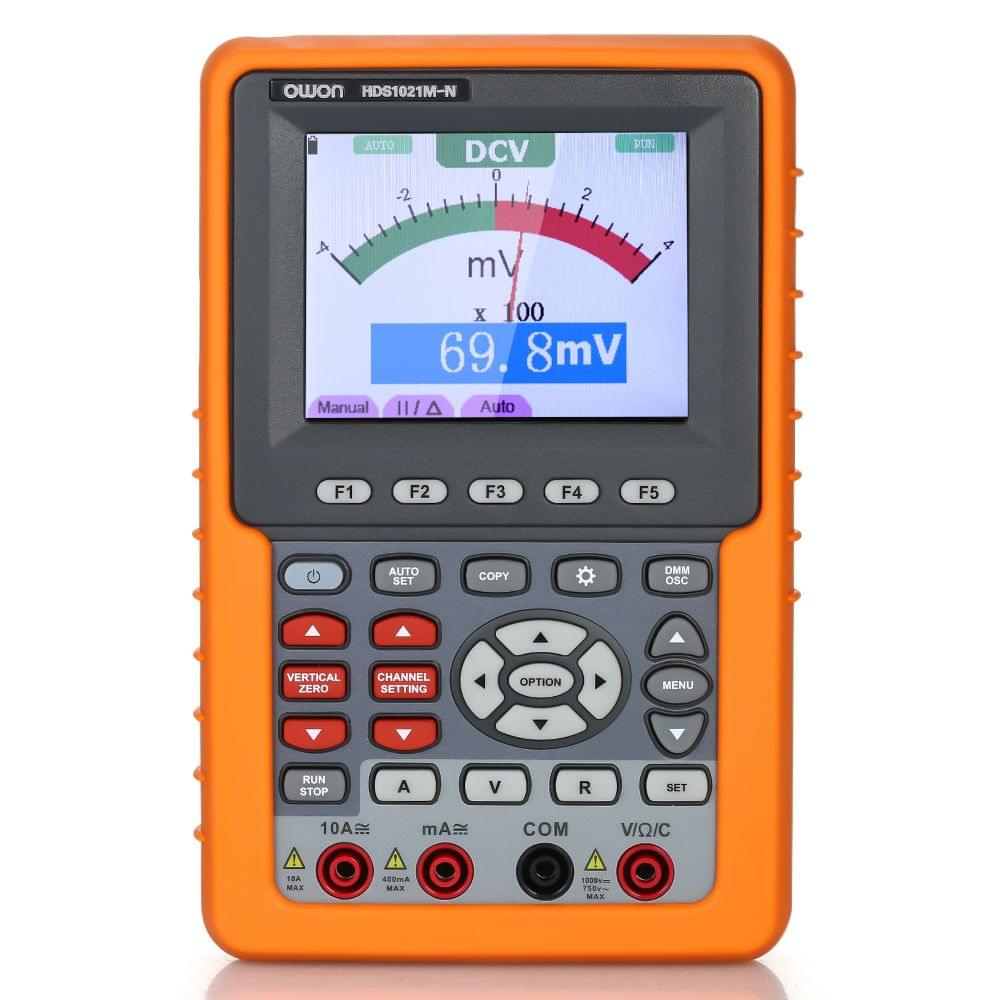

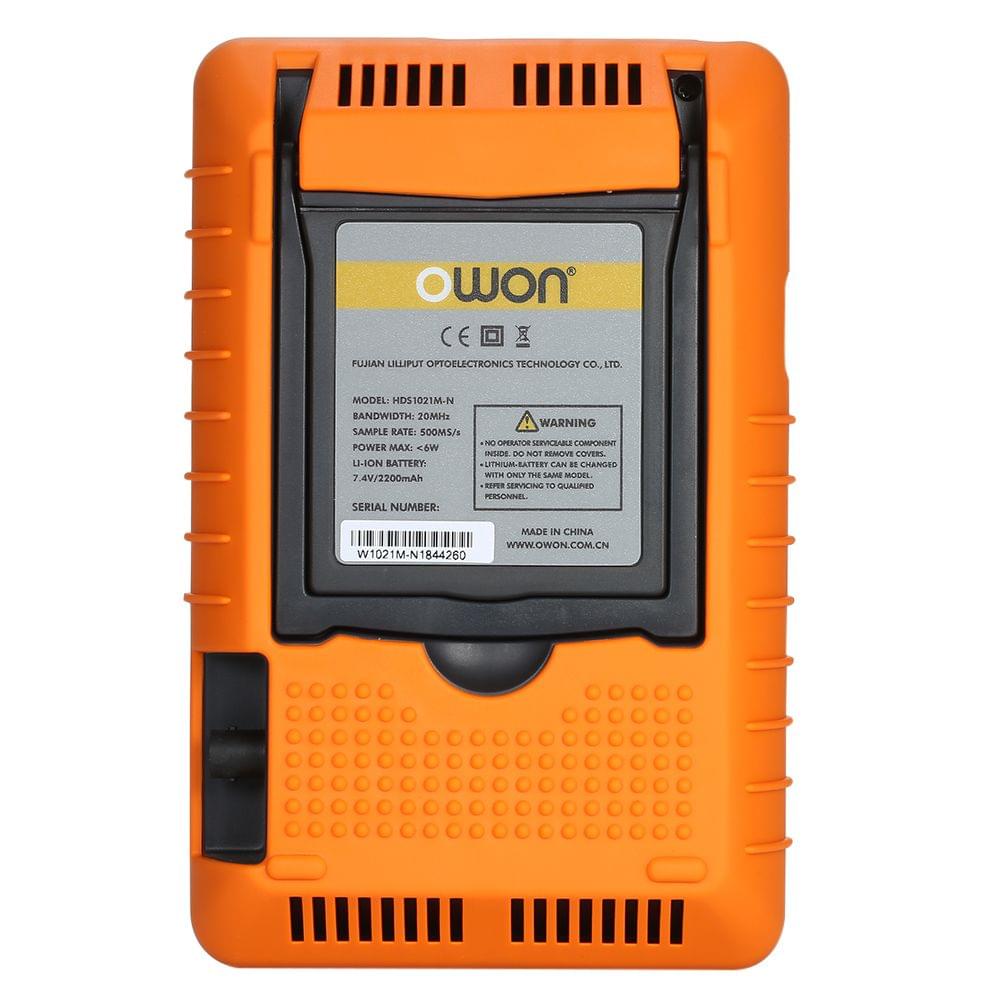

Owon HDS1021M-N Single Channel Oscilloscope Handheld - US Plug

Features:Digital oscilloscope multimeter and frequency meter 3-in-1.20MHz bandwidth.500MS/s real-time sampling rate.Multiple advanced trigger functions trigger sensitivity adjustable.Built-in lithium battery convenient for outdoor working.Auto range function convenient for testing and debugging.Support SCPI function.3.7 color LCD screen displayed.Specifications: Functions Specifications of HDS1021M-N Bandwidth 20MHz Sample Rate (real time) 500MS/s Horizontal Scale(s/div) 5ns/div ~ 100s/div step by 1 ~ 2.5 ~ 5 Rise Time (at input typical) 17.5ns Display 3.7 inch color display with TFT panel (640480 pixels 65535 colors) Channel single Input Impedance 1M? 2% in parallel with 20pF 5pF Record Length max 6k points on each channel Interpolation sin (x) / x Probe Attenuation Factor 1X?10X?100X?1000X Input Coupling DC AC and GND DC Accuracy (average) average16: (5% reading + 0.05div) for ?V Vertical Sensitivity 5mV/div ~ 5V/div (at input) Vertical Resolution (A/D) 8 bits (2 channels simultaneously ) Max. Input Voltage 400V (PK - PK) (DC + AC PK - PK 1M? input impedance probe attenuation 10 : 1) CAT II Trigger Type Edge Video Alternate Trigger Mode Auto Normal Single Trigger Level 6 divisions from screen center Acquisition Mode Sample Peak Detect and Average DC Gain Accuracy 3% Automatic Measurement Vpp Vavg Vrms Freq Period Vmax Vmin Vtop Vbase Vamp Overshoot Pre-shoot Rise Time Fall Time +Width -Width +Duty -Duty Delay AB Delay AB Waveform Math + - invert FFT Waveform Storage 4 waveforms Lissajous Figure Bandwidth full bandwidth Lissajous Figure Phase Difference 3 degrees Communication Interface USB Power Supply 220V (EU/UK plug) 110V (US plug) 50/60Hz Plug Type EU / UK / US (Optional) Li-ion Battery 7.4V 6 hours operation Material ABS+copper+tin Screen Size 75 * 56mm / 2.95 * 2.20in Item Size 186 * 122 * 43mm / 7.32 * 4.80 * 1.69in Net Weight 1160g / 40.93oz Package Weight 1607g / 56.68oz Package Size 34 * 24 * 8cm / 13.39 * 9.45 * 3.15in Package List:1 * Oscilloscope1 * Adapter1 * Powerline1 * Probe1 * Extension Module1 * CD1 * Output Terminal2 * Multimeter Test Lead1 * USB Cable1 * Package of Accessory1 * Quick Guide (English)
