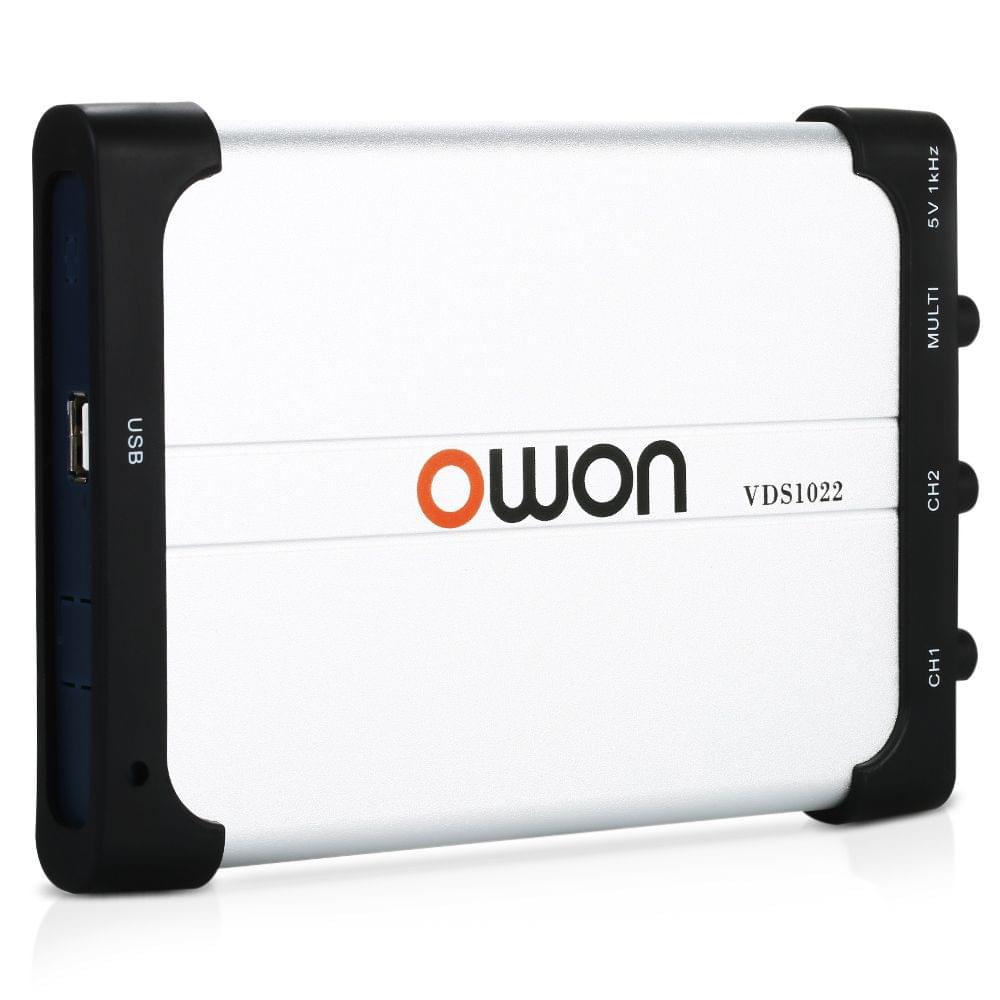

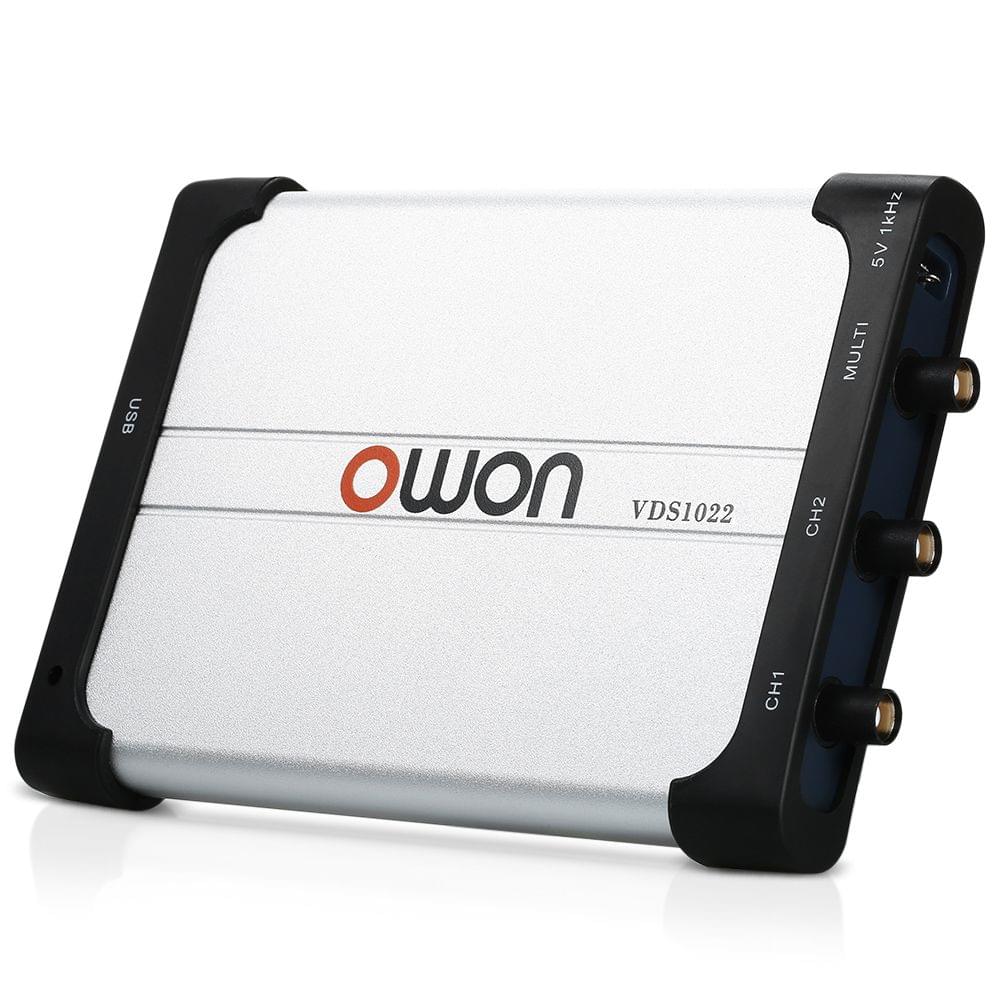

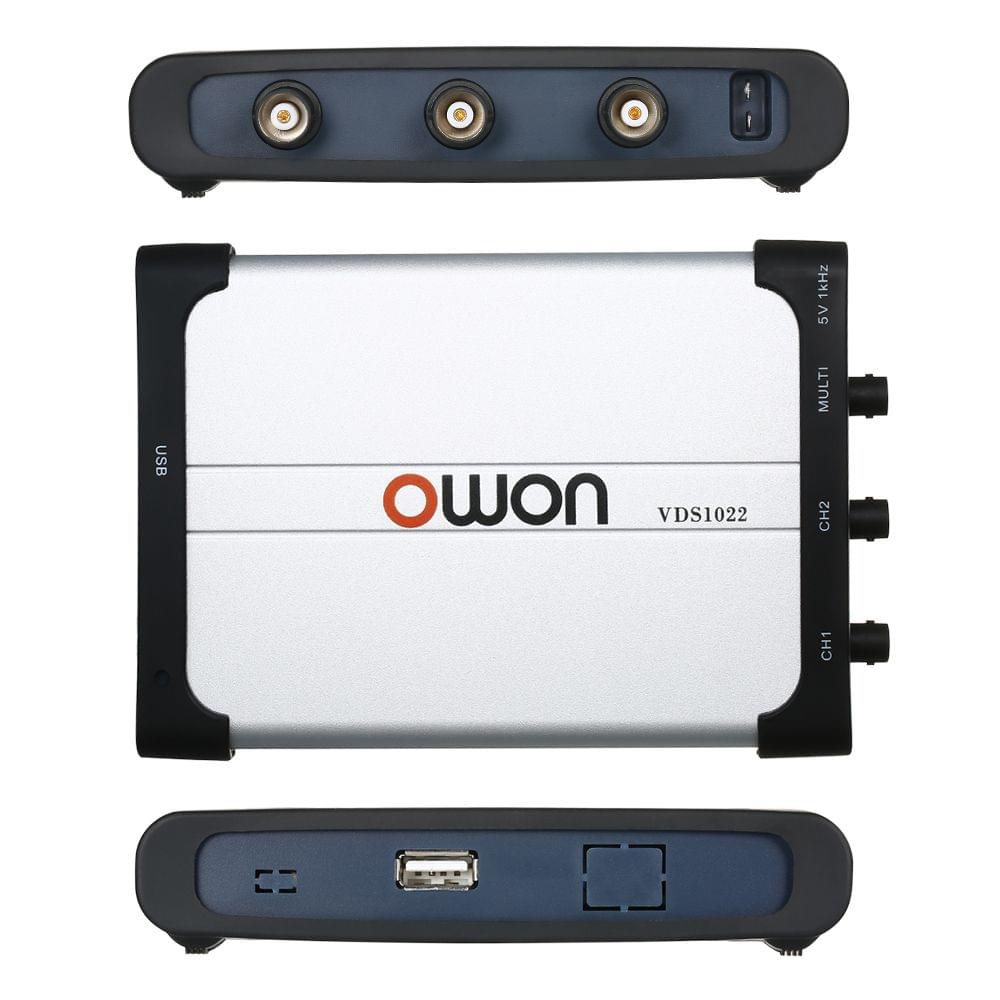

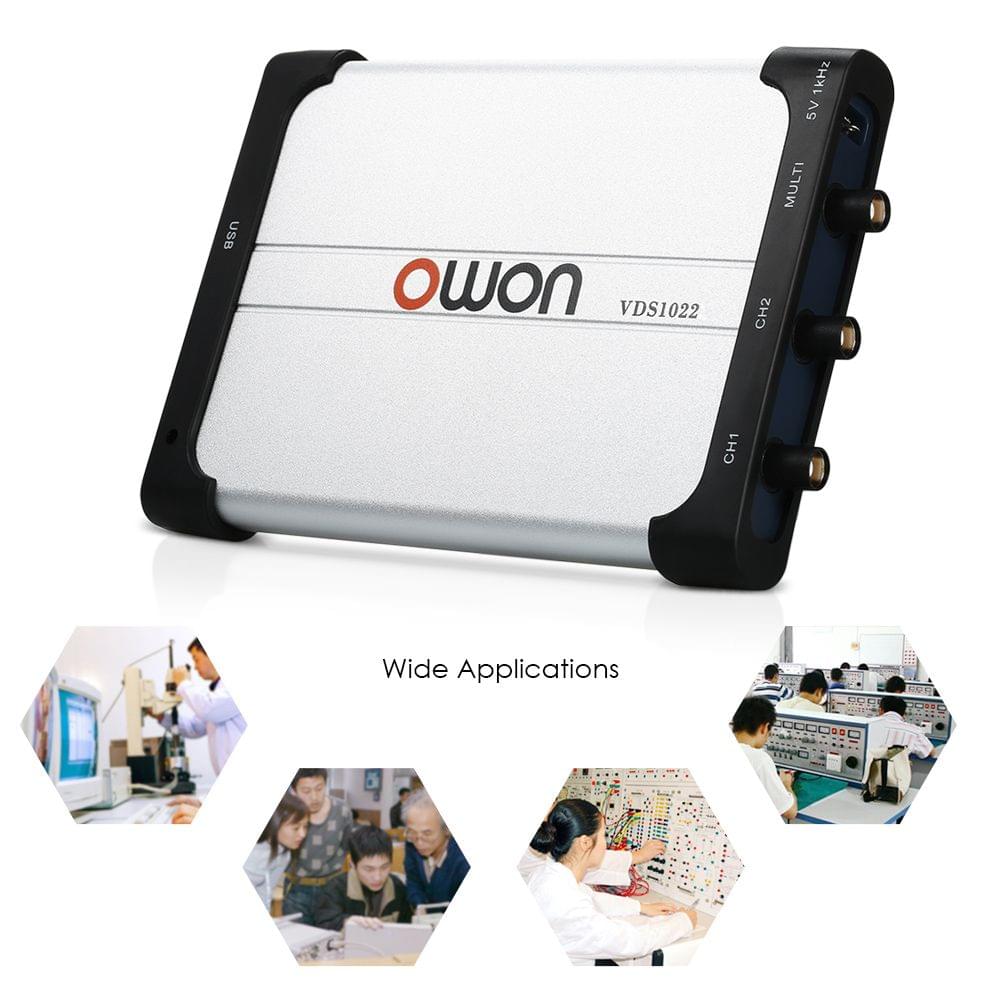

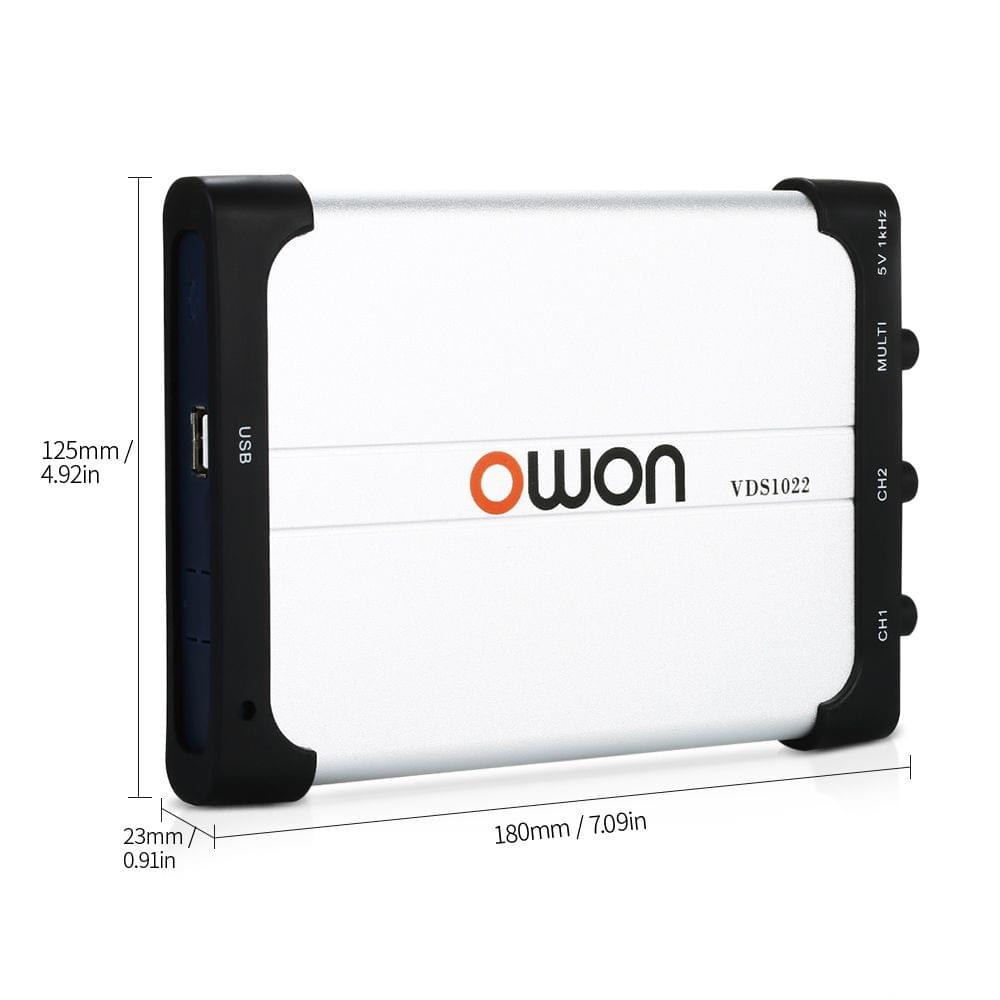

- Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-vaa4.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-vaa4_96f0bc7f-fbd6-4ce3-8804-a9478190cefd.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-iu1e.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-ud6m.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-mgde.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-qwnc.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-3oj9.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-ifne.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-qk8w.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-i9hu.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-vaa4.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-vaa4_96f0bc7f-fbd6-4ce3-8804-a9478190cefd.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-iu1e.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-ud6m.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-mgde.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-qwnc.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-3oj9.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-ifne.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-qk8w.jpg?v=1714471025 1000w)
![Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection Owon VDS1022 Dual-channel Oscilloscope PC Oscilloscopes - Without misoperation protection](http://uniqbuy.in/cdn/shop/files/e5561-1-1-dcd3-i9hu.jpg?v=1714471025 1000w)
- Description

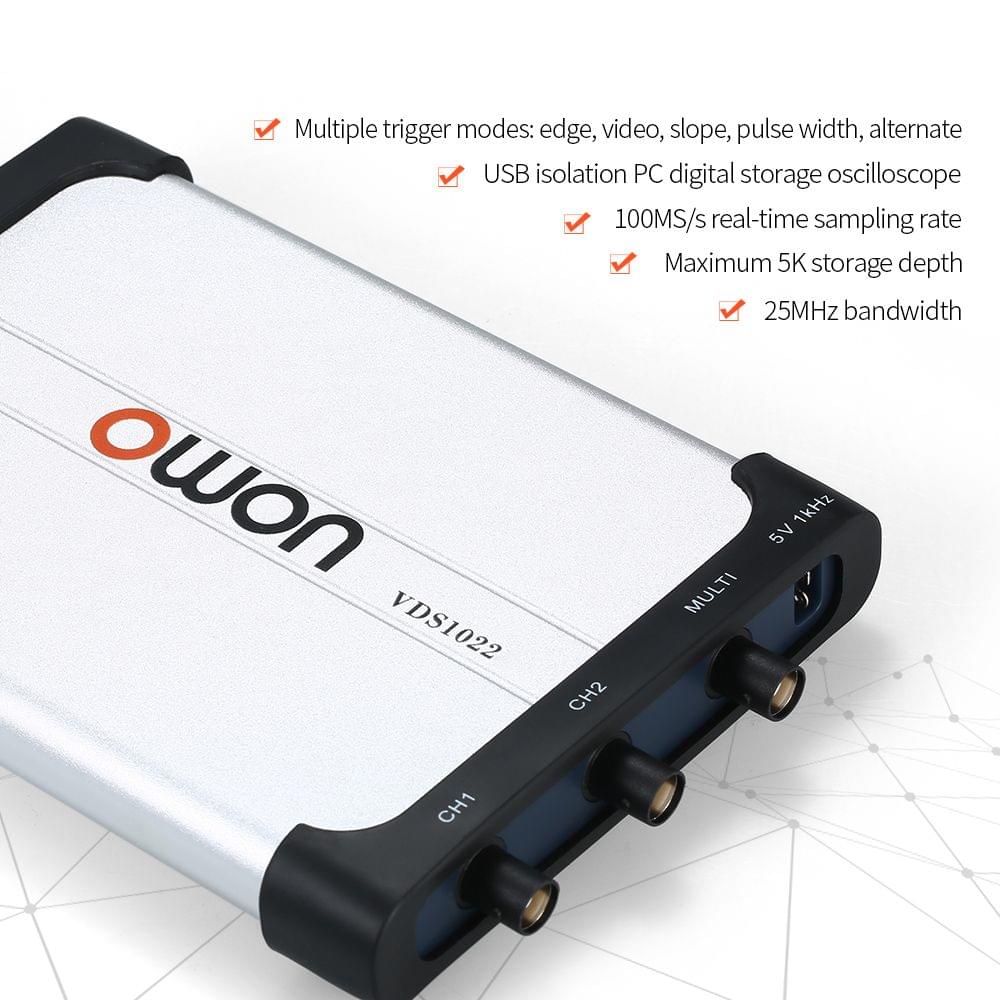

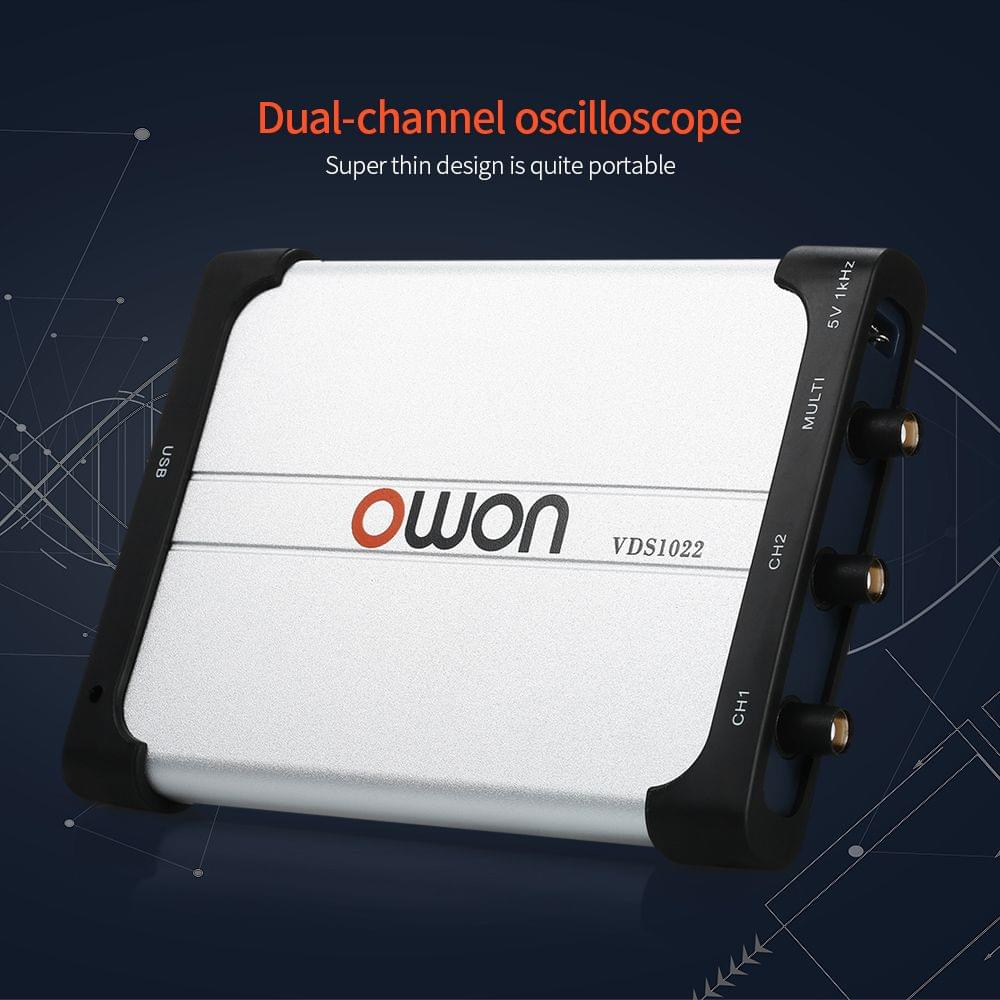

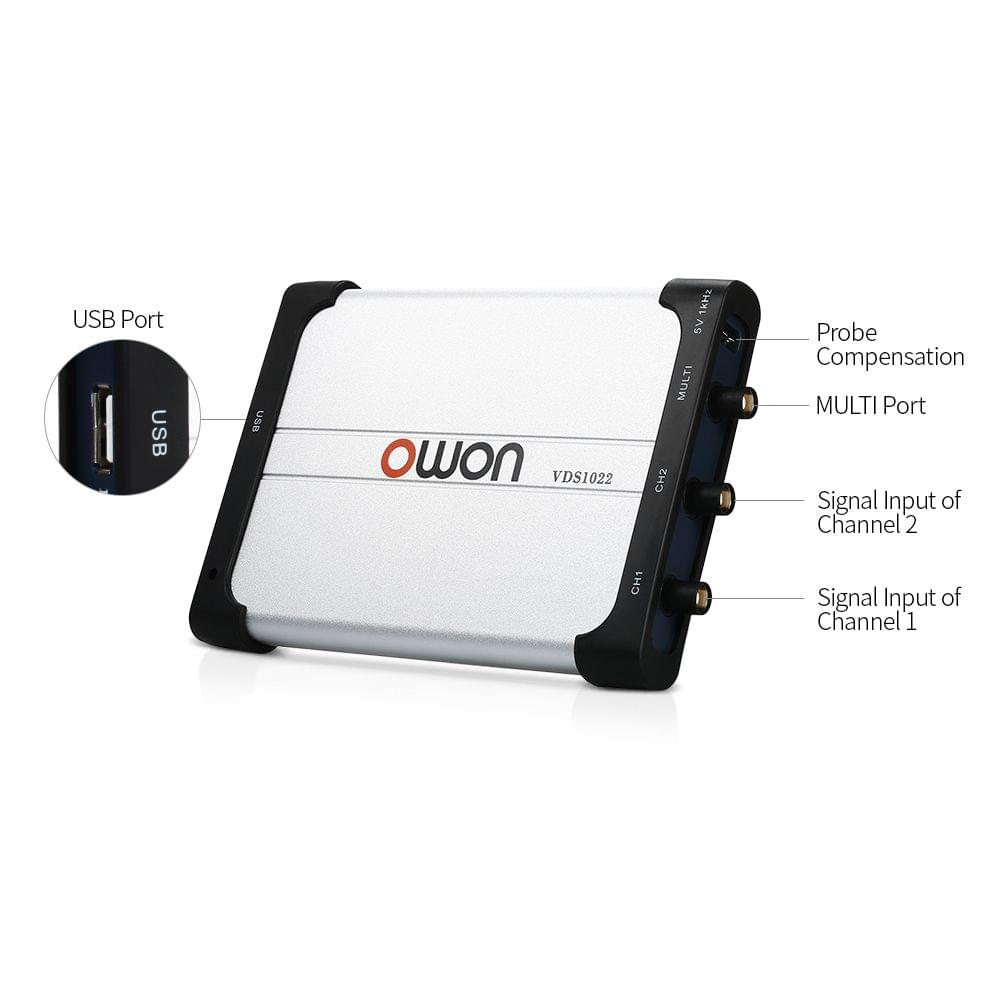

Features:Dual-channel oscilloscope super thin design is quite portable.25MHz bandwidth 100MS/s real-time sampling rate.Maximum 5K storage depth.Friendly man-machine interface FFT or X-Y and waveform 2 views on the same screen displayed.Multiple trigger modes: edge video slope pulse width alternate.USB isolation PC digital storage oscilloscope.Specifications:Material: Aluminum alloy+copper+tin+PCType: With misoperation protection / Without misoperation protection (Optional) Functions Specifications of VDS1022 Bandwidth 25MHz Sample Rate 100MS/s Rise Time 14ns Horizontal Scale(S/div) 5ns/div - 100s/div step by1-2-5 Sampling Mode Sample Peak detect Average Channel 2+1 (MULTI port) Max. Record Length 5k Input Coupling DC AC Ground Input Impedance 1M?2% in parallel with 15pF5pF Max. Input Voltage 400V (DC+AC Peak) DC Gain Accuracy 3% Vertical Sensitivity 5mV/div - 5V/div Trigger Type Edge Video Slope Pulse Alternate Trigger Mode Auto Normal Single Line/Field Frequency (Video) Support standard NTSC PAL and SECAM broadcast systems Automatic Measurement Vpp Vmax Vmin Vtop Vbase Vamp Vavg Vrms Overshoot Preshoot Freq Period Rise Time Fall Time Delay A to B +Width -Width +Duty -Duty Waveform Math + - FFT Communication Interface USB 2.0 Full Speed Power Supply 5.0V/500mA Power Consumption ? 2.5W Item Size 180 * 125 * 23mm / 7.09 * 4.92 * 0.91in Net Weight 501g / 17.67oz Package Weight 712g / 25.13oz Package Size 24.7 * 15.2 * 7.3cm / 9.72 * 5.98 * 2.87in Package List:1 * Oscilloscope2 * Probe1 * USB Cable1 * CD1 * Package of Accessory1 * Manual (English)
