P6100 2Piece Oscilloscope Probe Kit DC-100MHz Scope Clip Test Probe 100MHz

Description:

Universal oscilloscope probe 10:1 and 1:1 switchable bandwidth 100MHz; Used with oscilloscopes from all manufacturers , equipped with the standard BNC connector
Oscilloscope probe is an electric component that connects circuit-under-test and oscilloscope input.
Adopting completely new material, this oscilloscope probe is of high quality.
Besides, material and high technology enhance its hand feel and strengthen its structure.

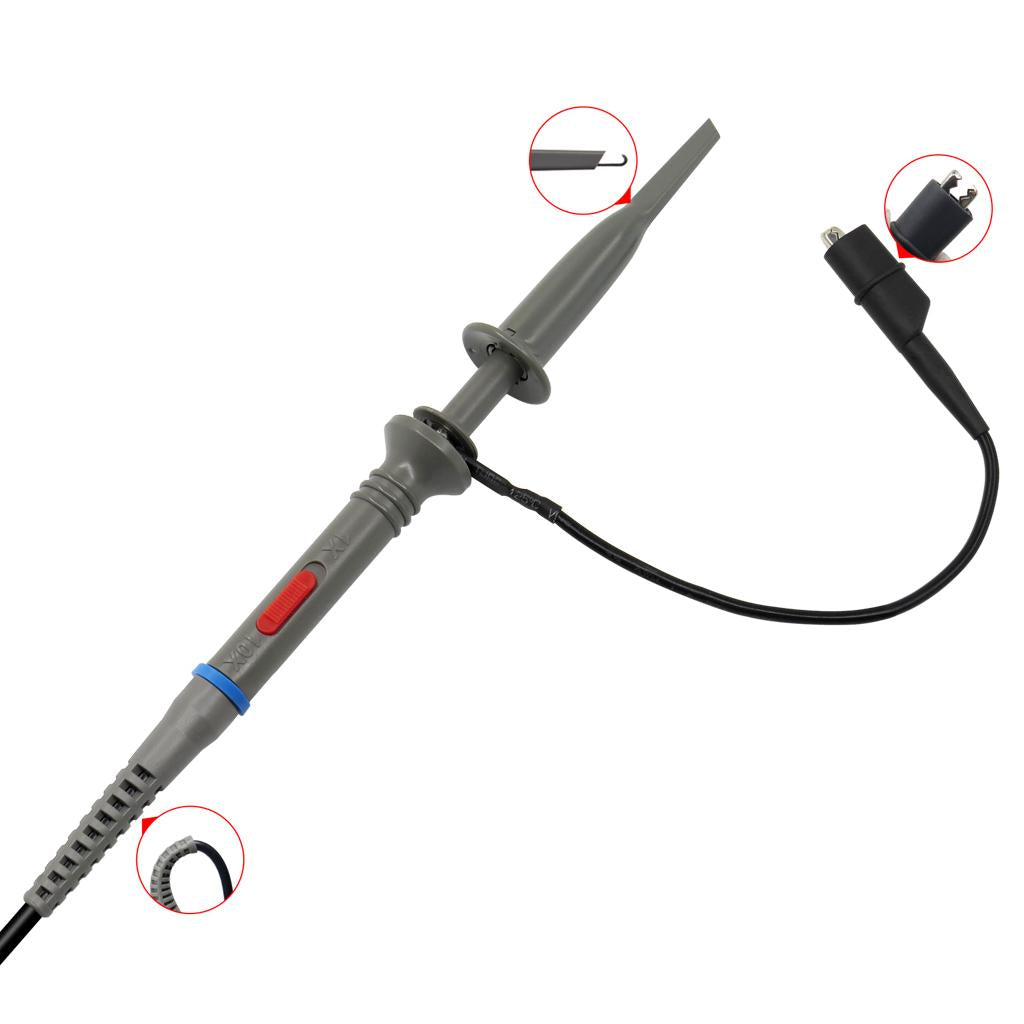

Smooth surface is comfortable to use. In addition, this probe adopts injection molding style ground wire for prolonging its service life and ensuring reliable contact.

Specification:

Bandwidth: 100 MHz
Rise time: 3.5ns
Attenuation Ratio: 10:1 and 1: 1 switchable (slide switch on the handle)
Damping ratio: 1x / 10x
Input resistance: (1MΩ / 10M) +/- 2%
Input Capacitance: 1x: 70pF-120pF 10X: 13-17pF
Maximum input: 1x: 200 Operating voltage (Vp-p) 10: 600 Operating voltage (Vp-p)

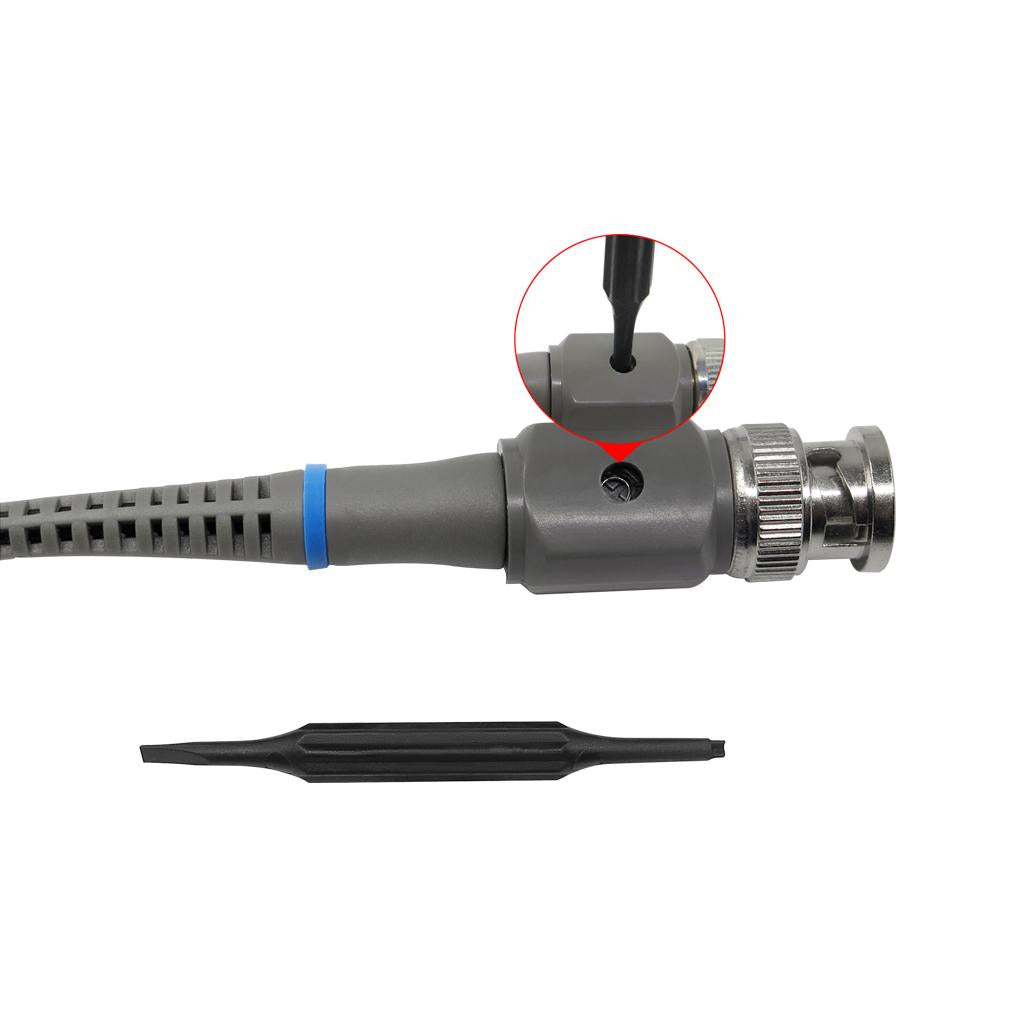

Correction range: 10-35pF
Operating temperature: 0-50 Celsius
Humidity: 0-80% RH
Cable Length: 110+/-2cm

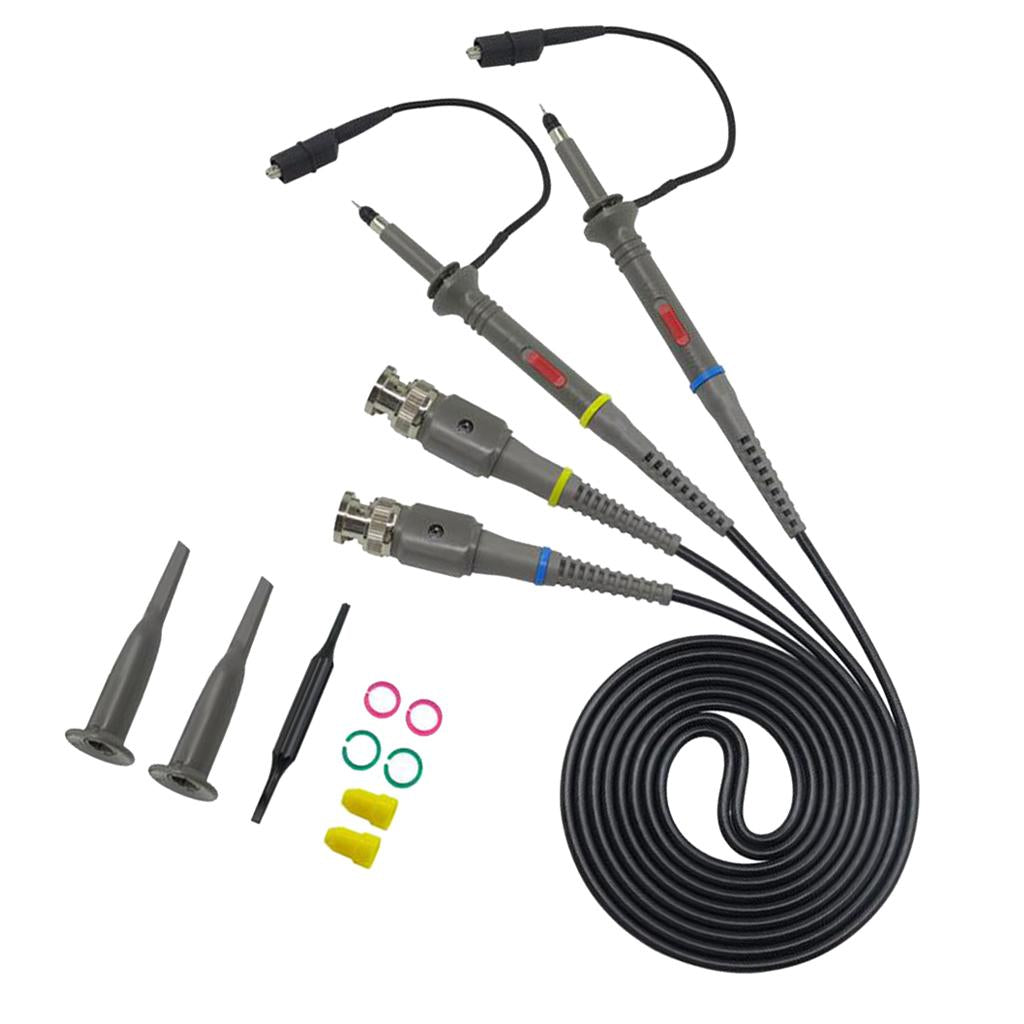

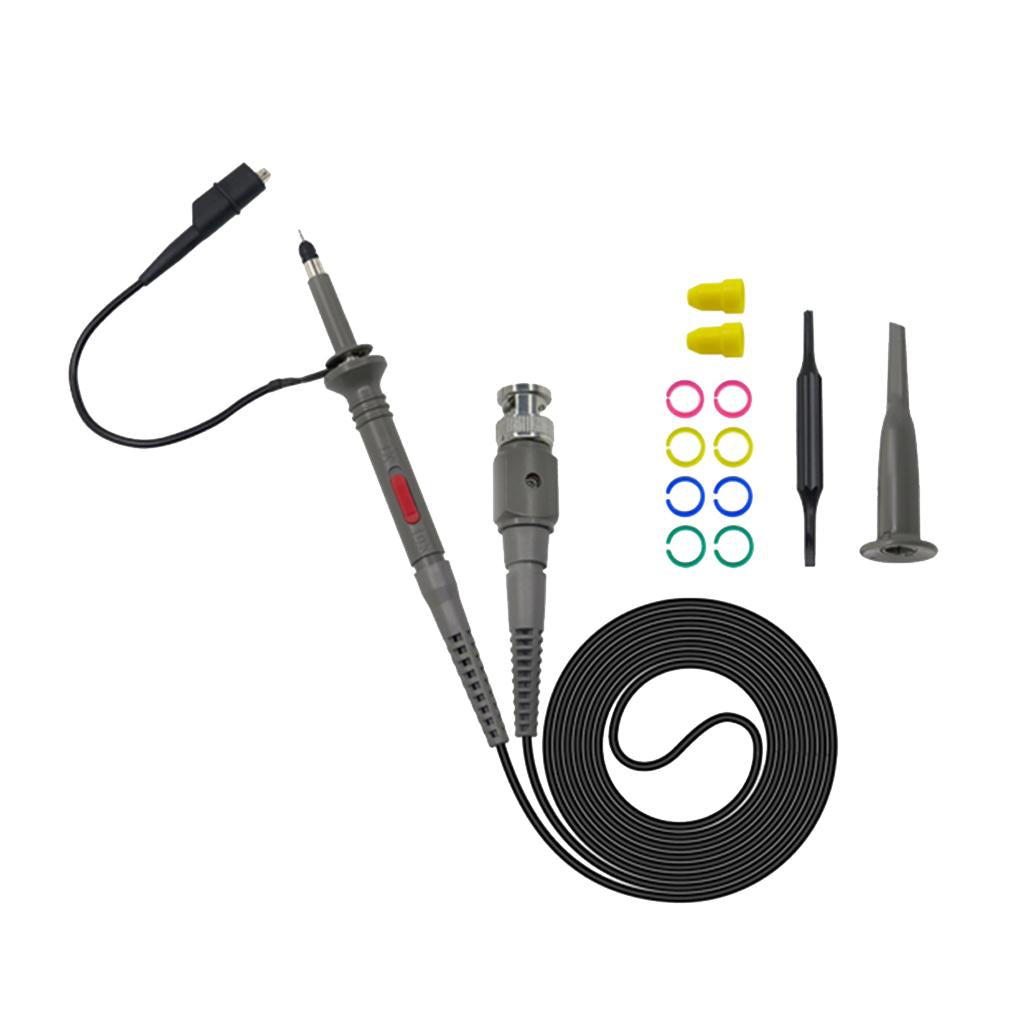

Package Includes:

2 Pieces Probe
2 Pieces Protective
4 Pieces Color ring
1 Pieces Regulating Rod
